A UDP server, receives UDP packets from a remote host. More...

#include "udp-server.h"

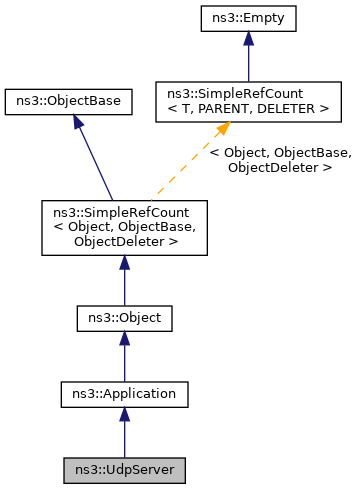

Inheritance diagram for ns3::UdpServer:

Collaboration diagram for ns3::UdpServer:

Public Member Functions
	UdpServer ()

	~UdpServer () override

uint32_t	GetLost () const
	Returns the number of lost packets. More...

uint16_t	GetPacketWindowSize () const
	Returns the size of the window used for checking loss. More...

uint64_t	GetReceived () const
	Returns the number of received packets. More...

void	SetPacketWindowSize (uint16_t size)
	Set the size of the window used for checking loss. More...

Public Member Functions inherited from ns3::Application
	Application ()

	~Application () override

Ptr< Node >	GetNode () const

void	SetNode (Ptr< Node > node)

void	SetStartTime (Time start)
	Specify application start time. More...

void	SetStopTime (Time stop)
	Specify application stop time. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Application
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
void	DoDispose () override
	Destructor implementation. More...

Protected Member Functions inherited from ns3::Application
void	DoDispose () override
	Destructor implementation. More...

void	DoInitialize () override
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
void	HandleRead (Ptr< Socket > socket)
	Handle a packet reception. More...

void	StartApplication () override
	Application specific startup code. More...

void	StopApplication () override
	Application specific shutdown code. More...

Private Attributes
PacketLossCounter	m_lossCounter
	Lost packet counter. More...

uint16_t	m_port
	Port on which we listen for incoming packets. More...

uint64_t	m_received
	Number of received packets. More...

TracedCallback< Ptr< const Packet > >	m_rxTrace
	Callbacks for tracing the packet Rx events. More...

TracedCallback< Ptr< const Packet >, const Address &, const Address & >	m_rxTraceWithAddresses
	Callbacks for tracing the packet Rx events, includes source and destination addresses. More...

Ptr< Socket >	m_socket
	IPv4 Socket. More...

Ptr< Socket >	m_socket6
	IPv6 Socket. More...

Additional Inherited Members
Public Types inherited from ns3::Application
typedef void(*	DelayAddressCallback) (const Time &delay, const Address &from)
	Common callback signature for packet delay and address. More...

typedef void(*	StateTransitionCallback) (const std::string &oldState, const std::string &newState)
	Common signature used by callbacks to application's state transition trace source. More...

Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node
	The node that this application is installed on. More...

EventId	m_startEvent
	The event that will fire at m_startTime to start the application. More...

Time	m_startTime
	The simulation time that the application will start. More...

EventId	m_stopEvent
	The event that will fire at m_stopTime to end the application. More...

Time	m_stopTime
	The simulation time that the application will end. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

A UDP server, receives UDP packets from a remote host.

UDP packets carry a 32bits sequence number followed by a 64bits time stamp in their payloads. The application uses the sequence number to determine if a packet is lost, and the time stamp to compute the delay.

Definition at line 49 of file udp-server.h.

Constructor & Destructor Documentation

◆ UdpServer()

ns3::UdpServer::UdpServer ( )

Definition at line 75 of file udp-server.cc.

References m_received, and NS_LOG_FUNCTION.

◆ ~UdpServer()

ns3::UdpServer::~UdpServer ( )

override

Definition at line 82 of file udp-server.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ DoDispose()

void ns3::UdpServer::DoDispose ( void )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 116 of file udp-server.cc.

References ns3::Application::DoDispose(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetLost()

uint32_t ns3::UdpServer::GetLost ( ) const

Returns the number of lost packets.

Returns: the number of lost packets

Definition at line 102 of file udp-server.cc.

References ns3::PacketLossCounter::GetLost(), m_lossCounter, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetPacketWindowSize()

uint16_t ns3::UdpServer::GetPacketWindowSize ( ) const

Returns the size of the window used for checking loss.

Returns: the size of the window used for checking loss.

Definition at line 88 of file udp-server.cc.

References ns3::PacketLossCounter::GetBitMapSize(), m_lossCounter, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetReceived()

uint64_t ns3::UdpServer::GetReceived ( ) const

Returns the number of received packets.

Returns: the number of received packets

Definition at line 109 of file udp-server.cc.

References m_received, and NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::UdpServer::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 45 of file udp-server.cc.

References GetPacketWindowSize(), m_port, m_rxTrace, m_rxTraceWithAddresses, ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), SetPacketWindowSize(), and ns3::TypeId::SetParent().

Referenced by ns3::UdpServerHelper::UdpServerHelper().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HandleRead()

void ns3::UdpServer::HandleRead ( Ptr< Socket > socket )

private

Handle a packet reception.

This function is called by lower layers.

Parameters

socket the socket the packet was received to.

Definition at line 166 of file udp-server.cc.

References ns3::Inet6SocketAddress::ConvertFrom(), ns3::InetSocketAddress::ConvertFrom(), ns3::SeqTsHeader::GetSeq(), ns3::Packet::GetSize(), ns3::Socket::GetSockName(), ns3::SeqTsHeader::GetTs(), ns3::Packet::GetUid(), ns3::Inet6SocketAddress::IsMatchingType(), ns3::InetSocketAddress::IsMatchingType(), m_lossCounter, m_received, m_rxTrace, m_rxTraceWithAddresses, ns3::PacketLossCounter::NotifyReceived(), ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_INFO, ns3::Socket::RecvFrom(), and ns3::Packet::RemoveHeader().

Referenced by StartApplication().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetPacketWindowSize()

void ns3::UdpServer::SetPacketWindowSize ( uint16_t size )

Set the size of the window used for checking loss.

This value should be a multiple of 8

Parameters

size	the size of the window used for checking loss. This value should be a multiple of 8

Definition at line 95 of file udp-server.cc.

References m_lossCounter, NS_LOG_FUNCTION, and ns3::PacketLossCounter::SetBitMapSize().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StartApplication()

void ns3::UdpServer::StartApplication ( void )

overrideprivatevirtual

Application specific startup code.

The StartApplication method is called at the start time specified by Start This method should be overridden by all or most application subclasses.

Reimplemented from ns3::Application.

Definition at line 123 of file udp-server.cc.

References ns3::Socket::Bind(), ns3::Socket::CreateSocket(), ns3::Ipv4Address::GetAny(), ns3::Ipv6Address::GetAny(), ns3::Application::GetNode(), HandleRead(), ns3::TypeId::LookupByName(), m_port, m_socket, m_socket6, ns3::MakeCallback(), NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::Socket::SetRecvCallback().

Here is the call graph for this function:

◆ StopApplication()

void ns3::UdpServer::StopApplication ( void )

overrideprivatevirtual

Application specific shutdown code.

The StopApplication method is called at the stop time specified by Stop This method should be overridden by all or most application subclasses.

Reimplemented from ns3::Application.

Definition at line 155 of file udp-server.cc.

References m_socket, ns3::MakeNullCallback(), NS_LOG_FUNCTION, and ns3::Socket::SetRecvCallback().

Here is the call graph for this function:

Member Data Documentation

◆ m_lossCounter

PacketLossCounter ns3::UdpServer::m_lossCounter

private

Lost packet counter.

Definition at line 105 of file udp-server.h.

Referenced by GetLost(), GetPacketWindowSize(), HandleRead(), and SetPacketWindowSize().

◆ m_port

uint16_t ns3::UdpServer::m_port

private

Port on which we listen for incoming packets.

Definition at line 101 of file udp-server.h.

Referenced by GetTypeId(), and StartApplication().

◆ m_received

uint64_t ns3::UdpServer::m_received

private

Number of received packets.

Definition at line 104 of file udp-server.h.

Referenced by UdpServer(), GetReceived(), and HandleRead().

◆ m_rxTrace

TracedCallback<Ptr<const Packet> > ns3::UdpServer::m_rxTrace

private

Callbacks for tracing the packet Rx events.

Definition at line 108 of file udp-server.h.

Referenced by GetTypeId(), and HandleRead().

◆ m_rxTraceWithAddresses

TracedCallback<Ptr<const Packet>, const Address&, const Address&> ns3::UdpServer::m_rxTraceWithAddresses

private

Callbacks for tracing the packet Rx events, includes source and destination addresses.

Definition at line 111 of file udp-server.h.

Referenced by GetTypeId(), and HandleRead().

◆ m_socket

Ptr<Socket> ns3::UdpServer::m_socket

private

IPv4 Socket.

Definition at line 102 of file udp-server.h.

Referenced by StartApplication(), and StopApplication().

◆ m_socket6

Ptr<Socket> ns3::UdpServer::m_socket6

private

IPv6 Socket.

Definition at line 103 of file udp-server.h.

Referenced by StartApplication().

The documentation for this class was generated from the following files:

src/applications/model/udp-server.h
src/applications/model/udp-server.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ UdpServer()

◆ ~UdpServer()

Member Function Documentation

◆ DoDispose()

◆ GetLost()

◆ GetPacketWindowSize()

◆ GetReceived()

◆ GetTypeId()

◆ HandleRead()

◆ SetPacketWindowSize()

◆ StartApplication()

◆ StopApplication()

Member Data Documentation

◆ m_lossCounter

◆ m_port

◆ m_received

◆ m_rxTrace

◆ m_rxTraceWithAddresses

◆ m_socket

◆ m_socket6
