ns-3: ns3::Inet6SocketAddress Class Reference

A Discrete-Event Network Simulator

API

An Inet6 address class. More...

#include "inet6-socket-address.h"

Collaboration diagram for ns3::Inet6SocketAddress:

Public Member Functions
	Inet6SocketAddress (const char *ipv6)
	Constructor. More...

	Inet6SocketAddress (const char *ipv6, uint16_t port)
	Constructor. More...

	Inet6SocketAddress (Ipv6Address ipv6)
	Constructor (the port is set to zero). More...

	Inet6SocketAddress (Ipv6Address ipv6, uint16_t port)
	Constructor. More...

	Inet6SocketAddress (uint16_t port)
	Constructor (the address is set to "any"). More...

Address	ConvertTo () const
	Convert to Address. More...

Ipv6Address	GetIpv6 () const
	Get the IPv6 address. More...

uint16_t	GetPort () const
	Get the port. More...

	operator Address () const
	Get an Address instance which represents this Inet6SocketAddress instance. More...

void	SetIpv6 (Ipv6Address ipv6)
	Set the IPv6 address. More...

void	SetPort (uint16_t port)
	Set the port. More...

Static Public Member Functions
static Inet6SocketAddress	ConvertFrom (const Address &addr)
	Convert the address to a InetSocketAddress. More...

static bool	IsMatchingType (const Address &addr)
	If the address match. More...

Static Private Member Functions
static uint8_t	GetType ()
	Get the type. More...

Private Attributes
Ipv6Address	m_ipv6
	The IPv6 address. More...

uint16_t	m_port
	The port. More...

Detailed Description

An Inet6 address class.

Definition at line 37 of file inet6-socket-address.h.

Constructor & Destructor Documentation

◆ Inet6SocketAddress() [1/5]

ns3::Inet6SocketAddress::Inet6SocketAddress	(	Ipv6Address	ipv6,
		uint16_t	port
	)

Constructor.

Parameters

ipv6	the IPv6 address
port	the port

Definition at line 30 of file inet6-socket-address.cc.

References NS_LOG_FUNCTION, and port.

Referenced by ConvertFrom().

Here is the caller graph for this function:

◆ Inet6SocketAddress() [2/5]

ns3::Inet6SocketAddress::Inet6SocketAddress ( Ipv6Address ipv6 )

Constructor (the port is set to zero).

Parameters

ipv6	the IPv6 address

Definition at line 37 of file inet6-socket-address.cc.

References NS_LOG_FUNCTION.

◆ Inet6SocketAddress() [3/5]

ns3::Inet6SocketAddress::Inet6SocketAddress ( uint16_t port )

Constructor (the address is set to "any").

Parameters

port the port

Definition at line 58 of file inet6-socket-address.cc.

References NS_LOG_FUNCTION, and port.

◆ Inet6SocketAddress() [4/5]

ns3::Inet6SocketAddress::Inet6SocketAddress	(	const char *	ipv6,
		uint16_t	port
	)

Constructor.

Parameters

ipv6	string which represents an IPv6 address
port	the port

Definition at line 44 of file inet6-socket-address.cc.

References NS_LOG_FUNCTION, and port.

◆ Inet6SocketAddress() [5/5]

ns3::Inet6SocketAddress::Inet6SocketAddress ( const char * ipv6 )

Constructor.

Parameters

ipv6	string which represents an IPv6 address

Definition at line 51 of file inet6-socket-address.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ ConvertFrom()

Inet6SocketAddress ns3::Inet6SocketAddress::ConvertFrom ( const Address & addr )

static

Convert the address to a InetSocketAddress.

Parameters

addr	the address to convert

Returns: an Inet6SocketAddress instance corresponding to address

Definition at line 117 of file inet6-socket-address.cc.

References Inet6SocketAddress(), ns3::Address::CheckCompatible(), ns3::Address::CopyTo(), ns3::Ipv6Address::Deserialize(), GetType(), NS_ASSERT, NS_LOG_FUNCTION, and port.

Referenced by ns3::Ipv6RawSocketImpl::Bind(), ns3::TcpSocketBase::Bind(), ns3::UdpSocketImpl::Bind(), ns3::TcpSocketBase::CompleteFork(), ns3::Ipv6RawSocketImpl::Connect(), ns3::TcpSocketBase::Connect(), ns3::UdpSocketImpl::Connect(), ns3::SinkTracer::FormatAddress(), ns3::PacketSink::HandleRead(), ns3::UdpEchoClient::HandleRead(), ns3::UdpEchoServer::HandleRead(), ns3::UdpServer::HandleRead(), ns3::PacketSink::AddressHash::operator()(), UanExperiment::PrintReceivedPacket(), ns3::TcpSocketBase::ProcessSynRcvd(), ns3::Ping::Receive(), ns3::RipNg::Receive(), ns3::ThreeGppHttpClient::ReceivedDataCallback(), ns3::ThreeGppHttpServer::ReceivedDataCallback(), ns3::UdpEchoClient::Send(), ns3::Radvd::Send(), ns3::OnOffApplication::SendPacket(), ns3::TcpL4Protocol::SendPacket(), ns3::UdpSocketImpl::SendTo(), ns3::Ipv6RawSocketImpl::SendTo(), ns3::PacketSink::StartApplication(), and ns3::UdpClient::StartApplication().

Here is the call graph for this function:

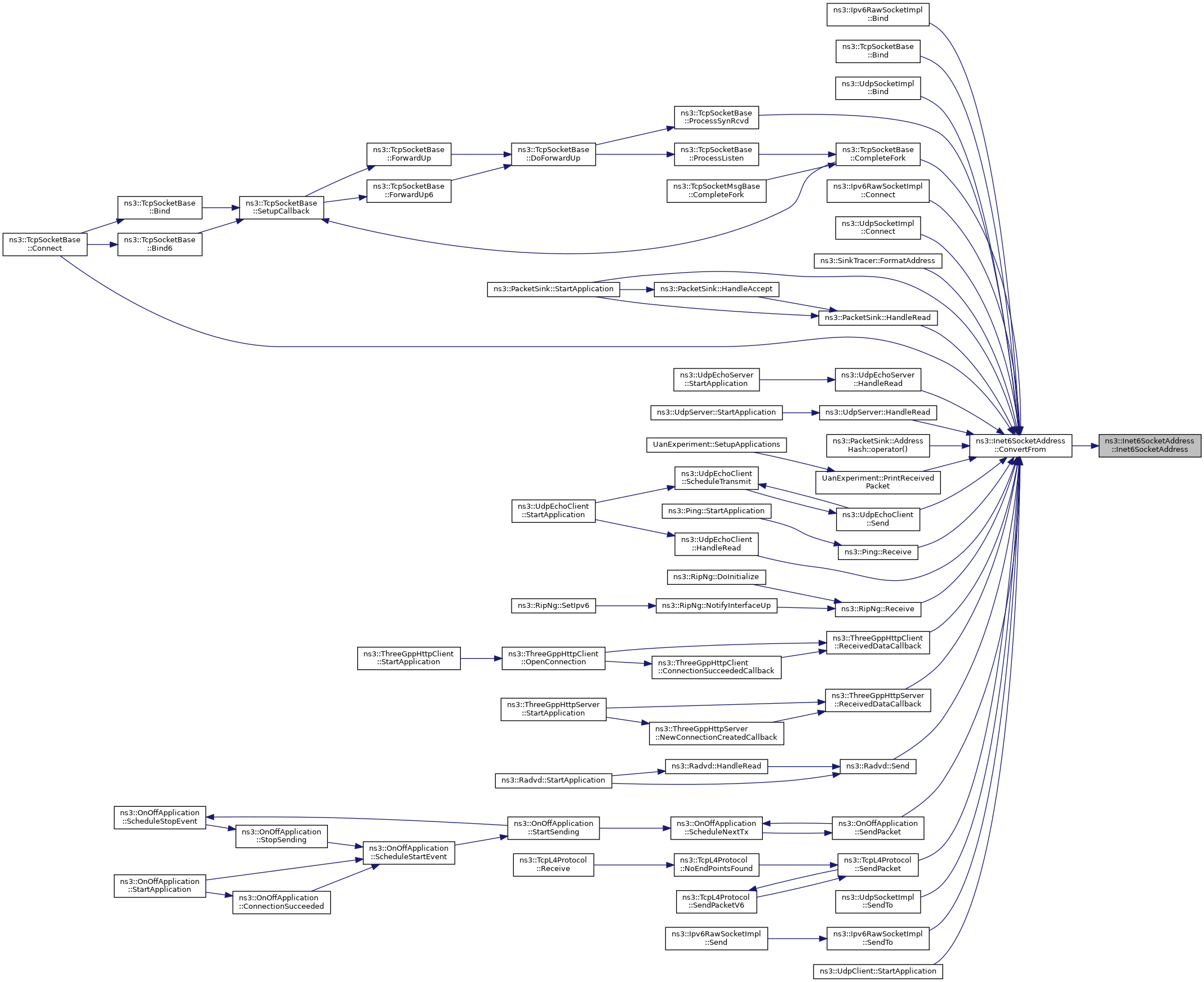

Here is the caller graph for this function:

◆ ConvertTo()

Address ns3::Inet6SocketAddress::ConvertTo ( ) const

Convert to Address.

Returns: Address instance

Definition at line 106 of file inet6-socket-address.cc.

References GetType(), m_ipv6, m_port, NS_LOG_FUNCTION, and ns3::Ipv6Address::Serialize().

Here is the call graph for this function:

◆ GetIpv6()

Ipv6Address ns3::Inet6SocketAddress::GetIpv6 ( ) const

Get the IPv6 address.

Returns: the IPv6 address

Definition at line 80 of file inet6-socket-address.cc.

References m_ipv6, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6RawSocketImpl::Bind(), ns3::TcpSocketBase::Bind(), ns3::UdpSocketImpl::Bind(), ns3::Ipv6RawSocketImpl::Connect(), ns3::TcpSocketBase::Connect(), ns3::UdpSocketImpl::Connect(), ns3::SinkTracer::FormatAddress(), ns3::PacketSink::HandleRead(), ns3::UdpEchoClient::HandleRead(), ns3::UdpEchoServer::HandleRead(), ns3::PacketSink::AddressHash::operator()(), ns3::Ping::PrintReport(), ns3::Ping::Receive(), ns3::RipNg::Receive(), ns3::ThreeGppHttpClient::ReceivedDataCallback(), ns3::ThreeGppHttpServer::ReceivedDataCallback(), Ipv6RawSocketImplTest::ReceivePkt2(), ns3::Radvd::Send(), ns3::OnOffApplication::SendPacket(), ns3::TcpL4Protocol::SendPacket(), ns3::UdpSocketImpl::SendTo(), ns3::Ipv6RawSocketImpl::SendTo(), ns3::UdpClient::StartApplication(), and ns3::Ping::StartApplication().

Here is the caller graph for this function:

◆ GetPort()

uint16_t ns3::Inet6SocketAddress::GetPort ( ) const

Get the port.

Returns: the port

Definition at line 66 of file inet6-socket-address.cc.

References m_port, and NS_LOG_FUNCTION.

Referenced by ns3::TcpSocketBase::Bind(), ns3::UdpSocketImpl::Bind(), ns3::TcpSocketBase::Connect(), ns3::UdpSocketImpl::Connect(), ns3::SinkTracer::FormatAddress(), ns3::PacketSink::HandleRead(), ns3::UdpEchoClient::HandleRead(), ns3::UdpEchoServer::HandleRead(), ns3::RipNg::Receive(), ns3::ThreeGppHttpClient::ReceivedDataCallback(), ns3::ThreeGppHttpServer::ReceivedDataCallback(), ns3::OnOffApplication::SendPacket(), ns3::UdpSocketImpl::SendTo(), and ns3::PacketSink::StartApplication().

Here is the caller graph for this function:

◆ GetType()

uint8_t ns3::Inet6SocketAddress::GetType ( )

staticprivate

Get the type.

Returns: the type of Inet6SocketAddress

Definition at line 129 of file inet6-socket-address.cc.

References NS_LOG_FUNCTION_NOARGS, ns3::Address::Register(), and check-style-clang-format::type.

Referenced by ConvertFrom(), ConvertTo(), and IsMatchingType().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsMatchingType()

bool ns3::Inet6SocketAddress::IsMatchingType ( const Address & addr )

static

If the address match.

Parameters

addr	the address to test

Returns: true if the address match, false otherwise

Definition at line 94 of file inet6-socket-address.cc.

References ns3::Address::CheckCompatible(), GetType(), and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6RawSocketImpl::Bind(), ns3::TcpSocketBase::Bind(), ns3::UdpSocketImpl::Bind(), ns3::TcpSocketBase::CompleteFork(), ns3::Ipv6RawSocketImpl::Connect(), ns3::TcpSocketBase::Connect(), ns3::UdpSocketImpl::Connect(), ns3::SinkTracer::FormatAddress(), ns3::PacketSink::HandleRead(), ns3::UdpEchoClient::HandleRead(), ns3::UdpEchoServer::HandleRead(), ns3::UdpServer::HandleRead(), ns3::Radvd::HandleRead(), ns3::PacketSink::AddressHash::operator()(), UanExperiment::PrintReceivedPacket(), ns3::Ping::Receive(), ns3::ThreeGppHttpClient::ReceivedDataCallback(), ns3::ThreeGppHttpServer::ReceivedDataCallback(), ns3::UdpEchoClient::Send(), ns3::OnOffApplication::SendPacket(), ns3::TcpL4Protocol::SendPacket(), ns3::UdpSocketImpl::SendTo(), ns3::Ipv6RawSocketImpl::SendTo(), ns3::BulkSendApplication::StartApplication(), ns3::OnOffApplication::StartApplication(), ns3::PacketSink::StartApplication(), ns3::UdpClient::StartApplication(), ns3::UdpEchoClient::StartApplication(), and ns3::UdpTraceClient::StartApplication().

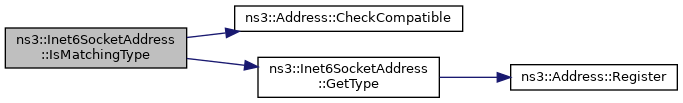

Here is the call graph for this function:

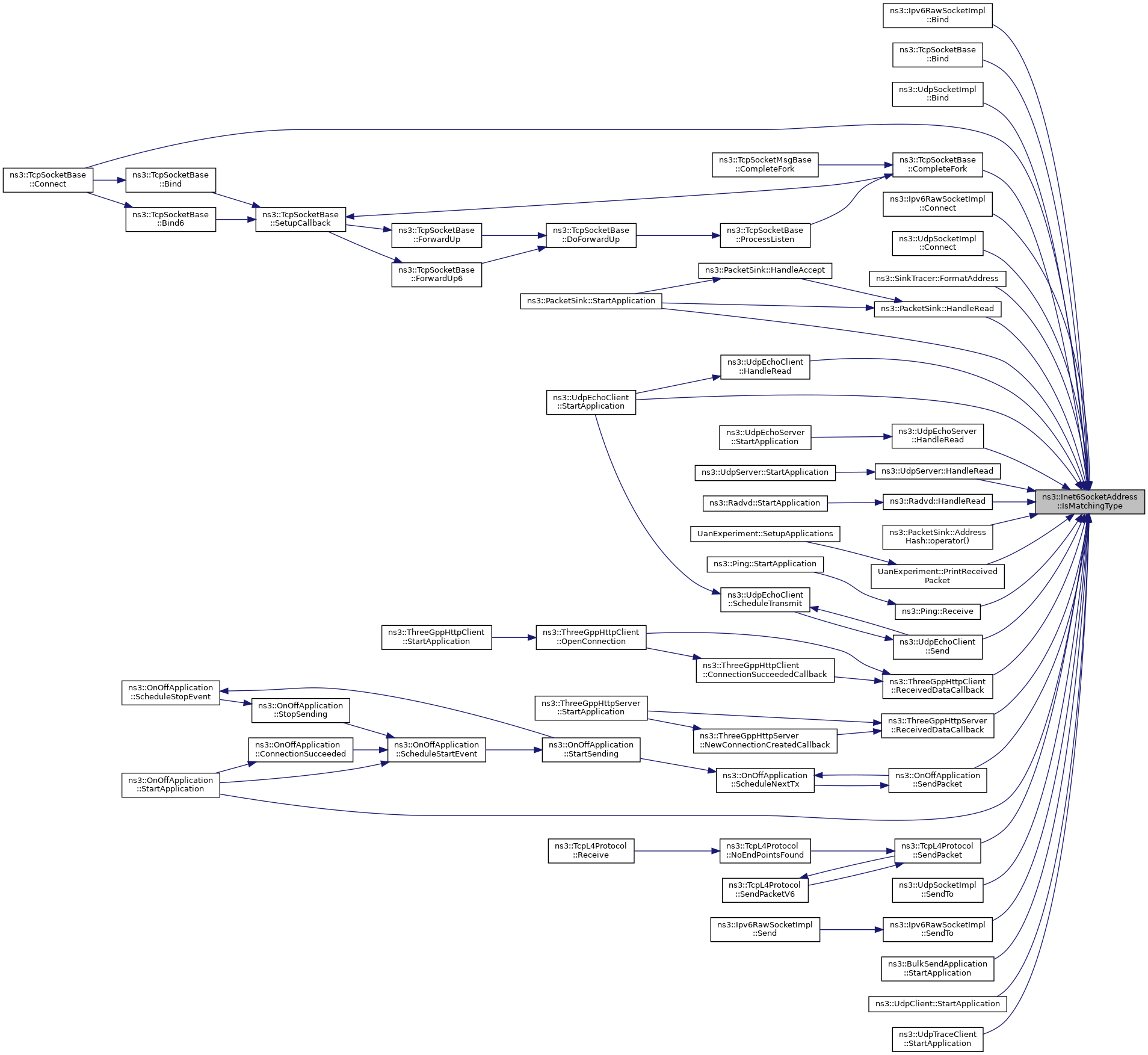

Here is the caller graph for this function:

◆ operator Address()

ns3::Inet6SocketAddress::operator Address ( ) const

Get an Address instance which represents this Inet6SocketAddress instance.

Definition at line 100 of file inet6-socket-address.cc.

◆ SetIpv6()

void ns3::Inet6SocketAddress::SetIpv6 ( Ipv6Address ipv6 )

Set the IPv6 address.

Parameters

ipv6	the address

Definition at line 87 of file inet6-socket-address.cc.

References m_ipv6, and NS_LOG_FUNCTION.

◆ SetPort()

void ns3::Inet6SocketAddress::SetPort ( uint16_t port )

Set the port.

Parameters

port the port

Definition at line 73 of file inet6-socket-address.cc.

References m_port, NS_LOG_FUNCTION, and port.

Referenced by Ipv6RawSocketImplTest::DoRun().

Here is the caller graph for this function:

Member Data Documentation

◆ m_ipv6

Ipv6Address ns3::Inet6SocketAddress::m_ipv6

private

The IPv6 address.

Definition at line 132 of file inet6-socket-address.h.

Referenced by ConvertTo(), GetIpv6(), and SetIpv6().

◆ m_port

uint16_t ns3::Inet6SocketAddress::m_port

private

The port.

Definition at line 137 of file inet6-socket-address.h.

Referenced by ConvertTo(), GetPort(), and SetPort().

The documentation for this class was generated from the following files:

src/network/utils/inet6-socket-address.h
src/network/utils/inet6-socket-address.cc
