ns3::InetSocketAddress Class Reference
Network » Address

an Inet address class More...

#include "inet-socket-address.h"

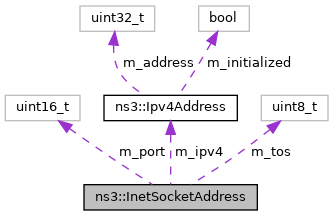

+ Collaboration diagram for ns3::InetSocketAddress:

Public Member Functions

 InetSocketAddress (const char *ipv4)

 InetSocketAddress (const char *ipv4, uint16_t port)

 InetSocketAddress (Ipv4Address ipv4)

 InetSocketAddress (Ipv4Address ipv4, uint16_t port)

 InetSocketAddress (uint16_t port)

Address ConvertTo () const
 Convert to an Address type. More...

Ipv4Address GetIpv4 () const

uint16_t GetPort () const

uint8_t GetTos () const

 operator Address () const

void SetIpv4 (Ipv4Address address)

void SetPort (uint16_t port)

void SetTos (uint8_t tos)


Static Public Member Functions

static InetSocketAddress ConvertFrom (const Address &address)
 Returns an InetSocketAddress which corresponds to the input Address. More...

static bool IsMatchingType (const Address &address)


Static Private Member Functions

static uint8_t GetType ()
 Get the underlying address type (automatically assigned). More...


Private Attributes

Ipv4Address m_ipv4
 the IPv4 address More...

uint16_t m_port
 the port More...

uint8_t m_tos
 the ToS More...


Detailed Description

an Inet address class

This class is similar to inet_sockaddr in the BSD socket API. i.e., this class holds an Ipv4Address and a port number to form an ipv4 transport endpoint.

Definition at line 41 of file inet-socket-address.h.

Constructor & Destructor Documentation

◆ InetSocketAddress() [1/5]

ns3::InetSocketAddress::InetSocketAddress ( Ipv4Address  ipv4,
uint16_t  port
)
Parameters
ipv4the ipv4 address
portthe port number

Definition at line 30 of file inet-socket-address.cc.

References nsclick-simple-lan::ipv4, NS_LOG_FUNCTION, and port.

◆ InetSocketAddress() [2/5]

ns3::InetSocketAddress::InetSocketAddress ( Ipv4Address  ipv4)
Parameters
ipv4the ipv4 address

The port number is set to zero by default.

Definition at line 38 of file inet-socket-address.cc.

References nsclick-simple-lan::ipv4, and NS_LOG_FUNCTION.

◆ InetSocketAddress() [3/5]

ns3::InetSocketAddress::InetSocketAddress ( uint16_t  port)
Parameters
portthe port number

The ipv4 address is set to the "Any" address by default.

Definition at line 62 of file inet-socket-address.cc.

References NS_LOG_FUNCTION, and port.

◆ InetSocketAddress() [4/5]

ns3::InetSocketAddress::InetSocketAddress ( const char *  ipv4,
uint16_t  port
)
Parameters
ipv4string which represents an ipv4 address
portthe port number

Definition at line 46 of file inet-socket-address.cc.

References nsclick-simple-lan::ipv4, NS_LOG_FUNCTION, and port.

◆ InetSocketAddress() [5/5]

ns3::InetSocketAddress::InetSocketAddress ( const char *  ipv4)
Parameters
ipv4string which represents an ipv4 address

The port number is set to zero.

Definition at line 54 of file inet-socket-address.cc.

References nsclick-simple-lan::ipv4, and NS_LOG_FUNCTION.

Member Function Documentation

◆ ConvertFrom()

InetSocketAddress ns3::InetSocketAddress::ConvertFrom ( const Address &  address)
static

Returns an InetSocketAddress which corresponds to the input Address.

Parameters
addressthe Address instance to convert from.
Returns
an InetSocketAddress

Definition at line 137 of file inet-socket-address.cc.

References first::address, ns3::Ipv4Address::Deserialize(), GetType(), nsclick-simple-lan::ipv4, NS_ASSERT, NS_LOG_FUNCTION, port, and SetTos().

Referenced by ns3::DhcpClient::AcceptAck(), ns3::QKDKeyManagerSystemApplication::AddNewLink(), ns3::Ipv4RawSocketImpl::Bind(), ns3::TcpSocketBase::Bind(), ns3::UdpSocketImpl::Bind(), ns3::QKDKeyManagerSystemApplication::CheckDoSAttack(), ns3::QKDApp004::Close(), ns3::TcpSocketBase::CompleteFork(), ns3::Ipv4RawSocketImpl::Connect(), ns3::TcpSocketBase::Connect(), ns3::UdpSocketImpl::Connect(), ns3::QKDApp004::ConnectionRequestedFromKMS(), ns3::QKDApp014::ConnectionRequestedFromKMS(), ns3::QKDKeyManagerSystemApplication::ConnectToSDNController(), ns3::QKDApp004::CreateKeyQueues(), dstSocketRecv(), ns3::aodv::LoopbackTestCase::EchoData(), ns3::SinkTracer::FormatAddress(), ns3::QKDApp004::GetKeyFromKMS(), ns3::QKDApp014::GetKeysFromKMS(), ns3::QKDApp014::GetKeyWithKeyIDs(), ns3::QKDApp014::GetStatusFromKMS(), ns3::QKDKeyManagerSystemApplication::HandleAccept(), ns3::QKDSDNController::HandleAccept(), ns3::QKDApp004::HandleAcceptFromApp(), ns3::QKDApp014::HandleAcceptFromApp(), ns3::QKDApp004::HandleAcceptFromKMS(), ns3::QKDApp014::HandleAcceptFromKMS(), ns3::QKDKeyManagerSystemApplication::HandleAcceptKMSs(), ns3::QKDKeyManagerSystemApplication::HandleAcceptSDN(), ns3::QKDApp004::HandleAcceptSignalingFromApp(), ns3::QKDApp014::HandleAcceptSignalingFromApp(), ns3::PacketSink::HandleRead(), ns3::QKDKeyManagerSystemApplication::HandleRead(), ns3::QKDSDNController::HandleRead(), ns3::UdpEchoClient::HandleRead(), ns3::UdpEchoServer::HandleRead(), ns3::UdpServer::HandleRead(), ns3::QKDApp004::HandleReadFromApp(), ns3::QKDApp014::HandleReadFromApp(), ns3::QKDApp004::HandleReadFromKMS(), ns3::QKDApp014::HandleReadFromKMS(), ns3::QKDKeyManagerSystemApplication::HandleReadKMSs(), ns3::QKDKeyManagerSystemApplication::HandleReadSDN(), ns3::QKDApp004::HandleReadSignalingFromApp(), ns3::QKDApp014::HandleReadSignalingFromApp(), ns3::addressUtils::IsMulticast(), ns3::DhcpServer::NetHandler(), ns3::QKDApp004::OpenConnect(), ns3::PacketSink::AddressHash::operator()(), ns3::QKDApp004::AddressHash::operator()(), ns3::QKDApp014::AddressHash::operator()(), ns3::QKDKeyManagerSystemApplication::AddressHash::operator()(), ns3::QKDSDNController::AddressHash::operator()(), ns3::QKDApp004::PrepareSendSocketToApp(), ns3::QKDApp004::PrepareSendSocketToKMS(), ns3::QKDApp014::PrepareSendSocketToKMS(), ns3::QKDApp004::PrepareSinkSocketFromApp(), ns3::QKDApp004::PrepareSinkSocketFromKMS(), ns3::QKDApp014::PrepareSinkSocketFromKMS(), PrintReceivedPacket(), ns3::QKDKeyManagerSystemApplication::ProcessRequest(), ns3::TcpSocketBase::ProcessSynRcvd(), Receiver::Receive(), ns3::Ping::Receive(), ns3::V4TraceRoute::Receive(), ns3::Rip::Receive(), ns3::olsr::Bug780Test::Receive(), ns3::ThreeGppHttpClient::ReceivedDataCallback(), ns3::ThreeGppHttpServer::ReceivedDataCallback(), ns3::aodv::RoutingProtocol::RecvAodv(), ns3::dsdv::RoutingProtocol::RecvDsdv(), ns3::olsr::RoutingProtocol::RecvOlsr(), ns3::QKDKeyManagerSystemApplication::RegisterApplicationEntry(), ns3::UdpEchoClient::Send(), ns3::QKDApp004::SendKsidRequest(), ns3::QKDApp004::SendMaliciousRequestToKMS(), ns3::OnOffApplication::SendPacket(), ns3::TcpL4Protocol::SendPacket(), ns3::QKDKeyManagerSystemApplication::SendQKDLinkStatusToSDN(), ns3::UdpSocketImpl::SendTo(), ns3::Ipv4RawSocketImpl::SendTo(), ns3::QKDApp004::Setup(), ns3::QKDApp014::Setup(), srcSocketRecv(), ns3::PacketSink::StartApplication(), ns3::UdpClient::StartApplication(), and ns3::QKDPostprocessingApplication::StartApplication().

+ Here is the call graph for this function:

◆ ConvertTo()

Address ns3::InetSocketAddress::ConvertTo ( ) const

Convert to an Address type.

Returns
the Address corresponding to this object.

Definition at line 125 of file inet-socket-address.cc.

References GetType(), m_ipv4, m_port, m_tos, NS_LOG_FUNCTION, and ns3::Ipv4Address::Serialize().

+ Here is the call graph for this function:

◆ GetIpv4()

Ipv4Address ns3::InetSocketAddress::GetIpv4 ( ) const
Returns
the ipv4 address

Definition at line 78 of file inet-socket-address.cc.

References m_ipv4, and NS_LOG_FUNCTION.

Referenced by ns3::DhcpClient::AcceptAck(), ns3::QKDKeyManagerSystemApplication::AddNewLink(), ns3::Ipv4RawSocketImpl::Bind(), ns3::TcpSocketBase::Bind(), ns3::UdpSocketImpl::Bind(), ns3::QKDKeyManagerSystemApplication::CheckDoSAttack(), ns3::QKDApp004::Close(), ns3::Ipv4RawSocketImpl::Connect(), ns3::TcpSocketBase::Connect(), ns3::UdpSocketImpl::Connect(), ns3::QKDKeyManagerSystemApplication::ConnectToSDNController(), ns3::QKDApp004::CreateKeyQueues(), ns3::aodv::LoopbackTestCase::EchoData(), ns3::SinkTracer::FormatAddress(), ns3::QKDApp004::GetKeyFromKMS(), ns3::QKDApp014::GetKeysFromKMS(), ns3::QKDApp014::GetKeyWithKeyIDs(), ns3::QKDApp014::GetStatusFromKMS(), ns3::QKDKeyManagerSystemApplication::HandleAcceptKMSs(), ns3::PacketSink::HandleRead(), ns3::QKDKeyManagerSystemApplication::HandleRead(), ns3::QKDSDNController::HandleRead(), ns3::UdpEchoClient::HandleRead(), ns3::UdpEchoServer::HandleRead(), ns3::QKDApp004::HandleReadFromApp(), ns3::QKDApp014::HandleReadFromApp(), ns3::QKDApp004::HandleReadFromKMS(), ns3::QKDApp014::HandleReadFromKMS(), ns3::QKDKeyManagerSystemApplication::HandleReadKMSs(), ns3::QKDKeyManagerSystemApplication::HandleReadSDN(), ns3::QKDApp004::HandleReadSignalingFromApp(), ns3::QKDApp014::HandleReadSignalingFromApp(), ns3::addressUtils::IsMulticast(), ns3::QKDApp004::OpenConnect(), ns3::PacketSink::AddressHash::operator()(), ns3::QKDApp004::AddressHash::operator()(), ns3::QKDApp014::AddressHash::operator()(), ns3::QKDKeyManagerSystemApplication::AddressHash::operator()(), ns3::QKDSDNController::AddressHash::operator()(), PrintReceivedPacket(), ns3::Ping::PrintReport(), ns3::QKDKeyManagerSystemApplication::ProcessRequest(), Receiver::Receive(), ns3::Ping::Receive(), ns3::V4TraceRoute::Receive(), ns3::Rip::Receive(), ns3::ThreeGppHttpClient::ReceivedDataCallback(), ns3::ThreeGppHttpServer::ReceivedDataCallback(), ns3::aodv::RoutingProtocol::RecvAodv(), ns3::dsdv::RoutingProtocol::RecvDsdv(), ns3::olsr::RoutingProtocol::RecvOlsr(), ns3::QKDKeyManagerSystemApplication::RegisterApplicationEntry(), ns3::DhcpServer::SendAck(), ns3::QKDApp004::SendKsidRequest(), ns3::QKDApp004::SendMaliciousRequestToKMS(), ns3::DhcpServer::SendOffer(), ns3::OnOffApplication::SendPacket(), ns3::TcpL4Protocol::SendPacket(), ns3::QKDKeyManagerSystemApplication::SendQKDLinkStatusToSDN(), ns3::UdpSocketImpl::SendTo(), ns3::Ipv4RawSocketImpl::SendTo(), srcSocketRecv(), ns3::UdpClient::StartApplication(), and ns3::Ping::StartApplication().

+ Here is the caller graph for this function:

◆ GetPort()

uint16_t ns3::InetSocketAddress::GetPort ( ) const
Returns
the port number

Definition at line 71 of file inet-socket-address.cc.

References m_port, and NS_LOG_FUNCTION.

Referenced by ns3::TcpSocketBase::Bind(), ns3::UdpSocketImpl::Bind(), ns3::TcpSocketBase::Connect(), ns3::UdpSocketImpl::Connect(), ns3::QKDKeyManagerSystemApplication::ConnectToSDNController(), ns3::SinkTracer::FormatAddress(), ns3::PacketSink::HandleRead(), ns3::QKDKeyManagerSystemApplication::HandleRead(), ns3::QKDSDNController::HandleRead(), ns3::UdpEchoClient::HandleRead(), ns3::UdpEchoServer::HandleRead(), ns3::QKDApp004::HandleReadFromApp(), ns3::QKDApp014::HandleReadFromApp(), ns3::QKDApp004::HandleReadFromKMS(), ns3::QKDApp014::HandleReadFromKMS(), ns3::QKDKeyManagerSystemApplication::HandleReadKMSs(), ns3::QKDKeyManagerSystemApplication::HandleReadSDN(), ns3::QKDApp004::HandleReadSignalingFromApp(), ns3::QKDApp014::HandleReadSignalingFromApp(), PrintReceivedPacket(), ns3::V4TraceRoute::Receive(), ns3::Rip::Receive(), ns3::olsr::Bug780Test::Receive(), ns3::ThreeGppHttpClient::ReceivedDataCallback(), ns3::ThreeGppHttpServer::ReceivedDataCallback(), ns3::olsr::RoutingProtocol::RecvOlsr(), ns3::DhcpServer::SendAck(), ns3::DhcpServer::SendOffer(), ns3::OnOffApplication::SendPacket(), ns3::UdpSocketImpl::SendTo(), and ns3::PacketSink::StartApplication().

+ Here is the caller graph for this function:

◆ GetTos()

uint8_t ns3::InetSocketAddress::GetTos ( ) const
Returns
the ToS

Definition at line 85 of file inet-socket-address.cc.

References m_tos, and NS_LOG_FUNCTION.

Referenced by ns3::TcpSocketBase::Bind(), ns3::UdpSocketImpl::Bind(), ns3::Ipv4RawSocketImpl::Connect(), ns3::TcpSocketBase::Connect(), ns3::UdpSocketImpl::Connect(), ns3::UdpSocketImpl::SendTo(), and ns3::Ipv4RawSocketImpl::SendTo().

+ Here is the caller graph for this function:

◆ GetType()

uint8_t ns3::InetSocketAddress::GetType ( )
staticprivate

Get the underlying address type (automatically assigned).

Returns
the address type

Definition at line 152 of file inet-socket-address.cc.

References NS_LOG_FUNCTION_NOARGS, ns3::Address::Register(), and check-style-clang-format::type.

Referenced by ConvertFrom(), ConvertTo(), and IsMatchingType().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ IsMatchingType()

bool ns3::InetSocketAddress::IsMatchingType ( const Address &  address)
static
Parameters
addressaddress to test
Returns
true if the address matches, false otherwise.

Definition at line 113 of file inet-socket-address.cc.

References first::address, GetType(), and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4RawSocketImpl::Bind(), ns3::TcpSocketBase::Bind(), ns3::UdpSocketImpl::Bind(), ns3::TcpSocketBase::CompleteFork(), ns3::Ipv4RawSocketImpl::Connect(), ns3::TcpSocketBase::Connect(), ns3::UdpSocketImpl::Connect(), ns3::SinkTracer::FormatAddress(), ns3::PacketSink::HandleRead(), ns3::QKDKeyManagerSystemApplication::HandleRead(), ns3::QKDSDNController::HandleRead(), ns3::UdpEchoClient::HandleRead(), ns3::UdpEchoServer::HandleRead(), ns3::UdpServer::HandleRead(), ns3::QKDApp004::HandleReadFromApp(), ns3::QKDApp014::HandleReadFromApp(), ns3::QKDApp004::HandleReadFromKMS(), ns3::QKDApp014::HandleReadFromKMS(), ns3::QKDKeyManagerSystemApplication::HandleReadKMSs(), ns3::QKDKeyManagerSystemApplication::HandleReadSDN(), ns3::QKDApp004::HandleReadSignalingFromApp(), ns3::QKDApp014::HandleReadSignalingFromApp(), ns3::addressUtils::IsMulticast(), ns3::PacketSink::AddressHash::operator()(), ns3::QKDApp004::AddressHash::operator()(), ns3::QKDApp014::AddressHash::operator()(), ns3::QKDKeyManagerSystemApplication::AddressHash::operator()(), ns3::QKDSDNController::AddressHash::operator()(), PrintReceivedPacket(), Receiver::Receive(), ns3::Ping::Receive(), ns3::V4TraceRoute::Receive(), ns3::olsr::Bug780Test::Receive(), ns3::ThreeGppHttpClient::ReceivedDataCallback(), ns3::ThreeGppHttpServer::ReceivedDataCallback(), ns3::UdpEchoClient::Send(), ns3::OnOffApplication::SendPacket(), ns3::TcpL4Protocol::SendPacket(), ns3::UdpSocketImpl::SendTo(), ns3::Ipv4RawSocketImpl::SendTo(), ns3::BulkSendApplication::StartApplication(), ns3::OnOffApplication::StartApplication(), ns3::PacketSink::StartApplication(), ns3::UdpClient::StartApplication(), ns3::UdpEchoClient::StartApplication(), and ns3::UdpTraceClient::StartApplication().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ operator Address()

ns3::InetSocketAddress::operator Address ( ) const
Returns
an Address instance which represents this InetSocketAddress instance.

Definition at line 119 of file inet-socket-address.cc.

◆ SetIpv4()

void ns3::InetSocketAddress::SetIpv4 ( Ipv4Address  address)
Parameters
addressthe new ipv4 address

Definition at line 99 of file inet-socket-address.cc.

References first::address, m_ipv4, and NS_LOG_FUNCTION.

Referenced by Ipv4FragmentationTest::SendClient().

+ Here is the caller graph for this function:

◆ SetPort()

void ns3::InetSocketAddress::SetPort ( uint16_t  port)
Parameters
portthe new port number.

Definition at line 92 of file inet-socket-address.cc.

References m_port, NS_LOG_FUNCTION, and port.

Referenced by Ipv4RawSocketImplTest::DoRun().

+ Here is the caller graph for this function:

◆ SetTos()

void ns3::InetSocketAddress::SetTos ( uint8_t  tos)
Parameters
tosthe new ToS.

Definition at line 106 of file inet-socket-address.cc.

References m_tos, and NS_LOG_FUNCTION.

Referenced by ConvertFrom(), UdpSocketImplTest::DoRun(), WifiAcMappingTest::DoRun(), ns3::UdpSocketImpl::GetPeerName(), and ns3::Ipv4RawSocketImpl::Send().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_ipv4

Ipv4Address ns3::InetSocketAddress::m_ipv4
private

the IPv4 address

Definition at line 132 of file inet-socket-address.h.

Referenced by ConvertTo(), GetIpv4(), and SetIpv4().

◆ m_port

uint16_t ns3::InetSocketAddress::m_port
private

the port

Definition at line 133 of file inet-socket-address.h.

Referenced by ConvertTo(), GetPort(), and SetPort().

◆ m_tos

uint8_t ns3::InetSocketAddress::m_tos
private

the ToS

Definition at line 134 of file inet-socket-address.h.

Referenced by ConvertTo(), GetTos(), and SetTos().

The documentation for this class was generated from the following files:
