Make it easy to create and manage PHY objects for the spectrum model. More...

#include "spectrum-wifi-helper.h"

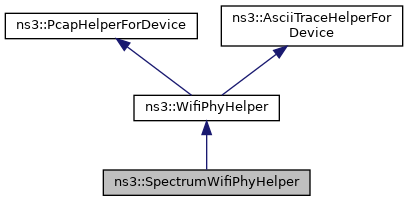

Inheritance diagram for ns3::SpectrumWifiPhyHelper:

Collaboration diagram for ns3::SpectrumWifiPhyHelper:

Public Member Functions
	SpectrumWifiPhyHelper (uint8_t nLinks=1)
	Create a PHY helper. More...

void	AddChannel (const Ptr< SpectrumChannel > channel, const FrequencyRange &freqRange=WHOLE_WIFI_SPECTRUM)

void	AddChannel (const std::string &channelName, const FrequencyRange &freqRange=WHOLE_WIFI_SPECTRUM)

void	AddPhyToFreqRangeMapping (uint8_t linkId, const FrequencyRange &freqRange)
	Add a given spectrum PHY interface to the PHY instance corresponding of a given link. More...

void	ResetPhyToFreqRangeMapping ()
	Reset mapping of the spectrum PHY interfaces added to the PHY instances. More...

void	SetChannel (const Ptr< SpectrumChannel > channel)

void	SetChannel (const std::string &channelName)

Public Member Functions inherited from ns3::WifiPhyHelper
	WifiPhyHelper (uint8_t nLinks=1)
	Constructor. More...

	~WifiPhyHelper () override

void	DisablePreambleDetectionModel ()
	Disable the preamble detection model on all links. More...

PcapHelper::DataLinkType	GetPcapDataLinkType () const
	Get the data link type of PCAP traces to be used. More...

void	Set (std::string name, const AttributeValue &v)

void	Set (uint8_t linkId, std::string name, const AttributeValue &v)

template<typename... Args>
void	SetErrorRateModel (std::string type, Args &&... args)
	Helper function used to set the error rate model. More...

template<typename... Args>
void	SetErrorRateModel (uint8_t linkId, std::string type, Args &&... args)

template<typename... Args>
void	SetFrameCaptureModel (std::string type, Args &&... args)
	Helper function used to set the frame capture model. More...

template<typename... Args>
void	SetFrameCaptureModel (uint8_t linkId, std::string type, Args &&... args)

template<typename... Args>
void	SetInterferenceHelper (std::string type, Args &&... args)
	Helper function used to set the interference helper. More...

void	SetPcapDataLinkType (SupportedPcapDataLinkTypes dlt)
	Set the data link type of PCAP traces to be used. More...

template<typename... Args>
void	SetPreambleDetectionModel (std::string type, Args &&... args)
	Helper function used to set the preamble detection model. More...

template<typename... Args>
void	SetPreambleDetectionModel (uint8_t linkId, std::string type, Args &&... args)

Public Member Functions inherited from ns3::PcapHelperForDevice
	PcapHelperForDevice ()
	Construct a PcapHelperForDevice. More...

virtual	~PcapHelperForDevice ()
	Destroy a PcapHelperForDevice. More...

void	EnablePcap (std::string prefix, NetDeviceContainer d, bool promiscuous=false)
	Enable pcap output on each device in the container which is of the appropriate type. More...

void	EnablePcap (std::string prefix, NodeContainer n, bool promiscuous=false)
	Enable pcap output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void	EnablePcap (std::string prefix, Ptr< NetDevice > nd, bool promiscuous=false, bool explicitFilename=false)
	Enable pcap output the indicated net device. More...

void	EnablePcap (std::string prefix, std::string ndName, bool promiscuous=false, bool explicitFilename=false)
	Enable pcap output the indicated net device using a device previously named using the ns-3 object name service. More...

void	EnablePcap (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool promiscuous=false)
	Enable pcap output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void	EnablePcapAll (std::string prefix, bool promiscuous=false)
	Enable pcap output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

Public Member Functions inherited from ns3::AsciiTraceHelperForDevice
	AsciiTraceHelperForDevice ()
	Construct an AsciiTraceHelperForDevice. More...

virtual	~AsciiTraceHelperForDevice ()
	Destroy an AsciiTraceHelperForDevice. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, NetDeviceContainer d)
	Enable ascii trace output on each device in the container which is of the appropriate type. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, NodeContainer n)
	Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, Ptr< NetDevice > nd)
	Enable ascii trace output on the indicated net device. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, std::string ndName)
	Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More...

void	EnableAscii (Ptr< OutputStreamWrapper > stream, uint32_t nodeid, uint32_t deviceid)
	Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void	EnableAscii (std::string prefix, NetDeviceContainer d)
	Enable ascii trace output on each device in the container which is of the appropriate type. More...

void	EnableAscii (std::string prefix, NodeContainer n)
	Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void	EnableAscii (std::string prefix, Ptr< NetDevice > nd, bool explicitFilename=false)
	Enable ascii trace output on the indicated net device. More...

void	EnableAscii (std::string prefix, std::string ndName, bool explicitFilename=false)
	Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More...

void	EnableAscii (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool explicitFilename)
	Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void	EnableAsciiAll (Ptr< OutputStreamWrapper > stream)
	Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

void	EnableAsciiAll (std::string prefix)
	Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

Private Member Functions
void	AddWifiBandwidthFilter (Ptr< SpectrumChannel > channel)

std::vector< Ptr< WifiPhy > >	Create (Ptr< Node > node, Ptr< WifiNetDevice > device) const override

void	InstallPhyInterfaces (uint8_t linkId, Ptr< SpectrumWifiPhy > phy) const
	Install PHY interfaces to the PHY instance of a given link based on the currently configured mapping (. More...

Static Private Member Functions
static void	SpectrumChannelSwitched (Ptr< SpectrumWifiPhy > phy)
	Function that is notified when a spectrum channel switched. More...

Private Attributes
std::map< FrequencyRange, Ptr< SpectrumChannel > >	m_channels
	the spectrum channels More...

std::map< uint8_t, std::set< FrequencyRange > >	m_interfacesMap
	map of the spectrum PHY interfaces to be added to the PHY instance corresponding to a given link ID More...

Additional Inherited Members
Public Types inherited from ns3::WifiPhyHelper
enum	SupportedPcapDataLinkTypes { DLT_IEEE802_11 , DLT_PRISM_HEADER , DLT_IEEE802_11_RADIO }
	An enumeration of the pcap data link types (DLTs) which this helper supports. More...

Static Protected Member Functions inherited from ns3::WifiPhyHelper
static void	PcapSniffRxEvent (Ptr< PcapFileWrapper > file, Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, SignalNoiseDbm signalNoise, uint16_t staId=SU_STA_ID)

static void	PcapSniffTxEvent (Ptr< PcapFileWrapper > file, Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, uint16_t staId=SU_STA_ID)

Protected Attributes inherited from ns3::WifiPhyHelper
std::vector< ObjectFactory >	m_errorRateModel
	error rate model More...

std::vector< ObjectFactory >	m_frameCaptureModel
	frame capture model More...

ObjectFactory	m_interferenceHelper
	interference helper More...

std::vector< ObjectFactory >	m_phys
	PHY objects. More...

std::vector< ObjectFactory >	m_preambleDetectionModel
	preamble detection model More...

Detailed Description

Make it easy to create and manage PHY objects for the spectrum model.

The Pcap and ASCII traces generated by the EnableAscii and EnablePcap methods defined in this class correspond to PHY-level traces and come to us via WifiPhyHelper

This helper will install an instance of a WifiBandwidthFilter on any SpectrumChannel added to this helper (via one of the SetChannel methods), unless one has previously been installed on the channel object.

Definition at line 44 of file spectrum-wifi-helper.h.

Constructor & Destructor Documentation

◆ SpectrumWifiPhyHelper()

ns3::SpectrumWifiPhyHelper::SpectrumWifiPhyHelper ( uint8_t nLinks = 1 )

Create a PHY helper.

Parameters

nLinks the number of links to configure (>1 only for 11be devices)

Definition at line 42 of file spectrum-wifi-helper.cc.

References ns3::WifiPhyHelper::m_phys, NS_ABORT_IF, third::phy, ns3::WifiPhyHelper::SetErrorRateModel(), and ns3::WifiPhyHelper::SetInterferenceHelper().

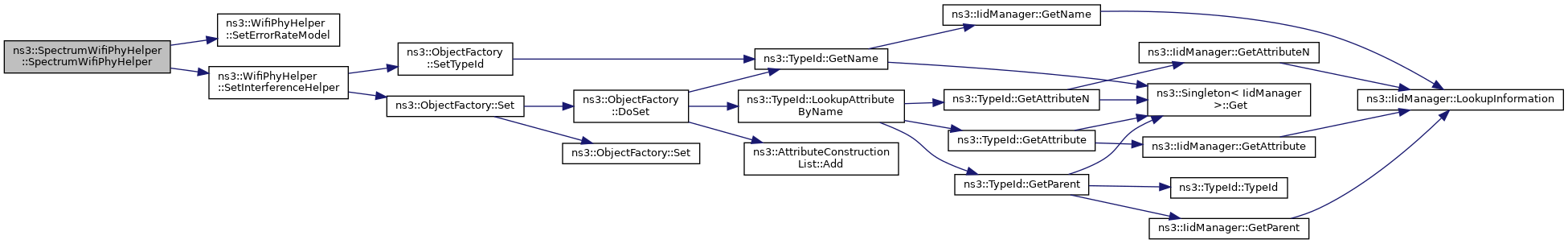

Here is the call graph for this function:

Member Function Documentation

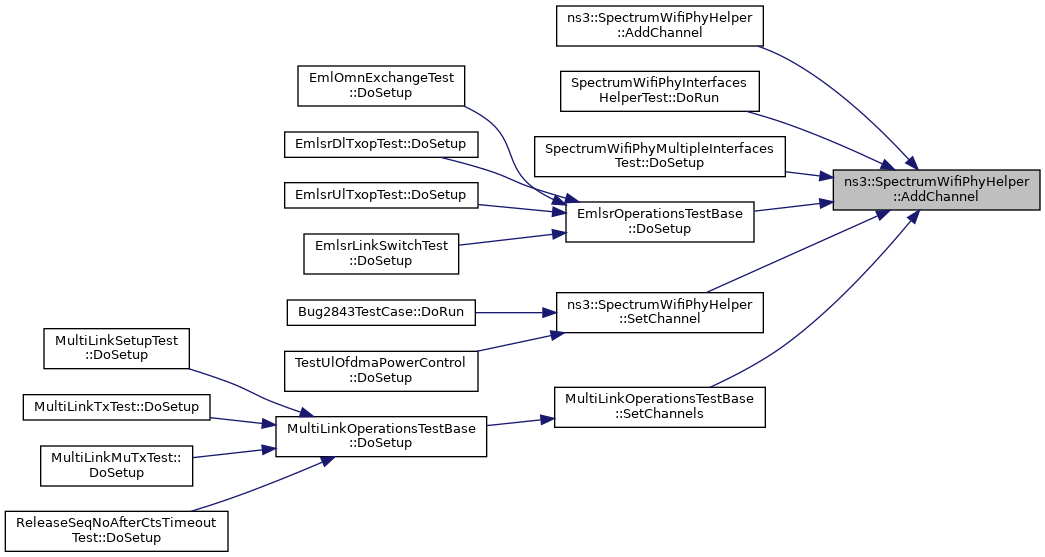

◆ AddChannel() [1/2]

void ns3::SpectrumWifiPhyHelper::AddChannel	(	const Ptr< SpectrumChannel >	channel,
		const FrequencyRange &	freqRange = `WHOLE_WIFI_SPECTRUM`
	)

Parameters

channel	the spectrum channel to add to this helper
freqRange	the frequency range, bounded by a minFrequency and a maxFrequency in MHz

Every PHY created by a call to Install is added to this spectrum channel. If a PHY is requested to operate or scan a channel with the specified frequency and width combination, it will activate that channel and deactivate the current channel for that PHY.

Definition at line 67 of file spectrum-wifi-helper.cc.

References AddWifiBandwidthFilter(), third::channel, and m_channels.

Referenced by AddChannel(), SpectrumWifiPhyInterfacesHelperTest::DoRun(), SpectrumWifiPhyMultipleInterfacesTest::DoSetup(), EmlsrOperationsTestBase::DoSetup(), SetChannel(), and MultiLinkOperationsTestBase::SetChannels().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddChannel() [2/2]

void ns3::SpectrumWifiPhyHelper::AddChannel	(	const std::string &	channelName,
		const FrequencyRange &	freqRange = `WHOLE_WIFI_SPECTRUM`
	)

Parameters

channelName	The name of the spectrum channel to add to this helper
freqRange	the frequency range, bounded by a minFrequency and a maxFrequency in MHz

Every PHY created by a call to Install is added to this spectrum channel. If a PHY is requested to operate or scan a channel with the specified frequency and width combination, it will activate that channel and deactivate the current channel for that PHY.

Definition at line 75 of file spectrum-wifi-helper.cc.

References AddChannel(), and third::channel.

Here is the call graph for this function:

◆ AddPhyToFreqRangeMapping()

void ns3::SpectrumWifiPhyHelper::AddPhyToFreqRangeMapping	(	uint8_t	linkId,
		const FrequencyRange &	freqRange
	)

Add a given spectrum PHY interface to the PHY instance corresponding of a given link.

If no mapping has been specified for a given link, all spectrum PHY interfaces will be added to the PHY instance of that link.

Parameters

linkId	ID of the link to setup
freqRange	frequency range handled by of the spectrum PHY interface

Definition at line 108 of file spectrum-wifi-helper.cc.

References m_interfacesMap.

Referenced by SpectrumWifiPhyInterfacesHelperTest::DoRun().

Here is the caller graph for this function:

◆ AddWifiBandwidthFilter()

void ns3::SpectrumWifiPhyHelper::AddWifiBandwidthFilter ( Ptr< SpectrumChannel > channel )

private

Parameters

channel The channel to inspect to possibly add a WifiBandwidthFilter

This method will add a WifiBandwidthFilter object to the SpectrumChannel, only if one has not yet been added.

Definition at line 82 of file spectrum-wifi-helper.cc.

References third::channel, and NS_LOG_DEBUG.

Referenced by AddChannel().

Here is the caller graph for this function:

◆ Create()

std::vector< Ptr< WifiPhy > > ns3::SpectrumWifiPhyHelper::Create	(	Ptr< Node >	node,
		Ptr< WifiNetDevice >	device
	)		const

overrideprivatevirtual

Parameters

node	the node on which we wish to create a wifi PHY
device	the device within which this PHY will be created

Returns: newly-created PHY objects.

This method implements the pure virtual method defined in ns3::WifiPhyHelper.

Implements ns3::WifiPhyHelper.

Definition at line 127 of file spectrum-wifi-helper.cc.

References ns3::ObjectFactory::Create(), ns3::Object::GetObject(), InstallPhyInterfaces(), ns3::WifiPhyHelper::m_errorRateModel, ns3::WifiPhyHelper::m_frameCaptureModel, ns3::WifiPhyHelper::m_interferenceHelper, ns3::WifiPhyHelper::m_phys, ns3::WifiPhyHelper::m_preambleDetectionModel, ns3::MakeCallback(), third::phy, and SpectrumChannelSwitched().

Here is the call graph for this function:

◆ InstallPhyInterfaces()

void ns3::SpectrumWifiPhyHelper::InstallPhyInterfaces	(	uint8_t	linkId,
		Ptr< SpectrumWifiPhy >	phy
	)		const

private

Install PHY interfaces to the PHY instance of a given link based on the currently configured mapping (.

See also: AddPhyInterface).

Parameters

linkId	ID of the link to setup
phy	spectrum PHY instance of the link

Definition at line 161 of file spectrum-wifi-helper.cc.

References third::channel, m_channels, m_interfacesMap, and third::phy.

Referenced by Create().

Here is the caller graph for this function:

◆ ResetPhyToFreqRangeMapping()

void ns3::SpectrumWifiPhyHelper::ResetPhyToFreqRangeMapping ( )

Reset mapping of the spectrum PHY interfaces added to the PHY instances.

Definition at line 121 of file spectrum-wifi-helper.cc.

References m_interfacesMap.

Referenced by SpectrumWifiPhyInterfacesHelperTest::DoRun().

Here is the caller graph for this function:

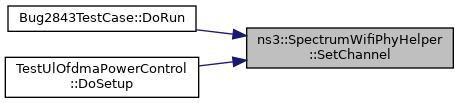

◆ SetChannel() [1/2]

void ns3::SpectrumWifiPhyHelper::SetChannel ( const Ptr< SpectrumChannel > channel )

Parameters

channel the default spectrum channel to associate to this helper

Every PHY created by a call to Install is associated to this default spectrum channel.

Definition at line 55 of file spectrum-wifi-helper.cc.

References AddChannel(), and third::channel.

Referenced by Bug2843TestCase::DoRun(), and TestUlOfdmaPowerControl::DoSetup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetChannel() [2/2]

void ns3::SpectrumWifiPhyHelper::SetChannel ( const std::string & channelName )

Parameters

channelName The name of the default spectrum channel to associate to this helper

Every PHY created by a call to Install is associated to this default spectrum channel.

Definition at line 61 of file spectrum-wifi-helper.cc.

References AddChannel().

Here is the call graph for this function:

◆ SpectrumChannelSwitched()

void ns3::SpectrumWifiPhyHelper::SpectrumChannelSwitched ( Ptr< SpectrumWifiPhy > phy )

staticprivate

Function that is notified when a spectrum channel switched.

Parameters

phy	spectrum PHY instance that has switched its channel

Definition at line 181 of file spectrum-wifi-helper.cc.

References first::interfaces, NS_ASSERT, and third::phy.

Referenced by Create().

Here is the caller graph for this function:

Member Data Documentation

◆ m_channels

std::map<FrequencyRange, Ptr<SpectrumChannel> > ns3::SpectrumWifiPhyHelper::m_channels

private

the spectrum channels

Definition at line 136 of file spectrum-wifi-helper.h.

Referenced by AddChannel(), and InstallPhyInterfaces().

◆ m_interfacesMap

std::map<uint8_t , std::set<FrequencyRange> > ns3::SpectrumWifiPhyHelper::m_interfacesMap

private

map of the spectrum PHY interfaces to be added to the PHY instance corresponding to a given link ID

Definition at line 138 of file spectrum-wifi-helper.h.

Referenced by AddPhyToFreqRangeMapping(), InstallPhyInterfaces(), and ResetPhyToFreqRangeMapping().

The documentation for this class was generated from the following files:

src/wifi/helper/spectrum-wifi-helper.h
src/wifi/helper/spectrum-wifi-helper.cc

Public Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SpectrumWifiPhyHelper()

Member Function Documentation

◆ AddChannel() [1/2]

◆ AddChannel() [2/2]

◆ AddPhyToFreqRangeMapping()

◆ AddWifiBandwidthFilter()

◆ Create()

◆ InstallPhyInterfaces()

◆ ResetPhyToFreqRangeMapping()

◆ SetChannel() [1/2]

◆ SetChannel() [2/2]

◆ SpectrumChannelSwitched()

Member Data Documentation

◆ m_channels

◆ m_interfacesMap
