ns3::BitDeserializer Class Reference

Bit deserializer. More...

#include "bit-deserializer.h"

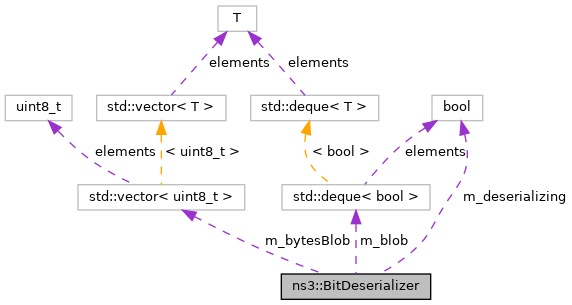

Collaboration diagram for ns3::BitDeserializer:

Public Member Functions
	BitDeserializer ()
uint64_t	GetBits (uint8_t size)
	Pops a given number of bits from the blob front. More...
void	PushByte (uint8_t byte)
	Pushes one byte into the blob to be deserialized. More...
void	PushBytes (std::vector< uint8_t > bytes)
	Pushes some bytes into the blob to be deserialized. More...
void	PushBytes (uint8_t *bytes, uint32_t size)
	Pushes some bytes into the blob to be deserialized. More...

Private Member Functions
void	PrepareDeserialization ()
	Prepare the byte array to the deserialization. More...

Private Attributes
std::deque< bool >	m_blob
	Blob of bits ready to be deserialized. More...
std::vector< uint8_t >	m_bytesBlob
	Blob of bytes to be deserialized. More...
bool	m_deserializing
	True if the deserialization did start already. More...

Detailed Description

Bit deserializer.

See also

See also

ns3::BitSerializer

This class helps converting a variable number, variable sized number of bit-boundary fields stored as byte array representation and extract the original bit-fields.

Note that once the Deserialization starts, it's not anymore possible to add more data to the byte blob to deserialize.

Definition at line 43 of file bit-deserializer.h.

Constructor & Destructor Documentation

BitDeserializer()

ns3::BitDeserializer::BitDeserializer

(

)

Definition at line 32 of file bit-deserializer.cc.

References m_deserializing, and NS_LOG_FUNCTION.

Member Function Documentation

GetBits()

uint64_t ns3::BitDeserializer::GetBits

(

uint8_t

size

)

Pops a given number of bits from the blob front.

In other terms, 'size' bits are shifted from the contents of the byte blob onto the return value.

The maximum number of bits to be deserialized in one single call is 64.

Parameters

size	The number of bits to pop.

Returns

The popped bits value

Definition at line 66 of file bit-deserializer.cc.

References m_blob, NS_ABORT_MSG_IF, NS_LOG_FUNCTION, and PrepareDeserialization().

Referenced by BitDeserializerTest::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

PrepareDeserialization()

void ns3::BitDeserializer::PrepareDeserialization ( )

private

Prepare the byte array to the deserialization.

Definition at line 85 of file bit-deserializer.cc.

References m_blob, m_bytesBlob, m_deserializing, and NS_LOG_FUNCTION.

Referenced by GetBits().

Here is the caller graph for this function:

PushByte()

void ns3::BitDeserializer::PushByte

(

uint8_t

byte

)

Pushes one byte into the blob to be deserialized.

Parameters

byte	The byte to add.

Definition at line 58 of file bit-deserializer.cc.

References m_bytesBlob, m_deserializing, NS_ABORT_MSG_IF, and NS_LOG_FUNCTION.

PushBytes() [1/2]

void ns3::BitDeserializer::PushBytes

(

std::vector< uint8_t >

bytes

)

Pushes some bytes into the blob to be deserialized.

Parameters

bytes

The bytes to add.

Definition at line 39 of file bit-deserializer.cc.

References m_bytesBlob, m_deserializing, NS_ABORT_MSG_IF, and NS_LOG_FUNCTION.

Referenced by BitDeserializerTest::DoRun().

Here is the caller graph for this function:

PushBytes() [2/2]

void ns3::BitDeserializer::PushBytes	(	uint8_t *	bytes,
		uint32_t	size
	)

Pushes some bytes into the blob to be deserialized.

Parameters

bytes	The bytes to add.
size	The length of the array.

Definition at line 47 of file bit-deserializer.cc.

References m_bytesBlob, m_deserializing, NS_ABORT_MSG_IF, and NS_LOG_FUNCTION.

Member Data Documentation

m_blob

std::deque<bool> ns3::BitDeserializer::m_blob

private

Blob of bits ready to be deserialized.

Definition at line 85 of file bit-deserializer.h.

Referenced by GetBits(), and PrepareDeserialization().

m_bytesBlob

std::vector<uint8_t> ns3::BitDeserializer::m_bytesBlob

private

Blob of bytes to be deserialized.

Definition at line 86 of file bit-deserializer.h.

Referenced by PrepareDeserialization(), PushByte(), and PushBytes().

m_deserializing

bool ns3::BitDeserializer::m_deserializing

private

True if the deserialization did start already.

Definition at line 87 of file bit-deserializer.h.

Referenced by BitDeserializer(), PrepareDeserialization(), PushByte(), and PushBytes().

---

The documentation for this class was generated from the following files:

• src/network/utils/bit-deserializer.h
• src/network/utils/bit-deserializer.cc
