ns3::BitSerializer Class Reference

Bit serializer. More...

#include "bit-serializer.h"

Collaboration diagram for ns3::BitSerializer:

Public Member Functions
	BitSerializer ()
std::vector< uint8_t >	GetBytes ()
	Get the bytes representation of the blob. More...
uint8_t	GetBytes (uint8_t *buffer, uint32_t size)
	Get the bytes representation of the blob. More...
void	InsertPaddingAtEnd (bool padAtEnd)
	Toggles the padding insertion policy. More...
void	PushBits (uint64_t value, uint8_t significantBits)
	Pushes a number of bits in the blob. More...

Private Member Functions
void	PadAtEnd ()
	Add the padding at the end of the blob. More...
void	PadAtStart ()
	Add the padding at the start of the blob. More...

Private Attributes
std::vector< bool >	m_blob
	Blob of serialized bits. More...
bool	m_padAtEnd
	True if the padding must be added at the end of the blob. More...

Detailed Description

Bit serializer.

See also

See also

ns3::BitDeserializer

This class helps converting a variable number, variable sized number of bit-boundary fields to its final byte array representation.

The typical use-case is:

  aaa: A field
  bbb: B field
  ccc: C field
  ddd: D field
  000: padding

  |aaaa abbb bbcc cdd0|

Padding can be automatically added at the end or at the start of the byte blob to reach a multiple of 8 bits. By default the padding is added at the end of the byte blob.

This class should be used in two cases:

• When the number of fields is large.
• When the number of fields is variable. In the other cases it's more convenient to use a simple bitmask.

Definition at line 59 of file bit-serializer.h.

Constructor & Destructor Documentation

BitSerializer()

ns3::BitSerializer::BitSerializer

(

)

Definition at line 33 of file bit-serializer.cc.

References m_padAtEnd, and NS_LOG_FUNCTION.

Member Function Documentation

GetBytes() [1/2]

std::vector< uint8_t > ns3::BitSerializer::GetBytes

(

)

Get the bytes representation of the blob.

Note that this operation automatically add the needed padding at the end (or start) of the blob.

Warning

{This operation clears the stored data.}

Returns

The byte representation of the blob.

Definition at line 87 of file bit-serializer.cc.

References m_blob, m_padAtEnd, NS_LOG_FUNCTION, PadAtEnd(), and PadAtStart().

Referenced by BitSerializerTest::DoRun().

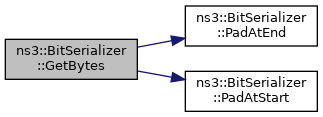

Here is the call graph for this function:

Here is the caller graph for this function:

GetBytes() [2/2]

uint8_t ns3::BitSerializer::GetBytes	(	uint8_t *	buffer,
		uint32_t	size
	)

Get the bytes representation of the blob.

Note that this operation automatically add the needed padding at the end (or start) of the blob.

Warning

{This operation clears the stored data.}

Parameters

[out]	buffer	The buffer where to store the return data.
[in]	size	The size of the buffer.

Returns

The number of bytes actually used in the buffer.

Definition at line 111 of file bit-serializer.cc.

References m_blob, m_padAtEnd, NS_ABORT_MSG_IF, NS_LOG_FUNCTION, PadAtEnd(), and PadAtStart().

Here is the call graph for this function:

InsertPaddingAtEnd()

void ns3::BitSerializer::InsertPaddingAtEnd

(

bool

padAtEnd

)

Toggles the padding insertion policy.

Parameters

padAtEnd

true if the padding have to be inserted at the end of the bit blob.

Definition at line 40 of file bit-serializer.cc.

References m_padAtEnd, and NS_LOG_FUNCTION.

Referenced by BitSerializerTest::DoRun().

Here is the caller graph for this function:

PadAtEnd()

void ns3::BitSerializer::PadAtEnd ( )

private

Add the padding at the end of the blob.

Definition at line 57 of file bit-serializer.cc.

References m_blob.

Referenced by GetBytes().

Here is the caller graph for this function:

PadAtStart()

void ns3::BitSerializer::PadAtStart ( )

private

Add the padding at the start of the blob.

Definition at line 47 of file bit-serializer.cc.

References m_blob, and NS_LOG_FUNCTION.

Referenced by GetBytes().

Here is the caller graph for this function:

PushBits()

void ns3::BitSerializer::PushBits	(	uint64_t	value,
		uint8_t	significantBits
	)

Pushes a number of bits in the blob.

Parameters

value	the bits to be inserted.
significantBits	Number of bits to insert.

Definition at line 65 of file bit-serializer.cc.

References m_blob, and NS_LOG_FUNCTION.

Referenced by BitSerializerTest::DoRun().

Here is the caller graph for this function:

Member Data Documentation

m_blob

std::vector<bool> ns3::BitSerializer::m_blob

private

Blob of serialized bits.

Definition at line 112 of file bit-serializer.h.

Referenced by GetBytes(), PadAtEnd(), PadAtStart(), and PushBits().

m_padAtEnd

bool ns3::BitSerializer::m_padAtEnd

private

True if the padding must be added at the end of the blob.

Definition at line 113 of file bit-serializer.h.

Referenced by BitSerializer(), GetBytes(), and InsertPaddingAtEnd().

---

The documentation for this class was generated from the following files:

• src/network/utils/bit-serializer.h
• src/network/utils/bit-serializer.cc
