Half duplex implementation of transducer object. More...

#include "uan-transducer-hd.h"

Inheritance diagram for ns3::UanTransducerHd:

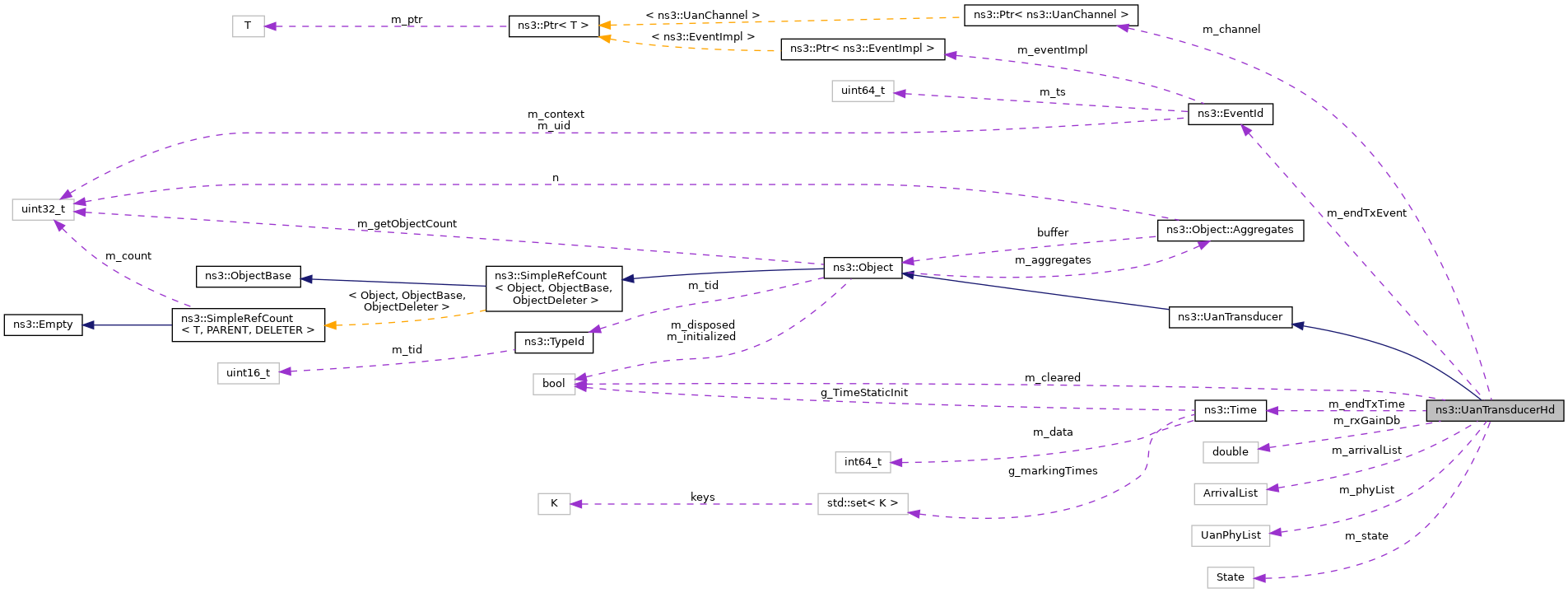

Collaboration diagram for ns3::UanTransducerHd:

Public Member Functions
	UanTransducerHd ()
	Constructor. More...

	~UanTransducerHd () override
	Dummy destructor, see DoDispose. More...

void	AddPhy (Ptr< UanPhy >) override
	Attach a physical network layer above this transducer. More...

double	ApplyRxGainDb (double rxPowerDb, UanTxMode mode) override
	Apply receiver gain in dB to the received power. More...

void	Clear () override
	Clears all pointer references. More...

const ArrivalList &	GetArrivalList () const override
	Get the list of overlapped (in time) packets at this transducer. More...

Ptr< UanChannel >	GetChannel () const override
	Get the attached channel. More...

const UanPhyList &	GetPhyList () const override
	Get the list of physical layer above this transducer. More...

double	GetRxGainDb () override
	Get the receiver gain added to signal at receiver in dB. More...

State	GetState () const override
	Get the transducer state. More...

bool	IsRx () const override
	Is the state receiving (or available for reception)? More...

bool	IsTx () const override
	Is the state transmitting? More...

void	Receive (Ptr< Packet > packet, double rxPowerDb, UanTxMode txMode, UanPdp pdp) override
	Notify this object that a new packet has arrived at this nodes location. More...

void	SetChannel (Ptr< UanChannel > chan) override
	Attach this transducer to a channel. More...

void	SetRxGainDb (double gainDb) override
	Set the receiver gain. More...

void	Transmit (Ptr< UanPhy > src, Ptr< Packet > packet, double txPowerDb, UanTxMode txMode) override
	Transmit a packet from this transducer. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::UanTransducer
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
void	DoDispose () override
	Destructor implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
void	EndTx ()
	Handle end of transmission event. More...

void	RemoveArrival (UanPacketArrival arrival)
	Remove an entry from the arrival list. More...

Private Attributes
ArrivalList	m_arrivalList
	List of arriving packets which overlap in time. More...

Ptr< UanChannel >	m_channel
	The attached channel. More...

bool	m_cleared
	Flab when we've been cleared. More...

EventId	m_endTxEvent
	Event scheduled for end of transmission. More...

Time	m_endTxTime
	Time at which transmission will be completed. More...

UanPhyList	m_phyList
	List of physical layers attached above this tranducer. More...

double	m_rxGainDb
	Receive gain in dB. More...

State	m_state
	Transducer state. More...

Additional Inherited Members
Public Types inherited from ns3::UanTransducer
typedef std::list< UanPacketArrival >	ArrivalList
	List of arriving packets overlapping in time. More...

enum	State { TX , RX }
	Transducer state. More...

typedef std::list< Ptr< UanPhy > >	UanPhyList
	List of UanPhy objects. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Half duplex implementation of transducer object.

This class will only allow attached Phy's to receive packets if not in TX mode.

Definition at line 38 of file uan-transducer-hd.h.

Constructor & Destructor Documentation

◆ UanTransducerHd()

ns3::UanTransducerHd::UanTransducerHd ( )

Constructor.

Definition at line 38 of file uan-transducer-hd.cc.

◆ ~UanTransducerHd()

ns3::UanTransducerHd::~UanTransducerHd ( )

override

Dummy destructor, see DoDispose.

Definition at line 47 of file uan-transducer-hd.cc.

Member Function Documentation

◆ AddPhy()

void ns3::UanTransducerHd::AddPhy ( Ptr< UanPhy > phy )

overridevirtual

Attach a physical network layer above this transducer.

More than one physical layer may be attached.

Parameters

phy	The physical layer.

Implements ns3::UanTransducer.

Definition at line 233 of file uan-transducer-hd.cc.

References m_phyList, and third::phy.

◆ ApplyRxGainDb()

double ns3::UanTransducerHd::ApplyRxGainDb	(	double	rxPowerDb,
		UanTxMode	mode
	)

overridevirtual

Apply receiver gain in dB to the received power.

Parameters

rxPowerDb	Signal power in dB of arriving packet.
mode	Mode arriving packet is using.

Returns: Updated receive power (in dB) with gain applied.

Implements ns3::UanTransducer.

Definition at line 143 of file uan-transducer-hd.cc.

References GetRxGainDb(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by Receive().

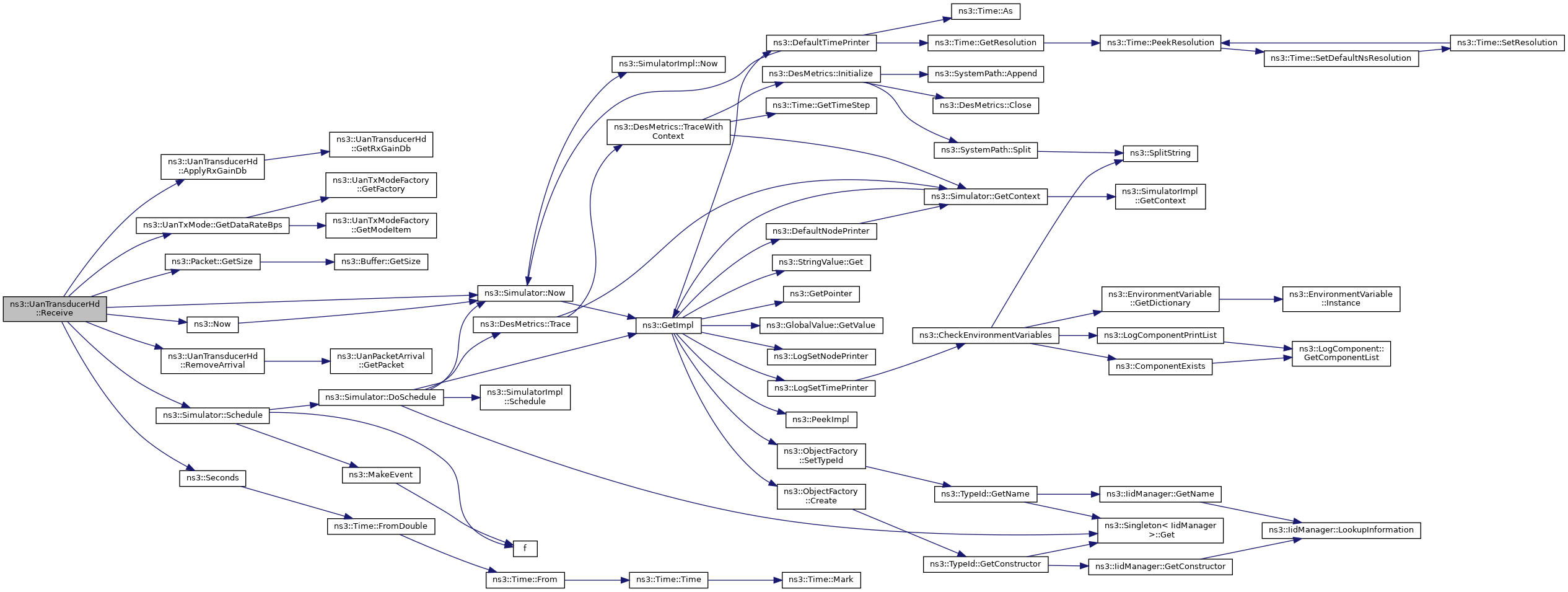

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Clear()

void ns3::UanTransducerHd::Clear ( )

overridevirtual

Clears all pointer references.

Implements ns3::UanTransducer.

Definition at line 52 of file uan-transducer-hd.cc.

References ns3::EventId::Cancel(), m_arrivalList, m_channel, m_cleared, m_endTxEvent, and m_phyList.

Referenced by DoDispose().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::UanTransducerHd::DoDispose ( void )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 85 of file uan-transducer-hd.cc.

References Clear(), and ns3::Object::DoDispose().

Here is the call graph for this function:

◆ EndTx()

void ns3::UanTransducerHd::EndTx ( )

private

Handle end of transmission event.

Definition at line 212 of file uan-transducer-hd.cc.

References m_endTxTime, m_state, NS_ASSERT, ns3::UanTransducer::RX, ns3::Seconds(), and ns3::UanTransducer::TX.

Referenced by Transmit().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetArrivalList()

const UanTransducer::ArrivalList & ns3::UanTransducerHd::GetArrivalList ( ) const

overridevirtual

Get the list of overlapped (in time) packets at this transducer.

Returns: List of all packets currently crossing this node in the water.

Implements ns3::UanTransducer.

Definition at line 125 of file uan-transducer-hd.cc.

References m_arrivalList.

◆ GetChannel()

Ptr< UanChannel > ns3::UanTransducerHd::GetChannel ( ) const

overridevirtual

Get the attached channel.

Returns: The channel.

Implements ns3::UanTransducer.

Definition at line 227 of file uan-transducer-hd.cc.

References m_channel.

◆ GetPhyList()

const UanTransducer::UanPhyList & ns3::UanTransducerHd::GetPhyList ( ) const

overridevirtual

Get the list of physical layer above this transducer.

Returns: List of attached physical layers.

Implements ns3::UanTransducer.

Definition at line 239 of file uan-transducer-hd.cc.

References m_phyList.

◆ GetRxGainDb()

double ns3::UanTransducerHd::GetRxGainDb ( )

overridevirtual

Get the receiver gain added to signal at receiver in dB.

Returns: The gain (in dB).

Implements ns3::UanTransducer.

Definition at line 137 of file uan-transducer-hd.cc.

References m_rxGainDb.

Referenced by ApplyRxGainDb().

Here is the caller graph for this function:

◆ GetState()

UanTransducer::State ns3::UanTransducerHd::GetState ( ) const

overridevirtual

Get the transducer state.

Returns: State (TX or RX) of this transducer.

Implements ns3::UanTransducer.

Definition at line 107 of file uan-transducer-hd.cc.

References m_state.

◆ GetTypeId()

TypeId ns3::UanTransducerHd::GetTypeId ( void )

static

Register this type.

Returns: The object TypeId.

Definition at line 92 of file uan-transducer-hd.cc.

References m_rxGainDb, ns3::MakeDoubleAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ IsRx()

bool ns3::UanTransducerHd::IsRx ( ) const

overridevirtual

Is the state receiving (or available for reception)?

Returns: True if this transducer is available for receiving an incoming packet.

Implements ns3::UanTransducer.

Definition at line 113 of file uan-transducer-hd.cc.

References m_state, and ns3::UanTransducer::RX.

◆ IsTx()

bool ns3::UanTransducerHd::IsTx ( ) const

overridevirtual

Is the state transmitting?

Returns: True if there is a packet being transmitted from this transducer.

Implements ns3::UanTransducer.

Definition at line 119 of file uan-transducer-hd.cc.

References m_state, and ns3::UanTransducer::TX.

◆ Receive()

void ns3::UanTransducerHd::Receive	(	Ptr< Packet >	packet,
		double	rxPowerDb,
		UanTxMode	txMode,
		UanPdp	pdp
	)

overridevirtual

Notify this object that a new packet has arrived at this nodes location.

Parameters

packet	Packet arriving.
rxPowerDb	Signal power in dB of arriving packet.
txMode	Mode arriving packet is using.
pdp	PDP of arriving signal.

Implements ns3::UanTransducer.

Definition at line 152 of file uan-transducer-hd.cc.

References ApplyRxGainDb(), ns3::UanTxMode::GetDataRateBps(), ns3::Packet::GetSize(), m_arrivalList, m_phyList, m_state, ns3::Now(), ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, RemoveArrival(), ns3::UanTransducer::RX, ns3::Time::S, ns3::Simulator::Schedule(), and ns3::Seconds().

Here is the call graph for this function:

◆ RemoveArrival()

void ns3::UanTransducerHd::RemoveArrival ( UanPacketArrival arrival )

private

Remove an entry from the arrival list.

Parameters

arrival The packet arrival to remove.

Definition at line 245 of file uan-transducer-hd.cc.

References ns3::UanPacketArrival::GetPacket(), m_arrivalList, and m_phyList.

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetChannel()

void ns3::UanTransducerHd::SetChannel ( Ptr< UanChannel > chan )

overridevirtual

Attach this transducer to a channel.

Parameters

chan	The channel

Implements ns3::UanTransducer.

Definition at line 220 of file uan-transducer-hd.cc.

References m_channel, and NS_LOG_DEBUG.

◆ SetRxGainDb()

void ns3::UanTransducerHd::SetRxGainDb ( double gainDb )

overridevirtual

Set the receiver gain.

Parameters

gainDb Gain added at receiver, in dB.

Implements ns3::UanTransducer.

Definition at line 131 of file uan-transducer-hd.cc.

References m_rxGainDb.

◆ Transmit()

void ns3::UanTransducerHd::Transmit	(	Ptr< UanPhy >	src,
		Ptr< Packet >	packet,
		double	txPowerDb,
		UanTxMode	txMode
	)

overridevirtual

Transmit a packet from this transducer.

Parameters

src	Source PHY.
packet	Packet to transmit.
txPowerDb	Outgoing Tx power of packet.
txMode	Mode to transmit packet with.

Implements ns3::UanTransducer.

Definition at line 177 of file uan-transducer-hd.cc.

References ns3::EventId::Cancel(), EndTx(), ns3::UanTxMode::GetDataRateBps(), ns3::Packet::GetSize(), m_channel, m_endTxEvent, m_endTxTime, m_phyList, m_state, max, ns3::UanPhy::NotifyTxEnd(), ns3::Simulator::Now(), NS_LOG_DEBUG, ns3::Simulator::Schedule(), ns3::Seconds(), and ns3::UanTransducer::TX.

Here is the call graph for this function:

Member Data Documentation

◆ m_arrivalList

ArrivalList ns3::UanTransducerHd::m_arrivalList

private

List of arriving packets which overlap in time.

Definition at line 70 of file uan-transducer-hd.h.

Referenced by Clear(), GetArrivalList(), Receive(), and RemoveArrival().

◆ m_channel

Ptr<UanChannel> ns3::UanTransducerHd::m_channel

private

The attached channel.

Definition at line 72 of file uan-transducer-hd.h.

Referenced by Clear(), GetChannel(), SetChannel(), and Transmit().

◆ m_cleared

bool ns3::UanTransducerHd::m_cleared

private

Flab when we've been cleared.

Definition at line 75 of file uan-transducer-hd.h.

Referenced by Clear().

◆ m_endTxEvent

EventId ns3::UanTransducerHd::m_endTxEvent

private

Event scheduled for end of transmission.

Definition at line 73 of file uan-transducer-hd.h.

Referenced by Clear(), and Transmit().

◆ m_endTxTime

Time ns3::UanTransducerHd::m_endTxTime

private

Time at which transmission will be completed.

Definition at line 74 of file uan-transducer-hd.h.

Referenced by EndTx(), and Transmit().

◆ m_phyList

UanPhyList ns3::UanTransducerHd::m_phyList

private

List of physical layers attached above this tranducer.

Definition at line 71 of file uan-transducer-hd.h.

Referenced by AddPhy(), Clear(), GetPhyList(), Receive(), RemoveArrival(), and Transmit().

◆ m_rxGainDb

double ns3::UanTransducerHd::m_rxGainDb

private

Receive gain in dB.

Definition at line 76 of file uan-transducer-hd.h.

Referenced by GetRxGainDb(), GetTypeId(), and SetRxGainDb().

◆ m_state

State ns3::UanTransducerHd::m_state

private

Transducer state.

Definition at line 69 of file uan-transducer-hd.h.

Referenced by EndTx(), GetState(), IsRx(), IsTx(), Receive(), and Transmit().

The documentation for this class was generated from the following files:

src/uan/model/uan-transducer-hd.h
src/uan/model/uan-transducer-hd.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ UanTransducerHd()

◆ ~UanTransducerHd()

Member Function Documentation

◆ AddPhy()

◆ ApplyRxGainDb()

◆ Clear()

◆ DoDispose()

◆ EndTx()

◆ GetArrivalList()

◆ GetChannel()

◆ GetPhyList()

◆ GetRxGainDb()

◆ GetState()

◆ GetTypeId()

◆ IsRx()

◆ IsTx()

◆ Receive()

◆ RemoveArrival()

◆ SetChannel()

◆ SetRxGainDb()

◆ Transmit()

Member Data Documentation

◆ m_arrivalList

◆ m_channel

◆ m_cleared

◆ m_endTxEvent

◆ m_endTxTime

◆ m_phyList

◆ m_rxGainDb

◆ m_state
