ns3::BasicEnergySourceHelper Class Reference

Creates a BasicEnergySource object. More...

#include "basic-energy-source-helper.h"

Inheritance diagram for ns3::BasicEnergySourceHelper:

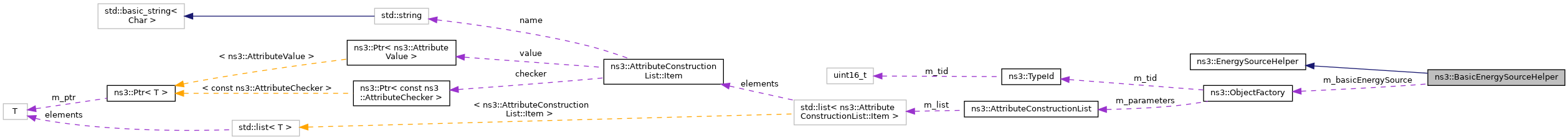

Collaboration diagram for ns3::BasicEnergySourceHelper:

Public Member Functions
	BasicEnergySourceHelper ()
	~BasicEnergySourceHelper () override
void	Set (std::string name, const AttributeValue &v) override
Public Member Functions inherited from ns3::EnergySourceHelper
virtual	~EnergySourceHelper ()
EnergySourceContainer	Install (NodeContainer c) const
EnergySourceContainer	Install (Ptr< Node > node) const
EnergySourceContainer	Install (std::string nodeName) const
EnergySourceContainer	InstallAll () const
	This function installs an EnergySource on all nodes in simulation. More...

Private Member Functions
Ptr< EnergySource >	DoInstall (Ptr< Node > node) const override

Private Attributes
ObjectFactory	m_basicEnergySource
	Energy source factory. More...

Detailed Description

Creates a BasicEnergySource object.

Definition at line 35 of file basic-energy-source-helper.h.

Constructor & Destructor Documentation

BasicEnergySourceHelper()

ns3::BasicEnergySourceHelper::BasicEnergySourceHelper

(

)

Definition at line 27 of file basic-energy-source-helper.cc.

References m_basicEnergySource, and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

~BasicEnergySourceHelper()

ns3::BasicEnergySourceHelper::~BasicEnergySourceHelper ( )

override

Definition at line 32 of file basic-energy-source-helper.cc.

Member Function Documentation

DoInstall()

Ptr< EnergySource > ns3::BasicEnergySourceHelper::DoInstall ( Ptr< Node >  node ) const

overrideprivatevirtual

Parameters

node	Pointer to node where the energy source is to be installed.

Returns

Pointer to the created EnergySource.

Child classes of EnergySourceHelper only have to implement this function, to create and aggregate an EnergySource object onto a single node. Rest of the installation process (eg. installing EnergySource on set of nodes) is implemented in the EnergySourceHelper base class.

Implements ns3::EnergySourceHelper.

Definition at line 43 of file basic-energy-source-helper.cc.

References ns3::ObjectFactory::Create(), m_basicEnergySource, and NS_ASSERT.

Here is the call graph for this function:

Set()

void ns3::BasicEnergySourceHelper::Set ( std::string  name, const AttributeValue &  v  )

overridevirtual

Parameters

name	Name of attribute to set.
v	Value of the attribute.

Sets one of the attributes of underlying EnergySource.

Implements ns3::EnergySourceHelper.

Definition at line 37 of file basic-energy-source-helper.cc.

References m_basicEnergySource, and ns3::ObjectFactory::Set().

Referenced by BasicEnergyDepletionTest::DepletionTestCase(), AcousticModemEnergyTestCase::DoRun(), AcousticModemEnergyDepletionTestCase::DoRun(), and UanExperiment::SetupEnergy().

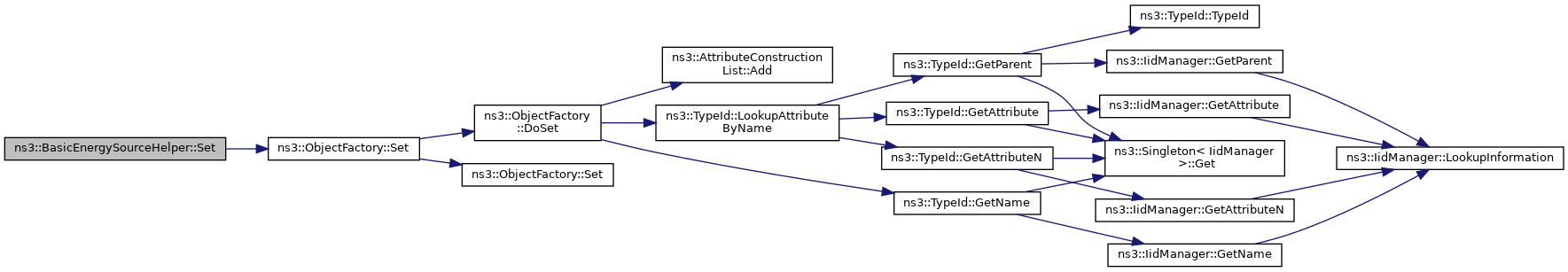

Here is the call graph for this function:

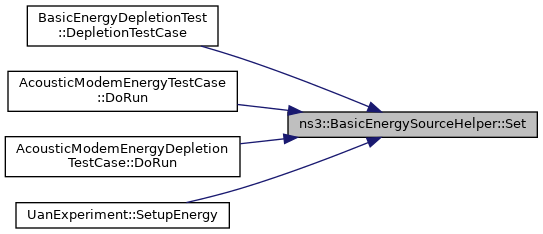

Here is the caller graph for this function:

Member Data Documentation

m_basicEnergySource

ObjectFactory ns3::BasicEnergySourceHelper::m_basicEnergySource

private

Energy source factory.

Definition at line 47 of file basic-energy-source-helper.h.

Referenced by BasicEnergySourceHelper(), DoInstall(), and Set().

---

The documentation for this class was generated from the following files:

• src/energy/helper/basic-energy-source-helper.h
• src/energy/helper/basic-energy-source-helper.cc
