BasicEnergySource decreases/increases remaining energy stored in itself in linearly. More...

#include "basic-energy-source.h"

Inheritance diagram for ns3::BasicEnergySource:

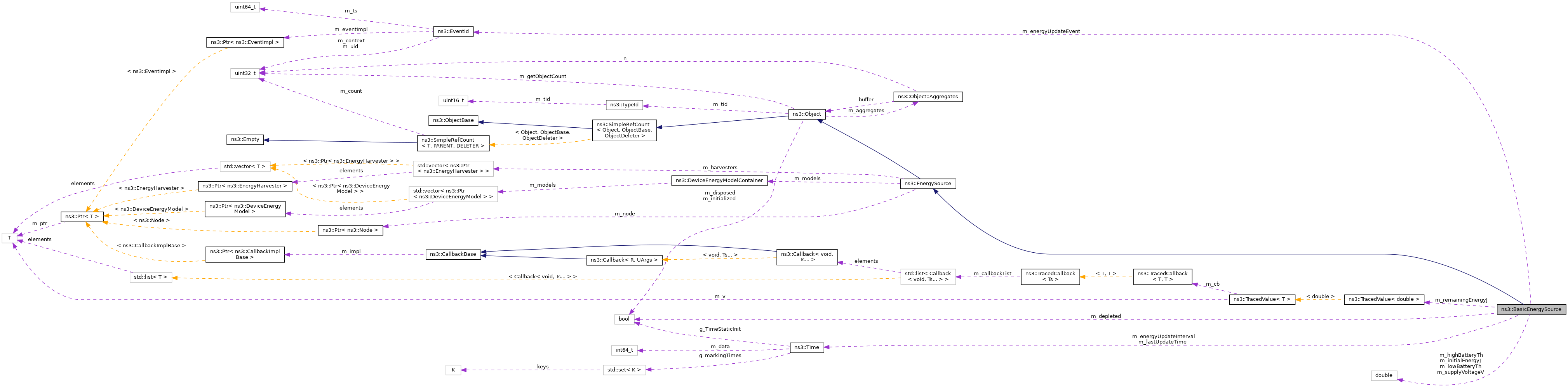

Collaboration diagram for ns3::BasicEnergySource:

Public Member Functions
	BasicEnergySource ()

	~BasicEnergySource () override

double	GetEnergyFraction () override

Time	GetEnergyUpdateInterval () const

double	GetInitialEnergy () const override

double	GetRemainingEnergy () override

double	GetSupplyVoltage () const override

void	SetEnergyUpdateInterval (Time interval)

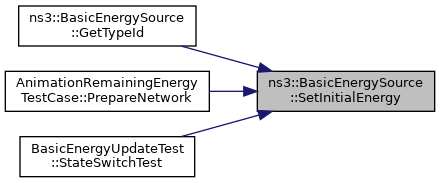

void	SetInitialEnergy (double initialEnergyJ)

void	SetSupplyVoltage (double supplyVoltageV)

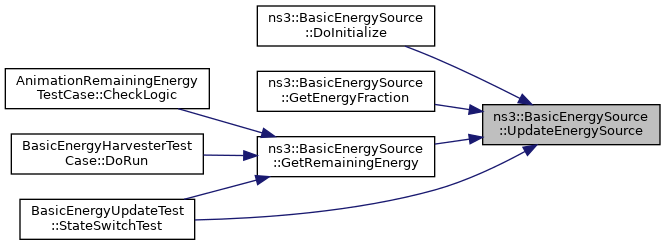

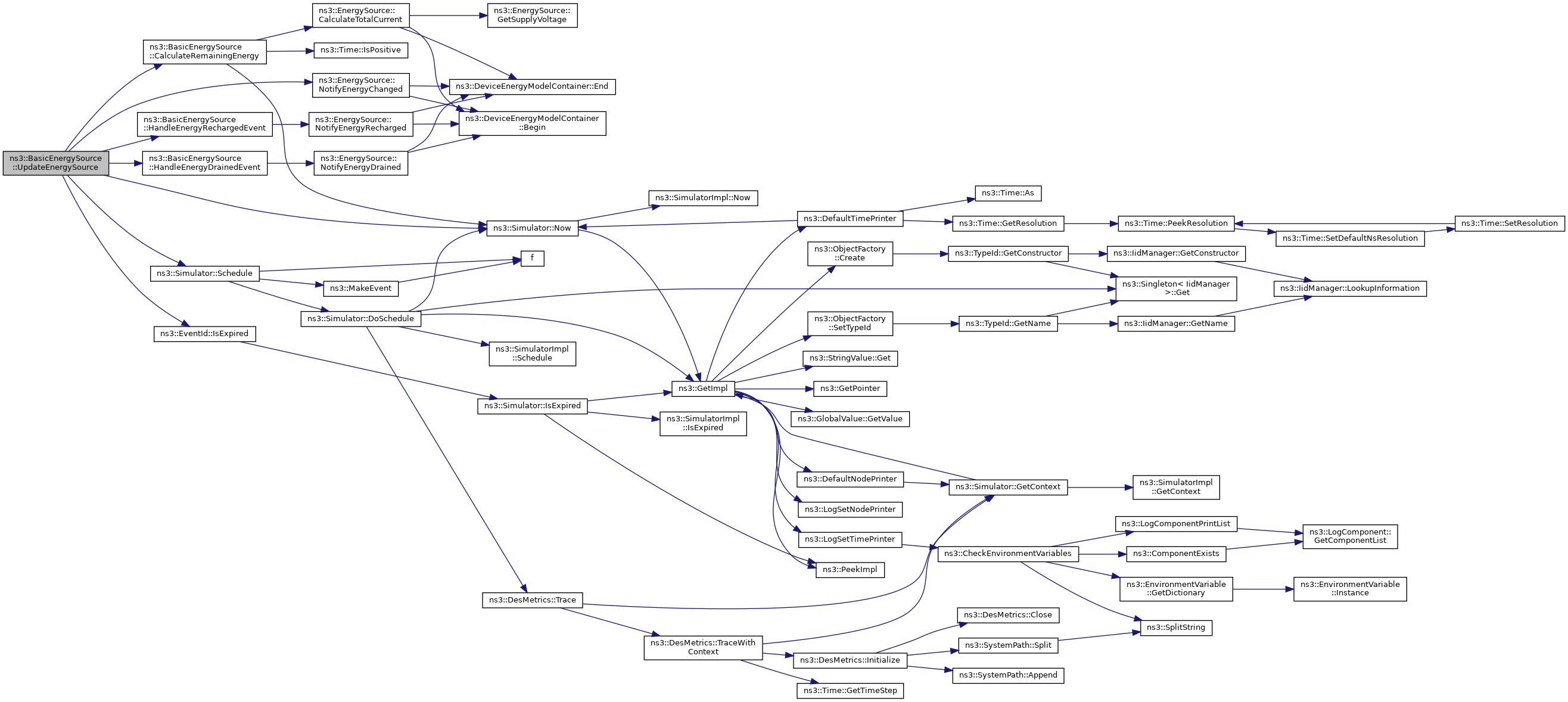

void	UpdateEnergySource () override
	Implements UpdateEnergySource. More...

Public Member Functions inherited from ns3::EnergySource
	EnergySource ()

	~EnergySource () override

void	AppendDeviceEnergyModel (Ptr< DeviceEnergyModel > deviceEnergyModelPtr)

void	ConnectEnergyHarvester (Ptr< EnergyHarvester > energyHarvesterPtr)

void	DisposeDeviceModels ()
	Calls Dispose () method of the device energy models. More...

DeviceEnergyModelContainer	FindDeviceEnergyModels (std::string name)

DeviceEnergyModelContainer	FindDeviceEnergyModels (TypeId tid)

Ptr< Node >	GetNode () const

void	InitializeDeviceModels ()
	Calls Start () method of the device energy models. More...

void	SetNode (Ptr< Node > node)
	Sets pointer to node containing this EnergySource. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::EnergySource
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Member Functions
void	CalculateRemainingEnergy ()
	Calculates remaining energy. More...

void	DoDispose () override
	Defined in ns3::Object. More...

void	DoInitialize () override
	Defined in ns3::Object. More...

void	HandleEnergyDrainedEvent ()
	Handles the remaining energy going to zero event. More...

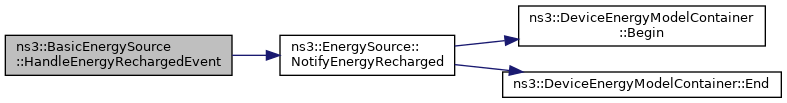

void	HandleEnergyRechargedEvent ()
	Handles the remaining energy exceeding the high threshold after it went below the low threshold. More...

Private Attributes
bool	m_depleted
	set to true when the remaining energy goes below the low threshold, set to false again when the remaining energy exceeds the high threshold More...

EventId	m_energyUpdateEvent
	energy update event More...

Time	m_energyUpdateInterval
	energy update interval More...

double	m_highBatteryTh
	high battery threshold, as a fraction of the initial energy More...

double	m_initialEnergyJ
	initial energy, in Joules More...

Time	m_lastUpdateTime
	last update time More...

double	m_lowBatteryTh
	low battery threshold, as a fraction of the initial energy More...

TracedValue< double >	m_remainingEnergyJ
	remaining energy, in Joules More...

double	m_supplyVoltageV
	supply voltage, in Volts More...

Additional Inherited Members
Protected Member Functions inherited from ns3::EnergySource
void	BreakDeviceEnergyModelRefCycle ()
	This function is called to break reference cycle between EnergySource and DeviceEnergyModel. More...

double	CalculateTotalCurrent ()

void	NotifyEnergyChanged ()
	This function notifies all DeviceEnergyModel of energy changed event. More...

void	NotifyEnergyDrained ()
	This function notifies all DeviceEnergyModel of energy depletion event. More...

void	NotifyEnergyRecharged ()
	This function notifies all DeviceEnergyModel of energy recharged event. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

BasicEnergySource decreases/increases remaining energy stored in itself in linearly.

Definition at line 38 of file basic-energy-source.h.

Constructor & Destructor Documentation

◆ BasicEnergySource()

ns3::BasicEnergySource::BasicEnergySource ( )

Definition at line 78 of file basic-energy-source.cc.

References m_depleted, m_lastUpdateTime, NS_LOG_FUNCTION, and ns3::Seconds().

Here is the call graph for this function:

◆ ~BasicEnergySource()

ns3::BasicEnergySource::~BasicEnergySource ( )

override

Definition at line 85 of file basic-energy-source.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ CalculateRemainingEnergy()

void ns3::BasicEnergySource::CalculateRemainingEnergy ( )

private

Calculates remaining energy.

This function uses the total current from all device models to calculate the amount of energy to decrease. The energy to decrease is given by: energy to decrease = total current * supply voltage * time duration This function subtracts the calculated energy to decrease from remaining energy.

Definition at line 221 of file basic-energy-source.cc.

References ns3::EnergySource::CalculateTotalCurrent(), ns3::Time::IsPositive(), m_lastUpdateTime, m_remainingEnergyJ, m_supplyVoltageV, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by UpdateEnergySource().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::BasicEnergySource::DoDispose ( void )

overrideprivatevirtual

Defined in ns3::Object.

Reimplemented from ns3::Object.

Definition at line 198 of file basic-energy-source.cc.

References ns3::EnergySource::BreakDeviceEnergyModelRefCycle(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ DoInitialize()

void ns3::BasicEnergySource::DoInitialize ( void )

overrideprivatevirtual

Defined in ns3::Object.

Reimplemented from ns3::Object.

Definition at line 191 of file basic-energy-source.cc.

References NS_LOG_FUNCTION, and UpdateEnergySource().

Here is the call graph for this function:

◆ GetEnergyFraction()

double ns3::BasicEnergySource::GetEnergyFraction ( )

overridevirtual

Returns: Energy fraction.

Implements GetEnergyFraction.

Implements ns3::EnergySource.

Definition at line 144 of file basic-energy-source.cc.

References m_initialEnergyJ, m_remainingEnergyJ, NS_LOG_FUNCTION, and UpdateEnergySource().

Here is the call graph for this function:

◆ GetEnergyUpdateInterval()

Time ns3::BasicEnergySource::GetEnergyUpdateInterval ( ) const

Returns: The interval between each energy update.

Definition at line 114 of file basic-energy-source.cc.

References m_energyUpdateInterval, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetInitialEnergy()

double ns3::BasicEnergySource::GetInitialEnergy ( ) const

overridevirtual

Returns: Initial energy stored in energy source, in Joules.

Implements GetInitialEnergy.

Implements ns3::EnergySource.

Definition at line 128 of file basic-energy-source.cc.

References m_initialEnergyJ, and NS_LOG_FUNCTION.

Referenced by BasicEnergyHarvesterTestCase::DoRun(), GetTypeId(), and BasicEnergyUpdateTest::StateSwitchTest().

Here is the caller graph for this function:

◆ GetRemainingEnergy()

double ns3::BasicEnergySource::GetRemainingEnergy ( )

overridevirtual

Returns: Remaining energy in energy source, in Joules

Implements GetRemainingEnergy.

Implements ns3::EnergySource.

Definition at line 135 of file basic-energy-source.cc.

References m_remainingEnergyJ, NS_LOG_FUNCTION, and UpdateEnergySource().

Referenced by AnimationRemainingEnergyTestCase::CheckLogic(), BasicEnergyHarvesterTestCase::DoRun(), and BasicEnergyUpdateTest::StateSwitchTest().

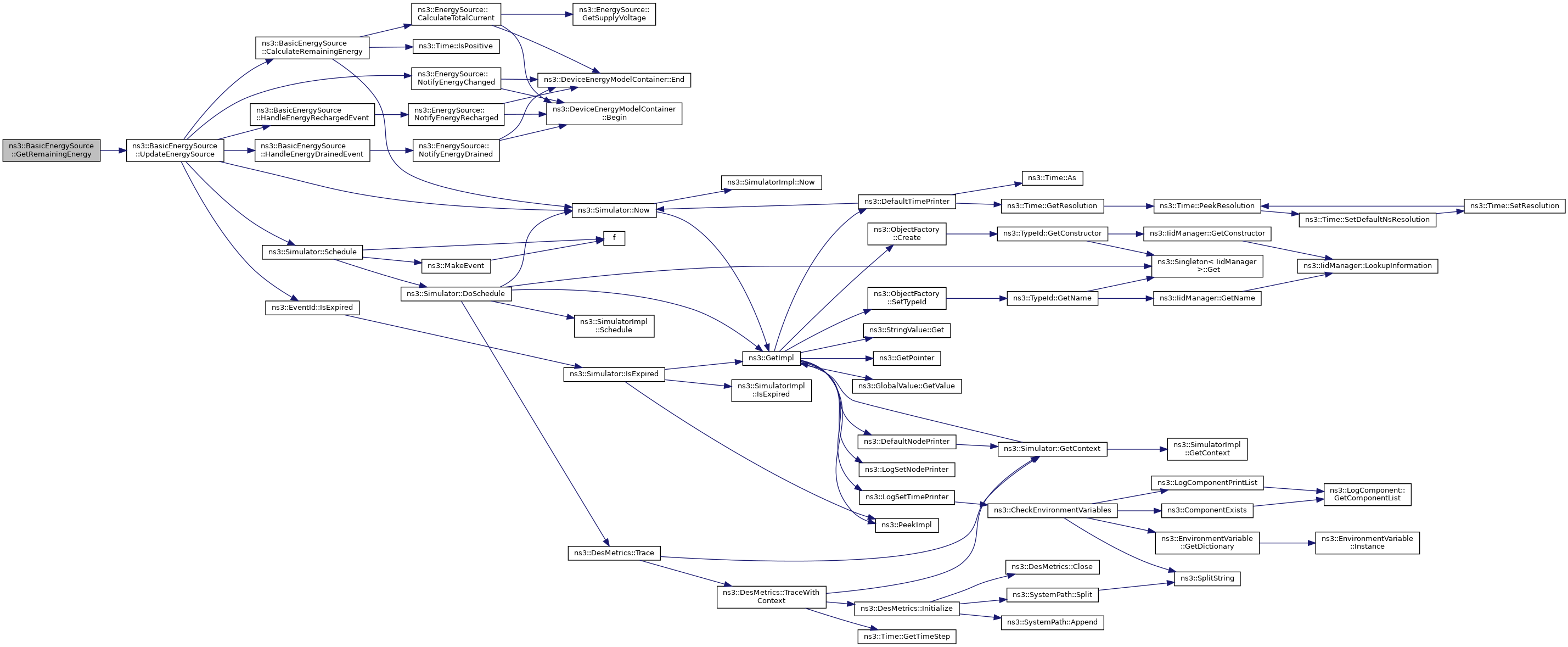

Here is the call graph for this function:

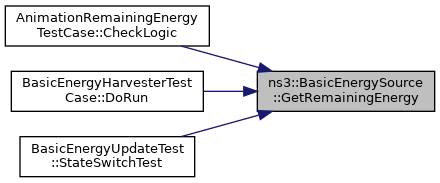

Here is the caller graph for this function:

◆ GetSupplyVoltage()

double ns3::BasicEnergySource::GetSupplyVoltage ( ) const

overridevirtual

Returns: Supply voltage at the energy source.

Implements GetSupplyVoltage.

Implements ns3::EnergySource.

Definition at line 121 of file basic-energy-source.cc.

References m_supplyVoltageV, and NS_LOG_FUNCTION.

Referenced by GetTypeId(), and BasicEnergyUpdateTest::StateSwitchTest().

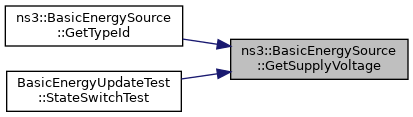

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::BasicEnergySource::GetTypeId ( void )

static

Get the type ID.

Returns: The object TypeId.

Definition at line 36 of file basic-energy-source.cc.

References GetEnergyUpdateInterval(), GetInitialEnergy(), GetSupplyVoltage(), m_highBatteryTh, m_lowBatteryTh, m_remainingEnergyJ, ns3::MakeDoubleAccessor(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), ns3::Seconds(), SetEnergyUpdateInterval(), SetInitialEnergy(), ns3::TypeId::SetParent(), and SetSupplyVoltage().

Here is the call graph for this function:

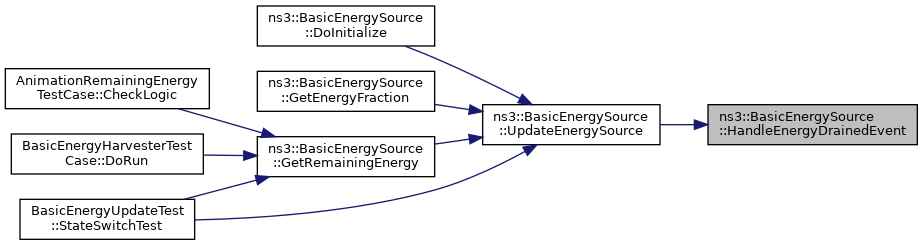

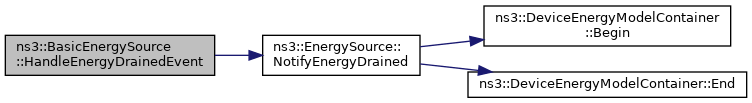

◆ HandleEnergyDrainedEvent()

void ns3::BasicEnergySource::HandleEnergyDrainedEvent ( )

private

Handles the remaining energy going to zero event.

This function notifies all the energy models aggregated to the node about the energy being depleted. Each energy model is then responsible for its own handler.

Definition at line 205 of file basic-energy-source.cc.

References ns3::EnergySource::NotifyEnergyDrained(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by UpdateEnergySource().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HandleEnergyRechargedEvent()

void ns3::BasicEnergySource::HandleEnergyRechargedEvent ( )

private

Handles the remaining energy exceeding the high threshold after it went below the low threshold.

This function notifies all the energy models aggregated to the node about the energy being recharged. Each energy model is then responsible for its own handler.

Definition at line 213 of file basic-energy-source.cc.

References ns3::EnergySource::NotifyEnergyRecharged(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by UpdateEnergySource().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetEnergyUpdateInterval()

void ns3::BasicEnergySource::SetEnergyUpdateInterval ( Time interval )

Parameters

interval Energy update interval.

This function sets the interval between each energy update.

Definition at line 107 of file basic-energy-source.cc.

References m_energyUpdateInterval, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetInitialEnergy()

void ns3::BasicEnergySource::SetInitialEnergy ( double initialEnergyJ )

Parameters

initialEnergyJ Initial energy, in Joules

Sets initial energy stored in the energy source. Note that initial energy is assumed to be set before simulation starts and is set only once per simulation.

Definition at line 91 of file basic-energy-source.cc.

References m_initialEnergyJ, m_remainingEnergyJ, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by GetTypeId(), AnimationRemainingEnergyTestCase::PrepareNetwork(), and BasicEnergyUpdateTest::StateSwitchTest().

Here is the caller graph for this function:
