Profile manager for burst communications. More...

#include "burst-profile-manager.h"

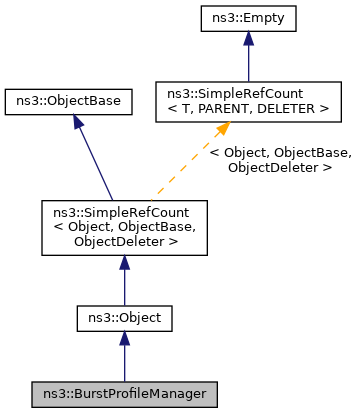

Inheritance diagram for ns3::BurstProfileManager:

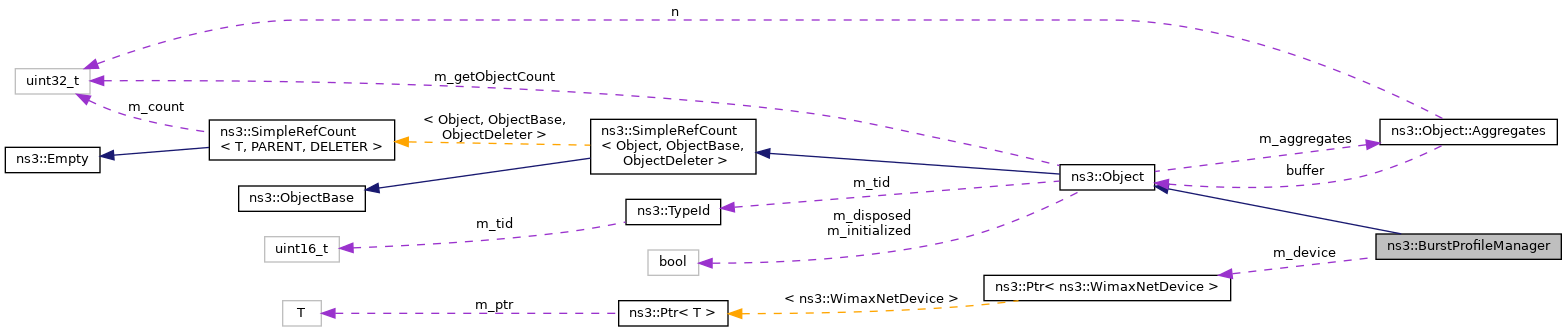

Collaboration diagram for ns3::BurstProfileManager:

Public Member Functions
	BurstProfileManager (const BurstProfileManager &)=delete

	BurstProfileManager (Ptr< WimaxNetDevice > device)
	Constructor. More...

	~BurstProfileManager () override

void	DoDispose () override
	Destructor implementation. More...

uint8_t	GetBurstProfile (WimaxPhy::ModulationType modulationType, WimaxNetDevice::Direction direction) const
	returns the burst profile More...

uint8_t	GetBurstProfileForSS (const SSRecord ssRecord, const RngReq rngreq, WimaxPhy::ModulationType &modulationType) const
	Get burst profile for SS. More...

uint8_t	GetBurstProfileToRequest ()
	Get burst profile to request. More...

WimaxPhy::ModulationType	GetModulationType (uint8_t iuc, WimaxNetDevice::Direction direction) const
	returns the modulation type of a given iuc More...

WimaxPhy::ModulationType	GetModulationTypeForSS (const SSRecord ssRecord, const RngReq rngreq) const
	Get module ation type for SS. More...

uint16_t	GetNrBurstProfilesToDefine ()

BurstProfileManager &	operator= (const BurstProfileManager &)=delete

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Attributes
Ptr< WimaxNetDevice >	m_device
	the device More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Profile manager for burst communications.

Definition at line 40 of file burst-profile-manager.h.

Constructor & Destructor Documentation

◆ BurstProfileManager() [1/2]

ns3::BurstProfileManager::BurstProfileManager ( Ptr< WimaxNetDevice > device )

Constructor.

Parameters

device WIMAX device

Definition at line 47 of file burst-profile-manager.cc.

◆ ~BurstProfileManager()

ns3::BurstProfileManager::~BurstProfileManager ( )

override

Definition at line 52 of file burst-profile-manager.cc.

References m_device.

◆ BurstProfileManager() [2/2]

ns3::BurstProfileManager::BurstProfileManager ( const BurstProfileManager & )

delete

Member Function Documentation

◆ DoDispose()

void ns3::BurstProfileManager::DoDispose ( void )

overridevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 58 of file burst-profile-manager.cc.

References m_device.

◆ GetBurstProfile()

uint8_t ns3::BurstProfileManager::GetBurstProfile	(	WimaxPhy::ModulationType	modulationType,
		WimaxNetDevice::Direction	direction
	)		const

returns the burst profile

Parameters

modulationType
direction	should be uplink or downlink

Returns: the modulation type of the selected iuc

Definition at line 107 of file burst-profile-manager.cc.

References ns3::WimaxNetDevice::DIRECTION_DOWNLINK, m_device, and NS_FATAL_ERROR.

Referenced by GetBurstProfileForSS(), and GetBurstProfileToRequest().

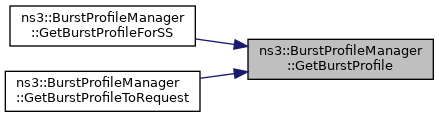

Here is the caller graph for this function:

◆ GetBurstProfileForSS()

uint8_t ns3::BurstProfileManager::GetBurstProfileForSS	(	const SSRecord *	ssRecord,
		const RngReq *	rngreq,
		WimaxPhy::ModulationType &	modulationType
	)		const
