WiMAX PHY entity. More...

#include "wimax-phy.h"

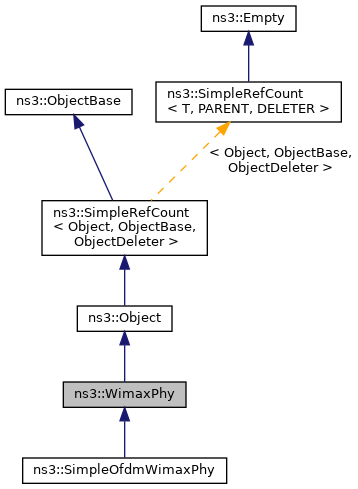

Inheritance diagram for ns3::WimaxPhy:

Collaboration diagram for ns3::WimaxPhy:

Public Types
enum	ModulationType { MODULATION_TYPE_BPSK_12 , MODULATION_TYPE_QPSK_12 , MODULATION_TYPE_QPSK_34 , MODULATION_TYPE_QAM16_12 , MODULATION_TYPE_QAM16_34 , MODULATION_TYPE_QAM64_23 , MODULATION_TYPE_QAM64_34 }
	ModulationType enumeration. More...

enum	PhyState { PHY_STATE_IDLE , PHY_STATE_SCANNING , PHY_STATE_TX , PHY_STATE_RX }
	PhyState enumeration. More...

enum	PhyType { SimpleWimaxPhy , simpleOfdmWimaxPhy }
	PhyType enumeration. More...

Public Member Functions
	WimaxPhy ()

	~WimaxPhy () override

virtual int64_t	AssignStreams (int64_t stream)=0
	Assign a fixed random variable stream number to the random variables used by this model. More...

void	Attach (Ptr< WimaxChannel > channel)
	Attach the physical layer to a channel. More...

void	DoDispose () override
	Destructor implementation. More...

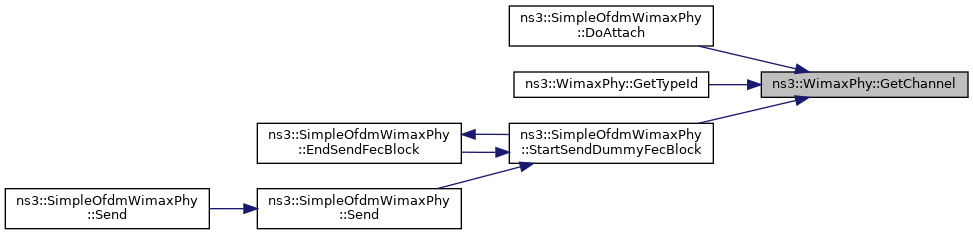

Ptr< WimaxChannel >	GetChannel () const

uint32_t	GetChannelBandwidth () const
	Get the channel bandwidth. More...

EventId	GetChnlSrchTimeoutEvent () const
	Get channel search timeout event. More...

uint32_t	GetDataRate (ModulationType modulationType) const
	Get the data rate corresponding to a modulation type. More...

Ptr< NetDevice >	GetDevice () const

Time	GetFrameDuration () const

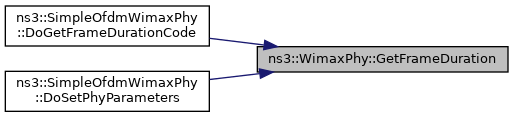

	Get the frame duration. More...

Time	GetFrameDuration (uint8_t frameDurationCode) const
	Get the frame duration corresponding to a given code. More...

uint8_t	GetFrameDurationCode () const
	Get the frame duration code. More...

Time	GetFrameDurationSec () const
	Get the frame duration This method is redundant with GetFrameDuration () More...

uint32_t	GetFrequency () const
	Get the frequency on which the device is locked. More...

double	GetGValue () const
	Get the guard interval factor (the ratio TG/Td) More...

uint16_t	GetNfft () const
	Get the size of the FFT. More...

uint64_t	GetNrBytes (uint32_t symbols, ModulationType modulationType) const
	Get the maximum number of bytes that could be carried by symbols symbols using the modulation modulationType. More...

uint8_t	GetNrCarriers () const
	Get the number of carriers in the physical frame. More...

uint64_t	GetNrSymbols (uint32_t size, ModulationType modulationType) const
	Get the number of symbols needed to transmit size bytes using the modulation modulationType. More...

virtual PhyType	GetPhyType () const =0
	Get the type of the physical layer. More...

Time	GetPsDuration () const
	Get the physical slot duration. More...

uint16_t	GetPsPerFrame () const
	Get the number of physical slots per frame. More...

uint16_t	GetPsPerSymbol () const
	Get the number of physical slots per symbol. More...

Callback< void, Ptr< const PacketBurst > >	GetReceiveCallback () const

uint16_t	GetRtg () const
	Get the receive/transmit transition gap. More...

uint64_t	GetRxFrequency () const
	Get the reception frequency. More...

double	GetSamplingFactor () const
	Get the sampling factor. More...

double	GetSamplingFrequency () const
	Get the sampling frequency. More...

uint64_t	GetScanningFrequency () const
	Get the scanning frequency. More...

PhyState	GetState () const
	Get the state of the device. More...

Time	GetSymbolDuration () const
	Get the OFDM symbol duration. More...

uint32_t	GetSymbolsPerFrame () const
	Get the number of symbols per frame. More...

Time	GetTransmissionTime (uint32_t size, ModulationType modulationType) const
	Get transmission time needed to send bytes at a given modulation. More...

uint16_t	GetTtg () const
	Get the transmit/receive transition gap. More...

uint64_t	GetTxFrequency () const
	Get the transmission frequency. More...

bool	IsDuplex () const
	Check if configured in duplex mode. More...

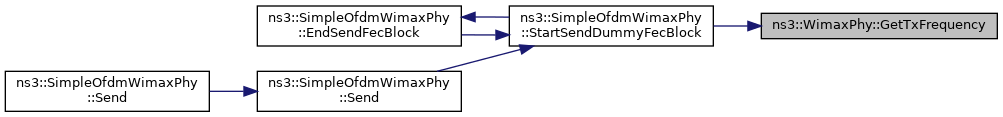

virtual void	Send (SendParams *params)=0
	send a packet on the channel More...

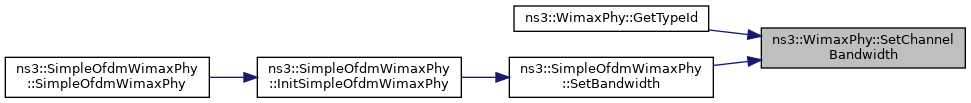

void	SetChannelBandwidth (uint32_t channelBandwidth)
	Set the channel bandwidth. More...

void	SetDataRates ()
	calculates the data rate of each modulation and save them for future use More...

void	SetDevice (Ptr< WimaxNetDevice > device)
	Set the device in which this physical layer is installed. More...

void	SetDuplex (uint64_t rxFrequency, uint64_t txFrequency)
	configure the physical layer in duplex mode More...

void	SetFrameDuration (Time frameDuration)
	Set the frame duration. More...

void	SetFrequency (uint32_t frequency)
	set the frequency on which the device should lock More...

void	SetNrCarriers (uint8_t nrCarriers)
	Set the number of carriers in the physical frame. More...

void	SetPhyParameters ()
	computes the Physical parameters and store them More...

void	SetPsDuration (Time psDuration)
	set the physical slot duration More...

void	SetPsPerFrame (uint16_t psPerFrame)
	set the number of physical slots per frame More...

void	SetPsPerSymbol (uint16_t psPerSymbol)
	set the number of physical slots per symbol More...

void	SetReceiveCallback (Callback< void, Ptr< const PacketBurst >> callback)
	set the callback function to call when a burst is received More...

void	SetScanningCallback () const
	calls the scanning call back function More...

void	SetSimplex (uint64_t frequency)
	configure the physical layer in simplex mode More...

void	SetState (PhyState state)
	set the state of the device More...

void	SetSymbolDuration (Time symbolDuration)
	set the OFDM symbol duration More...

void	SetSymbolsPerFrame (uint32_t symbolsPerFrame)
	set the number of symbols per frame More...

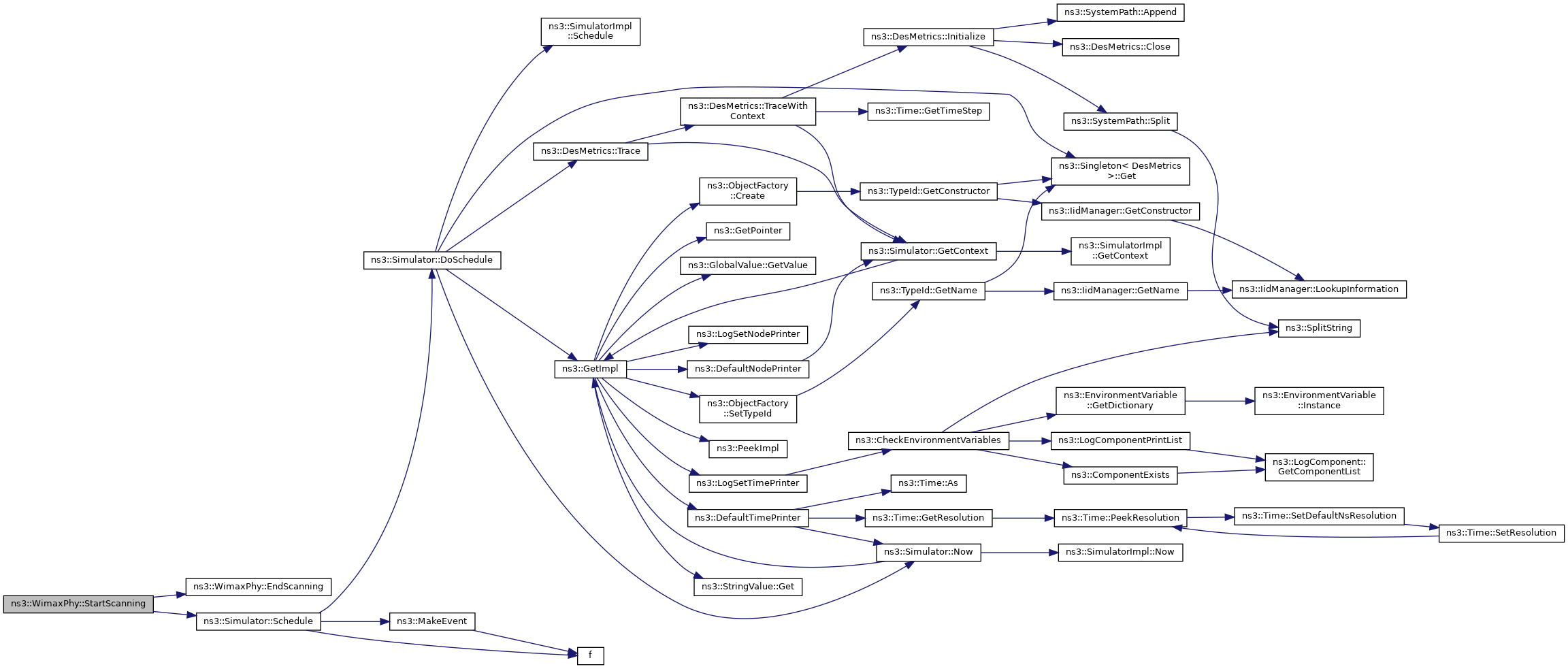

void	StartScanning (uint64_t frequency, Time timeout, Callback< void, bool, uint64_t > callback)
	scan a frequency for maximum timeout seconds and call the callback if the frequency can be used More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Member Functions
virtual void	DoAttach (Ptr< WimaxChannel > channel)=0
	Attach channel. More...

virtual uint32_t	DoGetDataRate (ModulationType modulationType) const =0
	Get data rate. More...

virtual Time	DoGetFrameDuration (uint8_t frameDurationCode) const =0
	Get frame duration. More...

virtual uint8_t	DoGetFrameDurationCode () const =0
	Get frame duration code. More...

virtual double	DoGetGValue () const =0
	Get G value. More...

virtual uint16_t	DoGetNfft () const =0
	Get NFFT. More...

virtual uint64_t	DoGetNrBytes (uint32_t symbols, ModulationType modulationType) const =0
	Get number of bytes. More...

virtual uint64_t	DoGetNrSymbols (uint32_t size, ModulationType modulationType) const =0
	Get number of symbols. More...

virtual uint16_t	DoGetRtg () const =0
	Get RTG. More...

virtual double	DoGetSamplingFactor () const =0
	Get sampling factor. More...

virtual double	DoGetSamplingFrequency () const =0
	Get sampling frequency. More...

virtual Time	DoGetTransmissionTime (uint32_t size, ModulationType modulationType) const =0
	Get transmission time. More...

virtual uint16_t	DoGetTtg () const =0
	Get TTG. More...

virtual void	DoSetDataRates ()=0
	Set data rates. More...

virtual void	DoSetPhyParameters ()=0
	Set phy parameters. More...

void	EndScanning ()
	End scanning. More...

void	GetModulationFecParams (ModulationType modulationType, uint8_t &bitsPerSymbol, double &fecCode) const
	Get modulation FEC parameters. More...

Private Attributes
Ptr< WimaxChannel >	m_channel
	channel More...

uint32_t	m_channelBandwidth
	in Hz More...

Ptr< WimaxNetDevice >	m_device
	the device More...

EventId	m_dlChnlSrchTimeoutEvent
	DL channel search timeout event. More...

bool	m_duplex
	duplex More...

Time	m_frameDuration
	in seconds More...

uint32_t	m_frequency
	in KHz More...

uint8_t	m_nrCarriers
	number of carriers More...

Time	m_psDuration
	in seconds More...

uint16_t	m_psPerFrame
	ps per framce More...

uint16_t	m_psPerSymbol
	ps per sumbol More...

Callback< void, Ptr< const PacketBurst > >	m_rxCallback
	receive callback function More...

uint64_t	m_rxFrequency
	receive frequency More...

Callback< void, bool, uint64_t >	m_scanningCallback
	scanning callback function More...

uint64_t	m_scanningFrequency
	scanning frequency More...

PhyState	m_state
	state More...

Time	m_symbolDuration
	in seconds More...

uint32_t	m_symbolsPerFrame
	symbols per frame More...

uint64_t	m_txFrequency
	transmit frequency More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

WiMAX PHY entity.

Definition at line 49 of file wimax-phy.h.

Member Enumeration Documentation

◆ ModulationType

enum ns3::WimaxPhy::ModulationType

ModulationType enumeration.

Enumerator
MODULATION_TYPE_BPSK_12
MODULATION_TYPE_QPSK_12
MODULATION_TYPE_QPSK_34
MODULATION_TYPE_QAM16_12
MODULATION_TYPE_QAM16_34
MODULATION_TYPE_QAM64_23
MODULATION_TYPE_QAM64_34

Definition at line 53 of file wimax-phy.h.

◆ PhyState

enum ns3::WimaxPhy::PhyState

PhyState enumeration.

Enumerator
PHY_STATE_IDLE
PHY_STATE_SCANNING
PHY_STATE_TX
PHY_STATE_RX

Definition at line 65 of file wimax-phy.h.

◆ PhyType

enum ns3::WimaxPhy::PhyType

PhyType enumeration.

Enumerator
SimpleWimaxPhy
simpleOfdmWimaxPhy

Definition at line 74 of file wimax-phy.h.

Constructor & Destructor Documentation

◆ WimaxPhy()

ns3::WimaxPhy::WimaxPhy ( )

Definition at line 81 of file wimax-phy.cc.

References m_duplex, m_rxFrequency, and m_txFrequency.

◆ ~WimaxPhy()

ns3::WimaxPhy::~WimaxPhy ( )

override

Definition at line 98 of file wimax-phy.cc.

Member Function Documentation

◆ AssignStreams()

virtual int64_t ns3::WimaxPhy::AssignStreams ( int64_t stream )

pure virtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implemented in ns3::SimpleOfdmWimaxPhy.

◆ Attach()

void ns3::WimaxPhy::Attach ( Ptr< WimaxChannel > channel )

Attach the physical layer to a channel.

Parameters

channel the channel to which the physical layer will be attached

Definition at line 110 of file wimax-phy.cc.

References third::channel, DoAttach(), and m_channel.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoAttach()

virtual void ns3::WimaxPhy::DoAttach ( Ptr< WimaxChannel > channel )

privatepure virtual

Attach channel.

Parameters

channel the wimax channel

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by Attach().

Here is the caller graph for this function:

◆ DoDispose()

void ns3::WimaxPhy::DoDispose ( void )

overridevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 103 of file wimax-phy.cc.

References m_channel, and m_device.

Referenced by ns3::SimpleOfdmWimaxPhy::DoDispose().

Here is the caller graph for this function:

◆ DoGetDataRate()

virtual uint32_t ns3::WimaxPhy::DoGetDataRate ( ModulationType modulationType ) const

privatepure virtual

Get data rate.

Parameters

modulationType the modulation type

Returns: the data rate

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by GetDataRate().

Here is the caller graph for this function:

◆ DoGetFrameDuration()

virtual Time ns3::WimaxPhy::DoGetFrameDuration ( uint8_t frameDurationCode ) const

privatepure virtual

Get frame duration.

Parameters

frameDurationCode the frame duration code

Returns: the frame duration time

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by GetFrameDuration().

Here is the caller graph for this function:

◆ DoGetFrameDurationCode()

virtual uint8_t ns3::WimaxPhy::DoGetFrameDurationCode ( ) const

privatepure virtual

Get frame duration code.

Returns: the frame duration code

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by GetFrameDurationCode().

Here is the caller graph for this function:

◆ DoGetGValue()

virtual double ns3::WimaxPhy::DoGetGValue ( ) const

privatepure virtual

Get G value.

Returns: he G value

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by GetGValue().

Here is the caller graph for this function:

◆ DoGetNfft()

virtual uint16_t ns3::WimaxPhy::DoGetNfft ( ) const

privatepure virtual

Get NFFT.

Returns: the NFFT

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by GetNfft().

Here is the caller graph for this function:

◆ DoGetNrBytes()

virtual uint64_t ns3::WimaxPhy::DoGetNrBytes	(	uint32_t	symbols,
		ModulationType	modulationType
	)		const

privatepure virtual

Get number of bytes.

Parameters

symbols	the number of symbols
modulationType	the modulation type

Returns: the number of bytes

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by GetNrBytes().

Here is the caller graph for this function:

◆ DoGetNrSymbols()

virtual uint64_t ns3::WimaxPhy::DoGetNrSymbols	(	uint32_t	size,
		ModulationType	modulationType
	)		const

privatepure virtual

Get number of symbols.

Parameters

size	the transmission size
modulationType	the modulation type

Returns: the number of symbols

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by GetNrSymbols().

Here is the caller graph for this function:

◆ DoGetRtg()

virtual uint16_t ns3::WimaxPhy::DoGetRtg ( ) const

privatepure virtual

Get RTG.

Returns: the RTG

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by GetRtg().

Here is the caller graph for this function:

◆ DoGetSamplingFactor()

virtual double ns3::WimaxPhy::DoGetSamplingFactor ( ) const

privatepure virtual

Get sampling factor.

Returns: the sampling factor

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by GetSamplingFactor().

Here is the caller graph for this function:

◆ DoGetSamplingFrequency()

virtual double ns3::WimaxPhy::DoGetSamplingFrequency ( ) const

privatepure virtual

Get sampling frequency.

Returns: the sampling frequency

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by GetSamplingFrequency().

Here is the caller graph for this function:

◆ DoGetTransmissionTime()

virtual Time ns3::WimaxPhy::DoGetTransmissionTime	(	uint32_t	size,
		ModulationType	modulationType
	)		const

privatepure virtual

Get transmission time.

Parameters

size	the transmission size
modulationType	the modulation type

Returns: the transmission time

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by GetTransmissionTime().

Here is the caller graph for this function:

◆ DoGetTtg()

virtual uint16_t ns3::WimaxPhy::DoGetTtg ( ) const

privatepure virtual

Get TTG.

Returns: the TTG

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by GetTtg().

Here is the caller graph for this function:

◆ DoSetDataRates()

virtual void ns3::WimaxPhy::DoSetDataRates ( )

privatepure virtual

Set data rates.

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by SetDataRates().

Here is the caller graph for this function:

◆ DoSetPhyParameters()

virtual void ns3::WimaxPhy::DoSetPhyParameters ( )

privatepure virtual

Set phy parameters.

Implemented in ns3::SimpleOfdmWimaxPhy.

Referenced by SetPhyParameters().

Here is the caller graph for this function:

◆ EndScanning()

void ns3::WimaxPhy::EndScanning ( )

private

End scanning.

Definition at line 148 of file wimax-phy.cc.

References m_scanningCallback, and m_scanningFrequency.

Referenced by StartScanning().

Here is the caller graph for this function:

◆ GetChannel()

Ptr< WimaxChannel > ns3::WimaxPhy::GetChannel ( ) const

Returns: the channel to which this physical layer is attached

Definition at line 117 of file wimax-phy.cc.

References m_channel.

Referenced by ns3::SimpleOfdmWimaxPhy::DoAttach(), GetTypeId(), and ns3::SimpleOfdmWimaxPhy::StartSendDummyFecBlock().

Here is the caller graph for this function:

◆ GetChannelBandwidth()

uint32_t ns3::WimaxPhy::GetChannelBandwidth ( ) const

Get the channel bandwidth.

Returns: the channel bandwidth

Definition at line 338 of file wimax-phy.cc.

References m_channelBandwidth.

Referenced by ns3::SimpleOfdmWimaxPhy::DoGetSamplingFactor(), ns3::SimpleOfdmWimaxPhy::DoGetSamplingFrequency(), ns3::SimpleOfdmWimaxPhy::GetBandwidth(), and GetTypeId().

Here is the caller graph for this function:

◆ GetChnlSrchTimeoutEvent()

EventId ns3::WimaxPhy::GetChnlSrchTimeoutEvent ( ) const

Get channel search timeout event.

Returns: event ID

Definition at line 216 of file wimax-phy.cc.

References m_dlChnlSrchTimeoutEvent.

Referenced by ns3::SimpleOfdmWimaxPhy::StartReceive().

Here is the caller graph for this function:

◆ GetDataRate()

uint32_t ns3::WimaxPhy::GetDataRate ( WimaxPhy::ModulationType modulationType ) const

Get the data rate corresponding to a modulation type.

Returns: the data rate

Parameters

modulationType the modulation that you want to get its data rate

Definition at line 234 of file wimax-phy.cc.

References DoGetDataRate().

Here is the call graph for this function:

◆ GetDevice()

Ptr< NetDevice > ns3::WimaxPhy::GetDevice ( ) const

Returns: the the device in which this physical layer is installed

Definition at line 129 of file wimax-phy.cc.

References m_device.

◆ GetFrameDuration() [1/2]

Time ns3::WimaxPhy::GetFrameDuration ( ) const

Get the frame duration.

Returns: the frame duration

Definition at line 308 of file wimax-phy.cc.

References GetFrameDurationSec().

Referenced by ns3::SimpleOfdmWimaxPhy::DoGetFrameDurationCode(), and ns3::SimpleOfdmWimaxPhy::DoSetPhyParameters().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetFrameDuration() [2/2]

Time ns3::WimaxPhy::GetFrameDuration ( uint8_t frameDurationCode ) const

Get the frame duration corresponding to a given code.

Parameters

frameDurationCode the frame duration code to use

Returns: the frame duration

Definition at line 276 of file wimax-phy.cc.

References DoGetFrameDuration().

Here is the call graph for this function:

◆ GetFrameDurationCode()

uint8_t ns3::WimaxPhy::GetFrameDurationCode ( ) const

Get the frame duration code.

Returns: the frame duration code

Definition at line 270 of file wimax-phy.cc.

References DoGetFrameDurationCode().

Here is the call graph for this function:

◆ GetFrameDurationSec()

Time ns3::WimaxPhy::GetFrameDurationSec ( ) const

Get the frame duration This method is redundant with GetFrameDuration ()

Returns: the frame duration

Definition at line 314 of file wimax-phy.cc.

References m_frameDuration.

Referenced by GetFrameDuration(), and GetTypeId().

Here is the caller graph for this function:

◆ GetFrequency()

uint32_t ns3::WimaxPhy::GetFrequency ( ) const

Get the frequency on which the device is locked.

Returns: the frequency on which the device is locked

Definition at line 326 of file wimax-phy.cc.

References m_frequency.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetGValue()

double ns3::WimaxPhy::GetGValue ( ) const

Get the guard interval factor (the ratio TG/Td)

Returns: the guard interval factor

Definition at line 386 of file wimax-phy.cc.

References DoGetGValue().

Here is the call graph for this function:

◆ GetModulationFecParams()

void ns3::WimaxPhy::GetModulationFecParams	(	ModulationType	modulationType,
		uint8_t &	bitsPerSymbol,
		double &	fecCode
	)		const

private

Get modulation FEC parameters.

Parameters

modulationType	the modultion type
bitsPerSymbol	the number of bits per symbol page
fecCode	the FEC code

◆ GetNfft()

uint16_t ns3::WimaxPhy::GetNfft ( ) const

Get the size of the FFT.

Returns: the size of the FFT

Definition at line 344 of file wimax-phy.cc.

References DoGetNfft().

Here is the call graph for this function:

◆ GetNrBytes()

uint64_t ns3::WimaxPhy::GetNrBytes	(	uint32_t	symbols,
		WimaxPhy::ModulationType	modulationType
	)		const

Get the maximum number of bytes that could be carried by symbols symbols using the modulation modulationType.

Parameters

symbols	the number of symbols to use
modulationType	the modulation that will be used

Returns: the maximum number of bytes

Definition at line 252 of file wimax-phy.cc.

References DoGetNrBytes().

Here is the call graph for this function:

◆ GetNrCarriers()

uint8_t ns3::WimaxPhy::GetNrCarriers ( ) const

Get the number of carriers in the physical frame.

Returns: the number of carriers in the physical frame

Definition at line 296 of file wimax-phy.cc.

References m_nrCarriers.

Referenced by ns3::SimpleOfdmWimaxPhy::CalculateDataRate().

Here is the caller graph for this function:

◆ GetNrSymbols()

uint64_t ns3::WimaxPhy::GetNrSymbols	(	uint32_t	size,
		WimaxPhy::ModulationType	modulationType
	)		const

Get the number of symbols needed to transmit size bytes using the modulation modulationType.

Returns: the number of symbols needed

Parameters

size	the number of byte to transmit
modulationType	the modulation that will be used to transmit the bytes

Definition at line 246 of file wimax-phy.cc.

References DoGetNrSymbols().

Here is the call graph for this function:

◆ GetPhyType()

virtual PhyType ns3::WimaxPhy::GetPhyType ( ) const

pure virtual

Get the type of the physical layer.

Returns: the phy type

Implemented in ns3::SimpleOfdmWimaxPhy.

◆ GetPsDuration()

Time ns3::WimaxPhy::GetPsDuration ( ) const

Get the physical slot duration.

Returns: the physical slot duration

Definition at line 368 of file wimax-phy.cc.

References m_psDuration.

◆ GetPsPerFrame()

uint16_t ns3::WimaxPhy::GetPsPerFrame ( ) const

Get the number of physical slots per frame.

Returns: the number of physical slot per frame

Definition at line 410 of file wimax-phy.cc.

References m_psPerFrame.

◆ GetPsPerSymbol()

uint16_t ns3::WimaxPhy::GetPsPerSymbol ( ) const

Get the number of physical slots per symbol.

Returns: the number of physical slots per symbol

Definition at line 398 of file wimax-phy.cc.

References m_psPerSymbol.

Referenced by ns3::SimpleOfdmWimaxPhy::DoGetRtg(), and ns3::SimpleOfdmWimaxPhy::DoGetTtg().

Here is the caller graph for this function:

◆ GetReceiveCallback()

Callback< void, Ptr< const PacketBurst > > ns3::WimaxPhy::GetReceiveCallback ( ) const

Returns: the receive callback

Definition at line 160 of file wimax-phy.cc.

References m_rxCallback.

Referenced by ns3::SimpleOfdmWimaxPhy::EndReceive().

Here is the caller graph for this function:

◆ GetRtg()

uint16_t ns3::WimaxPhy::GetRtg ( ) const

Get the receive/transmit transition gap.

Returns: the receive/transmit transition gap

Definition at line 264 of file wimax-phy.cc.

References DoGetRtg().

Here is the call graph for this function:

◆ GetRxFrequency()

uint64_t ns3::WimaxPhy::GetRxFrequency ( ) const

Get the reception frequency.

Returns: the reception frequency

Definition at line 180 of file wimax-phy.cc.

References m_rxFrequency.

Referenced by ns3::SimpleOfdmWimaxPhy::StartReceive().

Here is the caller graph for this function:

◆ GetSamplingFactor()

double ns3::WimaxPhy::GetSamplingFactor ( ) const

Get the sampling factor.

Returns: the sampling factor

Definition at line 350 of file wimax-phy.cc.

References DoGetSamplingFactor().

Here is the call graph for this function:

◆ GetSamplingFrequency()

double ns3::WimaxPhy::GetSamplingFrequency ( ) const

Get the sampling frequency.

Returns: the sampling frequency

Definition at line 356 of file wimax-phy.cc.

References DoGetSamplingFrequency().

Here is the call graph for this function:

◆ GetScanningFrequency()

uint64_t ns3::WimaxPhy::GetScanningFrequency ( ) const

Get the scanning frequency.

Returns: the scanning frequency

Definition at line 192 of file wimax-phy.cc.

References m_scanningFrequency.

Referenced by SetScanningCallback(), and ns3::SimpleOfdmWimaxPhy::StartReceive().

Here is the caller graph for this function:

◆ GetState()

WimaxPhy::PhyState ns3::WimaxPhy::GetState ( ) const

Get the state of the device.

Returns: the state of the device (PHY_STATE_IDLE, PHY_STATE_SCANNING, PHY_STATE_TX, PHY_STATE_RX)

Definition at line 204 of file wimax-phy.cc.

References m_state.

Referenced by ns3::SimpleOfdmWimaxPhy::Send(), and ns3::SimpleOfdmWimaxPhy::StartReceive().

Here is the caller graph for this function:

◆ GetSymbolDuration()

Time ns3::WimaxPhy::GetSymbolDuration ( ) const

Get the OFDM symbol duration.

Returns: the symbol duration in second

Definition at line 380 of file wimax-phy.cc.

References m_symbolDuration.

Referenced by ns3::SimpleOfdmWimaxPhy::CalculateDataRate(), ns3::SimpleOfdmWimaxPhy::DoGetNrBytes(), ns3::SimpleOfdmWimaxPhy::DoGetNrSymbols(), and ns3::SimpleOfdmWimaxPhy::DoGetTransmissionTime().

Here is the caller graph for this function:

◆ GetSymbolsPerFrame()

uint32_t ns3::WimaxPhy::GetSymbolsPerFrame ( ) const

Get the number of symbols per frame.

Returns: the number of symbols per frame

Definition at line 422 of file wimax-phy.cc.

References m_symbolsPerFrame.

◆ GetTransmissionTime()

Time ns3::WimaxPhy::GetTransmissionTime	(	uint32_t	size,
		WimaxPhy::ModulationType	modulationType
	)		const

Get transmission time needed to send bytes at a given modulation.

Returns: the time needed

Parameters

size	the number of byte to transmit
modulationType	the modulation that will be used to transmit the bytes

Definition at line 240 of file wimax-phy.cc.

References DoGetTransmissionTime().

Here is the call graph for this function:

◆ GetTtg()

uint16_t ns3::WimaxPhy::GetTtg ( ) const

Get the transmit/receive transition gap.

Returns: the transmit/receive transition gap

Definition at line 258 of file wimax-phy.cc.

References DoGetTtg().

Here is the call graph for this function:

◆ GetTxFrequency()

uint64_t ns3::WimaxPhy::GetTxFrequency ( ) const

Get the transmission frequency.

Returns: the transmission frequency

Definition at line 186 of file wimax-phy.cc.

References m_txFrequency.

Referenced by ns3::SimpleOfdmWimaxPhy::StartSendDummyFecBlock().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::WimaxPhy::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 42 of file wimax-phy.cc.

References Attach(), GetChannel(), GetChannelBandwidth(), GetFrameDurationSec(), GetFrequency(), ns3::MakePointerAccessor(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeUintegerAccessor(), ns3::Seconds(), SetChannelBandwidth(), SetFrameDuration(), SetFrequency(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ IsDuplex()

bool ns3::WimaxPhy::IsDuplex ( ) const

Check if configured in duplex mode.

Returns: true if the device is configured in duplex mode

Definition at line 210 of file wimax-phy.cc.

References m_duplex.

Referenced by ns3::SimpleOfdmWimaxPhy::StartReceive().

Here is the caller graph for this function:

◆ Send()

virtual void ns3::WimaxPhy::Send ( SendParams * params )

pure virtual

send a packet on the channel

Parameters

params the parameters used to send the packet

Implemented in ns3::SimpleOfdmWimaxPhy.

◆ SetChannelBandwidth()

void ns3::WimaxPhy::SetChannelBandwidth ( uint32_t channelBandwidth )

Set the channel bandwidth.

Parameters

channelBandwidth The channel bandwidth

Definition at line 332 of file wimax-phy.cc.

References m_channelBandwidth.

Referenced by GetTypeId(), and ns3::SimpleOfdmWimaxPhy::SetBandwidth().

Here is the caller graph for this function:

◆ SetDataRates()

void ns3::WimaxPhy::SetDataRates ( )

calculates the data rate of each modulation and save them for future use

Definition at line 228 of file wimax-phy.cc.

References DoSetDataRates().

Here is the call graph for this function:

◆ SetDevice()

void ns3::WimaxPhy::SetDevice ( Ptr< WimaxNetDevice > device )

Set the device in which this physical layer is installed.

Parameters

device the device in which this physical layer is installed

Definition at line 123 of file wimax-phy.cc.

References m_device.

◆ SetDuplex()

void ns3::WimaxPhy::SetDuplex	(	uint64_t	rxFrequency,
		uint64_t	txFrequency
	)

configure the physical layer in duplex mode

Parameters

rxFrequency	the reception frequency
txFrequency	the transmission frequency

Definition at line 166 of file wimax-phy.cc.

References m_rxFrequency, and m_txFrequency.

◆ SetFrameDuration()

void ns3::WimaxPhy::SetFrameDuration ( Time frameDuration )

Set the frame duration.

Parameters

frameDuration the frame duration

Definition at line 302 of file wimax-phy.cc.

References m_frameDuration.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetFrequency()

void ns3::WimaxPhy::SetFrequency ( uint32_t frequency )

set the frequency on which the device should lock

Parameters

frequency the frequency to configure

Definition at line 320 of file wimax-phy.cc.

References m_frequency.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetNrCarriers()

void ns3::WimaxPhy::SetNrCarriers ( uint8_t nrCarriers )

Set the number of carriers in the physical frame.

Set the number of carriers in the physical frame

Parameters

nrCarriers the number of carriers in the frame

Definition at line 290 of file wimax-phy.cc.

References m_nrCarriers.

Referenced by ns3::SimpleOfdmWimaxPhy::InitSimpleOfdmWimaxPhy().

Here is the caller graph for this function:

◆ SetPhyParameters()

void ns3::WimaxPhy::SetPhyParameters ( )

computes the Physical parameters and store them

Definition at line 284 of file wimax-phy.cc.

References DoSetPhyParameters().

Here is the call graph for this function:

◆ SetPsDuration()

void ns3::WimaxPhy::SetPsDuration ( Time psDuration )

set the physical slot duration

Parameters

psDuration the physical slot duration

Definition at line 362 of file wimax-phy.cc.

References m_psDuration.

Referenced by ns3::SimpleOfdmWimaxPhy::DoSetPhyParameters().

Here is the caller graph for this function:

◆ SetPsPerFrame()

void ns3::WimaxPhy::SetPsPerFrame ( uint16_t psPerFrame )

set the number of physical slots per frame

Parameters

psPerFrame the number of physical slots per frame

Definition at line 404 of file wimax-phy.cc.

References m_psPerFrame.

Referenced by ns3::SimpleOfdmWimaxPhy::DoSetPhyParameters().

Here is the caller graph for this function:

◆ SetPsPerSymbol()

void ns3::WimaxPhy::SetPsPerSymbol ( uint16_t psPerSymbol )

set the number of physical slots per symbol

Parameters

psPerSymbol the number of physical slots per symbol

Definition at line 392 of file wimax-phy.cc.

References m_psPerSymbol.

Referenced by ns3::SimpleOfdmWimaxPhy::DoSetPhyParameters().

Here is the caller graph for this function:

◆ SetReceiveCallback()

void ns3::WimaxPhy::SetReceiveCallback ( Callback< void, Ptr< const PacketBurst >> callback )

set the callback function to call when a burst is received

Parameters

callback the callback function to call when a burst is received

Definition at line 154 of file wimax-phy.cc.

References m_rxCallback.

◆ SetScanningCallback()

void ns3::WimaxPhy::SetScanningCallback ( ) const

calls the scanning call back function

Definition at line 222 of file wimax-phy.cc.

References GetScanningFrequency(), and m_scanningCallback.

Referenced by ns3::SimpleOfdmWimaxPhy::StartReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetSimplex()

void ns3::WimaxPhy::SetSimplex ( uint64_t frequency )

configure the physical layer in simplex mode

Parameters

frequency the frequency to be used for reception and transmission process

Definition at line 173 of file wimax-phy.cc.

References m_rxFrequency, and m_txFrequency.

Referenced by ns3::SimpleOfdmWimaxPhy::StartReceive().

Here is the caller graph for this function:

◆ SetState()

void ns3::WimaxPhy::SetState ( PhyState state )

set the state of the device

Parameters

state the state to be set (PHY_STATE_IDLE, PHY_STATE_SCANNING, PHY_STATE_TX, PHY_STATE_RX)

Definition at line 198 of file wimax-phy.cc.

References m_state.

Referenced by ns3::SimpleOfdmWimaxPhy::EndReceiveFecBlock(), ns3::SimpleOfdmWimaxPhy::EndSend(), ns3::SimpleOfdmWimaxPhy::EndSendFecBlock(), ns3::SimpleOfdmWimaxPhy::StartReceive(), and ns3::SimpleOfdmWimaxPhy::StartSendDummyFecBlock().

Here is the caller graph for this function:

◆ SetSymbolDuration()

void ns3::WimaxPhy::SetSymbolDuration ( Time symbolDuration )

set the OFDM symbol duration

Parameters

symbolDuration the symbol duration

Definition at line 374 of file wimax-phy.cc.

References m_symbolDuration.

Referenced by ns3::SimpleOfdmWimaxPhy::DoSetPhyParameters().

Here is the caller graph for this function:

◆ SetSymbolsPerFrame()

void ns3::WimaxPhy::SetSymbolsPerFrame ( uint32_t symbolsPerFrame )

set the number of symbols per frame

Parameters

symbolsPerFrame the number of symbols per frame

Definition at line 416 of file wimax-phy.cc.

References m_symbolsPerFrame.

Referenced by ns3::SimpleOfdmWimaxPhy::DoSetPhyParameters().

Here is the caller graph for this function:

◆ StartScanning()

void ns3::WimaxPhy::StartScanning	(	uint64_t	frequency,
		Time	timeout,
		Callback< void, bool, uint64_t >	callback
	)

scan a frequency for maximum timeout seconds and call the callback if the frequency can be used

Parameters

frequency	the frequency to scan
timeout	the timeout before considering the channel as unusable
callback	the function to call if the channel could be used

Definition at line 135 of file wimax-phy.cc.

References EndScanning(), m_dlChnlSrchTimeoutEvent, m_scanningCallback, m_scanningFrequency, m_state, NS_ASSERT_MSG, PHY_STATE_IDLE, PHY_STATE_SCANNING, ns3::Simulator::Schedule(), and timeout.

Here is the call graph for this function:

Member Data Documentation

◆ m_channel

Ptr<WimaxChannel> ns3::WimaxPhy::m_channel

private

channel

Definition at line 466 of file wimax-phy.h.

Referenced by Attach(), DoDispose(), and GetChannel().

◆ m_channelBandwidth

uint32_t ns3::WimaxPhy::m_channelBandwidth

private

in Hz

Definition at line 481 of file wimax-phy.h.

Referenced by GetChannelBandwidth(), and SetChannelBandwidth().

◆ m_device

Ptr<WimaxNetDevice> ns3::WimaxPhy::m_device

private

the device

Definition at line 465 of file wimax-phy.h.

Referenced by DoDispose(), GetDevice(), and SetDevice().

◆ m_dlChnlSrchTimeoutEvent

EventId ns3::WimaxPhy::m_dlChnlSrchTimeoutEvent

private

DL channel search timeout event.

Definition at line 471 of file wimax-phy.h.

Referenced by GetChnlSrchTimeoutEvent(), and StartScanning().

◆ m_duplex

bool ns3::WimaxPhy::m_duplex

private

duplex

Definition at line 472 of file wimax-phy.h.

Referenced by WimaxPhy(), and IsDuplex().

◆ m_frameDuration

Time ns3::WimaxPhy::m_frameDuration

private

in seconds

Definition at line 479 of file wimax-phy.h.

Referenced by GetFrameDurationSec(), and SetFrameDuration().

◆ m_frequency

uint32_t ns3::WimaxPhy::m_frequency

private

in KHz

Definition at line 480 of file wimax-phy.h.

Referenced by GetFrequency(), and SetFrequency().

◆ m_nrCarriers

uint8_t ns3::WimaxPhy::m_nrCarriers

private

number of carriers

Definition at line 478 of file wimax-phy.h.

Referenced by GetNrCarriers(), and SetNrCarriers().

◆ m_psDuration

Time ns3::WimaxPhy::m_psDuration

private

in seconds

Definition at line 482 of file wimax-phy.h.

Referenced by GetPsDuration(), and SetPsDuration().

◆ m_psPerFrame

uint16_t ns3::WimaxPhy::m_psPerFrame

private

ps per framce

Definition at line 485 of file wimax-phy.h.

Referenced by GetPsPerFrame(), and SetPsPerFrame().

◆ m_psPerSymbol

uint16_t ns3::WimaxPhy::m_psPerSymbol

private

ps per sumbol

Definition at line 484 of file wimax-phy.h.

Referenced by GetPsPerSymbol(), and SetPsPerSymbol().

◆ m_rxCallback

Callback<void, Ptr<const PacketBurst> > ns3::WimaxPhy::m_rxCallback

private

receive callback function

Definition at line 475 of file wimax-phy.h.

Referenced by GetReceiveCallback(), and SetReceiveCallback().

◆ m_rxFrequency

uint64_t ns3::WimaxPhy::m_rxFrequency

private

receive frequency

Definition at line 469 of file wimax-phy.h.

Referenced by WimaxPhy(), GetRxFrequency(), SetDuplex(), and SetSimplex().

◆ m_scanningCallback

Callback<void, bool, uint64_t> ns3::WimaxPhy::m_scanningCallback

private

scanning callback function

Definition at line 476 of file wimax-phy.h.

Referenced by EndScanning(), SetScanningCallback(), and StartScanning().

◆ m_scanningFrequency

uint64_t ns3::WimaxPhy::m_scanningFrequency

private

scanning frequency

Definition at line 470 of file wimax-phy.h.

Referenced by EndScanning(), GetScanningFrequency(), and StartScanning().

◆ m_state

PhyState ns3::WimaxPhy::m_state

private

state

Definition at line 473 of file wimax-phy.h.

Referenced by GetState(), SetState(), and StartScanning().

◆ m_symbolDuration

Time ns3::WimaxPhy::m_symbolDuration

private

in seconds

Definition at line 483 of file wimax-phy.h.

Referenced by GetSymbolDuration(), and SetSymbolDuration().

◆ m_symbolsPerFrame

uint32_t ns3::WimaxPhy::m_symbolsPerFrame

private

symbols per frame

Definition at line 486 of file wimax-phy.h.

Referenced by GetSymbolsPerFrame(), and SetSymbolsPerFrame().

◆ m_txFrequency

uint64_t ns3::WimaxPhy::m_txFrequency

private

transmit frequency

Definition at line 468 of file wimax-phy.h.

Referenced by WimaxPhy(), GetTxFrequency(), SetDuplex(), and SetSimplex().

The documentation for this class was generated from the following files:

src/wimax/model/wimax-phy.h
src/wimax/model/wimax-phy.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ ModulationType

◆ PhyState

◆ PhyType

Constructor & Destructor Documentation

◆ WimaxPhy()

◆ ~WimaxPhy()

Member Function Documentation

◆ AssignStreams()

◆ Attach()

◆ DoAttach()

◆ DoDispose()

◆ DoGetDataRate()

◆ DoGetFrameDuration()

◆ DoGetFrameDurationCode()

◆ DoGetGValue()

◆ DoGetNfft()

◆ DoGetNrBytes()

◆ DoGetNrSymbols()

◆ DoGetRtg()

◆ DoGetSamplingFactor()

◆ DoGetSamplingFrequency()

◆ DoGetTransmissionTime()

◆ DoGetTtg()

◆ DoSetDataRates()

◆ DoSetPhyParameters()

◆ EndScanning()

◆ GetChannel()

◆ GetChannelBandwidth()

◆ GetChnlSrchTimeoutEvent()

◆ GetDataRate()

◆ GetDevice()

◆ GetFrameDuration() [1/2]

◆ GetFrameDuration() [2/2]

◆ GetFrameDurationCode()

◆ GetFrameDurationSec()

◆ GetFrequency()

◆ GetGValue()

◆ GetModulationFecParams()

◆ GetNfft()

◆ GetNrBytes()

◆ GetNrCarriers()

◆ GetNrSymbols()

◆ GetPhyType()

◆ GetPsDuration()

◆ GetPsPerFrame()

◆ GetPsPerSymbol()

◆ GetReceiveCallback()

◆ GetRtg()

◆ GetRxFrequency()

◆ GetSamplingFactor()

◆ GetSamplingFrequency()

◆ GetScanningFrequency()

◆ GetState()

◆ GetSymbolDuration()

◆ GetSymbolsPerFrame()

◆ GetTransmissionTime()

◆ GetTtg()

◆ GetTxFrequency()

◆ GetTypeId()

◆ IsDuplex()

◆ Send()

◆ SetChannelBandwidth()

◆ SetDataRates()

◆ SetDevice()

◆ SetDuplex()

◆ SetFrameDuration()

◆ SetFrequency()

◆ SetNrCarriers()

◆ SetPhyParameters()

◆ SetPsDuration()

◆ SetPsPerFrame()

◆ SetPsPerSymbol()
