#include "simple-ofdm-wimax-phy.h"

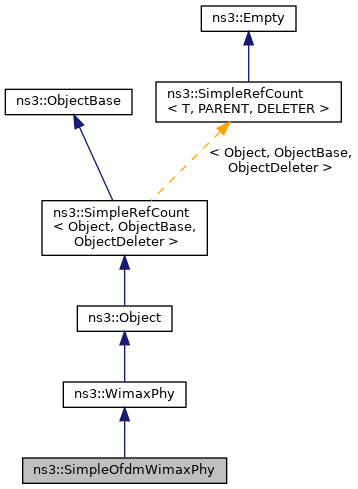

Inheritance diagram for ns3::SimpleOfdmWimaxPhy:

Collaboration diagram for ns3::SimpleOfdmWimaxPhy:

Public Types
enum	FrameDurationCode { FRAME_DURATION_2_POINT_5_MS , FRAME_DURATION_4_MS , FRAME_DURATION_5_MS , FRAME_DURATION_8_MS , FRAME_DURATION_10_MS , FRAME_DURATION_12_POINT_5_MS , FRAME_DURATION_20_MS }
	Frame duration code enumeration. More...

Public Types inherited from ns3::WimaxPhy
enum	ModulationType { MODULATION_TYPE_BPSK_12 , MODULATION_TYPE_QPSK_12 , MODULATION_TYPE_QPSK_34 , MODULATION_TYPE_QAM16_12 , MODULATION_TYPE_QAM16_34 , MODULATION_TYPE_QAM64_23 , MODULATION_TYPE_QAM64_34 }
	ModulationType enumeration. More...

enum	PhyState { PHY_STATE_IDLE , PHY_STATE_SCANNING , PHY_STATE_TX , PHY_STATE_RX }
	PhyState enumeration. More...

enum	PhyType { SimpleWimaxPhy , simpleOfdmWimaxPhy }
	PhyType enumeration. More...

Public Member Functions
	SimpleOfdmWimaxPhy ()

	SimpleOfdmWimaxPhy (char *tracesPath)
	Constructor. More...

	~SimpleOfdmWimaxPhy () override

void	ActivateLoss (bool loss)
	if called with true it will enable the loss model More...

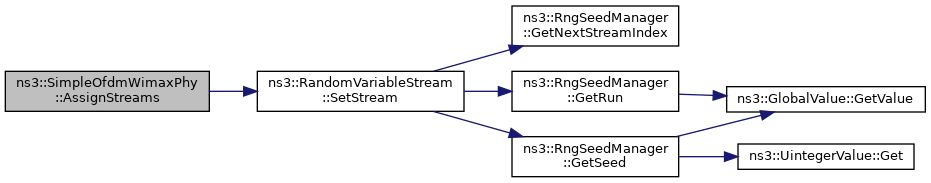

int64_t	AssignStreams (int64_t stream) override
	Assign a fixed random variable stream number to the random variables used by this model. More...

void	DoAttach (Ptr< WimaxChannel > channel) override
	Attach the physical layer to a channel. More...

uint32_t	GetBandwidth () const

double	GetNoiseFigure () const

WimaxPhy::PhyType	GetPhyType () const override
	returns the type this physical layer More...

double	GetTxPower () const

void	NotifyRxBegin (Ptr< PacketBurst > burst)
	Public method used to fire a PhyRxBegin trace. More...

void	NotifyRxDrop (Ptr< PacketBurst > burst)
	Public method used to fire a PhyRxDrop trace. More...

void	NotifyRxEnd (Ptr< PacketBurst > burst)
	Public method used to fire a PhyRxEnd trace. More...

void	NotifyTxBegin (Ptr< PacketBurst > burst)
	Public method used to fire a PhyTxBegin trace. More...

void	NotifyTxDrop (Ptr< PacketBurst > burst)
	Public method used to fire a PhyTxDrop trace. More...

void	NotifyTxEnd (Ptr< PacketBurst > burst)
	Public method used to fire a PhyTxEnd trace. More...

void	Send (Ptr< PacketBurst > burst, WimaxPhy::ModulationType modulationType, uint8_t direction)
	Sends a burst on the channel. More...

void	Send (SendParams *params) override
	Sends a burst on the channel. More...

void	SetBandwidth (uint32_t BW)
	Set the bandwidth. More...

void	SetNoiseFigure (double nf)
	set the noise figure of the device More...

void	SetReceiveCallback (Callback< void, Ptr< PacketBurst >, Ptr< WimaxConnection >> callback)
	set the callback function to call when a burst is received More...

void	SetSNRToBlockErrorRateTracesPath (char *tracesPath)
	Set the path of the repository containing the traces. More...

void	SetTxPower (double txPower)
	set the transmission power More...

void	StartReceive (uint32_t burstSize, bool isFirstBlock, uint64_t frequency, WimaxPhy::ModulationType modulationType, uint8_t direction, double rxPower, Ptr< PacketBurst > burst)
	start the reception of a fec block More...

Public Member Functions inherited from ns3::WimaxPhy
	WimaxPhy ()

	~WimaxPhy () override

void	Attach (Ptr< WimaxChannel > channel)
	Attach the physical layer to a channel. More...

void	DoDispose () override
	Destructor implementation. More...

Ptr< WimaxChannel >	GetChannel () const

uint32_t	GetChannelBandwidth () const
	Get the channel bandwidth. More...

EventId	GetChnlSrchTimeoutEvent () const
	Get channel search timeout event. More...

uint32_t	GetDataRate (ModulationType modulationType) const
	Get the data rate corresponding to a modulation type. More...

Ptr< NetDevice >	GetDevice () const

Time	GetFrameDuration () const
	Get the frame duration. More...

Time	GetFrameDuration (uint8_t frameDurationCode) const
	Get the frame duration corresponding to a given code. More...

uint8_t	GetFrameDurationCode () const
	Get the frame duration code. More...

Time	GetFrameDurationSec () const
	Get the frame duration This method is redundant with GetFrameDuration () More...

uint32_t	GetFrequency () const
	Get the frequency on which the device is locked. More...

double	GetGValue () const
	Get the guard interval factor (the ratio TG/Td) More...

uint16_t	GetNfft () const
	Get the size of the FFT. More...

uint64_t	GetNrBytes (uint32_t symbols, ModulationType modulationType) const
	Get the maximum number of bytes that could be carried by symbols symbols using the modulation modulationType. More...

uint8_t	GetNrCarriers () const
	Get the number of carriers in the physical frame. More...

uint64_t	GetNrSymbols (uint32_t size, ModulationType modulationType) const
	Get the number of symbols needed to transmit size bytes using the modulation modulationType. More...

Time	GetPsDuration () const
	Get the physical slot duration. More...

uint16_t	GetPsPerFrame () const
	Get the number of physical slots per frame. More...

uint16_t	GetPsPerSymbol () const
	Get the number of physical slots per symbol. More...

Callback< void, Ptr< const PacketBurst > >	GetReceiveCallback () const

uint16_t	GetRtg () const
	Get the receive/transmit transition gap. More...

uint64_t	GetRxFrequency () const
	Get the reception frequency. More...

double	GetSamplingFactor () const
	Get the sampling factor. More...

double	GetSamplingFrequency () const
	Get the sampling frequency. More...

uint64_t	GetScanningFrequency () const
	Get the scanning frequency. More...

PhyState	GetState () const
	Get the state of the device. More...

Time	GetSymbolDuration () const
	Get the OFDM symbol duration. More...

uint32_t	GetSymbolsPerFrame () const
	Get the number of symbols per frame. More...

Time	GetTransmissionTime (uint32_t size, ModulationType modulationType) const
	Get transmission time needed to send bytes at a given modulation. More...

uint16_t	GetTtg () const
	Get the transmit/receive transition gap. More...

uint64_t	GetTxFrequency () const
	Get the transmission frequency. More...

bool	IsDuplex () const
	Check if configured in duplex mode. More...

void	SetChannelBandwidth (uint32_t channelBandwidth)
	Set the channel bandwidth. More...

void	SetDataRates ()
	calculates the data rate of each modulation and save them for future use More...

void	SetDevice (Ptr< WimaxNetDevice > device)
	Set the device in which this physical layer is installed. More...

void	SetDuplex (uint64_t rxFrequency, uint64_t txFrequency)
	configure the physical layer in duplex mode More...

void	SetFrameDuration (Time frameDuration)
	Set the frame duration. More...

void	SetFrequency (uint32_t frequency)
	set the frequency on which the device should lock More...

void	SetNrCarriers (uint8_t nrCarriers)
	Set the number of carriers in the physical frame. More...

void	SetPhyParameters ()
	computes the Physical parameters and store them More...

void	SetPsDuration (Time psDuration)
	set the physical slot duration More...

void	SetPsPerFrame (uint16_t psPerFrame)
	set the number of physical slots per frame More...

void	SetPsPerSymbol (uint16_t psPerSymbol)
	set the number of physical slots per symbol More...

void	SetReceiveCallback (Callback< void, Ptr< const PacketBurst >> callback)
	set the callback function to call when a burst is received More...

void	SetScanningCallback () const
	calls the scanning call back function More...

void	SetSimplex (uint64_t frequency)
	configure the physical layer in simplex mode More...

void	SetState (PhyState state)
	set the state of the device More...

void	SetSymbolDuration (Time symbolDuration)
	set the OFDM symbol duration More...

void	SetSymbolsPerFrame (uint32_t symbolsPerFrame)
	set the number of symbols per frame More...

void	StartScanning (uint64_t frequency, Time timeout, Callback< void, bool, uint64_t > callback)
	scan a frequency for maximum timeout seconds and call the callback if the frequency can be used More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::WimaxPhy
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Member Functions
uint32_t	CalculateDataRate (WimaxPhy::ModulationType modulationType) const
	Calculate data rate. More...

Ptr< PacketBurst >	ConvertBitsToBurst (Bvec buffer)
	Convert bits to burst. More...

Bvec	ConvertBurstToBits (Ptr< const PacketBurst > burst)
	Convert burst to bits. More...

void	CreateFecBlocks (const Bvec &buffer, WimaxPhy::ModulationType modulationType)
	Create FEC blocks. More...

void	DoDispose () override
	Destructor implementation. More...

uint32_t	DoGetDataRate (WimaxPhy::ModulationType modulationType) const override
	Get data rate. More...

Time	DoGetFrameDuration (uint8_t frameDurationCode) const override
	Get frame duration. More...

uint8_t	DoGetFrameDurationCode () const override
	Get frame duration code. More...

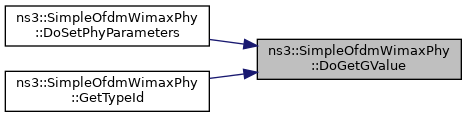

double	DoGetGValue () const override
	Get G value. More...

uint16_t	DoGetNfft () const override
	Get NFFT. More...

uint64_t	DoGetNrBytes (uint32_t symbols, WimaxPhy::ModulationType modulationType) const override
	Get number of bytes. More...

uint64_t	DoGetNrSymbols (uint32_t size, WimaxPhy::ModulationType modulationType) const override
	Get number of symbols. More...

uint16_t	DoGetRtg () const override
	Get RTG. More...

double	DoGetSamplingFactor () const override
	Get sampling factor. More...

double	DoGetSamplingFrequency () const override
	Get sampling frequency. More...

Time	DoGetTransmissionTime (uint32_t size, WimaxPhy::ModulationType modulationType) const override
	Get transmission time. More...

uint16_t	DoGetTtg () const override
	Get TTG. More...

void	DoSetDataRates () override
	Set data rates. More...

void	DoSetGValue (double g)
	Set G value. More...

void	DoSetNfft (uint16_t nfft)
	Set NFFT. More...

void	DoSetPhyParameters () override
	Set Phy parameters. More...

void	EndReceive (Ptr< const PacketBurst > burst)
	End receive. More...

void	EndReceiveFecBlock (uint32_t burstSize, WimaxPhy::ModulationType modulationType, uint8_t direction, bool drop, Ptr< PacketBurst > burst)
	End receive FEC block. More...

void	EndSend ()
	End send. More...

void	EndSendFecBlock (WimaxPhy::ModulationType modulationType, uint8_t direction)
	End send FEC block. More...

Time	GetBlockTransmissionTime (WimaxPhy::ModulationType modulationType) const
	Get block transmission time. More...

uint32_t	GetCodedFecBlockSize (WimaxPhy::ModulationType modulationType) const
	Get coded FEC block size. More...

uint32_t	GetFecBlockSize (WimaxPhy::ModulationType type) const
	Get FEC block size. More...

void	GetModulationFecParams (WimaxPhy::ModulationType modulationType, uint8_t &bitsPerSymbol, double &fecCode) const
	Get moduleation FEC parameters. More...

uint16_t	GetNrBlocks (uint32_t burstSize, WimaxPhy::ModulationType modulationType) const
	Get number of blocks. More...

double	GetRxGain () const
	Get receive gain. More...

std::string	GetTraceFilePath () const
	Get trace file path. More...

double	GetTxGain () const
	Get transmit gain. More...

void	InitSimpleOfdmWimaxPhy ()
	Initialize simple OFDM WIMAX Phy. More...

Bvec	RecreateBuffer ()
	Recreate buffer. More...

void	SetBlockParameters (uint32_t burstSize, WimaxPhy::ModulationType modulationType)
	Set block parameters. More...

void	SetRxGain (double rxgain)
	Set receive gsain. More...

void	SetTraceFilePath (std::string path)
	Set trace file path. More...

void	SetTxGain (double txgain)
	Set transmit gain. More...

void	StartSendDummyFecBlock (bool isFirstBlock, WimaxPhy::ModulationType modulationType, uint8_t direction)
	Start end dummy FEC block. More...

Private Attributes
double	m_bandWidth
	bandwidth More...

uint16_t	m_blockSize
	block size More...

Time	m_blockTime
	block time More...

Ptr< PacketBurst >	m_currentBurst
	current burst More...

uint32_t	m_currentBurstSize
	current burst size More...

uint32_t	m_dataRateBpsk12
	data rate More...

uint32_t	m_dataRateQam16_12
	data rate More...

uint32_t	m_dataRateQam16_34
	data rate More...

uint32_t	m_dataRateQam64_23
	data rate More...

uint32_t	m_dataRateQam64_34
	data rate More...

uint32_t	m_dataRateQpsk12
	data rate More...

uint32_t	m_dataRateQpsk34
	data rate More...

std::list< Bvec > *	m_fecBlocks
	the FEC blocks More...

uint16_t	m_fecBlockSize
	in bits, size of FEC block transmitted after PHY operations More...

double	m_g
	G value. More...

uint16_t	m_nbErroneousBlock
	erroneous blocks More...

uint16_t	m_nfft
	NFFT. More...

double	m_noiseFigure
	noise figure More...

uint16_t	m_nrBlocks
	number of blocks More...

uint32_t	m_nrFecBlocksSent
	counting the number of FEC blocks sent (within a burst) More...

uint16_t	m_nrReceivedFecBlocks
	number received FEC blocks More...

uint16_t	m_nrRemainingBlocksToSend
	number of remaining blocks to send More...

uint32_t	m_paddingBits
	padding bits More...

TracedCallback< Ptr< PacketBurst > >	m_phyRxBeginTrace
	The trace source fired when a packet begins the reception process from the medium. More...

TracedCallback< Ptr< PacketBurst > >	m_phyRxDropTrace
	The trace source fired when the phy layer drops a packet it has received. More...

TracedCallback< Ptr< PacketBurst > >	m_phyRxEndTrace
	The trace source fired when a packet ends the reception process from the medium. More...

TracedCallback< Ptr< PacketBurst > >	m_phyTxBeginTrace
	The trace source fired when a packet begins the transmission process on the medium. More...

TracedCallback< Ptr< PacketBurst > >	m_phyTxDropTrace
	The trace source fired when the phy layer drops a packet as it tries to transmit it. More...

TracedCallback< Ptr< PacketBurst > >	m_phyTxEndTrace
	The trace source fired when a packet ends the transmission process on the medium. More...

std::list< Bvec > *	m_receivedFecBlocks
	a list of received FEC blocks until they are combined to recreate the full burst buffer More...

double	m_rxGain
	receive gain More...

SNRToBlockErrorRateManager *	m_snrToBlockErrorRateManager
	SNR to block error rate manager. More...

TracedCallback< Ptr< const PacketBurst > >	m_traceRx
	trace receive callback More...

TracedCallback< Ptr< const PacketBurst > >	m_traceTx
	trace transmit callback More...

double	m_txGain
	transmit gain More...

double	m_txPower
	transmit power More...

Ptr< UniformRandomVariable >	m_URNG
	Provides uniform random variables. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

SimpleOfdmWimaxPhy class.

Definition at line 50 of file simple-ofdm-wimax-phy.h.

Member Enumeration Documentation

◆ FrameDurationCode

enum ns3::SimpleOfdmWimaxPhy::FrameDurationCode

Frame duration code enumeration.

Enumerator
FRAME_DURATION_2_POINT_5_MS
FRAME_DURATION_4_MS
FRAME_DURATION_5_MS
FRAME_DURATION_8_MS
FRAME_DURATION_10_MS
FRAME_DURATION_12_POINT_5_MS
FRAME_DURATION_20_MS

Definition at line 54 of file simple-ofdm-wimax-phy.h.

Constructor & Destructor Documentation

◆ SimpleOfdmWimaxPhy() [1/2]

ns3::SimpleOfdmWimaxPhy::SimpleOfdmWimaxPhy ( )

Definition at line 187 of file simple-ofdm-wimax-phy.cc.

References InitSimpleOfdmWimaxPhy(), ns3::SNRToBlockErrorRateManager::LoadTraces(), m_snrToBlockErrorRateManager, m_URNG, and ns3::SNRToBlockErrorRateManager::SetTraceFilePath().

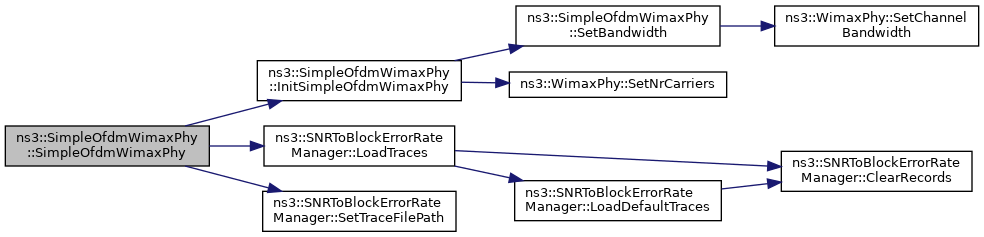

Here is the call graph for this function:

◆ SimpleOfdmWimaxPhy() [2/2]

ns3::SimpleOfdmWimaxPhy::SimpleOfdmWimaxPhy ( char * tracesPath )

Constructor.

Parameters

tracesPath trace path

Definition at line 196 of file simple-ofdm-wimax-phy.cc.

References InitSimpleOfdmWimaxPhy(), ns3::SNRToBlockErrorRateManager::LoadTraces(), m_snrToBlockErrorRateManager, and ns3::SNRToBlockErrorRateManager::SetTraceFilePath().

Here is the call graph for this function:

◆ ~SimpleOfdmWimaxPhy()

ns3::SimpleOfdmWimaxPhy::~SimpleOfdmWimaxPhy ( )

override

Definition at line 203 of file simple-ofdm-wimax-phy.cc.

Member Function Documentation

◆ ActivateLoss()

void ns3::SimpleOfdmWimaxPhy::ActivateLoss ( bool loss )

if called with true it will enable the loss model

Parameters

loss	set to true to enable the loss model

Definition at line 208 of file simple-ofdm-wimax-phy.cc.

References ns3::SNRToBlockErrorRateManager::ActivateLoss(), and m_snrToBlockErrorRateManager.

Here is the call graph for this function:

◆ AssignStreams()

int64_t ns3::SimpleOfdmWimaxPhy::AssignStreams ( int64_t stream )

overridevirtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implements ns3::WimaxPhy.

Definition at line 1099 of file simple-ofdm-wimax-phy.cc.

References m_URNG, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

◆ CalculateDataRate()

uint32_t ns3::SimpleOfdmWimaxPhy::CalculateDataRate ( WimaxPhy::ModulationType modulationType ) const

private

Calculate data rate.

Parameters

modulationType the modulation type

Returns: the data rate

Definition at line 674 of file simple-ofdm-wimax-phy.cc.

References GetModulationFecParams(), ns3::WimaxPhy::GetNrCarriers(), ns3::Time::GetSeconds(), and ns3::WimaxPhy::GetSymbolDuration().

Referenced by DoSetDataRates().

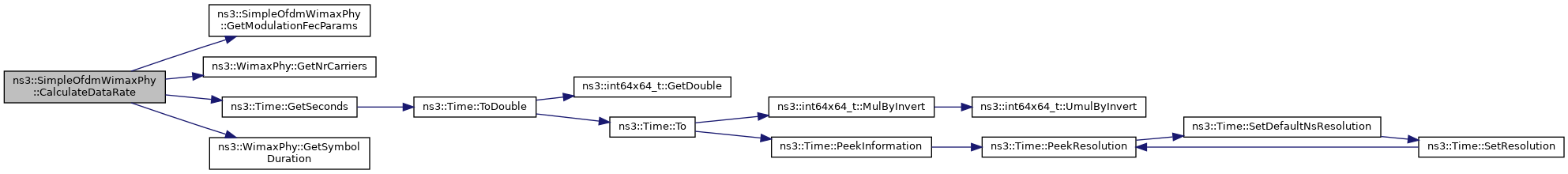

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConvertBitsToBurst()

Ptr< PacketBurst > ns3::SimpleOfdmWimaxPhy::ConvertBitsToBurst ( Bvec buffer )

private

Convert bits to burst.

Parameters

buffer the BVEC

Returns: the packet burst

Definition at line 537 of file simple-ofdm-wimax-phy.cc.

References packetSize.

◆ ConvertBurstToBits()

Bvec ns3::SimpleOfdmWimaxPhy::ConvertBurstToBits ( Ptr< const PacketBurst > burst )

private

Convert burst to bits.

Parameters

burst the packet burst

Returns: the BVEC

Definition at line 497 of file simple-ofdm-wimax-phy.cc.

References ns3::Packet::CopyData(), and ns3::Packet::GetSize().

Here is the call graph for this function:

◆ CreateFecBlocks()

void ns3::SimpleOfdmWimaxPhy::CreateFecBlocks	(	const Bvec &	buffer,
		WimaxPhy::ModulationType	modulationType
	)

private

Create FEC blocks.

Parameters

buffer	the BVEC
modulationType	the modulation type

Definition at line 588 of file simple-ofdm-wimax-phy.cc.

References m_blockSize, m_fecBlocks, m_nrBlocks, and m_paddingBits.

◆ DoAttach()

void ns3::SimpleOfdmWimaxPhy::DoAttach ( Ptr< WimaxChannel > channel )

overridevirtual

Attach the physical layer to a channel.

Parameters

channel the channel to which the physical layer will be attached

Implements ns3::WimaxPhy.

Definition at line 268 of file simple-ofdm-wimax-phy.cc.

References ns3::WimaxPhy::GetChannel().

Here is the call graph for this function:

◆ DoDispose()

void ns3::SimpleOfdmWimaxPhy::DoDispose ( void )

overrideprivatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 257 of file simple-ofdm-wimax-phy.cc.

References ns3::WimaxPhy::DoDispose(), m_fecBlocks, m_receivedFecBlocks, and m_snrToBlockErrorRateManager.

Here is the call graph for this function:

◆ DoGetDataRate()

uint32_t ns3::SimpleOfdmWimaxPhy::DoGetDataRate ( WimaxPhy::ModulationType modulationType ) const

overrideprivatevirtual

Get data rate.

Parameters

modulationType the modulation type

Returns: the data rate

Implements ns3::WimaxPhy.

Definition at line 687 of file simple-ofdm-wimax-phy.cc.

References m_dataRateBpsk12, m_dataRateQam16_12, m_dataRateQam16_34, m_dataRateQam64_23, m_dataRateQam64_34, m_dataRateQpsk12, m_dataRateQpsk34, ns3::WimaxPhy::MODULATION_TYPE_BPSK_12, ns3::WimaxPhy::MODULATION_TYPE_QAM16_12, ns3::WimaxPhy::MODULATION_TYPE_QAM16_34, ns3::WimaxPhy::MODULATION_TYPE_QAM64_23, ns3::WimaxPhy::MODULATION_TYPE_QAM64_34, ns3::WimaxPhy::MODULATION_TYPE_QPSK_12, ns3::WimaxPhy::MODULATION_TYPE_QPSK_34, and NS_FATAL_ERROR.

Referenced by DoGetNrBytes(), DoGetNrSymbols(), and GetBlockTransmissionTime().

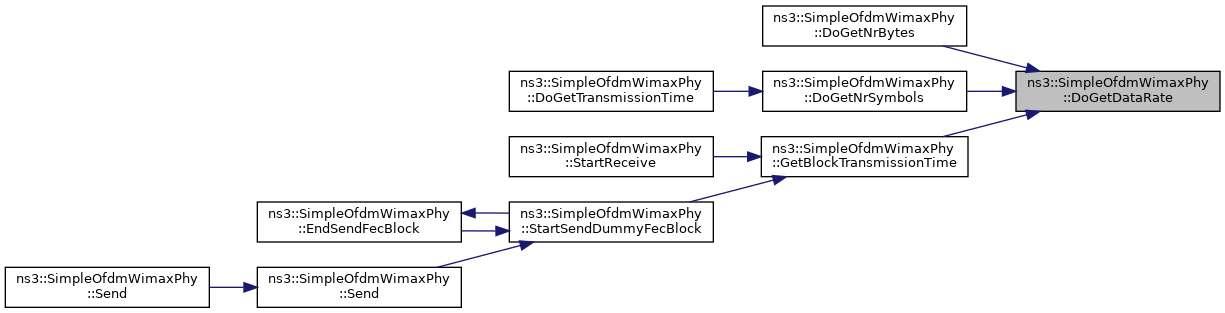

Here is the caller graph for this function:

◆ DoGetFrameDuration()

Time ns3::SimpleOfdmWimaxPhy::DoGetFrameDuration ( uint8_t frameDurationCode ) const

overrideprivatevirtual

Get frame duration.

Parameters

frameDurationCode the frame duration code

Returns: the frame duration

Implements ns3::WimaxPhy.

Definition at line 883 of file simple-ofdm-wimax-phy.cc.

References FRAME_DURATION_10_MS, FRAME_DURATION_12_POINT_5_MS, FRAME_DURATION_20_MS, FRAME_DURATION_2_POINT_5_MS, FRAME_DURATION_4_MS, FRAME_DURATION_5_MS, FRAME_DURATION_8_MS, NS_FATAL_ERROR, and ns3::Seconds().

Here is the call graph for this function:

◆ DoGetFrameDurationCode()

uint8_t ns3::SimpleOfdmWimaxPhy::DoGetFrameDurationCode ( ) const

overrideprivatevirtual

Get frame duration code.

Returns: the frame duration code

Implements ns3::WimaxPhy.

Definition at line 839 of file simple-ofdm-wimax-phy.cc.

References FRAME_DURATION_10_MS, FRAME_DURATION_12_POINT_5_MS, FRAME_DURATION_20_MS, FRAME_DURATION_2_POINT_5_MS, FRAME_DURATION_4_MS, FRAME_DURATION_5_MS, FRAME_DURATION_8_MS, ns3::WimaxPhy::GetFrameDuration(), ns3::Time::GetSeconds(), and NS_FATAL_ERROR.

Here is the call graph for this function:

◆ DoGetGValue()

double ns3::SimpleOfdmWimaxPhy::DoGetGValue ( ) const

overrideprivatevirtual

Get G value.

Returns: the G value

Implements ns3::WimaxPhy.

Definition at line 1014 of file simple-ofdm-wimax-phy.cc.

References m_g.

Referenced by DoSetPhyParameters(), and GetTypeId().

Here is the caller graph for this function:

◆ DoGetNfft()

uint16_t ns3::SimpleOfdmWimaxPhy::DoGetNfft ( ) const

overrideprivatevirtual

Get NFFT.

Returns: the NFFT

Implements ns3::WimaxPhy.

Definition at line 964 of file simple-ofdm-wimax-phy.cc.

References m_nfft.

Referenced by DoSetPhyParameters(), and GetTypeId().

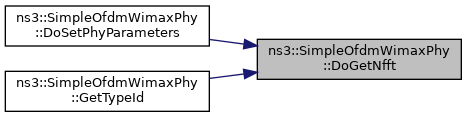

Here is the caller graph for this function:

◆ DoGetNrBytes()

uint64_t ns3::SimpleOfdmWimaxPhy::DoGetNrBytes	(	uint32_t	symbols,
		WimaxPhy::ModulationType	modulationType
	)		const

overrideprivatevirtual

Get number of bytes.

Parameters

symbols	the symbols
modulationType	the modulation type

Returns: the number of bytes

Implements ns3::WimaxPhy.

Definition at line 737 of file simple-ofdm-wimax-phy.cc.

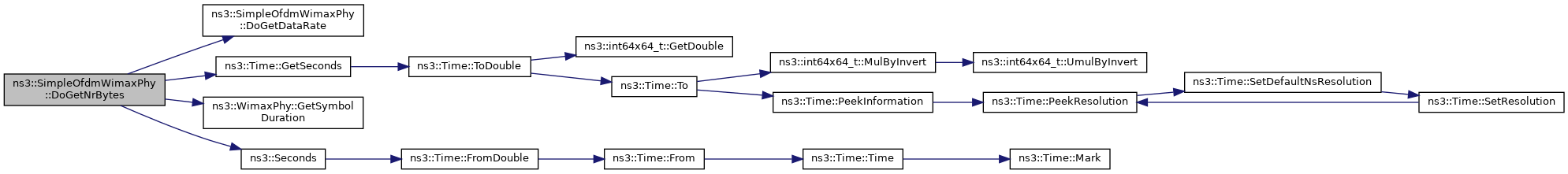

References DoGetDataRate(), ns3::Time::GetSeconds(), ns3::WimaxPhy::GetSymbolDuration(), and ns3::Seconds().

Here is the call graph for this function:

◆ DoGetNrSymbols()

uint64_t ns3::SimpleOfdmWimaxPhy::DoGetNrSymbols	(	uint32_t	size,
		WimaxPhy::ModulationType	modulationType
	)		const

overrideprivatevirtual

Get number of symbols.

Parameters

size	the size
modulationType	the modulation type

Returns: the number of symbols

Implements ns3::WimaxPhy.

Definition at line 728 of file simple-ofdm-wimax-phy.cc.

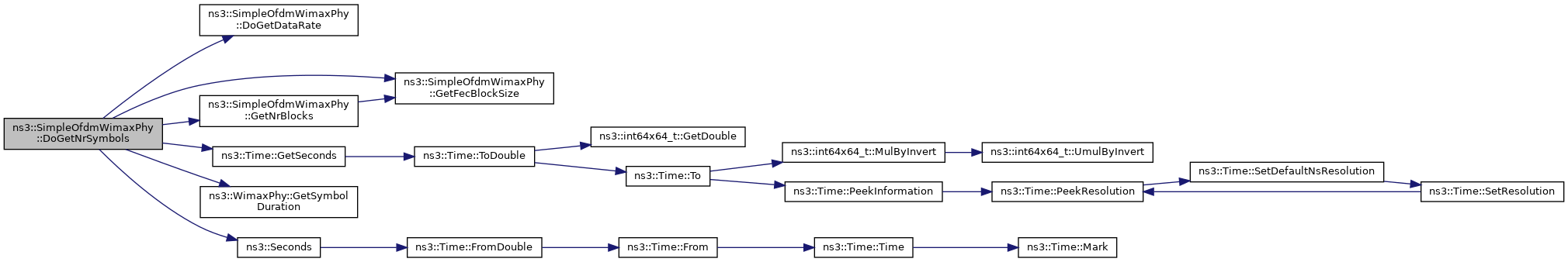

References DoGetDataRate(), GetFecBlockSize(), GetNrBlocks(), ns3::Time::GetSeconds(), ns3::WimaxPhy::GetSymbolDuration(), and ns3::Seconds().

Referenced by DoGetTransmissionTime().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoGetRtg()

uint16_t ns3::SimpleOfdmWimaxPhy::DoGetRtg ( ) const

overrideprivatevirtual

Get RTG.

Returns: the RTG

Implements ns3::WimaxPhy.

Definition at line 832 of file simple-ofdm-wimax-phy.cc.

References ns3::WimaxPhy::GetPsPerSymbol().

Here is the call graph for this function:

◆ DoGetSamplingFactor()

double ns3::SimpleOfdmWimaxPhy::DoGetSamplingFactor ( ) const

overrideprivatevirtual

Get sampling factor.

Returns: the sampling factor

Implements ns3::WimaxPhy.

Definition at line 970 of file simple-ofdm-wimax-phy.cc.

References ns3::WimaxPhy::GetChannelBandwidth(), NS_FATAL_ERROR, and NS_LOG_DEBUG.

Referenced by DoGetSamplingFrequency().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoGetSamplingFrequency()

double ns3::SimpleOfdmWimaxPhy::DoGetSamplingFrequency ( ) const

overrideprivatevirtual

Get sampling frequency.

Returns: the sampling frequency

Implements ns3::WimaxPhy.

Definition at line 1006 of file simple-ofdm-wimax-phy.cc.

References DoGetSamplingFactor(), and ns3::WimaxPhy::GetChannelBandwidth().

Referenced by DoSetPhyParameters().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoGetTransmissionTime()

Time ns3::SimpleOfdmWimaxPhy::DoGetTransmissionTime	(	uint32_t	size,
		WimaxPhy::ModulationType	modulationType
	)		const

overrideprivatevirtual

Get transmission time.

Parameters

size	the size
modulationType	the modulation type

Returns: the transmission time

Implements ns3::WimaxPhy.

Definition at line 717 of file simple-ofdm-wimax-phy.cc.

References DoGetNrSymbols(), ns3::WimaxPhy::GetSymbolDuration(), ns3::NanoSeconds(), and ns3::Seconds().

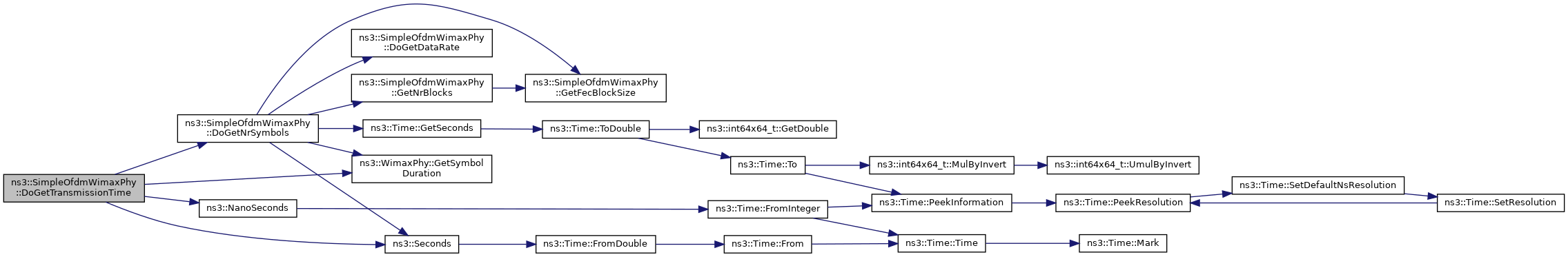

Here is the call graph for this function:

◆ DoGetTtg()

uint16_t ns3::SimpleOfdmWimaxPhy::DoGetTtg ( ) const

overrideprivatevirtual

Get TTG.

Returns: the TTG

Implements ns3::WimaxPhy.

Definition at line 825 of file simple-ofdm-wimax-phy.cc.

References ns3::WimaxPhy::GetPsPerSymbol().

Here is the call graph for this function:

◆ DoSetDataRates()

void ns3::SimpleOfdmWimaxPhy::DoSetDataRates ( )

overrideprivatevirtual

Set data rates.

Implements ns3::WimaxPhy.

Definition at line 624 of file simple-ofdm-wimax-phy.cc.

References CalculateDataRate(), m_dataRateBpsk12, m_dataRateQam16_12, m_dataRateQam16_34, m_dataRateQam64_23, m_dataRateQam64_34, m_dataRateQpsk12, m_dataRateQpsk34, ns3::WimaxPhy::MODULATION_TYPE_BPSK_12, ns3::WimaxPhy::MODULATION_TYPE_QAM16_12, ns3::WimaxPhy::MODULATION_TYPE_QAM16_34, ns3::WimaxPhy::MODULATION_TYPE_QAM64_23, ns3::WimaxPhy::MODULATION_TYPE_QAM64_34, ns3::WimaxPhy::MODULATION_TYPE_QPSK_12, and ns3::WimaxPhy::MODULATION_TYPE_QPSK_34.

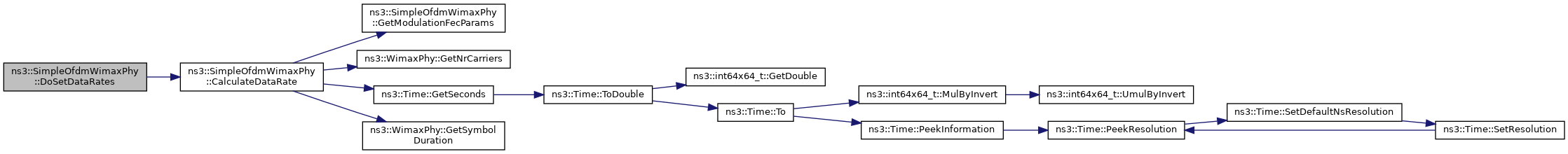

Here is the call graph for this function:

◆ DoSetGValue()

void ns3::SimpleOfdmWimaxPhy::DoSetGValue ( double g )

private

Set G value.

Parameters

g	the G value

Definition at line 1020 of file simple-ofdm-wimax-phy.cc.

References m_g.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ DoSetNfft()

void ns3::SimpleOfdmWimaxPhy::DoSetNfft ( uint16_t nfft )

private

Set NFFT.

Parameters

nfft the NFFT

Definition at line 958 of file simple-ofdm-wimax-phy.cc.

References m_nfft.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ DoSetPhyParameters()

void ns3::SimpleOfdmWimaxPhy::DoSetPhyParameters ( )

overrideprivatevirtual

Set Phy parameters.

Implements ns3::WimaxPhy.

Definition at line 928 of file simple-ofdm-wimax-phy.cc.

References DoGetGValue(), DoGetNfft(), DoGetSamplingFrequency(), ns3::WimaxPhy::GetFrameDuration(), ns3::Time::GetSeconds(), ns3::Seconds(), ns3::WimaxPhy::SetPsDuration(), ns3::WimaxPhy::SetPsPerFrame(), ns3::WimaxPhy::SetPsPerSymbol(), ns3::WimaxPhy::SetSymbolDuration(), and ns3::WimaxPhy::SetSymbolsPerFrame().

Here is the call graph for this function:

◆ EndReceive()

void ns3::SimpleOfdmWimaxPhy::EndReceive ( Ptr< const PacketBurst > burst )

private

End receive.

Parameters

burst

Definition at line 489 of file simple-ofdm-wimax-phy.cc.

References ns3::WimaxPhy::GetReceiveCallback(), and m_traceRx.

Referenced by EndReceiveFecBlock().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EndReceiveFecBlock()

void ns3::SimpleOfdmWimaxPhy::EndReceiveFecBlock	(	uint32_t	burstSize,
		WimaxPhy::ModulationType	modulationType,
		uint8_t	direction,
		bool	drop,
		Ptr< PacketBurst >	burst
	)

private

End receive FEC block.

Parameters

burstSize	the burst size
modulationType	the modulation type
direction	the direction
drop	whether to drop
burst	the burst

Definition at line 458 of file simple-ofdm-wimax-phy.cc.

References EndReceive(), m_blockSize, m_nbErroneousBlock, m_nrReceivedFecBlocks, m_paddingBits, NotifyRxDrop(), NotifyRxEnd(), ns3::WimaxPhy::PHY_STATE_IDLE, ns3::Simulator::Schedule(), ns3::Seconds(), and ns3::WimaxPhy::SetState().

Referenced by StartReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EndSend()

void ns3::SimpleOfdmWimaxPhy::EndSend ( )

private

End send.

Definition at line 361 of file simple-ofdm-wimax-phy.cc.

References ns3::WimaxPhy::PHY_STATE_IDLE, and ns3::WimaxPhy::SetState().

Here is the call graph for this function:

◆ EndSendFecBlock()

void ns3::SimpleOfdmWimaxPhy::EndSendFecBlock	(	WimaxPhy::ModulationType	modulationType,
		uint8_t	direction
	)

private

End send FEC block.

Parameters

modulationType	the modulation type
direction	the direction

Definition at line 343 of file simple-ofdm-wimax-phy.cc.

References m_blockSize, m_currentBurst, m_currentBurstSize, m_nrFecBlocksSent, m_nrRemainingBlocksToSend, m_paddingBits, NotifyTxEnd(), NS_ASSERT_MSG, ns3::WimaxPhy::PHY_STATE_IDLE, ns3::WimaxPhy::SetState(), and StartSendDummyFecBlock().

Referenced by StartSendDummyFecBlock().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetBandwidth()

uint32_t ns3::SimpleOfdmWimaxPhy::GetBandwidth ( ) const

Returns: the bandwidth

Definition at line 221 of file simple-ofdm-wimax-phy.cc.

References ns3::WimaxPhy::GetChannelBandwidth().

Referenced by StartReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetBlockTransmissionTime()

Time ns3::SimpleOfdmWimaxPhy::GetBlockTransmissionTime ( WimaxPhy::ModulationType modulationType ) const

private

Get block transmission time.

Parameters

modulationType the modulation type

Returns: the block transmission time

Definition at line 711 of file simple-ofdm-wimax-phy.cc.

References DoGetDataRate(), GetFecBlockSize(), and ns3::Seconds().

Referenced by StartReceive(), and StartSendDummyFecBlock().

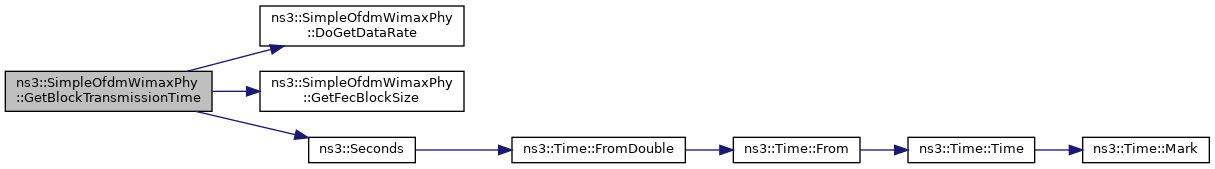

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCodedFecBlockSize()

uint32_t ns3::SimpleOfdmWimaxPhy::GetCodedFecBlockSize ( WimaxPhy::ModulationType modulationType ) const

private

Get coded FEC block size.

Parameters

modulationType the modulation type

Returns: the coded FEC block size

Definition at line 780 of file simple-ofdm-wimax-phy.cc.

References ns3::WimaxPhy::MODULATION_TYPE_BPSK_12, ns3::WimaxPhy::MODULATION_TYPE_QAM16_12, ns3::WimaxPhy::MODULATION_TYPE_QAM16_34, ns3::WimaxPhy::MODULATION_TYPE_QAM64_23, ns3::WimaxPhy::MODULATION_TYPE_QAM64_34, ns3::WimaxPhy::MODULATION_TYPE_QPSK_12, ns3::WimaxPhy::MODULATION_TYPE_QPSK_34, and NS_FATAL_ERROR.

◆ GetFecBlockSize()

uint32_t ns3::SimpleOfdmWimaxPhy::GetFecBlockSize ( WimaxPhy::ModulationType type ) const

private

Get FEC block size.

Parameters

type	the modulation type

Returns: the FEC block size

Definition at line 745 of file simple-ofdm-wimax-phy.cc.

References ns3::WimaxPhy::MODULATION_TYPE_BPSK_12, ns3::WimaxPhy::MODULATION_TYPE_QAM16_12, ns3::WimaxPhy::MODULATION_TYPE_QAM16_34, ns3::WimaxPhy::MODULATION_TYPE_QAM64_23, ns3::WimaxPhy::MODULATION_TYPE_QAM64_34, ns3::WimaxPhy::MODULATION_TYPE_QPSK_12, ns3::WimaxPhy::MODULATION_TYPE_QPSK_34, and NS_FATAL_ERROR.

Referenced by DoGetNrSymbols(), GetBlockTransmissionTime(), GetNrBlocks(), and SetBlockParameters().

Here is the caller graph for this function:

◆ GetModulationFecParams()

void ns3::SimpleOfdmWimaxPhy::GetModulationFecParams	(	WimaxPhy::ModulationType	modulationType,
		uint8_t &	bitsPerSymbol,
		double &	fecCode
	)		const

private

Get moduleation FEC parameters.

Parameters

modulationType	the modulation type
bitsPerSymbol	the number of bits per symbol
fecCode	the FEC code

Definition at line 636 of file simple-ofdm-wimax-phy.cc.

References ns3::WimaxPhy::MODULATION_TYPE_BPSK_12, ns3::WimaxPhy::MODULATION_TYPE_QAM16_12, ns3::WimaxPhy::MODULATION_TYPE_QAM16_34, ns3::WimaxPhy::MODULATION_TYPE_QAM64_23, ns3::WimaxPhy::MODULATION_TYPE_QAM64_34, ns3::WimaxPhy::MODULATION_TYPE_QPSK_12, and ns3::WimaxPhy::MODULATION_TYPE_QPSK_34.

Referenced by CalculateDataRate().

Here is the caller graph for this function:

◆ GetNoiseFigure()

double ns3::SimpleOfdmWimaxPhy::GetNoiseFigure ( ) const

Returns: the noise figure

Definition at line 245 of file simple-ofdm-wimax-phy.cc.

References m_noiseFigure.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetNrBlocks()

uint16_t ns3::SimpleOfdmWimaxPhy::GetNrBlocks	(	uint32_t	burstSize,
		WimaxPhy::ModulationType	modulationType
	)		const

private

Get number of blocks.

Parameters

burstSize	the burst size
modulationType	the modulation type

Returns: the number of blocks

Definition at line 912 of file simple-ofdm-wimax-phy.cc.

References GetFecBlockSize().

Referenced by DoGetNrSymbols(), and SetBlockParameters().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPhyType()

WimaxPhy::PhyType ns3::SimpleOfdmWimaxPhy::GetPhyType ( ) const

overridevirtual

returns the type this physical layer

Returns: always WimaxPhy::simpleOfdmWimaxPhy;

Implements ns3::WimaxPhy.

Definition at line 284 of file simple-ofdm-wimax-phy.cc.

References ns3::WimaxPhy::simpleOfdmWimaxPhy.

◆ GetRxGain()

double ns3::SimpleOfdmWimaxPhy::GetRxGain ( ) const

private

Get receive gain.

Returns: the receive gain

Definition at line 1044 of file simple-ofdm-wimax-phy.cc.

References m_rxGain.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetTraceFilePath()

std::string ns3::SimpleOfdmWimaxPhy::GetTraceFilePath ( ) const

private

Get trace file path.

Returns: the trace file path name

Definition at line 1050 of file simple-ofdm-wimax-phy.cc.

References ns3::SNRToBlockErrorRateManager::GetTraceFilePath(), and m_snrToBlockErrorRateManager.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTxGain()

double ns3::SimpleOfdmWimaxPhy::GetTxGain ( ) const

private

Get transmit gain.

Returns: the transmit gain

Definition at line 1038 of file simple-ofdm-wimax-phy.cc.

References m_txGain.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetTxPower()

double ns3::SimpleOfdmWimaxPhy::GetTxPower ( ) const

Returns: the transmission power

Definition at line 233 of file simple-ofdm-wimax-phy.cc.

References m_txPower.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SimpleOfdmWimaxPhy::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 48 of file simple-ofdm-wimax-phy.cc.

References DoGetGValue(), DoGetNfft(), DoSetGValue(), DoSetNfft(), GetNoiseFigure(), GetRxGain(), GetTraceFilePath(), GetTxGain(), GetTxPower(), m_phyRxBeginTrace, m_phyRxDropTrace, m_phyRxEndTrace, m_phyTxBeginTrace, m_phyTxDropTrace, m_phyTxEndTrace, m_traceRx, m_traceTx, ns3::MakeDoubleAccessor(), ns3::MakeStringAccessor(), ns3::MakeStringChecker(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), SetNoiseFigure(), ns3::TypeId::SetParent(), SetRxGain(), SetTraceFilePath(), SetTxGain(), and SetTxPower().

Here is the call graph for this function:

◆ InitSimpleOfdmWimaxPhy()

void ns3::SimpleOfdmWimaxPhy::InitSimpleOfdmWimaxPhy ( )

private

Initialize simple OFDM WIMAX Phy.

Definition at line 155 of file simple-ofdm-wimax-phy.cc.

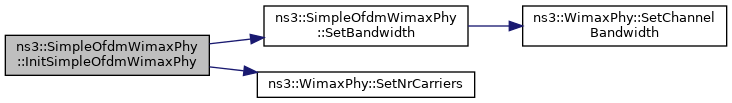

References m_blockSize, m_currentBurstSize, m_dataRateBpsk12, m_dataRateQam16_12, m_dataRateQam16_34, m_dataRateQam64_23, m_dataRateQam64_34, m_dataRateQpsk12, m_dataRateQpsk34, m_fecBlocks, m_fecBlockSize, m_g, m_nbErroneousBlock, m_nfft, m_noiseFigure, m_nrBlocks, m_nrFecBlocksSent, m_nrReceivedFecBlocks, m_paddingBits, m_receivedFecBlocks, m_rxGain, m_snrToBlockErrorRateManager, m_txGain, m_txPower, SetBandwidth(), and ns3::WimaxPhy::SetNrCarriers().

Referenced by SimpleOfdmWimaxPhy().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyRxBegin()

void ns3::SimpleOfdmWimaxPhy::NotifyRxBegin ( Ptr< PacketBurst > burst )

Public method used to fire a PhyRxBegin trace.

Implemented for encapsulation purposes.

Parameters

burst the packet burst

Definition at line 1081 of file simple-ofdm-wimax-phy.cc.

References m_phyRxBeginTrace.

Referenced by StartReceive().

Here is the caller graph for this function:

◆ NotifyRxDrop()

void ns3::SimpleOfdmWimaxPhy::NotifyRxDrop ( Ptr< PacketBurst > burst )

Public method used to fire a PhyRxDrop trace.

Implemented for encapsulation purposes.

Parameters

burst the packet burst

Definition at line 1093 of file simple-ofdm-wimax-phy.cc.

References m_phyRxDropTrace.

Referenced by EndReceiveFecBlock().

Here is the caller graph for this function:

◆ NotifyRxEnd()

void ns3::SimpleOfdmWimaxPhy::NotifyRxEnd ( Ptr< PacketBurst > burst )

Public method used to fire a PhyRxEnd trace.

Implemented for encapsulation purposes.

Parameters

burst the packet burst

Definition at line 1087 of file simple-ofdm-wimax-phy.cc.

References m_phyRxEndTrace.

Referenced by EndReceiveFecBlock().

Here is the caller graph for this function:

◆ NotifyTxBegin()

void ns3::SimpleOfdmWimaxPhy::NotifyTxBegin ( Ptr< PacketBurst > burst )

Public method used to fire a PhyTxBegin trace.

Implemented for encapsulation purposes.

Parameters

burst the packet burst

Definition at line 1063 of file simple-ofdm-wimax-phy.cc.

References m_phyTxBeginTrace.

Referenced by Send().

Here is the caller graph for this function:

◆ NotifyTxDrop()

void ns3::SimpleOfdmWimaxPhy::NotifyTxDrop ( Ptr< PacketBurst > burst )

Public method used to fire a PhyTxDrop trace.

Implemented for encapsulation purposes.

Parameters

burst the packet burst

Definition at line 1075 of file simple-ofdm-wimax-phy.cc.

References m_phyTxDropTrace.

◆ NotifyTxEnd()

void ns3::SimpleOfdmWimaxPhy::NotifyTxEnd ( Ptr< PacketBurst > burst )

Public method used to fire a PhyTxEnd trace.

Implemented for encapsulation purposes.

Parameters

burst the packet burst

Definition at line 1069 of file simple-ofdm-wimax-phy.cc.

References m_phyTxEndTrace.

Referenced by EndSendFecBlock().

Here is the caller graph for this function:

◆ RecreateBuffer()

Bvec ns3::SimpleOfdmWimaxPhy::RecreateBuffer ( )

private

Recreate buffer.

Returns: BVEC

Definition at line 608 of file simple-ofdm-wimax-phy.cc.

References m_blockSize, m_nrBlocks, and m_receivedFecBlocks.

◆ Send() [1/2]

void ns3::SimpleOfdmWimaxPhy::Send	(	Ptr< PacketBurst >	burst,
		WimaxPhy::ModulationType	modulationType,
		uint8_t	direction
	)

Sends a burst on the channel.

Parameters

burst	the burst to send
modulationType	the modulation that will be used to send this burst
direction	set to uplink or downlink

Definition at line 290 of file simple-ofdm-wimax-phy.cc.

References ns3::WimaxPhy::GetState(), m_currentBurst, m_currentBurstSize, m_nrFecBlocksSent, m_traceTx, NotifyTxBegin(), ns3::WimaxPhy::PHY_STATE_TX, SetBlockParameters(), and StartSendDummyFecBlock().

Referenced by Send().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Send() [2/2]

void ns3::SimpleOfdmWimaxPhy::Send ( SendParams * params )

overridevirtual

Sends a burst on the channel.

Parameters

params parameters

See also: SendParams

Implements ns3::WimaxPhy.

Definition at line 274 of file simple-ofdm-wimax-phy.cc.

References NS_ASSERT, two-ray-to-three-gpp-ch-calibration::params, and Send().

Here is the call graph for this function:

◆ SetBandwidth()

void ns3::SimpleOfdmWimaxPhy::SetBandwidth ( uint32_t BW )

Set the bandwidth.

Parameters

BW	the bandwidth

Definition at line 227 of file simple-ofdm-wimax-phy.cc.

References BW, and ns3::WimaxPhy::SetChannelBandwidth().

Referenced by InitSimpleOfdmWimaxPhy().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetBlockParameters()

void ns3::SimpleOfdmWimaxPhy::SetBlockParameters	(	uint32_t	burstSize,
		WimaxPhy::ModulationType	modulationType
	)

private

Set block parameters.

Parameters

burstSize	the burst size
modulationType	the modulation type

Definition at line 814 of file simple-ofdm-wimax-phy.cc.

References GetFecBlockSize(), GetNrBlocks(), m_blockSize, m_nrBlocks, m_nrRemainingBlocksToSend, m_paddingBits, and NS_ASSERT_MSG.

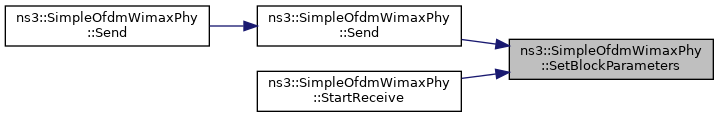

Referenced by Send(), and StartReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetNoiseFigure()

void ns3::SimpleOfdmWimaxPhy::SetNoiseFigure ( double nf )

set the noise figure of the device

Parameters

nf	the noise figure

Definition at line 251 of file simple-ofdm-wimax-phy.cc.

References m_noiseFigure.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetReceiveCallback()

void ns3::SimpleOfdmWimaxPhy::SetReceiveCallback ( Callback< void, Ptr< PacketBurst >, Ptr< WimaxConnection >> callback )

set the callback function to call when a burst is received

Parameters

callback the receive callback function

◆ SetRxGain()

void ns3::SimpleOfdmWimaxPhy::SetRxGain ( double rxgain )

private

Set receive gsain.

Parameters

rxgain the receive gain

Definition at line 1032 of file simple-ofdm-wimax-phy.cc.

References m_rxGain.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetSNRToBlockErrorRateTracesPath()

void ns3::SimpleOfdmWimaxPhy::SetSNRToBlockErrorRateTracesPath ( char * tracesPath )

Set the path of the repository containing the traces.

Parameters

tracesPath the path to the repository. see snr-to-block-error-rate-manager.h for more details.

Definition at line 214 of file simple-ofdm-wimax-phy.cc.

References m_snrToBlockErrorRateManager, ns3::SNRToBlockErrorRateManager::ReLoadTraces(), and ns3::SNRToBlockErrorRateManager::SetTraceFilePath().

Here is the call graph for this function:

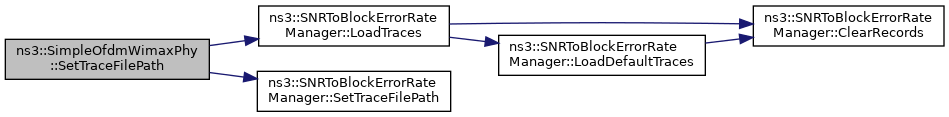

◆ SetTraceFilePath()

void ns3::SimpleOfdmWimaxPhy::SetTraceFilePath ( std::string path )

private

Set trace file path.

Parameters

path	the trace file path

Definition at line 1056 of file simple-ofdm-wimax-phy.cc.

References ns3::SNRToBlockErrorRateManager::LoadTraces(), m_snrToBlockErrorRateManager, and ns3::SNRToBlockErrorRateManager::SetTraceFilePath().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetTxGain()

void ns3::SimpleOfdmWimaxPhy::SetTxGain ( double txgain )

private

Set transmit gain.

Parameters

txgain the transmit gain

Definition at line 1026 of file simple-ofdm-wimax-phy.cc.

References m_txGain.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetTxPower()

void ns3::SimpleOfdmWimaxPhy::SetTxPower ( double txPower )

set the transmission power

Parameters

txPower the transmission power

Definition at line 239 of file simple-ofdm-wimax-phy.cc.

References m_txPower.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ StartReceive()

void ns3::SimpleOfdmWimaxPhy::StartReceive	(	uint32_t	burstSize,
		bool	isFirstBlock,
		uint64_t	frequency,
		WimaxPhy::ModulationType	modulationType,
		uint8_t	direction,
		double	rxPower,
		Ptr< PacketBurst >	burst
	)

start the reception of a fec block

Parameters

burstSize	the burst size
isFirstBlock	true if this block is the first one, false otherwise
frequency	the frequency in which the fec block is being received
modulationType	the modulation used to transmit this fec Block
direction	set to uplink and downlink
rxPower	the received power.
burst	the burst to be sent

Definition at line 367 of file simple-ofdm-wimax-phy.cc.

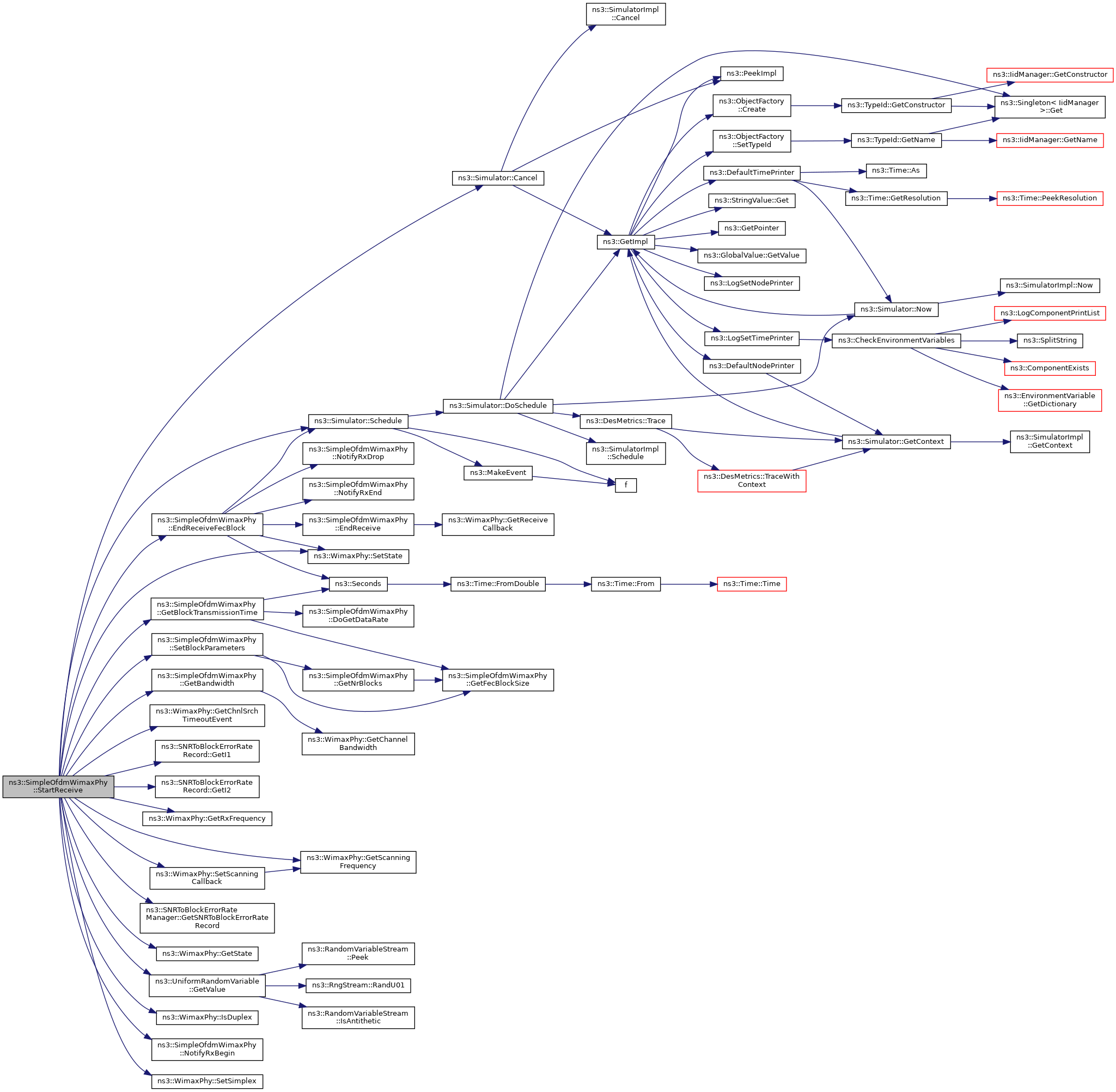

References ns3::Simulator::Cancel(), EndReceiveFecBlock(), GetBandwidth(), GetBlockTransmissionTime(), ns3::WimaxPhy::GetChnlSrchTimeoutEvent(), ns3::SNRToBlockErrorRateRecord::GetI1(), ns3::SNRToBlockErrorRateRecord::GetI2(), ns3::WimaxPhy::GetRxFrequency(), ns3::WimaxPhy::GetScanningFrequency(), ns3::SNRToBlockErrorRateManager::GetSNRToBlockErrorRateRecord(), ns3::WimaxPhy::GetState(), ns3::UniformRandomVariable::GetValue(), ns3::WimaxPhy::IsDuplex(), m_blockTime, m_noiseFigure, m_nrReceivedFecBlocks, m_receivedFecBlocks, m_snrToBlockErrorRateManager, m_URNG, NotifyRxBegin(), NS_LOG_INFO, ns3::WimaxPhy::PHY_STATE_IDLE, ns3::WimaxPhy::PHY_STATE_RX, ns3::WimaxPhy::PHY_STATE_SCANNING, ns3::WimaxPhy::PHY_STATE_TX, ns3::Simulator::Schedule(), SetBlockParameters(), ns3::WimaxPhy::SetScanningCallback(), ns3::WimaxPhy::SetSimplex(), and ns3::WimaxPhy::SetState().

Here is the call graph for this function:

◆ StartSendDummyFecBlock()

void ns3::SimpleOfdmWimaxPhy::StartSendDummyFecBlock	(	bool	isFirstBlock,
		WimaxPhy::ModulationType	modulationType,
		uint8_t	direction
	)

private

Start end dummy FEC block.

Parameters

isFirstBlock	is the first block?
modulationType	the modulation type
direction	the direction

Definition at line 307 of file simple-ofdm-wimax-phy.cc.

References third::channel, EndSendFecBlock(), GetBlockTransmissionTime(), ns3::WimaxPhy::GetChannel(), ns3::WimaxPhy::GetTxFrequency(), m_blockTime, m_currentBurst, m_currentBurstSize, m_nrRemainingBlocksToSend, m_txPower, NS_ASSERT, ns3::PeekPointer(), ns3::WimaxPhy::PHY_STATE_TX, ns3::Simulator::Schedule(), and ns3::WimaxPhy::SetState().

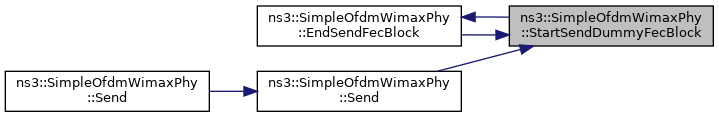

Referenced by EndSendFecBlock(), and Send().

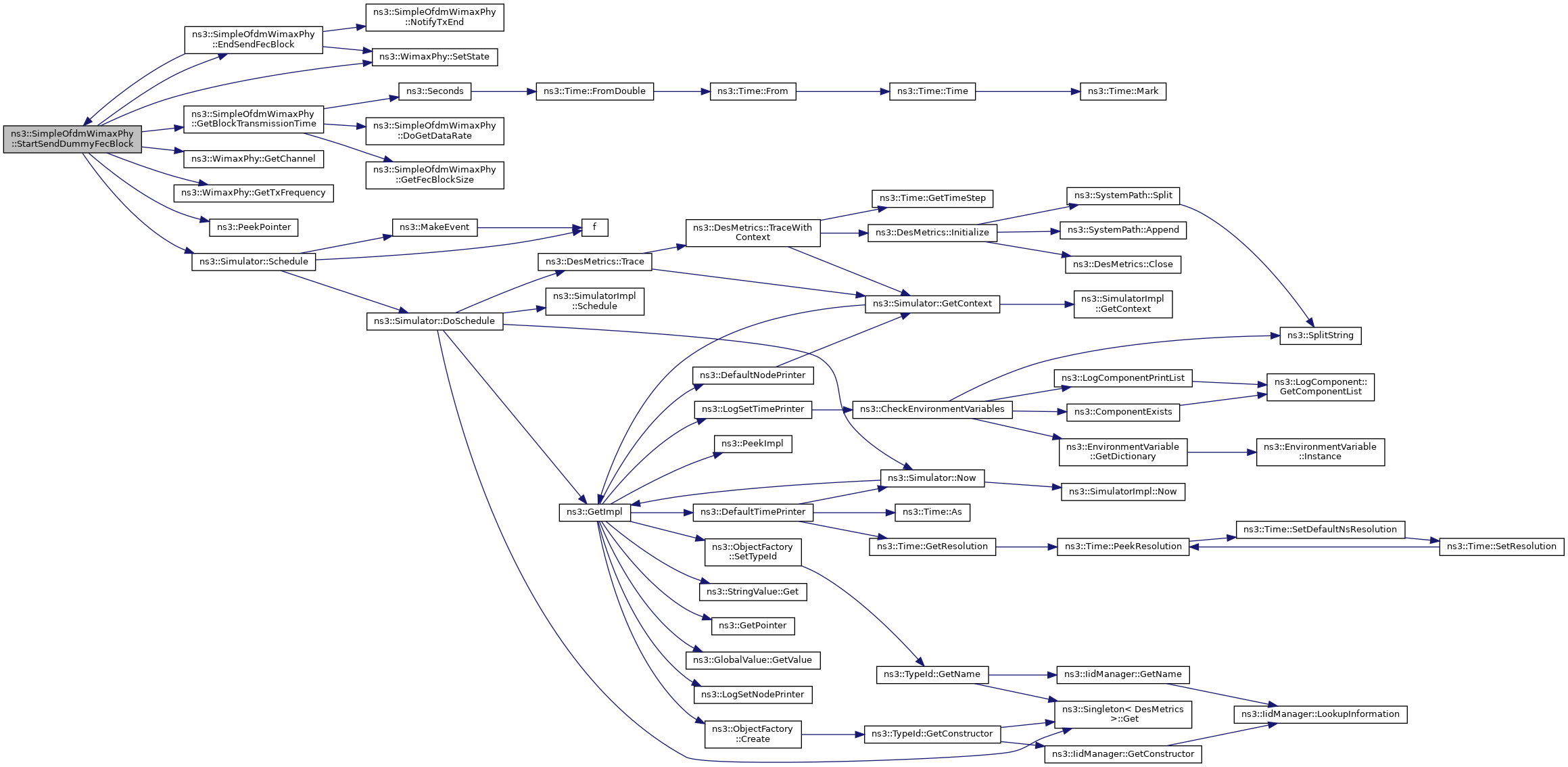

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_bandWidth

double ns3::SimpleOfdmWimaxPhy::m_bandWidth

private

bandwidth

Definition at line 473 of file simple-ofdm-wimax-phy.h.

◆ m_blockSize

uint16_t ns3::SimpleOfdmWimaxPhy::m_blockSize

private

block size

Definition at line 467 of file simple-ofdm-wimax-phy.h.

Referenced by CreateFecBlocks(), EndReceiveFecBlock(), EndSendFecBlock(), InitSimpleOfdmWimaxPhy(), RecreateBuffer(), and SetBlockParameters().

◆ m_blockTime

Time ns3::SimpleOfdmWimaxPhy::m_blockTime

private

block time

Definition at line 449 of file simple-ofdm-wimax-phy.h.

Referenced by StartReceive(), and StartSendDummyFecBlock().

◆ m_currentBurst

Ptr<PacketBurst> ns3::SimpleOfdmWimaxPhy::m_currentBurst

private

current burst

Definition at line 466 of file simple-ofdm-wimax-phy.h.

Referenced by EndSendFecBlock(), Send(), and StartSendDummyFecBlock().

◆ m_currentBurstSize

uint32_t ns3::SimpleOfdmWimaxPhy::m_currentBurstSize

private

current burst size

Definition at line 443 of file simple-ofdm-wimax-phy.h.

Referenced by EndSendFecBlock(), InitSimpleOfdmWimaxPhy(), Send(), and StartSendDummyFecBlock().

◆ m_dataRateBpsk12

uint32_t ns3::SimpleOfdmWimaxPhy::m_dataRateBpsk12

private

data rate

Definition at line 455 of file simple-ofdm-wimax-phy.h.

Referenced by DoGetDataRate(), DoSetDataRates(), and InitSimpleOfdmWimaxPhy().

◆ m_dataRateQam16_12

uint32_t ns3::SimpleOfdmWimaxPhy::m_dataRateQam16_12

private

data rate

Definition at line 458 of file simple-ofdm-wimax-phy.h.

Referenced by DoGetDataRate(), DoSetDataRates(), and InitSimpleOfdmWimaxPhy().

◆ m_dataRateQam16_34

uint32_t ns3::SimpleOfdmWimaxPhy::m_dataRateQam16_34

private

data rate

Definition at line 459 of file simple-ofdm-wimax-phy.h.

Referenced by DoGetDataRate(), DoSetDataRates(), and InitSimpleOfdmWimaxPhy().

◆ m_dataRateQam64_23

uint32_t ns3::SimpleOfdmWimaxPhy::m_dataRateQam64_23

private

data rate

Definition at line 460 of file simple-ofdm-wimax-phy.h.

Referenced by DoGetDataRate(), DoSetDataRates(), and InitSimpleOfdmWimaxPhy().

◆ m_dataRateQam64_34

uint32_t ns3::SimpleOfdmWimaxPhy::m_dataRateQam64_34

private

data rate

Definition at line 461 of file simple-ofdm-wimax-phy.h.

Referenced by DoGetDataRate(), DoSetDataRates(), and InitSimpleOfdmWimaxPhy().

◆ m_dataRateQpsk12

uint32_t ns3::SimpleOfdmWimaxPhy::m_dataRateQpsk12

private

data rate

Definition at line 456 of file simple-ofdm-wimax-phy.h.

Referenced by DoGetDataRate(), DoSetDataRates(), and InitSimpleOfdmWimaxPhy().

◆ m_dataRateQpsk34

uint32_t ns3::SimpleOfdmWimaxPhy::m_dataRateQpsk34

private

data rate

Definition at line 457 of file simple-ofdm-wimax-phy.h.

Referenced by DoGetDataRate(), DoSetDataRates(), and InitSimpleOfdmWimaxPhy().

◆ m_fecBlocks

std::list<Bvec>* ns3::SimpleOfdmWimaxPhy::m_fecBlocks

private

the FEC blocks

Definition at line 448 of file simple-ofdm-wimax-phy.h.

Referenced by CreateFecBlocks(), DoDispose(), and InitSimpleOfdmWimaxPhy().

◆ m_fecBlockSize

uint16_t ns3::SimpleOfdmWimaxPhy::m_fecBlockSize

private

in bits, size of FEC block transmitted after PHY operations

Definition at line 442 of file simple-ofdm-wimax-phy.h.

Referenced by InitSimpleOfdmWimaxPhy().

◆ m_g

double ns3::SimpleOfdmWimaxPhy::m_g

private

G value.

Definition at line 472 of file simple-ofdm-wimax-phy.h.

Referenced by DoGetGValue(), DoSetGValue(), and InitSimpleOfdmWimaxPhy().

◆ m_nbErroneousBlock

uint16_t ns3::SimpleOfdmWimaxPhy::m_nbErroneousBlock

private

erroneous blocks

Definition at line 469 of file simple-ofdm-wimax-phy.h.

Referenced by EndReceiveFecBlock(), and InitSimpleOfdmWimaxPhy().

◆ m_nfft

uint16_t ns3::SimpleOfdmWimaxPhy::m_nfft

private

NFFT.

Definition at line 471 of file simple-ofdm-wimax-phy.h.

Referenced by DoGetNfft(), DoSetNfft(), and InitSimpleOfdmWimaxPhy().

◆ m_noiseFigure

double ns3::SimpleOfdmWimaxPhy::m_noiseFigure

private

noise figure

Definition at line 475 of file simple-ofdm-wimax-phy.h.

Referenced by GetNoiseFigure(), InitSimpleOfdmWimaxPhy(), SetNoiseFigure(), and StartReceive().

◆ m_nrBlocks

uint16_t ns3::SimpleOfdmWimaxPhy::m_nrBlocks

private

number of blocks

Definition at line 464 of file simple-ofdm-wimax-phy.h.

Referenced by CreateFecBlocks(), InitSimpleOfdmWimaxPhy(), RecreateBuffer(), and SetBlockParameters().

◆ m_nrFecBlocksSent

uint32_t ns3::SimpleOfdmWimaxPhy::m_nrFecBlocksSent

private

counting the number of FEC blocks sent (within a burst)

Definition at line 447 of file simple-ofdm-wimax-phy.h.

Referenced by EndSendFecBlock(), InitSimpleOfdmWimaxPhy(), and Send().

◆ m_nrReceivedFecBlocks

uint16_t ns3::SimpleOfdmWimaxPhy::m_nrReceivedFecBlocks

private

number received FEC blocks

Definition at line 470 of file simple-ofdm-wimax-phy.h.

Referenced by EndReceiveFecBlock(), InitSimpleOfdmWimaxPhy(), and StartReceive().

◆ m_nrRemainingBlocksToSend

uint16_t ns3::SimpleOfdmWimaxPhy::m_nrRemainingBlocksToSend

private

number of remaining blocks to send

Definition at line 465 of file simple-ofdm-wimax-phy.h.

Referenced by EndSendFecBlock(), SetBlockParameters(), and StartSendDummyFecBlock().

◆ m_paddingBits

uint32_t ns3::SimpleOfdmWimaxPhy::m_paddingBits

private

padding bits

Definition at line 468 of file simple-ofdm-wimax-phy.h.

Referenced by CreateFecBlocks(), EndReceiveFecBlock(), EndSendFecBlock(), InitSimpleOfdmWimaxPhy(), and SetBlockParameters().

◆ m_phyRxBeginTrace

TracedCallback<Ptr<PacketBurst> > ns3::SimpleOfdmWimaxPhy::m_phyRxBeginTrace

private

The trace source fired when a packet begins the reception process from the medium.

See also: class CallBackTraceSource

Deprecated:: The non-const Ptr<PacketBurst> argument is deprecated and will be changed to Ptrc<PacketBurst> in a future release.

Definition at line 516 of file simple-ofdm-wimax-phy.h.

Referenced by GetTypeId(), and NotifyRxBegin().

◆ m_phyRxDropTrace

TracedCallback<Ptr<PacketBurst> > ns3::SimpleOfdmWimaxPhy::m_phyRxDropTrace

private

The trace source fired when the phy layer drops a packet it has received.

See also: class CallBackTraceSource

Deprecated:: The non-const Ptr<PacketBurst> argument is deprecated and will be changed to Ptrc<PacketBurst> in a future release.

Definition at line 535 of file simple-ofdm-wimax-phy.h.

Referenced by GetTypeId(), and NotifyRxDrop().

◆ m_phyRxEndTrace

TracedCallback<Ptr<PacketBurst> > ns3::SimpleOfdmWimaxPhy::m_phyRxEndTrace

private

The trace source fired when a packet ends the reception process from the medium.

See also: class CallBackTraceSource

Deprecated:: The non-const Ptr<PacketBurst> argument is deprecated and will be changed to Ptrc<PacketBurst> in a future release.

Definition at line 526 of file simple-ofdm-wimax-phy.h.

Referenced by GetTypeId(), and NotifyRxEnd().

◆ m_phyTxBeginTrace

TracedCallback<Ptr<PacketBurst> > ns3::SimpleOfdmWimaxPhy::m_phyTxBeginTrace

private

The trace source fired when a packet begins the transmission process on the medium.

See also: class CallBackTraceSource

Deprecated:: The non-const Ptr<PacketBurst> argument is deprecated and will be changed to Ptrc<PacketBurst> in a future release.

Definition at line 486 of file simple-ofdm-wimax-phy.h.

Referenced by GetTypeId(), and NotifyTxBegin().

◆ m_phyTxDropTrace

TracedCallback<Ptr<PacketBurst> > ns3::SimpleOfdmWimaxPhy::m_phyTxDropTrace

private

The trace source fired when the phy layer drops a packet as it tries to transmit it.

See also: class CallBackTraceSource

Deprecated:: The non-const Ptr<PacketBurst> argument is deprecated and will be changed to Ptrc<PacketBurst> in a future release.

Definition at line 506 of file simple-ofdm-wimax-phy.h.

Referenced by GetTypeId(), and NotifyTxDrop().

◆ m_phyTxEndTrace

TracedCallback<Ptr<PacketBurst> > ns3::SimpleOfdmWimaxPhy::m_phyTxEndTrace

private

The trace source fired when a packet ends the transmission process on the medium.

See also: class CallBackTraceSource

Deprecated:: The non-const Ptr<PacketBurst> argument is deprecated and will be changed to Ptrc<PacketBurst> in a future release.

Definition at line 496 of file simple-ofdm-wimax-phy.h.

Referenced by GetTypeId(), and NotifyTxEnd().

◆ m_receivedFecBlocks

std::list<Bvec>* ns3::SimpleOfdmWimaxPhy::m_receivedFecBlocks

private

a list of received FEC blocks until they are combined to recreate the full burst buffer

Definition at line 445 of file simple-ofdm-wimax-phy.h.

Referenced by DoDispose(), InitSimpleOfdmWimaxPhy(), RecreateBuffer(), and StartReceive().

◆ m_rxGain

double ns3::SimpleOfdmWimaxPhy::m_rxGain

private

receive gain

Definition at line 477 of file simple-ofdm-wimax-phy.h.

Referenced by GetRxGain(), InitSimpleOfdmWimaxPhy(), and SetRxGain().

◆ m_snrToBlockErrorRateManager

SNRToBlockErrorRateManager* ns3::SimpleOfdmWimaxPhy::m_snrToBlockErrorRateManager

private

SNR to block error rate manager.

Definition at line 537 of file simple-ofdm-wimax-phy.h.

Referenced by SimpleOfdmWimaxPhy(), ActivateLoss(), DoDispose(), GetTraceFilePath(), InitSimpleOfdmWimaxPhy(), SetSNRToBlockErrorRateTracesPath(), SetTraceFilePath(), and StartReceive().

◆ m_traceRx

TracedCallback<Ptr<const PacketBurst> > ns3::SimpleOfdmWimaxPhy::m_traceRx

private

trace receive callback

Definition at line 451 of file simple-ofdm-wimax-phy.h.

Referenced by EndReceive(), and GetTypeId().

◆ m_traceTx

TracedCallback<Ptr<const PacketBurst> > ns3::SimpleOfdmWimaxPhy::m_traceTx

private

trace transmit callback

Definition at line 452 of file simple-ofdm-wimax-phy.h.

Referenced by GetTypeId(), and Send().

◆ m_txGain

double ns3::SimpleOfdmWimaxPhy::m_txGain

private

transmit gain

Definition at line 476 of file simple-ofdm-wimax-phy.h.

Referenced by GetTxGain(), InitSimpleOfdmWimaxPhy(), and SetTxGain().

◆ m_txPower

double ns3::SimpleOfdmWimaxPhy::m_txPower

private

transmit power

Definition at line 474 of file simple-ofdm-wimax-phy.h.

Referenced by GetTxPower(), InitSimpleOfdmWimaxPhy(), SetTxPower(), and StartSendDummyFecBlock().

◆ m_URNG

Ptr<UniformRandomVariable> ns3::SimpleOfdmWimaxPhy::m_URNG

private

Provides uniform random variables.

URNG

Definition at line 540 of file simple-ofdm-wimax-phy.h.

Referenced by SimpleOfdmWimaxPhy(), AssignStreams(), and StartReceive().

The documentation for this class was generated from the following files:

src/wimax/model/simple-ofdm-wimax-phy.h
src/wimax/model/simple-ofdm-wimax-phy.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ FrameDurationCode

Constructor & Destructor Documentation

◆ SimpleOfdmWimaxPhy() [1/2]

◆ SimpleOfdmWimaxPhy() [2/2]

◆ ~SimpleOfdmWimaxPhy()

Member Function Documentation

◆ ActivateLoss()

◆ AssignStreams()

◆ CalculateDataRate()

◆ ConvertBitsToBurst()

◆ ConvertBurstToBits()

◆ CreateFecBlocks()

◆ DoAttach()

◆ DoDispose()

◆ DoGetDataRate()

◆ DoGetFrameDuration()

◆ DoGetFrameDurationCode()

◆ DoGetGValue()

◆ DoGetNfft()

◆ DoGetNrBytes()

◆ DoGetNrSymbols()

◆ DoGetRtg()

◆ DoGetSamplingFactor()

◆ DoGetSamplingFrequency()

◆ DoGetTransmissionTime()

◆ DoGetTtg()

◆ DoSetDataRates()

◆ DoSetGValue()

◆ DoSetNfft()

◆ DoSetPhyParameters()

◆ EndReceive()

◆ EndReceiveFecBlock()

◆ EndSend()

◆ EndSendFecBlock()

◆ GetBandwidth()

◆ GetBlockTransmissionTime()

◆ GetCodedFecBlockSize()

◆ GetFecBlockSize()

◆ GetModulationFecParams()

◆ GetNoiseFigure()

◆ GetNrBlocks()

◆ GetPhyType()

◆ GetRxGain()

◆ GetTraceFilePath()

◆ GetTxGain()

◆ GetTxPower()

◆ GetTypeId()

◆ InitSimpleOfdmWimaxPhy()

◆ NotifyRxBegin()

◆ NotifyRxDrop()

◆ NotifyRxEnd()

◆ NotifyTxBegin()

◆ NotifyTxDrop()

◆ NotifyTxEnd()

◆ RecreateBuffer()

◆ Send() [1/2]

◆ Send() [2/2]

◆ SetBandwidth()

◆ SetBlockParameters()

◆ SetNoiseFigure()

◆ SetReceiveCallback()

◆ SetRxGain()

◆ SetSNRToBlockErrorRateTracesPath()

◆ SetTraceFilePath()

◆ SetTxGain()

◆ SetTxPower()

◆ StartReceive()

◆ StartSendDummyFecBlock()

Member Data Documentation

◆ m_bandWidth

◆ m_blockSize

◆ m_blockTime
