This entity is installed inside an eNB and provides the functionality for the X2 interface. More...

#include "epc-x2.h"

Inheritance diagram for ns3::EpcX2:

Collaboration diagram for ns3::EpcX2:

Public Member Functions
	EpcX2 ()
	Constructor. More...

	~EpcX2 () override
	Destructor. More...

void	AddX2Interface (uint16_t enb1CellId, Ipv4Address enb1X2Address, std::vector< uint16_t > enb2CellIds, Ipv4Address enb2X2Address)
	Add an X2 interface to this EPC X2 entity. More...

void	DoDispose () override
	Destructor implementation. More...

EpcX2SapProvider *	GetEpcX2SapProvider ()

void	RecvFromX2cSocket (Ptr< Socket > socket)
	Method to be assigned to the recv callback of the X2-C (X2 Control Plane) socket. More...

void	RecvFromX2uSocket (Ptr< Socket > socket)
	Method to be assigned to the recv callback of the X2-U (X2 User Plane) socket. More...

void	SetEpcX2SapUser (EpcX2SapUser *s)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
virtual void	DoSendHandoverCancel (EpcX2SapProvider::HandoverCancelParams params)
	Send Handover Cancel function. More...

virtual void	DoSendHandoverPreparationFailure (EpcX2SapProvider::HandoverPreparationFailureParams params)
	Send handover preparation failure function. More...

virtual void	DoSendHandoverRequest (EpcX2SapProvider::HandoverRequestParams params)
	Send handover request function. More...

virtual void	DoSendHandoverRequestAck (EpcX2SapProvider::HandoverRequestAckParams params)
	Send handover request ack function. More...

virtual void	DoSendLoadInformation (EpcX2SapProvider::LoadInformationParams params)
	Send load information function. More...

virtual void	DoSendResourceStatusUpdate (EpcX2SapProvider::ResourceStatusUpdateParams params)
	Send resource status update function. More...

virtual void	DoSendSnStatusTransfer (EpcX2SapProvider::SnStatusTransferParams params)
	Send SN status transfer function. More...

virtual void	DoSendUeContextRelease (EpcX2SapProvider::UeContextReleaseParams params)
	Send UE context release function. More...

virtual void	DoSendUeData (EpcX2SapProvider::UeDataParams params)
	Send UE data function. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes
EpcX2SapProvider *	m_x2SapProvider
	X2 SAP provider. More...

EpcX2SapUser *	m_x2SapUser
	X2 SAP user. More...

Private Attributes
uint16_t	m_x2cUdpPort
	UDP ports to be used for the X2-C interface. More...

std::map< Ptr< Socket >, Ptr< X2CellInfo > >	m_x2InterfaceCellIds
	Map the localSocket (the one receiving the X2 message) to the corresponding (sourceCellId, targetCellId) associated with the X2 interface. More...

std::map< uint16_t, Ptr< X2IfaceInfo > >	m_x2InterfaceSockets
	Map the targetCellId to the corresponding (sourceSocket, remoteIpAddr) to be used to send the X2 message. More...

uint16_t	m_x2uUdpPort
	UDP ports to be used for the X2-U interface. More...

Friends
class	EpcX2SpecificEpcX2SapProvider< EpcX2 >
	allow EpcX2SpecificEpcX2SapProvider<EpcX2> class friend access More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This entity is installed inside an eNB and provides the functionality for the X2 interface.

Definition at line 98 of file epc-x2.h.

Constructor & Destructor Documentation

◆ EpcX2()

ns3::EpcX2::EpcX2 ( )

Constructor.

Definition at line 85 of file epc-x2.cc.

References EpcX2SpecificEpcX2SapProvider< EpcX2 >, m_x2SapProvider, and NS_LOG_FUNCTION.

◆ ~EpcX2()

ns3::EpcX2::~EpcX2 ( )

override

Destructor.

Definition at line 94 of file epc-x2.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddX2Interface()

void ns3::EpcX2::AddX2Interface	(	uint16_t	enb1CellId,
		Ipv4Address	enb1X2Address,
		std::vector< uint16_t >	enb2CellIds,
		Ipv4Address	enb2X2Address
	)

Add an X2 interface to this EPC X2 entity.

Parameters

enb1CellId	the cell ID of the current eNodeB
enb1X2Address	the address of the current eNodeB
enb2CellIds	the cell IDs of the neighbouring eNodeB
enb2X2Address	the address of the neighbouring eNodeB

Definition at line 131 of file epc-x2.cc.

References ns3::Socket::Bind(), ns3::Socket::CreateSocket(), ns3::TypeId::LookupByName(), m_x2cUdpPort, m_x2InterfaceCellIds, m_x2InterfaceSockets, m_x2uUdpPort, ns3::MakeCallback(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, RecvFromX2cSocket(), RecvFromX2uSocket(), and ns3::Socket::SetRecvCallback().

Here is the call graph for this function:

◆ DoDispose()

void ns3::EpcX2::DoDispose ( void )

overridevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 100 of file epc-x2.cc.

References m_x2InterfaceCellIds, m_x2InterfaceSockets, m_x2SapProvider, and NS_LOG_FUNCTION.

◆ DoSendHandoverCancel()

void ns3::EpcX2::DoSendHandoverCancel ( EpcX2SapProvider::HandoverCancelParams params )

protectedvirtual

Send Handover Cancel function.

Parameters

params the handover cancel parameters

Definition at line 793 of file epc-x2.cc.

References ns3::Packet::AddHeader(), ns3::EpcX2HandoverCancelHeader::GetLengthOfIes(), ns3::EpcX2HandoverCancelHeader::GetNumberOfIes(), ns3::Packet::GetSize(), ns3::EpcX2Header::HandoverCancel, m_x2cUdpPort, m_x2InterfaceSockets, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, two-ray-to-three-gpp-ch-calibration::params, ns3::Socket::SendTo(), ns3::EpcX2HandoverCancelHeader::SetCause(), ns3::EpcX2Header::SetLengthOfIes(), ns3::EpcX2Header::SetMessageType(), ns3::EpcX2HandoverCancelHeader::SetNewEnbUeX2apId(), ns3::EpcX2Header::SetNumberOfIes(), ns3::EpcX2HandoverCancelHeader::SetOldEnbUeX2apId(), ns3::EpcX2Header::SetProcedureCode(), and ns3::EpcX2Header::SuccessfulOutcome.

Here is the call graph for this function:

◆ DoSendHandoverPreparationFailure()

void ns3::EpcX2::DoSendHandoverPreparationFailure ( EpcX2SapProvider::HandoverPreparationFailureParams params )

protectedvirtual

Send handover preparation failure function.

Parameters

params the handover preparation failure parameters

Definition at line 535 of file epc-x2.cc.

References ns3::Packet::AddHeader(), ns3::EpcX2HandoverPreparationFailureHeader::GetLengthOfIes(), ns3::EpcX2HandoverPreparationFailureHeader::GetNumberOfIes(), ns3::Packet::GetSize(), ns3::EpcX2Header::HandoverPreparation, m_x2cUdpPort, m_x2InterfaceSockets, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, two-ray-to-three-gpp-ch-calibration::params, ns3::Socket::SendTo(), ns3::EpcX2HandoverPreparationFailureHeader::SetCause(), ns3::EpcX2HandoverPreparationFailureHeader::SetCriticalityDiagnostics(), ns3::EpcX2Header::SetLengthOfIes(), ns3::EpcX2Header::SetMessageType(), ns3::EpcX2Header::SetNumberOfIes(), ns3::EpcX2HandoverPreparationFailureHeader::SetOldEnbUeX2apId(), ns3::EpcX2Header::SetProcedureCode(), and ns3::EpcX2Header::UnsuccessfulOutcome.

Here is the call graph for this function:

◆ DoSendHandoverRequest()

void ns3::EpcX2::DoSendHandoverRequest ( EpcX2SapProvider::HandoverRequestParams params )

protectedvirtual

Send handover request function.

Parameters

params the send handover request parameters

Definition at line 437 of file epc-x2.cc.

Here is the call graph for this function:

◆ DoSendHandoverRequestAck()

void ns3::EpcX2::DoSendHandoverRequestAck ( EpcX2SapProvider::HandoverRequestAckParams params )

protectedvirtual

Send handover request ack function.

Parameters

params the send handover request ack parameters

Definition at line 487 of file epc-x2.cc.

References ns3::Packet::AddHeader(), ns3::EpcX2HandoverRequestAckHeader::GetLengthOfIes(), ns3::EpcX2HandoverRequestAckHeader::GetNumberOfIes(), ns3::Packet::GetSize(), ns3::EpcX2Header::HandoverPreparation, m_x2cUdpPort, m_x2InterfaceSockets, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, two-ray-to-three-gpp-ch-calibration::params, ns3::Socket::SendTo(), ns3::EpcX2HandoverRequestAckHeader::SetAdmittedBearers(), ns3::EpcX2Header::SetLengthOfIes(), ns3::EpcX2Header::SetMessageType(), ns3::EpcX2HandoverRequestAckHeader::SetNewEnbUeX2apId(), ns3::EpcX2HandoverRequestAckHeader::SetNotAdmittedBearers(), ns3::EpcX2Header::SetNumberOfIes(), ns3::EpcX2HandoverRequestAckHeader::SetOldEnbUeX2apId(), ns3::EpcX2Header::SetProcedureCode(), and ns3::EpcX2Header::SuccessfulOutcome.

Here is the call graph for this function:

◆ DoSendLoadInformation()

void ns3::EpcX2::DoSendLoadInformation ( EpcX2SapProvider::LoadInformationParams params )

protectedvirtual

Send load information function.

Parameters

params the send load information parameters

Definition at line 674 of file epc-x2.cc.

References ns3::Packet::AddHeader(), ns3::EpcX2LoadInformationHeader::GetLengthOfIes(), ns3::EpcX2LoadInformationHeader::GetNumberOfIes(), ns3::Packet::GetSize(), ns3::EpcX2Header::InitiatingMessage, ns3::EpcX2Header::LoadIndication, m_x2cUdpPort, m_x2InterfaceSockets, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, two-ray-to-three-gpp-ch-calibration::params, ns3::Socket::SendTo(), ns3::EpcX2LoadInformationHeader::SetCellInformationList(), ns3::EpcX2Header::SetLengthOfIes(), ns3::EpcX2Header::SetMessageType(), ns3::EpcX2Header::SetNumberOfIes(), and ns3::EpcX2Header::SetProcedureCode().

Here is the call graph for this function:

◆ DoSendResourceStatusUpdate()

void ns3::EpcX2::DoSendResourceStatusUpdate ( EpcX2SapProvider::ResourceStatusUpdateParams params )

protectedvirtual

Send resource status update function.

Parameters

params the send resource status update parameters

Definition at line 716 of file epc-x2.cc.

References ns3::Packet::AddHeader(), ns3::EpcX2ResourceStatusUpdateHeader::GetLengthOfIes(), ns3::EpcX2ResourceStatusUpdateHeader::GetNumberOfIes(), ns3::Packet::GetSize(), ns3::EpcX2Header::InitiatingMessage, m_x2cUdpPort, m_x2InterfaceSockets, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, two-ray-to-three-gpp-ch-calibration::params, ns3::EpcX2Header::ResourceStatusReporting, ns3::Socket::SendTo(), ns3::EpcX2ResourceStatusUpdateHeader::SetCellMeasurementResultList(), ns3::EpcX2ResourceStatusUpdateHeader::SetEnb1MeasurementId(), ns3::EpcX2ResourceStatusUpdateHeader::SetEnb2MeasurementId(), ns3::EpcX2Header::SetLengthOfIes(), ns3::EpcX2Header::SetMessageType(), ns3::EpcX2Header::SetNumberOfIes(), and ns3::EpcX2Header::SetProcedureCode().

Here is the call graph for this function:

◆ DoSendSnStatusTransfer()

void ns3::EpcX2::DoSendSnStatusTransfer ( EpcX2SapProvider::SnStatusTransferParams params )

protectedvirtual

Send SN status transfer function.

Parameters

params the SN status transfer parameters

Definition at line 582 of file epc-x2.cc.

References ns3::Packet::AddHeader(), ns3::EpcX2SnStatusTransferHeader::GetLengthOfIes(), ns3::EpcX2SnStatusTransferHeader::GetNumberOfIes(), ns3::Packet::GetSize(), ns3::EpcX2Header::InitiatingMessage, m_x2cUdpPort, m_x2InterfaceSockets, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, two-ray-to-three-gpp-ch-calibration::params, ns3::Socket::SendTo(), ns3::EpcX2SnStatusTransferHeader::SetErabsSubjectToStatusTransferList(), ns3::EpcX2Header::SetLengthOfIes(), ns3::EpcX2Header::SetMessageType(), ns3::EpcX2SnStatusTransferHeader::SetNewEnbUeX2apId(), ns3::EpcX2Header::SetNumberOfIes(), ns3::EpcX2SnStatusTransferHeader::SetOldEnbUeX2apId(), ns3::EpcX2Header::SetProcedureCode(), and ns3::EpcX2Header::SnStatusTransfer.

Here is the call graph for this function:

◆ DoSendUeContextRelease()

void ns3::EpcX2::DoSendUeContextRelease ( EpcX2SapProvider::UeContextReleaseParams params )

protectedvirtual

Send UE context release function.

Parameters

params the UE context release parameters

Definition at line 630 of file epc-x2.cc.

References ns3::Packet::AddHeader(), ns3::EpcX2UeContextReleaseHeader::GetLengthOfIes(), ns3::EpcX2UeContextReleaseHeader::GetNumberOfIes(), ns3::Packet::GetSize(), ns3::EpcX2Header::InitiatingMessage, m_x2cUdpPort, m_x2InterfaceSockets, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, two-ray-to-three-gpp-ch-calibration::params, ns3::Socket::SendTo(), ns3::EpcX2Header::SetLengthOfIes(), ns3::EpcX2Header::SetMessageType(), ns3::EpcX2UeContextReleaseHeader::SetNewEnbUeX2apId(), ns3::EpcX2Header::SetNumberOfIes(), ns3::EpcX2UeContextReleaseHeader::SetOldEnbUeX2apId(), ns3::EpcX2Header::SetProcedureCode(), and ns3::EpcX2Header::UeContextRelease.

Here is the call graph for this function:

◆ DoSendUeData()

void ns3::EpcX2::DoSendUeData ( EpcX2SapProvider::UeDataParams params )

protectedvirtual

Send UE data function.

Parameters

params EpcX2SapProvider::UeDataParams

Todo:: This should be done in GtpuHeader

Definition at line 762 of file epc-x2.cc.

References ns3::Packet::AddHeader(), ns3::GtpuHeader::GetSerializedSize(), m_x2InterfaceSockets, m_x2uUdpPort, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, two-ray-to-three-gpp-ch-calibration::params, ns3::Socket::SendTo(), ns3::GtpuHeader::SetLength(), and ns3::GtpuHeader::SetTeid().

Here is the call graph for this function:

◆ GetEpcX2SapProvider()

EpcX2SapProvider * ns3::EpcX2::GetEpcX2SapProvider ( )

Returns: the X2 SAP Provider interface offered by this EPC X2 entity

Definition at line 124 of file epc-x2.cc.

References m_x2SapProvider, and NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::EpcX2::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 110 of file epc-x2.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ RecvFromX2cSocket()

void ns3::EpcX2::RecvFromX2cSocket ( Ptr< Socket > socket )

Method to be assigned to the recv callback of the X2-C (X2 Control Plane) socket.

It is called when the eNB receives a packet from the peer eNB of the X2-C interface

Parameters

socket socket of the X2-C interface

Definition at line 180 of file epc-x2.cc.

Referenced by AddX2Interface().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RecvFromX2uSocket()

void ns3::EpcX2::RecvFromX2uSocket ( Ptr< Socket > socket )

Method to be assigned to the recv callback of the X2-U (X2 User Plane) socket.

It is called when the eNB receives a packet from the peer eNB of the X2-U interface

Parameters

socket socket of the X2-U interface

Definition at line 407 of file epc-x2.cc.

References ns3::Packet::GetSize(), ns3::GtpuHeader::GetTeid(), m_x2InterfaceCellIds, m_x2SapUser, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, two-ray-to-three-gpp-ch-calibration::params, ns3::Socket::Recv(), ns3::EpcX2SapUser::RecvUeData(), and ns3::Packet::RemoveHeader().

Referenced by AddX2Interface().

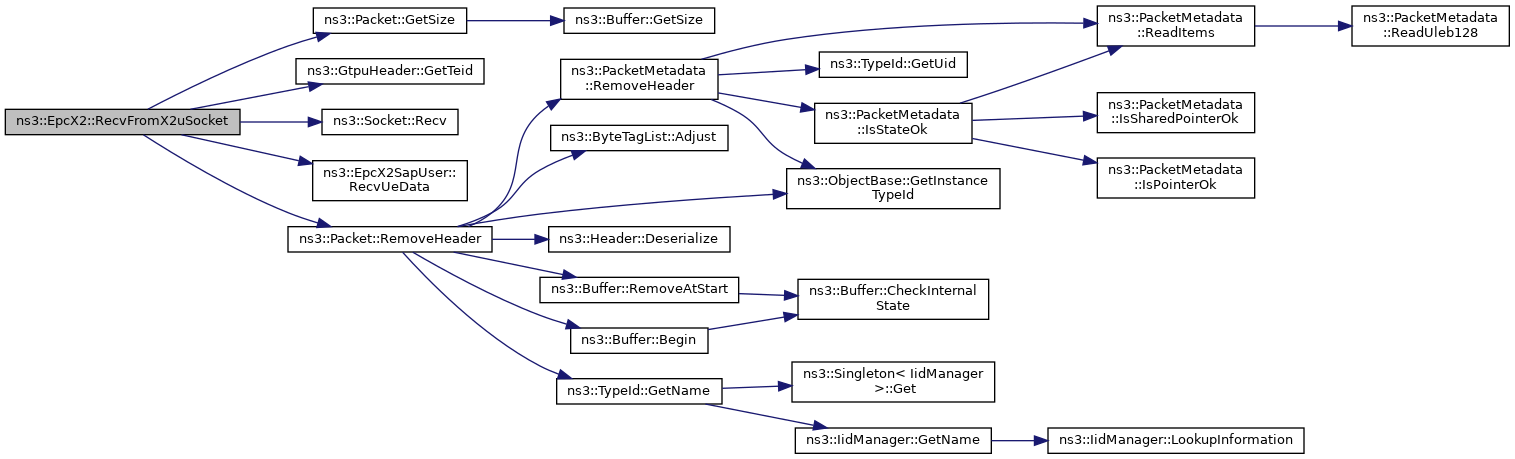

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetEpcX2SapUser()

void ns3::EpcX2::SetEpcX2SapUser ( EpcX2SapUser * s )

Parameters

s	the X2 SAP User to be used by this EPC X2 entity

Definition at line 117 of file epc-x2.cc.

References m_x2SapUser, and NS_LOG_FUNCTION.

Friends And Related Function Documentation

◆ EpcX2SpecificEpcX2SapProvider< EpcX2 >

friend class EpcX2SpecificEpcX2SapProvider< EpcX2 >

friend

allow EpcX2SpecificEpcX2SapProvider<EpcX2> class friend access

Definition at line 90 of file epc-x2.h.

Referenced by EpcX2().

Member Data Documentation

◆ m_x2cUdpPort

uint16_t ns3::EpcX2::m_x2cUdpPort

private

UDP ports to be used for the X2-C interface.

Definition at line 229 of file epc-x2.h.

Referenced by AddX2Interface(), DoSendHandoverCancel(), DoSendHandoverPreparationFailure(), DoSendHandoverRequest(), DoSendHandoverRequestAck(), DoSendLoadInformation(), DoSendResourceStatusUpdate(), DoSendSnStatusTransfer(), and DoSendUeContextRelease().

◆ m_x2InterfaceCellIds

std::map<Ptr<Socket>, Ptr<X2CellInfo> > ns3::EpcX2::m_x2InterfaceCellIds

private

Map the localSocket (the one receiving the X2 message) to the corresponding (sourceCellId, targetCellId) associated with the X2 interface.

Definition at line 224 of file epc-x2.h.

Referenced by AddX2Interface(), DoDispose(), RecvFromX2cSocket(), and RecvFromX2uSocket().

◆ m_x2InterfaceSockets

std::map<uint16_t, Ptr<X2IfaceInfo> > ns3::EpcX2::m_x2InterfaceSockets

private

Map the targetCellId to the corresponding (sourceSocket, remoteIpAddr) to be used to send the X2 message.

Definition at line 218 of file epc-x2.h.

Referenced by AddX2Interface(), DoDispose(), DoSendHandoverCancel(), DoSendHandoverPreparationFailure(), DoSendHandoverRequest(), DoSendHandoverRequestAck(), DoSendLoadInformation(), DoSendResourceStatusUpdate(), DoSendSnStatusTransfer(), DoSendUeContextRelease(), and DoSendUeData().

◆ m_x2SapProvider

EpcX2SapProvider* ns3::EpcX2::m_x2SapProvider

protected

X2 SAP provider.

Definition at line 211 of file epc-x2.h.

Referenced by EpcX2(), DoDispose(), and GetEpcX2SapProvider().

◆ m_x2SapUser

EpcX2SapUser* ns3::EpcX2::m_x2SapUser

protected

X2 SAP user.

Definition at line 210 of file epc-x2.h.

Referenced by RecvFromX2cSocket(), RecvFromX2uSocket(), and SetEpcX2SapUser().

◆ m_x2uUdpPort

uint16_t ns3::EpcX2::m_x2uUdpPort

private

UDP ports to be used for the X2-U interface.

Definition at line 233 of file epc-x2.h.

Referenced by AddX2Interface(), and DoSendUeData().

The documentation for this class was generated from the following files:

src/lte/model/epc-x2.h
src/lte/model/epc-x2.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ EpcX2()

◆ ~EpcX2()

Member Function Documentation

◆ AddX2Interface()

◆ DoDispose()

◆ DoSendHandoverCancel()

◆ DoSendHandoverPreparationFailure()

◆ DoSendHandoverRequest()

◆ DoSendHandoverRequestAck()

◆ DoSendLoadInformation()

◆ DoSendResourceStatusUpdate()

◆ DoSendSnStatusTransfer()

◆ DoSendUeContextRelease()

◆ DoSendUeData()

◆ GetEpcX2SapProvider()

◆ GetTypeId()

◆ RecvFromX2cSocket()

◆ RecvFromX2uSocket()

◆ SetEpcX2SapUser()

Friends And Related Function Documentation

◆ EpcX2SpecificEpcX2SapProvider< EpcX2 >

Member Data Documentation

◆ m_x2cUdpPort

◆ m_x2InterfaceCellIds

◆ m_x2InterfaceSockets

◆ m_x2SapProvider

◆ m_x2SapUser

◆ m_x2uUdpPort
