A Discrete-Event Network Simulator
API
Ipv4RipSplitHorizonStrategyTest Class Reference

IPv4 RIP SplitHorizon strategy Test. More...

+ Inheritance diagram for Ipv4RipSplitHorizonStrategyTest:
+ Collaboration diagram for Ipv4RipSplitHorizonStrategyTest:

Public Member Functions

 Ipv4RipSplitHorizonStrategyTest (Rip::SplitHorizonType_e strategy)
 Constructor. More...

void DoRun () override
 Implementation to actually run this TestCase. More...

void ReceivePktProbe (Ptr< Socket > socket)
 Receive data. More...

- Public Member Functions inherited from ns3::TestCase
 TestCase (const TestCase &)=delete

virtual ~TestCase ()
 Destructor. More...

std::string GetName () const

TestCaseoperator= (const TestCase &)=delete


Private Attributes

Rip::SplitHorizonType_e m_detectedStrategy
 Strategy detected. More...

Rip::SplitHorizonType_e m_setStrategy
 Strategy set. More...


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor. More...

void AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
 Add an individual child TestCase to this test suite. More...

TestCaseGetParent () const
 Get the parent of this TestCase. More...

bool IsStatusFailure () const
 Check if any tests failed. More...

bool IsStatusSuccess () const
 Check if all tests passed. More...

void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found. More...

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase. More...

bool MustAssertOnFailure () const
 Check if this run should assert on failure. More...

bool MustContinueOnFailure () const
 Check if this run should continue on failure. More...

std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory. More...

std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory. More...


Detailed Description

IPv4 RIP SplitHorizon strategy Test.

Definition at line 514 of file ipv4-rip-test.cc.

Constructor & Destructor Documentation

◆ Ipv4RipSplitHorizonStrategyTest()

Ipv4RipSplitHorizonStrategyTest::Ipv4RipSplitHorizonStrategyTest ( Rip::SplitHorizonType_e  strategy)

Constructor.

Parameters
strategyThe SplitHorizon strategy.

Definition at line 535 of file ipv4-rip-test.cc.

References m_setStrategy.

Member Function Documentation

◆ DoRun()

void Ipv4RipSplitHorizonStrategyTest::DoRun ( )
overridevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 585 of file ipv4-rip-test.cc.

References ns3::NetDeviceContainer::Add(), ns3::Node::AddDevice(), ns3::Object::GetObject(), ns3::InternetStackHelper::Install(), nsclick-simple-lan::ipv4, m_detectedStrategy, m_setStrategy, ns3::MakeCallback(), NS_TEST_EXPECT_MSG_EQ, ReceivePktProbe(), ns3::Seconds(), ns3::RipHelper::Set(), and ns3::InternetStackHelper::SetRoutingHelper().

+ Here is the call graph for this function:

◆ ReceivePktProbe()

void Ipv4RipSplitHorizonStrategyTest::ReceivePktProbe ( Ptr< Socket socket)

Receive data.

Parameters
socketThe receiving socket.

Definition at line 542 of file ipv4-rip-test.cc.

References ns3::RipHeader::GetRteList(), ns3::Socket::GetRxAvailable(), ns3::Packet::GetSize(), m_detectedStrategy, max, NS_TEST_ASSERT_MSG_EQ, NS_TEST_EXPECT_MSG_EQ, ns3::Socket::RecvFrom(), and ns3::Packet::RemoveHeader().

Referenced by DoRun().

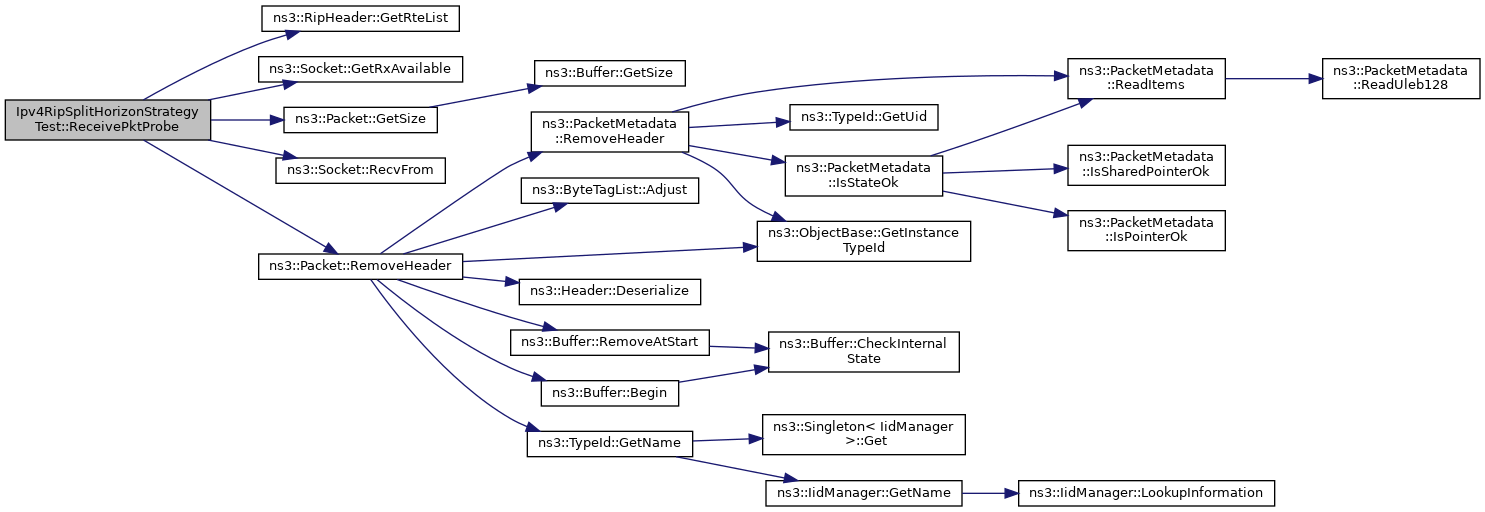

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

Member Data Documentation

◆ m_detectedStrategy

Rip::SplitHorizonType_e Ipv4RipSplitHorizonStrategyTest::m_detectedStrategy
private

Strategy detected.

Definition at line 517 of file ipv4-rip-test.cc.

Referenced by DoRun(), and ReceivePktProbe().

◆ m_setStrategy

Rip::SplitHorizonType_e Ipv4RipSplitHorizonStrategyTest::m_setStrategy
private

Strategy set.

Definition at line 516 of file ipv4-rip-test.cc.

Referenced by Ipv4RipSplitHorizonStrategyTest(), and DoRun().


The documentation for this class was generated from the following file:
