FLAME routing protocol. More...

#include "flame-protocol.h"

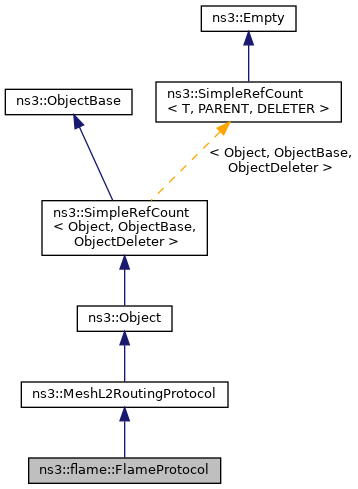

Inheritance diagram for ns3::flame::FlameProtocol:

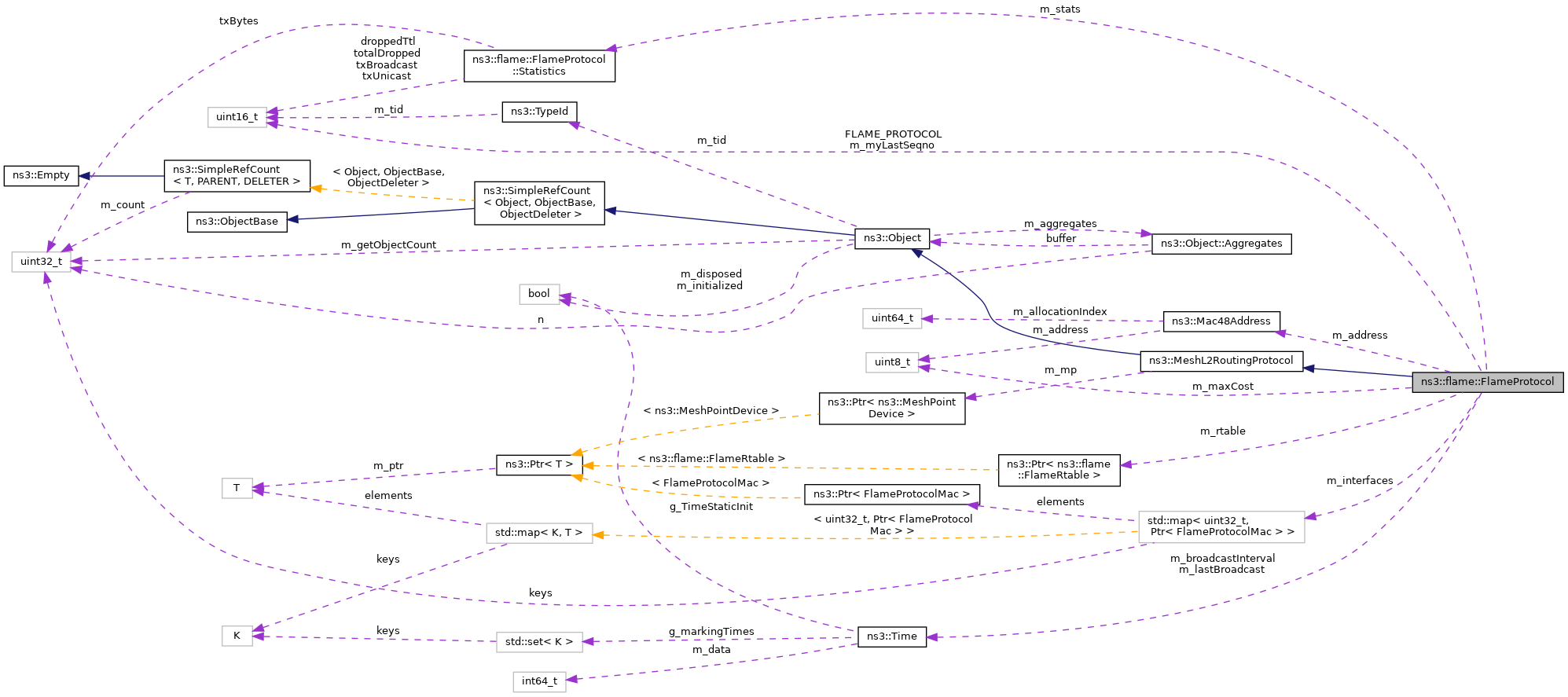

Collaboration diagram for ns3::flame::FlameProtocol:

Classes
struct	Statistics
	Statistics structure. More...

Public Member Functions
	FlameProtocol ()

	FlameProtocol (const FlameProtocol &)=delete

	~FlameProtocol () override

void	DoDispose () override
	Destructor implementation. More...

Mac48Address	GetAddress ()
	Get address of this instance. More...

bool	Install (Ptr< MeshPointDevice > mp)
	Install FLAME on given mesh point. More...

FlameProtocol &	operator= (const FlameProtocol &)=delete

bool	RemoveRoutingStuff (uint32_t fromIface, const Mac48Address source, const Mac48Address destination, Ptr< Packet > packet, uint16_t &protocolType) override
	Cleanup flame headers! More...

void	Report (std::ostream &os) const
	Statistics. More...

bool	RequestRoute (uint32_t sourceIface, const Mac48Address source, const Mac48Address destination, Ptr< const Packet > packet, uint16_t protocolType, RouteReplyCallback routeReply) override
	Route request, inherited from MeshL2RoutingProtocol. More...

void	ResetStats ()
	Reset statistics function. More...

Public Member Functions inherited from ns3::MeshL2RoutingProtocol
	~MeshL2RoutingProtocol () override
	virtual D-tor for subclasses More...

Ptr< MeshPointDevice >	GetMeshPoint () const
	Each mesh protocol must be installed on the mesh point to work. More...

void	SetMeshPoint (Ptr< MeshPointDevice > mp)
	Set host mesh point, analog of SetNode (...) methods for upper layer protocols. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::MeshL2RoutingProtocol
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Member Functions
bool	HandleDataFrame (uint16_t seqno, Mac48Address source, const FlameHeader flameHdr, Mac48Address receiver, uint32_t fromIface)
	Handles a packet: adds a routing information and drops packets by TTL or Seqno. More...

Private Attributes
Broadcast timers:
Time	m_broadcastInterval
	Max Cost value (or TTL, because cost is actually hopcount) More...

Time	m_lastBroadcast
	Max Cost value (or TTL, because cost is actually hopcount) More...

uint8_t	m_maxCost
	Max Cost value (or TTL, because cost is actually hopcount) More...

uint16_t	m_myLastSeqno
	Sequence number: More...

Ptr< FlameRtable >	m_rtable
	Routing table: More...

Statistics	m_stats
	statistics More...

Static Private Attributes
static const uint16_t	FLAME_PROTOCOL = 0x4040
	LLC protocol number reserved by flame. More...

Information about MeshPointDeviceaddress, plugins
typedef std::map< uint32_t, Ptr< FlameProtocolMac > >	FlamePluginMap
	interfaces More...

FlamePluginMap	m_interfaces
	interfaces More...

Mac48Address	m_address
	address More...

Additional Inherited Members
Public Types inherited from ns3::MeshL2RoutingProtocol
typedef Callback< void, bool, Ptr< Packet >, Mac48Address, Mac48Address, uint16_t, uint32_t >	RouteReplyCallback
	Callback to be invoked when route discovery procedure is completed. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::MeshL2RoutingProtocol
Ptr< MeshPointDevice >	m_mp
	Host mesh point. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

FLAME routing protocol.

Definition at line 91 of file flame-protocol.h.

Member Typedef Documentation

◆ FlamePluginMap

typedef std::map<uint32_t, Ptr<FlameProtocolMac> > ns3::flame::FlameProtocol::FlamePluginMap

private

interfaces

Definition at line 187 of file flame-protocol.h.

Constructor & Destructor Documentation

◆ FlameProtocol() [1/2]

ns3::flame::FlameProtocol::FlameProtocol ( )

Definition at line 131 of file flame-protocol.cc.

◆ ~FlameProtocol()

ns3::flame::FlameProtocol::~FlameProtocol ( )

override

Definition at line 141 of file flame-protocol.cc.

◆ FlameProtocol() [2/2]

ns3::flame::FlameProtocol::FlameProtocol ( const FlameProtocol & )

delete

Member Function Documentation

◆ DoDispose()

void ns3::flame::FlameProtocol::DoDispose ( void )

overridevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 146 of file flame-protocol.cc.

References m_interfaces, ns3::MeshL2RoutingProtocol::m_mp, and m_rtable.

◆ GetAddress()

Mac48Address ns3::flame::FlameProtocol::GetAddress ( )

Get address of this instance.

Returns: the MAC address

Definition at line 354 of file flame-protocol.cc.

References m_address.

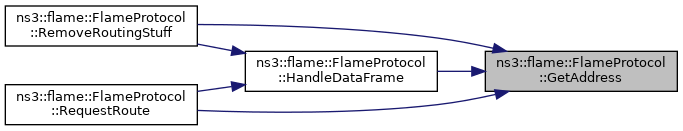

Referenced by HandleDataFrame(), RemoveRoutingStuff(), and RequestRoute().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::flame::FlameProtocol::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 112 of file flame-protocol.cc.

References m_broadcastInterval, m_maxCost, ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeUintegerAccessor(), ns3::Seconds(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ HandleDataFrame()

bool ns3::flame::FlameProtocol::HandleDataFrame	(	uint16_t	seqno,
		Mac48Address	source,
		const FlameHeader	flameHdr,
		Mac48Address	receiver,
		uint32_t	fromIface
	)

private

Handles a packet: adds a routing information and drops packets by TTL or Seqno.

Parameters

seqno
source
flameHdr
receiver
fromIface

Returns: true if packet shall be dropped

Definition at line 360 of file flame-protocol.cc.

References ns3::flame::FlameRtable::AddPath(), ns3::flame::FlameProtocol::Statistics::droppedTtl, GetAddress(), ns3::Mac48Address::GetBroadcast(), ns3::flame::FlameHeader::GetCost(), ns3::flame::FlameHeader::GetSeqno(), ns3::flame::FlameRtable::Lookup(), m_maxCost, m_rtable, m_stats, ns3::flame::FlameRtable::LookupResult::retransmitter, ns3::flame::FlameRtable::LookupResult::seqnum, and ns3::flame::FlameProtocol::Statistics::totalDropped.

Referenced by RemoveRoutingStuff(), and RequestRoute().

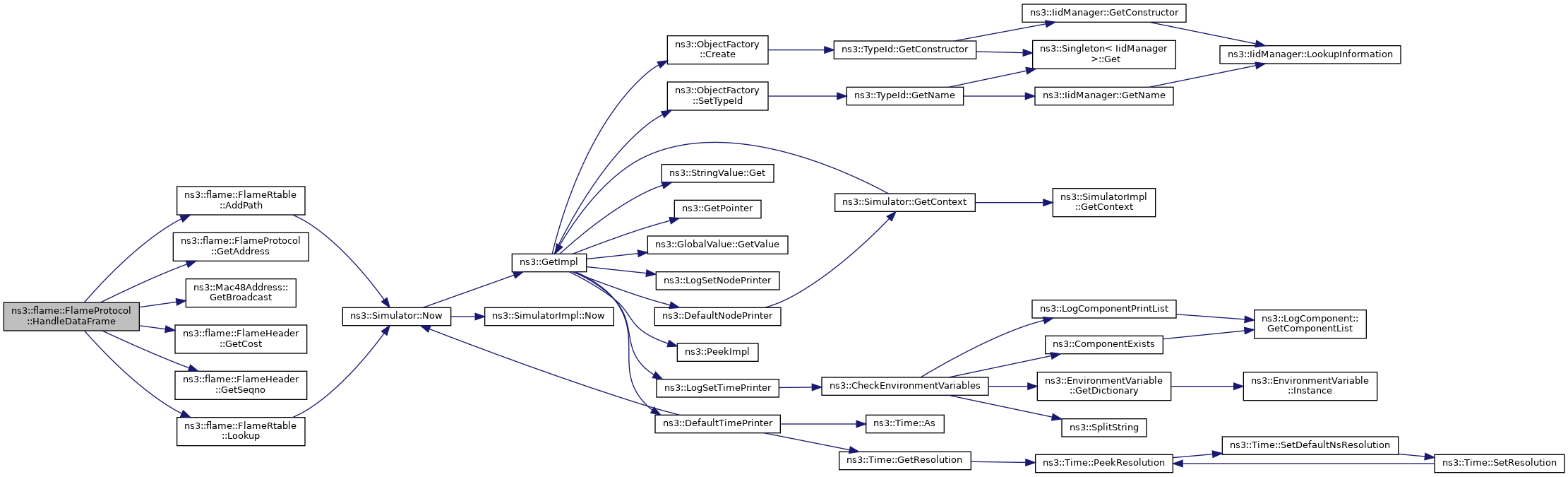

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Install()

bool ns3::flame::FlameProtocol::Install ( Ptr< MeshPointDevice > mp )

Install FLAME on given mesh point.

Parameters

mp	the MeshPointDevice

Returns: true if successful

Installing protocol causes installation of its interface MAC plugins.

Also MP aggregates all installed protocols, FLAME protocol can be accessed via MeshPointDevice::GetObject<flame::FlameProtocol>();

Definition at line 323 of file flame-protocol.cc.

References ns3::Mac48Address::ConvertFrom(), ns3::WifiNetDevice::GetIfIndex(), ns3::WifiNetDevice::GetMac(), ns3::Object::GetObject(), first::interfaces, m_address, m_interfaces, ns3::MeshL2RoutingProtocol::m_mp, and third::mac.

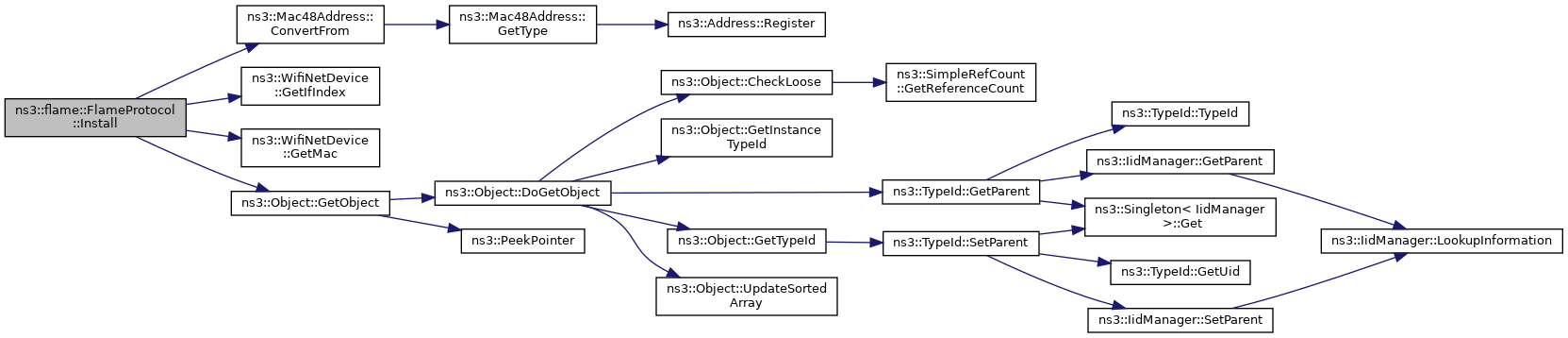

Here is the call graph for this function:

◆ operator=()

FlameProtocol& ns3::flame::FlameProtocol::operator= ( const FlameProtocol & )

delete

◆ RemoveRoutingStuff()

bool ns3::flame::FlameProtocol::RemoveRoutingStuff	(	uint32_t	fromIface,
		const Mac48Address	source,
		const Mac48Address	destination,
		Ptr< Packet >	packet,
		uint16_t &	protocolType
	)

overridevirtual

Cleanup flame headers!

Parameters

fromIface	the from interface
source	the source address
destination	the destination address
packet	the packet
protocolType	the protocol type

Returns: if the route removed

Implements ns3::MeshL2RoutingProtocol.

Definition at line 284 of file flame-protocol.cc.

References FLAME_PROTOCOL, GetAddress(), ns3::Mac48Address::GetBroadcast(), ns3::flame::FlameHeader::GetProtocol(), ns3::flame::FlameHeader::GetSeqno(), HandleDataFrame(), m_broadcastInterval, m_lastBroadcast, ns3::MeshL2RoutingProtocol::m_mp, ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, ns3::Packet::RemoveHeader(), ns3::Packet::RemovePacketTag(), ns3::Seconds(), and ns3::flame::FlameTag::transmitter.

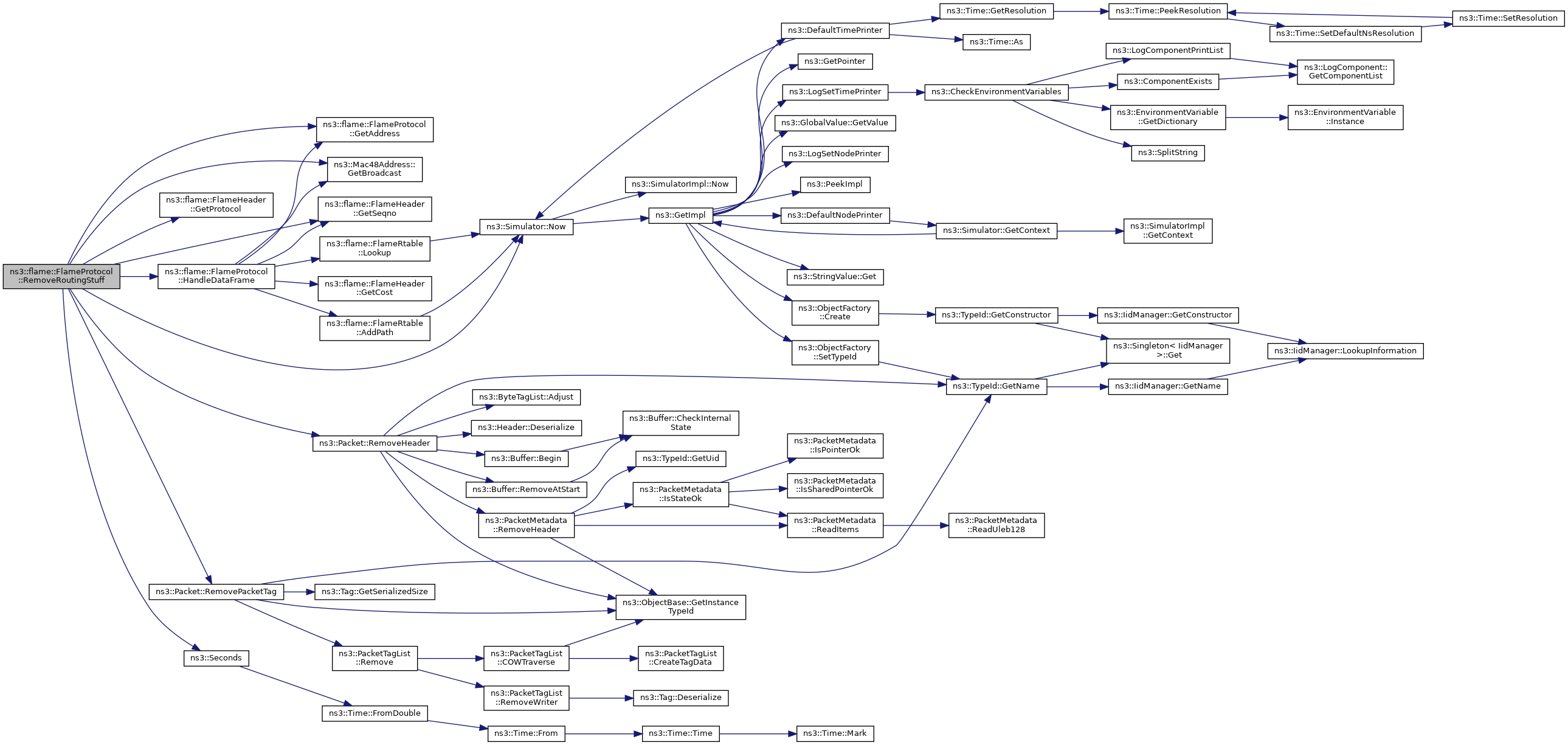

Here is the call graph for this function:

◆ Report()

void ns3::flame::FlameProtocol::Report ( std::ostream & os ) const

Statistics.

Parameters

os	the output stream

Definition at line 417 of file flame-protocol.cc.

References ns3::Time::GetSeconds(), m_address, m_broadcastInterval, m_interfaces, m_maxCost, m_stats, and ns3::flame::FlameProtocol::Statistics::Print().

Here is the call graph for this function:

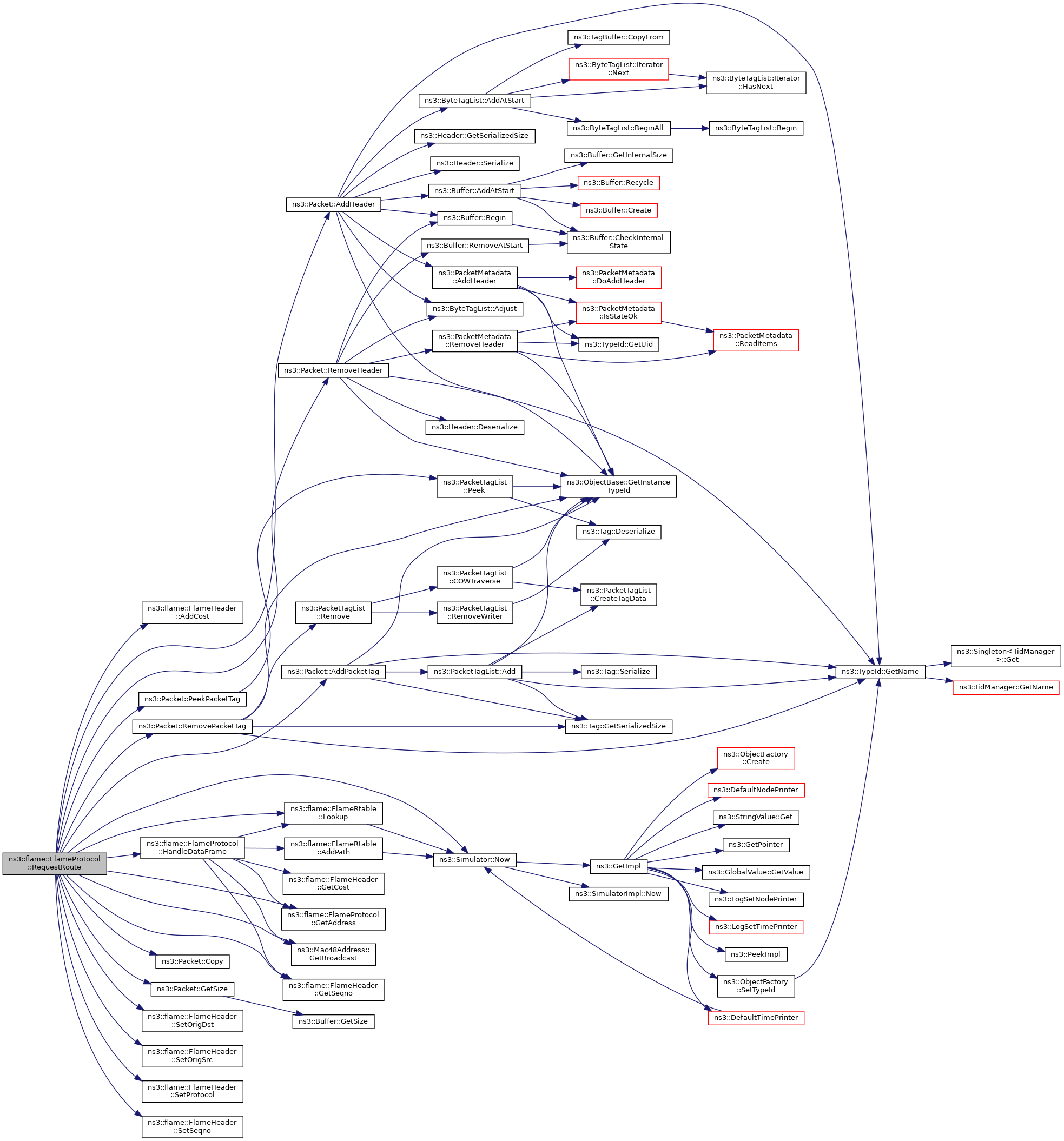

◆ RequestRoute()

bool ns3::flame::FlameProtocol::RequestRoute	(	uint32_t	sourceIface,
		const Mac48Address	source,
		const Mac48Address	destination,
		Ptr< const Packet >	packet,
		uint16_t	protocolType,
		RouteReplyCallback	routeReply
	)

overridevirtual

Route request, inherited from MeshL2RoutingProtocol.

Parameters

sourceIface	the source interface
source	the source address
destination	the destination address
packet	the packet to route
protocolType	the protocol type
routeReply	the route reply

Returns: if route exists

Implements ns3::MeshL2RoutingProtocol.

Definition at line 154 of file flame-protocol.cc.

References ns3::flame::FlameHeader::AddCost(), ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), ns3::Packet::Copy(), FLAME_PROTOCOL, GetAddress(), ns3::Mac48Address::GetBroadcast(), ns3::flame::FlameHeader::GetSeqno(), ns3::Packet::GetSize(), HandleDataFrame(), ns3::flame::FlameRtable::LookupResult::ifIndex, ns3::flame::FlameRtable::INTERFACE_ANY, ns3::flame::FlameRtable::Lookup(), m_broadcastInterval, m_lastBroadcast, ns3::MeshL2RoutingProtocol::m_mp, m_myLastSeqno, m_rtable, m_stats, ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, ns3::Packet::PeekPacketTag(), ns3::flame::FlameTag::receiver, ns3::Packet::RemoveHeader(), ns3::Packet::RemovePacketTag(), ns3::flame::FlameRtable::LookupResult::retransmitter, ns3::flame::FlameHeader::SetOrigDst(), ns3::flame::FlameHeader::SetOrigSrc(), ns3::flame::FlameHeader::SetProtocol(), ns3::flame::FlameHeader::SetSeqno(), ns3::flame::FlameProtocol::Statistics::totalDropped, ns3::flame::FlameTag::transmitter, ns3::flame::FlameProtocol::Statistics::txBroadcast, ns3::flame::FlameProtocol::Statistics::txBytes, and ns3::flame::FlameProtocol::Statistics::txUnicast.

Here is the call graph for this function:

◆ ResetStats()

void ns3::flame::FlameProtocol::ResetStats ( )

Reset statistics function.

Definition at line 433 of file flame-protocol.cc.

References m_interfaces, and m_stats.

Member Data Documentation

◆ FLAME_PROTOCOL

const uint16_t ns3::flame::FlameProtocol::FLAME_PROTOCOL = 0x4040

staticprivate

LLC protocol number reserved by flame.

Definition at line 167 of file flame-protocol.h.

Referenced by RemoveRoutingStuff(), and RequestRoute().

◆ m_address

Mac48Address ns3::flame::FlameProtocol::m_address

private

address

Definition at line 189 of file flame-protocol.h.

Referenced by GetAddress(), Install(), and Report().

◆ m_broadcastInterval

Time ns3::flame::FlameProtocol::m_broadcastInterval

private

Max Cost value (or TTL, because cost is actually hopcount)

Definition at line 195 of file flame-protocol.h.

Referenced by GetTypeId(), RemoveRoutingStuff(), Report(), and RequestRoute().

◆ m_interfaces

FlamePluginMap ns3::flame::FlameProtocol::m_interfaces

private

interfaces

Definition at line 188 of file flame-protocol.h.

Referenced by DoDispose(), Install(), Report(), and ResetStats().

◆ m_lastBroadcast

Time ns3::flame::FlameProtocol::m_lastBroadcast

private

Max Cost value (or TTL, because cost is actually hopcount)

Definition at line 196 of file flame-protocol.h.

Referenced by RemoveRoutingStuff(), and RequestRoute().

◆ m_maxCost

uint8_t ns3::flame::FlameProtocol::m_maxCost

private

Max Cost value (or TTL, because cost is actually hopcount)

Definition at line 199 of file flame-protocol.h.

Referenced by GetTypeId(), HandleDataFrame(), and Report().

◆ m_myLastSeqno

uint16_t ns3::flame::FlameProtocol::m_myLastSeqno

private

Sequence number:

Definition at line 201 of file flame-protocol.h.

Referenced by RequestRoute().

◆ m_rtable

Ptr<FlameRtable> ns3::flame::FlameProtocol::m_rtable

private

Routing table:

Definition at line 203 of file flame-protocol.h.

Referenced by DoDispose(), HandleDataFrame(), and RequestRoute().

◆ m_stats

Statistics ns3::flame::FlameProtocol::m_stats

private

statistics

Definition at line 222 of file flame-protocol.h.

Referenced by HandleDataFrame(), Report(), RequestRoute(), and ResetStats().

The documentation for this class was generated from the following files:

src/mesh/model/flame/flame-protocol.h
src/mesh/model/flame/flame-protocol.cc

Classes

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Information about MeshPointDeviceaddress, plugins

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ FlamePluginMap

Constructor & Destructor Documentation

◆ FlameProtocol() [1/2]

◆ ~FlameProtocol()

◆ FlameProtocol() [2/2]

Member Function Documentation

◆ DoDispose()

◆ GetAddress()

◆ GetTypeId()

◆ HandleDataFrame()

◆ Install()

◆ operator=()

◆ RemoveRoutingStuff()

◆ Report()

◆ RequestRoute()

◆ ResetStats()

Member Data Documentation

◆ FLAME_PROTOCOL

◆ m_address

◆ m_broadcastInterval

◆ m_interfaces

◆ m_lastBroadcast

◆ m_maxCost

◆ m_myLastSeqno

◆ m_rtable

◆ m_stats
