This class implements a gaussian interference model, i.e., all incoming signals are added to the total interference. More...

#include "spectrum-interference.h"

Inheritance diagram for ns3::SpectrumInterference:

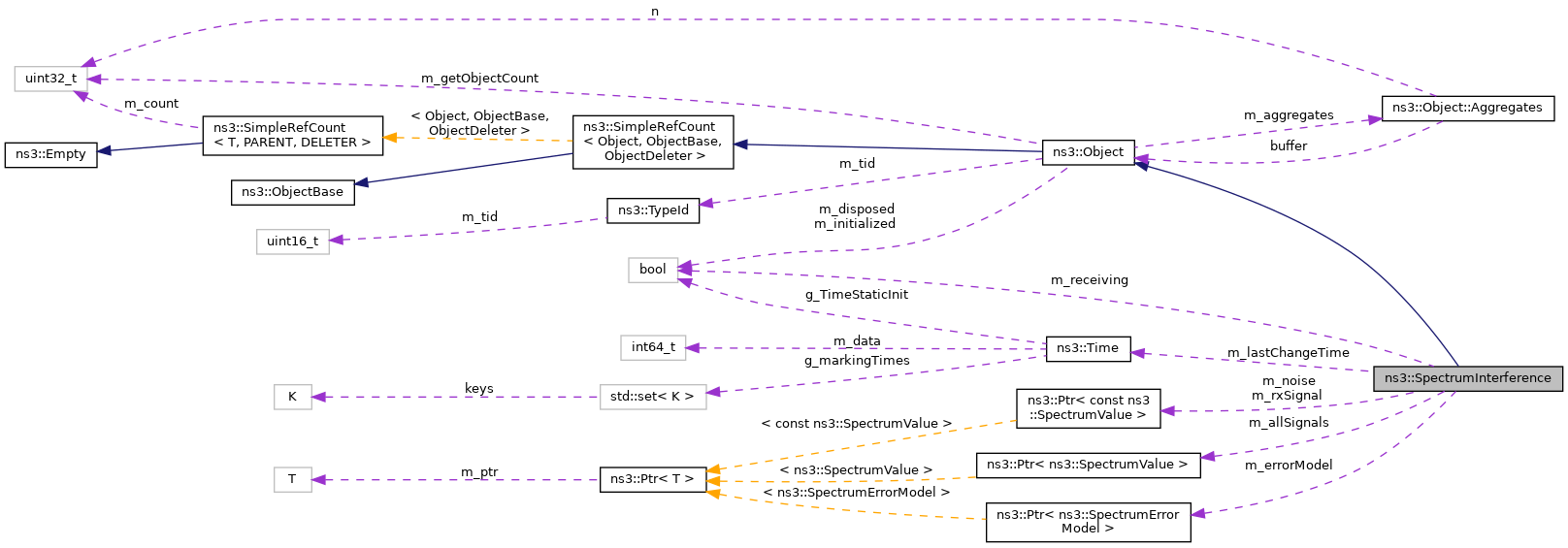

Collaboration diagram for ns3::SpectrumInterference:

Public Member Functions
	SpectrumInterference ()

	~SpectrumInterference () override

void	AbortRx ()
	Notify that the PHY has aborted RX. More...

void	AddSignal (Ptr< const SpectrumValue > spd, const Time duration)
	Notify that a new signal is being perceived in the medium. More...

bool	EndRx ()
	Notify that the RX attempt has ended. More...

void	SetErrorModel (Ptr< SpectrumErrorModel > e)
	Set the SpectrumErrorModel to be used. More...

void	SetNoisePowerSpectralDensity (Ptr< const SpectrumValue > noisePsd)
	Set the Noise Power Spectral Density. More...

void	StartRx (Ptr< const Packet > p, Ptr< const SpectrumValue > rxPsd)
	Notify that the PHY is starting a RX attempt. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
void	DoDispose () override
	Destructor implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
void	ConditionallyEvaluateChunk ()
	Evaluate a Chunk, depending on the Rx status and the last update time. More...

void	DoAddSignal (Ptr< const SpectrumValue > spd)
	Adds a signal perceived in the medium. More...

void	DoSubtractSignal (Ptr< const SpectrumValue > spd)
	Removes a signal perceived in the medium. More...

Private Attributes
Ptr< SpectrumValue >	m_allSignals
	Stores the spectral power density of the sum of incoming signals; does not include noise, includes the SPD of the signal being RX. More...

Ptr< SpectrumErrorModel >	m_errorModel
	Error model. More...

Time	m_lastChangeTime
	the time of the last change in m_TotalPower More...

Ptr< const SpectrumValue >	m_noise
	Noise spectral power density. More...

bool	m_receiving
	True if in Rx status. More...

Ptr< const SpectrumValue >	m_rxSignal
	Stores the power spectral density of the signal whose RX is being attempted. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This class implements a gaussian interference model, i.e., all incoming signals are added to the total interference.

Definition at line 41 of file spectrum-interference.h.

Constructor & Destructor Documentation

◆ SpectrumInterference()

ns3::SpectrumInterference::SpectrumInterference ( )

Definition at line 32 of file spectrum-interference.cc.

References NS_LOG_FUNCTION.

◆ ~SpectrumInterference()

ns3::SpectrumInterference::~SpectrumInterference ( )

override

Definition at line 42 of file spectrum-interference.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AbortRx()

void ns3::SpectrumInterference::AbortRx ( )

Notify that the PHY has aborted RX.

Definition at line 79 of file spectrum-interference.cc.

References m_receiving.

Referenced by ns3::HalfDuplexIdealPhy::AbortRx().

Here is the caller graph for this function:

◆ AddSignal()

void ns3::SpectrumInterference::AddSignal	(	Ptr< const SpectrumValue >	spd,
		const Time	duration
	)

Notify that a new signal is being perceived in the medium.

This method is to be called for all incoming signal, regardless of whether they're useful signals or interferers.

Parameters

spd	the power spectral density of the new signal
duration	the duration of the new signal

Definition at line 94 of file spectrum-interference.cc.

References DoAddSignal(), DoSubtractSignal(), NS_LOG_FUNCTION, and ns3::Simulator::Schedule().

Referenced by ns3::HalfDuplexIdealPhy::StartRx().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConditionallyEvaluateChunk()

void ns3::SpectrumInterference::ConditionallyEvaluateChunk ( )

private

Evaluate a Chunk, depending on the Rx status and the last update time.

Definition at line 120 of file spectrum-interference.cc.

References m_errorModel, m_lastChangeTime, m_receiving, ns3::Now(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by DoAddSignal(), DoSubtractSignal(), and EndRx().

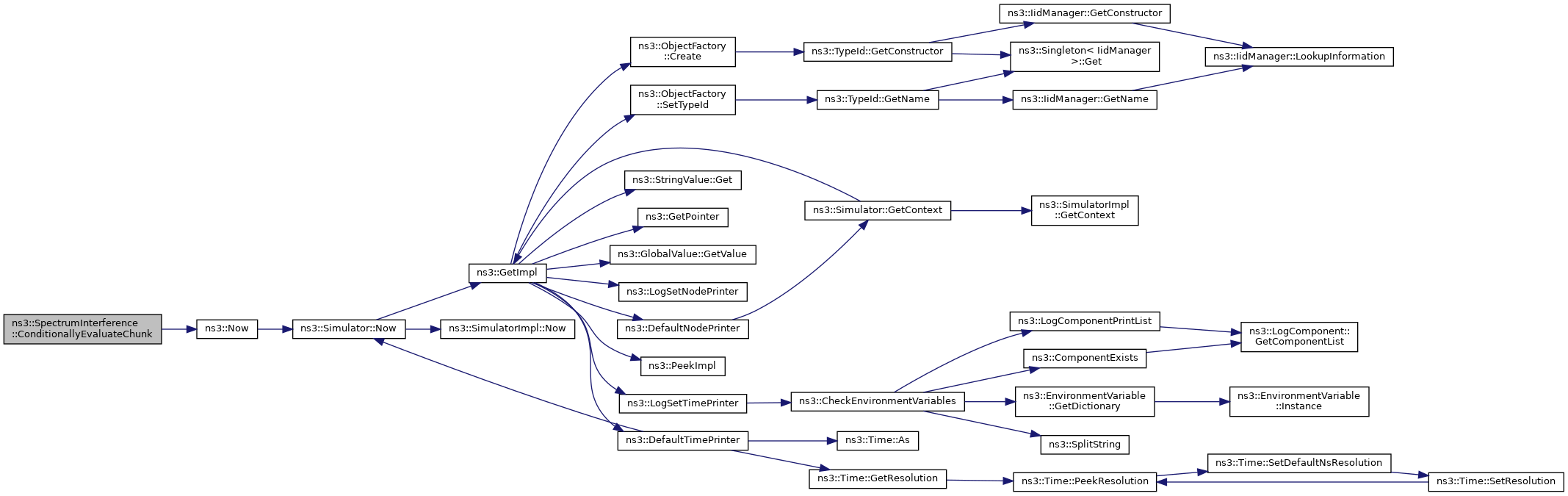

Here is the call graph for this function:

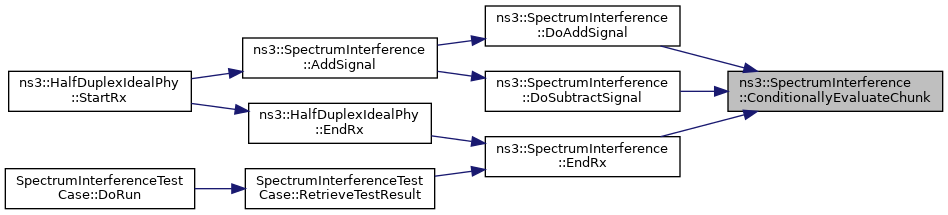

Here is the caller graph for this function:

◆ DoAddSignal()

void ns3::SpectrumInterference::DoAddSignal ( Ptr< const SpectrumValue > spd )

private

Adds a signal perceived in the medium.

Parameters

spd	the power spectral density of the new signal

Definition at line 102 of file spectrum-interference.cc.

References ConditionallyEvaluateChunk(), m_lastChangeTime, ns3::Now(), and NS_LOG_FUNCTION.

Referenced by AddSignal().

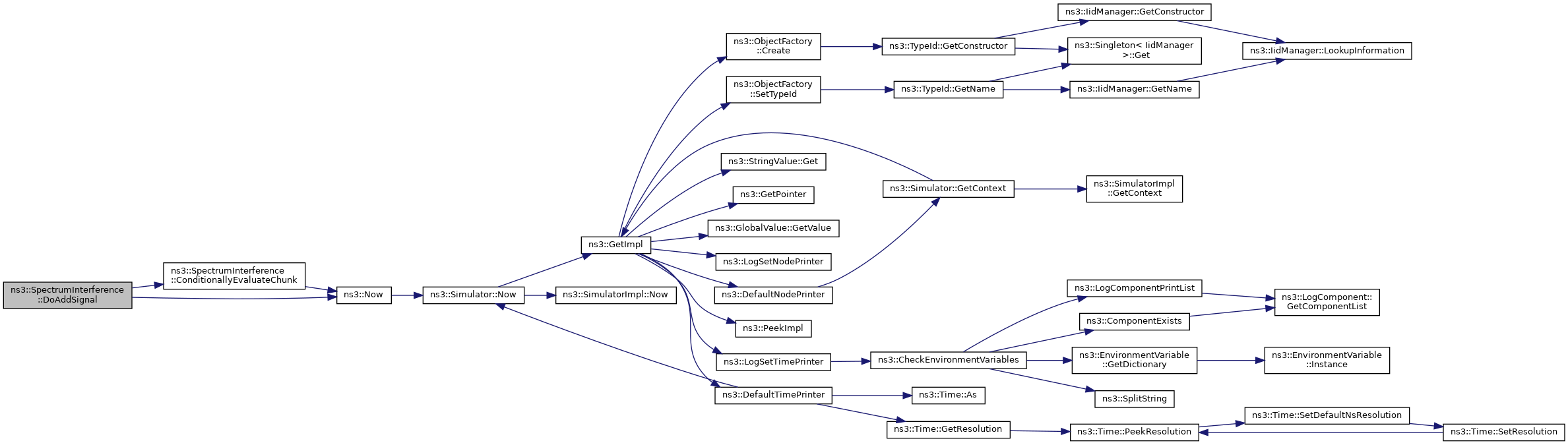

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::SpectrumInterference::DoDispose ( void )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 58 of file spectrum-interference.cc.

References ns3::Object::DoDispose(), m_allSignals, m_errorModel, m_noise, m_rxSignal, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ DoSubtractSignal()

void ns3::SpectrumInterference::DoSubtractSignal ( Ptr< const SpectrumValue > spd )

private

Removes a signal perceived in the medium.

Parameters

spd	the power spectral density of the new signal

Definition at line 111 of file spectrum-interference.cc.

References ConditionallyEvaluateChunk(), m_lastChangeTime, ns3::Now(), and NS_LOG_FUNCTION.

Referenced by AddSignal().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EndRx()

bool ns3::SpectrumInterference::EndRx ( )

Notify that the RX attempt has ended.

The receiving PHY must call this method upon RX end in order to: 1) know if RX was successful or not 2) free up resources that might eventually be used for the calculation of interference. Note that for this reason this method must also be called when RX is aborted.
