Demultiplexes packets to various transport layer endpoints. More...

#include "ipv4-end-point-demux.h"

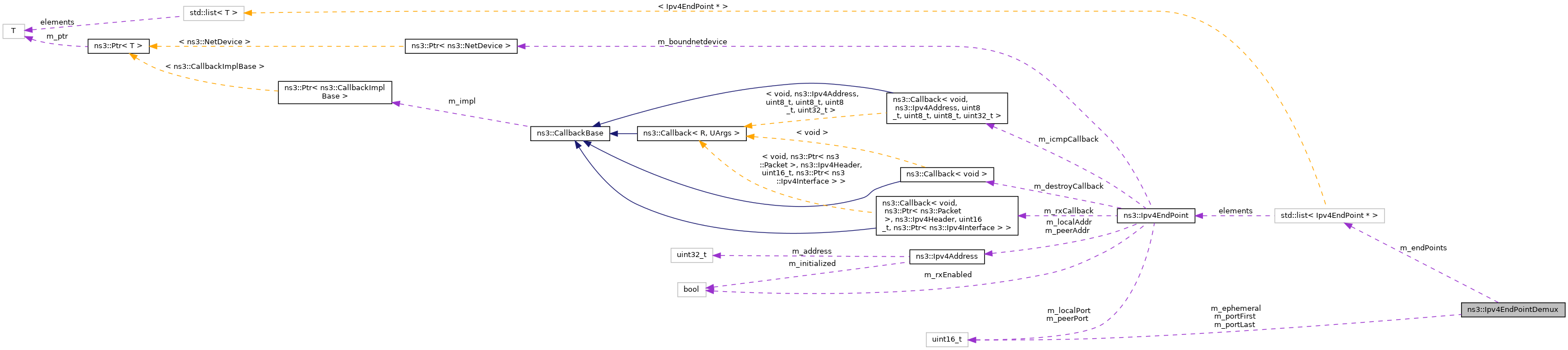

Collaboration diagram for ns3::Ipv4EndPointDemux:

Public Types
typedef std::list< Ipv4EndPoint * >	EndPoints
	Container of the IPv4 endpoints. More...

typedef std::list< Ipv4EndPoint * >::iterator	EndPointsI
	Iterator to the container of the IPv4 endpoints. More...

Public Member Functions
	Ipv4EndPointDemux ()

	~Ipv4EndPointDemux ()

Ipv4EndPoint *	Allocate ()
	Allocate a Ipv4EndPoint. More...

Ipv4EndPoint *	Allocate (Ipv4Address address)
	Allocate a Ipv4EndPoint. More...

Ipv4EndPoint *	Allocate (Ptr< NetDevice > boundNetDevice, Ipv4Address address, uint16_t port)
	Allocate a Ipv4EndPoint. More...

Ipv4EndPoint *	Allocate (Ptr< NetDevice > boundNetDevice, Ipv4Address localAddress, uint16_t localPort, Ipv4Address peerAddress, uint16_t peerPort)
	Allocate a Ipv4EndPoint. More...

Ipv4EndPoint *	Allocate (Ptr< NetDevice > boundNetDevice, uint16_t port)
	Allocate a Ipv4EndPoint. More...

void	DeAllocate (Ipv4EndPoint *endPoint)
	Remove a end point. More...

EndPoints	GetAllEndPoints ()
	Get the entire list of end points registered. More...

EndPoints	Lookup (Ipv4Address daddr, uint16_t dport, Ipv4Address saddr, uint16_t sport, Ptr< Ipv4Interface > incomingInterface)
	lookup for a match with all the parameters. More...

bool	LookupLocal (Ptr< NetDevice > boundNetDevice, Ipv4Address addr, uint16_t port)
	Lookup for address and port. More...

bool	LookupPortLocal (uint16_t port)
	Lookup for port local. More...

Ipv4EndPoint *	SimpleLookup (Ipv4Address daddr, uint16_t dport, Ipv4Address saddr, uint16_t sport)
	simple lookup for a match with all the parameters. More...

Private Member Functions
uint16_t	AllocateEphemeralPort ()
	Allocate an ephemeral port. More...

Private Attributes
EndPoints	m_endPoints
	A list of IPv4 end points. More...

uint16_t	m_ephemeral
	The ephemeral port. More...

uint16_t	m_portFirst
	The first ephemeral port. More...

uint16_t	m_portLast
	The last ephemeral port. More...

Detailed Description

Demultiplexes packets to various transport layer endpoints.

This class serves as a lookup table to match partial or full information about a four-tuple to an ns3::Ipv4EndPoint. It internally contains a list of endpoints, and has APIs to add and find endpoints in this demux. This code is shared in common to TCP and UDP protocols in ns3. This demux sits between ns3's layer four and the socket layer

Definition at line 47 of file ipv4-end-point-demux.h.

Member Typedef Documentation

◆ EndPoints

typedef std::list<Ipv4EndPoint*> ns3::Ipv4EndPointDemux::EndPoints

Container of the IPv4 endpoints.

Definition at line 53 of file ipv4-end-point-demux.h.

◆ EndPointsI

typedef std::list<Ipv4EndPoint*>::iterator ns3::Ipv4EndPointDemux::EndPointsI

Iterator to the container of the IPv4 endpoints.

Definition at line 58 of file ipv4-end-point-demux.h.

Constructor & Destructor Documentation

◆ Ipv4EndPointDemux()

ns3::Ipv4EndPointDemux::Ipv4EndPointDemux ( )

Definition at line 32 of file ipv4-end-point-demux.cc.

References NS_LOG_FUNCTION.

◆ ~Ipv4EndPointDemux()

ns3::Ipv4EndPointDemux::~Ipv4EndPointDemux ( )

Definition at line 40 of file ipv4-end-point-demux.cc.

References m_endPoints, and NS_LOG_FUNCTION.

Member Function Documentation

◆ Allocate() [1/5]

Ipv4EndPoint * ns3::Ipv4EndPointDemux::Allocate ( )

Allocate a Ipv4EndPoint.

Returns: an empty Ipv4EndPoint instance

Definition at line 81 of file ipv4-end-point-demux.cc.

References AllocateEphemeralPort(), ns3::Ipv4Address::GetAny(), m_endPoints, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_WARN, and port.

Referenced by ns3::TcpL4Protocol::Allocate(), ns3::UdpL4Protocol::Allocate(), and Allocate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Allocate() [2/5]

Ipv4EndPoint * ns3::Ipv4EndPointDemux::Allocate ( Ipv4Address address )

Allocate a Ipv4EndPoint.

Parameters

address IPv4 address

Returns: an Ipv4EndPoint instance

Definition at line 97 of file ipv4-end-point-demux.cc.

References first::address, AllocateEphemeralPort(), m_endPoints, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_WARN, and port.

Here is the call graph for this function:

◆ Allocate() [3/5]

Ipv4EndPoint * ns3::Ipv4EndPointDemux::Allocate	(	Ptr< NetDevice >	boundNetDevice,
		Ipv4Address	address,
		uint16_t	port
	)

Allocate a Ipv4EndPoint.

Parameters

boundNetDevice	Bound NetDevice (if any)
address	local address
port	local port

Returns: an Ipv4EndPoint instance

Definition at line 121 of file ipv4-end-point-demux.cc.

References first::address, LookupLocal(), m_endPoints, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_WARN, and port.

Here is the call graph for this function:

◆ Allocate() [4/5]

Ipv4EndPoint * ns3::Ipv4EndPointDemux::Allocate	(	Ptr< NetDevice >	boundNetDevice,
		Ipv4Address	localAddress,
		uint16_t	localPort,
		Ipv4Address	peerAddress,
		uint16_t	peerPort
	)

Allocate a Ipv4EndPoint.

Parameters

boundNetDevice	Bound NetDevice (if any)
localAddress	local address
localPort	local port
peerAddress	peer address
peerPort	peer port

Returns: an Ipv4EndPoint instance

Definition at line 136 of file ipv4-end-point-demux.cc.

References m_endPoints, NS_LOG_DEBUG, NS_LOG_FUNCTION, and NS_LOG_WARN.

◆ Allocate() [5/5]

Ipv4EndPoint * ns3::Ipv4EndPointDemux::Allocate	(	Ptr< NetDevice >	boundNetDevice,
		uint16_t	port
	)

Allocate a Ipv4EndPoint.

Parameters

boundNetDevice	Bound NetDevice (if any)
port	local port

Returns: an Ipv4EndPoint instance

Definition at line 113 of file ipv4-end-point-demux.cc.

References Allocate(), ns3::Ipv4Address::GetAny(), NS_LOG_FUNCTION, and port.

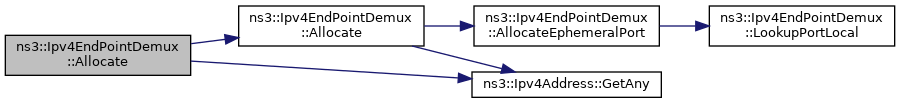

Here is the call graph for this function:

◆ AllocateEphemeralPort()

uint16_t ns3::Ipv4EndPointDemux::AllocateEphemeralPort ( )

private

Allocate an ephemeral port.

Returns: the ephemeral port

Definition at line 410 of file ipv4-end-point-demux.cc.

References LookupPortLocal(), m_ephemeral, m_portFirst, m_portLast, NS_LOG_FUNCTION, and port.

Referenced by Allocate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DeAllocate()

void ns3::Ipv4EndPointDemux::DeAllocate ( Ipv4EndPoint * endPoint )

Remove a end point.

Parameters

endPoint the end point to remove

Definition at line 163 of file ipv4-end-point-demux.cc.

References m_endPoints, and NS_LOG_FUNCTION.

Referenced by ns3::TcpL4Protocol::DeAllocate(), and ns3::UdpL4Protocol::DeAllocate().

Here is the caller graph for this function:

◆ GetAllEndPoints()

Ipv4EndPointDemux::EndPoints ns3::Ipv4EndPointDemux::GetAllEndPoints ( )

Get the entire list of end points registered.

Returns: list of Ipv4EndPoint

Definition at line 181 of file ipv4-end-point-demux.cc.

References m_endPoints, and NS_LOG_FUNCTION.

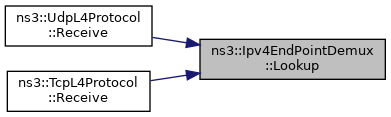

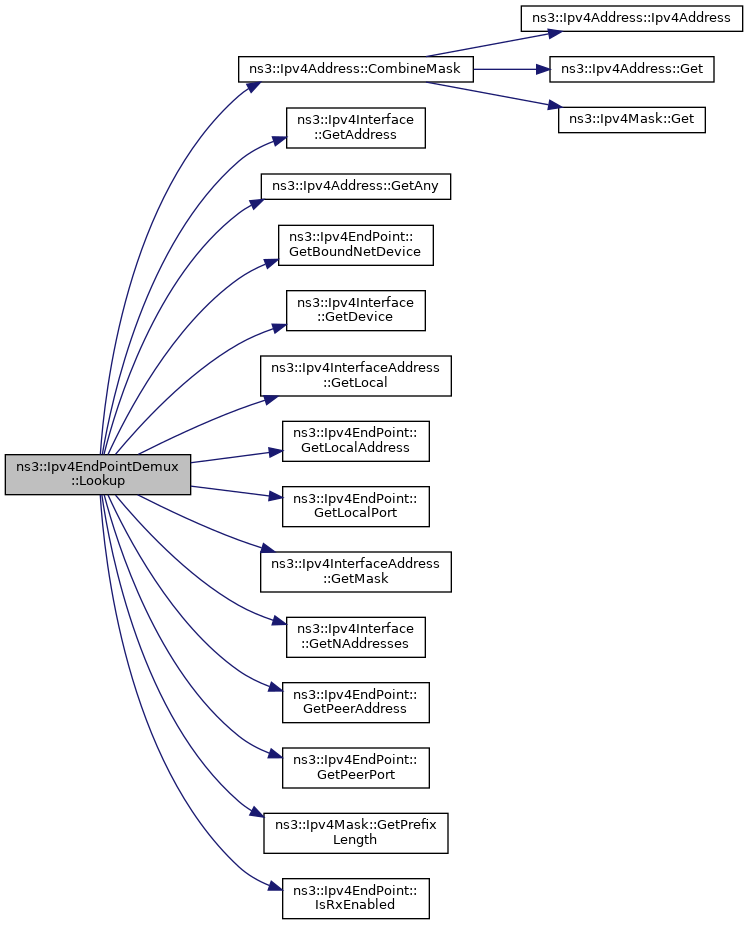

◆ Lookup()

Ipv4EndPointDemux::EndPoints ns3::Ipv4EndPointDemux::Lookup	(	Ipv4Address	daddr,
		uint16_t	dport,
		Ipv4Address	saddr,
		uint16_t	sport,
		Ptr< Ipv4Interface >	incomingInterface
	)

lookup for a match with all the parameters.

The function will return a list of most-matching EndPoints, in this order:

Full match
All but local address
Only local port and local address match
Only local port match

EndPoint with disabled Rx are skipped.

Parameters

daddr	destination address to test
dport	destination port to test
saddr	source address to test
sport	source port to test
incomingInterface	the incoming interface
