Generates a 2D map of the SINR from the strongest transmitter in the downlink of an LTE FDD system. More...

#include "radio-environment-map-helper.h"

Inheritance diagram for ns3::RadioEnvironmentMapHelper:

Collaboration diagram for ns3::RadioEnvironmentMapHelper:

Classes
struct	RemPoint
	A complete Radio Environment Map is composed of many of this structure. More...

Public Member Functions
	RadioEnvironmentMapHelper ()

	~RadioEnvironmentMapHelper () override

void	DoDispose () override
	Destructor implementation. More...

uint16_t	GetBandwidth () const

void	Install ()
	Deploy the RemSpectrumPhy objects that generate the map according to the specified settings. More...

void	SetBandwidth (uint16_t bw)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Member Functions
void	DelayedInstall ()
	Scheduled by Install() to perform the actual generation of map. More...

void	Finalize ()
	Called when the map generation procedure has been completed. More...

void	PrintAndReset ()
	Go through every listener, write the computed SINR, and then reset it. More...

void	RunOneIteration (double xMin, double xMax, double yMin, double yMax)
	Mobilize all the listeners to a specified area. More...

Private Attributes
uint16_t	m_bandwidth
	The `Bandwidth` attribute. More...

Ptr< SpectrumChannel >	m_channel
	The `Channel` attribute, which is a direct pointer to the DL channel object for which will be created the REM. More...

std::string	m_channelPath
	The `ChannelPath` attribute. More...

uint16_t	m_earfcn
	The `Earfcn` attribute. More...

uint32_t	m_maxPointsPerIteration
	The `MaxPointsPerIteration` attribute. More...

double	m_noisePower
	The `NoisePower` attribute. More...

std::ofstream	m_outFile
	Stream the output to a file. More...

std::string	m_outputFile
	The `OutputFile` attribute. More...

int32_t	m_rbId
	The `RbId` attribute. More...

std::list< RemPoint >	m_rem
	List of listeners in the environment. More...

bool	m_stopWhenDone
	The `StopWhenDone` attribute. More...

bool	m_useDataChannel
	The `UseDataChannel` attribute. More...

double	m_xMax
	The `XMax` attribute. More...

double	m_xMin
	The `XMin` attribute. More...

uint16_t	m_xRes
	The `XRes` attribute. More...

double	m_xStep
	Distance along X axis between adjacent listening points. More...

double	m_yMax
	The `YMax` attribute. More...

double	m_yMin
	The `YMin` attribute. More...

uint16_t	m_yRes
	The `YRes` attribute. More...

double	m_yStep
	Distance along Y axis between adjacent listening points. More...

double	m_z
	The `Z` attribute. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Generates a 2D map of the SINR from the strongest transmitter in the downlink of an LTE FDD system.

For instructions on usage, please refer to the User Documentation.

Definition at line 44 of file radio-environment-map-helper.h.

Constructor & Destructor Documentation

◆ RadioEnvironmentMapHelper()

ns3::RadioEnvironmentMapHelper::RadioEnvironmentMapHelper ( )

Definition at line 50 of file radio-environment-map-helper.cc.

◆ ~RadioEnvironmentMapHelper()

ns3::RadioEnvironmentMapHelper::~RadioEnvironmentMapHelper ( )

override

Definition at line 54 of file radio-environment-map-helper.cc.

Member Function Documentation

◆ DelayedInstall()

void ns3::RadioEnvironmentMapHelper::DelayedInstall ( )

private

Scheduled by Install() to perform the actual generation of map.

If control channel is used for SINR calculation (the default), the delay is 2.6 milliseconds from the start of simulation. Otherwise, if data channel is used, the delay is 500.1 milliseconds from the start of simulation.

The method will divide the whole map into parts (each contains at most a certain number of SINR listening points), and then call RunOneIteration() on each part, one by one.

Definition at line 242 of file radio-environment-map-helper.cc.

References ns3::Object::AggregateObject(), ns3::RadioEnvironmentMapHelper::RemPoint::bmm, Finalize(), ns3::LteSpectrumValueHelper::GetSpectrumModel(), m_bandwidth, m_channel, m_earfcn, m_maxPointsPerIteration, m_rbId, m_rem, m_useDataChannel, m_xMax, m_xMin, m_xRes, m_xStep, m_yMax, m_yMin, m_yRes, m_yStep, NS_LOG_FUNCTION, ns3::RadioEnvironmentMapHelper::RemPoint::phy, RunOneIteration(), ns3::Simulator::Schedule(), ns3::Seconds(), and two-ray-to-three-gpp-ch-calibration::x.

Referenced by Install().

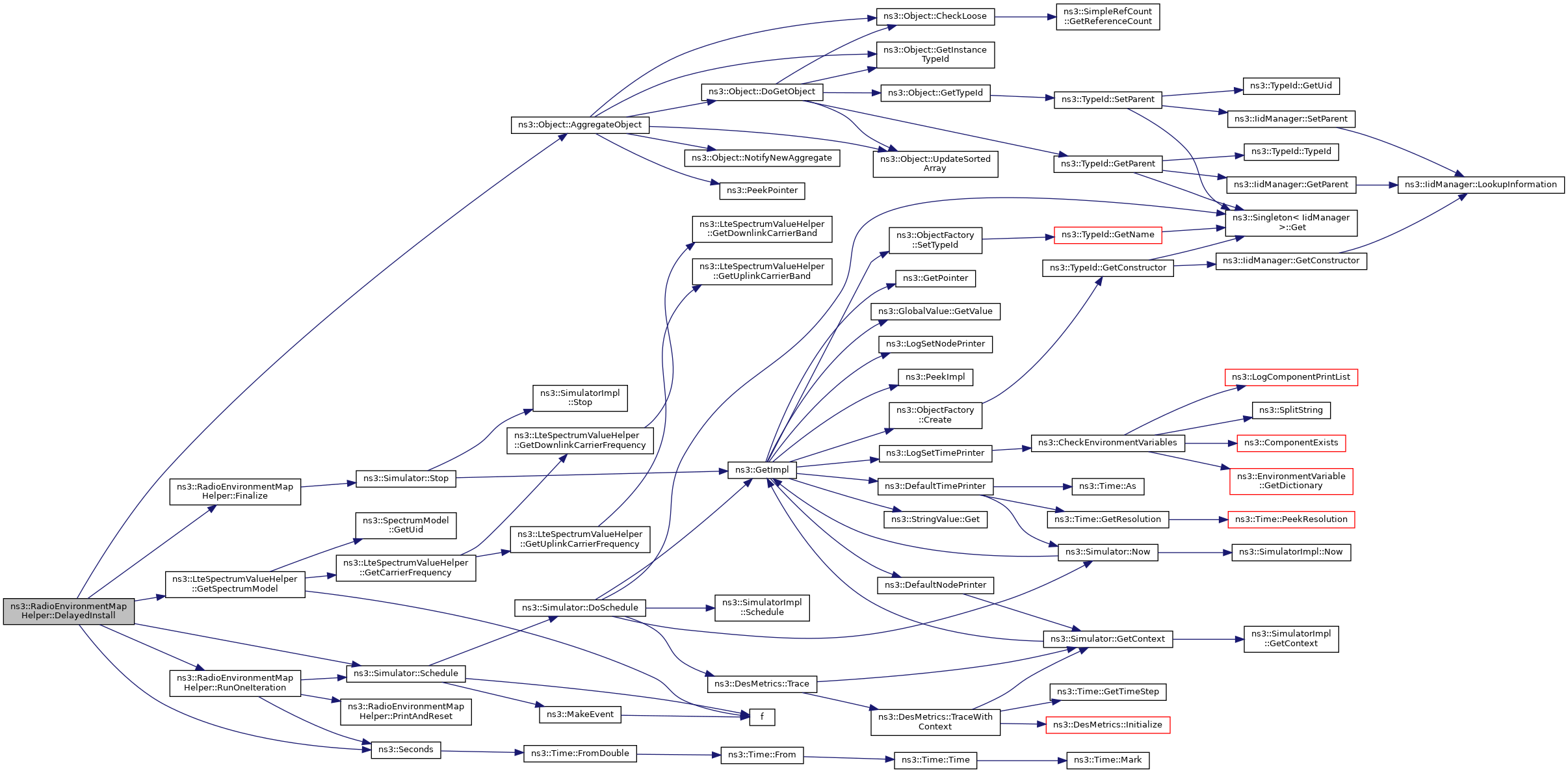

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::RadioEnvironmentMapHelper::DoDispose ( void )

overridevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 59 of file radio-environment-map-helper.cc.

References NS_LOG_FUNCTION.

◆ Finalize()

void ns3::RadioEnvironmentMapHelper::Finalize ( )

private

Called when the map generation procedure has been completed.

Definition at line 363 of file radio-environment-map-helper.cc.

References m_outFile, m_stopWhenDone, NS_LOG_FUNCTION, and ns3::Simulator::Stop().

Referenced by DelayedInstall().

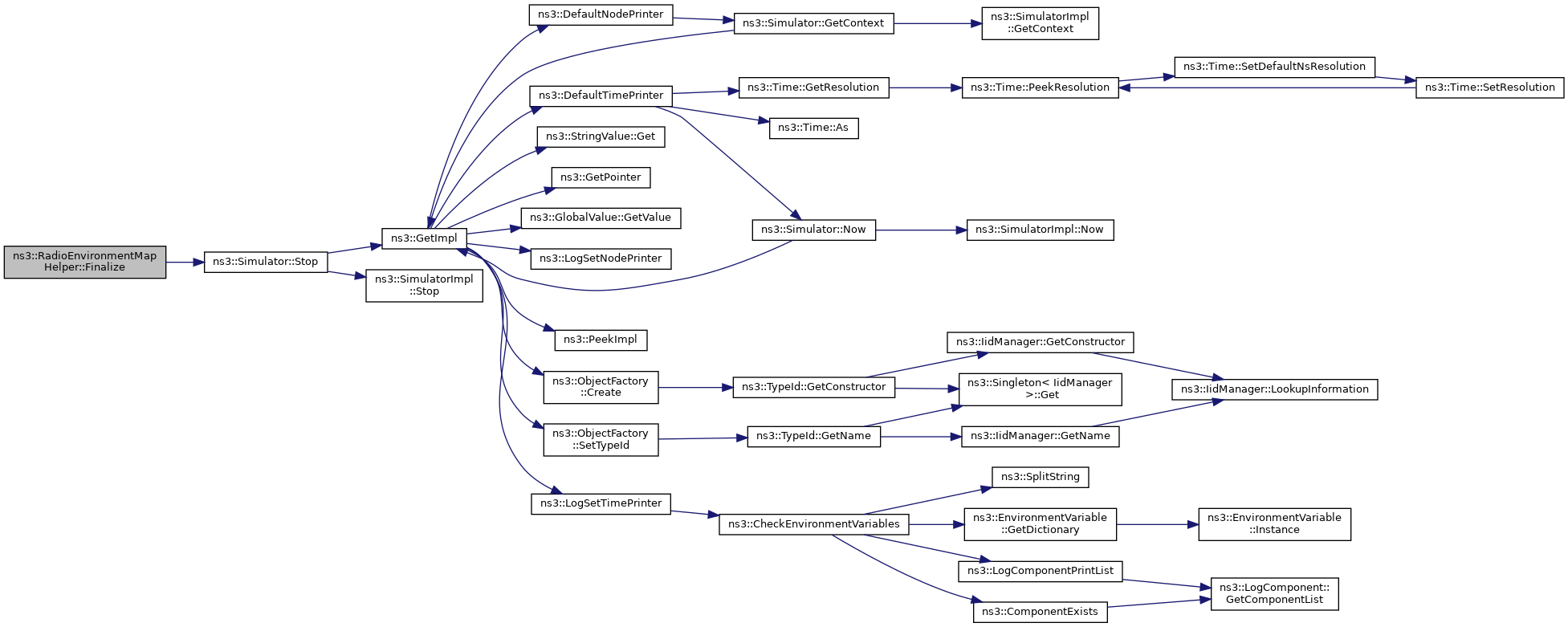

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetBandwidth()

uint16_t ns3::RadioEnvironmentMapHelper::GetBandwidth ( ) const

Returns: the bandwidth (in num of RBs) over which SINR is calculated

Definition at line 177 of file radio-environment-map-helper.cc.

References m_bandwidth.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::RadioEnvironmentMapHelper::GetTypeId ( void )

static

Register this type.

Returns: The object TypeId.

Definition at line 65 of file radio-environment-map-helper.cc.

References GetBandwidth(), m_channel, m_channelPath, m_earfcn, m_maxPointsPerIteration, m_noisePower, m_outputFile, m_rbId, m_stopWhenDone, m_useDataChannel, m_xMax, m_xMin, m_xRes, m_yMax, m_yMin, m_yRes, m_z, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeDoubleAccessor(), ns3::MakeIntegerAccessor(), ns3::MakePointerAccessor(), ns3::MakeStringAccessor(), ns3::MakeStringChecker(), ns3::MakeUintegerAccessor(), max, NS_LOG_FUNCTION, SetBandwidth(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ Install()

void ns3::RadioEnvironmentMapHelper::Install ( )

Deploy the RemSpectrumPhy objects that generate the map according to the specified settings.

Definition at line 203 of file radio-environment-map-helper.cc.

References DelayedInstall(), ns3::Config::MatchContainer::Get(), ns3::Config::MatchContainer::GetN(), ns3::Object::GetObject(), ns3::Config::LookupMatches(), m_channel, m_channelPath, m_outFile, m_outputFile, m_rem, m_useDataChannel, NS_ABORT_MSG_IF, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), and ns3::Seconds().

Here is the call graph for this function:

◆ PrintAndReset()

void ns3::RadioEnvironmentMapHelper::PrintAndReset ( )

private

Go through every listener, write the computed SINR, and then reset it.

Definition at line 341 of file radio-environment-map-helper.cc.

References m_noisePower, m_outFile, m_rem, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by RunOneIteration().

Here is the caller graph for this function:

◆ RunOneIteration()

void ns3::RadioEnvironmentMapHelper::RunOneIteration	(	double	xMin,
		double	xMax,
		double	yMin,
		double	yMax
	)

private

Mobilize all the listeners to a specified area.

Afterwards, schedule a call to PrintAndReset() in 0.5 milliseconds.

Parameters

xMin	X coordinate of the first SINR listening point to deploy.
xMax	X coordinate of the last SINR listening point to deploy.
yMin	Y coordinate of the first SINR listening point to deploy.
yMax	Y coordinate of the last SINR listening point to deploy.

Definition at line 306 of file radio-environment-map-helper.cc.

References m_rem, m_xMax, m_xStep, m_yMax, m_yMin, m_yStep, m_z, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, PrintAndReset(), ns3::Simulator::Schedule(), ns3::Seconds(), and two-ray-to-three-gpp-ch-calibration::x.

Referenced by DelayedInstall().

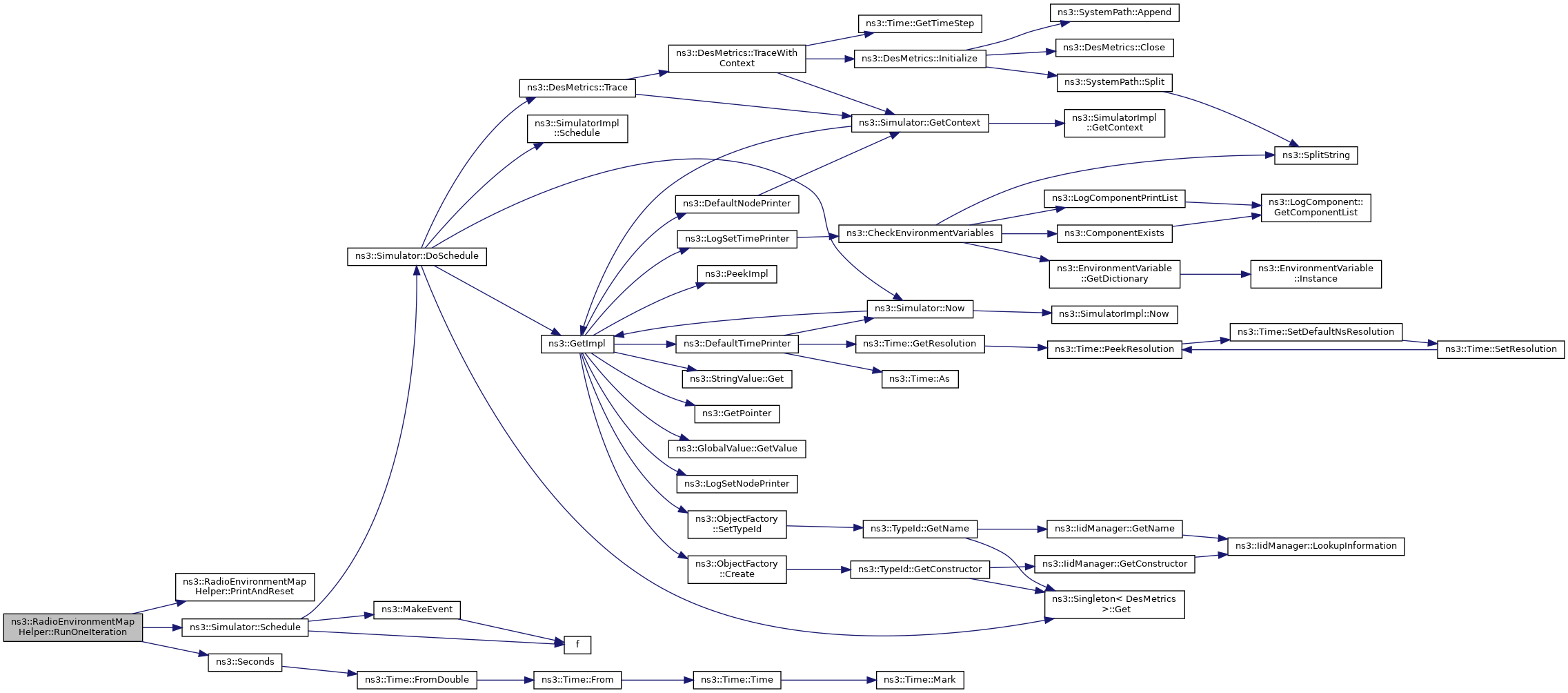

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetBandwidth()

void ns3::RadioEnvironmentMapHelper::SetBandwidth ( uint16_t bw )

Parameters

bw	the bandwidth (in num of RBs) over which SINR is calculated

Definition at line 183 of file radio-environment-map-helper.cc.

References m_bandwidth, and NS_FATAL_ERROR.

Referenced by GetTypeId().

Here is the caller graph for this function:

Member Data Documentation

◆ m_bandwidth

uint16_t ns3::RadioEnvironmentMapHelper::m_bandwidth

private

The Bandwidth attribute.

Definition at line 132 of file radio-environment-map-helper.h.

Referenced by DelayedInstall(), GetBandwidth(), and SetBandwidth().

◆ m_channel

Ptr<SpectrumChannel> ns3::RadioEnvironmentMapHelper::m_channel

private

The Channel attribute, which is a direct pointer to the DL channel object for which will be created the REM.

Alternatively, ChannelPath attribute can be used. If ChannelPath attribute is being used then the m_channel object is configured by using the ChannelPath attribute value.

Definition at line 153 of file radio-environment-map-helper.h.

Referenced by DelayedInstall(), GetTypeId(), and Install().
