BenchHeader class used for benchmarking packet serialization/deserialization. More...

Inheritance diagram for BenchHeader< N >:

Collaboration diagram for BenchHeader< N >:

Public Member Functions
	BenchHeader ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

virtual uint32_t	GetSerializedSize (void) const

bool	IsOk (void) const
	Returns true if the header has been deserialized and the deserialization was correct. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Private Member Functions
static std::string	GetTypeName (void)
	Get type name function. More...

Private Attributes
bool	m_ok
	variable to track whether deserialization succeeded More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

template<int N>
class BenchHeader< N >

BenchHeader class used for benchmarking packet serialization/deserialization.

Definition at line 40 of file bench-packets.cc.

Constructor & Destructor Documentation

◆ BenchHeader()

template<int N>

BenchHeader< N >::BenchHeader

Definition at line 73 of file bench-packets.cc.

Member Function Documentation

◆ Deserialize()

template<int N>

uint32_t BenchHeader< N >::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 132 of file bench-packets.cc.

References visualizer.core::start().

Here is the call graph for this function:

◆ GetInstanceTypeId()

template<int N>

TypeId BenchHeader< N >::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 107 of file bench-packets.cc.

◆ GetSerializedSize()

template<int N>

uint32_t BenchHeader< N >::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 120 of file bench-packets.cc.

◆ GetTypeId()

template<int N>

TypeId BenchHeader< N >::GetTypeId ( void )

static

Register this type.

Returns: The TypeId.

Definition at line 95 of file bench-packets.cc.

References ns3::TypeId::SetParent().

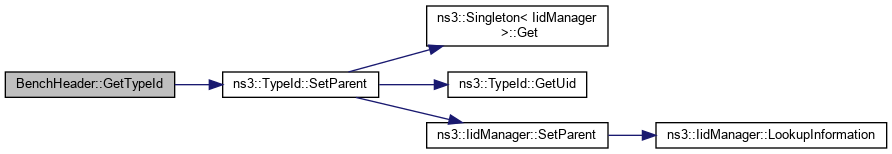

Here is the call graph for this function:

◆ GetTypeName()

template<int N>

std::string BenchHeader< N >::GetTypeName ( void )

staticprivate

Get type name function.

Returns: the type name string

Definition at line 86 of file bench-packets.cc.

◆ IsOk()

template<int N>

bool BenchHeader< N >::IsOk ( void ) const

Returns true if the header has been deserialized and the deserialization was correct.

If Deserialize() has not yet been called on the header, will return false.

Returns: true if success, false if failed or if deserialization not tried

Definition at line 79 of file bench-packets.cc.

Referenced by benchA().

Here is the caller graph for this function:

◆ Print()

template<int N>

void BenchHeader< N >::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 114 of file bench-packets.cc.

References NS_ASSERT.

◆ Serialize()

template<int N>

void BenchHeader< N >::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 126 of file bench-packets.cc.

References visualizer.core::start().

Here is the call graph for this function:

Member Data Documentation

◆ m_ok

template<int N>

bool BenchHeader< N >::m_ok

private

variable to track whether deserialization succeeded

Definition at line 69 of file bench-packets.cc.

The documentation for this class was generated from the following file:

utils/bench-packets.cc
