Make sure that when virtual collision occurs the wifi remote station manager is triggered and the retry counter is increased. More...

Inheritance diagram for Bug2222TestCase:

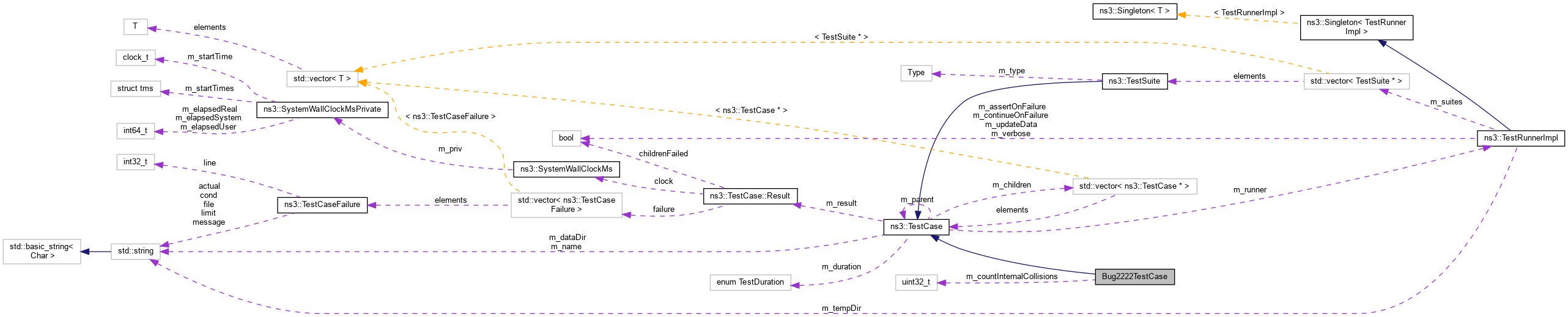

Collaboration diagram for Bug2222TestCase:

Public Member Functions
	Bug2222TestCase ()

virtual	~Bug2222TestCase ()

void	DoRun (void) override
	Implementation to actually run this TestCase. More...

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	TxDataFailedTrace (std::string context, Mac48Address adr)
	Transmit data failed function. More...

Private Attributes
uint32_t	m_countInternalCollisions
	count internal collisions More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Make sure that when virtual collision occurs the wifi remote station manager is triggered and the retry counter is increased.

See Bug 2222

Definition at line 1330 of file wifi-test.cc.

Constructor & Destructor Documentation

◆ Bug2222TestCase()

Bug2222TestCase::Bug2222TestCase ( )

Definition at line 1350 of file wifi-test.cc.

◆ ~Bug2222TestCase()

Bug2222TestCase::~Bug2222TestCase ( )

virtual

Definition at line 1356 of file wifi-test.cc.

Member Function Documentation

◆ DoRun()

void Bug2222TestCase::DoRun ( void )

overridevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 1368 of file wifi-test.cc.

References ns3::Node::AddApplication(), third::channel, ns3::Config::Connect(), ns3::NodeContainer::Create(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::WifiNetDevice::GetAddress(), ns3::WifiNetDevice::GetIfIndex(), ns3::PacketSocketHelper::Install(), m_countInternalCollisions, third::mac, ns3::MakeCallback(), third::mobility, NS_TEST_ASSERT_MSG_EQ, third::phy, ns3::Seconds(), ns3::PacketSocketAddress::SetPhysicalAddress(), ns3::PacketSocketAddress::SetProtocol(), ns3::PacketSocketAddress::SetSingleDevice(), third::ssid, TxDataFailedTrace(), and third::wifi.

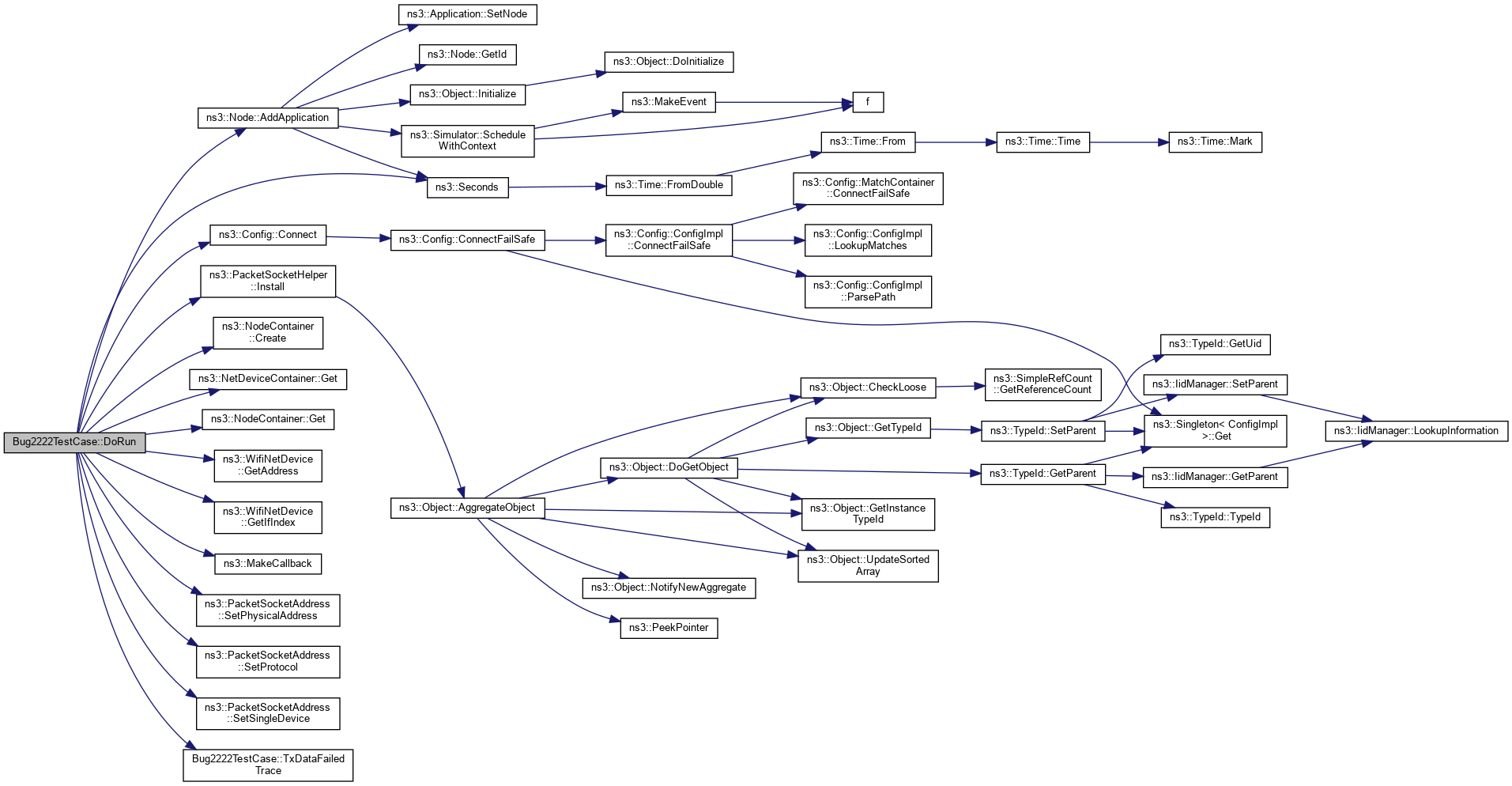

Here is the call graph for this function:

◆ TxDataFailedTrace()

void Bug2222TestCase::TxDataFailedTrace	(	std::string	context,
		Mac48Address	adr
	)

private

Transmit data failed function.

Parameters

context	the context
adr	the MAC address

Definition at line 1361 of file wifi-test.cc.

References m_countInternalCollisions.

Referenced by DoRun().

Here is the caller graph for this function:

Member Data Documentation

◆ m_countInternalCollisions

uint32_t Bug2222TestCase::m_countInternalCollisions

private

count internal collisions

Definition at line 1340 of file wifi-test.cc.

Referenced by DoRun(), and TxDataFailedTrace().

The documentation for this class was generated from the following file:

src/wifi/test/wifi-test.cc
