ChainRegressionTest Class Reference
AODV Routing

AODV chain regression test. More...

#include "aodv-regression.h"

+ Inheritance diagram for ChainRegressionTest:

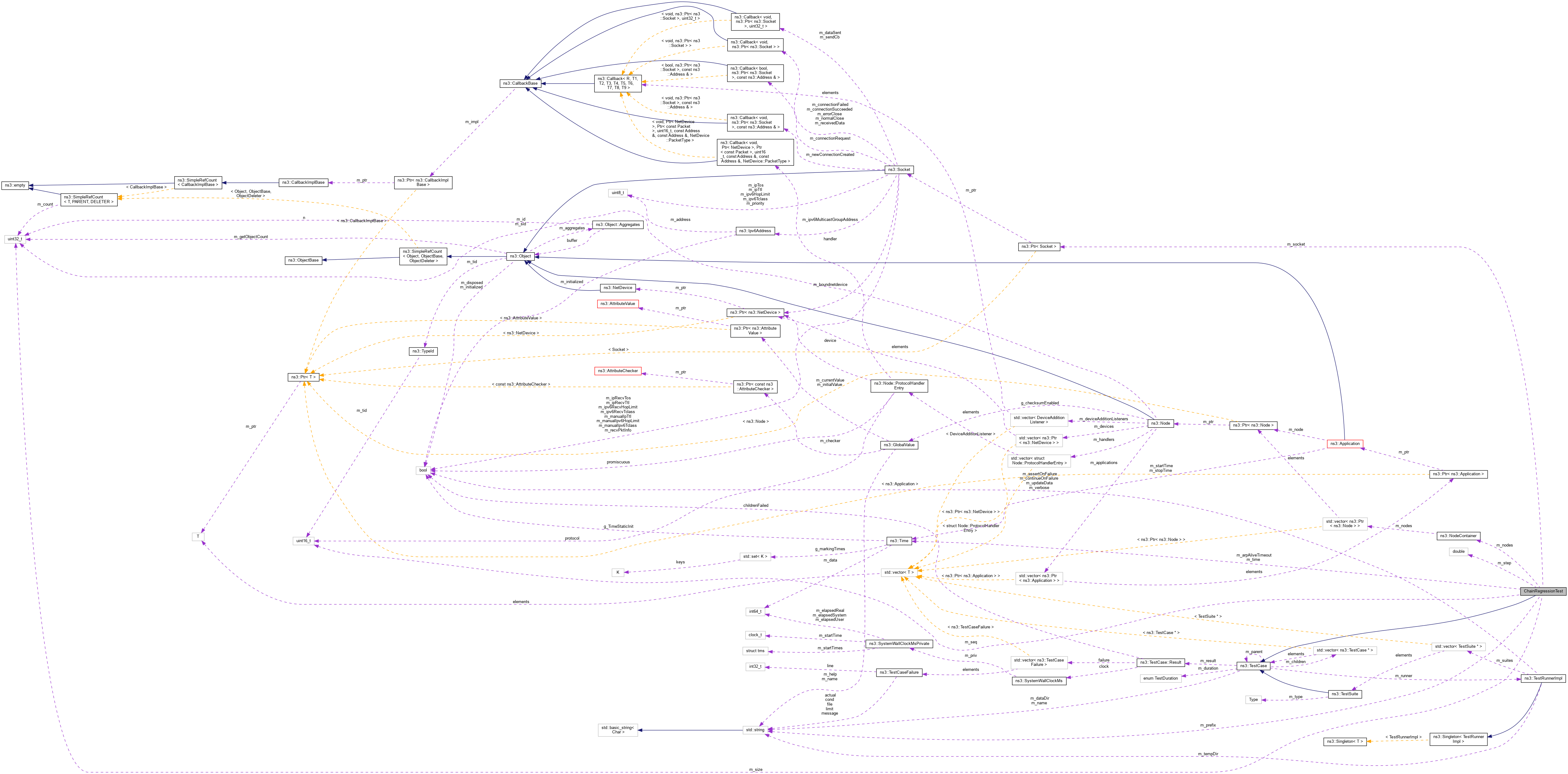

+ Collaboration diagram for ChainRegressionTest:

Public Member Functions

 ChainRegressionTest (const char *const prefix, Time time=Seconds(10), uint32_t size=5, Time arpAliveTimeout=Seconds(120))
 Create test case. More...

 ~ChainRegressionTest ()

- Public Member Functions inherited from ns3::TestCase
 TestCase (const TestCase &)=delete

virtual ~TestCase ()
 Destructor. More...

std::string GetName (void) const

TestCase & operator= (const TestCase &)=delete


Private Member Functions

void CheckResults ()
 Compare traces with reference ones. More...

void CreateDevices ()
 Create devices, install TCP/IP stack and applications. More...

void CreateNodes ()
 Create test topology. More...

void DoRun ()
 Go. More...

void SendPing ()
 Send one ping. More...


Private Attributes

const Time m_arpAliveTimeout
 ARP alive timeout. More...

NodeContainer * m_nodes

const std::string m_prefix
 PCAP file names prefix. More...

uint16_t m_seq
 Sequence number. More...

const uint32_t m_size
 Chain size. More...

Ptr< Socket > m_socket
 Socket. More...

const double m_step
 Chain step, meters. More...

const Time m_time
 Total simulation time. More...


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor. More...

void AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
 Add an individual child TestCase to this test suite. More...

TestCase * GetParent () const
 Get the parent of this TestCsse. More...

bool IsStatusFailure (void) const
 Check if any tests failed. More...

bool IsStatusSuccess (void) const
 Check if all tests passed. More...

void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found. More...

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase. More...

bool MustAssertOnFailure (void) const
 Check if this run should assert on failure. More...

bool MustContinueOnFailure (void) const
 Check if this run should continue on failure. More...

std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory. More...

std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory. More...


Detailed Description

AODV chain regression test.

This script creates 1-dimensional grid topology and then ping last node from the first one:

[10.1.1.1] <– step --> [10.1.1.2] <– step --> [10.1.1.3] <– step --> [10.1.1.4] <– step --> [10.1.1.5]

Each node can hear only his right and his left neighbor, if they exist. When one third of total time expired, central node moves away. After this, node 3 doesn't hear any packets from other nodes and nobody hears his packets. We want to demonstrate in this script 1) route establishing 2) broken link detection both from layer 2 information and hello messages.

 Expected packets time diagram.
           1       2       3       4       5
    <------|------>|       |       |       |        RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, U=1, hop=0, ID=1, org_seqno=1) src = 10.1.1.1
           |<------|------>|       |       |        RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, U=1, hop=1, ID=1, org_seqno=1) src = 10.1.1.2
           |       |<------|------>|       |        RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, U=1, hop=2, ID=1, org_seqno=1) src = 10.1.1.3
           |       |       |<------|------>|        RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, U=1, hop=3, ID=1, org_seqno=1) src = 10.1.1.4
           |       |       |       |<------|------> ARP request. Who has 10.1.1.4? Tell 10.1.1.5
           |       |       |       |======>|        ARP reply
           |       |       |       |<======|        RREP (orig 10.1.1.1, dst 10.1.1.5, hop=0, dst_seqno=0) src=10.1.1.5
           |       |       |<------|------>|        ARP request. Who has 10.1.1.3? Tell 10.1.1.4
           |       |       |======>|       |        ARP reply
           |       |       |<======|       |        RREP (orig 10.1.1.1, dst 10.1.1.5, hop=1, dst_seqno=0) src=10.1.1.4
           |       |<------|------>|       |        ARP request. Who has 10.1.1.2? Tell 10.1.1.3
           |       |======>|       |       |        ARP reply
           |       |<======|       |       |        RREP (orig 10.1.1.1, dst 10.1.1.5, hop=2, dst_seqno=0) src=10.1.1.3
           |<------|------>|       |       |        ARP request. Who has 10.1.1.1? Tell 10.1.1.2
           |======>|       |       |       |        ARP reply
           |<======|       |       |       |        RREP (orig 10.1.1.1, dst 10.1.1.5, hop=3, dst_seqno=0) src=10.1.1.2
   <-------|------>|       |       |       |        ARP request. Who has 10.1.1.2? Tell 10.1.1.1
           |<======|       |       |       |
           |======>|       |       |       |        ICMP (ping) request 0 from 10.1.1.1 to 10.1.1.5; src=10.1.1.1 next_hop=10.1.1.2
           |<------|------>|       |       |        ARP request. Who has 10.1.1.3? Tell 10.1.1.2
           |       |<======|       |       |        ARP reply
           |       |======>|       |       |        ICMP (ping) request 0 from 10.1.1.1 to 10.1.1.5; src=10.1.1.2 next_hop=10.1.1.3
           |       |<------|------>|       |        ARP request. Who has 10.1.1.4? Tell 10.1.1.3
           |       |       |<======|       |        ARP reply
           |       |       |======>|       |        ICMP (ping) request 0 from 10.1.1.1 to 10.1.1.5; src=10.1.1.3 next_hop=10.1.1.4
           |       |       |<------|------>|        ARP request. Who has 10.1.1.5? Tell 10.1.1.4
           |       |       |       |<======|        ARP reply
           |       |       |       |======>|        ICMP (ping) request 0; src=10.1.1.4 next_hop=10.1.1.5
           |       |       |       |<======|        ICMP (ping) reply 0; src=10.1.1.5 next_hop=10.1.1.4
           |       |       |<======|       |        ICMP (ping) reply 0; src=10.1.1.4 next_hop=10.1.1.3
           |       |<======|       |       |        ICMP (ping) reply 0; src=10.1.1.3 next_hop=10.1.1.2
           |<======|       |       |       |        ICMP (ping) reply 0; src=10.1.1.2 next_hop=10.1.1.1
           |       |       |       |<------|------> Hello
           |<------|------>|       |       |        Hello
    <------|------>|       |       |       |        Hello
           |       |<------|------>|       |        Hello
           |======>|       |       |       |        ICMP (ping) request 1; src=10.1.1.1 next_hop=10.1.1.2
           |       |       |<------|------>|        Hello
           |       |======>|       |       |        ICMP (ping) request 1; src=10.1.1.2 next_hop=10.1.1.3
           |       |       |======>|       |        ICMP (ping) request 1; src=10.1.1.3 next_hop=10.1.1.4
           |       |       |       |======>|        ICMP (ping) request 1; src=10.1.1.4 next_hop=10.1.1.5
           |       |       |       |<======|        ICMP (ping) reply 1; src=10.1.1.5 next_hop=10.1.1.4
           |       |       |<======|       |        ICMP (ping) reply 1; src=10.1.1.4 next_hop=10.1.1.3
           |       |<======|       |       |        ICMP (ping) reply 11; src=10.1.1.3 next_hop=10.1.1.2
           |<======|       |       |       |        ICMP (ping) reply 1; src=10.1.1.2 next_hop=10.1.1.1
           |       |       |       |<------|------> Hello
           |<------|------>|       |       |        Hello
    <------|------>|       |       |       |        Hello
           |       |       |<------|------>|        Hello
           |       |<------|------>|       |        Hello
           |======>|       |       |       |        ICMP (ping) request 2; src=10.1.1.1 next_hop=10.1.1.2
           |       |======>|       |       |        ICMP (ping) request 2; src=10.1.1.2 next_hop=10.1.1.3
           |       |       |======>|       |        ICMP (ping) request 2; src=10.1.1.3 next_hop=10.1.1.4
           |       |       |       |======>|        ICMP (ping) request 2; src=10.1.1.4 next_hop=10.1.1.5
           |       |       |       |<======|        ICMP (ping) reply 2; src=10.1.1.5 next_hop=10.1.1.4
           |       |       |<======|       |        ICMP (ping) reply 2; src=10.1.1.4 next_hop=10.1.1.3
           |       |<======|       |       |        ICMP (ping) reply 2; src=10.1.1.3 next_hop=10.1.1.2
           |<======|       |       |       |        ICMP (ping) reply 2; src=10.1.1.2 next_hop=10.1.1.1
           |       |       |       |<------|------> Hello
    <------|------>|       |       |       |        Hello
           |       |<------|------>|       |        Hello
           |<------|------>|       |       |        Hello
           |       |       |<------|------>|        Hello
           |======>|       |       |       |        ICMP (ping) request 3; src=10.1.1.1 next_hop=10.1.1.2
           |       |======>|       |       |        ICMP (ping) request 3; src=10.1.1.2 next_hop=10.1.1.3
           |       |       |======>|       |        ICMP (ping) request 3; src=10.1.1.3 next_hop=10.1.1.4
           |       |       |       |======>|        ICMP (ping) request 3; src=10.1.1.4 next_hop=10.1.1.5
           |       |       |       |<======|        ICMP (ping) reply 3; src=10.1.1.5 next_hop=10.1.1.4
           |       |       |<======|       |        ICMP (ping) reply 3; src=10.1.1.4 next_hop=10.1.1.3
           |       |<======|       |       |        ICMP (ping) reply 3; src=10.1.1.3 next_hop=10.1.1.2
           |<======|       |       |       |        ICMP (ping) reply 3; src=10.1.1.2 next_hop=10.1.1.1
           |       |       |       |<------|------> Hello
    <------|------>|       |       |       |        Hello
           |<------|-->    |       |       |        Hello   |
           |       |    <--|-->    |       |        Hello   |Node 3 move away => nobody hear his packets and node 3 doesn't hear anything !
           |       |       |    <--|------>|        Hello   |
           |======>|       |       |       |        ICMP (ping) request 4; src=10.1.1.1 next_hop=10.1.1.2
           |       |==>    |       |       |        ICMP (ping) request 4; src=10.1.1.2 next_hop=10.1.1.3.   7 retries.
           |<======|       |       |       |        RERR (unreachable dst 10.1.1.3 & 10.1.1.5) src=10.1.1.2
           |       |       |       |<------|------> Hello
    <------|------>|       |       |       |        Hello
           |<------|-->    |       |       |        Hello
           |       |    <--|-->    |       |        Hello
           |       |       |    <--|------>|        Hello
    <------|------>|       |       |       |        RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, hop=0, ID=2, org_seqno=2) src = 10.1.1.1
           |<------|-->    |       |       |        RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, hop=1, ID=2, org_seqno=2) src = 10.1.1.2
           |       |       |       |<------|------> Hello
           |       |       |    <--|------>|        Hello
           |       |    <--|-->    |       |        Hello
           |<------|-->    |       |       |        Hello
    <------|------>|       |       |       |        Hello
           |       |       |       |======>|        RERR (unreachable dst 10.1.1.1 & 10.1.1.3) src=10.1.1.4
           |       |       |       |<------|------> Hello
           |       |       |    <--|------>|        Hello
           |       |    <--|-->    |       |        Hello
           |<------|-->    |       |       |        Hello
    <------|------>|       |       |       |        Hello
           |       |       |       |<------|------> Hello
    <------|------>|       |       |       |        RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, hop=0, ID=4, org_seqno=3) src = 10.1.1.1
           |<------|-->    |       |       |        RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, hop=1, ID=4, org_seqno=3) src = 10.1.1.2

..................................................................
 *

Definition at line 153 of file aodv-regression.h.

Constructor & Destructor Documentation

◆ ~ChainRegressionTest()

ChainRegressionTest::~ChainRegressionTest ( )

Definition at line 85 of file aodv-regression.cc.

References m_nodes.

Member Function Documentation

◆ CheckResults()

void ChainRegressionTest::CheckResults ( )
private

Compare traces with reference ones.

Definition at line 219 of file aodv-regression.cc.

References m_prefix, m_size, and NS_PCAP_TEST_EXPECT_EQ.

Referenced by DoRun().

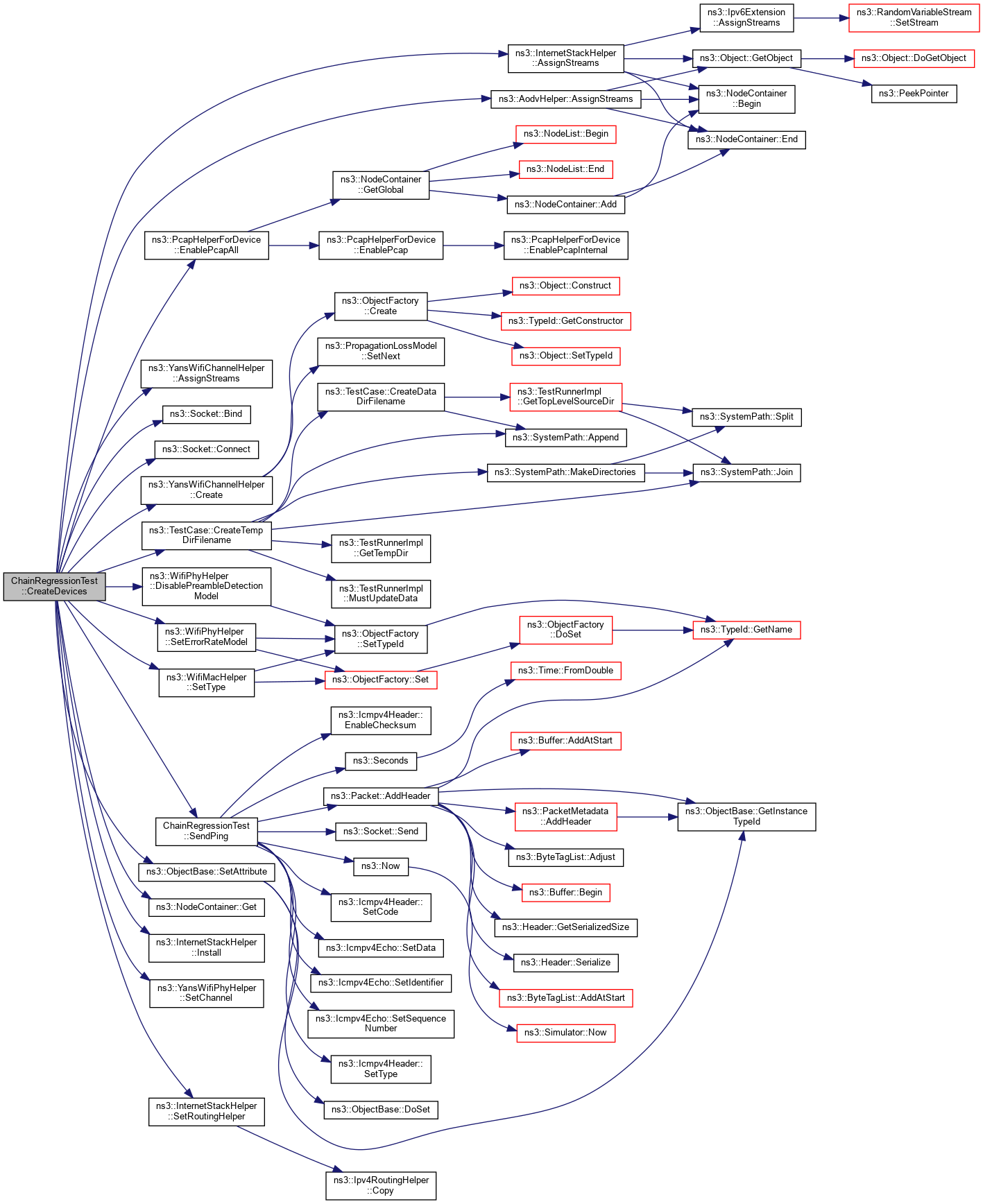

+ Here is the caller graph for this function:

◆ CreateDevices()

void ChainRegressionTest::CreateDevices ( )
private

Create devices, install TCP/IP stack and applications.

Definition at line 161 of file aodv-regression.cc.

References first::address, ns3::AodvHelper::AssignStreams(), ns3::InternetStackHelper::AssignStreams(), ns3::YansWifiChannelHelper::AssignStreams(), ns3::Socket::Bind(), ns3::Socket::Connect(), ns3::YansWifiChannelHelper::Create(), ns3::TestCase::CreateTempDirFilename(), first::devices, ns3::WifiPhyHelper::DisablePreambleDetectionModel(), ns3::PcapHelperForDevice::EnablePcapAll(), ns3::NodeContainer::Get(), ns3::InternetStackHelper::Install(), first::interfaces, m_nodes, m_prefix, m_size, m_socket, NS_TEST_ASSERT_MSG_EQ, SendPing(), ns3::ObjectBase::SetAttribute(), ns3::YansWifiPhyHelper::SetChannel(), ns3::WifiPhyHelper::SetErrorRateModel(), ns3::InternetStackHelper::SetRoutingHelper(), ns3::WifiMacHelper::SetType(), third::wifi, and ns3::WIFI_STANDARD_80211a.

Referenced by DoRun().

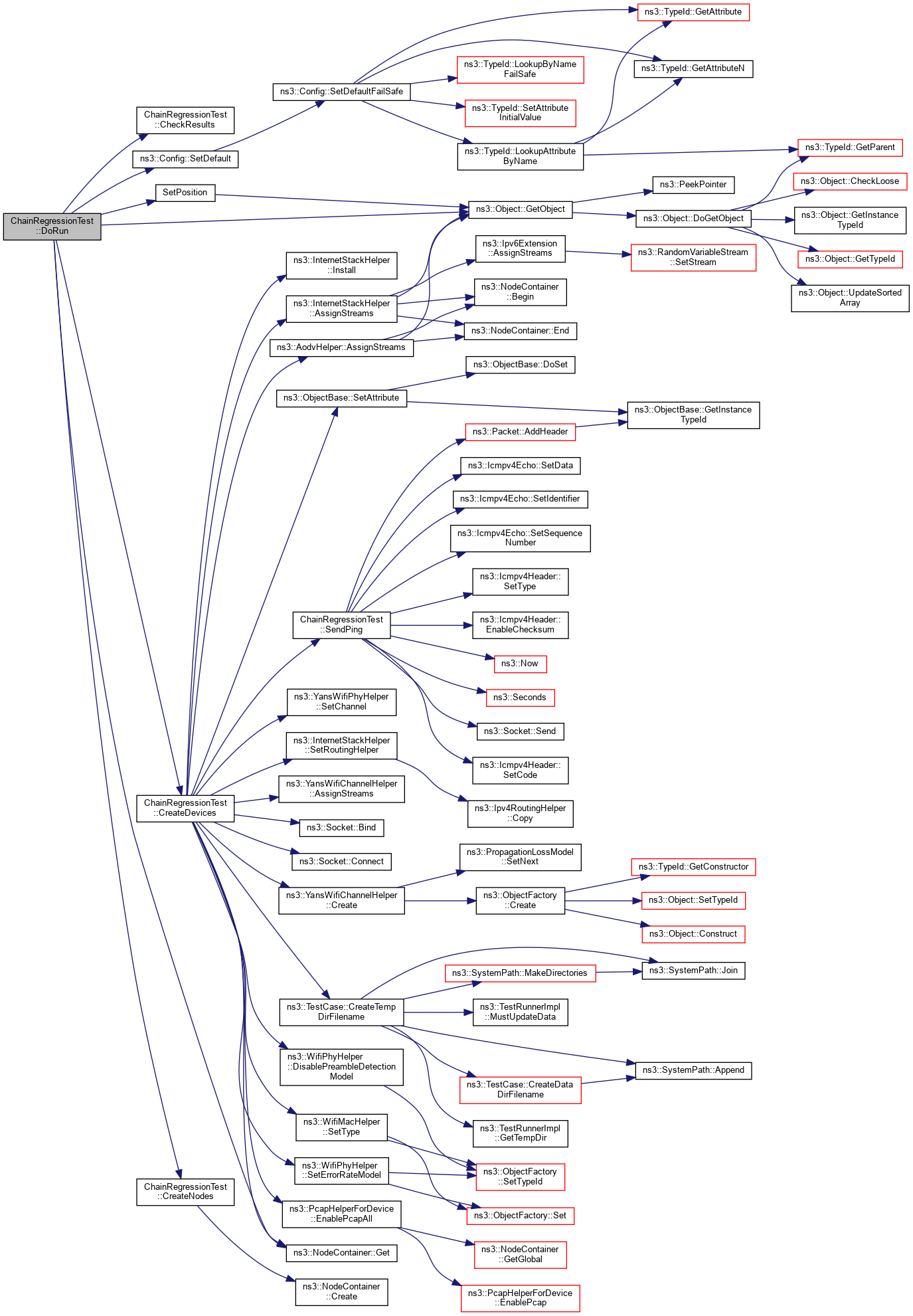

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ CreateNodes()

void ChainRegressionTest::CreateNodes ( )
private

Create test topology.

Definition at line 144 of file aodv-regression.cc.

References ns3::NodeContainer::Create(), m_nodes, m_size, m_step, and third::mobility.

Referenced by DoRun().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ DoRun()

void ChainRegressionTest::DoRun ( void  )
privatevirtual

Go.

Implements ns3::TestCase.

Definition at line 120 of file aodv-regression.cc.

References CheckResults(), CreateDevices(), CreateNodes(), ns3::NodeContainer::Get(), ns3::Object::GetObject(), m_arpAliveTimeout, m_nodes, m_size, m_time, ns3::Config::SetDefault(), and SetPosition().

+ Here is the call graph for this function:

◆ SendPing()

void ChainRegressionTest::SendPing ( )
private

Send one ping.

Definition at line 91 of file aodv-regression.cc.

References ns3::Packet::AddHeader(), ns3::Icmpv4Header::EnableChecksum(), m_seq, m_socket, m_time, ns3::Now(), ns3::Seconds(), ns3::Socket::Send(), ns3::Icmpv4Header::SetCode(), ns3::Icmpv4Echo::SetData(), ns3::Icmpv4Echo::SetIdentifier(), ns3::Icmpv4Echo::SetSequenceNumber(), and ns3::Icmpv4Header::SetType().

Referenced by CreateDevices().

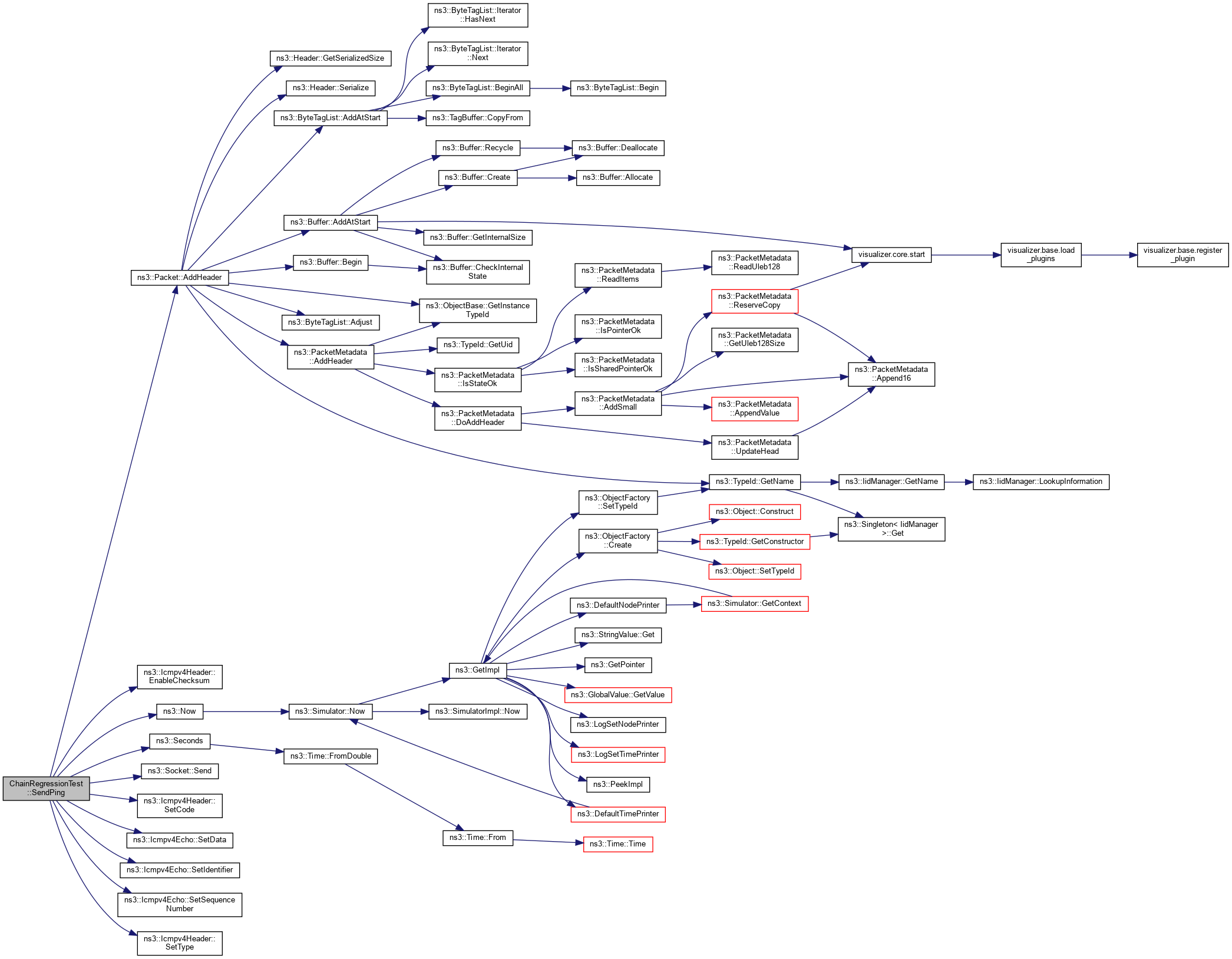

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

Member Data Documentation

◆ m_arpAliveTimeout

const Time ChainRegressionTest::m_arpAliveTimeout
private

ARP alive timeout.

Definition at line 180 of file aodv-regression.h.

Referenced by DoRun().

◆ m_nodes

NodeContainer* ChainRegressionTest::m_nodes
private
Internal: It is important to have pointers here

Definition at line 169 of file aodv-regression.h.

Referenced by ~ChainRegressionTest(), CreateDevices(), CreateNodes(), and DoRun().

◆ m_prefix

const std::string ChainRegressionTest::m_prefix
private

PCAP file names prefix.

Definition at line 172 of file aodv-regression.h.

Referenced by CheckResults(), and CreateDevices().

◆ m_seq

uint16_t ChainRegressionTest::m_seq
private

Sequence number.

Definition at line 184 of file aodv-regression.h.

Referenced by SendPing().

◆ m_size

const uint32_t ChainRegressionTest::m_size
private

Chain size.

Definition at line 176 of file aodv-regression.h.

Referenced by CheckResults(), CreateDevices(), CreateNodes(), and DoRun().

◆ m_socket

Ptr<Socket> ChainRegressionTest::m_socket
private

Socket.

Definition at line 182 of file aodv-regression.h.

Referenced by CreateDevices(), and SendPing().

◆ m_step

const double ChainRegressionTest::m_step
private

Chain step, meters.

Definition at line 178 of file aodv-regression.h.

Referenced by CreateNodes().

◆ m_time

const Time ChainRegressionTest::m_time
private

Total simulation time.

Definition at line 174 of file aodv-regression.h.

Referenced by DoRun(), and SendPing().

The documentation for this class was generated from the following files:
