Cobalt Queue Disc Test Item. More...

Inheritance diagram for CobaltQueueDiscTestItem:

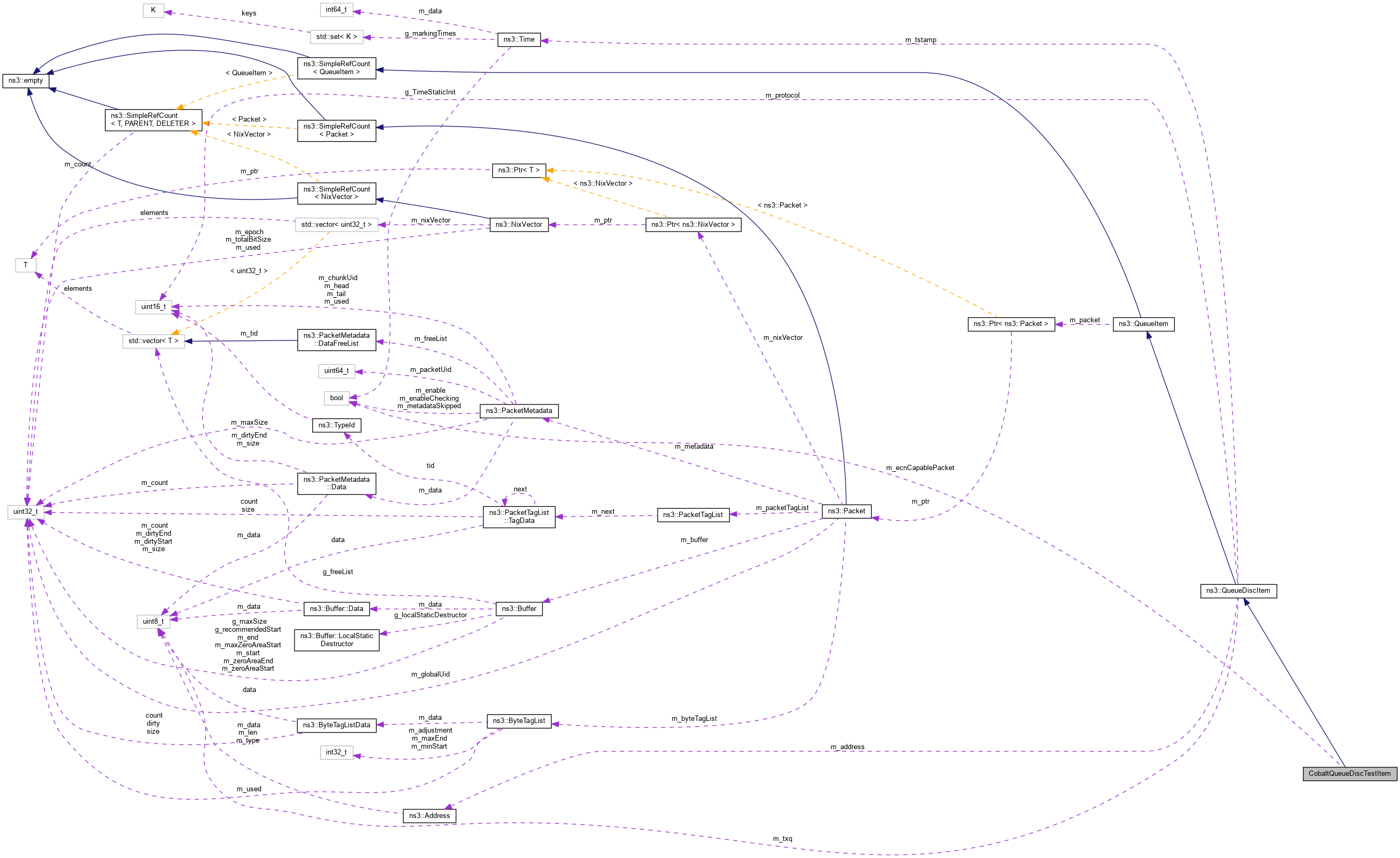

Collaboration diagram for CobaltQueueDiscTestItem:

Public Member Functions
	CobaltQueueDiscTestItem (const CobaltQueueDiscTestItem &)=delete

	CobaltQueueDiscTestItem (Ptr< Packet > p, const Address &addr, uint16_t protocol, bool ecnCapable)
	Constructor. More...

virtual	~CobaltQueueDiscTestItem ()

virtual void	AddHeader (void)
	Add the header to the packet. More...

virtual bool	Mark (void)
	Marks the packet as a substitute for dropping it, such as for Explicit Congestion Notification. More...

CobaltQueueDiscTestItem &	operator= (const CobaltQueueDiscTestItem &)=delete

Public Member Functions inherited from ns3::QueueDiscItem
	QueueDiscItem ()=delete

	QueueDiscItem (const QueueDiscItem &)=delete

	QueueDiscItem (Ptr< Packet > p, const Address &addr, uint16_t protocol)
	Create a queue disc item. More...

virtual	~QueueDiscItem ()

Address	GetAddress (void) const
	Get the MAC address included in this item. More...

uint16_t	GetProtocol (void) const
	Get the L3 protocol included in this item. More...

Time	GetTimeStamp (void) const
	Get the timestamp included in this item. More...

uint8_t	GetTxQueueIndex (void) const
	Get the transmission queue index included in this item. More...

virtual uint32_t	Hash (uint32_t perturbation=0) const
	Computes the hash of various fields of the packet header. More...

QueueDiscItem &	operator= (const QueueDiscItem &)=delete

virtual void	Print (std::ostream &os) const
	Print the item contents. More...

void	SetTimeStamp (Time t)
	Set the timestamp included in this item. More...

void	SetTxQueueIndex (uint8_t txq)
	Set the transmission queue index to store in this item. More...

Public Member Functions inherited from ns3::QueueItem
	QueueItem ()=delete

	QueueItem (const QueueItem &)=delete

	QueueItem (Ptr< Packet > p)
	Create a queue item containing a packet. More...

virtual	~QueueItem ()

Ptr< Packet >	GetPacket (void) const

virtual uint32_t	GetSize (void) const
	Use this method (instead of GetPacket ()->GetSize ()) to get the packet size. More...

virtual bool	GetUint8Value (Uint8Values field, uint8_t &value) const
	Retrieve the value of a given field from the packet, if present. More...

QueueItem &	operator= (const QueueItem &)=delete

Public Member Functions inherited from ns3::SimpleRefCount< QueueItem >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Member Functions
	CobaltQueueDiscTestItem ()

Private Attributes
bool	m_ecnCapablePacket
	ECN capable packet? More...

Additional Inherited Members
Public Types inherited from ns3::QueueItem
typedef void(*	TracedCallback) (Ptr< const QueueItem > item)
	TracedCallback signature for Ptr<QueueItem> More...

enum	Uint8Values { IP_DSFIELD }
	1-byte fields of the packet whose value can be retrieved, if present More...

Detailed Description

Cobalt Queue Disc Test Item.

Definition at line 41 of file cobalt-queue-disc-test-suite.cc.

Constructor & Destructor Documentation

◆ CobaltQueueDiscTestItem() [1/3]

CobaltQueueDiscTestItem::CobaltQueueDiscTestItem	(	Ptr< Packet >	p,
		const Address &	addr,
		uint16_t	protocol,
		bool	ecnCapable
	)

Constructor.

Parameters

p	packet
addr	address
protocol	protocol
ecnCapable	ECN capable

Definition at line 68 of file cobalt-queue-disc-test-suite.cc.

◆ ~CobaltQueueDiscTestItem()

CobaltQueueDiscTestItem::~CobaltQueueDiscTestItem ( )

virtual

Definition at line 74 of file cobalt-queue-disc-test-suite.cc.

◆ CobaltQueueDiscTestItem() [2/3]

CobaltQueueDiscTestItem::CobaltQueueDiscTestItem ( const CobaltQueueDiscTestItem & )

delete

◆ CobaltQueueDiscTestItem() [3/3]

CobaltQueueDiscTestItem::CobaltQueueDiscTestItem ( )

private

Member Function Documentation

◆ AddHeader()

void CobaltQueueDiscTestItem::AddHeader ( void )

virtual

Add the header to the packet.

Subclasses may keep header and payload separate to allow manipulating the header, so this method allows to add the header to the packet before sending the packet to the device.

Implements ns3::QueueDiscItem.

Definition at line 79 of file cobalt-queue-disc-test-suite.cc.
