CSMA One Subnet mode test. More...

Inheritance diagram for CsmaOneSubnetTestCase:

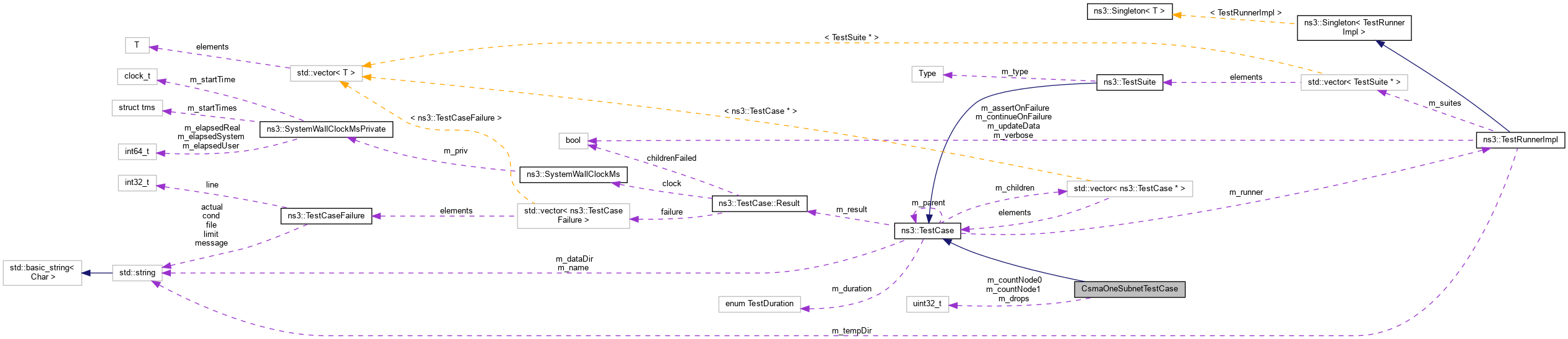

Collaboration diagram for CsmaOneSubnetTestCase:

Public Member Functions
	CsmaOneSubnetTestCase ()

virtual	~CsmaOneSubnetTestCase ()

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

void	DropEvent (Ptr< const Packet > p)
	Sink called when a packet is dropped. More...


void	SinkRxNode0 (Ptr< const Packet > p, const Address &ad)
	Sink called when a packet is received by a node. More...

void	SinkRxNode1 (Ptr< const Packet > p, const Address &ad)
	Sink called when a packet is received by a node. More...

Private Attributes
uint32_t	m_countNode0
	Counter of received packets on node 0. More...

uint32_t	m_countNode1
	Counter of received packets on node 1. More...

uint32_t	m_drops
	Counter of dropped packets. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

CSMA One Subnet mode test.

Definition at line 490 of file csma-system-test-suite.cc.

Constructor & Destructor Documentation

◆ CsmaOneSubnetTestCase()

CsmaOneSubnetTestCase::CsmaOneSubnetTestCase ( )

Definition at line 520 of file csma-system-test-suite.cc.

◆ ~CsmaOneSubnetTestCase()

CsmaOneSubnetTestCase::~CsmaOneSubnetTestCase ( )

virtual

Definition at line 525 of file csma-system-test-suite.cc.

Member Function Documentation

◆ DoRun()

void CsmaOneSubnetTestCase::DoRun ( void )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 558 of file csma-system-test-suite.cc.

References ns3::Ipv4AddressHelper::Assign(), ns3::Config::ConnectWithoutContext(), second::csma, first::devices, ns3::OnOffHelper::Install(), ns3::InternetStackHelper::Install(), first::interfaces, m_countNode0, m_countNode1, ns3::MakeCallback(), ns3::MilliSeconds(), first::nodes, NS_TEST_ASSERT_MSG_EQ, port, ns3::Seconds(), ns3::OnOffHelper::SetAttribute(), ns3::Ipv4AddressHelper::SetBase(), ns3::OnOffHelper::SetConstantRate(), sink, SinkRxNode0(), SinkRxNode1(), ns3::ApplicationContainer::Start(), and ns3::ApplicationContainer::Stop().

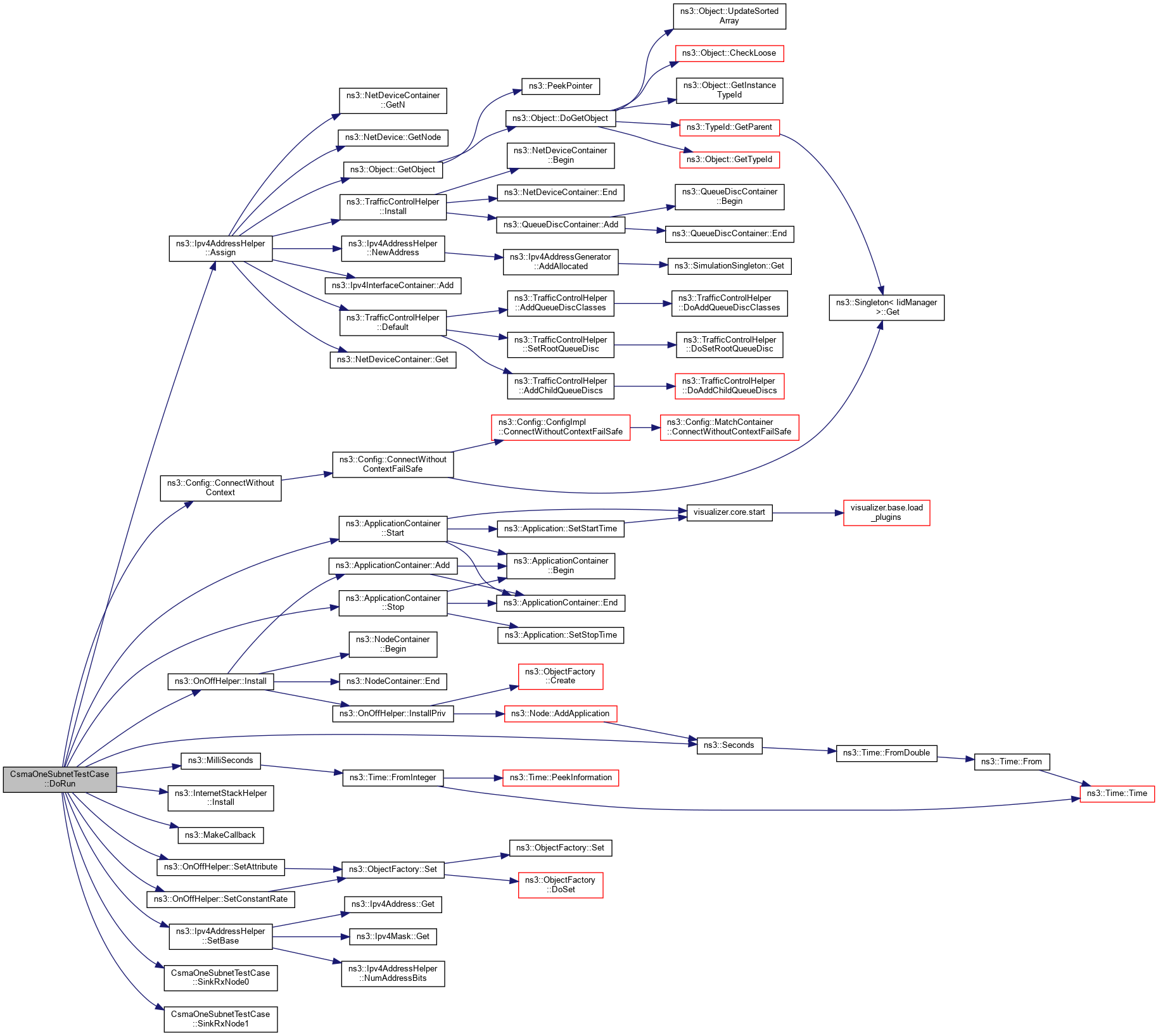

Here is the call graph for this function:

◆ DropEvent()

void CsmaOneSubnetTestCase::DropEvent ( Ptr< const Packet > p )

private

Sink called when a packet is dropped.

Parameters

p	Received packet (unused).

Definition at line 542 of file csma-system-test-suite.cc.

References m_drops.

◆ SinkRxNode0()

void CsmaOneSubnetTestCase::SinkRxNode0	(	Ptr< const Packet >	p,
		const Address &	ad
	)

private

Sink called when a packet is received by a node.

Parameters

p	Received packet (unused).
ad	Sender's address (uused).

Definition at line 530 of file csma-system-test-suite.cc.

References m_countNode0.

Referenced by DoRun().

Here is the caller graph for this function:

◆ SinkRxNode1()

void CsmaOneSubnetTestCase::SinkRxNode1	(	Ptr< const Packet >	p,
		const Address &	ad
	)

private

Sink called when a packet is received by a node.

Parameters

p	Received packet (unused).
ad	Sender's address (uused).

Definition at line 536 of file csma-system-test-suite.cc.

References m_countNode1.

Referenced by DoRun().

Here is the caller graph for this function:

Member Data Documentation

◆ m_countNode0

uint32_t CsmaOneSubnetTestCase::m_countNode0

private

Counter of received packets on node 0.

Definition at line 514 of file csma-system-test-suite.cc.

Referenced by DoRun(), and SinkRxNode0().

◆ m_countNode1

uint32_t CsmaOneSubnetTestCase::m_countNode1

private

Counter of received packets on node 1.

Definition at line 515 of file csma-system-test-suite.cc.

Referenced by DoRun(), and SinkRxNode1().

◆ m_drops

uint32_t CsmaOneSubnetTestCase::m_drops

private

Counter of dropped packets.

Definition at line 516 of file csma-system-test-suite.cc.

Referenced by DropEvent().

The documentation for this class was generated from the following file:

src/test/csma-system-test-suite.cc
