FlameRegressionTest Class Reference

FLAME protocol regression test of three stations: More...

#include "flame-regression.h"

Inheritance diagram for FlameRegressionTest:

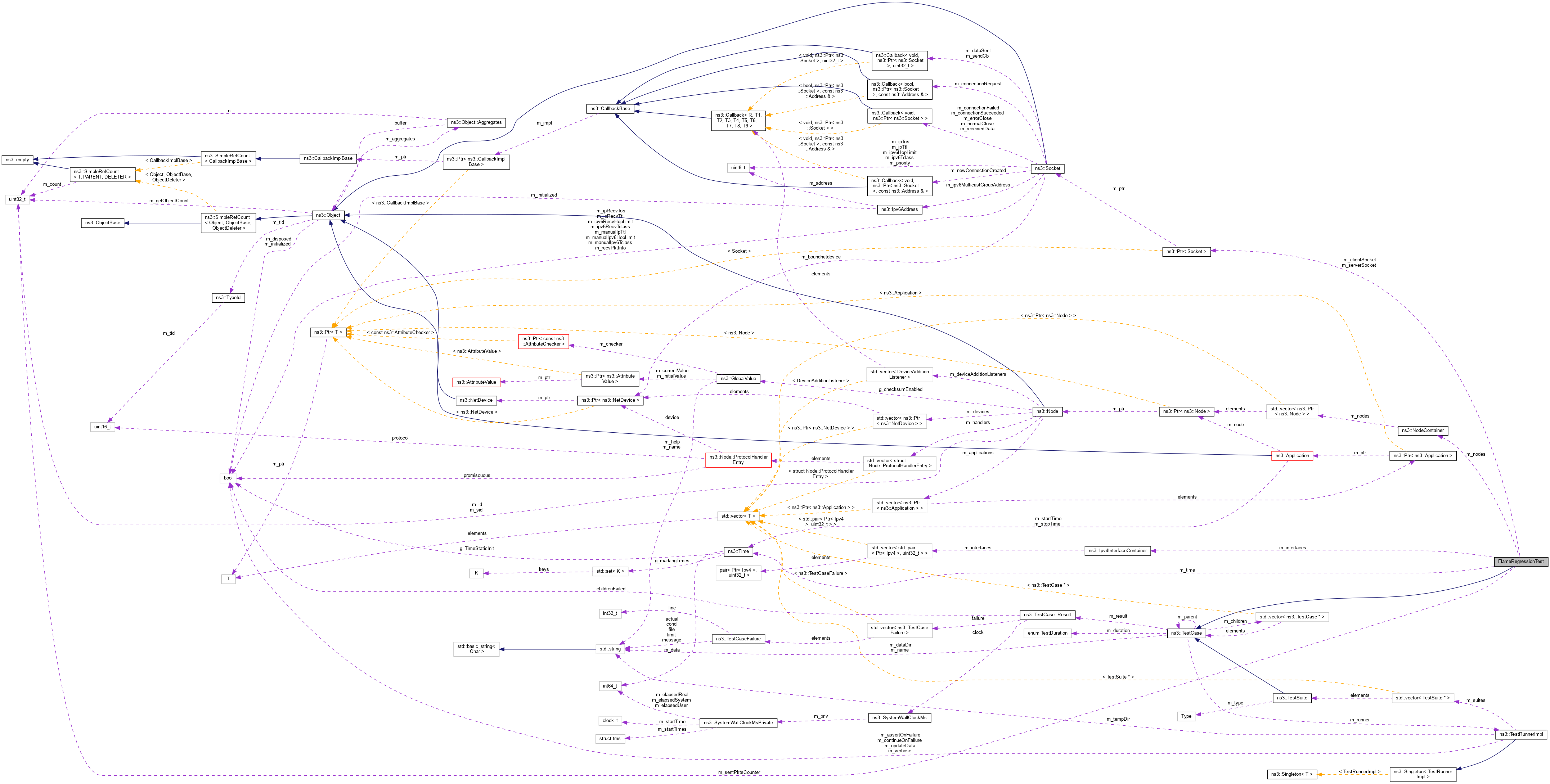

Collaboration diagram for FlameRegressionTest:

Public Member Functions
	FlameRegressionTest ()
virtual	~FlameRegressionTest ()
void	CheckResults ()
	Check results function. More...
virtual void	DoRun ()
	Implementation to actually run this TestCase. More...
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const
TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	CreateDevices ()
	Create devices function. More...
void	CreateNodes ()
	Create nodes function. More...
void	HandleReadClient (Ptr< Socket > socket)
	Handle a packet reception. More...
void	HandleReadServer (Ptr< Socket > socket)
	Handle a packet reception. More...
void	InstallApplications ()
	Install application function. More...
void	SendData (Ptr< Socket > socket)
	Send data. More...

Private Attributes
Ptr< Socket >	m_clientSocket
	Client-side socket. More...
Ipv4InterfaceContainer	m_interfaces
	Needed to install applications. More...
NodeContainer *	m_nodes
uint32_t	m_sentPktsCounter
	sent packets counter More...
Ptr< Socket >	m_serverSocket
	Server-side socket. More...
Time	m_time
	Simulation time. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

FLAME protocol regression test of three stations:

* <-----------|----------->   Broadcast frame
*             |----------->|  Unicast frame
*           Source                   Destination
* (node ID)   2            1            0
* <-----------|----------->|            |             ARP request
*             |<-----------|----------->|             ARP request
*             |            |<-----------|             ARP reply
*             |<-----------|            |             ARP reply
*             |----------->|            |             Data
*             |            |----------->|             Data
*             |            |<-----------|-----------> PATH_UPDATE (no broadcast was sent)
*             |<-----------|----------->|             PATH_UPDATE
* <-----------|----------->|            |             PATH_UPDATE
*             |            |<-----------|-----------> ARP request
*             |<-----------|----------->|             ARP request
* <-----------|----------->|            |             ARP request
*             |----------->|            |             ARP reply
*             |            |----------->|             ARP reply
*             |            |<-----------|             Data
*             |<-----------|            |             Data
*             |............|............|
*             After five seconds data is transmitted again as
*             broadcast, and PATH_UPDATE is sent
*

Definition at line 65 of file flame-regression.h.

Constructor & Destructor Documentation

FlameRegressionTest()

FlameRegressionTest::FlameRegressionTest

(

)

Definition at line 44 of file flame-regression.cc.

~FlameRegressionTest()

FlameRegressionTest::~FlameRegressionTest ( )

virtual

Definition at line 51 of file flame-regression.cc.

References m_nodes.

Member Function Documentation

CheckResults()

void FlameRegressionTest::CheckResults

(

)

Check results function.

Definition at line 146 of file flame-regression.cc.

References NS_PCAP_TEST_EXPECT_EQ, and PREFIX.

Referenced by DoRun().

Here is the caller graph for this function:

CreateDevices()

void FlameRegressionTest::CreateDevices ( )

private

Create devices function.

Definition at line 92 of file flame-regression.cc.

References first::address, ns3::MeshHelper::AssignStreams(), ns3::InternetStackHelper::AssignStreams(), ns3::YansWifiChannelHelper::AssignStreams(), ns3::YansWifiChannelHelper::Create(), ns3::TestCase::CreateTempDirFilename(), ns3::WifiPhyHelper::DisablePreambleDetectionModel(), ns3::PcapHelperForDevice::EnablePcapAll(), ns3::NetDeviceContainer::GetN(), ns3::MeshHelper::Install(), ns3::InternetStackHelper::Install(), m_interfaces, m_nodes, NS_TEST_ASSERT_MSG_EQ, PREFIX, ns3::Seconds(), ns3::YansWifiPhyHelper::SetChannel(), ns3::WifiPhyHelper::SetErrorRateModel(), ns3::MeshHelper::SetMacType(), ns3::MeshHelper::SetNumberOfInterfaces(), and ns3::MeshHelper::SetStackInstaller().

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

CreateNodes()

void FlameRegressionTest::CreateNodes ( )

private

Create nodes function.

Definition at line 75 of file flame-regression.cc.

References ns3::NodeContainer::Create(), m_nodes, and third::mobility.

Referenced by DoRun().

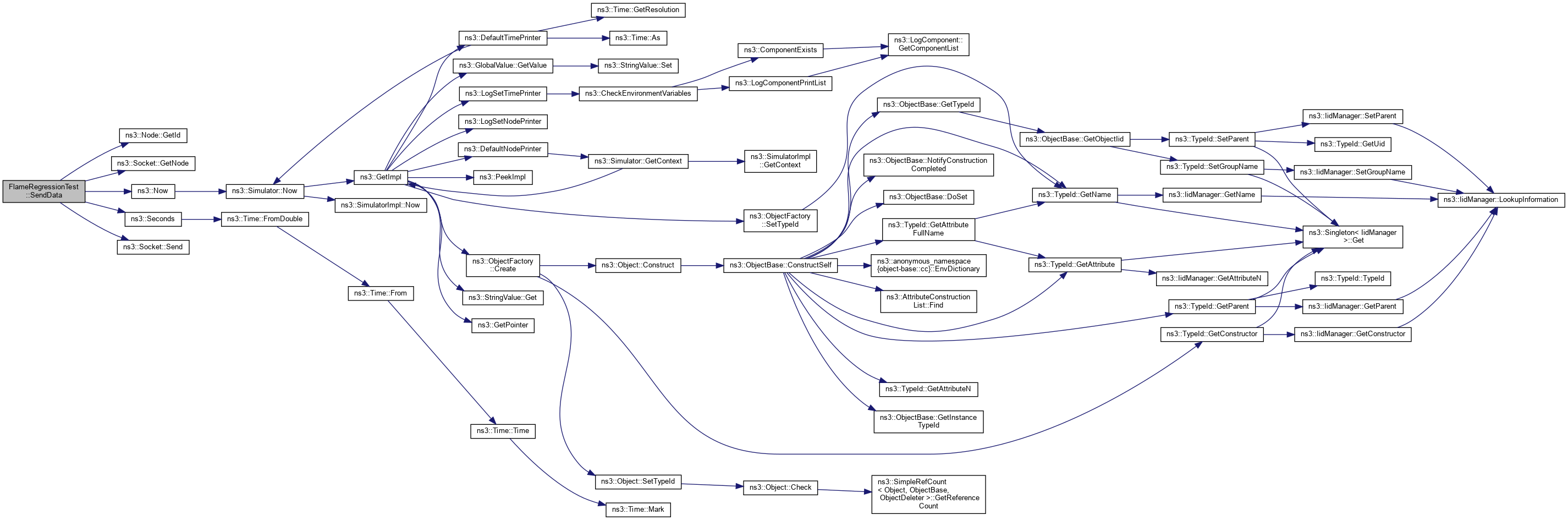

Here is the call graph for this function:

Here is the caller graph for this function:

DoRun()

void FlameRegressionTest::DoRun ( )

virtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 57 of file flame-regression.cc.

References CheckResults(), CreateDevices(), CreateNodes(), InstallApplications(), m_nodes, and m_time.

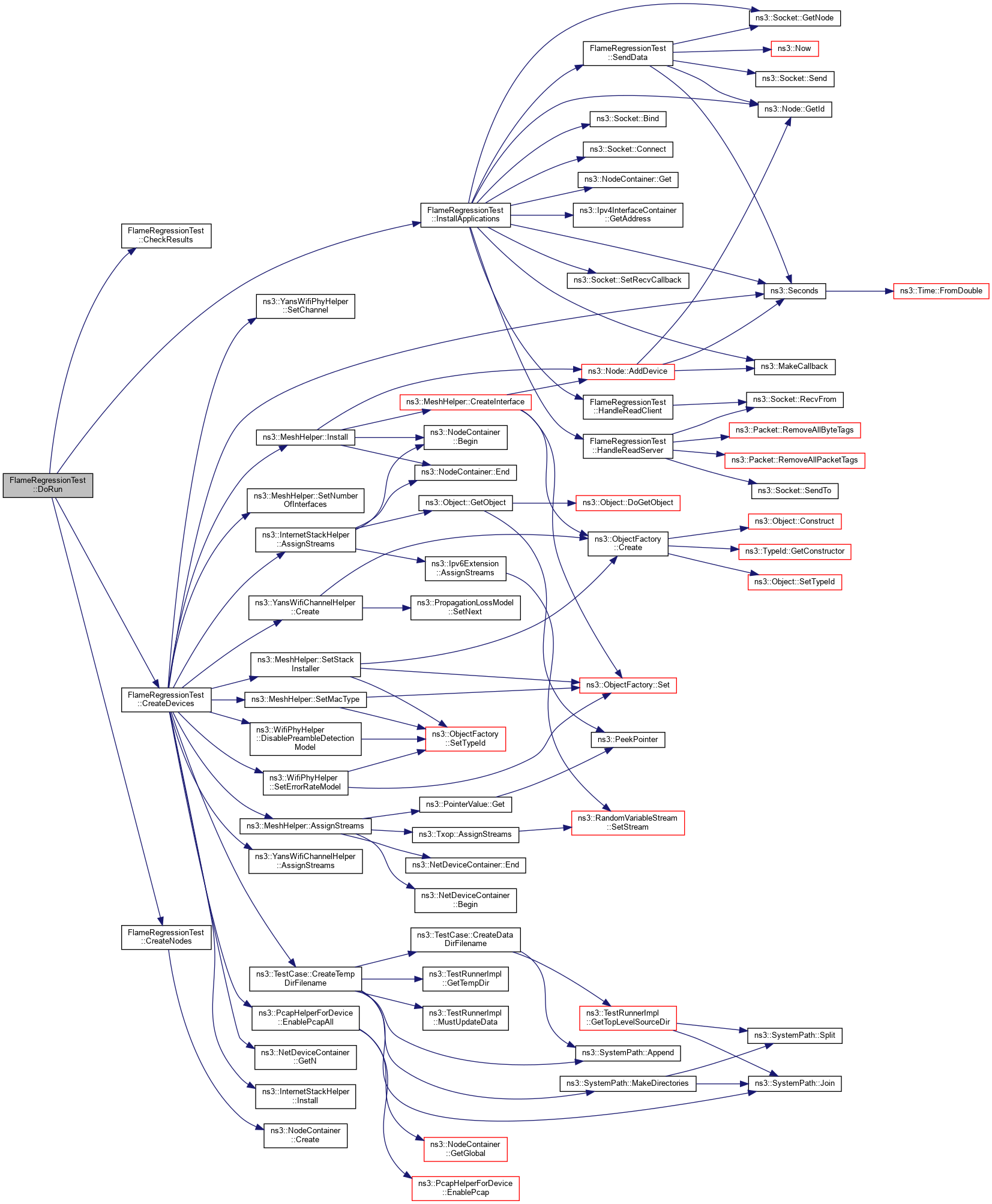

Here is the call graph for this function:

HandleReadClient()

void FlameRegressionTest::HandleReadClient ( Ptr< Socket >  socket )

private

Handle a packet reception.

This function is called by lower layers.

Parameters

socket

the socket the packet was received to.

Definition at line 181 of file flame-regression.cc.

References ns3::Socket::RecvFrom().

Referenced by InstallApplications().

Here is the call graph for this function:

Here is the caller graph for this function:

HandleReadServer()

void FlameRegressionTest::HandleReadServer ( Ptr< Socket >  socket )

private

Handle a packet reception.

This function is called by lower layers.

Parameters

socket

the socket the packet was received to.

Definition at line 167 of file flame-regression.cc.

References ns3::Socket::RecvFrom(), ns3::Packet::RemoveAllByteTags(), ns3::Packet::RemoveAllPacketTags(), and ns3::Socket::SendTo().

Referenced by InstallApplications().

Here is the call graph for this function:

Here is the caller graph for this function:

InstallApplications()

void FlameRegressionTest::InstallApplications ( )

private

Install application function.

Definition at line 129 of file flame-regression.cc.

References ns3::Socket::Bind(), ns3::Socket::Connect(), ns3::NodeContainer::Get(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::Node::GetId(), ns3::Socket::GetNode(), HandleReadClient(), HandleReadServer(), m_clientSocket, m_interfaces, m_nodes, m_serverSocket, ns3::MakeCallback(), ns3::Seconds(), SendData(), and ns3::Socket::SetRecvCallback().

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

SendData()

void FlameRegressionTest::SendData ( Ptr< Socket >  socket )

private

Send data.

Parameters

socket

the sending socket

Definition at line 155 of file flame-regression.cc.

References ns3::Node::GetId(), ns3::Socket::GetNode(), m_sentPktsCounter, m_time, ns3::Now(), ns3::Seconds(), and ns3::Socket::Send().

Referenced by InstallApplications().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_clientSocket

Ptr<Socket> FlameRegressionTest::m_clientSocket

private

Client-side socket.

Definition at line 93 of file flame-regression.h.

Referenced by InstallApplications().

m_interfaces

Ipv4InterfaceContainer FlameRegressionTest::m_interfaces

private

Needed to install applications.

Definition at line 81 of file flame-regression.h.

Referenced by CreateDevices(), and InstallApplications().

m_nodes

NodeContainer* FlameRegressionTest::m_nodes

private

Internal: It is important to have pointers here

Definition at line 77 of file flame-regression.h.

Referenced by ~FlameRegressionTest(), CreateDevices(), CreateNodes(), DoRun(), and InstallApplications().

m_sentPktsCounter

uint32_t FlameRegressionTest::m_sentPktsCounter

private

sent packets counter

Definition at line 96 of file flame-regression.h.

Referenced by SendData().

m_serverSocket

Ptr<Socket> FlameRegressionTest::m_serverSocket

private

Server-side socket.

Definition at line 91 of file flame-regression.h.

Referenced by InstallApplications().

m_time

Time FlameRegressionTest::m_time

private

Simulation time.

Definition at line 79 of file flame-regression.h.

Referenced by DoRun(), and SendData().

---

The documentation for this class was generated from the following files:

• src/mesh/test/flame/flame-regression.h
• src/mesh/test/flame/flame-regression.cc
