IPv4TestTag Class Reference

Tag used in IPv4 Fragmentation Test. More...

Inheritance diagram for IPv4TestTag:

Collaboration diagram for IPv4TestTag:

Public Member Functions
virtual void	Deserialize (TagBuffer buffer)
virtual TypeId	GetInstanceTypeId () const
	Get the most derived TypeId for this Object. More...
virtual uint32_t	GetSerializedSize () const
uint64_t	GetToken ()
	Get the token. More...
virtual void	Print (std::ostream &os) const
virtual void	Serialize (TagBuffer buffer) const
void	SetToken (uint64_t token)
	Set the token. More...
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...
void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...
bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...
void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...
Static Public Member Functions inherited from ns3::Tag
static TypeId	GetTypeId (void)
	Get the type ID. More...
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint64_t	token
	Token carried by the tag. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...
virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Tag used in IPv4 Fragmentation Test.

Definition at line 64 of file ipv4-fragmentation-test.cc.

Member Function Documentation

Deserialize()

virtual void IPv4TestTag::Deserialize ( TagBuffer  i )

inlinevirtual

Parameters

i	the buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 79 of file ipv4-fragmentation-test.cc.

References ns3::TagBuffer::ReadU64().

Here is the call graph for this function:

GetInstanceTypeId()

virtual TypeId IPv4TestTag::GetInstanceTypeId ( ) const

inlinevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns

The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 76 of file ipv4-fragmentation-test.cc.

GetSerializedSize()

virtual uint32_t IPv4TestTag::GetSerializedSize ( ) const

inlinevirtual

Returns

the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 77 of file ipv4-fragmentation-test.cc.

GetToken()

uint64_t IPv4TestTag::GetToken ( )

inline

Get the token.

Returns

The token.

Definition at line 90 of file ipv4-fragmentation-test.cc.

Referenced by Ipv4FragmentationTest::DoRun().

Here is the caller graph for this function:

GetTypeId()

static TypeId IPv4TestTag::GetTypeId ( void  )

inlinestatic

Get the type ID.

Returns

the object TypeId

Definition at line 72 of file ipv4-fragmentation-test.cc.

References ns3::TypeId::SetParent().

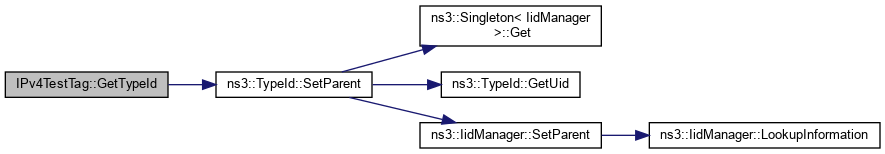

Here is the call graph for this function:

Print()

virtual void IPv4TestTag::Print ( std::ostream &  os ) const

inlinevirtual

Parameters

os	the stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 80 of file ipv4-fragmentation-test.cc.

Serialize()

virtual void IPv4TestTag::Serialize ( TagBuffer  i ) const

inlinevirtual

Parameters

i	the buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 78 of file ipv4-fragmentation-test.cc.

References ns3::TagBuffer::WriteU64().

Here is the call graph for this function:

SetToken()

void IPv4TestTag::SetToken ( uint64_t  token )

inline

Set the token.

Parameters

token

The token.

Definition at line 85 of file ipv4-fragmentation-test.cc.

Referenced by Ipv4FragmentationTest::SendClient().

Here is the caller graph for this function:

Member Data Documentation

token

uint64_t IPv4TestTag::token

private

Token carried by the tag.

Definition at line 66 of file ipv4-fragmentation-test.cc.

---

The documentation for this class was generated from the following file:

• src/internet/test/ipv4-fragmentation-test.cc
