Every test case is supposed to: More...

Inheritance diagram for Ns2MobilityHelperTest:

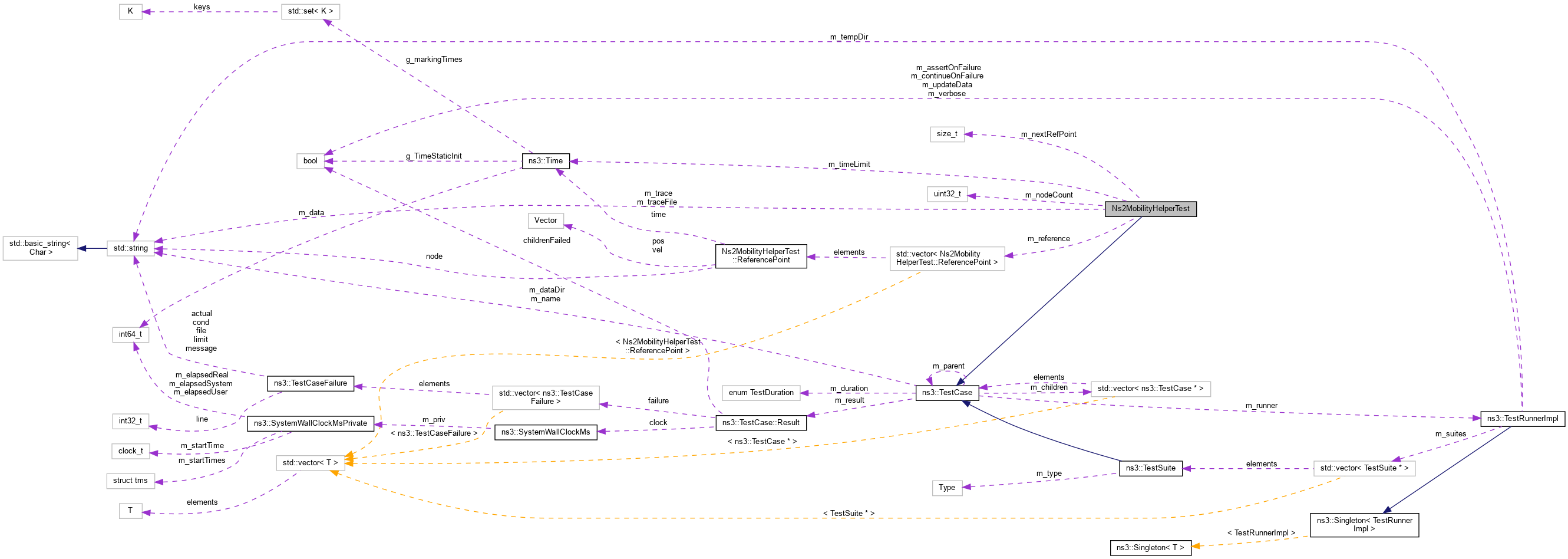

Collaboration diagram for Ns2MobilityHelperTest:

Classes
struct	ReferencePoint
	Single record in mobility reference. More...

Public Member Functions
	Ns2MobilityHelperTest (std::string const &name, Time timeLimit, uint32_t nodes=1)
	Create new test case. More...

virtual	~Ns2MobilityHelperTest ()
	Empty. More...

void	AddReferencePoint (const char *id, double sec, Vector const &p, Vector const &v)
	Add next reference point. More...

void	AddReferencePoint (ReferencePoint const &r)
	Add next reference point. More...

void	SetTrace (std::string const &trace)
	Set NS-2 trace to read as single large string (don't forget to add \n and quote "'s) More...

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
bool	CheckInitialPositions ()
	Check that all initial positions are correct. More...

void	CourseChange (std::string context, Ptr< const MobilityModel > mobility)
	Listen for course change events. More...

void	CreateNodes ()
	Create and name nodes. More...

void	DoRun ()
	Go. More...

void	DoSetup ()
	Implementation to do any local setup required for this TestCase. More...

void	DoTeardown ()
	Implementation to do any local setup required for this TestCase. More...

bool	WriteTrace ()
	Dump NS-2 trace to tmp file. More...

Private Attributes
size_t	m_nextRefPoint
	Next reference point to be checked. More...

uint32_t	m_nodeCount
	Number of nodes used in the test. More...

std::vector< ReferencePoint >	m_reference
	Reference mobility. More...

Time	m_timeLimit
	Test time limit. More...

std::string	m_trace
	Trace as string. More...

std::string	m_traceFile
	TMP trace file name. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Every test case is supposed to:

Generate short mobility trace file
Read it back using Ns2MobilityHelper
Check initial node positions and speeds.
Run simulation listening for all CourseChange events and compare actual mobility with the reference

Definition at line 86 of file ns2-mobility-helper-test-suite.cc.

Constructor & Destructor Documentation

◆ Ns2MobilityHelperTest()

Ns2MobilityHelperTest::Ns2MobilityHelperTest	(	std::string const &	name,
		Time	timeLimit,
		uint32_t	nodes = `1`
	)

inline

Create new test case.

To make it useful SetTrace () and AddReferencePoint () must be called

Parameters

name	Short description
timeLimit	Test time limit
nodes	Number of nodes used in the test trace, 1 by default

Definition at line 129 of file ns2-mobility-helper-test-suite.cc.

◆ ~Ns2MobilityHelperTest()

virtual Ns2MobilityHelperTest::~Ns2MobilityHelperTest ( )

inlinevirtual

Empty.

Definition at line 137 of file ns2-mobility-helper-test-suite.cc.

Member Function Documentation

◆ AddReferencePoint() [1/2]

void Ns2MobilityHelperTest::AddReferencePoint	(	const char *	id,
		double	sec,
		Vector const &	p,
		Vector const &	v
	)

inline

Add next reference point.

Parameters

id	reference point id
sec	reference point ime (in seconds)
p	reference point position
v	reference point velocity

Definition at line 163 of file ns2-mobility-helper-test-suite.cc.

References ns3::Seconds().

Here is the call graph for this function:

◆ AddReferencePoint() [2/2]

void Ns2MobilityHelperTest::AddReferencePoint ( ReferencePoint const & r )

inline

Add next reference point.

Parameters

r	reference point to add

Definition at line 152 of file ns2-mobility-helper-test-suite.cc.

Referenced by Ns2MobilityHelperTestSuite::Ns2MobilityHelperTestSuite().

Here is the caller graph for this function:

◆ CheckInitialPositions()

bool Ns2MobilityHelperTest::CheckInitialPositions ( )

inlineprivate

Check that all initial positions are correct.

Returns: true on error.

Definition at line 212 of file ns2-mobility-helper-test-suite.cc.

References AreVectorsEqual(), ns3::Object::GetObject(), ns3::MobilityModel::GetPosition(), ns3::MobilityModel::GetVelocity(), Ns2MobilityHelperTest::ReferencePoint::node, NS_TEST_ASSERT_MSG_NE_RETURNS_BOOL, NS_TEST_EXPECT_MSG_EQ, Ns2MobilityHelperTest::ReferencePoint::pos, ns3::Seconds(), and Ns2MobilityHelperTest::ReferencePoint::vel.

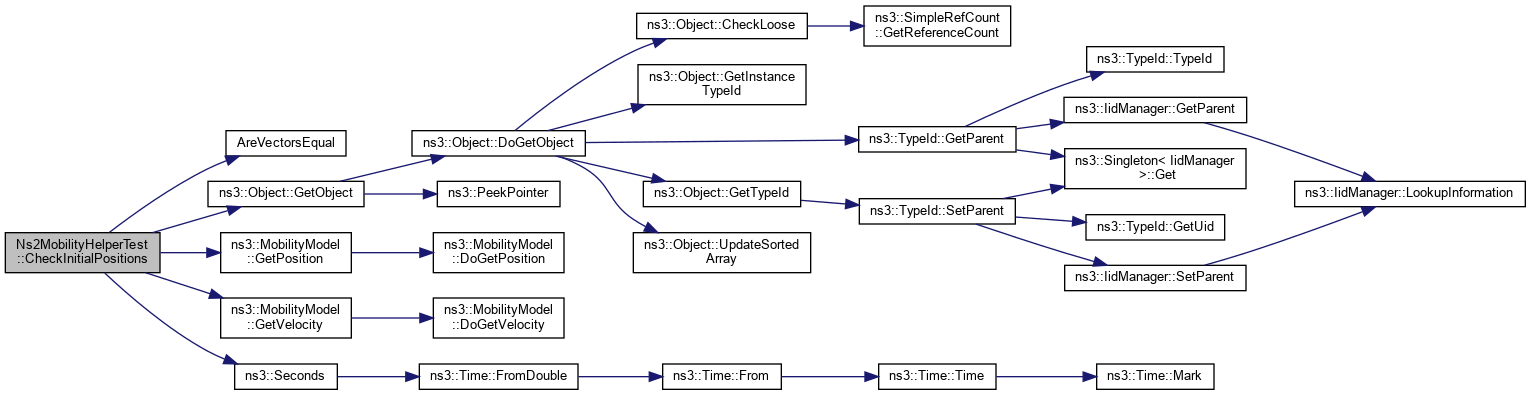

Here is the call graph for this function:

◆ CourseChange()

void Ns2MobilityHelperTest::CourseChange	(	std::string	context,
		Ptr< const MobilityModel >	mobility
	)

inlineprivate

Listen for course change events.

Parameters

context	event context
mobility	a pointer to the mobility model

Definition at line 236 of file ns2-mobility-helper-test-suite.cc.

References AreVectorsEqual(), ns3::Names::FindName(), ns3::Time::GetSeconds(), third::mobility, Ns2MobilityHelperTest::ReferencePoint::node, ns3::Simulator::Now(), NS_ASSERT, NS_TEST_EXPECT_MSG_EQ, NS_TEST_EXPECT_MSG_LT, Ns2MobilityHelperTest::ReferencePoint::pos, Ns2MobilityHelperTest::ReferencePoint::time, and Ns2MobilityHelperTest::ReferencePoint::vel.

Referenced by DoRun().

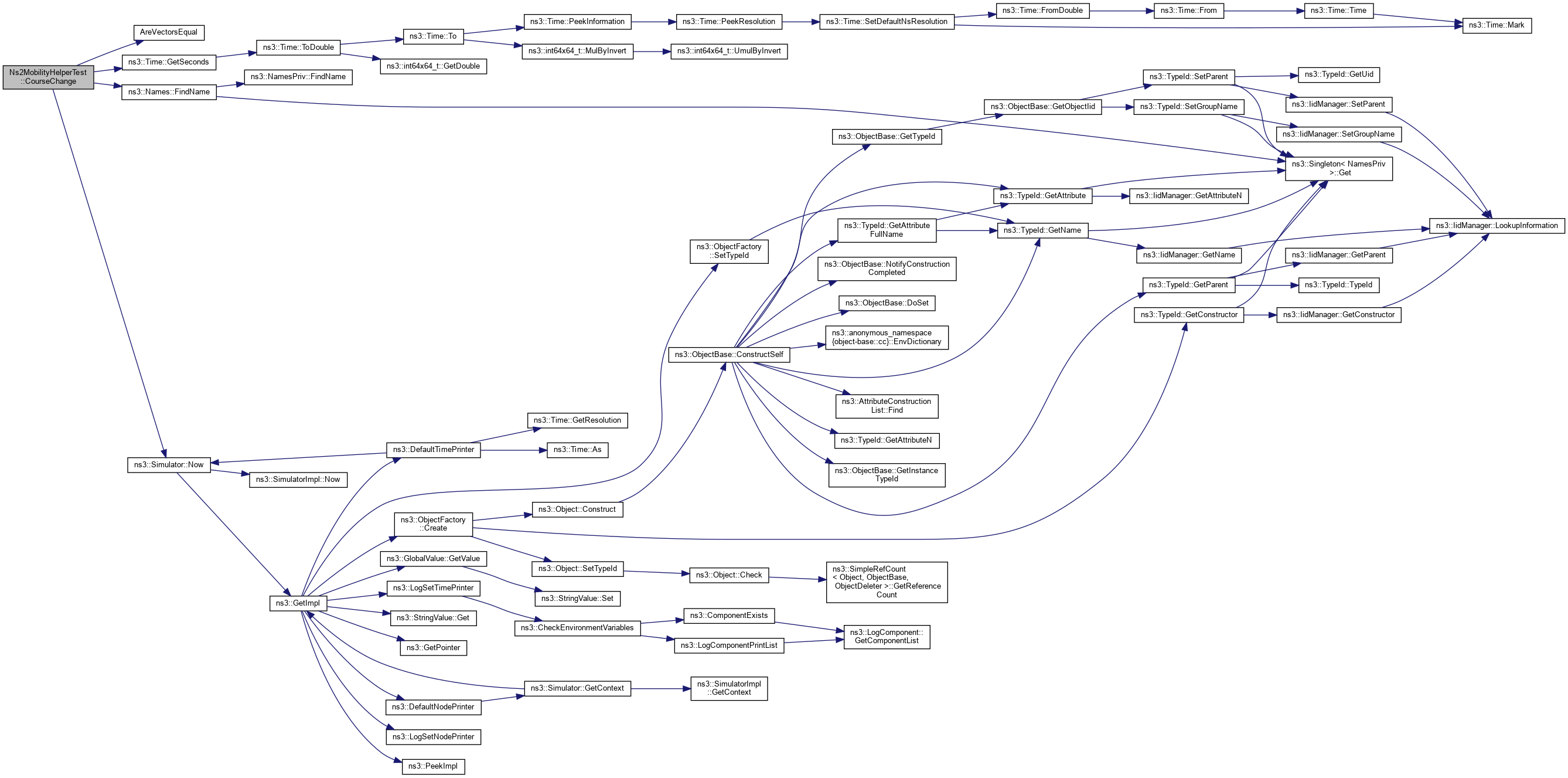

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateNodes()

void Ns2MobilityHelperTest::CreateNodes ( )

inlineprivate

Create and name nodes.

Definition at line 197 of file ns2-mobility-helper-test-suite.cc.

References ns3::Names::Add(), and first::nodes.

Here is the call graph for this function:

◆ DoRun()

void Ns2MobilityHelperTest::DoRun ( void )

inlineprivatevirtual

Go.

Implements ns3::TestCase.

Definition at line 273 of file ns2-mobility-helper-test-suite.cc.

References ns3::Config::Connect(), CourseChange(), ns3::MakeCallback(), third::mobility, NS_TEST_ASSERT_MSG_EQ, ns3::Simulator::Run(), and ns3::Simulator::Stop().

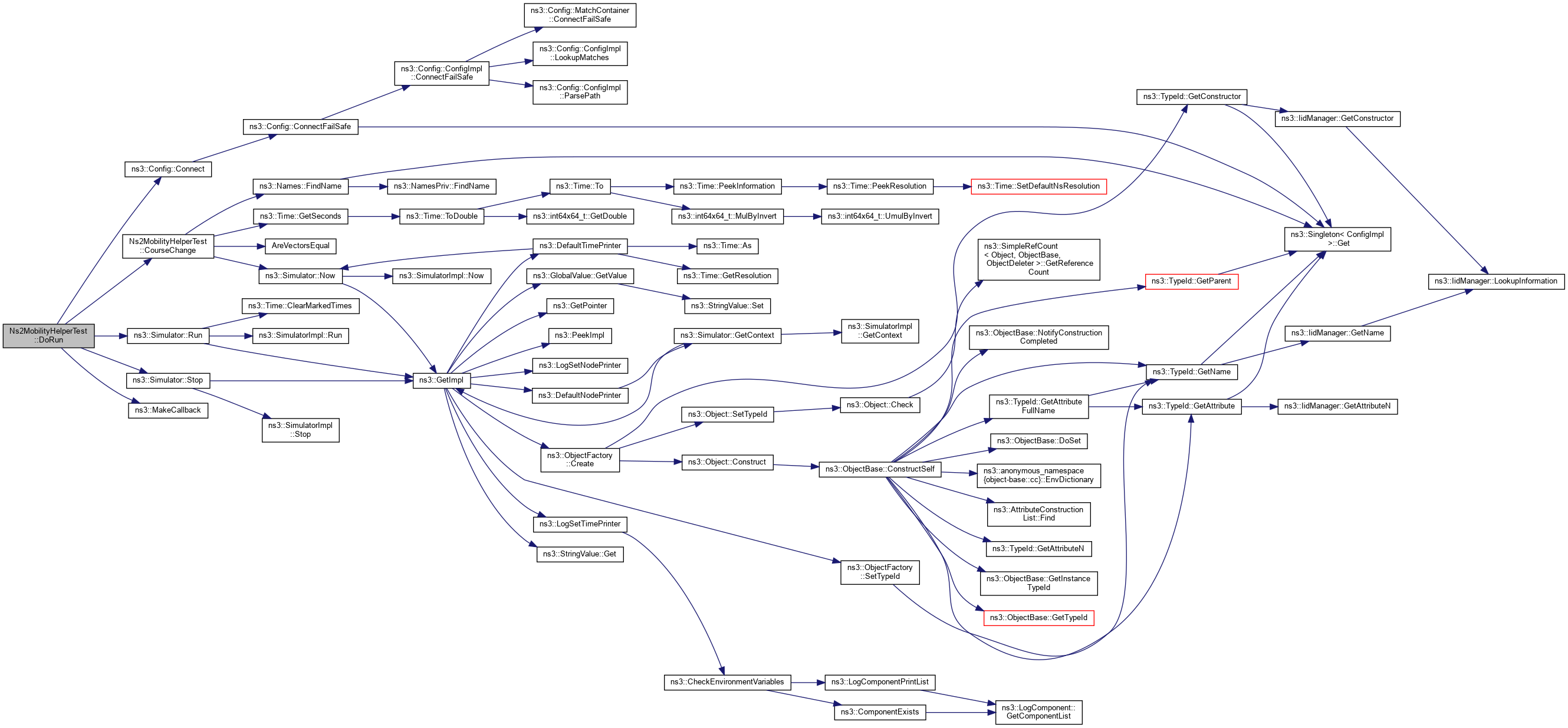

Here is the call graph for this function:

◆ DoSetup()

void Ns2MobilityHelperTest::DoSetup ( void )

inlineprivatevirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test setup before DoRun is invoked.

Reimplemented from ns3::TestCase.

Definition at line 261 of file ns2-mobility-helper-test-suite.cc.

◆ DoTeardown()

void Ns2MobilityHelperTest::DoTeardown ( void )

inlineprivatevirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test teardown

Reimplemented from ns3::TestCase.

Definition at line 266 of file ns2-mobility-helper-test-suite.cc.

References ns3::Names::Clear(), and ns3::Simulator::Destroy().

Here is the call graph for this function:

◆ SetTrace()

void Ns2MobilityHelperTest::SetTrace ( std::string const & trace )

inline

Set NS-2 trace to read as single large string (don't forget to add \n and quote "'s)

Parameters

trace the mobility trace

Definition at line 144 of file ns2-mobility-helper-test-suite.cc.

Referenced by Ns2MobilityHelperTestSuite::Ns2MobilityHelperTestSuite().

Here is the caller graph for this function:

◆ WriteTrace()

bool Ns2MobilityHelperTest::WriteTrace ( )

inlineprivate

Dump NS-2 trace to tmp file.

Returns: true on error.

Definition at line 187 of file ns2-mobility-helper-test-suite.cc.

References NS_TEST_ASSERT_MSG_EQ_RETURNS_BOOL.

Member Data Documentation

◆ m_nextRefPoint

size_t Ns2MobilityHelperTest::m_nextRefPoint

private

Next reference point to be checked.

Definition at line 178 of file ns2-mobility-helper-test-suite.cc.

◆ m_nodeCount

uint32_t Ns2MobilityHelperTest::m_nodeCount

private

Number of nodes used in the test.

Definition at line 172 of file ns2-mobility-helper-test-suite.cc.

◆ m_reference

std::vector<ReferencePoint> Ns2MobilityHelperTest::m_reference

private

Reference mobility.

Definition at line 176 of file ns2-mobility-helper-test-suite.cc.

◆ m_timeLimit

Time Ns2MobilityHelperTest::m_timeLimit

private

Test time limit.

Definition at line 170 of file ns2-mobility-helper-test-suite.cc.

◆ m_trace

std::string Ns2MobilityHelperTest::m_trace

private

Trace as string.

Definition at line 174 of file ns2-mobility-helper-test-suite.cc.

◆ m_traceFile

std::string Ns2MobilityHelperTest::m_traceFile

private

TMP trace file name.

Definition at line 180 of file ns2-mobility-helper-test-suite.cc.

The documentation for this class was generated from the following file:

src/mobility/test/ns2-mobility-helper-test-suite.cc
