ThreeGppV2vBuildingsChCondModelTestCase Class Reference

Test case for the classes ThreeGppV2vUrbanChannelConditionModel, and ThreeGppV2vHighwayChannelConditionModel to test their code to deterministically determine NLOS state. More...

Inheritance diagram for ThreeGppV2vBuildingsChCondModelTestCase:

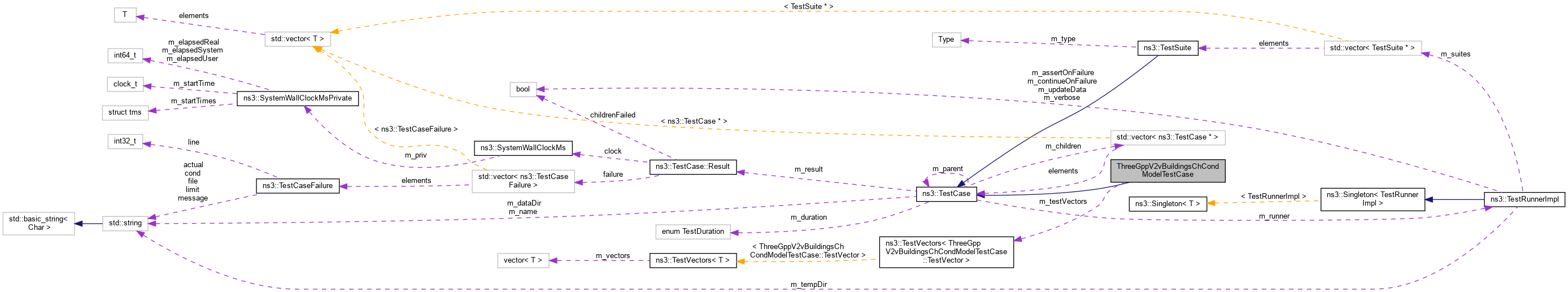

Collaboration diagram for ThreeGppV2vBuildingsChCondModelTestCase:

Classes
struct	TestVector
	Struct containing the parameters for each test. More...

Public Member Functions
	ThreeGppV2vBuildingsChCondModelTestCase ()
	Constructor. More...
virtual	~ThreeGppV2vBuildingsChCondModelTestCase ()
	Destructor. More...
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const
TestCase &	operator= (const TestCase &)=delete

Private Member Functions
virtual void	DoRun (void)
	Builds the simulation scenario and perform the tests. More...

Private Attributes
TestVectors< TestVector >	m_testVectors
	array containg all the test vectors More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Test case for the classes ThreeGppV2vUrbanChannelConditionModel, and ThreeGppV2vHighwayChannelConditionModel to test their code to deterministically determine NLOS state.

The test checks if the channel condition is correctly determined when a building is deployed in the scenario. Methodology from buildings-channel-condition-model-test.cc is used.

Definition at line 50 of file three-gpp-v2v-channel-condition-model-test.cc.

Constructor & Destructor Documentation

ThreeGppV2vBuildingsChCondModelTestCase()

ThreeGppV2vBuildingsChCondModelTestCase::ThreeGppV2vBuildingsChCondModelTestCase

(

)

Constructor.

Definition at line 83 of file three-gpp-v2v-channel-condition-model-test.cc.

~ThreeGppV2vBuildingsChCondModelTestCase()

ThreeGppV2vBuildingsChCondModelTestCase::~ThreeGppV2vBuildingsChCondModelTestCase ( )

virtual

Destructor.

Definition at line 87 of file three-gpp-v2v-channel-condition-model-test.cc.

Member Function Documentation

DoRun()

void ThreeGppV2vBuildingsChCondModelTestCase::DoRun ( void  )

privatevirtual

Builds the simulation scenario and perform the tests.

Implements ns3::TestCase.

Definition at line 91 of file three-gpp-v2v-channel-condition-model-test.cc.

References ns3::ObjectFactory::Create(), ns3::Object::GetObject(), ThreeGppV2vBuildingsChCondModelTestCase::TestVector::m_losCond, ThreeGppV2vBuildingsChCondModelTestCase::TestVector::m_positionA, ThreeGppV2vBuildingsChCondModelTestCase::TestVector::m_positionB, m_testVectors, ThreeGppV2vBuildingsChCondModelTestCase::TestVector::m_typeId, first::nodes, NS_LOG_DEBUG, NS_TEST_ASSERT_MSG_EQ, ns3::MobilityModel::SetPosition(), and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

Member Data Documentation

m_testVectors

TestVectors<TestVector> ThreeGppV2vBuildingsChCondModelTestCase::m_testVectors

private

array containg all the test vectors

Definition at line 80 of file three-gpp-v2v-channel-condition-model-test.cc.

Referenced by DoRun().

---

The documentation for this class was generated from the following file:

• src/buildings/test/three-gpp-v2v-channel-condition-model-test.cc
