Test case for the 3GPP V2V Urban channel condition models (probabilistic model for LOS/NLOSv states). More...

Inheritance diagram for ThreeGppV2vUrbanLosNlosvChCondModelTestCase:

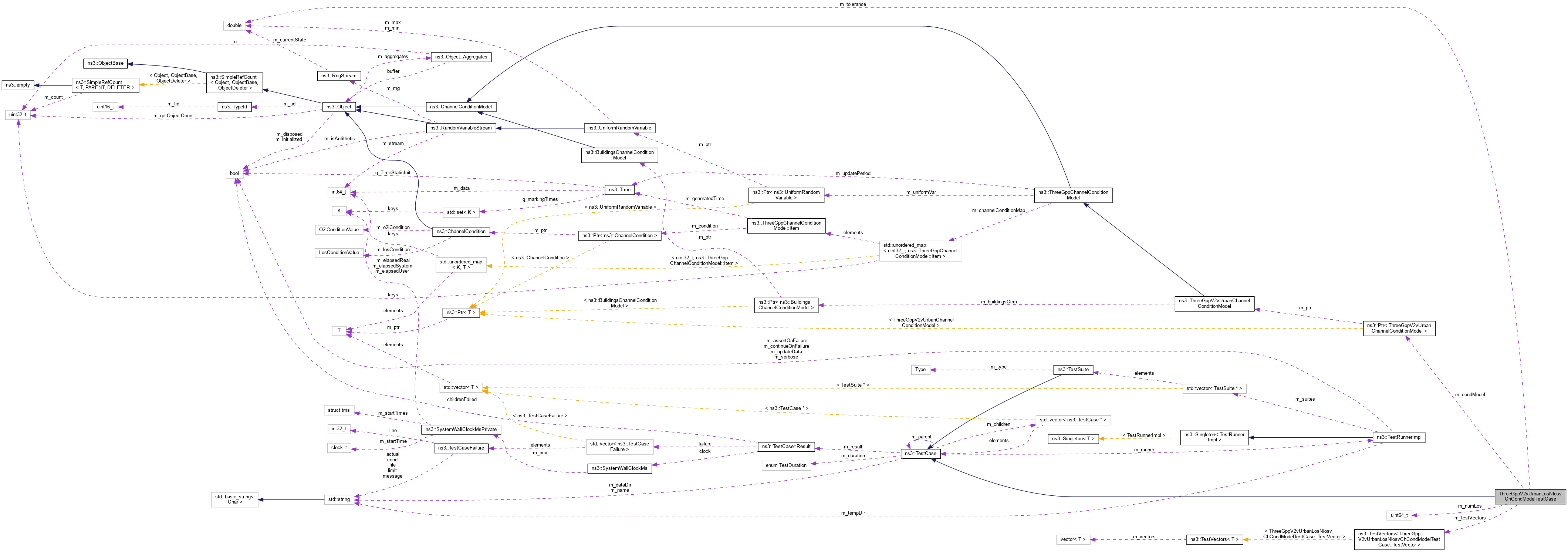

Collaboration diagram for ThreeGppV2vUrbanLosNlosvChCondModelTestCase:

Classes
struct	TestVector
	Struct containing the parameters for each test. More...

Public Member Functions
	ThreeGppV2vUrbanLosNlosvChCondModelTestCase ()
	Constructor. More...

virtual	~ThreeGppV2vUrbanLosNlosvChCondModelTestCase ()
	Destructor. More...

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
virtual void	DoRun (void)
	Builds the simulation scenario and perform the tests. More...

void	EvaluateChannelCondition (Ptr< MobilityModel > a, Ptr< MobilityModel > b)
	Evaluates the channel condition between two nodes by calling the method GetChannelCondition on m_condModel. More...

Private Attributes
Ptr< ThreeGppV2vUrbanChannelConditionModel >	m_condModel
	the channel condition model More...

uint64_t	m_numLos {0}
	the number of LOS occurrences More...

TestVectors< TestVector >	m_testVectors
	array containing all the test vectors More...

double	m_tolerance
	tolerance More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Test case for the 3GPP V2V Urban channel condition models (probabilistic model for LOS/NLOSv states).

It determines the channel condition multiple times, estimates the LOS probability and compares it with the value given by the formulas in 3GPP TR 37.885, Table 6.2-1. Methodology from channel-condition-model- test-suite.cc is used.

Definition at line 186 of file three-gpp-v2v-channel-condition-model-test.cc.
