Base header-type class to check the proper header concatenation. More...

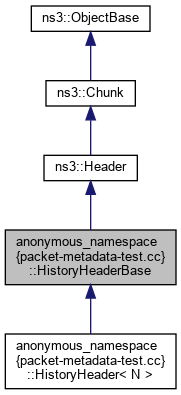

Inheritance diagram for anonymous_namespace{packet-metadata-test.cc}::HistoryHeaderBase:

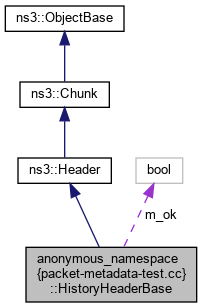

Collaboration diagram for anonymous_namespace{packet-metadata-test.cc}::HistoryHeaderBase:

Public Member Functions
	HistoryHeaderBase ()

bool	IsOk (void) const
	Checks if the header has deserialization errors. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)=0

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	GetSerializedSize (void) const =0

virtual void	Print (std::ostream &os) const =0

virtual void	Serialize (Buffer::Iterator start) const =0

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

virtual TypeId	GetInstanceTypeId (void) const =0
	Get the most derived TypeId for this Object. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
void	ReportError (void)
	Signal that an error has been found in deserialization. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Attributes
bool	m_ok
	True if no error is signalled. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Base header-type class to check the proper header concatenation.

Note: Class internal to packet-metadata-test.cc

Definition at line 41 of file packet-metadata-test.cc.

Constructor & Destructor Documentation

◆ HistoryHeaderBase()

anonymous_namespace{packet-metadata-test.cc}::HistoryHeaderBase::HistoryHeaderBase ( )

Definition at line 73 of file packet-metadata-test.cc.

Member Function Documentation

◆ GetTypeId()

TypeId anonymous_namespace{packet-metadata-test.cc}::HistoryHeaderBase::GetTypeId ( void )

static

Get the type ID.

Returns: The object TypeId.

Definition at line 65 of file packet-metadata-test.cc.

References ns3::TypeId::SetParent().

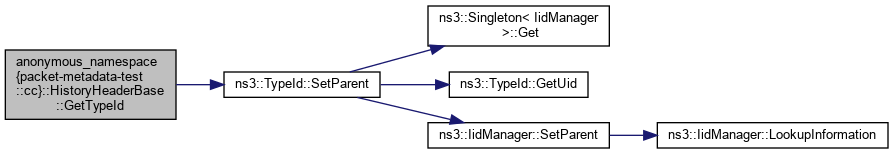

Here is the call graph for this function:

◆ IsOk()

bool anonymous_namespace{packet-metadata-test.cc}::HistoryHeaderBase::IsOk ( void ) const

Checks if the header has deserialization errors.

Returns: True if no error found.

Definition at line 79 of file packet-metadata-test.cc.

References m_ok.

◆ ReportError()

void anonymous_namespace{packet-metadata-test.cc}::HistoryHeaderBase::ReportError ( void )

protected

Signal that an error has been found in deserialization.

Definition at line 84 of file packet-metadata-test.cc.

References m_ok.

Member Data Documentation

◆ m_ok

bool anonymous_namespace{packet-metadata-test.cc}::HistoryHeaderBase::m_ok

private

True if no error is signalled.

Definition at line 61 of file packet-metadata-test.cc.

Referenced by IsOk(), and ReportError().

The documentation for this class was generated from the following file:

src/network/test/packet-metadata-test.cc
