TimelinesRenderer class. More...

Public Member Functions
def	__init__ (self)
	Initializer. More...

def	draw (self, ctx)
	Draw. More...

def	draw_events (self, ctx, events, x, y, width, height)
	Draw Event. More...

def	draw_line (self, ctx, x, y, width, height)
	Draw Line. More...

def	draw_ranges (self, ctx, ranges, x, y, width, height)
	Draw Ranges. More...

def	get_data_x_start (self)
	Get Data X Start. More...

def	get_height (self)
	Get Height. More...

def	layout (self, width)
	Get Data X Start. More...

def	set_render_range (self, start, end)
	Set Render Range. More...

def	set_timelines (self, timelines, colors)
	Set Timelines. More...

Public Attributes
	colors
	colors More...

	end
	end More...

	grey_background
	grey background More...

	height
	height More...

	left_width
	left width More...

	max_text_height
	maximum text height More...

	padding
	padding More...

	right_width
	right width More...

	start
	start More...

	timelines
	timelines More...

	width
	width More...

Detailed Description

TimelinesRenderer class.

Definition at line 594 of file grid.py.

Constructor & Destructor Documentation

◆ init()

def grid.TimelinesRenderer.__init__ ( self )

Initializer.

Parameters

self	this object

Definition at line 617 of file grid.py.

Member Function Documentation

◆ draw()

def grid.TimelinesRenderer.draw	(	self,
		ctx
	)

Draw.

Parameters

self	this object
ctx	ctx

Returns: none

Definition at line 780 of file grid.py.

References grid.TimelinesRenderer.draw_line(), grid.TimelinesRenderer.left_width, grid.TimelinesRenderer.padding, grid.TimelinesRenderer.right_width, ns3::AnimationInterface::NodeSize.width, visualizer.svgitem.SvgItem.width, and grid.TimelinesRenderer.width.

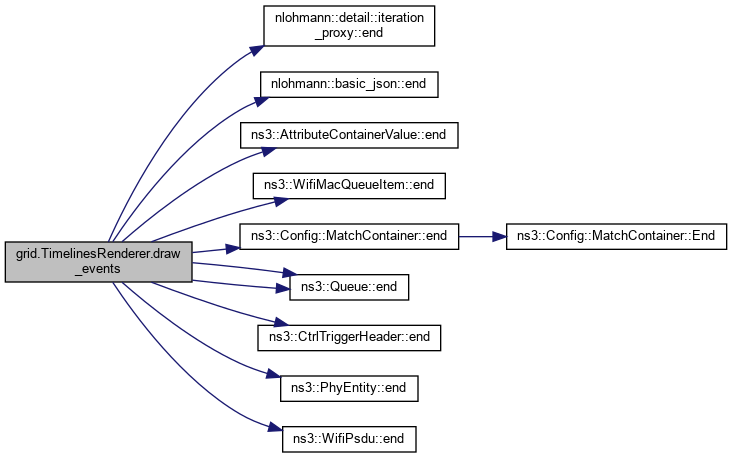

Here is the call graph for this function:

◆ draw_events()

def grid.TimelinesRenderer.draw_events	(	self,
		ctx,
		events,
		x,
		y,
		width,
		height
	)

Draw Event.

Parameters

self	this object
ctx	ctx
events	events
x	x
y	y
width	width
height	height

Returns: none

Definition at line 717 of file grid.py.

References nlohmann::detail::iteration_proxy< IteratorType >.end(), nlohmann::detail::iterator_input_adapter< IteratorType >.end, nlohmann::basic_json< ObjectType, ArrayType, StringType, BooleanType, NumberIntegerType, NumberUnsignedType, NumberFloatType, AllocatorType, JSONSerializer, BinaryType >.end(), ns3::AttributeContainerValue< A, C >.end(), ns3::WifiMacQueueItem.end(), ns3::Config::MatchContainer.end(), ns3::ByteTagList::Iterator::Item.end, anonymous_namespace{packet-test-suite.cc}::Expected.end, ns3::Queue< Item >.end(), ns3::Queue< ns3::Packet >.end(), ns3::anonymous_namespace{pyviz.cc}::FastClipping::Line.end, ns3::CtrlTriggerHeader.end(), ns3::PhyEntity.end(), ns3::WifiPsdu.end(), grid.DataRange.end, grid.TimelinesRenderer.end, grid.TimelinesRenderer.grey_background, grid.TimelinesRenderer.max_text_height, grid.ScaleRenderer.max_text_height, grid.TimelinesRenderer.padding, ns3::LteRrcSap::PhysCellIdRange.start, ns3::ByteTagList::Iterator::Item.start, anonymous_namespace{packet-test-suite.cc}::Expected.start, ns3::anonymous_namespace{pyviz.cc}::FastClipping::Line.start, grid.DataRange.start, and grid.TimelinesRenderer.start.

Here is the call graph for this function:

◆ draw_line()

def grid.TimelinesRenderer.draw_line	(	self,
		ctx,
		x,
		y,
		width,
		height
	)

Draw Line.

Parameters

self	this object
ctx	ctx
x	x
y	y
width	width
height	height

Returns: none

Definition at line 700 of file grid.py.

Referenced by grid.TimelinesRenderer.draw().

Here is the caller graph for this function:

◆ draw_ranges()

def grid.TimelinesRenderer.draw_ranges	(	self,
		ctx,
		ranges,
		x,
		y,
		width,
		height
	)

Draw Ranges.

Parameters

self	this object
ctx	ctx
ranges	ranges
x	x
y	y
width	width
height	height

Returns: none

Definition at line 746 of file grid.py.

References grid.TimelinesRenderer.colors, nlohmann::detail::iteration_proxy< IteratorType >.end(), nlohmann::detail::iterator_input_adapter< IteratorType >.end, nlohmann::basic_json< ObjectType, ArrayType, StringType, BooleanType, NumberIntegerType, NumberUnsignedType, NumberFloatType, AllocatorType, JSONSerializer, BinaryType >.end(), ns3::AttributeContainerValue< A, C >.end(), ns3::WifiMacQueueItem.end(), ns3::Config::MatchContainer.end(), ns3::ByteTagList::Iterator::Item.end, anonymous_namespace{packet-test-suite.cc}::Expected.end, ns3::Queue< Item >.end(), ns3::Queue< ns3::Packet >.end(), ns3::anonymous_namespace{pyviz.cc}::FastClipping::Line.end, ns3::CtrlTriggerHeader.end(), ns3::PhyEntity.end(), ns3::WifiPsdu.end(), grid.DataRange.end, grid.TimelinesRenderer.end, grid.TimelinesRenderer.grey_background, max, min, grid.TimelinesRenderer.padding, ns3::LteRrcSap::PhysCellIdRange.start, ns3::ByteTagList::Iterator::Item.start, anonymous_namespace{packet-test-suite.cc}::Expected.start, ns3::anonymous_namespace{pyviz.cc}::FastClipping::Line.start, grid.DataRange.start, and grid.TimelinesRenderer.start.

Here is the call graph for this function:

◆ get_data_x_start()

def grid.TimelinesRenderer.get_data_x_start ( self )

Get Data X Start.

Parameters

self	this object

Returns: X start

Definition at line 647 of file grid.py.

References grid.TimelinesRenderer.left_width, grid.TimelinesRenderer.padding, and grid.TimelinesRenderer.right_width.

◆ get_height()

def grid.TimelinesRenderer.get_height ( self )

Get Height.

Parameters

self	this object

Returns: height

Definition at line 623 of file grid.py.

References ns3::AnimationInterface::NodeSize.height, visualizer.svgitem.SvgItem.height, and grid.TimelinesRenderer.height.

◆ layout()

def grid.TimelinesRenderer.layout	(	self,
		width
	)

Get Data X Start.

Parameters

self	this object
width	width

Returns: none

Definition at line 653 of file grid.py.

References max, grid.TimelinesRenderer.padding, grid.Timelines.timelines, and grid.TimelinesRenderer.timelines.

◆ set_render_range()

def grid.TimelinesRenderer.set_render_range	(	self,
		start,
		end
	)

Set Render Range.

Parameters

self	this object
start	start
end	end

Returns: none

Definition at line 638 of file grid.py.

◆ set_timelines()

def grid.TimelinesRenderer.set_timelines	(	self,
		timelines,
		colors
	)

Set Timelines.

Parameters

self	this object
timelines	timelines
colors	colors

Returns: none

Definition at line 629 of file grid.py.

Member Data Documentation

◆ colors

grid.TimelinesRenderer.colors

colors

Definition at line 637 of file grid.py.

Referenced by grid.TimelinesRenderer.draw_ranges().

◆ end

grid.TimelinesRenderer.end

end

Definition at line 646 of file grid.py.

Referenced by grid.TimelinesRenderer.draw_events(), and grid.TimelinesRenderer.draw_ranges().

◆ grey_background

grid.TimelinesRenderer.grey_background

grey background

Definition at line 797 of file grid.py.

Referenced by grid.TimelinesRenderer.draw_events(), and grid.TimelinesRenderer.draw_ranges().

◆ height

grid.TimelinesRenderer.height

height

Definition at line 699 of file grid.py.

Referenced by visualizer.svgitem.SvgItem._size_changed(), visualizer.svgitem.SvgItem.do_get_property(), visualizer.svgitem.SvgItem.do_simple_is_item_at(), and grid.TimelinesRenderer.get_height().

◆ left_width

grid.TimelinesRenderer.left_width

left width

Definition at line 695 of file grid.py.

Referenced by grid.TimelinesRenderer.draw(), and grid.TimelinesRenderer.get_data_x_start().

◆ max_text_height

grid.TimelinesRenderer.max_text_height

maximum text height

Definition at line 697 of file grid.py.

Referenced by grid.TimelinesRenderer.draw_events().

◆ padding

grid.TimelinesRenderer.padding

padding

Definition at line 621 of file grid.py.

Referenced by grid.TimelinesRenderer.draw(), grid.TimelinesRenderer.draw_events(), grid.TimelinesRenderer.draw_ranges(), grid.TimelinesRenderer.get_data_x_start(), and grid.TimelinesRenderer.layout().

◆ right_width

grid.TimelinesRenderer.right_width

right width

Definition at line 696 of file grid.py.

Referenced by grid.TimelinesRenderer.draw(), and grid.TimelinesRenderer.get_data_x_start().

◆ start

grid.TimelinesRenderer.start

start

Definition at line 645 of file grid.py.

Referenced by grid.TimelinesRenderer.draw_events(), and grid.TimelinesRenderer.draw_ranges().

◆ timelines

grid.TimelinesRenderer.timelines

timelines

Definition at line 636 of file grid.py.

Referenced by grid.Timelines.get(), grid.Timelines.get_all(), grid.Timelines.get_all_range_values(), grid.Timelines.get_bounds(), grid.TimelinesRenderer.layout(), and grid.Timelines.sort().

◆ width

grid.TimelinesRenderer.width

width

Definition at line 698 of file grid.py.

Referenced by visualizer.svgitem.SvgItem._size_changed(), visualizer.svgitem.SvgItem.do_get_property(), visualizer.svgitem.SvgItem.do_simple_is_item_at(), and grid.TimelinesRenderer.draw().

The documentation for this class was generated from the following file:

utils/grid.py
