ns3::AlohaNoackMacHeader Class Reference

Header for the AlohaNoack NetDevice. More...

#include "aloha-noack-mac-header.h"

+ Inheritance diagram for ns3::AlohaNoackMacHeader:

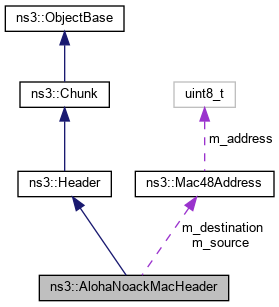

+ Collaboration diagram for ns3::AlohaNoackMacHeader:

Public Member Functions

virtual uint32_t Deserialize (Buffer::Iterator start)

Mac48Address GetDestination () const
 Get the destination address. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

virtual uint32_t GetSerializedSize (void) const

Mac48Address GetSource () const
 Get the source address. More...

virtual void Print (std::ostream &os) const

virtual void Serialize (Buffer::Iterator start) const

void SetDestination (Mac48Address destination)
 Set the destination address. More...

void SetSource (Mac48Address source)
 Set the source address. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

Mac48Address m_destination
 destination address More...

Mac48Address m_source
 source address More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Header for the AlohaNoack NetDevice.

Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 24 bytes (on a 64-bit architecture).

Definition at line 36 of file aloha-noack-mac-header.h.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::AlohaNoackMacHeader::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 66 of file aloha-noack-mac-header.cc.

References GetSerializedSize(), m_destination, m_source, ns3::ReadFrom(), and visualizer.core::start().

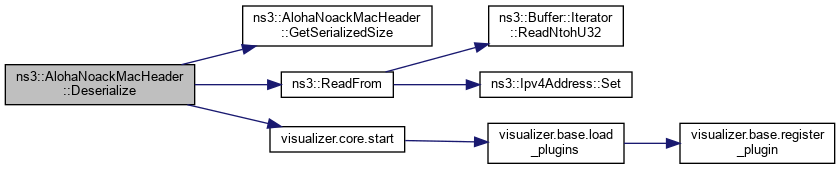

+ Here is the call graph for this function:

◆ GetDestination()

Mac48Address ns3::AlohaNoackMacHeader::GetDestination ( void  ) const

Get the destination address.

Returns
the destination address

Definition at line 101 of file aloha-noack-mac-header.cc.

References m_destination.

Referenced by ns3::AlohaNoackNetDevice::NotifyReceptionEndOk().

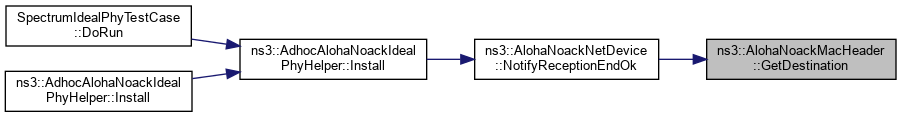

+ Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::AlohaNoackMacHeader::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 43 of file aloha-noack-mac-header.cc.

References GetTypeId().

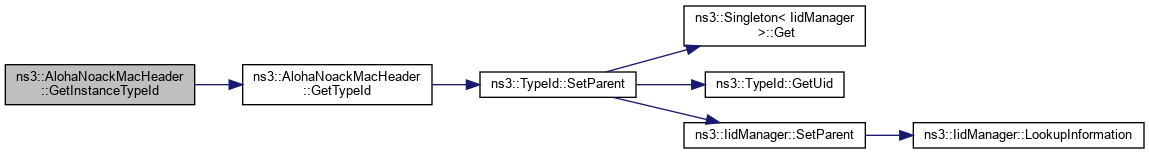

+ Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t ns3::AlohaNoackMacHeader::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 51 of file aloha-noack-mac-header.cc.

Referenced by Deserialize().

+ Here is the caller graph for this function:

◆ GetSource()

Mac48Address ns3::AlohaNoackMacHeader::GetSource ( void  ) const

Get the source address.

Returns
the source address

Definition at line 89 of file aloha-noack-mac-header.cc.

References m_source.

Referenced by ns3::AlohaNoackNetDevice::NotifyReceptionEndOk().

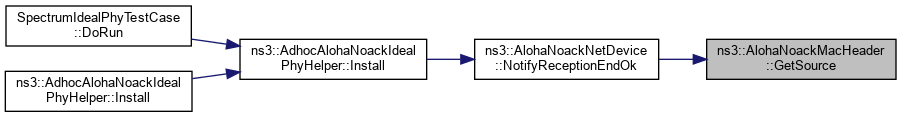

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::AlohaNoackMacHeader::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 32 of file aloha-noack-mac-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

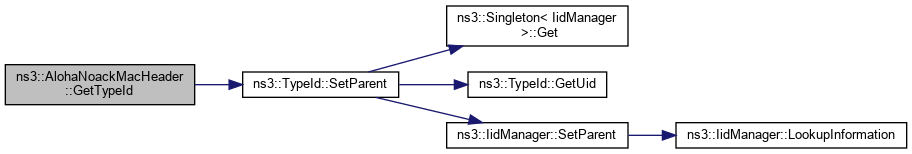

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print()

void ns3::AlohaNoackMacHeader::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 75 of file aloha-noack-mac-header.cc.

References m_destination, and m_source.

◆ Serialize()

void ns3::AlohaNoackMacHeader::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 59 of file aloha-noack-mac-header.cc.

References m_destination, m_source, visualizer.core::start(), and ns3::WriteTo().

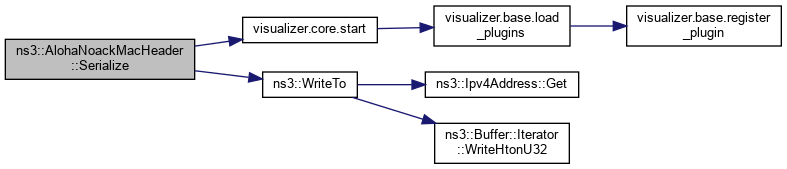

+ Here is the call graph for this function:

◆ SetDestination()

void ns3::AlohaNoackMacHeader::SetDestination ( Mac48Address  destination)

Set the destination address.

Parameters
destinationthe destination address

Definition at line 95 of file aloha-noack-mac-header.cc.

References m_destination.

Referenced by ns3::AlohaNoackNetDevice::SendFrom().

+ Here is the caller graph for this function:

◆ SetSource()

void ns3::AlohaNoackMacHeader::SetSource ( Mac48Address  source)

Set the source address.

Parameters
sourcethe source address

Definition at line 83 of file aloha-noack-mac-header.cc.

References m_source.

Referenced by ns3::AlohaNoackNetDevice::SendFrom().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_destination

Mac48Address ns3::AlohaNoackMacHeader::m_destination
private

destination address

Definition at line 74 of file aloha-noack-mac-header.h.

Referenced by Deserialize(), GetDestination(), Print(), Serialize(), and SetDestination().

◆ m_source

Mac48Address ns3::AlohaNoackMacHeader::m_source
private

source address

Definition at line 73 of file aloha-noack-mac-header.h.

Referenced by Deserialize(), GetSource(), Print(), Serialize(), and SetSource().


The documentation for this class was generated from the following files:
