Base class providing common user-level ascii trace operations for helpers representing IPv6 protocols . More...

#include "internet-trace-helper.h"

Inheritance diagram for ns3::AsciiTraceHelperForIpv6:

Public Member Functions
	AsciiTraceHelperForIpv6 ()
	Construct an AsciiTraceHelperForIpv6. More...

virtual	~AsciiTraceHelperForIpv6 ()
	Destroy an AsciiTraceHelperForIpv6. More...

void	EnableAsciiIpv6 (Ptr< OutputStreamWrapper > stream, Ipv6InterfaceContainer c)
	Enable ascii trace output on each device in the container which is of the appropriate type. More...

void	EnableAsciiIpv6 (Ptr< OutputStreamWrapper > stream, NodeContainer n)
	Enable ascii trace output on all Ipv6 and interface pairs existing in the nodes provided in the container. More...

void	EnableAsciiIpv6 (Ptr< OutputStreamWrapper > stream, Ptr< Ipv6 > ipv6, uint32_t interface)
	Enable ascii trace output on the indicated Ipv6 and interface pair. More...

void	EnableAsciiIpv6 (Ptr< OutputStreamWrapper > stream, std::string ipv6Name, uint32_t interface)
	Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More...

void	EnableAsciiIpv6 (Ptr< OutputStreamWrapper > stream, uint32_t nodeid, uint32_t interface)
	Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface. More...

void	EnableAsciiIpv6 (std::string prefix, Ipv6InterfaceContainer c)
	Enable ascii trace output on each Ipv6 and interface pair in the container. More...

void	EnableAsciiIpv6 (std::string prefix, NodeContainer n)
	Enable ascii trace output on all Ipv6 and interface pairs existing in the nodes provided in the container. More...

void	EnableAsciiIpv6 (std::string prefix, Ptr< Ipv6 > ipv6, uint32_t interface, bool explicitFilename=false)
	Enable ascii trace output on the indicated Ipv6 and interface pair. More...

void	EnableAsciiIpv6 (std::string prefix, std::string ipv6Name, uint32_t interface, bool explicitFilename=false)
	Enable ascii trace output the indicated Ipv6 and interface pair using an Ipv6 previously named using the ns-3 object name service. More...

void	EnableAsciiIpv6 (std::string prefix, uint32_t nodeid, uint32_t interface, bool explicitFilename)
	Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface. More...

void	EnableAsciiIpv6All (Ptr< OutputStreamWrapper > stream)
	Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

void	EnableAsciiIpv6All (std::string prefix)
	Enable ascii trace output on all Ipv6 and interface pairs existing in the set of all nodes created in the simulation. More...

virtual void	EnableAsciiIpv6Internal (Ptr< OutputStreamWrapper > stream, std::string prefix, Ptr< Ipv6 > ipv6, uint32_t interface, bool explicitFilename)=0
	Enable ascii trace output on the indicated Ipv6 and interface pair. More...

Private Member Functions
void	EnableAsciiIpv6Impl (Ptr< OutputStreamWrapper > stream, std::string prefix, Ipv6InterfaceContainer c)
	Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface. More...

void	EnableAsciiIpv6Impl (Ptr< OutputStreamWrapper > stream, std::string prefix, NodeContainer n)
	Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface. More...

void	EnableAsciiIpv6Impl (Ptr< OutputStreamWrapper > stream, std::string prefix, Ptr< Ipv6 > ipv6, uint32_t interface, bool explicitFilename)
	Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface. More...

void	EnableAsciiIpv6Impl (Ptr< OutputStreamWrapper > stream, std::string prefix, std::string ipv6Name, uint32_t interface, bool explicitFilename)
	Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface. More...

void	EnableAsciiIpv6Impl (Ptr< OutputStreamWrapper > stream, std::string prefix, uint32_t nodeid, uint32_t interface, bool explicitFilename)
	Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface. More...

Detailed Description

Base class providing common user-level ascii trace operations for helpers representing IPv6 protocols .

Definition at line 489 of file internet-trace-helper.h.

Constructor & Destructor Documentation

◆ AsciiTraceHelperForIpv6()

ns3::AsciiTraceHelperForIpv6::AsciiTraceHelperForIpv6 ( )

inline

Construct an AsciiTraceHelperForIpv6.

Definition at line 495 of file internet-trace-helper.h.

◆ ~AsciiTraceHelperForIpv6()

virtual ns3::AsciiTraceHelperForIpv6::~AsciiTraceHelperForIpv6 ( )

inlinevirtual

Destroy an AsciiTraceHelperForIpv6.

Definition at line 500 of file internet-trace-helper.h.

Member Function Documentation

◆ EnableAsciiIpv6() [1/10]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6	(	Ptr< OutputStreamWrapper >	stream,
		Ipv6InterfaceContainer	c
	)

Enable ascii trace output on each device in the container which is of the appropriate type.

Parameters

stream	An OutputStreamWrapper representing an existing file to use when writing trace data.
c	Ipv6InterfaceContainer of Ipv6 and interface pairs on which to enable tracing.

Definition at line 433 of file internet-trace-helper.cc.

References EnableAsciiIpv6Impl().

Here is the call graph for this function:

◆ EnableAsciiIpv6() [2/10]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6	(	Ptr< OutputStreamWrapper >	stream,
		NodeContainer	n
	)

Enable ascii trace output on all Ipv6 and interface pairs existing in the nodes provided in the container.

Parameters

stream	An OutputStreamWrapper representing an existing file to use when writing trace data.
n	container of nodes.

Definition at line 464 of file internet-trace-helper.cc.

References EnableAsciiIpv6Impl().

Here is the call graph for this function:

◆ EnableAsciiIpv6() [3/10]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6	(	Ptr< OutputStreamWrapper >	stream,
		Ptr< Ipv6 >	ipv6,
		uint32_t	interface
	)

Enable ascii trace output on the indicated Ipv6 and interface pair.

Parameters

stream	An OutputStreamWrapper representing an existing file to use when writing trace data.
ipv6	Ptr<Ipv6> on which you want to enable tracing.
interface	The interface on which you want to enable tracing.

Definition at line 382 of file internet-trace-helper.cc.

References EnableAsciiIpv6Internal().

Here is the call graph for this function:

◆ EnableAsciiIpv6() [4/10]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6	(	Ptr< OutputStreamWrapper >	stream,
		std::string	ipv6Name,
		uint32_t	interface
	)

Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service.

Parameters

stream	An OutputStreamWrapper representing an existing file to use when writing trace data.
ipv6Name	The name of the Ipv6 on which you want to enable tracing.
interface	The interface on which you want to enable tracing.

Definition at line 400 of file internet-trace-helper.cc.

References EnableAsciiIpv6Impl().

Here is the call graph for this function:

◆ EnableAsciiIpv6() [5/10]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6	(	Ptr< OutputStreamWrapper >	stream,
		uint32_t	nodeid,
		uint32_t	interface
	)

Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface.

Since there can be only one Ipv6 aggregated to a node, the node-id unambiguously determines the Ipv6.

Parameters

stream	An OutputStreamWrapper representing an existing file to use when writing trace data.
nodeid	The node identifier/number of the node on which to enable ascii tracing
interface	The interface on which you want to enable tracing.

Definition at line 511 of file internet-trace-helper.cc.

References EnableAsciiIpv6Impl().

Here is the call graph for this function:

◆ EnableAsciiIpv6() [6/10]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6	(	std::string	prefix,
		Ipv6InterfaceContainer	c
	)

Enable ascii trace output on each Ipv6 and interface pair in the container.

Parameters

prefix	Filename prefix to use for ascii files.
c	Ipv6InterfaceContainer of Ipv6 and interface pairs on which to enable tracing.

Definition at line 424 of file internet-trace-helper.cc.

References EnableAsciiIpv6Impl().

Here is the call graph for this function:

◆ EnableAsciiIpv6() [7/10]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6	(	std::string	prefix,
		NodeContainer	n
	)

Enable ascii trace output on all Ipv6 and interface pairs existing in the nodes provided in the container.

Parameters

prefix	Filename prefix to use for ascii files.
n	container of nodes.

Definition at line 455 of file internet-trace-helper.cc.

References EnableAsciiIpv6Impl().

Here is the call graph for this function:

◆ EnableAsciiIpv6() [8/10]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6	(	std::string	prefix,
		Ptr< Ipv6 >	ipv6,
		uint32_t	interface,
		bool	explicitFilename = `false`
	)

Enable ascii trace output on the indicated Ipv6 and interface pair.

Parameters

prefix	Filename prefix to use for ascii files.
ipv6	Ptr<Ipv6> on which you want to enable tracing.
interface	The interface on which you want to enable tracing.
explicitFilename	Treat the prefix as an explicit filename if true.

Definition at line 373 of file internet-trace-helper.cc.

References EnableAsciiIpv6Internal().

Here is the call graph for this function:

◆ EnableAsciiIpv6() [9/10]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6	(	std::string	prefix,
		std::string	ipv6Name,
		uint32_t	interface,
		bool	explicitFilename = `false`
	)

Enable ascii trace output the indicated Ipv6 and interface pair using an Ipv6 previously named using the ns-3 object name service.

Parameters

prefix	filename prefix to use for ascii files.
ipv6Name	The name of the Ipv6 on which you want to enable tracing.
interface	The interface on which you want to enable tracing.
explicitFilename	Treat the prefix as an explicit filename if true.

Definition at line 391 of file internet-trace-helper.cc.

References EnableAsciiIpv6Impl().

Here is the call graph for this function:

◆ EnableAsciiIpv6() [10/10]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6	(	std::string	prefix,
		uint32_t	nodeid,
		uint32_t	interface,
		bool	explicitFilename
	)

Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface.

Since there can be only one Ipv6 aggregated to a node, the node-id unambiguously determines the Ipv6.

Parameters

prefix	Filename prefix to use when creating ascii trace files
nodeid	The node identifier/number of the node on which to enable ascii tracing
interface	The device identifier/index of the device on which to enable ascii tracing
explicitFilename	Treat the prefix as an explicit filename if true.

Definition at line 520 of file internet-trace-helper.cc.

References EnableAsciiIpv6Impl().

Here is the call graph for this function:

◆ EnableAsciiIpv6All() [1/2]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6All ( Ptr< OutputStreamWrapper > stream )

Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation.

Parameters

stream An OutputStreamWrapper representing an existing file to use when writing trace data.

Definition at line 502 of file internet-trace-helper.cc.

References EnableAsciiIpv6Impl(), and ns3::NodeContainer::GetGlobal().

Here is the call graph for this function:

◆ EnableAsciiIpv6All() [2/2]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6All ( std::string prefix )

Enable ascii trace output on all Ipv6 and interface pairs existing in the set of all nodes created in the simulation.

Parameters

prefix Filename prefix to use for ascii files.

Definition at line 493 of file internet-trace-helper.cc.

References EnableAsciiIpv6Impl(), and ns3::NodeContainer::GetGlobal().

Here is the call graph for this function:

◆ EnableAsciiIpv6Impl() [1/5]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6Impl	(	Ptr< OutputStreamWrapper >	stream,
		std::string	prefix,
		Ipv6InterfaceContainer	c
	)

private

Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface.

Since there can be only one Ipv6 aggregated to a node, the node-id unambiguously determines the Ipv6.

Parameters

stream	An OutputStreamWrapper representing an existing file to use when writing trace data.
prefix	Filename prefix to use when creating ascii trace files
c	Ipv6InterfaceContainer of Ipv6 and interface pairs

Definition at line 442 of file internet-trace-helper.cc.

References ns3::Ipv6InterfaceContainer::Begin(), EnableAsciiIpv6Internal(), and ns3::Ipv6InterfaceContainer::End().

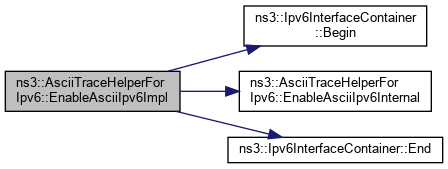

Here is the call graph for this function:

◆ EnableAsciiIpv6Impl() [2/5]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6Impl	(	Ptr< OutputStreamWrapper >	stream,
		std::string	prefix,
		NodeContainer	n
	)

private

Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface.

Since there can be only one Ipv6 aggregated to a node, the node-id unambiguously determines the Ipv6.

Parameters

stream	An OutputStreamWrapper representing an existing file to use when writing trace data.
prefix	Filename prefix to use when creating ascii trace files
n	container of nodes.

Definition at line 473 of file internet-trace-helper.cc.

References ns3::NodeContainer::Begin(), EnableAsciiIpv6Internal(), ns3::NodeContainer::End(), and ns3::Object::GetObject().

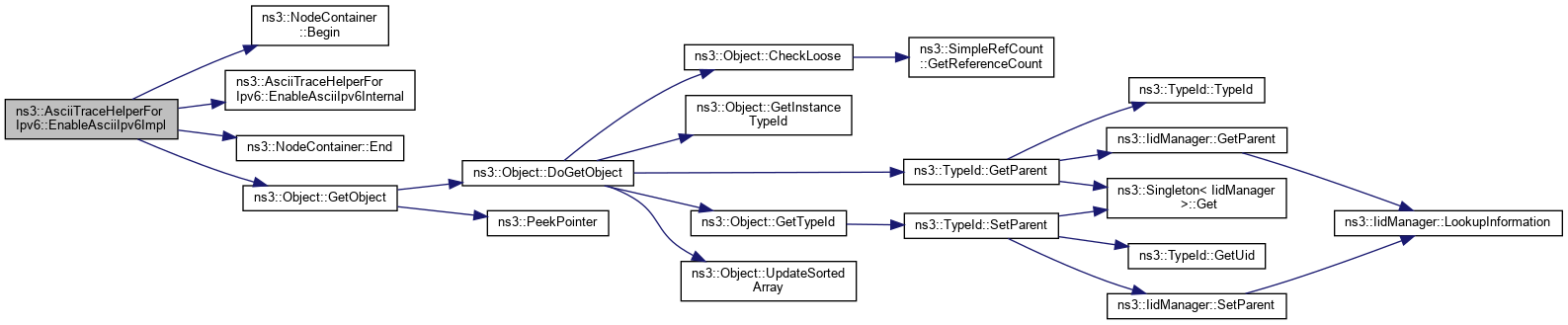

Here is the call graph for this function:

◆ EnableAsciiIpv6Impl() [3/5]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6Impl	(	Ptr< OutputStreamWrapper >	stream,
		std::string	prefix,
		Ptr< Ipv6 >	ipv6,
		uint32_t	interface,
		bool	explicitFilename
	)

private

Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface.

Since there can be only one Ipv6 aggregated to a node, the node-id unambiguously determines the Ipv6.

Parameters

stream	An OutputStreamWrapper representing an existing file to use when writing trace data.
prefix	Filename prefix to use when creating ascii trace files
ipv6	Ptr<Ipv6> on which you want to enable tracing.
interface	The device identifier/index of the device on which to enable ascii tracing
explicitFilename	Treat the prefix as an explicit filename if true.

◆ EnableAsciiIpv6Impl() [4/5]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6Impl	(	Ptr< OutputStreamWrapper >	stream,
		std::string	prefix,
		std::string	ipv6Name,
		uint32_t	interface,
		bool	explicitFilename
	)

private

Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface.

Since there can be only one Ipv6 aggregated to a node, the node-id unambiguously determines the Ipv6.

Parameters

stream	An OutputStreamWrapper representing an existing file to use when writing trace data.
prefix	Filename prefix to use when creating ascii trace files
ipv6Name	Name of the Ptr<Ipv6> on which you want to enable tracing.
interface	The device identifier/index of the device on which to enable ascii tracing
explicitFilename	Treat the prefix as an explicit filename if true.

Definition at line 409 of file internet-trace-helper.cc.

References EnableAsciiIpv6Internal().

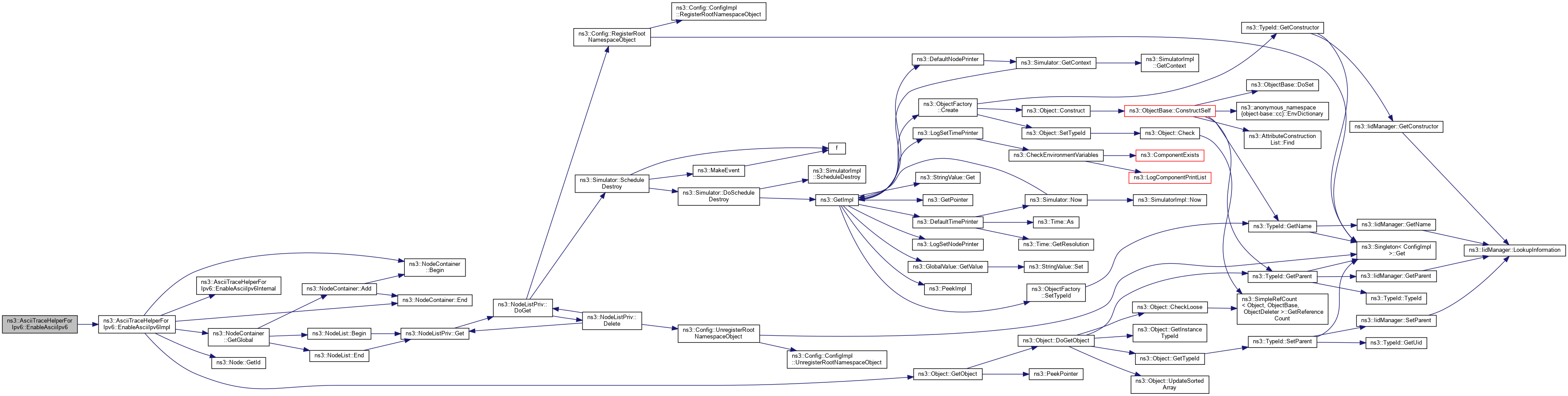

Here is the call graph for this function:

◆ EnableAsciiIpv6Impl() [5/5]

void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6Impl	(	Ptr< OutputStreamWrapper >	stream,
		std::string	prefix,
		uint32_t	nodeid,
		uint32_t	interface,
		bool	explicitFilename
	)

private

Enable ascii trace output on the Ipv6 and interface pair specified by a global node-id (of a previously created node) and interface.

Since there can be only one Ipv6 aggregated to a node, the node-id unambiguously determines the Ipv6.

Parameters

stream	An OutputStreamWrapper representing an existing file to use when writing trace data.
prefix	Filename prefix to use when creating ascii trace files
nodeid	The node identifier/number of the node on which to enable ascii tracing
interface	The device identifier/index of the device on which to enable ascii tracing
explicitFilename	Treat the prefix as an explicit filename if true.

Definition at line 529 of file internet-trace-helper.cc.

References ns3::NodeContainer::Begin(), EnableAsciiIpv6Internal(), ns3::NodeContainer::End(), ns3::NodeContainer::GetGlobal(), ns3::Node::GetId(), and ns3::Object::GetObject().

Referenced by EnableAsciiIpv6(), and EnableAsciiIpv6All().

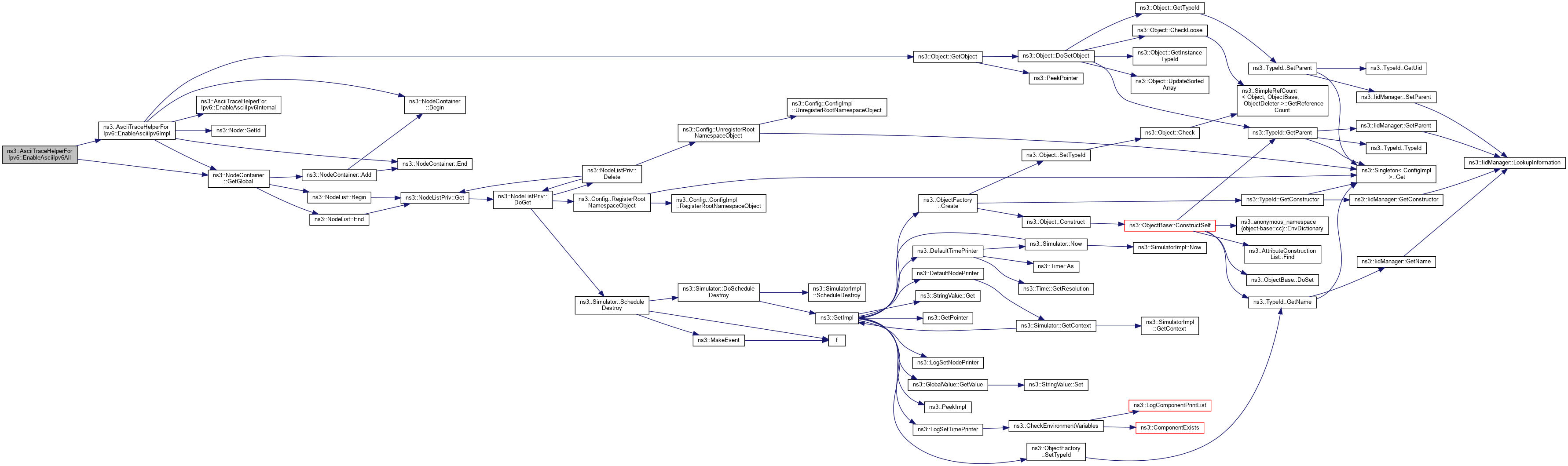

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EnableAsciiIpv6Internal()

virtual void ns3::AsciiTraceHelperForIpv6::EnableAsciiIpv6Internal	(	Ptr< OutputStreamWrapper >	stream,
		std::string	prefix,
		Ptr< Ipv6 >	ipv6,
		uint32_t	interface,
		bool	explicitFilename
	)

pure virtual

Enable ascii trace output on the indicated Ipv6 and interface pair.

The implementation is expected to use a provided Ptr<OutputStreamWrapper> if it is non-null. If the OutputStreamWrapper is null, the implementation is expected to use a provided prefix to construct a new file name for each net device using the rules described in the class overview.

If the prefix is provided, there will be one file per Ipv6 and interface pair created. In this case, adding a trace context to the file would be pointless, so the helper implementation is expected to TraceConnectWithoutContext.

If the output stream object is provided, there may be many different Ipv6 and interface pairs writing to a single file. In this case, the trace context could be important, so the helper implementation is expected to TraceConnect.

Parameters

stream	An OutputStreamWrapper representing an existing file to use when writing trace data.
prefix	Filename prefix to use for ascii trace files.
ipv6	Ptr<Ipv6> on which you want to enable tracing.
interface	The interface on which you want to enable tracing.
explicitFilename	Treat the prefix as an explicit filename if true.

Implemented in ns3::InternetStackHelper.

Referenced by EnableAsciiIpv6(), and EnableAsciiIpv6Impl().

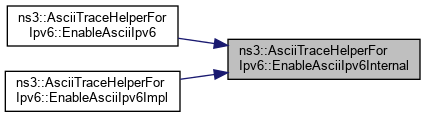

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

src/internet/helper/internet-trace-helper.h
src/internet/helper/internet-trace-helper.cc

Public Member Functions

Private Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ AsciiTraceHelperForIpv6()

◆ ~AsciiTraceHelperForIpv6()

Member Function Documentation

◆ EnableAsciiIpv6() [1/10]

◆ EnableAsciiIpv6() [2/10]

◆ EnableAsciiIpv6() [3/10]

◆ EnableAsciiIpv6() [4/10]

◆ EnableAsciiIpv6() [5/10]

◆ EnableAsciiIpv6() [6/10]

◆ EnableAsciiIpv6() [7/10]

◆ EnableAsciiIpv6() [8/10]

◆ EnableAsciiIpv6() [9/10]

◆ EnableAsciiIpv6() [10/10]

◆ EnableAsciiIpv6All() [1/2]

◆ EnableAsciiIpv6All() [2/2]

◆ EnableAsciiIpv6Impl() [1/5]

◆ EnableAsciiIpv6Impl() [2/5]

◆ EnableAsciiIpv6Impl() [3/5]

◆ EnableAsciiIpv6Impl() [4/5]

◆ EnableAsciiIpv6Impl() [5/5]

◆ EnableAsciiIpv6Internal()
