A container for one type of attribute. More...

#include "attribute-container.h"

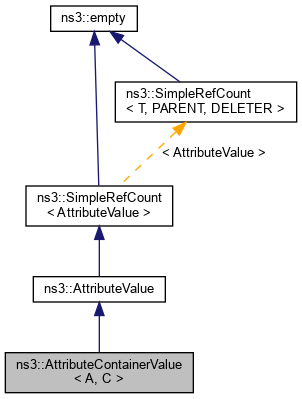

Inheritance diagram for ns3::AttributeContainerValue< A, C >:

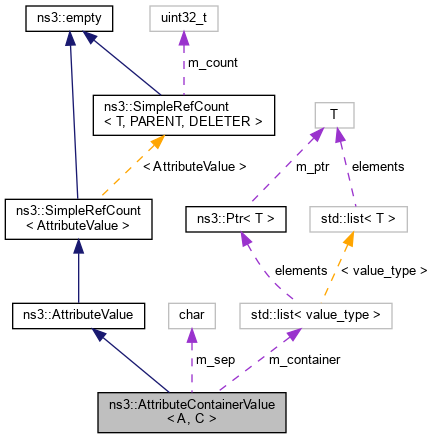

Collaboration diagram for ns3::AttributeContainerValue< A, C >:

Public Types
typedef A	attribute_type
	AttributeValue (element) type. More...

typedef container_type::const_iterator	const_iterator
	stl-style Const iterator type. More...

typedef std::list< value_type >	container_type
	Internal container type. More...

typedef std::invoke_result_t< decltype(&A::Get), A >	item_type
	Item type of container returned by Get. More...

typedef container_type::iterator	iterator
	stl-style Non-const iterator type. More...

typedef AttributeContainerValue::const_iterator	Iterator
	NS3 style iterator type. More...

typedef C< item_type >	result_type
	Type of container returned. More...

typedef container_type::size_type	size_type
	Size type for container. More...

typedef Ptr< A >	value_type
	Type actually stored within the container. More...

Public Member Functions
	AttributeContainerValue (char sep=',')
	Default constructor. More...

template<class CONTAINER >
	AttributeContainerValue (const CONTAINER &c)
	Construct from another container. More...

template<class ITER >
	AttributeContainerValue (const ITER begin, const ITER end)
	Construct from iterators. More...

	~AttributeContainerValue ()
	Destructor. More...

Iterator	Begin (void)
	NS3-style beginning of container. More...

iterator	begin (void)
	STL-style beginning of container. More...

const_iterator	begin (void) const
	STL-style const beginning of container. More...

Ptr< AttributeValue >	Copy (void) const

bool	DeserializeFromString (std::string value, Ptr< const AttributeChecker > checker)

Iterator	End (void)
	NS3-style ending of container. More...

iterator	end (void)
	STL-style end of container. More...

const_iterator	end (void) const
	STL-style const end of container. More...

result_type	Get (void) const
	Return a container of items. More...

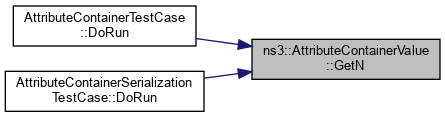

size_type	GetN (void) const
	NS3-style Number of items. More...

std::string	SerializeToString (Ptr< const AttributeChecker > checker) const

template<class T >
void	Set (const T &c)
	Copy items from container c. More...

size_type	size (void) const
	STL-style number of items in container. More...

Public Member Functions inherited from ns3::AttributeValue
	AttributeValue ()

virtual	~AttributeValue ()

Public Member Functions inherited from ns3::SimpleRefCount< AttributeValue >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Member Functions
template<class ITER >
Ptr< AttributeContainerValue< A, C > >	CopyFrom (const ITER begin, const ITER end)
	Copy items from begin to end. More...

Private Attributes
container_type	m_container
	Internal container. More...

char	m_sep
	Item separator. More...

Detailed Description

template<class A, template< class... > class C = std::list>
class ns3::AttributeContainerValue< A, C >

A container for one type of attribute.

The container uses A to parse items into elements. Internally the container is always a list but an instance can return the items in a container specified by C.

Template Parameters

A	AttributeValue type to be contained.
C	Possibly templated container class returned by Get.

Definition at line 51 of file attribute-container.h.

Member Typedef Documentation

◆ attribute_type

template<class A , template< class... > class C = std::list>

typedef A ns3::AttributeContainerValue< A, C >::attribute_type

AttributeValue (element) type.

Definition at line 55 of file attribute-container.h.

◆ const_iterator

template<class A , template< class... > class C = std::list>

typedef container_type::const_iterator ns3::AttributeContainerValue< A, C >::const_iterator

stl-style Const iterator type.

Definition at line 61 of file attribute-container.h.

◆ container_type

template<class A , template< class... > class C = std::list>

typedef std::list<value_type> ns3::AttributeContainerValue< A, C >::container_type

Internal container type.

Definition at line 59 of file attribute-container.h.

◆ item_type

template<class A , template< class... > class C = std::list>

typedef std::invoke_result_t<decltype(&A::Get), A> ns3::AttributeContainerValue< A, C >::item_type

Item type of container returned by Get.

Definition at line 71 of file attribute-container.h.

◆ iterator

template<class A , template< class... > class C = std::list>

typedef container_type::iterator ns3::AttributeContainerValue< A, C >::iterator

stl-style Non-const iterator type.

Definition at line 63 of file attribute-container.h.

◆ Iterator

template<class A , template< class... > class C = std::list>

typedef AttributeContainerValue::const_iterator ns3::AttributeContainerValue< A, C >::Iterator

NS3 style iterator type.

Definition at line 67 of file attribute-container.h.

◆ result_type

template<class A , template< class... > class C = std::list>

typedef C<item_type> ns3::AttributeContainerValue< A, C >::result_type

Type of container returned.

Definition at line 73 of file attribute-container.h.

◆ size_type

template<class A , template< class... > class C = std::list>

typedef container_type::size_type ns3::AttributeContainerValue< A, C >::size_type

Size type for container.

Definition at line 65 of file attribute-container.h.

◆ value_type

template<class A , template< class... > class C = std::list>

typedef Ptr<A> ns3::AttributeContainerValue< A, C >::value_type

Type actually stored within the container.

Definition at line 57 of file attribute-container.h.

Constructor & Destructor Documentation

◆ AttributeContainerValue() [1/3]

template<class A , template< class... > class C>

ns3::AttributeContainerValue< A, C >::AttributeContainerValue ( char sep = ',' )

Default constructor.

Parameters

[in] sep Character separator between elements for parsing.

Definition at line 341 of file attribute-container.h.

◆ AttributeContainerValue() [2/3]

template<class A , template< class... > class C>

template<class CONTAINER >

ns3::AttributeContainerValue< A, C >::AttributeContainerValue ( const CONTAINER & c )

Construct from another container.

Template Parameters

CONTAINER [deduced] type of container passed for initialization.

Parameters

c	Instance of CONTAINER with which to initialize AttributeContainerValue.

Definition at line 349 of file attribute-container.h.

◆ AttributeContainerValue() [3/3]

template<class A , template< class... > class C>

template<class ITER >

ns3::AttributeContainerValue< A, C >::AttributeContainerValue	(	const ITER	begin,
		const ITER	end
	)

Construct from iterators.

Template Parameters

ITER	[deduced] type of iterator.

Parameters

[in]	begin	Iterator that points to first initialization item.
[in]	end	Iterator that points ones past last initialization item.

Definition at line 357 of file attribute-container.h.

References ns3::AttributeContainerValue< A, C >::begin(), ns3::AttributeContainerValue< A, C >::CopyFrom(), and ns3::AttributeContainerValue< A, C >::end().

Here is the call graph for this function:

◆ ~AttributeContainerValue()

template<class A , template< class... > class C>

ns3::AttributeContainerValue< A, C >::~AttributeContainerValue

Destructor.

Definition at line 364 of file attribute-container.h.

Member Function Documentation

◆ Begin()

template<class A , template< class... > class C>

AttributeContainerValue< A, C >::Iterator ns3::AttributeContainerValue< A, C >::Begin ( void )

NS3-style beginning of container.

Returns: Iterator pointing to first time in container.

Definition at line 444 of file attribute-container.h.

Referenced by AttributeContainerTestCase::DoRun().

Here is the caller graph for this function:

◆ begin() [1/2]

template<class A , template< class... > class C>

AttributeContainerValue< A, C >::iterator ns3::AttributeContainerValue< A, C >::begin ( void )

STL-style beginning of container.

Returns: Iterator pointing to first item in container.

Definition at line 465 of file attribute-container.h.

Referenced by ns3::AttributeContainerValue< A, C >::AttributeContainerValue().

Here is the caller graph for this function:

◆ begin() [2/2]

template<class A , template< class... > class C>

AttributeContainerValue< A, C >::const_iterator ns3::AttributeContainerValue< A, C >::begin ( void ) const

STL-style const beginning of container.

Returns: Const iterator pointing to first item in container.

Definition at line 479 of file attribute-container.h.

◆ Copy()

template<class A , template< class... > class C>

Ptr< AttributeValue > ns3::AttributeContainerValue< A, C >::Copy ( void ) const

virtual

Returns: a deep copy of this class, wrapped into an Attribute object.

Implements ns3::AttributeValue.

Definition at line 371 of file attribute-container.h.

◆ CopyFrom()

template<class A , template< class... > class C>

template<class ITER >

Ptr< AttributeContainerValue< A, C > > ns3::AttributeContainerValue< A, C >::CopyFrom	(	const ITER	begin,
		const ITER	end
	)

private

Copy items from begin to end.

The internal container is cleared before values are copied using the push_back method.

Template Parameters

ITER	[deduced] iterator type

Parameters

[in]	begin	Points to first item to copy
[in]	end	Points to one after last item to copy

Returns: This object with items copied.

Definition at line 494 of file attribute-container.h.

Referenced by ns3::AttributeContainerValue< A, C >::AttributeContainerValue().

Here is the caller graph for this function:

◆ DeserializeFromString()

template<class A , template< class... > class C>

bool ns3::AttributeContainerValue< A, C >::DeserializeFromString	(	std::string	value,
		Ptr< const AttributeChecker >	checker
	)

virtual

Parameters

[in]	value	A string representation of the value
[in]	checker	A pointer to the checker associated to the attribute.

Returns: true if the input string was correctly-formatted and could be successfully deserialized, false otherwise.

Upon return of this function, this AttributeValue instance contains the deserialized value. In most cases, this method will not make any use of the checker argument. However, in a very limited set of cases, the checker argument is needed to perform proper serialization. A nice example of code which needs it is the EnumValue::SerializeToString code.

Implements ns3::AttributeValue.

Definition at line 381 of file attribute-container.h.

Referenced by AttributeContainerSerializationTestCase::DoRun().

Here is the caller graph for this function:

◆ End()

template<class A , template< class... > class C>

AttributeContainerValue< A, C >::Iterator ns3::AttributeContainerValue< A, C >::End ( void )

NS3-style ending of container.

Returns: Iterator pointing one past last item of container.

Definition at line 451 of file attribute-container.h.

Referenced by AttributeContainerTestCase::DoRun().

Here is the caller graph for this function:

◆ end() [1/2]

template<class A , template< class... > class C>

AttributeContainerValue< A, C >::iterator ns3::AttributeContainerValue< A, C >::end ( void )

STL-style end of container.

Returns: Iterator pointing to one past last item in container.

Definition at line 472 of file attribute-container.h.

Referenced by ns3::AttributeContainerValue< A, C >::AttributeContainerValue(), grid.TimelinesRenderer::draw_events(), and grid.TimelinesRenderer::draw_ranges().

Here is the caller graph for this function:

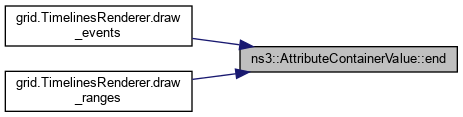

◆ end() [2/2]

template<class A , template< class... > class C>

AttributeContainerValue< A, C >::const_iterator ns3::AttributeContainerValue< A, C >::end ( void ) const

STL-style const end of container.

Returns: Const iterator pointing to one past last item in container.

Definition at line 486 of file attribute-container.h.

Referenced by grid.TimelinesRenderer::draw_events(), and grid.TimelinesRenderer::draw_ranges().

Here is the caller graph for this function:

◆ Get()

template<class A , template< class... > class C>

AttributeContainerValue< A, C >::result_type ns3::AttributeContainerValue< A, C >::Get ( void ) const

Return a container of items.

Returns: Container of items.

Definition at line 418 of file attribute-container.h.

◆ GetN()

template<class A , template< class... > class C>

AttributeContainerValue< A, C >::size_type ns3::AttributeContainerValue< A, C >::GetN ( void ) const

NS3-style Number of items.

Returns: Number of items in container.

Definition at line 437 of file attribute-container.h.

Referenced by AttributeContainerTestCase::DoRun(), and AttributeContainerSerializationTestCase::DoRun().

Here is the caller graph for this function:

◆ SerializeToString()

template<class A , template< class... > class C>

std::string ns3::AttributeContainerValue< A, C >::SerializeToString ( Ptr< const AttributeChecker > checker ) const

virtual

Parameters

[in] checker The checker associated to the attribute

Returns: A string representation of this value.

In most cases, this method will not make any use of the checker argument. However, in a very limited set of cases, the checker argument is needed to perform proper serialization. A nice example of code which needs it is the EnumValue::SerializeToString code.

Implements ns3::AttributeValue.

Definition at line 403 of file attribute-container.h.

Referenced by AttributeContainerSerializationTestCase::DoRun().

Here is the caller graph for this function:

◆ Set()

template<class A , template< class... > class C>

template<class T >

void ns3::AttributeContainerValue< A, C >::Set ( const T & c )

Copy items from container c.

This method assumes c has stl-style begin and end methods. The AttributeContainerValue value is cleared before copying from c.

Template Parameters

T	type of container.

Parameters

c	Container from which to copy items.

Definition at line 429 of file attribute-container.h.

◆ size()

template<class A , template< class... > class C>

AttributeContainerValue< A, C >::size_type ns3::AttributeContainerValue< A, C >::size ( void ) const

STL-style number of items in container.

Returns: number of items in container.

Definition at line 458 of file attribute-container.h.

Referenced by AttributeContainerSetGetTestCase::DoRun().

Here is the caller graph for this function:

Member Data Documentation

◆ m_container

template<class A , template< class... > class C = std::list>

container_type ns3::AttributeContainerValue< A, C >::m_container

private

Internal container.

Definition at line 182 of file attribute-container.h.

◆ m_sep

template<class A , template< class... > class C = std::list>

char ns3::AttributeContainerValue< A, C >::m_sep

private

Item separator.

Definition at line 181 of file attribute-container.h.

The documentation for this class was generated from the following file:

src/core/model/attribute-container.h

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

template<class A, template< class... > class C = std::list> class ns3::AttributeContainerValue< A, C >

Member Typedef Documentation

◆ attribute_type

◆ const_iterator

◆ container_type

◆ item_type

◆ iterator

◆ Iterator

◆ result_type

◆ size_type

◆ value_type

Constructor & Destructor Documentation

◆ AttributeContainerValue() [1/3]

◆ AttributeContainerValue() [2/3]

◆ AttributeContainerValue() [3/3]

◆ ~AttributeContainerValue()

Member Function Documentation

◆ Begin()

◆ begin() [1/2]

◆ begin() [2/2]

◆ Copy()

◆ CopyFrom()

◆ DeserializeFromString()

◆ End()

◆ end() [1/2]

◆ end() [2/2]

◆ Get()

◆ GetN()

◆ SerializeToString()

◆ Set()

◆ size()

Member Data Documentation

◆ m_container

◆ m_sep

template<class A, template< class... > class C = std::list>
class ns3::AttributeContainerValue< A, C >
