This class implements the bandwidth-request mac Header as described by IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems 6.3.2.1.2 Bandwidth request header, page 38. More...

#include "wimax-mac-header.h"

Inheritance diagram for ns3::BandwidthRequestHeader:

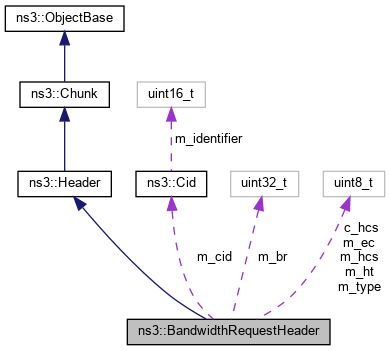

Collaboration diagram for ns3::BandwidthRequestHeader:

Public Types
enum	HeaderType { HEADER_TYPE_INCREMENTAL , HEADER_TYPE_AGGREGATE }
	Header type enumeration. More...

Public Member Functions
	BandwidthRequestHeader (void)

	~BandwidthRequestHeader (void)

bool	check_hcs (void) const
	Check HCS. More...

uint32_t	Deserialize (Buffer::Iterator start)

uint32_t	GetBr (void) const
	Get BR field. More...

Cid	GetCid (void) const
	Get CID field. More...

uint8_t	GetEc (void) const
	Get EC field. More...

uint8_t	GetHcs (void) const
	Get HCS field. More...

uint8_t	GetHt (void) const
	Get HT field. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

std::string	GetName (void) const
	Get name field. More...

uint32_t	GetSerializedSize (void) const

uint8_t	GetType (void) const
	Get type field. More...

void	Print (std::ostream &os) const

void	Serialize (Buffer::Iterator start) const

void	SetBr (uint32_t br)
	Set BR field. More...

void	SetCid (Cid cid)
	Set CID field. More...

void	SetEc (uint8_t ec)
	Set EC field. More...

void	SetHcs (uint8_t hcs)
	Set HCS field. More...

void	SetHt (uint8_t ht)
	Set HT field. More...

void	SetType (uint8_t type)
	Set type field. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t	c_hcs
	calculated header check sequence; this is used to check if the received header is correct or not More...

uint32_t	m_br
	Bandwidth Request. More...

Cid	m_cid
	Connection identifier. More...

uint8_t	m_ec
	Encryption Control. More...

uint8_t	m_hcs
	Header Check Sequence. More...

uint8_t	m_ht
	Header type. More...

uint8_t	m_type
	type More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This class implements the bandwidth-request mac Header as described by IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems 6.3.2.1.2 Bandwidth request header, page 38.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 24 bytes (on a 64-bit architecture).

Definition at line 251 of file wimax-mac-header.h.

Member Enumeration Documentation

◆ HeaderType

enum ns3::BandwidthRequestHeader::HeaderType

Header type enumeration.

Enumerator
HEADER_TYPE_INCREMENTAL
HEADER_TYPE_AGGREGATE

Definition at line 255 of file wimax-mac-header.h.

Constructor & Destructor Documentation

◆ BandwidthRequestHeader()

ns3::BandwidthRequestHeader::BandwidthRequestHeader ( void )

Definition at line 309 of file wimax-mac-header.cc.

◆ ~BandwidthRequestHeader()

ns3::BandwidthRequestHeader::~BandwidthRequestHeader ( void )

Definition at line 319 of file wimax-mac-header.cc.

Member Function Documentation

◆ check_hcs()

bool ns3::BandwidthRequestHeader::check_hcs ( void ) const

Check HCS.

Returns: true if HCS is validated

Definition at line 485 of file wimax-mac-header.cc.

References c_hcs, and m_hcs.

Referenced by ns3::BaseStationNetDevice::DoReceive().

Here is the caller graph for this function:

◆ Deserialize()

uint32_t ns3::BandwidthRequestHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 448 of file wimax-mac-header.cc.

References c_hcs, ns3::CRC8Calculate(), ns3::Buffer::Iterator::GetDistanceFrom(), m_br, m_cid, m_ec, m_hcs, m_ht, m_type, ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Here is the call graph for this function:

◆ GetBr()

uint32_t ns3::BandwidthRequestHeader::GetBr ( void ) const

Get BR field.

Returns: the BR

Definition at line 368 of file wimax-mac-header.cc.

References m_br.

Referenced by ns3::BandwidthManager::ProcessBandwidthRequest(), and ns3::UplinkSchedulerMBQoS::ProcessBandwidthRequest().

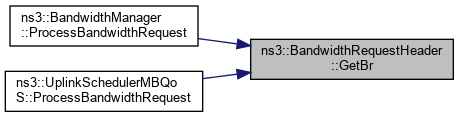

Here is the caller graph for this function:

◆ GetCid()

Cid ns3::BandwidthRequestHeader::GetCid ( void ) const

Get CID field.

Returns: the CID

Definition at line 373 of file wimax-mac-header.cc.

References m_cid.

Referenced by ns3::BaseStationNetDevice::DoReceive(), ns3::BandwidthManager::ProcessBandwidthRequest(), and ns3::UplinkSchedulerMBQoS::ProcessBandwidthRequest().

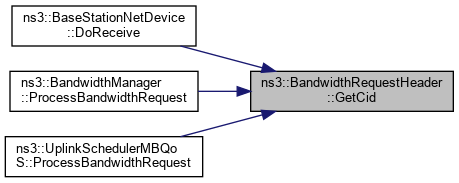

Here is the caller graph for this function:

◆ GetEc()

uint8_t ns3::BandwidthRequestHeader::GetEc ( void ) const

Get EC field.

Returns: the EC

Definition at line 358 of file wimax-mac-header.cc.

References m_ec.

◆ GetHcs()

uint8_t ns3::BandwidthRequestHeader::GetHcs ( void ) const

Get HCS field.

Returns: the HCS

Definition at line 378 of file wimax-mac-header.cc.

References m_hcs.

◆ GetHt()

uint8_t ns3::BandwidthRequestHeader::GetHt ( void ) const

Get HT field.

Returns: the HT

Definition at line 353 of file wimax-mac-header.cc.

References m_ht.

Referenced by ns3::BaseStationNetDevice::DoReceive().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::BandwidthRequestHeader::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 398 of file wimax-mac-header.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetName()

std::string ns3::BandwidthRequestHeader::GetName ( void ) const

Get name field.

Returns: the name

Definition at line 383 of file wimax-mac-header.cc.

◆ GetSerializedSize()

uint32_t ns3::BandwidthRequestHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 411 of file wimax-mac-header.cc.

◆ GetType()

uint8_t ns3::BandwidthRequestHeader::GetType ( void ) const

Get type field.

Returns: the type

Definition at line 363 of file wimax-mac-header.cc.

References m_type.

Referenced by ns3::BandwidthManager::ProcessBandwidthRequest().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::BandwidthRequestHeader::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 388 of file wimax-mac-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::BandwidthRequestHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 403 of file wimax-mac-header.cc.

References ns3::Cid::GetIdentifier(), m_br, m_cid, m_ec, m_hcs, and m_type.

Here is the call graph for this function:

◆ Serialize()

void ns3::BandwidthRequestHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 419 of file wimax-mac-header.cc.

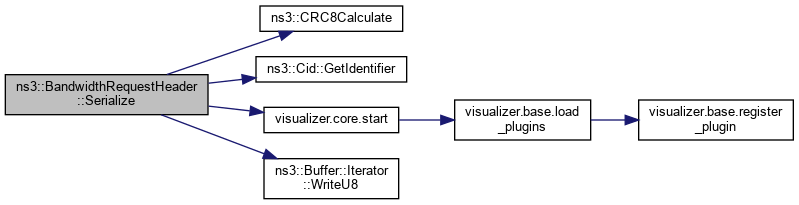

References ns3::CRC8Calculate(), ns3::Cid::GetIdentifier(), m_br, m_cid, m_ec, m_ht, m_type, visualizer.core::start(), and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:

◆ SetBr()

void ns3::BandwidthRequestHeader::SetBr ( uint32_t br )

Set BR field.

Parameters

br the BR

Definition at line 338 of file wimax-mac-header.cc.

References m_br.

Referenced by ns3::BandwidthManager::SendBandwidthRequest().

Here is the caller graph for this function:

◆ SetCid()

void ns3::BandwidthRequestHeader::SetCid ( Cid cid )

Set CID field.

Parameters

cid the CID

Definition at line 343 of file wimax-mac-header.cc.

References m_cid.

Referenced by ns3::BandwidthManager::SendBandwidthRequest().

Here is the caller graph for this function:

◆ SetEc()

void ns3::BandwidthRequestHeader::SetEc ( uint8_t ec )

Set EC field.

Parameters

ec the EC

Definition at line 328 of file wimax-mac-header.cc.

References m_ec.

◆ SetHcs()

void ns3::BandwidthRequestHeader::SetHcs ( uint8_t hcs )

Set HCS field.

Parameters

hcs the HCS

Definition at line 348 of file wimax-mac-header.cc.

References m_hcs.

◆ SetHt()

void ns3::BandwidthRequestHeader::SetHt ( uint8_t ht )

Set HT field.

Parameters

ht the HT

Definition at line 323 of file wimax-mac-header.cc.

References m_ht.

◆ SetType()

void ns3::BandwidthRequestHeader::SetType ( uint8_t type )

Set type field.

Parameters

type the type

Definition at line 333 of file wimax-mac-header.cc.

References m_type.

Referenced by ns3::BandwidthManager::SendBandwidthRequest().

Here is the caller graph for this function:

Member Data Documentation

◆ c_hcs

uint8_t ns3::BandwidthRequestHeader::c_hcs

private

calculated header check sequence; this is used to check if the received header is correct or not

Definition at line 352 of file wimax-mac-header.h.

Referenced by check_hcs(), and Deserialize().

◆ m_br

uint32_t ns3::BandwidthRequestHeader::m_br

private

Bandwidth Request.

Definition at line 349 of file wimax-mac-header.h.

Referenced by Deserialize(), GetBr(), Print(), Serialize(), and SetBr().

◆ m_cid

Cid ns3::BandwidthRequestHeader::m_cid

private

Connection identifier.

Definition at line 350 of file wimax-mac-header.h.

Referenced by Deserialize(), GetCid(), Print(), Serialize(), and SetCid().

◆ m_ec

uint8_t ns3::BandwidthRequestHeader::m_ec

private

Encryption Control.

Definition at line 347 of file wimax-mac-header.h.

Referenced by Deserialize(), GetEc(), Print(), Serialize(), and SetEc().

◆ m_hcs

uint8_t ns3::BandwidthRequestHeader::m_hcs

private

Header Check Sequence.

Definition at line 351 of file wimax-mac-header.h.

Referenced by check_hcs(), Deserialize(), GetHcs(), Print(), and SetHcs().

◆ m_ht

uint8_t ns3::BandwidthRequestHeader::m_ht

private

Header type.

Definition at line 346 of file wimax-mac-header.h.

Referenced by Deserialize(), GetHt(), Serialize(), and SetHt().

◆ m_type

uint8_t ns3::BandwidthRequestHeader::m_type

private

type

Definition at line 348 of file wimax-mac-header.h.

Referenced by Deserialize(), GetType(), Print(), Serialize(), and SetType().

The documentation for this class was generated from the following files:

src/wimax/model/wimax-mac-header.h
src/wimax/model/wimax-mac-header.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ HeaderType

Constructor & Destructor Documentation

◆ BandwidthRequestHeader()

◆ ~BandwidthRequestHeader()

Member Function Documentation

◆ check_hcs()

◆ Deserialize()

◆ GetBr()

◆ GetCid()

◆ GetEc()

◆ GetHcs()

◆ GetHt()

◆ GetInstanceTypeId()

◆ GetName()

◆ GetSerializedSize()

◆ GetType()

◆ GetTypeId()

◆ Print()

◆ Serialize()

◆ SetBr()

◆ SetCid()

◆ SetEc()

◆ SetHcs()

◆ SetHt()

◆ SetType()

Member Data Documentation

◆ c_hcs

◆ m_br

◆ m_cid

◆ m_ec

◆ m_hcs

◆ m_ht

◆ m_type
