ns3::BasicEnergyHarvesterHelper Class Reference

Creates a BasicEnergyHarvester object. More...

#include "basic-energy-harvester-helper.h"

Inheritance diagram for ns3::BasicEnergyHarvesterHelper:

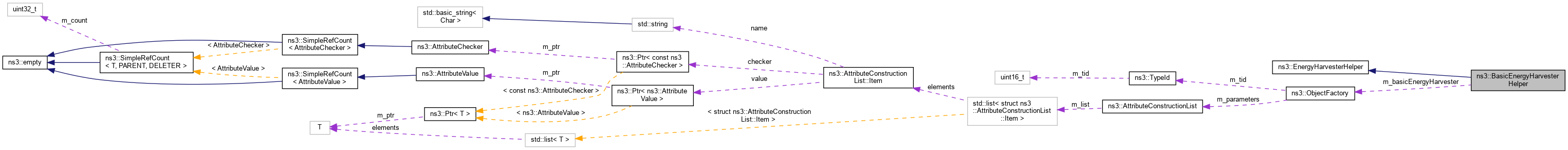

Collaboration diagram for ns3::BasicEnergyHarvesterHelper:

Public Member Functions
	BasicEnergyHarvesterHelper ()
	~BasicEnergyHarvesterHelper ()
void	Set (std::string name, const AttributeValue &v)
Public Member Functions inherited from ns3::EnergyHarvesterHelper
virtual	~EnergyHarvesterHelper ()
EnergyHarvesterContainer	Install (EnergySourceContainer sourceContainer) const
EnergyHarvesterContainer	Install (Ptr< EnergySource > source) const
EnergyHarvesterContainer	Install (std::string sourceName) const

Private Member Functions
virtual Ptr< EnergyHarvester >	DoInstall (Ptr< EnergySource > source) const

Private Attributes
ObjectFactory	m_basicEnergyHarvester
	Energy source factory. More...

Detailed Description

Creates a BasicEnergyHarvester object.

Definition at line 35 of file basic-energy-harvester-helper.h.

Constructor & Destructor Documentation

BasicEnergyHarvesterHelper()

ns3::BasicEnergyHarvesterHelper::BasicEnergyHarvesterHelper

(

)

Definition at line 27 of file basic-energy-harvester-helper.cc.

References m_basicEnergyHarvester, and ns3::ObjectFactory::SetTypeId().

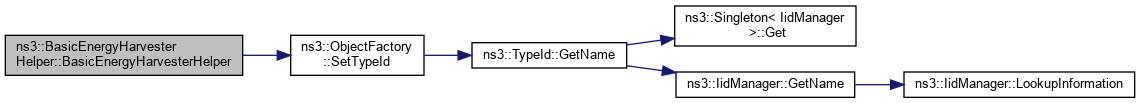

Here is the call graph for this function:

~BasicEnergyHarvesterHelper()

ns3::BasicEnergyHarvesterHelper::~BasicEnergyHarvesterHelper

(

)

Definition at line 32 of file basic-energy-harvester-helper.cc.

Member Function Documentation

DoInstall()

Ptr< EnergyHarvester > ns3::BasicEnergyHarvesterHelper::DoInstall ( Ptr< EnergySource >  source ) const

privatevirtual

Parameters

source

Pointer to node where the energy harvester is to be installed.

Returns

Pointer to the created EnergyHarvester.

Child classes of EnergyHarvesterHelper only have to implement this function, to create and aggregate an EnergyHarvester object onto a single node. Rest of the installation process (eg. installing EnergyHarvester on set of nodes) is implemented in the EnergyHarvesterHelper base class.

Implements ns3::EnergyHarvesterHelper.

Definition at line 43 of file basic-energy-harvester-helper.cc.

References ns3::ObjectFactory::Create(), m_basicEnergyHarvester, and NS_ASSERT.

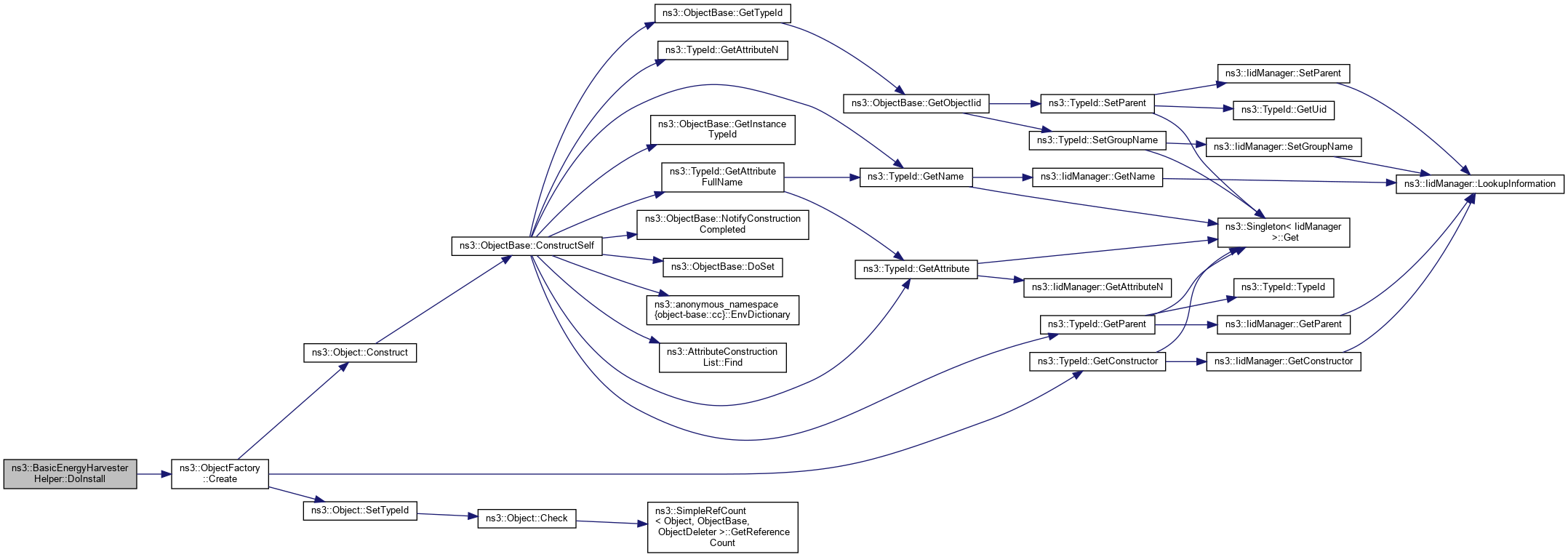

Here is the call graph for this function:

Set()

void ns3::BasicEnergyHarvesterHelper::Set ( std::string  name, const AttributeValue &  v  )

virtual

Parameters

name	Name of attribute to set.
v	Value of the attribute.

Sets one of the attributes of underlying EnergyHarvester.

Implements ns3::EnergyHarvesterHelper.

Definition at line 37 of file basic-energy-harvester-helper.cc.

References m_basicEnergyHarvester, and ns3::ObjectFactory::Set().

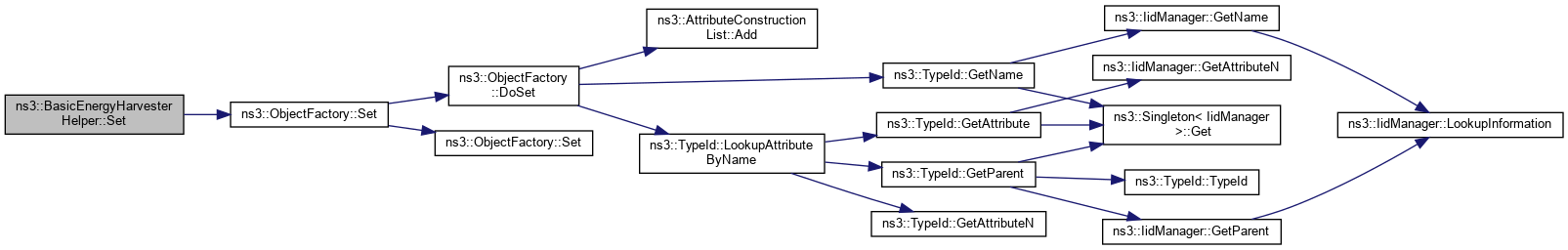

Here is the call graph for this function:

Member Data Documentation

m_basicEnergyHarvester

ObjectFactory ns3::BasicEnergyHarvesterHelper::m_basicEnergyHarvester

private

Energy source factory.

Definition at line 47 of file basic-energy-harvester-helper.h.

Referenced by BasicEnergyHarvesterHelper(), DoInstall(), and Set().

---

The documentation for this class was generated from the following files:

• src/energy/helper/basic-energy-harvester-helper.h
• src/energy/helper/basic-energy-harvester-helper.cc
