ns3::BoxValue Class Reference

AttributeValue implementation for Box. More...

#include "box.h"

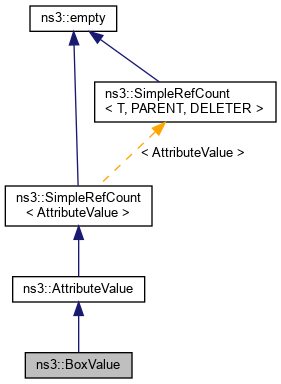

Inheritance diagram for ns3::BoxValue:

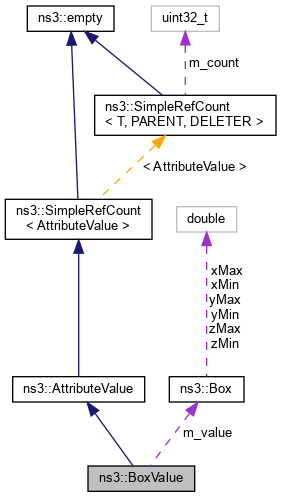

Collaboration diagram for ns3::BoxValue:

Public Member Functions
	BoxValue ()
	BoxValue (const Box &value)
	Copy constructor. More...
virtual Ptr< AttributeValue >	Copy (void) const
virtual bool	DeserializeFromString (std::string value, Ptr< const AttributeChecker > checker)
Box	Get (void) const
template<typename T >
bool	GetAccessor (T &value) const
	Access the Box value as type T. More...
virtual std::string	SerializeToString (Ptr< const AttributeChecker > checker) const
void	Set (const Box &value)
	Set the value. More...
Public Member Functions inherited from ns3::AttributeValue
	AttributeValue ()
virtual	~AttributeValue ()
Public Member Functions inherited from ns3::SimpleRefCount< AttributeValue >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
Box	m_value
	The stored Box instance. More...

Detailed Description

AttributeValue implementation for Box.

See also

AttributeValue

Definition at line 126 of file box.h.

Constructor & Destructor Documentation

BoxValue() [1/2]

ns3::BoxValue::BoxValue

(

)

Definition at line 207 of file box.cc.

BoxValue() [2/2]

Box ns3::BoxValue::BoxValue

(

const Box &

value

)

Copy constructor.

Parameters

[in]

value

The Box value to copy.

Definition at line 207 of file box.cc.

Member Function Documentation

Copy()

Ptr< AttributeValue > ns3::BoxValue::Copy ( void  ) const

virtual

Returns

a deep copy of this class, wrapped into an Attribute object.

Implements ns3::AttributeValue.

Definition at line 207 of file box.cc.

DeserializeFromString()

bool ns3::BoxValue::DeserializeFromString ( std::string  value, Ptr< const AttributeChecker >  checker  )

virtual

Parameters

[in]	value	A string representation of the value
[in]	checker	A pointer to the checker associated to the attribute.

Returns

true if the input string was correctly-formatted and could be successfully deserialized, false otherwise.

Upon return of this function, this AttributeValue instance contains the deserialized value. In most cases, this method will not make any use of the checker argument. However, in a very limited set of cases, the checker argument is needed to perform proper serialization. A nice example of code which needs it is the EnumValue::SerializeToString code.

Implements ns3::AttributeValue.

Definition at line 207 of file box.cc.

Get()

Box ns3::BoxValue::Get

(

void

)

const

Returns

The Box value.

Definition at line 207 of file box.cc.

Referenced by ns3::RandomBuildingPositionAllocator::GetNext(), ns3::RandomRoomPositionAllocator::GetNext(), and ns3::SameRoomPositionAllocator::GetNext().

Here is the caller graph for this function:

GetAccessor()

template<typename T >

bool ns3::BoxValue::GetAccessor ( T &  value ) const

inline

Access the Box value as type T.

Template Parameters

T	[explicit] The type to cast to.

Parameters

[out]

value

The Box value, as type T.

Returns

true.

Definition at line 126 of file box.h.

SerializeToString()

std::string ns3::BoxValue::SerializeToString ( Ptr< const AttributeChecker >  checker ) const

virtual

Parameters

[in]

checker

The checker associated to the attribute

Returns

A string representation of this value.

In most cases, this method will not make any use of the checker argument. However, in a very limited set of cases, the checker argument is needed to perform proper serialization. A nice example of code which needs it is the EnumValue::SerializeToString code.

Implements ns3::AttributeValue.

Definition at line 207 of file box.cc.

Set()

void ns3::BoxValue::Set

(

const Box &

value

)

Set the value.

Parameters

[in]

value

The value to adopt.

Definition at line 207 of file box.cc.

Member Data Documentation

m_value

Box ns3::BoxValue::m_value

private

The stored Box instance.

Definition at line 126 of file box.h.

---

The documentation for this class was generated from the following files:

• src/mobility/model/box.h
• src/mobility/model/box.cc
• doc/introspected-doxygen.h
