Virtual channel implementation for bridges (BridgeNetDevice). More...
#include "bridge-channel.h"

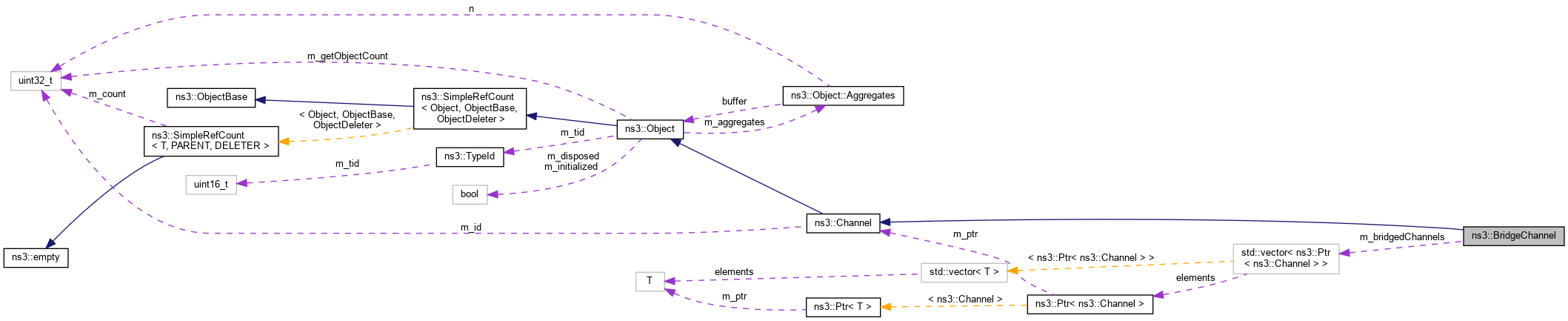

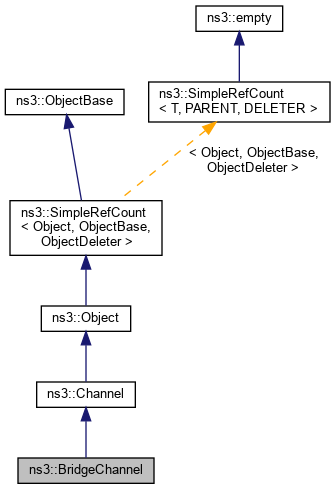

Inheritance diagram for ns3::BridgeChannel: Collaboration diagram for ns3::BridgeChannel:Public Member Functions | |
| BridgeChannel () | |
| BridgeChannel (const BridgeChannel &)=delete | |
| virtual | ~BridgeChannel () |
| void | AddChannel (Ptr< Channel > bridgedChannel) |
| Adds a channel to the bridged pool. More... | |
| virtual Ptr< NetDevice > | GetDevice (std::size_t i) const |
| virtual std::size_t | GetNDevices (void) const |
| BridgeChannel & | operator= (const BridgeChannel &)=delete |
| Public Member Functions inherited from ns3::Channel | |
| Channel () | |
| virtual | ~Channel () |
| uint32_t | GetId (void) const |
| Public Member Functions inherited from ns3::Object | |
| Object () | |
| Constructor. More... | |
| virtual | ~Object () |
| Destructor. More... | |
| void | AggregateObject (Ptr< Object > other) |
| Aggregate two Objects together. More... | |
| void | Dispose (void) |
| Dispose of this Object. More... | |
| AggregateIterator | GetAggregateIterator (void) const |
| Get an iterator to the Objects aggregated to this one. More... | |
| virtual TypeId | GetInstanceTypeId (void) const |
| Get the most derived TypeId for this Object. More... | |
| template<> | |
| Ptr< Object > | GetObject () const |
| Specialization of () for objects of type ns3::Object. More... | |
| template<typename T > | |
| Ptr< T > | GetObject (TypeId tid) const |
| Get a pointer to the requested aggregated Object by TypeId. More... | |
| template<> | |
| Ptr< Object > | GetObject (TypeId tid) const |
| Specialization of (TypeId tid) for objects of type ns3::Object. More... | |
| template<typename T > | |
| Ptr< T > | GetObject (void) const |
| Get a pointer to the requested aggregated Object. More... | |
| void | Initialize (void) |
| Invoke DoInitialize on all Objects aggregated to this one. More... | |
| bool | IsInitialized (void) const |
| Check if the object has been initialized. More... | |
| Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| SimpleRefCount () | |
| Default constructor. More... | |
| SimpleRefCount (const SimpleRefCount &o[[maybe_unused]]) | |
| Copy constructor. More... | |
| uint32_t | GetReferenceCount (void) const |
| Get the reference count of the object. More... | |
| SimpleRefCount & | operator= ([[maybe_unused]] const SimpleRefCount &o) |
| Assignment operator. More... | |
| void | Ref (void) const |
| Increment the reference count. More... | |
| void | Unref (void) const |
| Decrement the reference count. More... | |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. More... | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| Get the value of an attribute, raising fatal errors if unsuccessful. More... | |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
| Get the value of an attribute without raising erros. More... | |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| Set a single attribute, raising fatal errors if unsuccessful. More... | |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| Set a single attribute without raising errors. More... | |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| Connect a TraceSource to a Callback with a context. More... | |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| Connect a TraceSource to a Callback without a context. More... | |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected with a context. More... | |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected without a context. More... | |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::Channel | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::Object | |
| static TypeId | GetTypeId (void) |
| Register this type. More... | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
Private Attributes | |
| std::vector< Ptr< Channel > > | m_bridgedChannels |
| pool of bridged channels More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::Object | |
| Object (const Object &o) | |
| Copy an Object. More... | |
| virtual void | DoDispose (void) |
| Destructor implementation. More... | |
| virtual void | DoInitialize (void) |
| Initialize() implementation. More... | |
| virtual void | NotifyNewAggregate (void) |
| Notify all Objects aggregated to this one of a new Object being aggregated. More... | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| Complete construction of ObjectBase; invoked by derived classes. More... | |
| virtual void | NotifyConstructionCompleted (void) |
| Notifier called once the ObjectBase is fully constructed. More... | |
| Related Functions inherited from ns3::ObjectBase | |
| static TypeId | GetObjectIid (void) |
| Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More... | |
Virtual channel implementation for bridges (BridgeNetDevice).
Just like BridgeNetDevice aggregates multiple NetDevices, BridgeChannel aggregates multiple channels and make them appear as a single channel to upper layers.
ns3::BridgeChannel is accessible through the following paths with Config::Set and Config::Connect:
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 56 bytes (on a 64-bit architecture).
Definition at line 42 of file bridge-channel.h.
| ns3::BridgeChannel::BridgeChannel | ( | ) |
Definition at line 45 of file bridge-channel.cc.
References NS_LOG_FUNCTION_NOARGS.
|
virtual |
Definition at line 51 of file bridge-channel.cc.
References m_bridgedChannels, and NS_LOG_FUNCTION_NOARGS.
|
delete |
Adds a channel to the bridged pool.
| bridgedChannel | the channel to add to the pool |
Definition at line 65 of file bridge-channel.cc.
References m_bridgedChannels.
| i | index of NetDevice to retrieve |
This method must be implemented by subclasses.
Implements ns3::Channel.
Definition at line 84 of file bridge-channel.cc.
References m_bridgedChannels.
|
virtual |
This method must be implemented by subclasses.
Implements ns3::Channel.
Definition at line 71 of file bridge-channel.cc.
References m_bridgedChannels.
|
static |
Get the type ID.
Definition at line 35 of file bridge-channel.cc.
References ns3::TypeId::SetParent().

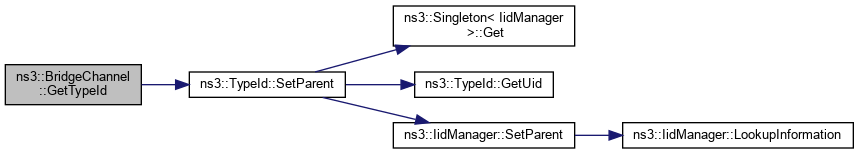

Here is the call graph for this function:
|
delete |
pool of bridged channels
Definition at line 68 of file bridge-channel.h.
Referenced by ~BridgeChannel(), AddChannel(), GetDevice(), and GetNDevices().
