This class will assign channel access for requests from higher layers. More...

#include "channel-scheduler.h"

Inheritance diagram for ns3::ChannelScheduler:

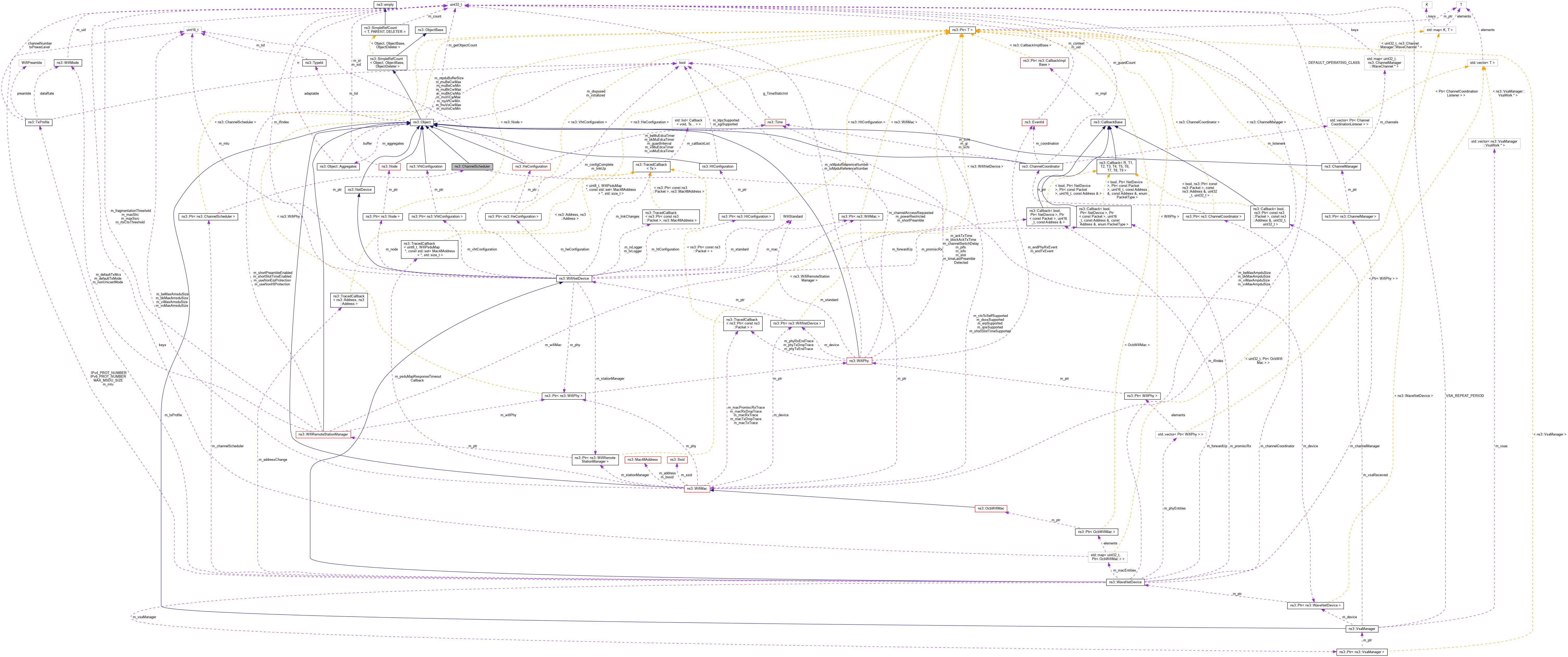

Collaboration diagram for ns3::ChannelScheduler:

Public Member Functions
	ChannelScheduler ()

virtual	~ChannelScheduler ()

virtual enum ChannelAccess	GetAssignedAccessType (uint32_t channelNumber) const =0

bool	IsAlternatingAccessAssigned (uint32_t channelNumber) const

bool	IsCchAccessAssigned (void) const

bool	IsChannelAccessAssigned (uint32_t channelNumber) const

bool	IsContinuousAccessAssigned (uint32_t channelNumber) const

bool	IsDefaultCchAccessAssigned (void) const

bool	IsExtendedAccessAssigned (uint32_t channelNumber) const

bool	IsSchAccessAssigned (void) const

virtual void	SetWaveNetDevice (Ptr< WaveNetDevice > device)

bool	StartSch (const SchInfo &schInfo)

bool	StopSch (uint32_t channelNumber)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual bool	AssignAlternatingAccess (uint32_t channelNumber, bool immediate)=0

virtual bool	AssignContinuousAccess (uint32_t channelNumber, bool immediate)=0

virtual bool	AssignDefaultCchAccess (void)=0
	This method will assign default CCH access for CCH. More...

virtual bool	AssignExtendedAccess (uint32_t channelNumber, uint32_t extends, bool immediate)=0

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual bool	ReleaseAccess (uint32_t channelNumber)=0

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes
Ptr< WaveNetDevice >	m_device
	the device More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This class will assign channel access for requests from higher layers.

The channel access options include (1) continuous access for SCHs, (2) alternating CCH and SCH access, (3) extended access for SCHs and (4) default continuous CCH access. The options except (4) have an immediate parameter to enable immediate access assignment without the need for waiting. Its sub-class can use different mechanism to assign the channel access.

Config Paths

ns3::ChannelScheduler is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/ChannelScheduler"

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 40 bytes (on a 64-bit architecture).

Definition at line 129 of file channel-scheduler.h.

Constructor & Destructor Documentation

◆ ChannelScheduler()

ns3::ChannelScheduler::ChannelScheduler ( )

Definition at line 42 of file channel-scheduler.cc.

References NS_LOG_FUNCTION.

◆ ~ChannelScheduler()

ns3::ChannelScheduler::~ChannelScheduler ( )

virtual

Definition at line 46 of file channel-scheduler.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AssignAlternatingAccess()

virtual bool ns3::ChannelScheduler::AssignAlternatingAccess	(	uint32_t	channelNumber,
		bool	immediate
	)

protectedpure virtual

Parameters

channelNumber	the specific channel
immediate	indicate whether channel switch to channel

Returns: whether the channel access is assigned successfully

This method will assign alternating access for SCHs and CCH.

Implemented in ns3::DefaultChannelScheduler.

Referenced by StartSch().

Here is the caller graph for this function:

◆ AssignContinuousAccess()

virtual bool ns3::ChannelScheduler::AssignContinuousAccess	(	uint32_t	channelNumber,
		bool	immediate
	)

protectedpure virtual

Parameters

channelNumber	the specific channel
immediate	indicate whether channel switch to channel

Returns: whether the channel access is assigned successfully

This method will assign continuous access CCH.

Implemented in ns3::DefaultChannelScheduler.

Referenced by StartSch().

Here is the caller graph for this function:

◆ AssignDefaultCchAccess()

virtual bool ns3::ChannelScheduler::AssignDefaultCchAccess ( void )

protectedpure virtual

This method will assign default CCH access for CCH.

Returns: whether the channel access is assigned successfully

Implemented in ns3::DefaultChannelScheduler.

Referenced by DoInitialize().

Here is the caller graph for this function:

◆ AssignExtendedAccess()

virtual bool ns3::ChannelScheduler::AssignExtendedAccess	(	uint32_t	channelNumber,
		uint32_t	extends,
		bool	immediate
	)

protectedpure virtual

Parameters

channelNumber	the specific channel
extends	extension duration
immediate	indicate whether channel switch to channel

Returns: whether the channel access is assigned successfully

This method will assign extended access for SCHs.

Implemented in ns3::DefaultChannelScheduler.

Referenced by StartSch().

Here is the caller graph for this function:

◆ DoDispose()

void ns3::ChannelScheduler::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::DefaultChannelScheduler.

Definition at line 164 of file channel-scheduler.cc.

References m_device, and NS_LOG_FUNCTION.

Referenced by ns3::DefaultChannelScheduler::DoDispose().

Here is the caller graph for this function:

◆ DoInitialize()

void ns3::ChannelScheduler::DoInitialize ( void )

protectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::DefaultChannelScheduler.

Definition at line 52 of file channel-scheduler.cc.

References AssignDefaultCchAccess().

Referenced by ns3::DefaultChannelScheduler::DoInitialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetAssignedAccessType()

virtual enum ChannelAccess ns3::ChannelScheduler::GetAssignedAccessType ( uint32_t channelNumber ) const

pure virtual

Parameters

channelNumber the specified channel number

Returns: the type of current assigned channel access for the specific channel.

Implemented in ns3::DefaultChannelScheduler.

Referenced by IsAlternatingAccessAssigned(), IsCchAccessAssigned(), IsChannelAccessAssigned(), IsContinuousAccessAssigned(), IsDefaultCchAccessAssigned(), IsExtendedAccessAssigned(), and IsSchAccessAssigned().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::ChannelScheduler::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 33 of file channel-scheduler.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ IsAlternatingAccessAssigned()

bool ns3::ChannelScheduler::IsAlternatingAccessAssigned ( uint32_t channelNumber ) const

Parameters

channelNumber the specified channel number

Returns: whether the continuous access is assigned for the specific channel.

Definition at line 95 of file channel-scheduler.cc.

References ns3::AlternatingAccess, GetAssignedAccessType(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ IsCchAccessAssigned()

bool ns3::ChannelScheduler::IsCchAccessAssigned ( void ) const

Returns: whether CCH channel access is assigned.

Definition at line 73 of file channel-scheduler.cc.

References CCH, GetAssignedAccessType(), ns3::NoAccess, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ IsChannelAccessAssigned()

bool ns3::ChannelScheduler::IsChannelAccessAssigned ( uint32_t channelNumber ) const

Parameters

channelNumber the specified channel number

Returns: whether channel access is assigned for the channel.

Definition at line 66 of file channel-scheduler.cc.

References GetAssignedAccessType(), ns3::NoAccess, and NS_LOG_FUNCTION.

Referenced by StopSch().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsContinuousAccessAssigned()

bool ns3::ChannelScheduler::IsContinuousAccessAssigned ( uint32_t channelNumber ) const

Parameters

channelNumber the specified channel number

Returns: whether the continuous access is assigned for the specific channel.

Definition at line 89 of file channel-scheduler.cc.

References ns3::ContinuousAccess, GetAssignedAccessType(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ IsDefaultCchAccessAssigned()

bool ns3::ChannelScheduler::IsDefaultCchAccessAssigned ( void ) const

Returns: whether the continuous access is assigned for CCHl.

Definition at line 107 of file channel-scheduler.cc.

References CCH, ns3::DefaultCchAccess, GetAssignedAccessType(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ IsExtendedAccessAssigned()

bool ns3::ChannelScheduler::IsExtendedAccessAssigned ( uint32_t channelNumber ) const

Parameters

channelNumber the specified channel number

Returns: whether the continuous access is assigned for the specific channel.

Definition at line 101 of file channel-scheduler.cc.

References ns3::ExtendedAccess, GetAssignedAccessType(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ IsSchAccessAssigned()

bool ns3::ChannelScheduler::IsSchAccessAssigned ( void ) const

Returns: whether SCH channel access is assigned.

Definition at line 80 of file channel-scheduler.cc.

References GetAssignedAccessType(), ns3::NoAccess, NS_LOG_FUNCTION, SCH1, SCH2, SCH3, SCH4, SCH5, and SCH6.

Here is the call graph for this function:

◆ ReleaseAccess()

virtual bool ns3::ChannelScheduler::ReleaseAccess ( uint32_t channelNumber )

protectedpure virtual

Parameters

channelNumber indicating for which channel should release the assigned channel access resource.

Returns: whether the channel access is released successfully

Implemented in ns3::DefaultChannelScheduler.

Referenced by StopSch().

Here is the caller graph for this function:

◆ SetWaveNetDevice()

void ns3::ChannelScheduler::SetWaveNetDevice ( Ptr< WaveNetDevice > device )

virtual

Parameters

device enable channel scheduler associated with WaveNetDevice

Reimplemented in ns3::DefaultChannelScheduler.

Definition at line 59 of file channel-scheduler.cc.

References m_device, and NS_LOG_FUNCTION.

Referenced by ns3::DefaultChannelScheduler::GetAssignedAccessType().

Here is the caller graph for this function:

◆ StartSch()

bool ns3::ChannelScheduler::StartSch ( const SchInfo & schInfo )

Parameters

schInfo the request information for assigning SCH access.

Returns: whether the channel access is assigned successfully.

This method is called to assign channel access for sending packets.

Definition at line 113 of file channel-scheduler.cc.

References ns3::EdcaParameter::aifsn, AssignAlternatingAccess(), AssignContinuousAccess(), AssignExtendedAccess(), ns3::SchInfo::channelNumber, ns3::EdcaParameter::cwmax, ns3::EdcaParameter::cwmin, ns3::SchInfo::edcaParameters, EXTENDED_ALTERNATING, EXTENDED_CONTINUOUS, ns3::SchInfo::extendedAccess, ns3::WaveNetDevice::GetMac(), ns3::SchInfo::immediateAccess, ns3::ChannelManager::IsCch(), m_device, third::mac, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

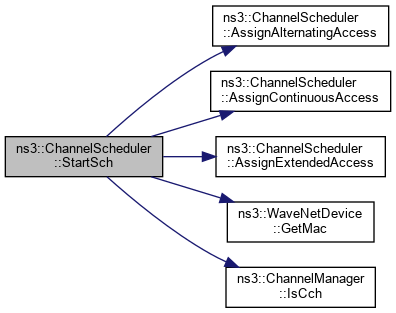

Here is the call graph for this function:

◆ StopSch()

bool ns3::ChannelScheduler::StopSch ( uint32_t channelNumber )

Parameters

channelNumber indicating which channel should release the assigned channel access resource.

Returns: true if successful.

Definition at line 147 of file channel-scheduler.cc.

References ns3::ChannelManager::IsCch(), IsChannelAccessAssigned(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and ReleaseAccess().

Here is the call graph for this function:

Member Data Documentation

◆ m_device

Ptr<WaveNetDevice> ns3::ChannelScheduler::m_device

protected

the device

Definition at line 237 of file channel-scheduler.h.

Referenced by ns3::DefaultChannelScheduler::AssignDefaultCchAccess(), DoDispose(), ns3::DefaultChannelScheduler::NotifyGuardSlotStart(), SetWaveNetDevice(), StartSch(), and ns3::DefaultChannelScheduler::SwitchToNextChannel().

The documentation for this class was generated from the following files:

src/wave/model/channel-scheduler.h
src/wave/model/channel-scheduler.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Config Paths

Constructor & Destructor Documentation

◆ ChannelScheduler()

◆ ~ChannelScheduler()

Member Function Documentation

◆ AssignAlternatingAccess()

◆ AssignContinuousAccess()

◆ AssignDefaultCchAccess()

◆ AssignExtendedAccess()

◆ DoDispose()

◆ DoInitialize()

◆ GetAssignedAccessType()

◆ GetTypeId()

◆ IsAlternatingAccessAssigned()

◆ IsCchAccessAssigned()

◆ IsChannelAccessAssigned()

◆ IsContinuousAccessAssigned()

◆ IsDefaultCchAccessAssigned()

◆ IsExtendedAccessAssigned()

◆ IsSchAccessAssigned()

◆ ReleaseAccess()

◆ SetWaveNetDevice()

◆ StartSch()

◆ StopSch()

Member Data Documentation

◆ m_device
