Cosine Antenna Model. More...

#include "cosine-antenna-model.h"

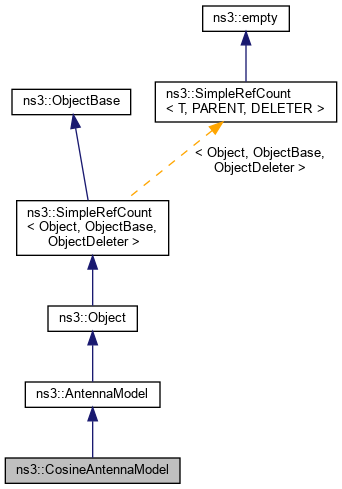

Inheritance diagram for ns3::CosineAntennaModel:

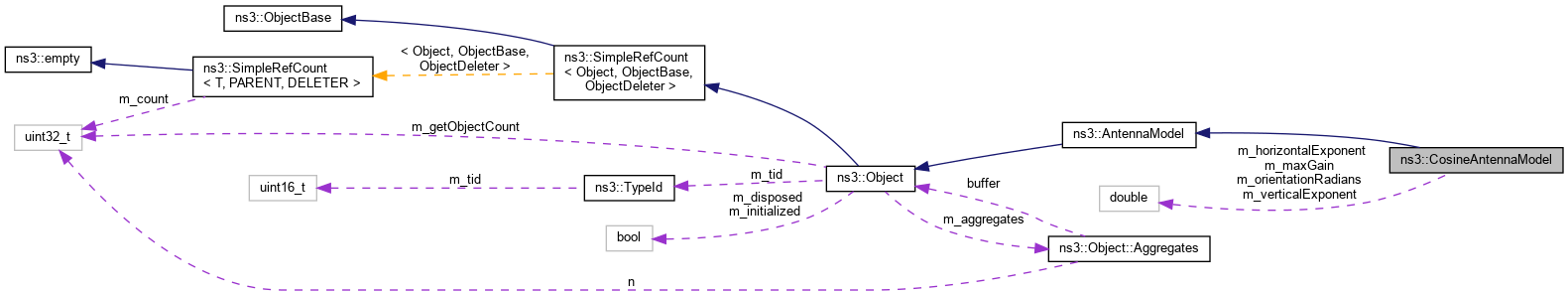

Collaboration diagram for ns3::CosineAntennaModel:

Public Member Functions
virtual double	GetGainDb (Angles a)
	this method is expected to be re-implemented by each antenna model More...

double	GetHorizontalBeamwidth (void) const
	Get the horizontal 3 dB beamwidth of the cosine antenna model. More...

double	GetOrientation (void) const
	Get the horizontal orientation of the antenna element. More...

double	GetVerticalBeamwidth (void) const
	Get the vertical 3 dB beamwidth of the cosine antenna model. More...

Public Member Functions inherited from ns3::AntennaModel
	AntennaModel ()

virtual	~AntennaModel ()

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::AntennaModel
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	SetHorizontalBeamwidth (double horizontalBeamwidthDegrees)
	Set the horizontal 3 dB beamwidth (bilateral) of the cosine antenna model. More...

void	SetOrientation (double orientationDegrees)
	Set the horizontal orientation of the antenna element. More...

void	SetVerticalBeamwidth (double verticalBeamwidthDegrees)
	Set the vertical 3 dB beamwidth (bilateral) of the cosine antenna model. More...

Static Private Member Functions
static double	GetBeamwidthFromExponent (double exponent)
	Compute the beamwidth of the cosine antenna model from the exponent. More...

static double	GetExponentFromBeamwidth (double beamwidthDegrees)
	Compute the exponent of the cosine antenna model from the beamwidth. More...

Private Attributes
double	m_horizontalExponent
	exponent of the horizontal direction More...

double	m_maxGain
	antenna gain in dB towards the main orientation More...

double	m_orientationRadians
	orientation in radians in the horizontal direction (bearing) More...

double	m_verticalExponent
	exponent of the vertical direction More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Cosine Antenna Model.

Introspection did not find any typical Config paths.

This class implements the cosine model, similarly to what is described in: Cosine Antenna Element, Mathworks, Phased Array System Toolbox (Sep. 2020) Available online: https://www.mathworks.com/help/phased/ug/cosine-antenna-element.html

The power pattern of the element is equal to: P(az,el) = cos(az/2)^2m * cos(pi/2 - incl/2)^2n, where az is the azimuth angle, and incl is the inclination angle.

Differently from the source, the response is defined for azimuth and elevation angles between –180 and 180 degrees and is always positive. There is no response at the backside of a cosine antenna. The cosine response pattern achieves a maximum value of 1 (0 dB) at 0 degrees azimuth and 90 degrees inclination. An extra settable gain is added to the original model, to improve its generality.

Attributes

VerticalBeamwidth: The 3 dB vertical beamwidth (degrees). A beamwidth of 360 deg corresponds to constant gain
- Set with class: ns3::DoubleValue
- Underlying type: double 0:360
- Initial value: 360
- Flags: construct write read
HorizontalBeamwidth: The 3 dB horizontal beamwidth (degrees). A beamwidth of 360 deg corresponds to constant gain
- Set with class: ns3::DoubleValue
- Underlying type: double 0:360
- Initial value: 120
- Flags: construct write read
Orientation: The angle (degrees) that expresses the orientation of the antenna on the x-y plane relative to the x axis
- Set with class: ns3::DoubleValue
- Underlying type: double -360:360
- Initial value: 0
- Flags: construct write read
MaxGain: The gain (dB) at the antenna boresight (the direction of maximum gain)
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 64 bytes (on a 64-bit architecture).

Definition at line 50 of file cosine-antenna-model.h.

Member Function Documentation

◆ GetBeamwidthFromExponent()

double ns3::CosineAntennaModel::GetBeamwidthFromExponent ( double exponent )

staticprivate

Compute the beamwidth of the cosine antenna model from the exponent.

Parameters

exponent the exponent

Returns: beamwidth in degrees

Definition at line 97 of file cosine-antenna-model.cc.

References NS_LOG_FUNCTION, and ns3::RadiansToDegrees().

Referenced by GetHorizontalBeamwidth(), and GetVerticalBeamwidth().

Here is the call graph for this function:

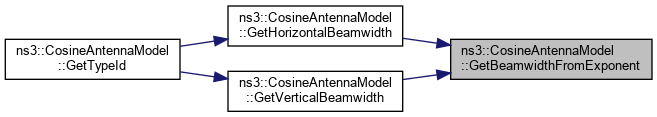

Here is the caller graph for this function:

◆ GetExponentFromBeamwidth()

double ns3::CosineAntennaModel::GetExponentFromBeamwidth ( double beamwidthDegrees )

staticprivate

Compute the exponent of the cosine antenna model from the beamwidth.

Parameters

beamwidthDegrees the beamwidth in degrees

Returns: the exponent

Definition at line 73 of file cosine-antenna-model.cc.

References ns3::DegreesToRadians(), and NS_LOG_FUNCTION.

Referenced by SetHorizontalBeamwidth(), and SetVerticalBeamwidth().

Here is the call graph for this function:

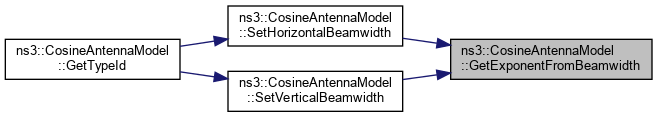

Here is the caller graph for this function:

◆ GetGainDb()

double ns3::CosineAntennaModel::GetGainDb ( Angles a )

virtual

this method is expected to be re-implemented by each antenna model

Parameters

a	the spherical angles at which the radiation pattern should be evaluated

Returns: the power gain in dBi of the antenna radiation pattern at the specified angles; dBi means dB with respect to the gain of an isotropic radiator. Since a power gain is used, the efficiency of the antenna is expected to be included in the gain value.

Implements ns3::AntennaModel.

Definition at line 155 of file cosine-antenna-model.cc.

References ns3::Angles::GetAzimuth(), ns3::Angles::GetInclination(), m_horizontalExponent, m_maxGain, m_orientationRadians, m_verticalExponent, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::Angles::SetAzimuth().

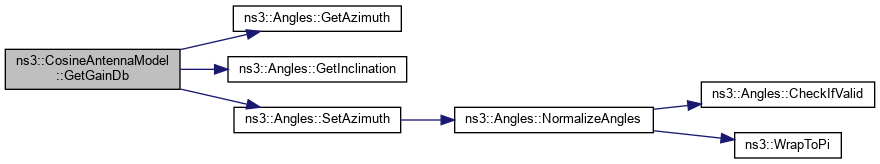

Here is the call graph for this function:

◆ GetHorizontalBeamwidth()

double ns3::CosineAntennaModel::GetHorizontalBeamwidth ( void ) const

Get the horizontal 3 dB beamwidth of the cosine antenna model.

Returns: the horizontal beamwidth in degrees

Definition at line 133 of file cosine-antenna-model.cc.

References GetBeamwidthFromExponent(), and m_horizontalExponent.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetOrientation()

double ns3::CosineAntennaModel::GetOrientation ( void ) const

Get the horizontal orientation of the antenna element.

Returns: the horizontal orientation in degrees

Definition at line 148 of file cosine-antenna-model.cc.

References m_orientationRadians, and ns3::RadiansToDegrees().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::CosineAntennaModel::GetTypeId ( void )

static

Get the type ID.

Returns: The object TypeId.

Definition at line 38 of file cosine-antenna-model.cc.

References GetHorizontalBeamwidth(), GetOrientation(), GetVerticalBeamwidth(), m_maxGain, ns3::MakeDoubleAccessor(), SetHorizontalBeamwidth(), SetOrientation(), ns3::TypeId::SetParent(), and SetVerticalBeamwidth().

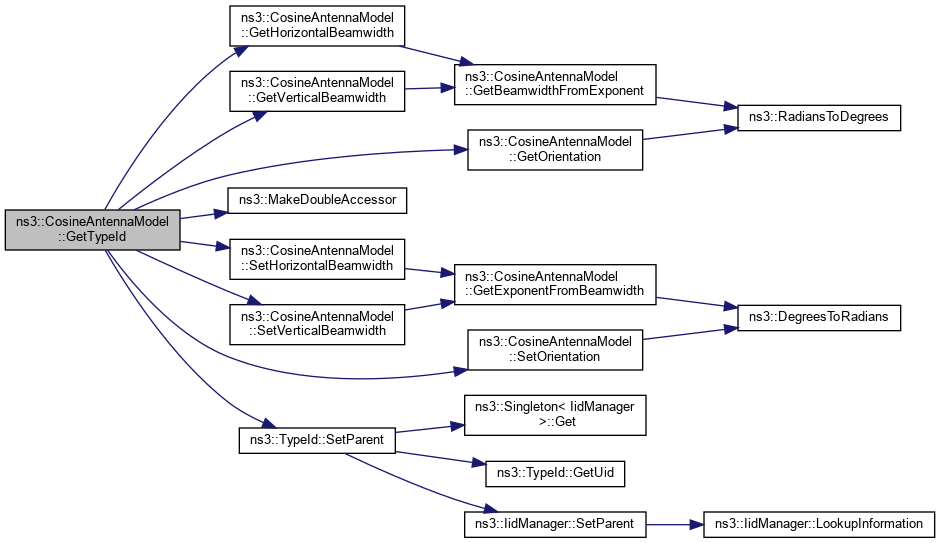

Here is the call graph for this function:

◆ GetVerticalBeamwidth()

double ns3::CosineAntennaModel::GetVerticalBeamwidth ( void ) const

Get the vertical 3 dB beamwidth of the cosine antenna model.

Returns: the vertical beamwidth in degrees

Definition at line 126 of file cosine-antenna-model.cc.

References GetBeamwidthFromExponent(), and m_verticalExponent.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetHorizontalBeamwidth()

void ns3::CosineAntennaModel::SetHorizontalBeamwidth ( double horizontalBeamwidthDegrees )

private

Set the horizontal 3 dB beamwidth (bilateral) of the cosine antenna model.

Parameters

horizontalBeamwidthDegrees the horizontal beamwidth in degrees

Definition at line 118 of file cosine-antenna-model.cc.

References GetExponentFromBeamwidth(), m_horizontalExponent, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetOrientation()

void ns3::CosineAntennaModel::SetOrientation ( double orientationDegrees )

private

Set the horizontal orientation of the antenna element.

Parameters

orientationDegrees the horizontal orientation in degrees

Definition at line 140 of file cosine-antenna-model.cc.

References ns3::DegreesToRadians(), m_orientationRadians, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetVerticalBeamwidth()

void ns3::CosineAntennaModel::SetVerticalBeamwidth ( double verticalBeamwidthDegrees )

private

Set the vertical 3 dB beamwidth (bilateral) of the cosine antenna model.

Parameters

verticalBeamwidthDegrees the vertical beamwidth in degrees

Definition at line 110 of file cosine-antenna-model.cc.

References GetExponentFromBeamwidth(), m_verticalExponent, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_horizontalExponent

double ns3::CosineAntennaModel::m_horizontalExponent

private

exponent of the horizontal direction

Definition at line 115 of file cosine-antenna-model.h.

Referenced by GetGainDb(), GetHorizontalBeamwidth(), and SetHorizontalBeamwidth().

◆ m_maxGain

double ns3::CosineAntennaModel::m_maxGain

private

antenna gain in dB towards the main orientation

Definition at line 117 of file cosine-antenna-model.h.

Referenced by GetGainDb(), and GetTypeId().

◆ m_orientationRadians

double ns3::CosineAntennaModel::m_orientationRadians

private

orientation in radians in the horizontal direction (bearing)

Definition at line 116 of file cosine-antenna-model.h.

Referenced by GetGainDb(), GetOrientation(), and SetOrientation().

◆ m_verticalExponent

double ns3::CosineAntennaModel::m_verticalExponent

private

exponent of the vertical direction

Definition at line 114 of file cosine-antenna-model.h.

Referenced by GetGainDb(), GetVerticalBeamwidth(), and SetVerticalBeamwidth().

The documentation for this class was generated from the following files:

src/antenna/model/cosine-antenna-model.h
src/antenna/model/cosine-antenna-model.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Attributes

Member Function Documentation

◆ GetBeamwidthFromExponent()

◆ GetExponentFromBeamwidth()

◆ GetGainDb()

◆ GetHorizontalBeamwidth()

◆ GetOrientation()

◆ GetTypeId()

◆ GetVerticalBeamwidth()

◆ SetHorizontalBeamwidth()

◆ SetOrientation()

◆ SetVerticalBeamwidth()

Member Data Documentation

◆ m_horizontalExponent

◆ m_maxGain

◆ m_orientationRadians

◆ m_verticalExponent
