ns3::DeterministicRandomVariable Class Reference
Core » Random Variables

The Random Number Generator (RNG) that returns a predetermined sequence. More...

#include "random-variable-stream.h"

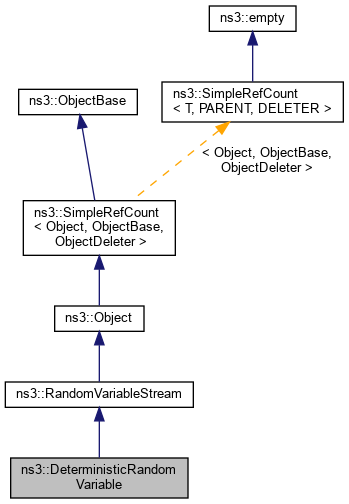

+ Inheritance diagram for ns3::DeterministicRandomVariable:

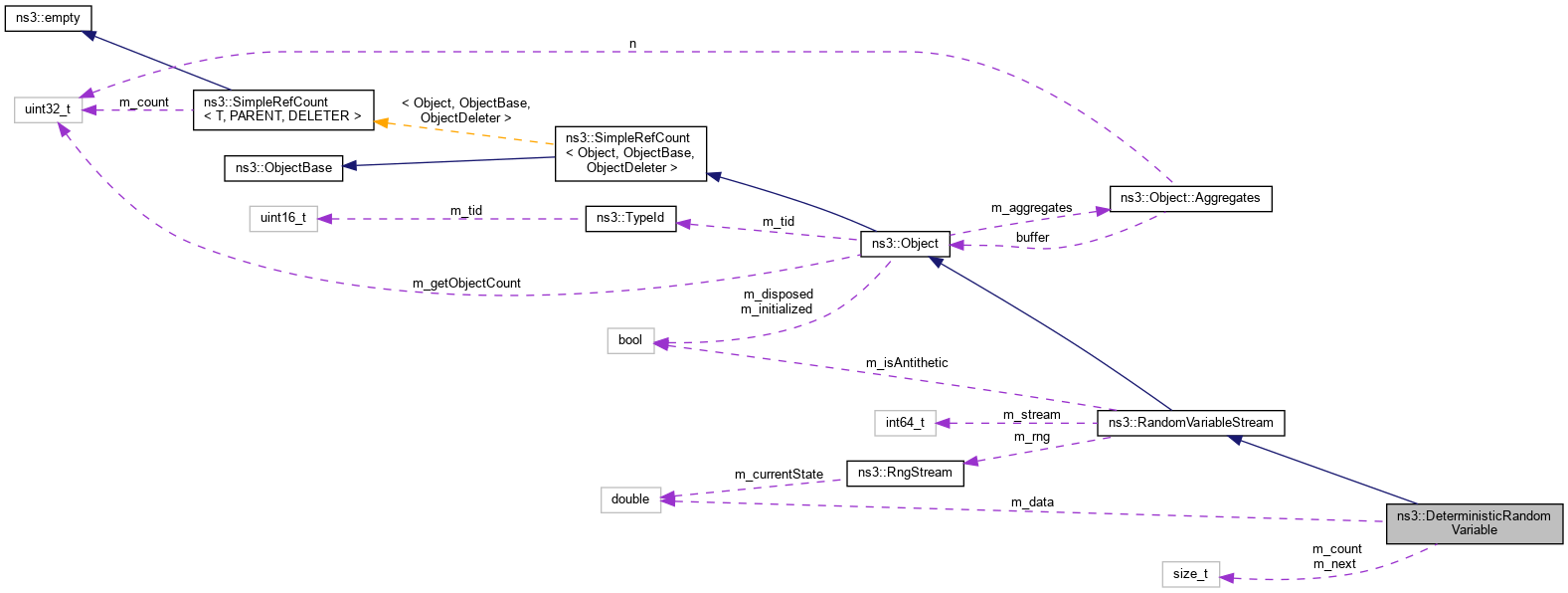

+ Collaboration diagram for ns3::DeterministicRandomVariable:

Public Member Functions

 DeterministicRandomVariable ()
 Creates a deterministic RNG that will have a predetermined sequence of values. More...

virtual ~DeterministicRandomVariable ()

virtual uint32_t GetInteger (void)
 Returns the next value in the sequence. More...

virtual double GetValue (void)
 Returns the next value in the sequence. More...

void SetValueArray (double *values, std::size_t length)
 Sets the array of values that holds the predetermined sequence. More...

- Public Member Functions inherited from ns3::RandomVariableStream
 RandomVariableStream ()
 Default constructor. More...

virtual ~RandomVariableStream ()
 Destructor. More...

int64_t GetStream (void) const
 Returns the stream number for the RngStream. More...

bool IsAntithetic (void) const
 Check if antithetic values will be generated. More...

void SetAntithetic (bool isAntithetic)
 Specify whether antithetic values should be generated. More...

void SetStream (int64_t stream)
 Specifies the stream number for the RngStream. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<>
Ptr< Object > GetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object > GetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCount & operator= ([[maybe_unused]] const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

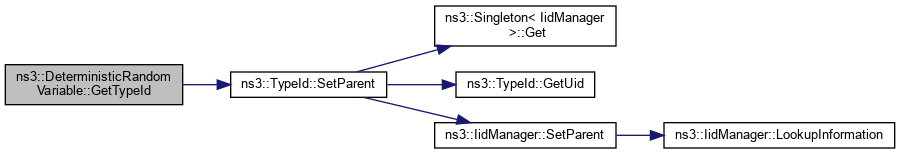

static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::RandomVariableStream
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

std::size_t m_count
 Size of the array of values. More...

double * m_data
 Array of values to return in sequence. More...

std::size_t m_next
 Position of the next value in the array of values. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::RandomVariableStream
RngStream * Peek (void) const
 Get the pointer to the underlying RngStream. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...

- Related Functions inherited from ns3::ObjectBase
static TypeId GetObjectIid (void)
 Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...


Detailed Description

The Random Number Generator (RNG) that returns a predetermined sequence.

Defines a random variable that has a specified, predetermined sequence. This would be useful when trying to force the RNG to return a known sequence, perhaps to compare ns-3 to some other simulator

Creates a generator that returns successive elements of the values array on successive calls to RandomVariableStream::GetValue. Note that the values in the array are copied and stored by the generator (deep-copy). Also note that the sequence repeats if more values are requested than are present in the array.

Here is an example of how to use this class:

Ptr<DeterministicRandomVariable> s = CreateObject<DeterministicRandomVariable> ();
// The following array should give the sequence
//
// 4, 4, 7, 7, 10, 10 .
//
double array [] = { 4, 4, 7, 7, 10, 10};
uint64_t count = 6;
s->SetValueArray (array, count);
double value = x->GetValue ();
nlohmann::detail::value_t::array
@ array
array (ordered collection of values)
nlohmann::detail::parse_event_t::value
@ value
the parser finished reading a JSON value
sample-rng-plot.x
list x
Random number samples.
Definition: sample-rng-plot.py:37

Config Paths

ns3::DeterministicRandomVariable is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/PostReceptionErrorModel/$ns3::RateErrorModel/RanVar/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/PhyEntities/[i]/PostReceptionErrorModel/$ns3::RateErrorModel/RanVar/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/PhyEntities/[i]/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/PhyEntities/[i]/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice/Channel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::MeshPointDevice/ForwardingDelay/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::SixLowPanNetDevice/MeshUnderJitter/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/ApplicationList/[i]/$ns3::OnOffApplication/OnTime/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/ApplicationList/[i]/$ns3::OnOffApplication/OffTime/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/ApplicationList/[i]/$ns3::DhcpClient/Transactions/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanVelocity/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanDirection/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanPitch/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel/Speed/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel/Pause/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel/Direction/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel/Speed/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/Speed/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/Pause/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomRectanglePositionAllocator/X/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomRectanglePositionAllocator/Y/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/X/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/Y/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/Z/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomDiscPositionAllocator/Theta/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomDiscPositionAllocator/Rho/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::OutdoorPositionAllocator/X/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::OutdoorPositionAllocator/Y/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::OutdoorPositionAllocator/Z/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dOutdoorMobilityModel/Direction/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dOutdoorMobilityModel/Speed/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/$ns3::ArpL3Protocol/RequestJitter/$ns3::DeterministicRandomVariable"
  • "/NodeList/[i]/$ns3::Icmpv6L4Protocol/SolicitationJitter/$ns3::DeterministicRandomVariable"
  • "/ChannelList/[i]/$ns3::SpectrumChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::DeterministicRandomVariable"
  • "/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::DeterministicRandomVariable"
  • "/ChannelList/[i]/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable/$ns3::DeterministicRandomVariable"

No Attributes are defined for this type.

Attributes defined in parent class ns3::RandomVariableStream

  • Stream: The stream number for this RNG stream. -1 means "allocate a stream automatically". Note that if -1 is set, Get will return -1 so that it is not possible to know which value was automatically allocated.
    • Set with class: ns3::IntegerValue
    • Underlying type: int64_t -9223372036854775808:9223372036854775807
    • Initial value: -1
    • Flags: construct write read
  • Antithetic: Set this RNG stream to generate antithetic values
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 80 bytes (on a 64-bit architecture).

Definition at line 2354 of file random-variable-stream.h.

Constructor & Destructor Documentation

◆ DeterministicRandomVariable()

ns3::DeterministicRandomVariable::DeterministicRandomVariable ( )

Creates a deterministic RNG that will have a predetermined sequence of values.

Definition at line 1459 of file random-variable-stream.cc.

References NS_LOG_FUNCTION.

◆ ~DeterministicRandomVariable()

ns3::DeterministicRandomVariable::~DeterministicRandomVariable ( )
virtual

Definition at line 1467 of file random-variable-stream.cc.

References m_data, and NS_LOG_FUNCTION.

Member Function Documentation

◆ GetInteger()

uint32_t ns3::DeterministicRandomVariable::GetInteger ( void  )
virtual

Returns the next value in the sequence.

Returns
The integer next value in the sequence.

Implements ns3::RandomVariableStream.

Definition at line 1514 of file random-variable-stream.cc.

References GetValue(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::DeterministicRandomVariable::GetTypeId ( void  )
static

Register this type.

Returns
The object TypeId.

Definition at line 1450 of file random-variable-stream.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

◆ GetValue()

double ns3::DeterministicRandomVariable::GetValue ( void  )
virtual

Returns the next value in the sequence.

Returns
The floating point next value in the sequence.

Implements ns3::RandomVariableStream.

Definition at line 1500 of file random-variable-stream.cc.

References m_count, m_data, m_next, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by GetInteger().

+ Here is the caller graph for this function:

◆ SetValueArray()

void ns3::DeterministicRandomVariable::SetValueArray ( double *  values,
std::size_t  length
)

Sets the array of values that holds the predetermined sequence.

Parameters
[in]valuesArray of random values to return in sequence.
[in]lengthNumber of values in the array.

Note that the values in the array are copied and stored (deep-copy).

Definition at line 1478 of file random-variable-stream.cc.

References m_count, m_data, m_next, and NS_LOG_FUNCTION.

Member Data Documentation

◆ m_count

std::size_t ns3::DeterministicRandomVariable::m_count
private

Size of the array of values.

Definition at line 2394 of file random-variable-stream.h.

Referenced by GetValue(), and SetValueArray().

◆ m_data

double* ns3::DeterministicRandomVariable::m_data
private

Array of values to return in sequence.

Definition at line 2400 of file random-variable-stream.h.

Referenced by ~DeterministicRandomVariable(), GetValue(), and SetValueArray().

◆ m_next

std::size_t ns3::DeterministicRandomVariable::m_next
private

Position of the next value in the array of values.

Definition at line 2397 of file random-variable-stream.h.

Referenced by GetValue(), and SetValueArray().

The documentation for this class was generated from the following files:
