BOOTP header with DHCP messages supports the following options: Subnet Mask (1), Address Request (50), Refresh Lease Time (51), DHCP Message Type (53), DHCP Server ID (54), Renew Time (58), Rebind Time (59) and End (255) of BOOTP. More...

#include "dhcp-header.h"

Inheritance diagram for ns3::DhcpHeader:

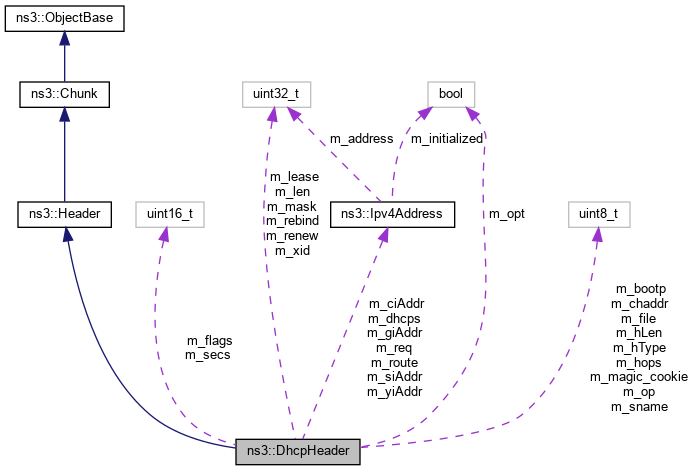

Collaboration diagram for ns3::DhcpHeader:

Public Types
enum	Messages { DHCPDISCOVER = 0 , DHCPOFFER = 1 , DHCPREQ = 2 , DHCPACK = 4 , DHCPNACK = 5 }
	DHCP messages. More...

enum	Options { OP_MASK = 1 , OP_ROUTE = 3 , OP_ADDREQ = 50 , OP_LEASE = 51 , OP_MSGTYPE = 53 , OP_SERVID = 54 , OP_RENEW = 58 , OP_REBIND = 59 , OP_END = 255 }
	BOOTP options. More...

Public Member Functions
	DhcpHeader ()
	Constructor. More...

	~DhcpHeader ()
	Destructor. More...

Address	GetChaddr (void)
	Get the Address of the client. More...

Ipv4Address	GetDhcps (void) const
	Get the information about the DHCP server. More...

uint32_t	GetLease (void) const
	Return the lease time of the IPv4Address. More...

uint32_t	GetMask (void) const
	Return the mask of the network. More...

uint32_t	GetRebind (void) const
	Return the Rebind time of the address. More...

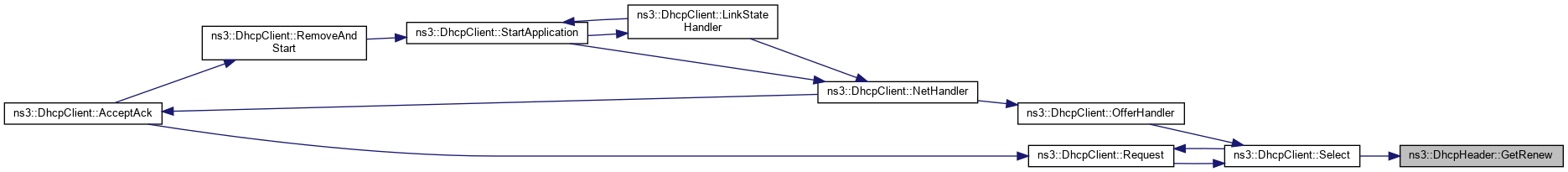

uint32_t	GetRenew (void) const
	Return the Renewal time of the address. More...

Ipv4Address	GetReq (void) const
	Get the IPv4Address requested by the client. More...

Ipv4Address	GetRouter (void) const
	Return the Ipv4Address of gateway to be used. More...

uint32_t	GetTran (void) const
	Get the transaction id. More...

uint8_t	GetType (void) const
	Return the type of DHCP message. More...

Ipv4Address	GetYiaddr (void) const
	Get the IPv4Address of the client. More...

void	ResetOpt ()
	Reset the BOOTP options. More...

void	SetChaddr (Address addr)
	Set the Address of the device. More...

void	SetChaddr (uint8_t *addr, uint8_t len)
	Set the Address of the device. More...

void	SetDhcps (Ipv4Address addr)
	Set the DHCP server information. More...

void	SetHWType (uint8_t htype, uint8_t hlen)
	Set the hardware information. More...

void	SetLease (uint32_t time)
	Set the lease time of the IPv4Address. More...

void	SetMask (uint32_t addr)
	Set the mask of the IPv4Address. More...

void	SetRebind (uint32_t time)
	Set the Rebind time of the IPv4Address. More...

void	SetRenew (uint32_t time)
	Set the Renewal time of the IPv4Address. More...

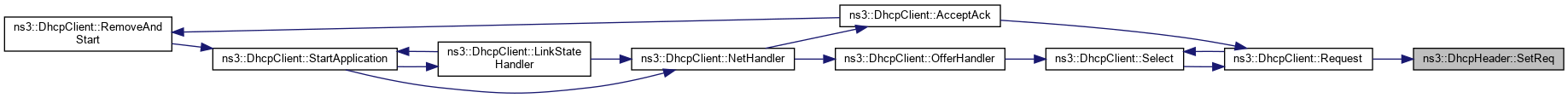

void	SetReq (Ipv4Address addr)
	Set the Ipv4Address requested by the client. More...

void	SetRouter (Ipv4Address addr)
	Set the Ipv4Address of gateway to be used. More...

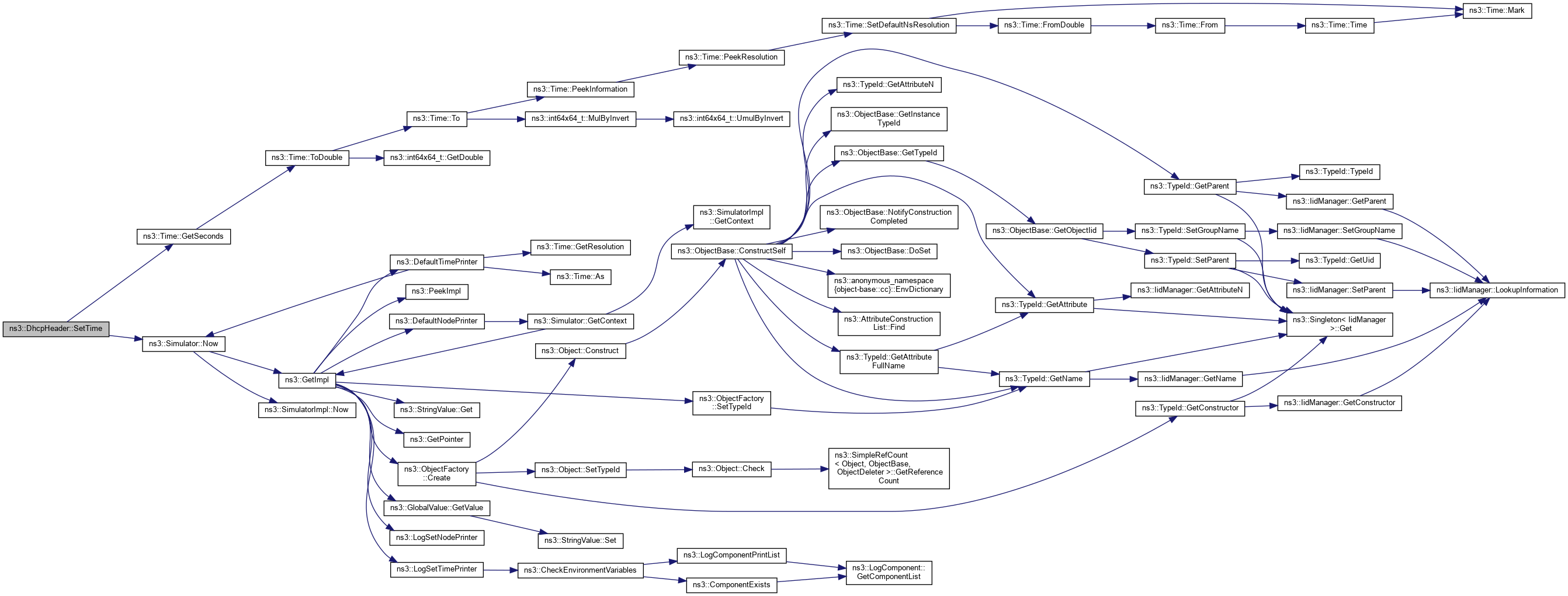

void	SetTime ()
	Set the time when message is sent. More...

void	SetTran (uint32_t tran)
	Set the transaction ID. More...

void	SetType (uint8_t type)
	Set the type of BOOTP and DHCP messages. More...

void	SetYiaddr (Ipv4Address addr)
	Set the IPv4Address of the client. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

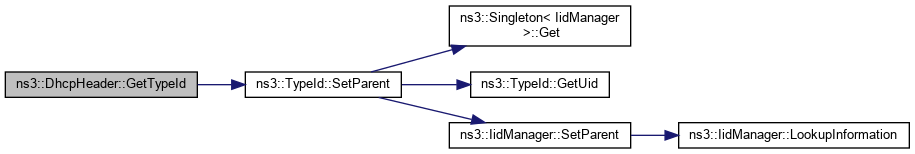

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
virtual uint32_t	Deserialize (Buffer::Iterator start)

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

virtual uint32_t	GetSerializedSize (void) const

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

Private Attributes
uint8_t	m_bootp
	The BOOTP Message type. More...

uint8_t	m_chaddr [16]
	The address identifier. More...

Ipv4Address	m_ciAddr
	The IP address of the client. More...

Ipv4Address	m_dhcps
	DHCP server IP address. More...

uint8_t	m_file [128]
	File name (Padded for now) More...

uint16_t	m_flags
	BOOTP flags. More...

Ipv4Address	m_giAddr
	Relay Agent IP address. More...

uint8_t	m_hLen
	The hardware length. More...

uint8_t	m_hops
	The number of hops covered by the message. More...

uint8_t	m_hType
	The hardware type. More...

uint32_t	m_lease
	The lease time of the address. More...

uint32_t	m_len
	The length of the header. More...

uint8_t	m_magic_cookie [4]
	DHCP Magic Cookie. More...

uint32_t	m_mask
	The mask of the network. More...

uint8_t	m_op
	The DHCP Message type. More...

bool	m_opt [255]
	BOOTP option list. More...

uint32_t	m_rebind
	The rebinding time for the client. More...

uint32_t	m_renew
	The renewal time for the client. More...

Ipv4Address	m_req
	Requested Address. More...

Ipv4Address	m_route
	Router Option Address. More...

uint16_t	m_secs
	Seconds elapsed. More...

Ipv4Address	m_siAddr
	Next Server IP address. More...

uint8_t	m_sname [64]
	Server name (Padded for now) More...

uint32_t	m_xid
	The transaction number. More...

Ipv4Address	m_yiAddr
	Your (client) IP address. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

BOOTP header with DHCP messages supports the following options: Subnet Mask (1), Address Request (50), Refresh Lease Time (51), DHCP Message Type (53), DHCP Server ID (54), Renew Time (58), Rebind Time (59) and End (255) of BOOTP.

Introspection did not find any typical Config paths.

  0                   1                   2                   3
 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |     op (1)    |   htype (1)   |   hlen (1)    |   hops (1)    |
 +---------------+---------------+---------------+---------------+
 |                            xid (4)                            |
 +-------------------------------+-------------------------------+
 |           secs (2)            |           flags (2)           |
 +-------------------------------+-------------------------------+
 |                          ciaddr  (4)                          |
 +---------------------------------------------------------------+
 |                          yiaddr  (4)                          |
 +---------------------------------------------------------------+
 |                          siaddr  (4)                          |
 +---------------------------------------------------------------+
 |                          giaddr  (4)                          |
 +---------------------------------------------------------------+
 |                                                               |
 |                          chaddr  (16)                         |
 |                                                               |
 |                                                               |
 +---------------------------------------------------------------+
 |                                                               |
 |                          sname   (64)                         |
 +---------------------------------------------------------------+
 |                                                               |
 |                          file    (128)                        |
 +---------------------------------------------------------------+
 |                                                               |
 |                          options (variable)                   |
 +---------------------------------------------------------------+

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 568 bytes (on a 64-bit architecture).

Definition at line 81 of file dhcp-header.h.

Member Enumeration Documentation

◆ Messages

enum ns3::DhcpHeader::Messages

DHCP messages.

Enumerator
DHCPDISCOVER	Code for DHCP Discover.
DHCPOFFER	Code for DHCP Offer.
DHCPREQ	Code for DHCP Request.
DHCPACK	Code for DHCP ACK.
DHCPNACK	Code for DHCP NACK.

Definition at line 115 of file dhcp-header.h.

◆ Options

enum ns3::DhcpHeader::Options

BOOTP options.

Enumerator
OP_MASK	BOOTP Option 1: Address Mask.
OP_ROUTE	BOOTP Option 3: Router Option.
OP_ADDREQ	BOOTP Option 50: Requested Address.
OP_LEASE	BOOTP Option 51: Address Lease Time.
OP_MSGTYPE	BOOTP Option 53: DHCP Message Type.
OP_SERVID	BOOTP Option 54: Server Identifier.
OP_RENEW	BOOTP Option 58: Address Renewal Time.
OP_REBIND	BOOTP Option 59: Address Rebind Time.
OP_END	BOOTP Option 255: END.

Definition at line 101 of file dhcp-header.h.

Constructor & Destructor Documentation

◆ DhcpHeader()

ns3::DhcpHeader::DhcpHeader ( )

Constructor.

Definition at line 36 of file dhcp-header.cc.

References m_ciAddr, m_dhcps, m_file, m_flags, m_giAddr, m_hLen, m_hops, m_hType, m_len, m_magic_cookie, m_req, m_route, m_secs, m_siAddr, m_sname, m_xid, and m_yiAddr.

◆ ~DhcpHeader()

ns3::DhcpHeader::~DhcpHeader ( )

Destructor.

Definition at line 70 of file dhcp-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::DhcpHeader::Deserialize ( Buffer::Iterator start )

privatevirtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 352 of file dhcp-header.cc.

References m_bootp, m_chaddr, m_ciAddr, m_dhcps, m_file, m_flags, m_giAddr, m_hLen, m_hops, m_hType, m_lease, m_len, m_magic_cookie, m_mask, m_op, m_rebind, m_renew, m_req, m_route, m_secs, m_siAddr, m_sname, m_xid, m_yiAddr, NS_LOG_WARN, OP_ADDREQ, OP_END, OP_LEASE, OP_MASK, OP_MSGTYPE, OP_REBIND, OP_RENEW, OP_ROUTE, OP_SERVID, ns3::Buffer::Iterator::Read(), ns3::ReadFrom(), ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

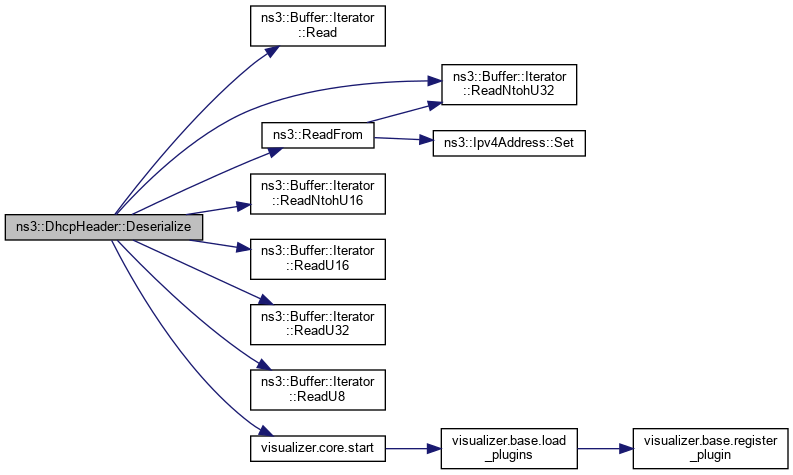

Here is the call graph for this function:

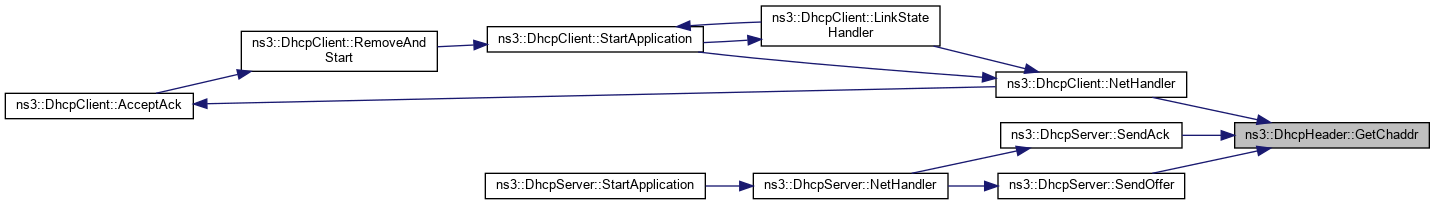

◆ GetChaddr()

Address ns3::DhcpHeader::GetChaddr ( void )

Get the Address of the client.

Note: the address is always 16-bytes long.

Returns: Address of the client

Definition at line 125 of file dhcp-header.cc.

References ns3::Address::CopyFrom(), and m_chaddr.

Referenced by ns3::DhcpClient::NetHandler(), ns3::DhcpServer::SendAck(), and ns3::DhcpServer::SendOffer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDhcps()

Ipv4Address ns3::DhcpHeader::GetDhcps ( void ) const

Get the information about the DHCP server.

Returns: IPv4Address of DHCP server

Definition at line 152 of file dhcp-header.cc.

References m_dhcps.

Referenced by ns3::DhcpClient::Select().

Here is the caller graph for this function:

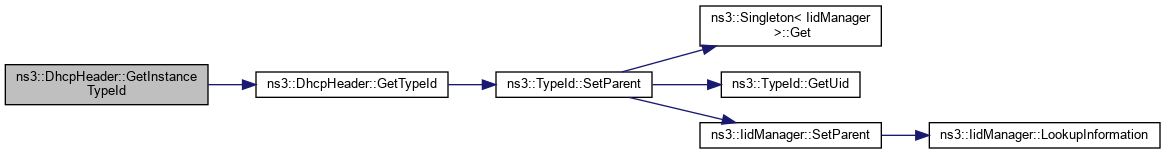

◆ GetInstanceTypeId()

TypeId ns3::DhcpHeader::GetInstanceTypeId ( void ) const

privatevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 272 of file dhcp-header.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetLease()

uint32_t ns3::DhcpHeader::GetLease ( void ) const

Return the lease time of the IPv4Address.

Returns: 32 bit time

Definition at line 212 of file dhcp-header.cc.

References m_lease.

Referenced by ns3::DhcpClient::Select().

Here is the caller graph for this function:

◆ GetMask()

uint32_t ns3::DhcpHeader::GetMask ( void ) const

Return the mask of the network.

Returns: 32 bit mask

Definition at line 182 of file dhcp-header.cc.

References m_mask.

Referenced by ns3::DhcpClient::Select().

Here is the caller graph for this function:

◆ GetRebind()

uint32_t ns3::DhcpHeader::GetRebind ( void ) const

Return the Rebind time of the address.

Returns: 32 bit time

Definition at line 242 of file dhcp-header.cc.

References m_rebind.

Referenced by ns3::DhcpClient::Select().

Here is the caller graph for this function:

◆ GetRenew()

uint32_t ns3::DhcpHeader::GetRenew ( void ) const

Return the Renewal time of the address.

Returns: 32 bit time

Definition at line 227 of file dhcp-header.cc.

References m_renew.

Referenced by ns3::DhcpClient::Select().

Here is the caller graph for this function:

◆ GetReq()

Ipv4Address ns3::DhcpHeader::GetReq ( void ) const

Get the IPv4Address requested by the client.

Returns: IPv4Address requested by the client

Definition at line 167 of file dhcp-header.cc.

References m_req.

Referenced by ns3::DhcpServer::NetHandler(), and ns3::DhcpServer::SendAck().

Here is the caller graph for this function:

◆ GetRouter()

Ipv4Address ns3::DhcpHeader::GetRouter ( void ) const

Return the Ipv4Address of gateway to be used.

Returns: The Ipv4Address of the gateway

Definition at line 197 of file dhcp-header.cc.

References m_route.

Referenced by ns3::DhcpClient::Select().

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::DhcpHeader::GetSerializedSize ( void ) const

privatevirtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 257 of file dhcp-header.cc.

References m_len.

◆ GetTran()

uint32_t ns3::DhcpHeader::GetTran ( void ) const

Get the transaction id.

Returns: The transaction id

Definition at line 101 of file dhcp-header.cc.

References m_xid.

Referenced by ns3::DhcpServer::SendAck(), and ns3::DhcpServer::SendOffer().

Here is the caller graph for this function:

◆ GetType()

uint8_t ns3::DhcpHeader::GetType ( void ) const

Return the type of DHCP message.

Returns: The type of message

Definition at line 85 of file dhcp-header.cc.

References m_op.

Referenced by ns3::DhcpClient::NetHandler(), and ns3::DhcpServer::NetHandler().

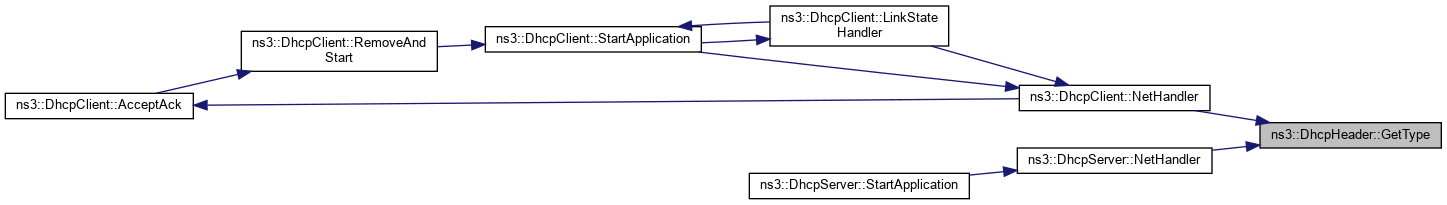

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::DhcpHeader::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 262 of file dhcp-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetYiaddr()

Ipv4Address ns3::DhcpHeader::GetYiaddr ( void ) const

Get the IPv4Address of the client.

Returns: IPv4Address of the client

Definition at line 137 of file dhcp-header.cc.

References m_yiAddr.

Referenced by ns3::DhcpClient::Select().

Here is the caller graph for this function:

◆ Print()

void ns3::DhcpHeader::Print ( std::ostream & os ) const

privatevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 277 of file dhcp-header.cc.

References m_op.

◆ ResetOpt()

void ns3::DhcpHeader::ResetOpt ( )

Reset the BOOTP options.

Definition at line 247 of file dhcp-header.cc.

References m_len, m_opt, and OP_END.

Referenced by ns3::DhcpClient::Boot(), ns3::DhcpClient::Request(), ns3::DhcpServer::SendAck(), and ns3::DhcpServer::SendOffer().

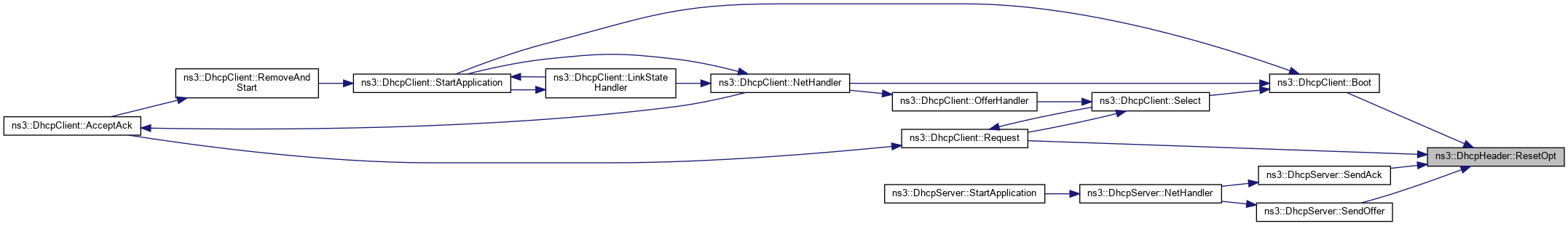

Here is the caller graph for this function:

◆ Serialize()

void ns3::DhcpHeader::Serialize ( Buffer::Iterator start ) const

privatevirtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 283 of file dhcp-header.cc.

References m_bootp, m_chaddr, m_ciAddr, m_dhcps, m_file, m_flags, m_giAddr, m_hLen, m_hops, m_hType, m_lease, m_magic_cookie, m_mask, m_op, m_opt, m_rebind, m_renew, m_req, m_route, m_secs, m_siAddr, m_sname, m_xid, m_yiAddr, OP_ADDREQ, OP_END, OP_LEASE, OP_MASK, OP_MSGTYPE, OP_REBIND, OP_RENEW, OP_ROUTE, OP_SERVID, visualizer.core::start(), ns3::Buffer::Iterator::Write(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteHtonU32(), ns3::WriteTo(), ns3::Buffer::Iterator::WriteU16(), ns3::Buffer::Iterator::WriteU32(), and ns3::Buffer::Iterator::WriteU8().

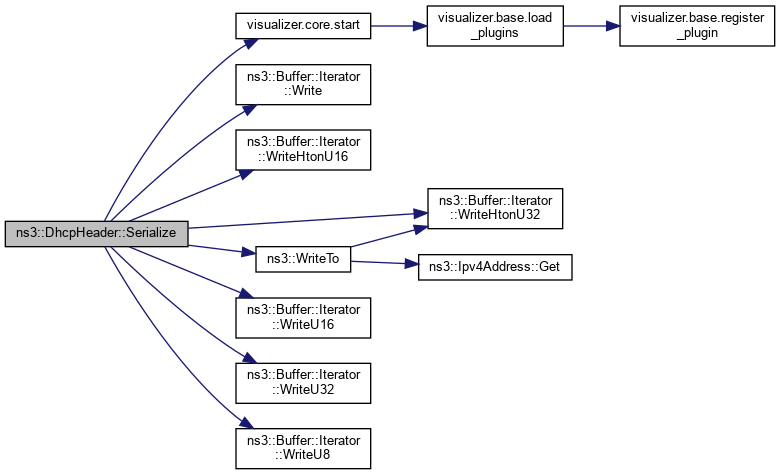

Here is the call graph for this function:

◆ SetChaddr() [1/2]

void ns3::DhcpHeader::SetChaddr ( Address addr )

Set the Address of the device.

Only the relevant bits are considered (i.e., not the type and length)

Parameters

addr	Address of the device

Definition at line 111 of file dhcp-header.cc.

References ns3::Address::CopyTo(), ns3::Address::GetLength(), m_chaddr, and NS_ASSERT_MSG.

Referenced by ns3::DhcpClient::Boot(), ns3::DhcpClient::Request(), ns3::DhcpServer::SendAck(), and ns3::DhcpServer::SendOffer().

Here is the call graph for this function:

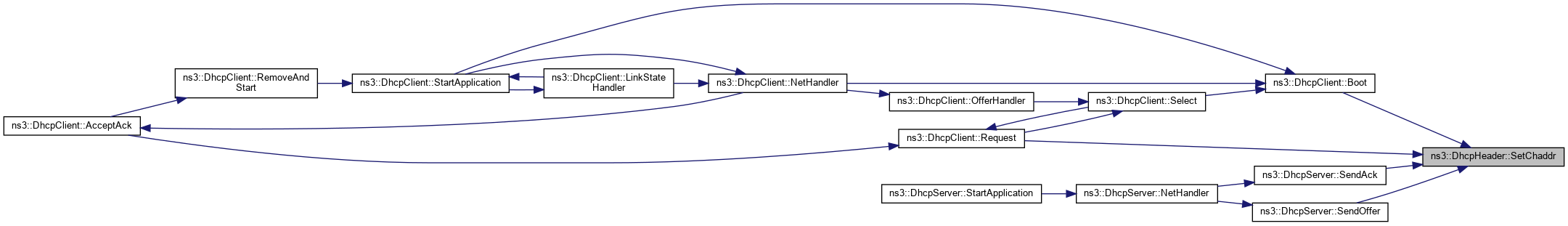

Here is the caller graph for this function:

◆ SetChaddr() [2/2]

void ns3::DhcpHeader::SetChaddr	(	uint8_t *	addr,
		uint8_t	len
	)

Set the Address of the device.

Parameters

addr	Address of the device
len	Address length

Definition at line 118 of file dhcp-header.cc.

References m_chaddr, and NS_ASSERT_MSG.

◆ SetDhcps()

void ns3::DhcpHeader::SetDhcps ( Ipv4Address addr )

Set the DHCP server information.

Parameters

addr	IPv4Address of the server

Definition at line 142 of file dhcp-header.cc.

References m_dhcps, m_len, m_opt, and OP_SERVID.

Referenced by ns3::DhcpServer::SendOffer().

Here is the caller graph for this function:

◆ SetHWType()

void ns3::DhcpHeader::SetHWType	(	uint8_t	htype,
		uint8_t	hlen
	)

Set the hardware information.

Parameters

htype	Hardware type
hlen	Hardware length

Definition at line 90 of file dhcp-header.cc.

References m_hLen, and m_hType.

◆ SetLease()

void ns3::DhcpHeader::SetLease ( uint32_t time )

Set the lease time of the IPv4Address.

Parameters

time	32 bit time

Definition at line 202 of file dhcp-header.cc.

References m_lease, m_len, m_opt, and OP_LEASE.

Referenced by ns3::DhcpServer::SendOffer().

Here is the caller graph for this function:

◆ SetMask()

void ns3::DhcpHeader::SetMask ( uint32_t addr )

Set the mask of the IPv4Address.

Parameters

addr	32 bit mask

Definition at line 172 of file dhcp-header.cc.

References m_len, m_mask, m_opt, and OP_MASK.

Referenced by ns3::DhcpServer::SendOffer().

Here is the caller graph for this function:

◆ SetRebind()

void ns3::DhcpHeader::SetRebind ( uint32_t time )

Set the Rebind time of the IPv4Address.

Parameters

time	32 bit time

Definition at line 232 of file dhcp-header.cc.

References m_len, m_opt, m_rebind, and OP_REBIND.

Referenced by ns3::DhcpServer::SendOffer().

Here is the caller graph for this function:

◆ SetRenew()

void ns3::DhcpHeader::SetRenew ( uint32_t time )

Set the Renewal time of the IPv4Address.

Parameters

time	32 bit time

Definition at line 217 of file dhcp-header.cc.

References m_len, m_opt, m_renew, and OP_RENEW.

Referenced by ns3::DhcpServer::SendOffer().

Here is the caller graph for this function:

◆ SetReq()

void ns3::DhcpHeader::SetReq ( Ipv4Address addr )

Set the Ipv4Address requested by the client.

Parameters

addr	Ipv4Address requested by the client

Definition at line 157 of file dhcp-header.cc.

References m_len, m_opt, m_req, and OP_ADDREQ.

Referenced by ns3::DhcpClient::Request().

Here is the caller graph for this function:

◆ SetRouter()

void ns3::DhcpHeader::SetRouter ( Ipv4Address addr )

Set the Ipv4Address of gateway to be used.

Parameters

addr	The Ipv4Address of the gateway

Definition at line 187 of file dhcp-header.cc.

References m_len, m_opt, m_route, and OP_ROUTE.

Referenced by ns3::DhcpServer::SendOffer().

Here is the caller graph for this function:

◆ SetTime()

void ns3::DhcpHeader::SetTime ( )

Set the time when message is sent.

Definition at line 106 of file dhcp-header.cc.

References ns3::Time::GetSeconds(), m_secs, and ns3::Simulator::Now().

Referenced by ns3::DhcpClient::Boot(), ns3::DhcpClient::Request(), ns3::DhcpServer::SendAck(), and ns3::DhcpServer::SendOffer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetTran()

void ns3::DhcpHeader::SetTran ( uint32_t tran )

Set the transaction ID.

Parameters

tran	The transaction number

Definition at line 96 of file dhcp-header.cc.

References m_xid.

Referenced by ns3::DhcpClient::Boot(), ns3::DhcpClient::Request(), ns3::DhcpServer::SendAck(), and ns3::DhcpServer::SendOffer().

Here is the caller graph for this function:

◆ SetType()

void ns3::DhcpHeader::SetType ( uint8_t type )

Set the type of BOOTP and DHCP messages.

Parameters

type	The type of message

Definition at line 74 of file dhcp-header.cc.

References m_bootp, m_len, m_op, m_opt, and OP_MSGTYPE.

Referenced by ns3::DhcpClient::Boot(), ns3::DhcpClient::Request(), ns3::DhcpServer::SendAck(), and ns3::DhcpServer::SendOffer().

Here is the caller graph for this function:

◆ SetYiaddr()

void ns3::DhcpHeader::SetYiaddr ( Ipv4Address addr )

Set the IPv4Address of the client.

Parameters

addr	The client Ipv4Address

Definition at line 132 of file dhcp-header.cc.

References m_yiAddr.

Referenced by ns3::DhcpServer::SendAck(), and ns3::DhcpServer::SendOffer().

Here is the caller graph for this function:

Member Data Documentation

◆ m_bootp

uint8_t ns3::DhcpHeader::m_bootp

private

The BOOTP Message type.

Definition at line 294 of file dhcp-header.h.

Referenced by Deserialize(), Serialize(), and SetType().

◆ m_chaddr

uint8_t ns3::DhcpHeader::m_chaddr[16]

private

The address identifier.

Definition at line 303 of file dhcp-header.h.

Referenced by Deserialize(), GetChaddr(), Serialize(), and SetChaddr().

◆ m_ciAddr

Ipv4Address ns3::DhcpHeader::m_ciAddr

private

The IP address of the client.

Definition at line 305 of file dhcp-header.h.

Referenced by DhcpHeader(), Deserialize(), and Serialize().

◆ m_dhcps

Ipv4Address ns3::DhcpHeader::m_dhcps

private

DHCP server IP address.

Definition at line 308 of file dhcp-header.h.

Referenced by DhcpHeader(), Deserialize(), GetDhcps(), Serialize(), and SetDhcps().

◆ m_file

uint8_t ns3::DhcpHeader::m_file[128]

private

File name (Padded for now)

Definition at line 312 of file dhcp-header.h.

Referenced by DhcpHeader(), Deserialize(), and Serialize().

◆ m_flags

uint16_t ns3::DhcpHeader::m_flags

private

BOOTP flags.

Definition at line 302 of file dhcp-header.h.

Referenced by DhcpHeader(), Deserialize(), and Serialize().

◆ m_giAddr

Ipv4Address ns3::DhcpHeader::m_giAddr

private

Relay Agent IP address.

Definition at line 307 of file dhcp-header.h.

Referenced by DhcpHeader(), Deserialize(), and Serialize().

◆ m_hLen

uint8_t ns3::DhcpHeader::m_hLen

private

The hardware length.

Definition at line 296 of file dhcp-header.h.

Referenced by DhcpHeader(), Deserialize(), Serialize(), and SetHWType().

◆ m_hops

uint8_t ns3::DhcpHeader::m_hops

private

The number of hops covered by the message.

Definition at line 297 of file dhcp-header.h.

Referenced by DhcpHeader(), Deserialize(), and Serialize().

◆ m_hType

uint8_t ns3::DhcpHeader::m_hType

private

The hardware type.

Definition at line 295 of file dhcp-header.h.

Referenced by DhcpHeader(), Deserialize(), Serialize(), and SetHWType().

◆ m_lease

uint32_t ns3::DhcpHeader::m_lease

private

The lease time of the address.

Definition at line 314 of file dhcp-header.h.

Referenced by Deserialize(), GetLease(), Serialize(), and SetLease().

◆ m_len

uint32_t ns3::DhcpHeader::m_len

private

The length of the header.

Definition at line 300 of file dhcp-header.h.

Referenced by DhcpHeader(), Deserialize(), GetSerializedSize(), ResetOpt(), SetDhcps(), SetLease(), SetMask(), SetRebind(), SetRenew(), SetReq(), SetRouter(), and SetType().

◆ m_magic_cookie

uint8_t ns3::DhcpHeader::m_magic_cookie[4]

private

DHCP Magic Cookie.

Definition at line 313 of file dhcp-header.h.

Referenced by DhcpHeader(), Deserialize(), and Serialize().

◆ m_mask

uint32_t ns3::DhcpHeader::m_mask

private

The mask of the network.

Definition at line 299 of file dhcp-header.h.

Referenced by Deserialize(), GetMask(), Serialize(), and SetMask().

◆ m_op

uint8_t ns3::DhcpHeader::m_op

private

The DHCP Message type.

Definition at line 293 of file dhcp-header.h.

Referenced by Deserialize(), GetType(), Print(), Serialize(), and SetType().

◆ m_opt

bool ns3::DhcpHeader::m_opt[255]

private

BOOTP option list.

Definition at line 317 of file dhcp-header.h.

Referenced by ResetOpt(), Serialize(), SetDhcps(), SetLease(), SetMask(), SetRebind(), SetRenew(), SetReq(), SetRouter(), and SetType().

◆ m_rebind

uint32_t ns3::DhcpHeader::m_rebind

private

The rebinding time for the client.

Definition at line 316 of file dhcp-header.h.

Referenced by Deserialize(), GetRebind(), Serialize(), and SetRebind().

◆ m_renew

uint32_t ns3::DhcpHeader::m_renew

private

The renewal time for the client.

Definition at line 315 of file dhcp-header.h.

Referenced by Deserialize(), GetRenew(), Serialize(), and SetRenew().

◆ m_req

Ipv4Address ns3::DhcpHeader::m_req

private

Requested Address.

Definition at line 309 of file dhcp-header.h.

Referenced by DhcpHeader(), Deserialize(), GetReq(), Serialize(), and SetReq().

◆ m_route

Ipv4Address ns3::DhcpHeader::m_route

private

Router Option Address.

Definition at line 310 of file dhcp-header.h.

Referenced by DhcpHeader(), Deserialize(), GetRouter(), Serialize(), and SetRouter().

◆ m_secs

uint16_t ns3::DhcpHeader::m_secs

private

Seconds elapsed.

Definition at line 301 of file dhcp-header.h.

Referenced by DhcpHeader(), Deserialize(), Serialize(), and SetTime().

◆ m_siAddr

Ipv4Address ns3::DhcpHeader::m_siAddr

private

Next Server IP address.

Definition at line 306 of file dhcp-header.h.

Referenced by DhcpHeader(), Deserialize(), and Serialize().

◆ m_sname

uint8_t ns3::DhcpHeader::m_sname[64]

private

Server name (Padded for now)

Definition at line 311 of file dhcp-header.h.

Referenced by DhcpHeader(), Deserialize(), and Serialize().

◆ m_xid

uint32_t ns3::DhcpHeader::m_xid

private

The transaction number.

Definition at line 298 of file dhcp-header.h.

Referenced by DhcpHeader(), Deserialize(), GetTran(), Serialize(), and SetTran().

◆ m_yiAddr

Ipv4Address ns3::DhcpHeader::m_yiAddr

private

Your (client) IP address.

Definition at line 304 of file dhcp-header.h.

Referenced by DhcpHeader(), Deserialize(), GetYiaddr(), Serialize(), and SetYiaddr().

The documentation for this class was generated from the following files:

src/internet-apps/model/dhcp-header.h
src/internet-apps/model/dhcp-header.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ Messages

◆ Options

Constructor & Destructor Documentation

◆ DhcpHeader()

◆ ~DhcpHeader()

Member Function Documentation

◆ Deserialize()

◆ GetChaddr()

◆ GetDhcps()

◆ GetInstanceTypeId()

◆ GetLease()

◆ GetMask()

◆ GetRebind()

◆ GetRenew()

◆ GetReq()

◆ GetRouter()

◆ GetSerializedSize()

◆ GetTran()

◆ GetType()

◆ GetTypeId()

◆ GetYiaddr()

◆ Print()

◆ ResetOpt()

◆ Serialize()

◆ SetChaddr() [1/2]

◆ SetChaddr() [2/2]

◆ SetDhcps()

◆ SetHWType()

◆ SetLease()

◆ SetMask()

◆ SetRebind()

◆ SetRenew()

◆ SetReq()

◆ SetRouter()

◆ SetTime()

◆ SetTran()

◆ SetType()

◆ SetYiaddr()

Member Data Documentation

◆ m_bootp

◆ m_chaddr

◆ m_ciAddr

◆ m_dhcps

◆ m_file

◆ m_flags

◆ m_giAddr

◆ m_hLen

◆ m_hops

◆ m_hType

◆ m_lease

◆ m_len

◆ m_magic_cookie

◆ m_mask

◆ m_op

◆ m_opt

◆ m_rebind

◆ m_renew

◆ m_req

◆ m_route

◆ m_secs

◆ m_siAddr

◆ m_sname

◆ m_xid

◆ m_yiAddr
