The Downlink Data Control Indicator messages defines the RB allocation for the users in the downlink. More...

#include "lte-control-messages.h"

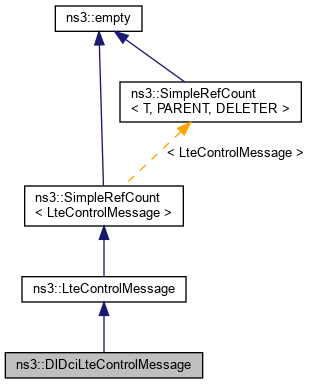

Inheritance diagram for ns3::DlDciLteControlMessage:

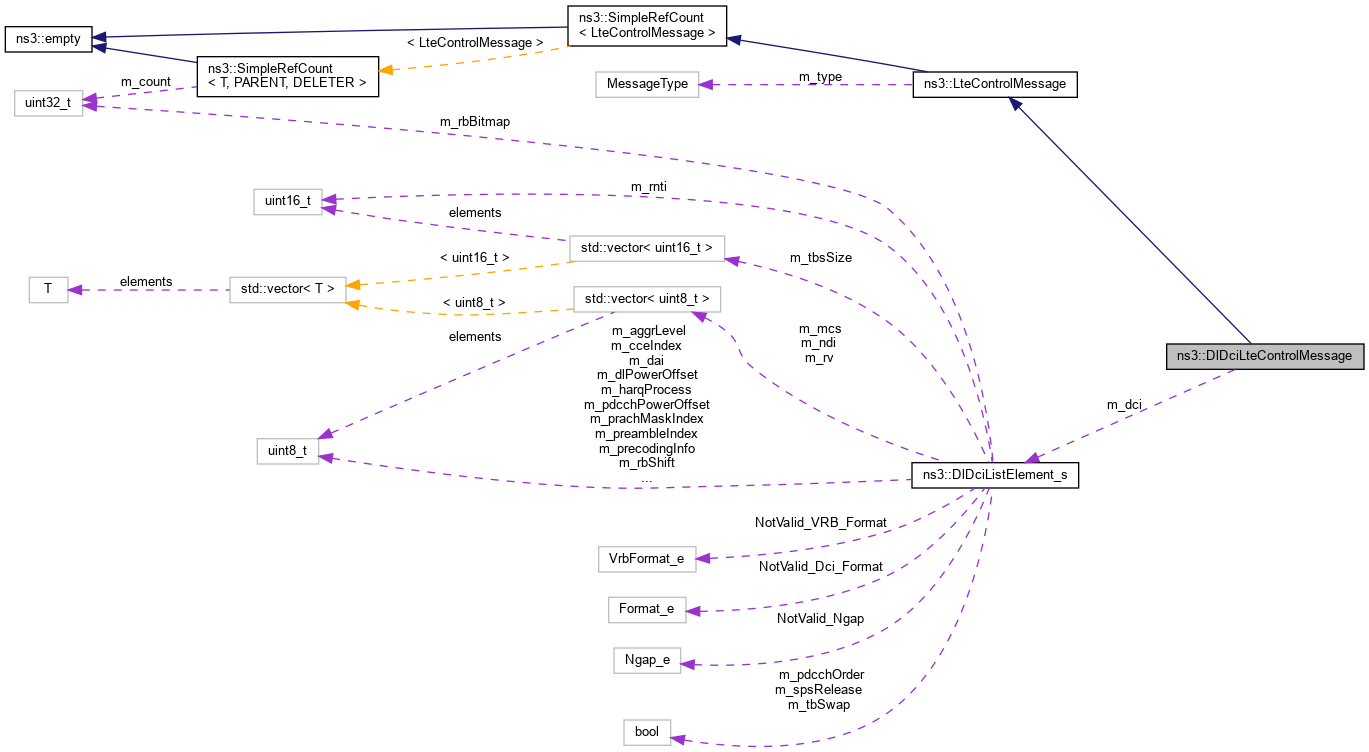

Collaboration diagram for ns3::DlDciLteControlMessage:

Public Member Functions
	DlDciLteControlMessage (void)

virtual	~DlDciLteControlMessage (void)

DlDciListElement_s	GetDci (void)
	Get dic information. More...

void	SetDci (DlDciListElement_s dci)
	add a DCI into the message More...

Public Member Functions inherited from ns3::LteControlMessage
	LteControlMessage (void)

virtual	~LteControlMessage (void)

MessageType	GetMessageType (void)
	Get the type of the message. More...

void	SetMessageType (MessageType type)
	Set the type of the message. More...

Public Member Functions inherited from ns3::SimpleRefCount< LteControlMessage >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
DlDciListElement_s	m_dci
	DCI. More...

Additional Inherited Members
Public Types inherited from ns3::LteControlMessage
enum	MessageType { DL_DCI , UL_DCI , DL_CQI , UL_CQI , BSR , DL_HARQ , RACH_PREAMBLE , RAR , MIB , SIB1 }
	The type of the message NOTE: The messages sent by UE are filtered by the LteEnbPhy::ReceiveLteControlMessageList in order to remove the ones that has been already handoff by the eNB for avoiding propagation of spurious messages. More...

Detailed Description

The Downlink Data Control Indicator messages defines the RB allocation for the users in the downlink.

Definition at line 92 of file lte-control-messages.h.

Constructor & Destructor Documentation

◆ DlDciLteControlMessage()

ns3::DlDciLteControlMessage::DlDciLteControlMessage ( void )

Definition at line 60 of file lte-control-messages.cc.

References ns3::LteControlMessage::DL_DCI, and ns3::LteControlMessage::SetMessageType().

Here is the call graph for this function:

◆ ~DlDciLteControlMessage()

ns3::DlDciLteControlMessage::~DlDciLteControlMessage ( void )

virtual

Definition at line 66 of file lte-control-messages.cc.

Member Function Documentation

◆ GetDci()

DlDciListElement_s ns3::DlDciLteControlMessage::GetDci ( void )

Get dic information.

Returns: dci messages

Definition at line 80 of file lte-control-messages.cc.

References m_dci.

◆ SetDci()

void ns3::DlDciLteControlMessage::SetDci ( DlDciListElement_s dci )

add a DCI into the message

Parameters

dci the dci

Definition at line 72 of file lte-control-messages.cc.

References m_dci.

Member Data Documentation

◆ m_dci

DlDciListElement_s ns3::DlDciLteControlMessage::m_dci

private

DCI.

Definition at line 111 of file lte-control-messages.h.

Referenced by GetDci(), and SetDci().

The documentation for this class was generated from the following files:

src/lte/model/lte-control-messages.h
src/lte/model/lte-control-messages.cc
