Create an EPC network using EmuFdNetDevice. More...

#include "emu-epc-helper.h"

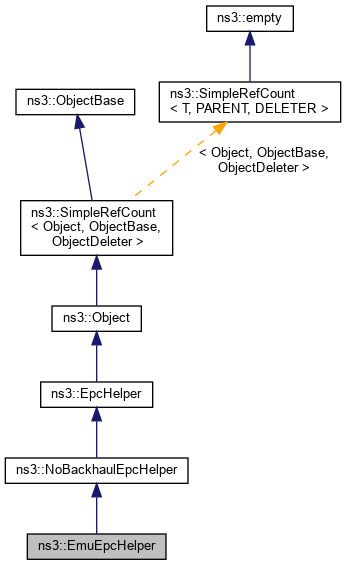

Inheritance diagram for ns3::EmuEpcHelper:

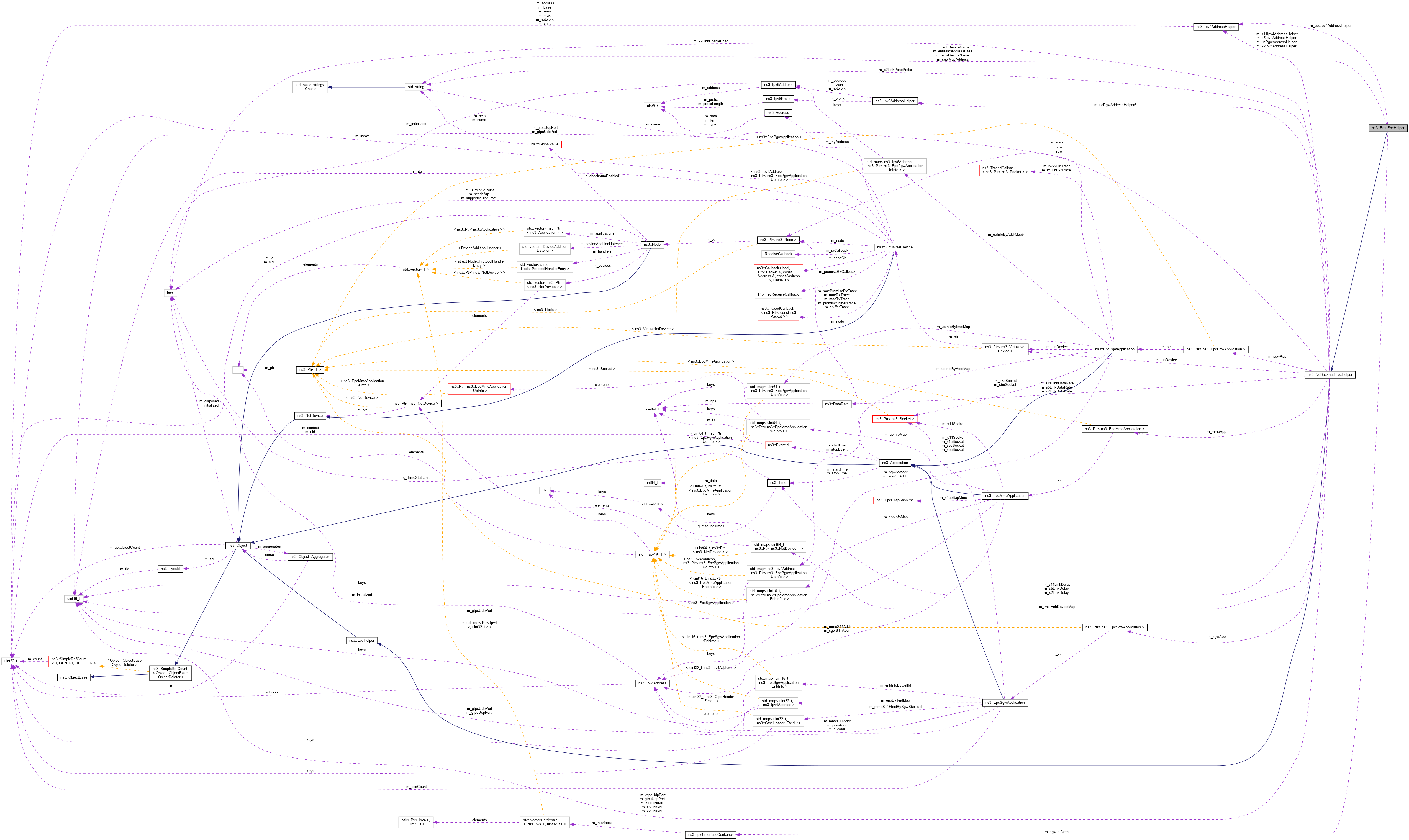

Collaboration diagram for ns3::EmuEpcHelper:

Public Member Functions
	EmuEpcHelper ()
	Constructor. More...

virtual	~EmuEpcHelper ()
	Destructor. More...

virtual void	AddEnb (Ptr< Node > enbNode, Ptr< NetDevice > lteEnbNetDevice, std::vector< uint16_t > cellIds)
	Add an eNB to the EPC. More...

virtual void	AddX2Interface (Ptr< Node > enbNode1, Ptr< Node > enbNode2)
	Add an X2 interface between two eNB. More...

virtual void	DoDispose ()
	Destructor implementation. More...

TypeId	GetInstanceTypeId () const
	Get the most derived TypeId for this Object. More...

Public Member Functions inherited from ns3::NoBackhaulEpcHelper
	NoBackhaulEpcHelper ()
	Constructor. More...

virtual	~NoBackhaulEpcHelper ()
	Destructor. More...

virtual uint8_t	ActivateEpsBearer (Ptr< NetDevice > ueLteDevice, uint64_t imsi, Ptr< EpcTft > tft, EpsBearer bearer)
	Activate an EPS bearer, setting up the corresponding S1-U tunnel. More...

virtual void	AddS1Interface (Ptr< Node > enb, Ipv4Address enbAddress, Ipv4Address sgwAddress, std::vector< uint16_t > cellIds)
	Add an S1 interface between an eNB and a SGW. More...

virtual void	AddUe (Ptr< NetDevice > ueLteDevice, uint64_t imsi)
	Notify the EPC of the existence of a new UE which might attach at a later time. More...

virtual Ipv4InterfaceContainer	AssignUeIpv4Address (NetDeviceContainer ueDevices)
	Assign IPv4 addresses to UE devices. More...

virtual Ipv6InterfaceContainer	AssignUeIpv6Address (NetDeviceContainer ueDevices)
	Assign IPv6 addresses to UE devices. More...

TypeId	GetInstanceTypeId () const
	Get the most derived TypeId for this Object. More...

virtual Ptr< Node >	GetPgwNode () const
	Get the PGW node. More...

virtual Ptr< Node >	GetSgwNode () const
	Get the SGW node. More...

virtual Ipv4Address	GetUeDefaultGatewayAddress ()

virtual Ipv6Address	GetUeDefaultGatewayAddress6 ()

Public Member Functions inherited from ns3::EpcHelper
	EpcHelper ()
	Constructor. More...

virtual	~EpcHelper ()
	Destructor. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::NoBackhaulEpcHelper
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::EpcHelper
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
std::string	m_enbDeviceName
	The name of the device used for the S1-U interface of the eNB. More...

std::string	m_enbMacAddressBase
	First 5 bytes of the Enb MAC address base. More...

Ipv4AddressHelper	m_epcIpv4AddressHelper
	helper to assign addresses to S1-U NetDevices More...

std::string	m_sgwDeviceName
	The name of the device used for the S1-U interface of the SGW. More...

Ipv4InterfaceContainer	m_sgwIpIfaces
	Container for Ipv4Interfaces of the SGW. More...

std::string	m_sgwMacAddress
	MAC address used for the SGW. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::NoBackhaulEpcHelper
virtual void	DoActivateEpsBearerForUe (const Ptr< NetDevice > &ueDevice, const Ptr< EpcTft > &tft, const EpsBearer &bearer) const
	DoActivateEpsBearerForUe: Schedule ActivateEpsBearer on the UE. More...

virtual void	DoAddX2Interface (const Ptr< EpcX2 > &enb1X2, const Ptr< NetDevice > &enb1LteDev, const Ipv4Address &enb1X2Address, const Ptr< EpcX2 > &enb2X2, const Ptr< NetDevice > &enb2LteDev, const Ipv4Address &enb2X2Address) const
	DoAddX2Interface: Call AddX2Interface on top of the Enb device pointers. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Create an EPC network using EmuFdNetDevice.

Introspection did not find any typical Config paths.

This Helper will create an EPC network topology comprising of a single node that implements both the SGW and PGW functionality, and an MME node. The S1-U, X2-U and X2-C interfaces are realized using EmuFdNetDevice; in particular, one device is used to send all the traffic related to these interfaces.

Attributes

SgwDeviceName: The name of the device used for the S1-U interface of the SGW
- Set with class: StringValue
- Underlying type:
- Initial value: veth0
- Flags: construct write read
EnbDeviceName: The name of the device used for the S1-U interface of the eNB
- Set with class: StringValue
- Underlying type:
- Initial value: veth1
- Flags: construct write read
SgwMacAddress: MAC address used for the SGW
- Set with class: StringValue
- Underlying type:
- Initial value: 00:00:00:59:00:aa
- Flags: construct write read
EnbMacAddressBase: First 5 bytes of the eNB MAC address base
- Set with class: StringValue
- Underlying type:
- Initial value: 00:00:00:eb:00
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 584 bytes (on a 64-bit architecture).

Definition at line 41 of file emu-epc-helper.h.

Constructor & Destructor Documentation

◆ EmuEpcHelper()

ns3::EmuEpcHelper::EmuEpcHelper ( )

Constructor.

Definition at line 40 of file emu-epc-helper.cc.

References ns3::Ipv4AddressHelper::Assign(), ns3::ObjectBase::ConstructSelf(), ns3::NetDeviceContainer::Get(), ns3::NoBackhaulEpcHelper::GetSgwNode(), ns3::FdNetDeviceHelper::Install(), m_epcIpv4AddressHelper, m_sgwDeviceName, m_sgwIpIfaces, m_sgwMacAddress, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::ObjectBase::SetAttribute(), ns3::Ipv4AddressHelper::SetBase(), and ns3::EmuFdNetDeviceHelper::SetDeviceName().

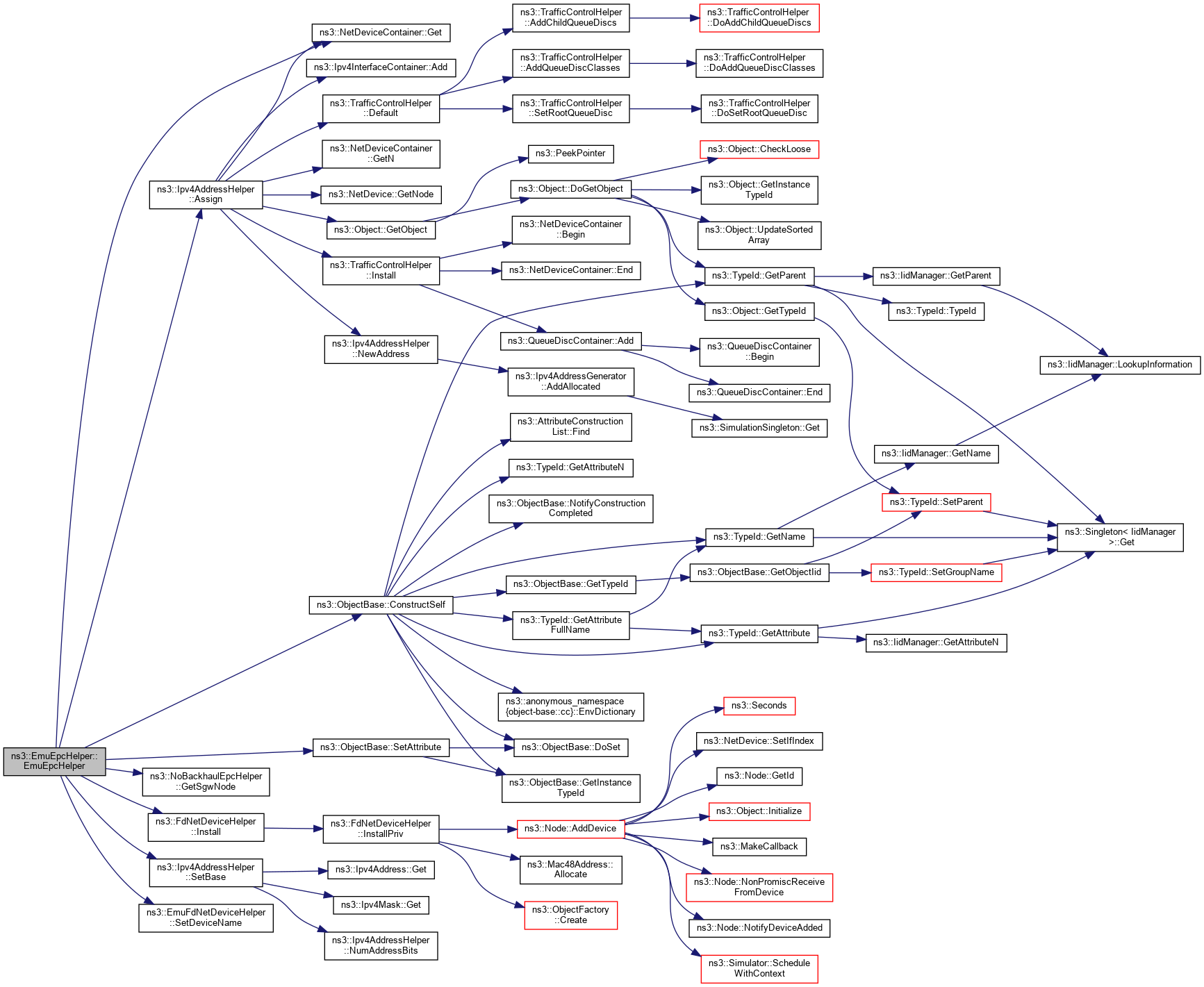

Here is the call graph for this function:

◆ ~EmuEpcHelper()

ns3::EmuEpcHelper::~EmuEpcHelper ( )

virtual

Destructor.

Definition at line 66 of file emu-epc-helper.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddEnb()

void ns3::EmuEpcHelper::AddEnb	(	Ptr< Node >	enbNode,
		Ptr< NetDevice >	lteEnbNetDevice,
		std::vector< uint16_t >	cellIds
	)

virtual

Add an eNB to the EPC.

Parameters

enbNode	the previously created eNB node which is to be added to the EPC
lteEnbNetDevice	the LteEnbNetDevice of the eNB node
cellIds	IDs of cells served by this eNB

Reimplemented from ns3::NoBackhaulEpcHelper.

Definition at line 117 of file emu-epc-helper.cc.

References ns3::NoBackhaulEpcHelper::AddEnb(), ns3::NoBackhaulEpcHelper::AddS1Interface(), ns3::Ipv4AddressHelper::Assign(), ns3::NetDeviceContainer::Get(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::Ipv4::GetNInterfaces(), ns3::Object::GetObject(), ns3::FdNetDeviceHelper::Install(), m_enbDeviceName, m_enbMacAddressBase, m_epcIpv4AddressHelper, m_sgwIpIfaces, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::ObjectBase::SetAttribute(), and ns3::EmuFdNetDeviceHelper::SetDeviceName().

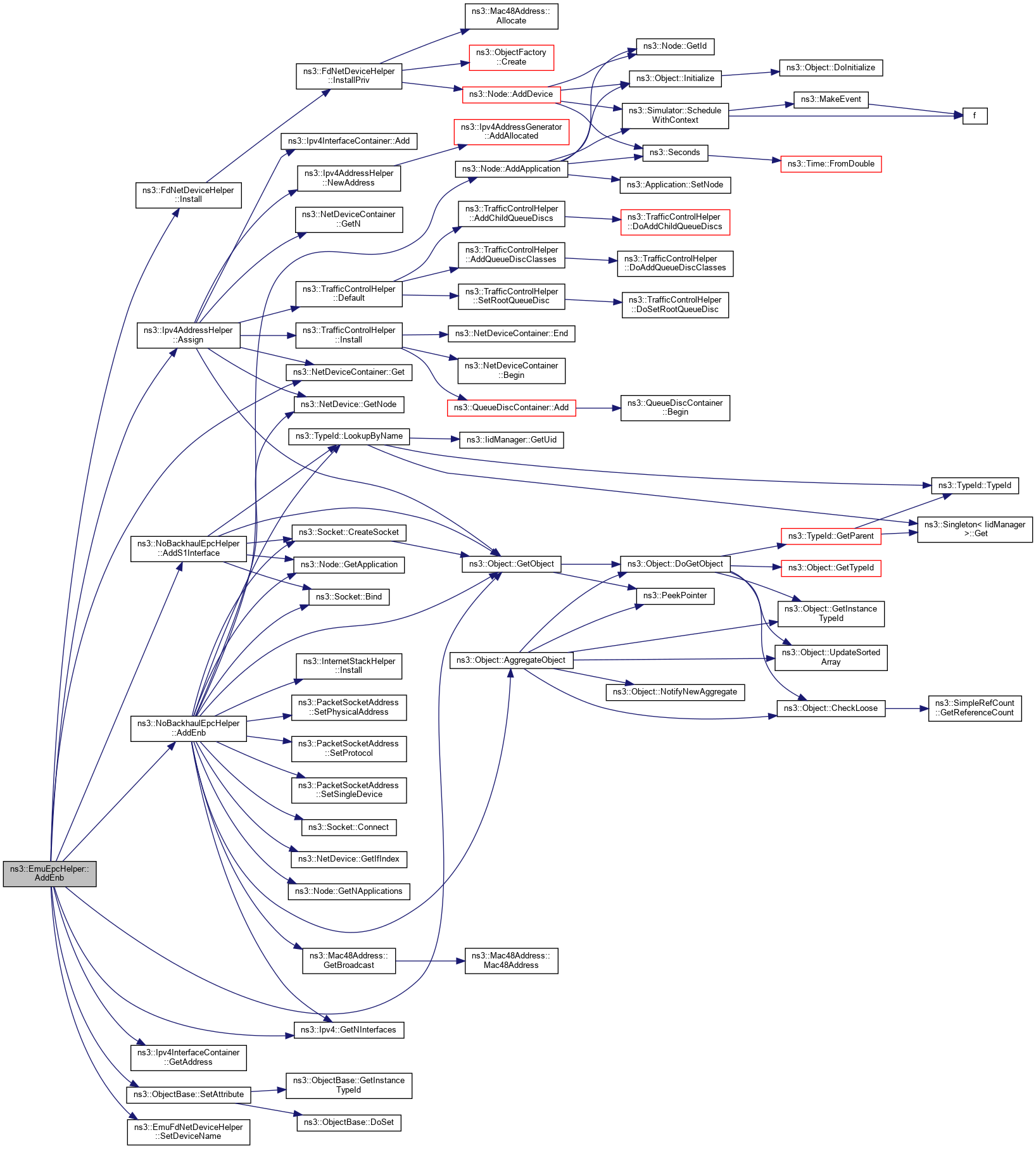

Here is the call graph for this function:

◆ AddX2Interface()

void ns3::EmuEpcHelper::AddX2Interface	(	Ptr< Node >	enbNode1,
		Ptr< Node >	enbNode2
	)

virtual

Add an X2 interface between two eNB.

Parameters

enbNode1	one eNB peer of the X2 interface
enbNode2	the other eNB peer of the X2 interface

Reimplemented from ns3::NoBackhaulEpcHelper.

Definition at line 150 of file emu-epc-helper.cc.

References ns3::LteEnbNetDevice::GetCellIds(), ns3::Node::GetDevice(), ns3::Node::GetNDevices(), ns3::Object::GetObject(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, and NS_LOG_WARN.

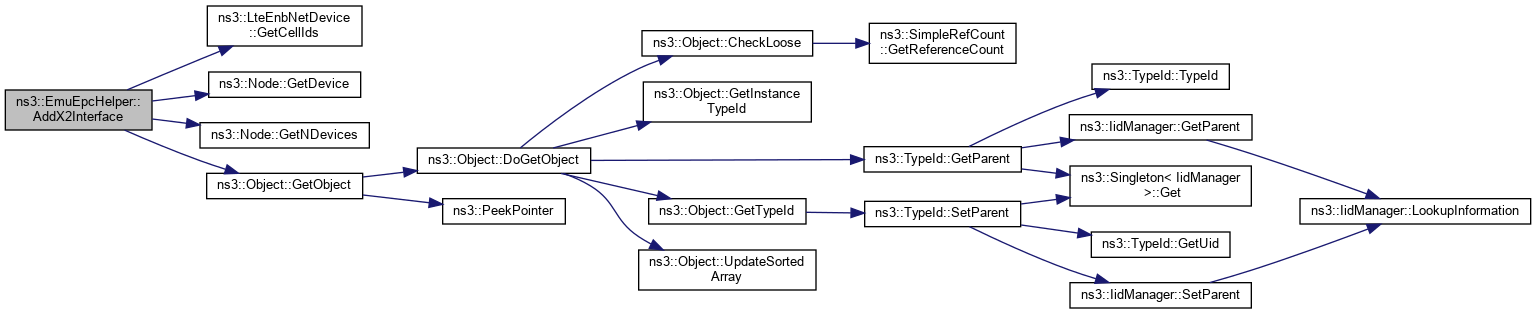

Here is the call graph for this function:

◆ DoDispose()

void ns3::EmuEpcHelper::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::NoBackhaulEpcHelper.

Definition at line 109 of file emu-epc-helper.cc.

References ns3::NoBackhaulEpcHelper::DoDispose(), and NS_LOG_FUNCTION.

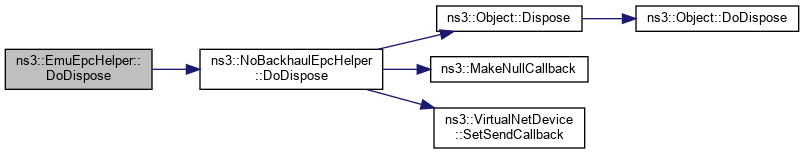

Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::EmuEpcHelper::GetInstanceTypeId ( ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Reimplemented from ns3::Object.

Definition at line 103 of file emu-epc-helper.cc.

References GetTypeId().

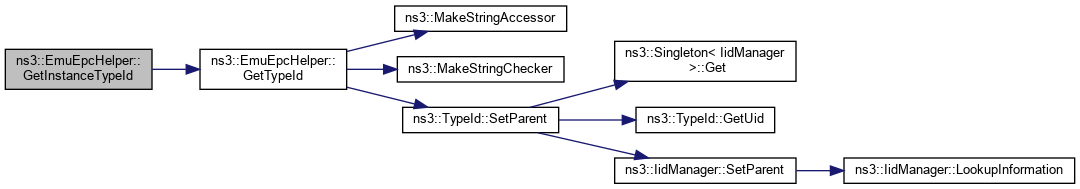

Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::EmuEpcHelper::GetTypeId ( void )

static

Register this type.

Returns: The object TypeId.

Definition at line 72 of file emu-epc-helper.cc.

References m_enbDeviceName, m_enbMacAddressBase, m_sgwDeviceName, m_sgwMacAddress, ns3::MakeStringAccessor(), ns3::MakeStringChecker(), and ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

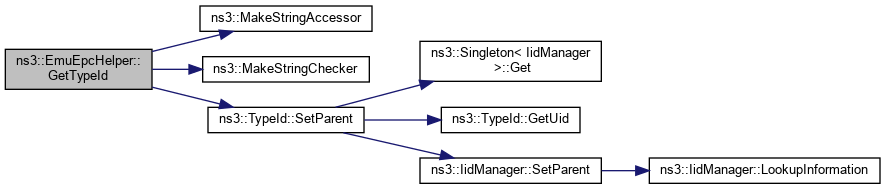

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_enbDeviceName

std::string ns3::EmuEpcHelper::m_enbDeviceName

private

The name of the device used for the S1-U interface of the eNB.

Definition at line 87 of file emu-epc-helper.h.

Referenced by AddEnb(), and GetTypeId().

◆ m_enbMacAddressBase

std::string ns3::EmuEpcHelper::m_enbMacAddressBase

private

First 5 bytes of the Enb MAC address base.

Definition at line 97 of file emu-epc-helper.h.

Referenced by AddEnb(), and GetTypeId().

◆ m_epcIpv4AddressHelper

Ipv4AddressHelper ns3::EmuEpcHelper::m_epcIpv4AddressHelper

private

helper to assign addresses to S1-U NetDevices

Definition at line 72 of file emu-epc-helper.h.

Referenced by EmuEpcHelper(), and AddEnb().

◆ m_sgwDeviceName

std::string ns3::EmuEpcHelper::m_sgwDeviceName

private

The name of the device used for the S1-U interface of the SGW.

Definition at line 82 of file emu-epc-helper.h.

Referenced by EmuEpcHelper(), and GetTypeId().

◆ m_sgwIpIfaces

Ipv4InterfaceContainer ns3::EmuEpcHelper::m_sgwIpIfaces

private

Container for Ipv4Interfaces of the SGW.

Definition at line 77 of file emu-epc-helper.h.

Referenced by EmuEpcHelper(), and AddEnb().

◆ m_sgwMacAddress

std::string ns3::EmuEpcHelper::m_sgwMacAddress

private

MAC address used for the SGW.

Definition at line 92 of file emu-epc-helper.h.

Referenced by EmuEpcHelper(), and GetTypeId().

The documentation for this class was generated from the following files:

src/lte/helper/emu-epc-helper.h
src/lte/helper/emu-epc-helper.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Attributes

Constructor & Destructor Documentation

◆ EmuEpcHelper()

◆ ~EmuEpcHelper()

Member Function Documentation

◆ AddEnb()

◆ AddX2Interface()

◆ DoDispose()

◆ GetInstanceTypeId()

◆ GetTypeId()

Member Data Documentation

◆ m_enbDeviceName

◆ m_enbMacAddressBase

◆ m_epcIpv4AddressHelper

◆ m_sgwDeviceName

◆ m_sgwIpIfaces

◆ m_sgwMacAddress
