ns3::EnumChecker Class Reference

AttributeChecker implementation for EnumValue. More...

#include "enum.h"

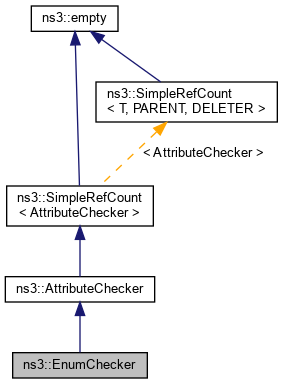

Inheritance diagram for ns3::EnumChecker:

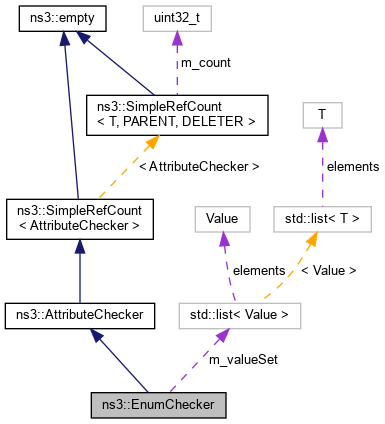

Collaboration diagram for ns3::EnumChecker:

Public Member Functions
	EnumChecker ()
void	Add (int value, std::string name)
	Add a new value. More...
void	AddDefault (int value, std::string name)
	Add a default value. More...
virtual bool	Check (const AttributeValue &value) const
virtual bool	Copy (const AttributeValue &src, AttributeValue &dst) const
	Copy the source to the destination. More...
virtual Ptr< AttributeValue >	Create (void) const
std::string	GetName (int value) const
	Get the enum symbol name by value. More...
virtual std::string	GetUnderlyingTypeInformation (void) const
int	GetValue (const std::string name) const
	Get the enum value by name. More...
virtual std::string	GetValueTypeName (void) const
virtual bool	HasUnderlyingTypeInformation (void) const
Public Member Functions inherited from ns3::AttributeChecker
	AttributeChecker ()
virtual	~AttributeChecker ()
Ptr< AttributeValue >	CreateValidValue (const AttributeValue &value) const
	Create a valid value from the argument value, or reinterpret the argument as a string. More...
Public Member Functions inherited from ns3::SimpleRefCount< AttributeChecker >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Types
typedef std::pair< int, std::string >	Value
	Type for the pair value, name. More...
typedef std::list< Value >	ValueSet
	Type of container for storing Enum values and symbol names. More...

Private Attributes
ValueSet	m_valueSet
	The stored Enum values and symbol names. More...

Detailed Description

AttributeChecker implementation for EnumValue.

See also

AttributeChecker

Definition at line 85 of file enum.h.

Member Typedef Documentation

Value

typedef std::pair<int,std::string> ns3::EnumChecker::Value

private

Type for the pair value, name.

Definition at line 127 of file enum.h.

ValueSet

typedef std::list<Value> ns3::EnumChecker::ValueSet

private

Type of container for storing Enum values and symbol names.

Definition at line 129 of file enum.h.

Constructor & Destructor Documentation

EnumChecker()

ns3::EnumChecker::EnumChecker

(

)

Definition at line 84 of file enum.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

Add()

void ns3::EnumChecker::Add	(	int	value,
		std::string	name
	)

Add a new value.

Parameters

[in]	value	The value.
[in]	name	The enum symbol name.

Definition at line 96 of file enum.cc.

References m_valueSet, and NS_LOG_FUNCTION.

AddDefault()

void ns3::EnumChecker::AddDefault	(	int	value,
		std::string	name
	)

Add a default value.

Parameters

[in]	value	The value.
[in]	name	Then enum symbol name.

Definition at line 90 of file enum.cc.

References m_valueSet, and NS_LOG_FUNCTION.

Check()

bool ns3::EnumChecker::Check ( const AttributeValue &  value ) const

virtual

Parameters

[in]

value

A pointer to the value to check

Returns

true if the input value is both of the right type and if its value is within the requested range. Returns false otherwise.

Implements ns3::AttributeChecker.

Definition at line 130 of file enum.cc.

References ns3::EnumValue::Get(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

Copy()

bool ns3::EnumChecker::Copy ( const AttributeValue &  source, AttributeValue &  destination  ) const

virtual

Copy the source to the destination.

Parameters

[in]	source	Source AttributeValue
[out]	destination	Destination AttributeValue

Returns

true if copy was successful

Implements ns3::AttributeChecker.

Definition at line 176 of file enum.cc.

References NS_LOG_FUNCTION.

Create()

Ptr< AttributeValue > ns3::EnumChecker::Create ( void  ) const

virtual

Returns

a new instance of an AttributeValue (wrapper in an Attribute instance) which matches the type of the underlying attribute.

This method is typically used to create a temporary variable prior to calling Attribute::DeserializeFromString.

Implements ns3::AttributeChecker.

Definition at line 169 of file enum.cc.

References NS_LOG_FUNCTION.

GetName()

std::string ns3::EnumChecker::GetName

(

int

value

)

const

Get the enum symbol name by value.

Parameters

[in]

value

The value.

Returns

The enum symbol name.

Definition at line 102 of file enum.cc.

References m_valueSet, and NS_ASSERT_MSG.

Referenced by ns3::EnumValue::SerializeToString().

Here is the caller graph for this function:

GetUnderlyingTypeInformation()

std::string ns3::EnumChecker::GetUnderlyingTypeInformation ( void  ) const

virtual

Returns

a human-readable representation of information about the underlying C++ type.

Implements ns3::AttributeChecker.

Definition at line 156 of file enum.cc.

References NS_LOG_FUNCTION.

GetValue()

int ns3::EnumChecker::GetValue

(

const std::string

name

)

const

Get the enum value by name.

Parameters

[in]

name

Then enum symbol name.

Returns

The enum value.

Definition at line 111 of file enum.cc.

References m_valueSet, and NS_ASSERT_MSG.

Referenced by ns3::EnumValue::DeserializeFromString().

Here is the caller graph for this function:

GetValueTypeName()

std::string ns3::EnumChecker::GetValueTypeName ( void  ) const

virtual

Returns

the c++ fully-qualified typename of the subclass of the ns3::AttributeValue base class which is associated to this checker.

A typical return value here is FooValue where Foo is the name of the type being wrapped.

Implements ns3::AttributeChecker.

Definition at line 144 of file enum.cc.

References NS_LOG_FUNCTION.

HasUnderlyingTypeInformation()

bool ns3::EnumChecker::HasUnderlyingTypeInformation ( void  ) const

virtual

Returns

true if this checker has information about the underlying C++ type, false otherwise.

If this method returns false, the return value of the GetUnderlyingTypeInformation method cannot be relied upon.

Implements ns3::AttributeChecker.

Definition at line 150 of file enum.cc.

References NS_LOG_FUNCTION.

Member Data Documentation

m_valueSet

ValueSet ns3::EnumChecker::m_valueSet

private

The stored Enum values and symbol names.

Definition at line 131 of file enum.h.

Referenced by Add(), AddDefault(), GetName(), and GetValue().

---

The documentation for this class was generated from the following files:

• src/core/model/enum.h
• src/core/model/enum.cc
