This application implements the Serving Gateway Entity (SGW) according to the 3GPP TS 23.401 document. More...

#include "epc-sgw-application.h"

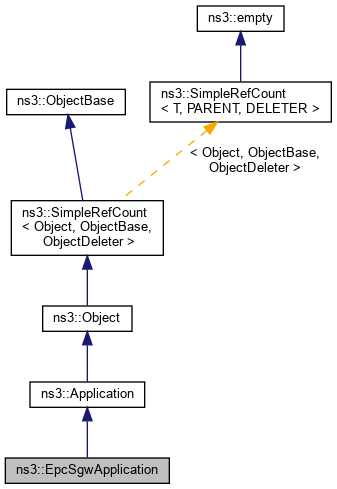

Inheritance diagram for ns3::EpcSgwApplication:

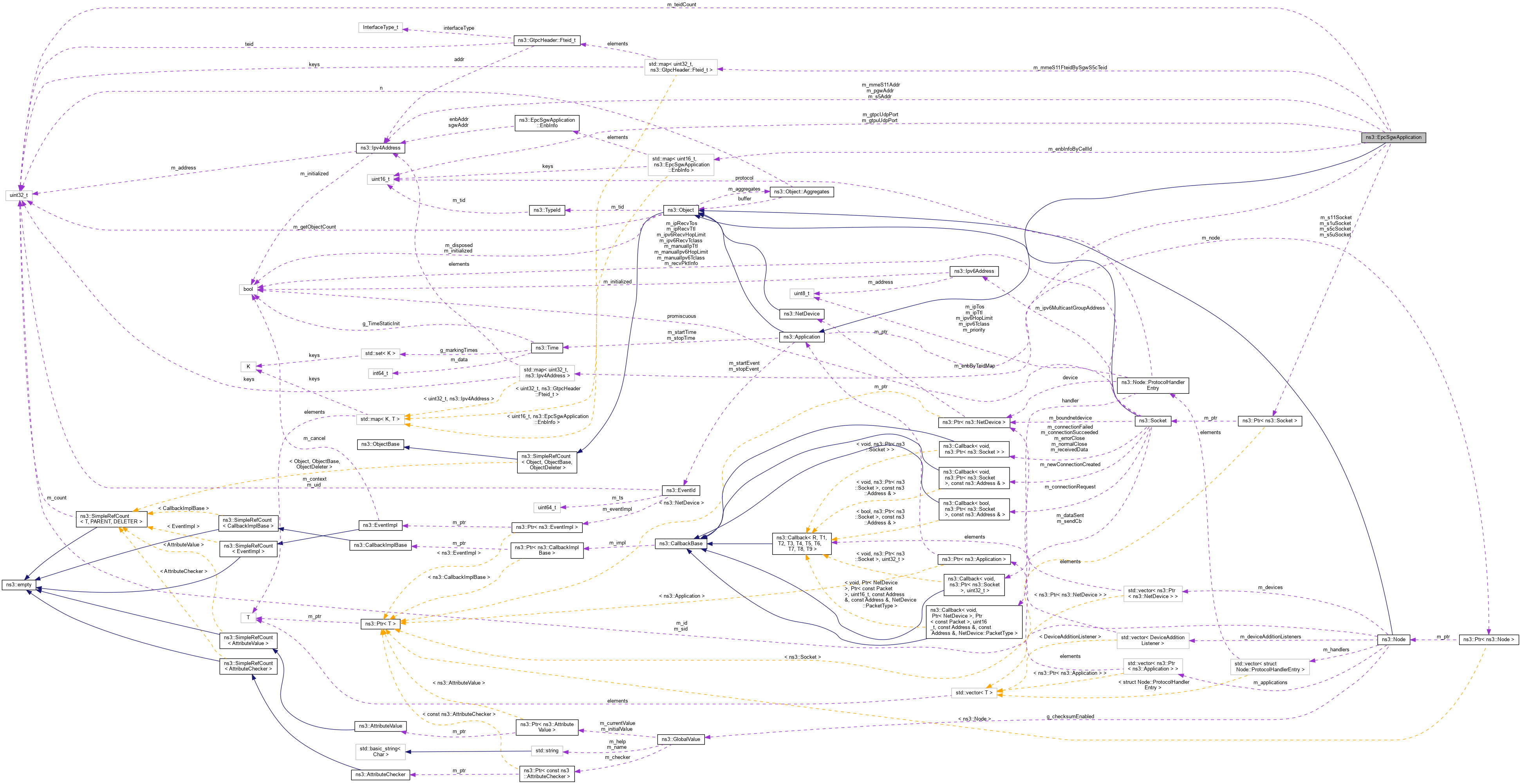

Collaboration diagram for ns3::EpcSgwApplication:

Classes
struct	EnbInfo
	EnbInfo structure. More...

Public Member Functions
	EpcSgwApplication (const Ptr< Socket > s1uSocket, Ipv4Address s5Addr, const Ptr< Socket > s5uSocket, const Ptr< Socket > s5cSocket)
	Constructor that binds callback methods of sockets. More...

virtual	~EpcSgwApplication (void)
	Destructor. More...

void	AddEnb (uint16_t cellId, Ipv4Address enbAddr, Ipv4Address sgwAddr)
	Let the SGW be aware of a new eNB. More...

void	AddMme (Ipv4Address mmeS11Addr, Ptr< Socket > s11Socket)
	Let the SGW be aware of an MME. More...

void	AddPgw (Ipv4Address pgwAddr)
	Let the SGW be aware of a PGW. More...

virtual void	DoDispose ()
	Destructor implementation. More...

Public Member Functions inherited from ns3::Application
	Application ()

virtual	~Application ()

Ptr< Node >	GetNode () const

void	SetNode (Ptr< Node > node)

void	SetStartTime (Time start)
	Specify application start time. More...

void	SetStopTime (Time stop)
	Specify application stop time. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Application
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	DoRecvCreateSessionRequest (Ptr< Packet > packet)
	Process GTP-C Create Session Request message. More...

void	DoRecvCreateSessionResponse (Ptr< Packet > packet)
	Process GTP-C Create Session Response message. More...

void	DoRecvDeleteBearerCommand (Ptr< Packet > packet)
	Process GTP-C Delete Bearer Command message. More...

void	DoRecvDeleteBearerRequest (Ptr< Packet > packet)
	Process GTP-C Delete Bearer Request message. More...

void	DoRecvDeleteBearerResponse (Ptr< Packet > packet)
	Process GTP-C Delete Bearer Response message. More...

void	DoRecvModifyBearerRequest (Ptr< Packet > packet)
	Process GTP-C Modify Bearer Request message. More...

void	DoRecvModifyBearerResponse (Ptr< Packet > packet)
	Process GTP-C Modify Bearer Response message. More...

void	RecvFromS11Socket (Ptr< Socket > socket)
	Method to be assigned to the recv callback of the S11 socket. More...

void	RecvFromS1uSocket (Ptr< Socket > socket)
	Method to be assigned to the recv callback of the S1-U socket. More...

void	RecvFromS5cSocket (Ptr< Socket > socket)
	Method to be assigned to the recv callback of the S5-C socket. More...

void	RecvFromS5uSocket (Ptr< Socket > socket)
	Method to be assigned to the recv callback of the S5-U socket. More...

void	SendToS1uSocket (Ptr< Packet > packet, Ipv4Address enbS1uAddress, uint32_t teid)
	Send a data packet to an eNB via the S1-U interface. More...

void	SendToS5uSocket (Ptr< Packet > packet, Ipv4Address pgwAddr, uint32_t teid)
	Send a data packet to the PGW via the S5 interface. More...

Private Attributes
std::map< uint32_t, Ipv4Address >	m_enbByTeidMap
	Map for eNB address by TEID. More...

std::map< uint16_t, EnbInfo >	m_enbInfoByCellId
	Map for eNB info by cell ID. More...

uint16_t	m_gtpcUdpPort
	UDP port to be used for GTP-C. More...

uint16_t	m_gtpuUdpPort
	UDP port to be used for GTP-U. More...

Ipv4Address	m_mmeS11Addr
	MME address in the S11 interface. More...

std::map< uint32_t, GtpcHeader::Fteid_t >	m_mmeS11FteidBySgwS5cTeid
	MME S11 FTEID by SGW S5C TEID. More...

Ipv4Address	m_pgwAddr
	PGW address in the S5 interface. More...

Ptr< Socket >	m_s11Socket
	UDP socket to send/receive control messages to/from the S11 interface. More...

Ptr< Socket >	m_s1uSocket
	UDP socket to send/receive GTP-U packets to/from the S1-U interface. More...

Ipv4Address	m_s5Addr
	SGW address in the S5 interface. More...

Ptr< Socket >	m_s5cSocket
	UDP socket to send/receive GTP-C packets to/from the S5 interface. More...

Ptr< Socket >	m_s5uSocket
	UDP socket to send/receive GTP-U packets to/from the S5 interface. More...

uint32_t	m_teidCount
	TEID count. More...

Additional Inherited Members
Public Types inherited from ns3::Application
typedef void(*	DelayAddressCallback) (const Time &delay, const Address &from)
	Common callback signature for packet delay and address. More...

typedef void(*	StateTransitionCallback) (const std::string &oldState, const std::string &newState)
	Common signature used by callbacks to application's state transition trace source. More...

Protected Member Functions inherited from ns3::Application
virtual void	DoInitialize (void)
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node
	The node that this application is installed on. More...

EventId	m_startEvent
	The event that will fire at m_startTime to start the application. More...

Time	m_startTime
	The simulation time that the application will start. More...

EventId	m_stopEvent
	The event that will fire at m_stopTime to end the application. More...

Time	m_stopTime
	The simulation time that the application will end. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This application implements the Serving Gateway Entity (SGW) according to the 3GPP TS 23.401 document.

Introspection did not find any typical Config paths.

This Application implements the SGW side of the S5 interface between the SGW node and the PGW node and the SGW side of the S11 interface between the SGW node and the MME node hosts. It supports the following functions and messages:

S5 connectivity (i.e. GTPv2-C signalling and GTP-U data plane)
Bearer management functions including dedicated bearer establishment
UL and DL bearer binding
Tunnel Management messages

Others functions enumerated in section 4.4.3.2 of 3GPP TS 23.401 are not supported.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 312 bytes (on a 64-bit architecture).

Definition at line 48 of file epc-sgw-application.h.

Constructor & Destructor Documentation

◆ EpcSgwApplication()

ns3::EpcSgwApplication::EpcSgwApplication	(	const Ptr< Socket >	s1uSocket,
		Ipv4Address	s5Addr,
		const Ptr< Socket >	s5uSocket,
		const Ptr< Socket >	s5cSocket
	)

Constructor that binds callback methods of sockets.

Parameters

s1uSocket	socket used to send/receive GTP-U packets to/from the eNBs
s5Addr	IPv4 address of the S5 interface
s5uSocket	socket used to send/receive GTP-U packets to/from the PGW
s5cSocket	socket used to send/receive GTP-C packets to/from the PGW

Definition at line 31 of file epc-sgw-application.cc.

References m_s1uSocket, m_s5cSocket, m_s5uSocket, ns3::MakeCallback(), NS_LOG_FUNCTION, RecvFromS1uSocket(), RecvFromS5cSocket(), RecvFromS5uSocket(), and ns3::Socket::SetRecvCallback().

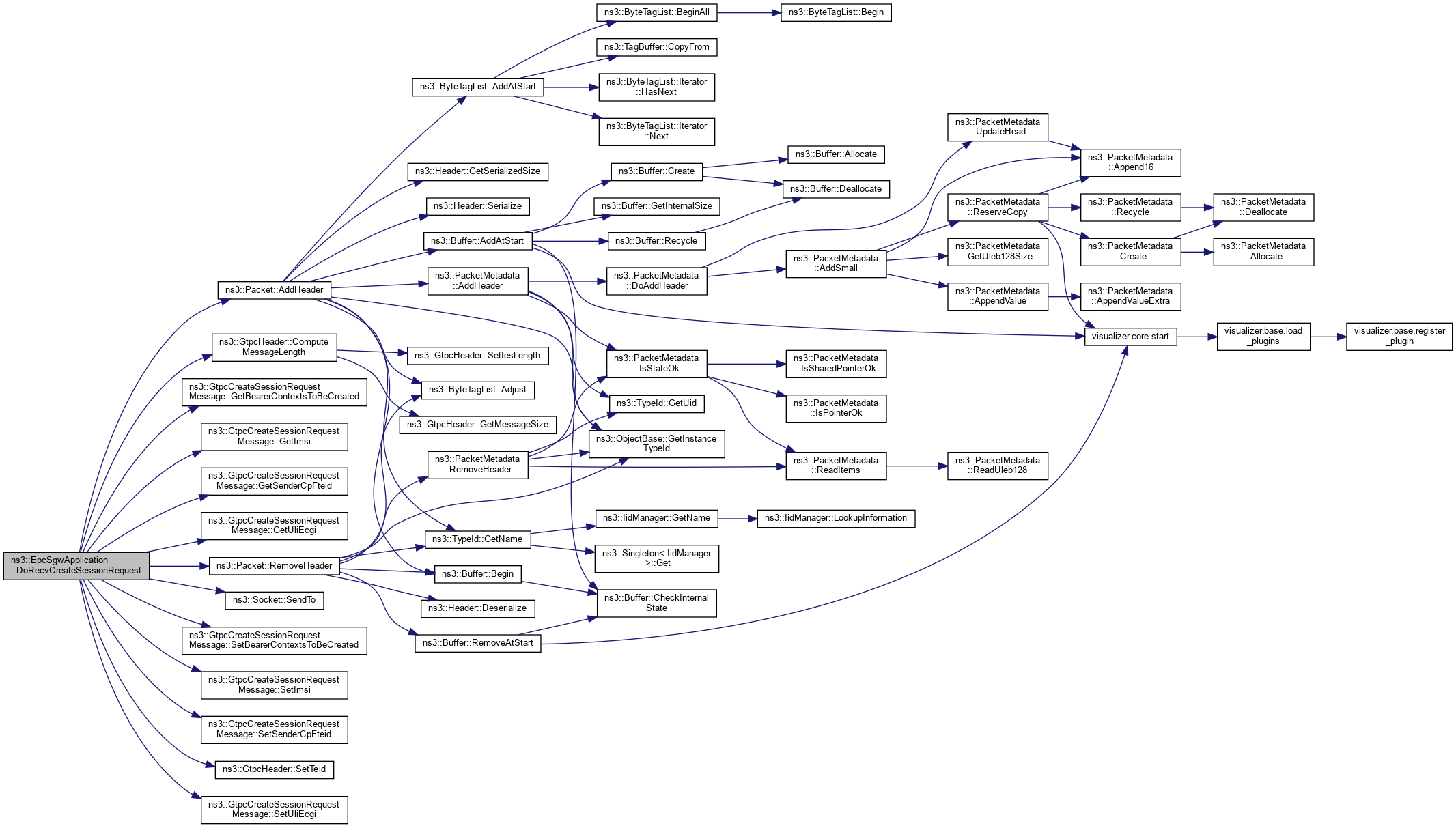

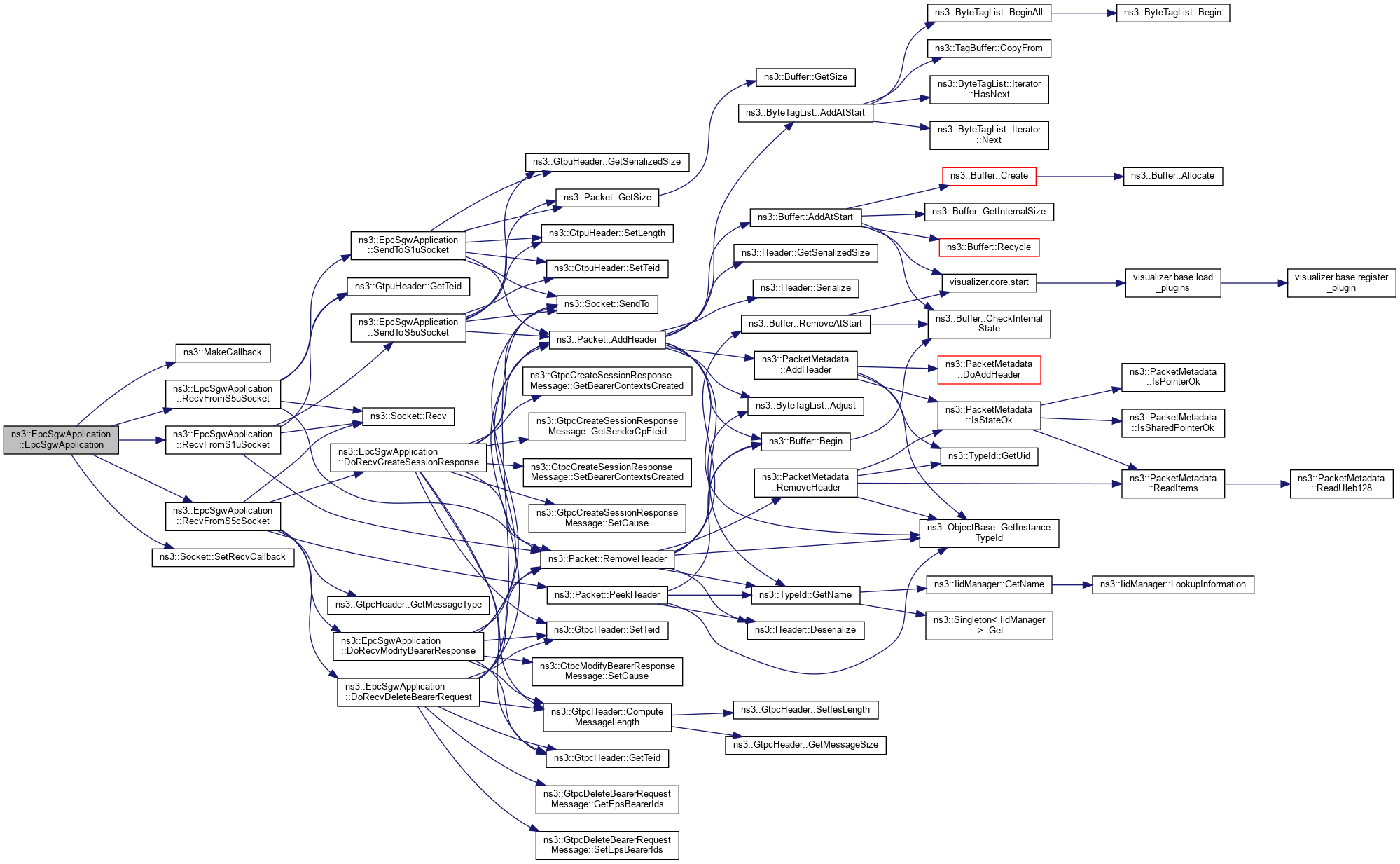

Here is the call graph for this function:

◆ ~EpcSgwApplication()

ns3::EpcSgwApplication::~EpcSgwApplication ( void )

virtual

Destructor.

Definition at line 47 of file epc-sgw-application.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddEnb()

void ns3::EpcSgwApplication::AddEnb	(	uint16_t	cellId,
		Ipv4Address	enbAddr,
		Ipv4Address	sgwAddr
	)

Let the SGW be aware of a new eNB.

Parameters

cellId	the cell identifier
enbAddr	the address of the eNB
sgwAddr	the address of the SGW

Definition at line 91 of file epc-sgw-application.cc.

References ns3::EpcSgwApplication::EnbInfo::enbAddr, m_enbInfoByCellId, NS_LOG_FUNCTION, and ns3::EpcSgwApplication::EnbInfo::sgwAddr.

◆ AddMme()

void ns3::EpcSgwApplication::AddMme	(	Ipv4Address	mmeS11Addr,
		Ptr< Socket >	s11Socket
	)

Let the SGW be aware of an MME.

Parameters

mmeS11Addr	the address of the MME
s11Socket	the socket to send/receive messages from the MME

Definition at line 75 of file epc-sgw-application.cc.

References m_mmeS11Addr, m_s11Socket, ns3::MakeCallback(), NS_LOG_FUNCTION, RecvFromS11Socket(), and ns3::Socket::SetRecvCallback().

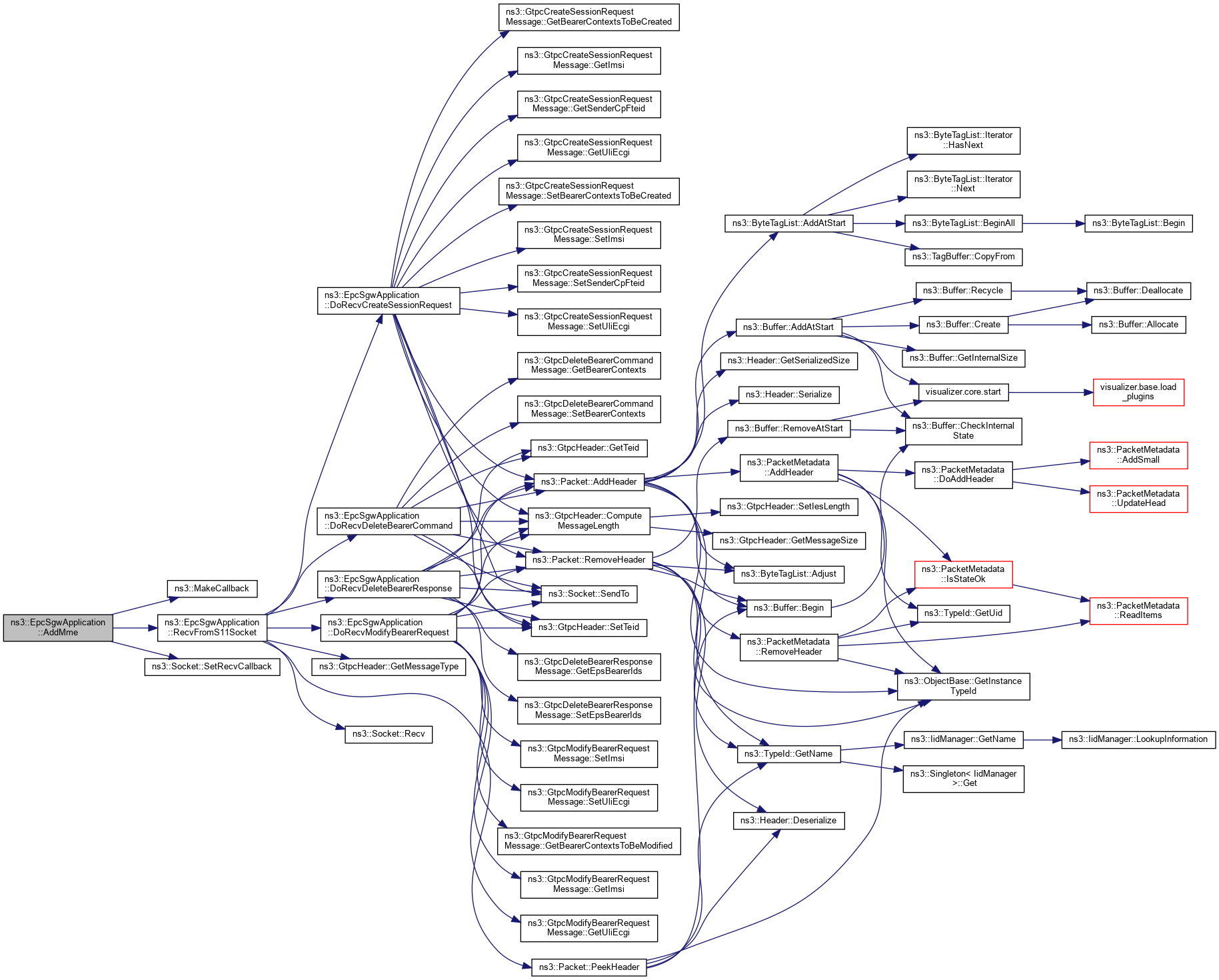

Here is the call graph for this function:

◆ AddPgw()

void ns3::EpcSgwApplication::AddPgw ( Ipv4Address pgwAddr )

Let the SGW be aware of a PGW.

Parameters

pgwAddr the address of the PGW

Definition at line 84 of file epc-sgw-application.cc.

References m_pgwAddr, and NS_LOG_FUNCTION.

◆ DoDispose()

void ns3::EpcSgwApplication::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Application.

Definition at line 53 of file epc-sgw-application.cc.

References m_s1uSocket, m_s5cSocket, m_s5uSocket, ns3::MakeNullCallback(), NS_LOG_FUNCTION, and ns3::Socket::SetRecvCallback().

Here is the call graph for this function:

◆ DoRecvCreateSessionRequest()

void ns3::EpcSgwApplication::DoRecvCreateSessionRequest ( Ptr< Packet > packet )

private

Process GTP-C Create Session Request message.

Parameters

packet the packet containing the message

Definition at line 228 of file epc-sgw-application.cc.

Referenced by RecvFromS11Socket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoRecvCreateSessionResponse()

void ns3::EpcSgwApplication::DoRecvCreateSessionResponse ( Ptr< Packet > packet )

private

Process GTP-C Create Session Response message.

Parameters

packet the packet containing the message

Definition at line 399 of file epc-sgw-application.cc.

Referenced by RecvFromS5cSocket().

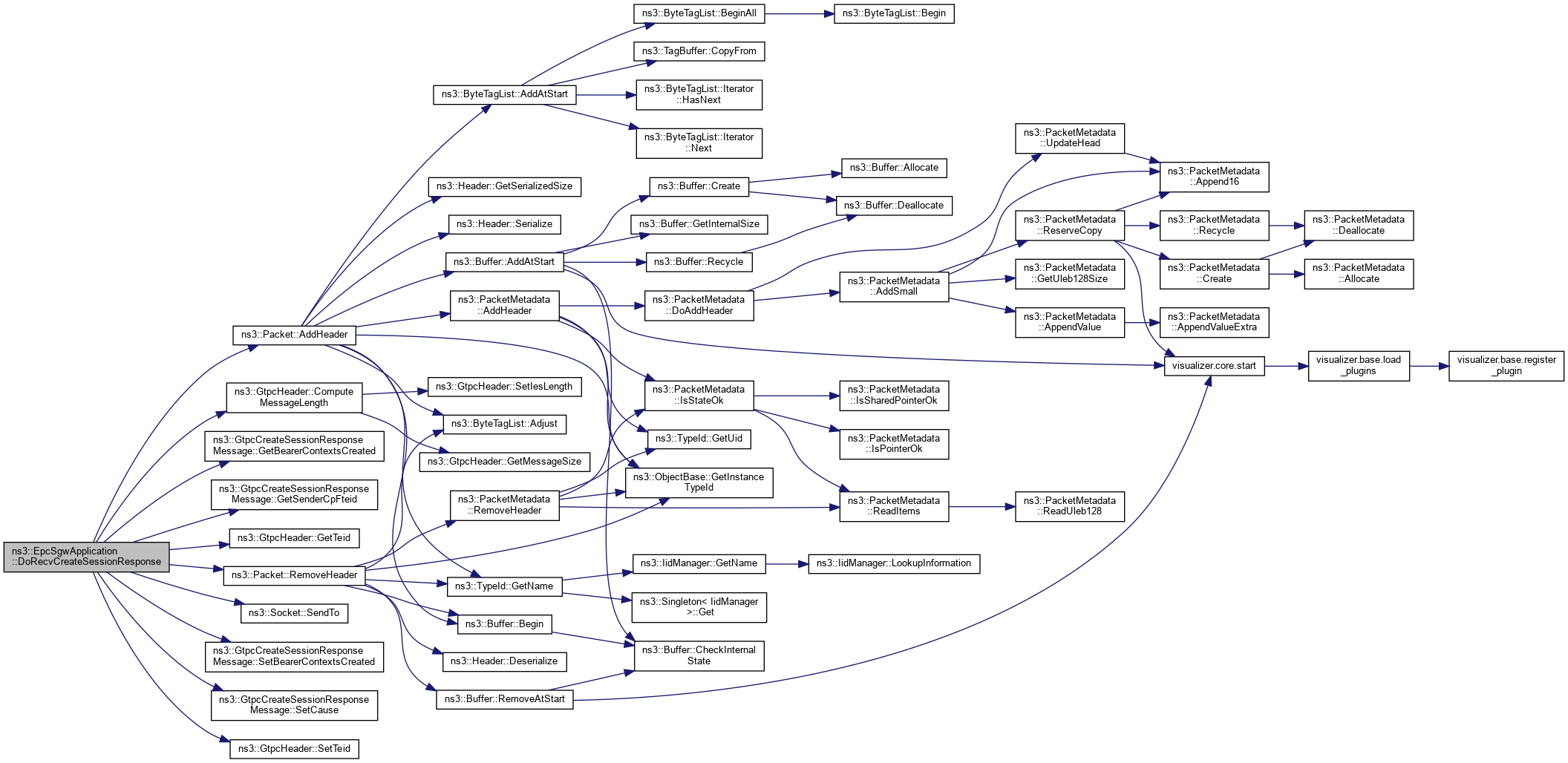

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoRecvDeleteBearerCommand()

void ns3::EpcSgwApplication::DoRecvDeleteBearerCommand ( Ptr< Packet > packet )

private

Process GTP-C Delete Bearer Command message.

Parameters

packet the packet containing the message

Definition at line 348 of file epc-sgw-application.cc.

References ns3::Packet::AddHeader(), ns3::GtpcHeader::ComputeMessageLength(), ns3::GtpcDeleteBearerCommandMessage::GetBearerContexts(), ns3::GtpcHeader::GetTeid(), ns3::GtpcDeleteBearerCommandMessage::BearerContext::m_epsBearerId, m_gtpcUdpPort, m_pgwAddr, m_s5cSocket, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Packet::RemoveHeader(), ns3::Socket::SendTo(), ns3::GtpcDeleteBearerCommandMessage::SetBearerContexts(), and ns3::GtpcHeader::SetTeid().

Referenced by RecvFromS11Socket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoRecvDeleteBearerRequest()

void ns3::EpcSgwApplication::DoRecvDeleteBearerRequest ( Ptr< Packet > packet )

private

Process GTP-C Delete Bearer Request message.

Parameters

packet the packet containing the message

Definition at line 462 of file epc-sgw-application.cc.

References ns3::Packet::AddHeader(), ns3::GtpcHeader::ComputeMessageLength(), ns3::GtpcDeleteBearerRequestMessage::GetEpsBearerIds(), ns3::GtpcHeader::GetTeid(), m_gtpcUdpPort, m_mmeS11Addr, m_s11Socket, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Packet::RemoveHeader(), ns3::Socket::SendTo(), ns3::GtpcDeleteBearerRequestMessage::SetEpsBearerIds(), and ns3::GtpcHeader::SetTeid().

Referenced by RecvFromS5cSocket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoRecvDeleteBearerResponse()

void ns3::EpcSgwApplication::DoRecvDeleteBearerResponse ( Ptr< Packet > packet )

private

Process GTP-C Delete Bearer Response message.

Parameters

packet the packet containing the message

Definition at line 376 of file epc-sgw-application.cc.

References ns3::Packet::AddHeader(), ns3::GtpcHeader::ComputeMessageLength(), ns3::GtpcDeleteBearerResponseMessage::GetEpsBearerIds(), ns3::GtpcHeader::GetTeid(), m_gtpcUdpPort, m_pgwAddr, m_s5cSocket, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Packet::RemoveHeader(), ns3::Socket::SendTo(), ns3::GtpcDeleteBearerResponseMessage::SetEpsBearerIds(), and ns3::GtpcHeader::SetTeid().

Referenced by RecvFromS11Socket().

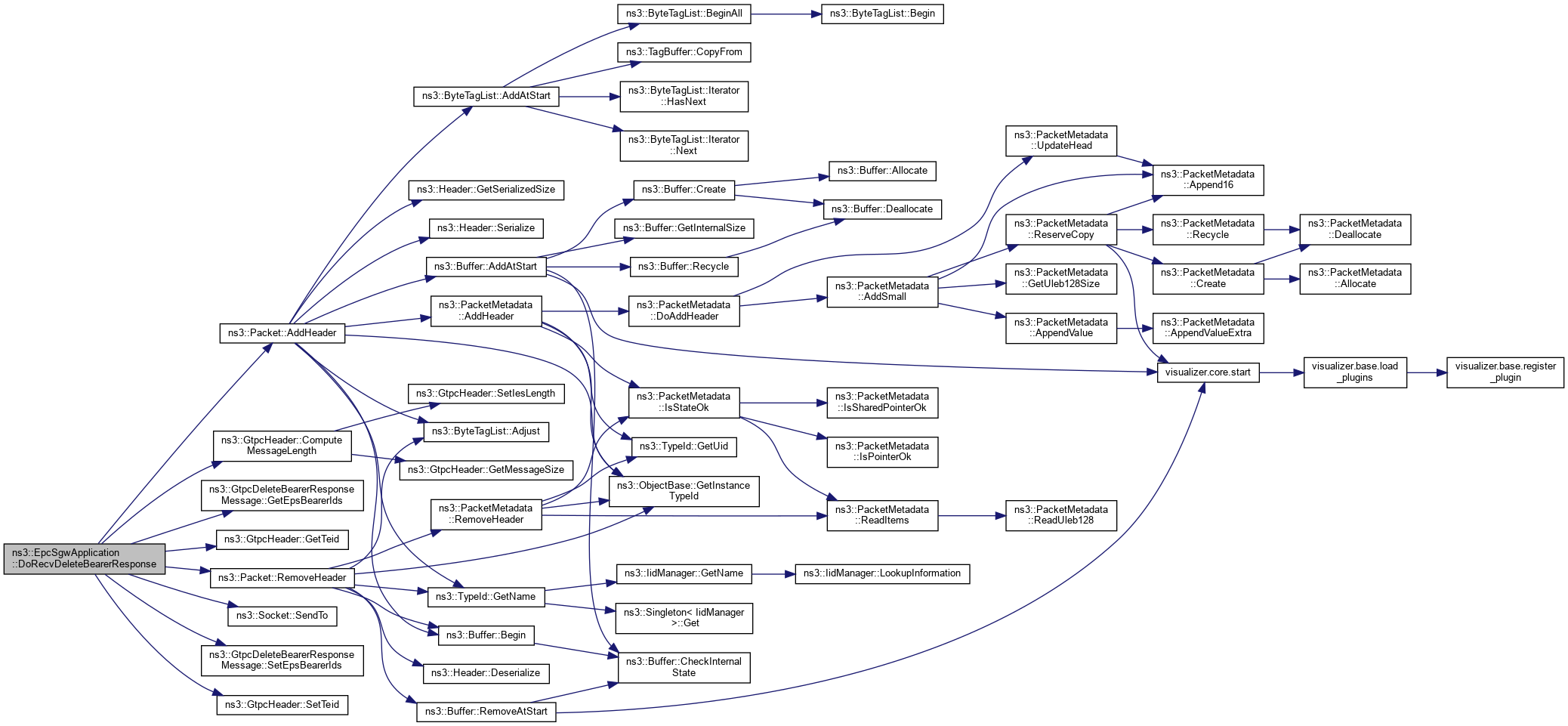

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoRecvModifyBearerRequest()

void ns3::EpcSgwApplication::DoRecvModifyBearerRequest ( Ptr< Packet > packet )

private

Process GTP-C Modify Bearer Request message.

Parameters

packet the packet containing the message

Definition at line 295 of file epc-sgw-application.cc.

References ns3::Packet::AddHeader(), ns3::GtpcHeader::Fteid_t::addr, ns3::GtpcHeader::ComputeMessageLength(), ns3::GtpcModifyBearerRequestMessage::BearerContextToBeModified::epsBearerId, ns3::GtpcModifyBearerRequestMessage::BearerContextToBeModified::fteid, ns3::GtpcModifyBearerRequestMessage::GetBearerContextsToBeModified(), ns3::GtpcModifyBearerRequestMessage::GetImsi(), ns3::GtpcModifyBearerRequestMessage::GetUliEcgi(), ns3::GtpcHeader::Fteid_t::interfaceType, m_enbByTeidMap, m_enbInfoByCellId, m_gtpcUdpPort, m_pgwAddr, m_s5Addr, m_s5cSocket, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Packet::RemoveHeader(), ns3::GtpcHeader::S1U_ENB_GTPU, ns3::GtpcHeader::S5_SGW_GTPU, ns3::Socket::SendTo(), ns3::GtpcModifyBearerRequestMessage::SetImsi(), ns3::GtpcHeader::SetTeid(), ns3::GtpcModifyBearerRequestMessage::SetUliEcgi(), and ns3::GtpcHeader::Fteid_t::teid.

Referenced by RecvFromS11Socket().

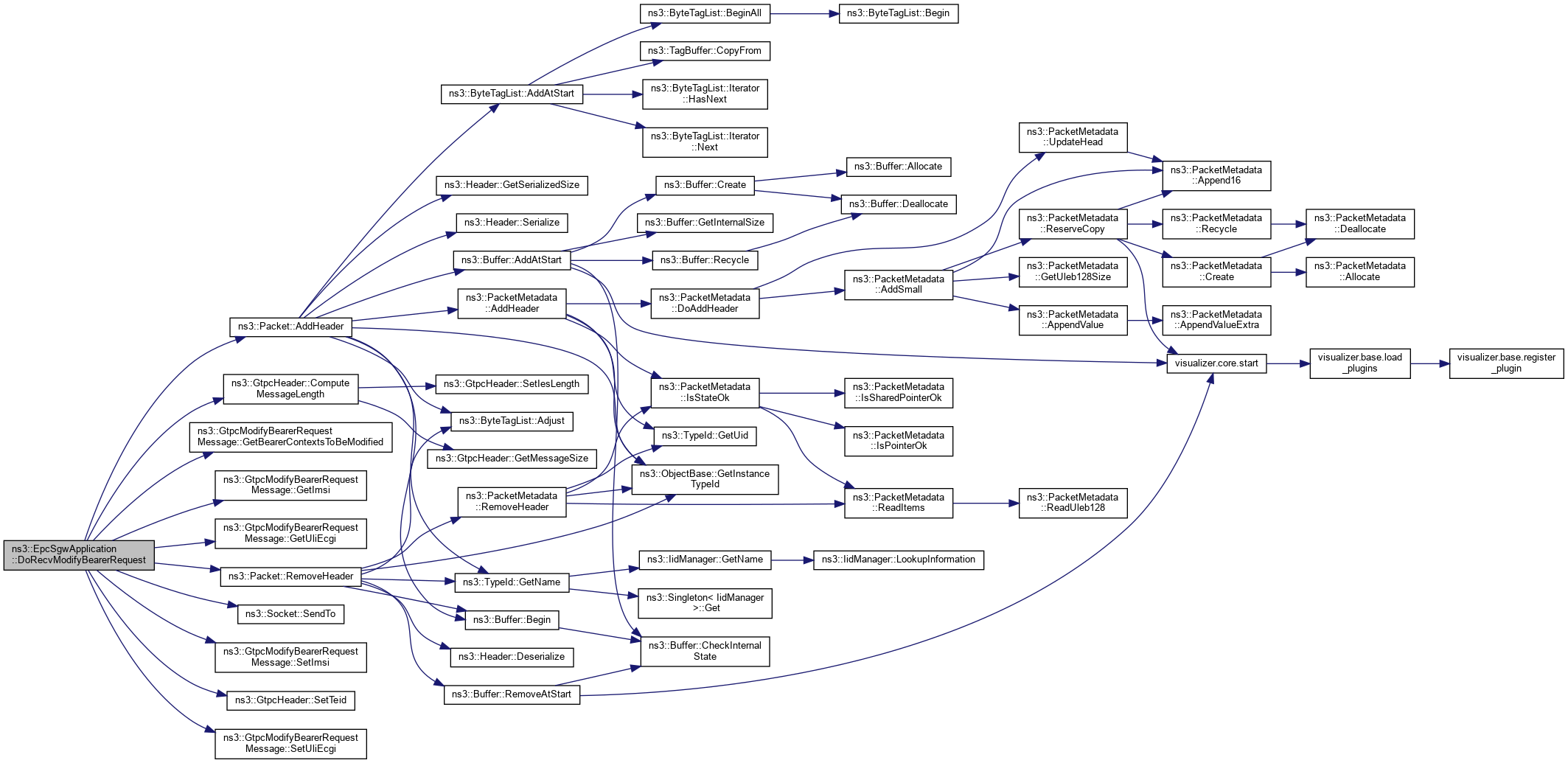

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoRecvModifyBearerResponse()

void ns3::EpcSgwApplication::DoRecvModifyBearerResponse ( Ptr< Packet > packet )

private

Process GTP-C Modify Bearer Response message.

Parameters

packet the packet containing the message

Definition at line 443 of file epc-sgw-application.cc.

References ns3::Packet::AddHeader(), ns3::GtpcHeader::ComputeMessageLength(), ns3::GtpcHeader::GetTeid(), m_gtpcUdpPort, m_mmeS11Addr, m_s11Socket, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Packet::RemoveHeader(), ns3::GtpcIes::REQUEST_ACCEPTED, ns3::Socket::SendTo(), ns3::GtpcModifyBearerResponseMessage::SetCause(), and ns3::GtpcHeader::SetTeid().

Referenced by RecvFromS5cSocket().

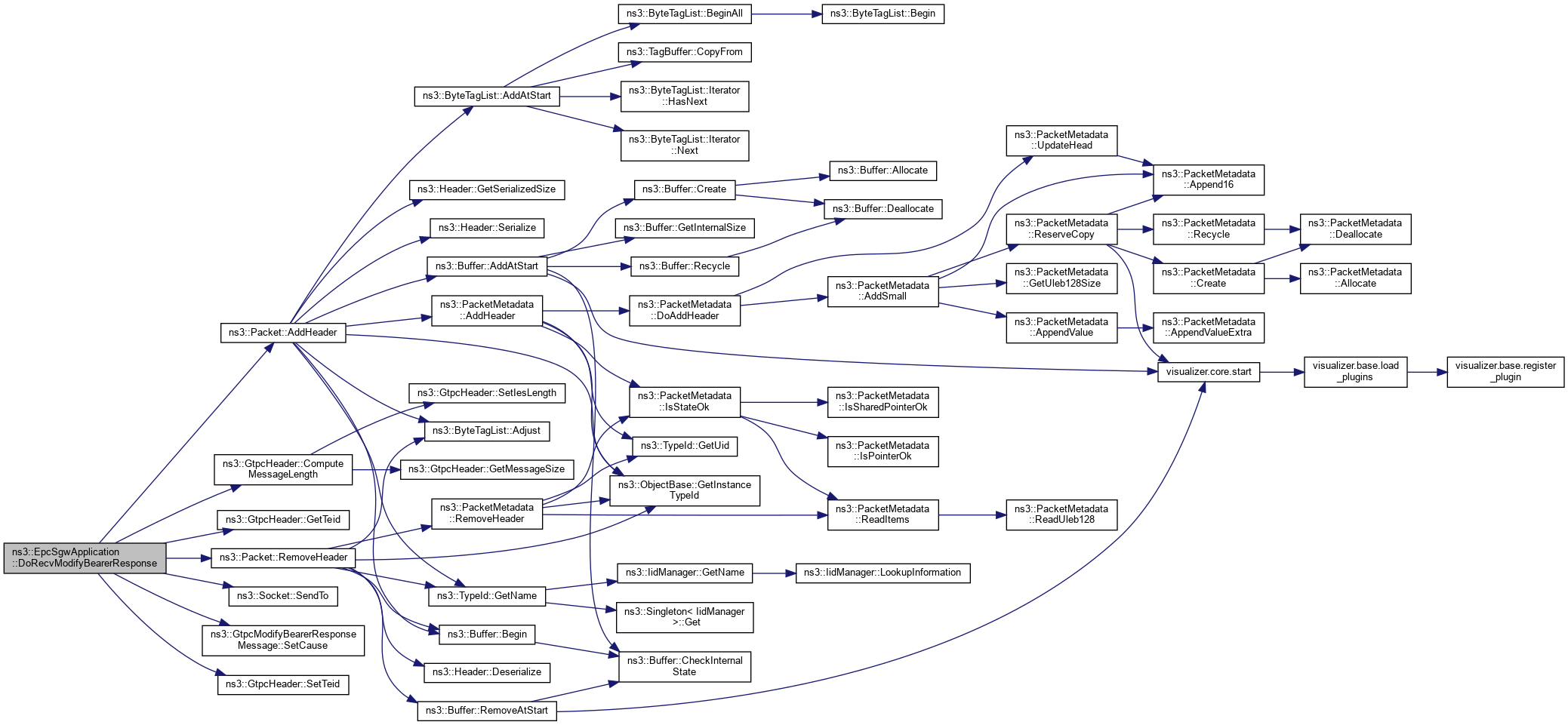

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::EpcSgwApplication::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 65 of file epc-sgw-application.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ RecvFromS11Socket()

void ns3::EpcSgwApplication::RecvFromS11Socket ( Ptr< Socket > socket )

private

Method to be assigned to the recv callback of the S11 socket.

It is called when the SGW receives a control packet from the MME.

Parameters

socket pointer to the S11 socket

Definition at line 102 of file epc-sgw-application.cc.

References ns3::GtpcHeader::CreateSessionRequest, ns3::GtpcHeader::DeleteBearerCommand, ns3::GtpcHeader::DeleteBearerResponse, DoRecvCreateSessionRequest(), DoRecvDeleteBearerCommand(), DoRecvDeleteBearerResponse(), DoRecvModifyBearerRequest(), ns3::GtpcHeader::GetMessageType(), m_s11Socket, ns3::GtpcHeader::ModifyBearerRequest, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::Packet::PeekHeader(), and ns3::Socket::Recv().

Referenced by AddMme().

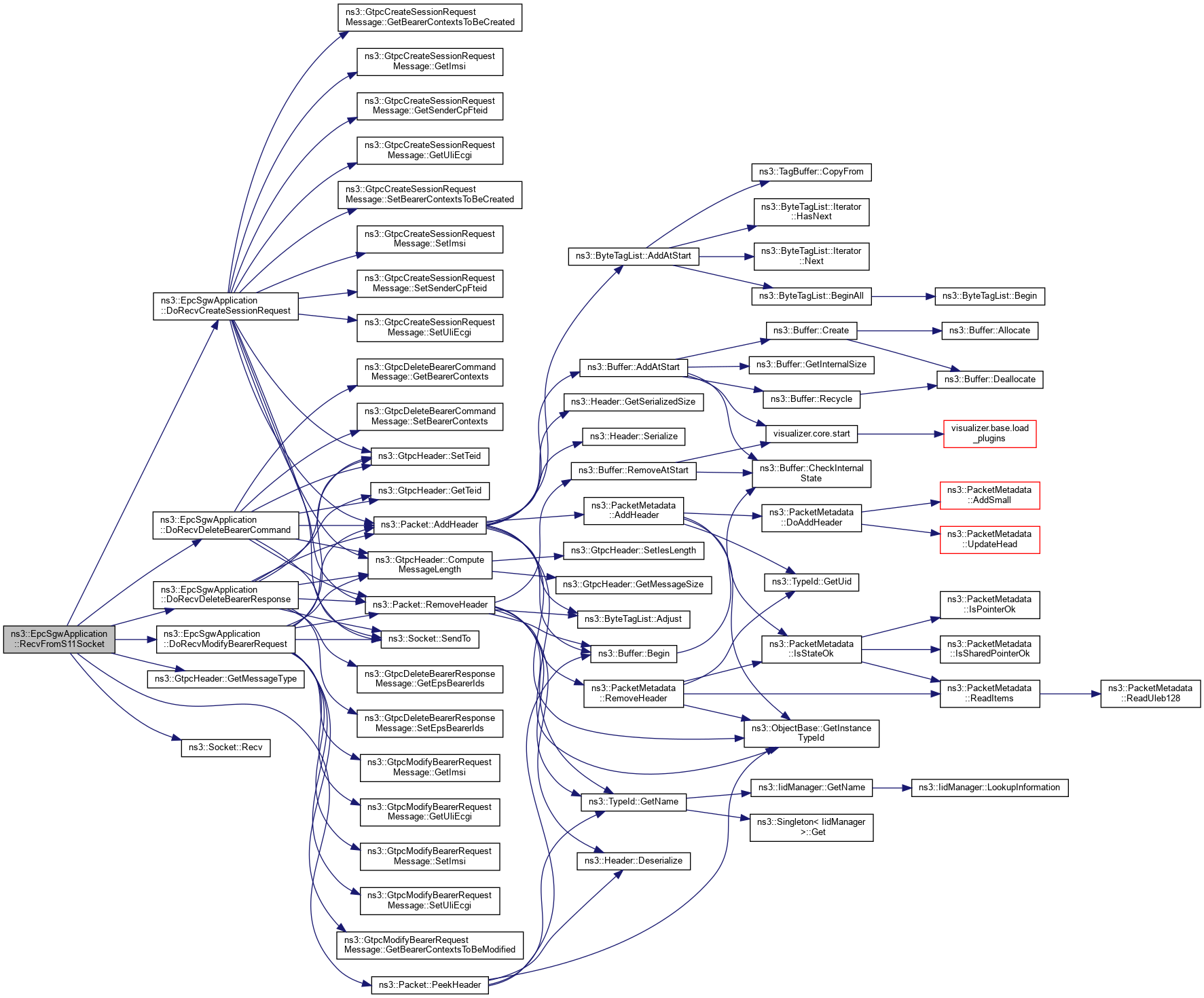

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RecvFromS1uSocket()

void ns3::EpcSgwApplication::RecvFromS1uSocket ( Ptr< Socket > socket )

private

Method to be assigned to the recv callback of the S1-U socket.

It is called when the SGW receives a data packet from the eNB that is to be forwarded to the PGW.

Parameters

socket pointer to the S1-U socket

Definition at line 182 of file epc-sgw-application.cc.

References ns3::GtpuHeader::GetTeid(), m_pgwAddr, m_s1uSocket, NS_ASSERT, NS_LOG_FUNCTION, ns3::Socket::Recv(), ns3::Packet::RemoveHeader(), and SendToS5uSocket().

Referenced by EpcSgwApplication().

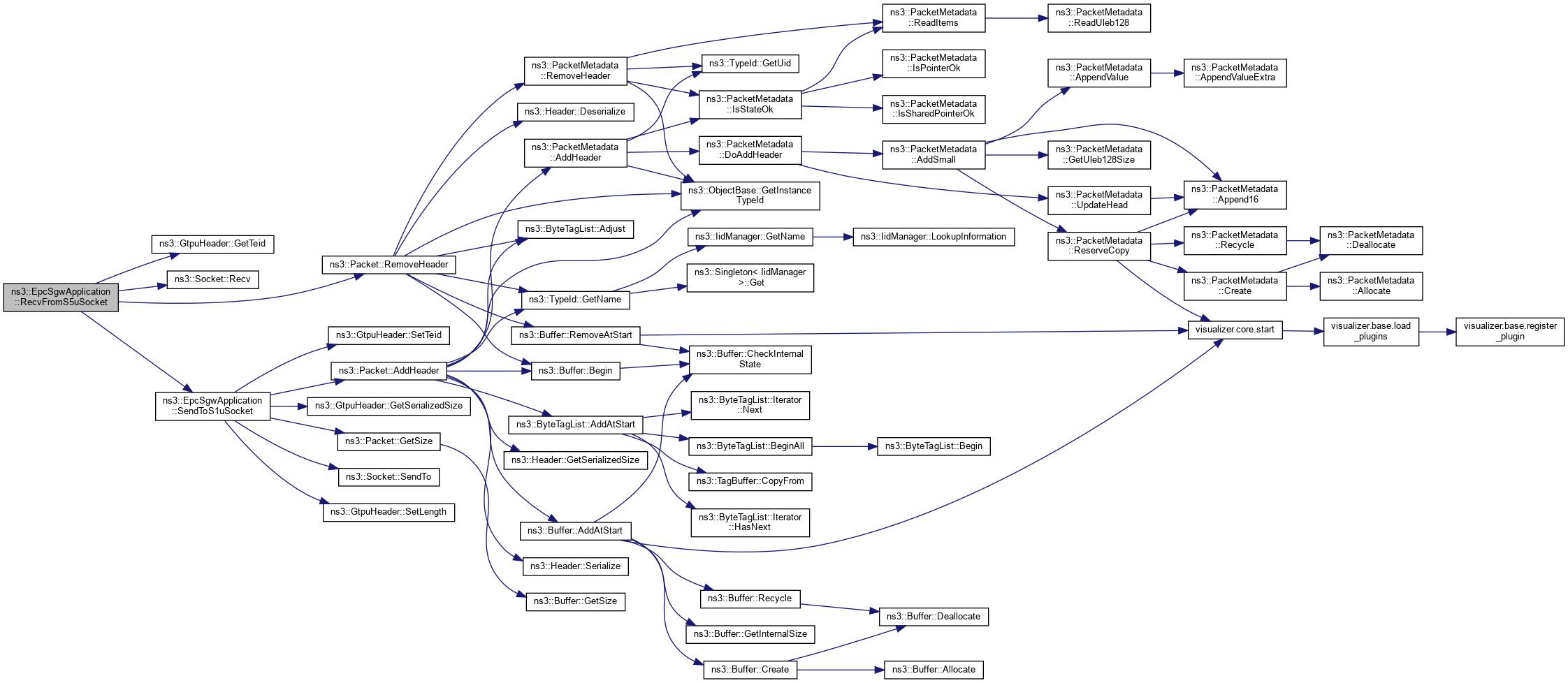

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RecvFromS5cSocket()

void ns3::EpcSgwApplication::RecvFromS5cSocket ( Ptr< Socket > socket )

private

Method to be assigned to the recv callback of the S5-C socket.

It is called when the SGW receives a control packet from the PGW.

Parameters

socket pointer to the S5-C socket

Definition at line 152 of file epc-sgw-application.cc.

References ns3::GtpcHeader::CreateSessionResponse, ns3::GtpcHeader::DeleteBearerRequest, DoRecvCreateSessionResponse(), DoRecvDeleteBearerRequest(), DoRecvModifyBearerResponse(), ns3::GtpcHeader::GetMessageType(), m_s5cSocket, ns3::GtpcHeader::ModifyBearerResponse, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::Packet::PeekHeader(), and ns3::Socket::Recv().

Referenced by EpcSgwApplication().

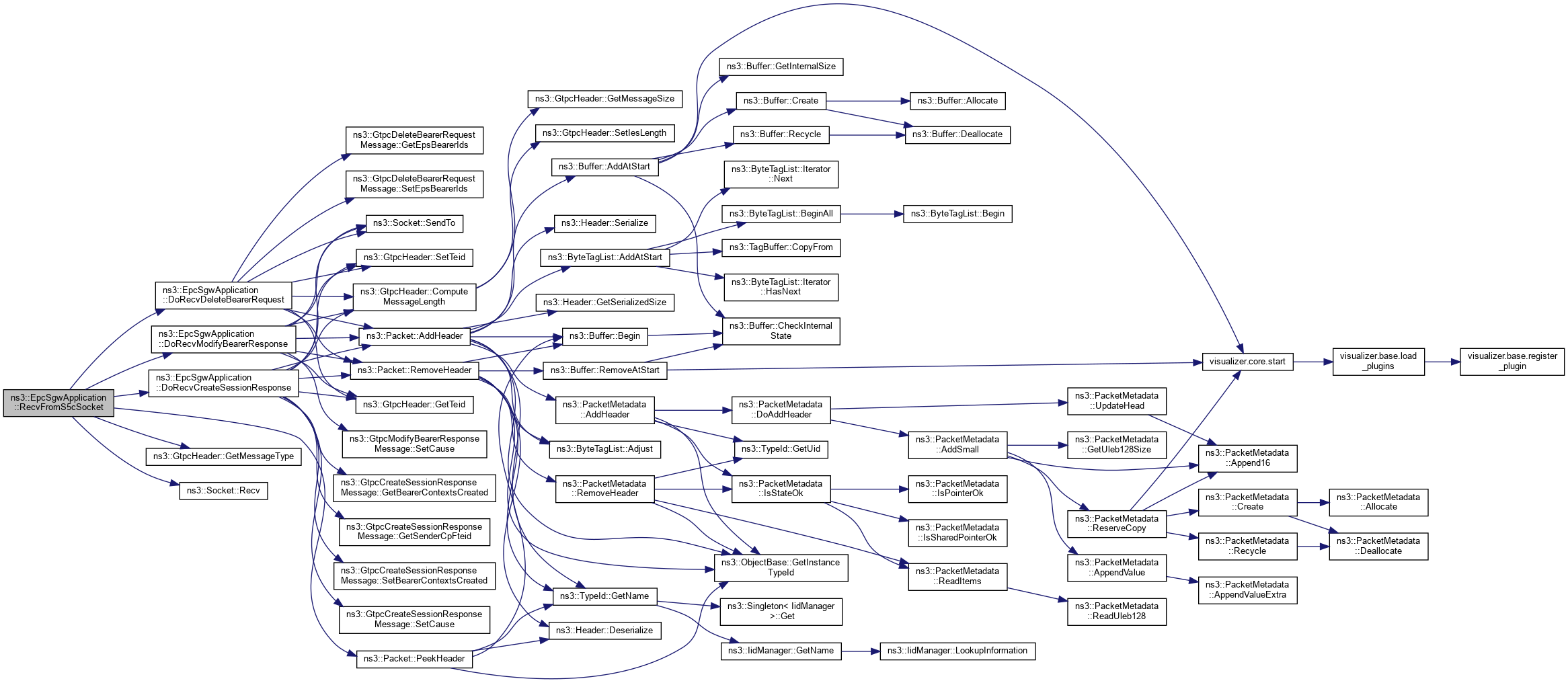

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RecvFromS5uSocket()

void ns3::EpcSgwApplication::RecvFromS5uSocket ( Ptr< Socket > socket )

private

Method to be assigned to the recv callback of the S5-U socket.

It is called when the SGW receives a data packet from the PGW that is to be forwarded to an eNB.

Parameters

socket pointer to the S5-U socket

Definition at line 137 of file epc-sgw-application.cc.

References ns3::GtpuHeader::GetTeid(), m_enbByTeidMap, m_s5uSocket, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Socket::Recv(), ns3::Packet::RemoveHeader(), and SendToS1uSocket().

Referenced by EpcSgwApplication().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendToS1uSocket()

void ns3::EpcSgwApplication::SendToS1uSocket	(	Ptr< Packet >	packet,
		Ipv4Address	enbS1uAddress,
		uint32_t	teid
	)

private

Send a data packet to an eNB via the S1-U interface.

Parameters

packet	packet to be sent
enbS1uAddress	the address of the eNB
teid	the Tunnel Enpoint IDentifier

Definition at line 195 of file epc-sgw-application.cc.

References ns3::Packet::AddHeader(), ns3::GtpuHeader::GetSerializedSize(), ns3::Packet::GetSize(), m_gtpuUdpPort, m_s1uSocket, NS_LOG_FUNCTION, ns3::Socket::SendTo(), ns3::GtpuHeader::SetLength(), and ns3::GtpuHeader::SetTeid().

Referenced by RecvFromS5uSocket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendToS5uSocket()

void ns3::EpcSgwApplication::SendToS5uSocket	(	Ptr< Packet >	packet,
		Ipv4Address	pgwAddr,
		uint32_t	teid
	)

private

Send a data packet to the PGW via the S5 interface.

Parameters

packet	packet to be sent
pgwAddr	the address of the PGW
teid	the Tunnel Enpoint Identifier

Definition at line 209 of file epc-sgw-application.cc.

References ns3::Packet::AddHeader(), ns3::GtpuHeader::GetSerializedSize(), ns3::Packet::GetSize(), m_gtpuUdpPort, m_s5uSocket, NS_LOG_FUNCTION, ns3::Socket::SendTo(), ns3::GtpuHeader::SetLength(), and ns3::GtpuHeader::SetTeid().

Referenced by RecvFromS1uSocket().

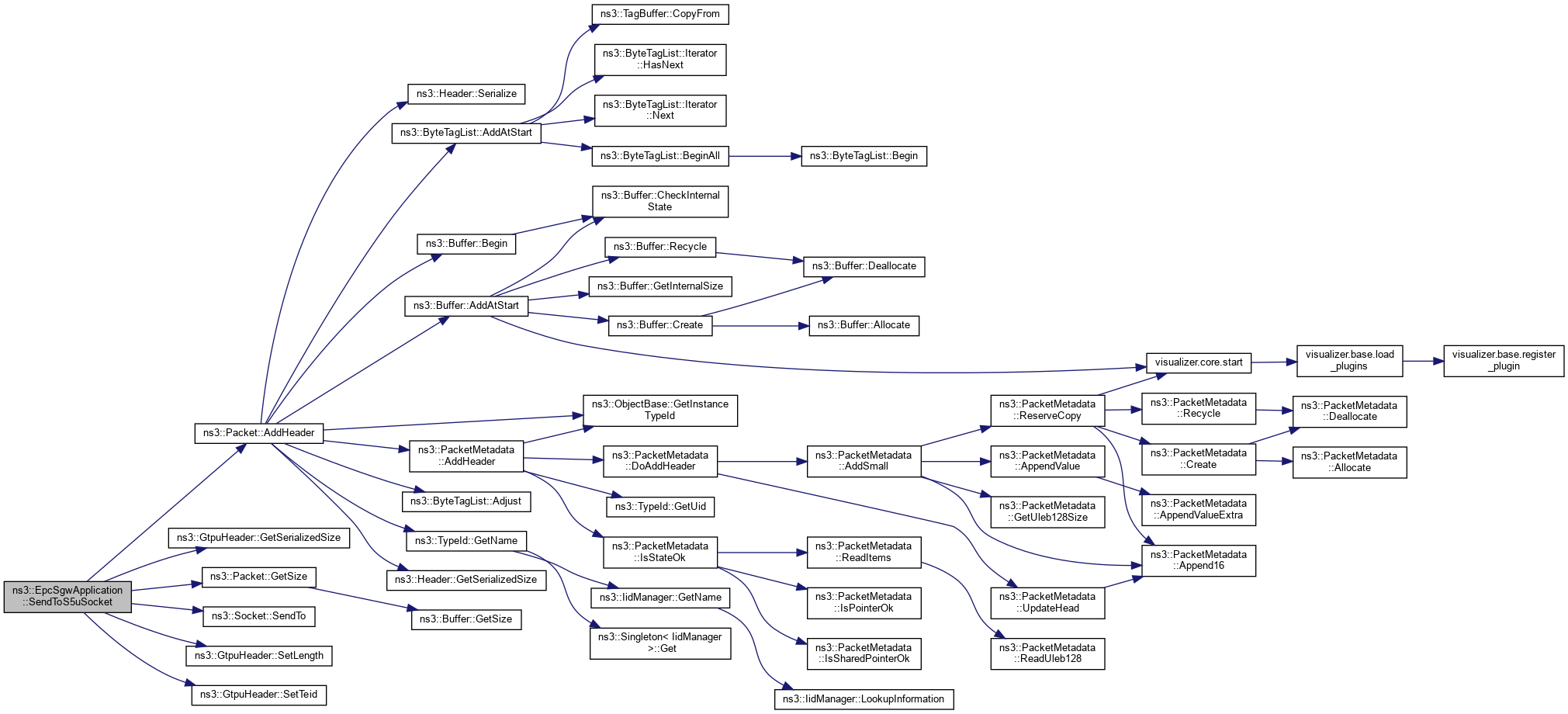

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_enbByTeidMap

std::map<uint32_t, Ipv4Address> ns3::EpcSgwApplication::m_enbByTeidMap

private

Map for eNB address by TEID.

Definition at line 267 of file epc-sgw-application.h.

Referenced by DoRecvCreateSessionRequest(), DoRecvModifyBearerRequest(), and RecvFromS5uSocket().

◆ m_enbInfoByCellId

std::map<uint16_t, EnbInfo> ns3::EpcSgwApplication::m_enbInfoByCellId

private

Map for eNB info by cell ID.

Definition at line 262 of file epc-sgw-application.h.

Referenced by AddEnb(), DoRecvCreateSessionRequest(), and DoRecvModifyBearerRequest().

◆ m_gtpcUdpPort

uint16_t ns3::EpcSgwApplication::m_gtpcUdpPort

private

UDP port to be used for GTP-C.

Definition at line 244 of file epc-sgw-application.h.

Referenced by DoRecvCreateSessionRequest(), DoRecvCreateSessionResponse(), DoRecvDeleteBearerCommand(), DoRecvDeleteBearerRequest(), DoRecvDeleteBearerResponse(), DoRecvModifyBearerRequest(), and DoRecvModifyBearerResponse().

◆ m_gtpuUdpPort

uint16_t ns3::EpcSgwApplication::m_gtpuUdpPort

private

UDP port to be used for GTP-U.

Definition at line 239 of file epc-sgw-application.h.

Referenced by SendToS1uSocket(), and SendToS5uSocket().

◆ m_mmeS11Addr

Ipv4Address ns3::EpcSgwApplication::m_mmeS11Addr

private

MME address in the S11 interface.

Definition at line 209 of file epc-sgw-application.h.

Referenced by AddMme(), DoRecvDeleteBearerRequest(), and DoRecvModifyBearerResponse().

◆ m_mmeS11FteidBySgwS5cTeid

std::map<uint32_t, GtpcHeader::Fteid_t> ns3::EpcSgwApplication::m_mmeS11FteidBySgwS5cTeid

private

MME S11 FTEID by SGW S5C TEID.

Definition at line 272 of file epc-sgw-application.h.

Referenced by DoRecvCreateSessionRequest(), and DoRecvCreateSessionResponse().

◆ m_pgwAddr

Ipv4Address ns3::EpcSgwApplication::m_pgwAddr

private

PGW address in the S5 interface.

Definition at line 219 of file epc-sgw-application.h.

Referenced by AddPgw(), DoRecvCreateSessionRequest(), DoRecvDeleteBearerCommand(), DoRecvDeleteBearerResponse(), DoRecvModifyBearerRequest(), and RecvFromS1uSocket().

◆ m_s11Socket

Ptr<Socket> ns3::EpcSgwApplication::m_s11Socket

private

UDP socket to send/receive control messages to/from the S11 interface.

Definition at line 214 of file epc-sgw-application.h.

Referenced by AddMme(), DoRecvCreateSessionResponse(), DoRecvDeleteBearerRequest(), DoRecvModifyBearerResponse(), and RecvFromS11Socket().

◆ m_s1uSocket

Ptr<Socket> ns3::EpcSgwApplication::m_s1uSocket

private

UDP socket to send/receive GTP-U packets to/from the S1-U interface.

Definition at line 234 of file epc-sgw-application.h.

Referenced by EpcSgwApplication(), DoDispose(), RecvFromS1uSocket(), and SendToS1uSocket().

◆ m_s5Addr

Ipv4Address ns3::EpcSgwApplication::m_s5Addr

private

SGW address in the S5 interface.

Definition at line 204 of file epc-sgw-application.h.

Referenced by DoRecvCreateSessionRequest(), DoRecvCreateSessionResponse(), and DoRecvModifyBearerRequest().

◆ m_s5cSocket

Ptr<Socket> ns3::EpcSgwApplication::m_s5cSocket

private

UDP socket to send/receive GTP-C packets to/from the S5 interface.

Definition at line 229 of file epc-sgw-application.h.

Referenced by EpcSgwApplication(), DoDispose(), DoRecvCreateSessionRequest(), DoRecvDeleteBearerCommand(), DoRecvDeleteBearerResponse(), DoRecvModifyBearerRequest(), and RecvFromS5cSocket().

◆ m_s5uSocket

Ptr<Socket> ns3::EpcSgwApplication::m_s5uSocket

private

UDP socket to send/receive GTP-U packets to/from the S5 interface.

Definition at line 224 of file epc-sgw-application.h.

Referenced by EpcSgwApplication(), DoDispose(), RecvFromS5uSocket(), and SendToS5uSocket().

◆ m_teidCount

uint32_t ns3::EpcSgwApplication::m_teidCount

private

TEID count.

Definition at line 249 of file epc-sgw-application.h.

Referenced by DoRecvCreateSessionRequest().

The documentation for this class was generated from the following files:

src/lte/model/epc-sgw-application.h
src/lte/model/epc-sgw-application.cc

Classes

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ EpcSgwApplication()

◆ ~EpcSgwApplication()

Member Function Documentation

◆ AddEnb()

◆ AddMme()

◆ AddPgw()

◆ DoDispose()

◆ DoRecvCreateSessionRequest()

◆ DoRecvCreateSessionResponse()

◆ DoRecvDeleteBearerCommand()

◆ DoRecvDeleteBearerRequest()

◆ DoRecvDeleteBearerResponse()

◆ DoRecvModifyBearerRequest()

◆ DoRecvModifyBearerResponse()

◆ GetTypeId()

◆ RecvFromS11Socket()

◆ RecvFromS1uSocket()

◆ RecvFromS5cSocket()

◆ RecvFromS5uSocket()

◆ SendToS1uSocket()

◆ SendToS5uSocket()

Member Data Documentation

◆ m_enbByTeidMap

◆ m_enbInfoByCellId

◆ m_gtpcUdpPort

◆ m_gtpuUdpPort

◆ m_mmeS11Addr

◆ m_mmeS11FteidBySgwS5cTeid

◆ m_pgwAddr

◆ m_s11Socket

◆ m_s1uSocket

◆ m_s5Addr

◆ m_s5cSocket

◆ m_s5uSocket

◆ m_teidCount
