#include "epc-x2-header.h"

Inheritance diagram for ns3::EpcX2LoadInformationHeader:

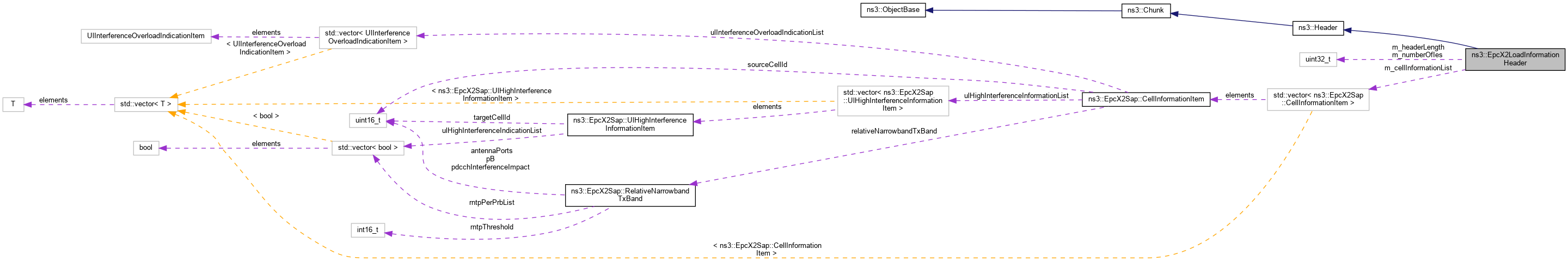

Collaboration diagram for ns3::EpcX2LoadInformationHeader:

Public Member Functions
	EpcX2LoadInformationHeader ()

virtual	~EpcX2LoadInformationHeader ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

std::vector< EpcX2Sap::CellInformationItem >	GetCellInformationList () const
	Get cell information list function. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

uint32_t	GetLengthOfIes () const
	Get length of IEs function. More...

uint32_t	GetNumberOfIes () const
	Get number of IEs function. More...

virtual uint32_t	GetSerializedSize (void) const

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetCellInformationList (std::vector< EpcX2Sap::CellInformationItem > cellInformationList)
	Set cell information list function. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
std::vector< EpcX2Sap::CellInformationItem >	m_cellInformationList
	cell information list More...

uint32_t	m_headerLength
	length of IEs More...

uint32_t	m_numberOfIes
	number of IEs More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

EpcX2LoadInformationHeader.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 40 bytes (on a 64-bit architecture).

Definition at line 534 of file epc-x2-header.h.

Constructor & Destructor Documentation

◆ EpcX2LoadInformationHeader()

ns3::EpcX2LoadInformationHeader::EpcX2LoadInformationHeader ( )

Definition at line 1092 of file epc-x2-header.cc.

References m_cellInformationList.

◆ ~EpcX2LoadInformationHeader()

ns3::EpcX2LoadInformationHeader::~EpcX2LoadInformationHeader ( )

virtual

Definition at line 1099 of file epc-x2-header.cc.

References m_cellInformationList, m_headerLength, and m_numberOfIes.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::EpcX2LoadInformationHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 1189 of file epc-x2-header.cc.

References ns3::EpcX2Sap::RelativeNarrowbandTxBand::antennaPorts, GetSerializedSize(), bianchi11ax::k, m_cellInformationList, m_headerLength, m_numberOfIes, ns3::EpcX2Sap::RelativeNarrowbandTxBand::pB, ns3::EpcX2Sap::RelativeNarrowbandTxBand::pdcchInterferenceImpact, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU8(), ns3::EpcX2Sap::CellInformationItem::relativeNarrowbandTxBand, ns3::EpcX2Sap::RelativeNarrowbandTxBand::rntpPerPrbList, ns3::EpcX2Sap::RelativeNarrowbandTxBand::rntpThreshold, ns3::EpcX2Sap::CellInformationItem::sourceCellId, visualizer.core::start(), ns3::EpcX2Sap::UlHighInterferenceInformationItem::targetCellId, ns3::EpcX2Sap::UlHighInterferenceInformationItem::ulHighInterferenceIndicationList, ns3::EpcX2Sap::CellInformationItem::ulHighInterferenceInformationList, and ns3::EpcX2Sap::CellInformationItem::ulInterferenceOverloadIndicationList.

Here is the call graph for this function:

◆ GetCellInformationList()

std::vector< EpcX2Sap::CellInformationItem > ns3::EpcX2LoadInformationHeader::GetCellInformationList ( ) const

Get cell information list function.

Returns: std::vector <EpcX2Sap::CellInformationItem>

Definition at line 1264 of file epc-x2-header.cc.

References m_cellInformationList.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::EpcX2LoadInformationHeader::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 1118 of file epc-x2-header.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetLengthOfIes()

uint32_t ns3::EpcX2LoadInformationHeader::GetLengthOfIes ( ) const

Get length of IEs function.

Returns: the length of IEs

Definition at line 1302 of file epc-x2-header.cc.

References m_headerLength.

Referenced by ns3::EpcX2::DoSendLoadInformation().

Here is the caller graph for this function:

◆ GetNumberOfIes()

uint32_t ns3::EpcX2LoadInformationHeader::GetNumberOfIes ( ) const

Get number of IEs function.

Returns: the number of IEs

Definition at line 1308 of file epc-x2-header.cc.

References m_numberOfIes.

Referenced by ns3::EpcX2::DoSendLoadInformation().

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::EpcX2LoadInformationHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 1124 of file epc-x2-header.cc.

References m_headerLength.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::EpcX2LoadInformationHeader::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 1107 of file epc-x2-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

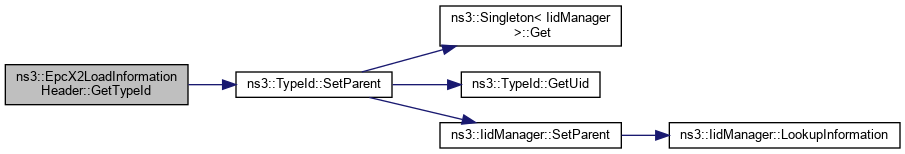

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::EpcX2LoadInformationHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 1258 of file epc-x2-header.cc.

References m_cellInformationList.

◆ Serialize()

void ns3::EpcX2LoadInformationHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 1130 of file epc-x2-header.cc.

References bianchi11ax::k, m_cellInformationList, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:
