Helper class used to put data values into a file. More...

#include "file-helper.h"

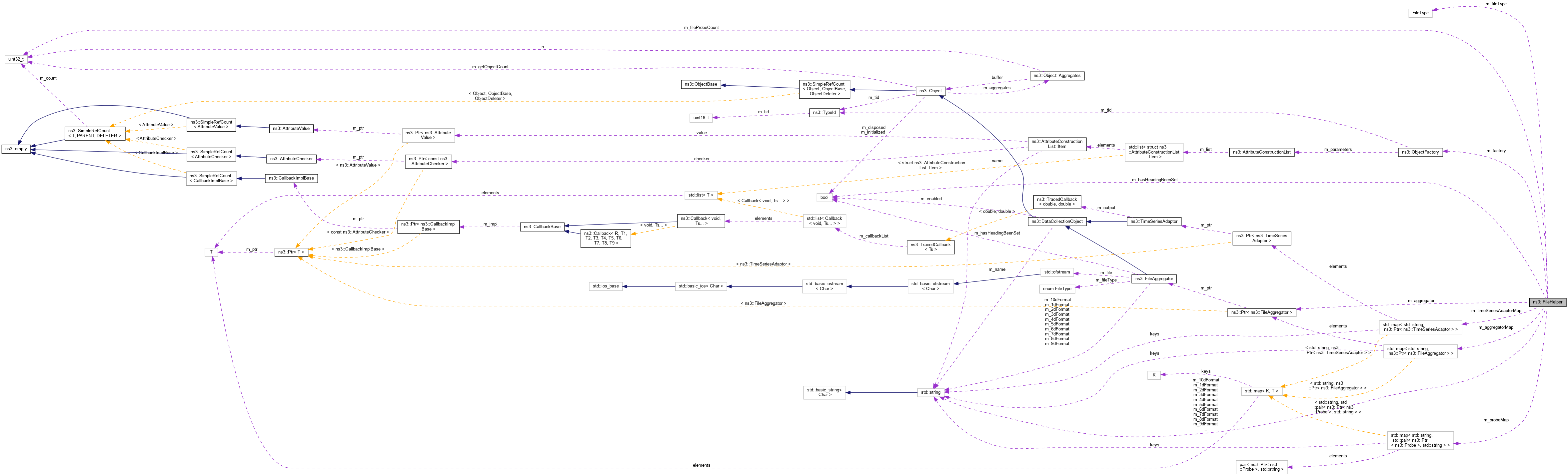

Collaboration diagram for ns3::FileHelper:

Public Member Functions
	FileHelper ()
	Constructs a file helper that will create a space separated file named "file-helper.txt" unless it is later configured otherwise. More...

	FileHelper (const std::string &outputFileNameWithoutExtension, enum FileAggregator::FileType fileType=FileAggregator::SPACE_SEPARATED)

virtual	~FileHelper ()

void	AddAggregator (const std::string &aggregatorName, const std::string &outputFileName, bool onlyOneAggregator)
	Adds an aggregator to be used to write values to files. More...

void	AddTimeSeriesAdaptor (const std::string &adaptorName)
	Adds a time series adaptor to be used to write the file. More...

void	ConfigureFile (const std::string &outputFileNameWithoutExtension, enum FileAggregator::FileType fileType=FileAggregator::SPACE_SEPARATED)

Ptr< FileAggregator >	GetAggregatorMultiple (const std::string &aggregatorName, const std::string &outputFileName)
	Gets one of the multiple aggregators from the map. More...

Ptr< FileAggregator >	GetAggregatorSingle ()
	Gets the single aggregator that is always constructed. More...

Ptr< Probe >	GetProbe (std::string probeName) const
	Gets the specified probe. More...

void	Set10dFormat (const std::string &format)
	Sets the 10D format string for the C-style sprintf() function. More...

void	Set1dFormat (const std::string &format)
	Sets the 1D format string for the C-style sprintf() function. More...

void	Set2dFormat (const std::string &format)
	Sets the 2D format string for the C-style sprintf() function. More...

void	Set3dFormat (const std::string &format)
	Sets the 3D format string for the C-style sprintf() function. More...

void	Set4dFormat (const std::string &format)
	Sets the 4D format string for the C-style sprintf() function. More...

void	Set5dFormat (const std::string &format)
	Sets the 5D format string for the C-style sprintf() function. More...

void	Set6dFormat (const std::string &format)
	Sets the 6D format string for the C-style sprintf() function. More...

void	Set7dFormat (const std::string &format)
	Sets the 7D format string for the C-style sprintf() function. More...

void	Set8dFormat (const std::string &format)
	Sets the 8D format string for the C-style sprintf() function. More...

void	Set9dFormat (const std::string &format)
	Sets the 9D format string for the C-style sprintf() function. More...

void	SetHeading (const std::string &heading)
	Sets the heading string that will be printed on the first line of the file. More...

void	WriteProbe (const std::string &typeId, const std::string &path, const std::string &probeTraceSource)

Private Member Functions
void	AddProbe (const std::string &typeId, const std::string &probeName, const std::string &path)
	Adds a probe to be used to write values to files. More...

void	ConnectProbeToAggregator (const std::string &typeId, const std::string &matchIdentifier, const std::string &path, const std::string &probeTraceSource, const std::string &outputFileNameWithoutExtension, bool onlyOneAggregator)
	Connects the probe to the aggregator. More...

Private Attributes
std::string	m_10dFormat
	Format string for 10D format C-style sprintf() function. More...

std::string	m_1dFormat
	Format string for 1D format C-style sprintf() function. More...

std::string	m_2dFormat
	Format string for 2D format C-style sprintf() function. More...

std::string	m_3dFormat
	Format string for 3D format C-style sprintf() function. More...

std::string	m_4dFormat
	Format string for 4D format C-style sprintf() function. More...

std::string	m_5dFormat
	Format string for 5D format C-style sprintf() function. More...

std::string	m_6dFormat
	Format string for 6D format C-style sprintf() function. More...

std::string	m_7dFormat
	Format string for 7D format C-style sprintf() function. More...

std::string	m_8dFormat
	Format string for 8D format C-style sprintf() function. More...

std::string	m_9dFormat
	Format string for 9D format C-style sprintf() function. More...

Ptr< FileAggregator >	m_aggregator
	The single aggregator that is always created in the constructor. More...

std::map< std::string, Ptr< FileAggregator > >	m_aggregatorMap
	Maps aggregator names to aggregators when multiple aggregators are needed. More...

ObjectFactory	m_factory
	Used to create the probes and collectors as they are added. More...

uint32_t	m_fileProbeCount
	Number of file probes that have been created. More...

enum FileAggregator::FileType	m_fileType
	Determines the kind of file written by the aggregator. More...

bool	m_hasHeadingBeenSet
	Indicates if the heading line for the file has been set. More...

std::string	m_heading
	Heading line for the outputfile. More...

std::string	m_outputFileNameWithoutExtension
	The name of the output file to created without its extension. More...

std::map< std::string, std::pair< Ptr< Probe >, std::string > >	m_probeMap
	Maps probe names to probes. More...

std::map< std::string, Ptr< TimeSeriesAdaptor > >	m_timeSeriesAdaptorMap
	Maps time series adaptor names to time series adaptors. More...

Detailed Description

Helper class used to put data values into a file.

Definition at line 38 of file file-helper.h.

Constructor & Destructor Documentation

◆ FileHelper() [1/2]

ns3::FileHelper::FileHelper ( )

Constructs a file helper that will create a space separated file named "file-helper.txt" unless it is later configured otherwise.

Definition at line 35 of file file-helper.cc.

References NS_LOG_FUNCTION.

◆ FileHelper() [2/2]

ns3::FileHelper::FileHelper	(	const std::string &	outputFileNameWithoutExtension,
		enum FileAggregator::FileType	fileType = `FileAggregator::SPACE_SEPARATED`
	)

Parameters

outputFileNameWithoutExtension	name of output file to write with no extension
fileType	type of file to write.

Constructs a file helper that will create a file named outputFileNameWithoutExtension plus possible extra information from wildcard matches plus ".txt" with values printed as specified by fileType. The default file type is space-separated.

Definition at line 48 of file file-helper.cc.

References NS_LOG_FUNCTION.

◆ ~FileHelper()

ns3::FileHelper::~FileHelper ( )

virtual

Definition at line 62 of file file-helper.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddAggregator()

void ns3::FileHelper::AddAggregator	(	const std::string &	aggregatorName,
		const std::string &	outputFileName,
		bool	onlyOneAggregator
	)

Adds an aggregator to be used to write values to files.

Parameters

aggregatorName	the aggregator's name.
outputFileName	name of the file to write.
onlyOneAggregator	indicates if more than one aggregator should be created or not.

Definition at line 237 of file file-helper.cc.

References GetAggregatorSingle(), m_10dFormat, m_1dFormat, m_2dFormat, m_3dFormat, m_4dFormat, m_5dFormat, m_6dFormat, m_7dFormat, m_8dFormat, m_9dFormat, m_aggregatorMap, m_fileType, m_heading, NS_ABORT_MSG, and NS_LOG_FUNCTION.

Referenced by ConnectProbeToAggregator(), and GetAggregatorMultiple().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddProbe()

void ns3::FileHelper::AddProbe	(	const std::string &	typeId,
		const std::string &	probeName,
		const std::string &	path
	)

private

Adds a probe to be used to write values to files.

Parameters

typeId	the type ID for the probe used when it is created.
probeName	the probe's name.
path	Config path to access the probe

Definition at line 180 of file file-helper.cc.

References ns3::ObjectFactory::Create(), ns3::Object::GetObject(), m_factory, m_probeMap, NS_ABORT_MSG, NS_LOG_FUNCTION, and ns3::ObjectFactory::SetTypeId().

Referenced by ConnectProbeToAggregator().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddTimeSeriesAdaptor()

void ns3::FileHelper::AddTimeSeriesAdaptor ( const std::string & adaptorName )

Adds a time series adaptor to be used to write the file.

Parameters

adaptorName the timeSeriesAdaptor's name.

Definition at line 216 of file file-helper.cc.

References m_timeSeriesAdaptorMap, NS_ABORT_MSG, and NS_LOG_FUNCTION.

Referenced by ConnectProbeToAggregator().

Here is the caller graph for this function:

◆ ConfigureFile()

void ns3::FileHelper::ConfigureFile	(	const std::string &	outputFileNameWithoutExtension,
		enum FileAggregator::FileType	fileType = `FileAggregator::SPACE_SEPARATED`
	)

Parameters

outputFileNameWithoutExtension	name of output file to write with no extension
fileType	type of file to write.

Configures file related parameters for this file helper so that it will create a file named outputFileNameWithoutExtension plus possible extra information from wildcard matches plus ".txt" with values printed as specified by fileType. The default file type is space-separated.

Definition at line 68 of file file-helper.cc.

References m_aggregator, m_fileType, m_hasHeadingBeenSet, m_outputFileNameWithoutExtension, NS_LOG_FUNCTION, and NS_LOG_WARN.

◆ ConnectProbeToAggregator()

void ns3::FileHelper::ConnectProbeToAggregator	(	const std::string &	typeId,
		const std::string &	matchIdentifier,
		const std::string &	path,
		const std::string &	probeTraceSource,
		const std::string &	outputFileNameWithoutExtension,
		bool	onlyOneAggregator
	)

private

Connects the probe to the aggregator.

Parameters

typeId	the type ID for the probe used when it is created.
matchIdentifier	this string is used to make the probe's context be unique.
path	Config path to access the probe.
probeTraceSource	the probe trace source to access.
outputFileNameWithoutExtension	name of output file to write with no extension
onlyOneAggregator	indicates if more than one aggregator should be created or not.

A fatal error will result if an unknown probe type is used.

Definition at line 451 of file file-helper.cc.

References AddAggregator(), AddProbe(), AddTimeSeriesAdaptor(), m_aggregatorMap, m_fileProbeCount, m_probeMap, m_timeSeriesAdaptorMap, ns3::MakeCallback(), NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::TimeSeriesAdaptor::TraceSinkBoolean(), ns3::TimeSeriesAdaptor::TraceSinkDouble(), ns3::TimeSeriesAdaptor::TraceSinkUinteger16(), ns3::TimeSeriesAdaptor::TraceSinkUinteger32(), ns3::TimeSeriesAdaptor::TraceSinkUinteger8(), and ns3::FileAggregator::Write2d().

Referenced by WriteProbe().

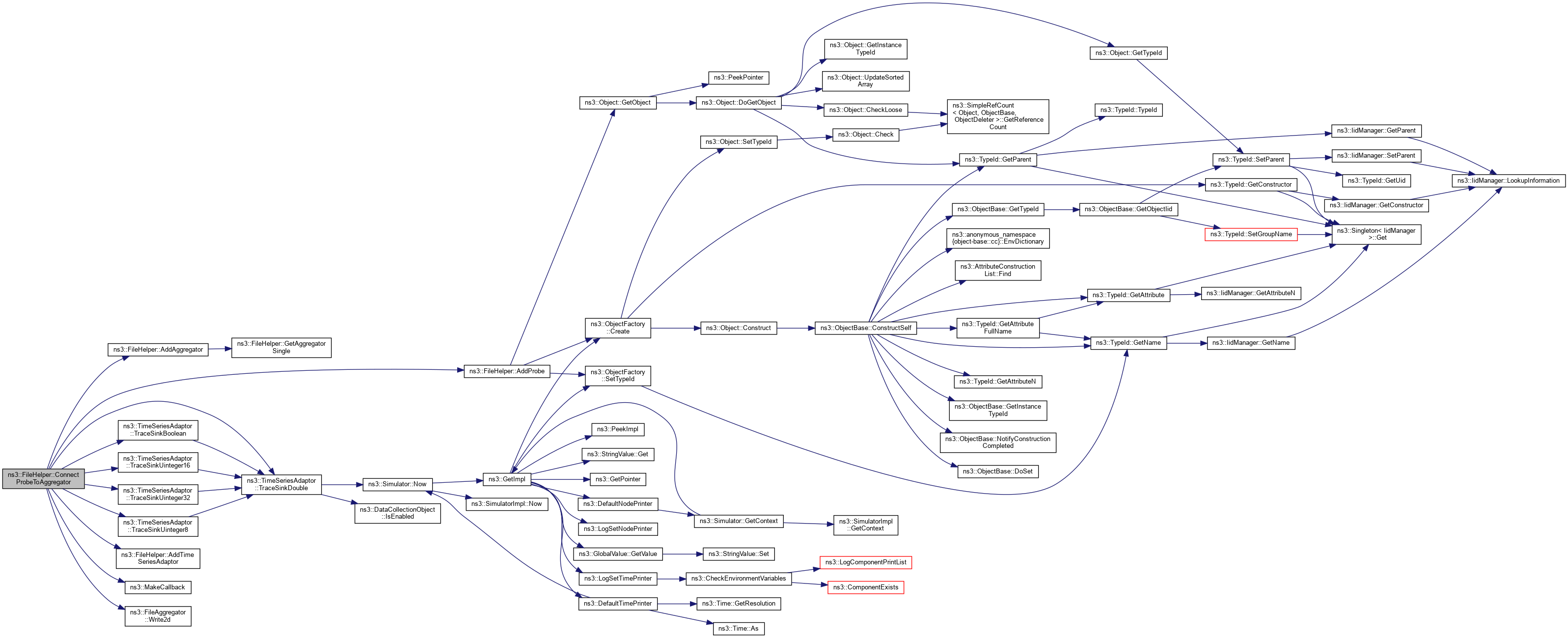

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetAggregatorMultiple()

Ptr< FileAggregator > ns3::FileHelper::GetAggregatorMultiple	(	const std::string &	aggregatorName,
		const std::string &	outputFileName
	)

Gets one of the multiple aggregators from the map.

Parameters

aggregatorName	name for aggregator.
outputFileName	name of output file to write.

Returns: Ptr to a FileAggregator object

This function is non-const because an aggregator may be lazily created by this method.

Definition at line 340 of file file-helper.cc.

References AddAggregator(), m_aggregatorMap, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetAggregatorSingle()

Ptr< FileAggregator > ns3::FileHelper::GetAggregatorSingle ( )

Gets the single aggregator that is always constructed.

Returns: Ptr to a FileAggregator object

This function is non-const because an aggregator may be lazily created by this method.

Definition at line 306 of file file-helper.cc.

References m_10dFormat, m_1dFormat, m_2dFormat, m_3dFormat, m_4dFormat, m_5dFormat, m_6dFormat, m_7dFormat, m_8dFormat, m_9dFormat, m_aggregator, m_fileType, m_heading, m_outputFileNameWithoutExtension, and NS_LOG_FUNCTION.

Referenced by AddAggregator().

Here is the caller graph for this function:

◆ GetProbe()

Ptr< Probe > ns3::FileHelper::GetProbe ( std::string probeName ) const

Gets the specified probe.

Parameters

probeName the probe's name.

Returns: Ptr to the probe

Definition at line 287 of file file-helper.cc.

References m_probeMap, NS_ABORT_MSG, and NS_LOG_FUNCTION.

◆ Set10dFormat()

void ns3::FileHelper::Set10dFormat ( const std::string & format )

Sets the 10D format string for the C-style sprintf() function.

Parameters

format the 10D format string.

Definition at line 443 of file file-helper.cc.

References m_10dFormat, and NS_LOG_FUNCTION.

◆ Set1dFormat()

void ns3::FileHelper::Set1dFormat ( const std::string & format )

Sets the 1D format string for the C-style sprintf() function.

Parameters

format the 1D format string.

Definition at line 371 of file file-helper.cc.

References m_1dFormat, and NS_LOG_FUNCTION.

◆ Set2dFormat()

void ns3::FileHelper::Set2dFormat ( const std::string & format )

Sets the 2D format string for the C-style sprintf() function.

Parameters

format the 2D format string.

Definition at line 379 of file file-helper.cc.

References m_2dFormat, and NS_LOG_FUNCTION.

◆ Set3dFormat()

void ns3::FileHelper::Set3dFormat ( const std::string & format )

Sets the 3D format string for the C-style sprintf() function.

Parameters

format the 3D format string.

Definition at line 387 of file file-helper.cc.

References m_3dFormat, and NS_LOG_FUNCTION.

◆ Set4dFormat()

void ns3::FileHelper::Set4dFormat ( const std::string & format )

Sets the 4D format string for the C-style sprintf() function.

Parameters

format the 4D format string.

Definition at line 395 of file file-helper.cc.

References m_4dFormat, and NS_LOG_FUNCTION.

◆ Set5dFormat()

void ns3::FileHelper::Set5dFormat ( const std::string & format )

Sets the 5D format string for the C-style sprintf() function.

Parameters

format the 5D format string.

Definition at line 403 of file file-helper.cc.

References m_5dFormat, and NS_LOG_FUNCTION.

◆ Set6dFormat()

void ns3::FileHelper::Set6dFormat ( const std::string & format )

Sets the 6D format string for the C-style sprintf() function.

Parameters

format the 6D format string.

Definition at line 411 of file file-helper.cc.

References m_6dFormat, and NS_LOG_FUNCTION.

◆ Set7dFormat()

void ns3::FileHelper::Set7dFormat ( const std::string & format )

Sets the 7D format string for the C-style sprintf() function.

Parameters

format the 7D format string.

Definition at line 419 of file file-helper.cc.

References m_7dFormat, and NS_LOG_FUNCTION.

◆ Set8dFormat()

void ns3::FileHelper::Set8dFormat ( const std::string & format )

Sets the 8D format string for the C-style sprintf() function.

Parameters

format the 8D format string.

Definition at line 427 of file file-helper.cc.

References m_8dFormat, and NS_LOG_FUNCTION.

◆ Set9dFormat()

void ns3::FileHelper::Set9dFormat ( const std::string & format )

Sets the 9D format string for the C-style sprintf() function.

Parameters

format the 9D format string.

Definition at line 435 of file file-helper.cc.

References m_9dFormat, and NS_LOG_FUNCTION.

◆ SetHeading()

void ns3::FileHelper::SetHeading ( const std::string & heading )

Sets the heading string that will be printed on the first line of the file.

Parameters

heading the heading string.

Note that the heading string will only be printed if it has been set by calling this function.

Definition at line 362 of file file-helper.cc.

References m_hasHeadingBeenSet, m_heading, and NS_LOG_FUNCTION.

◆ WriteProbe()

void ns3::FileHelper::WriteProbe	(	const std::string &	typeId,
		const std::string &	path,
		const std::string &	probeTraceSource
	)

Parameters

typeId	the type ID for the probe used when it is created.
path	Config path for underlying trace source to be probed
probeTraceSource	the probe trace source to access.

Creates output files generated by hooking the ns-3 trace source with a probe, and then writing the values from the probeTraceSource. The output file names will have the text stored in m_outputFileNameWithoutExtension plus ".txt", and will consist of the 'newValue' at each timestamp.

This method will create one or more probes according to the TypeId provided, connect the probe(s) to the trace source specified by the config path, and hook the probeTraceSource(s) to the downstream aggregator.

If the config path has more than one match in the system (e.g. there is a wildcard), then one output file for each match will be created. The output file names will contain the text in m_outputFileNameWithoutExtension plus the matched characters for each of the wildcards in the config path, separated by dashes, plus ".txt". For example, if the value in m_outputFileNameWithoutExtension is the string "packet-byte-count", and there are two wildcards in the path, then output file names like "packet-byte-count-0-0.txt" or "packet-byte-count-12-9.txt" will be possible as names for the files that will be created.

A fatal error will result if an unknown probe type is used.

This is used to indicate if multiple aggregators are needed.

Definition at line 90 of file file-helper.cc.

References ConnectProbeToAggregator(), ns3::Config::MatchContainer::GetMatchedPath(), ns3::Config::MatchContainer::GetN(), ns3::GetWildcardMatches(), ns3::Config::LookupMatches(), m_outputFileNameWithoutExtension, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Data Documentation

◆ m_10dFormat

std::string ns3::FileHelper::m_10dFormat

private

Format string for 10D format C-style sprintf() function.

Definition at line 322 of file file-helper.h.

Referenced by AddAggregator(), GetAggregatorSingle(), and Set10dFormat().

◆ m_1dFormat

std::string ns3::FileHelper::m_1dFormat

private

Format string for 1D format C-style sprintf() function.

Definition at line 313 of file file-helper.h.

Referenced by AddAggregator(), GetAggregatorSingle(), and Set1dFormat().

◆ m_2dFormat

std::string ns3::FileHelper::m_2dFormat

private

Format string for 2D format C-style sprintf() function.

Definition at line 314 of file file-helper.h.

Referenced by AddAggregator(), GetAggregatorSingle(), and Set2dFormat().

◆ m_3dFormat

std::string ns3::FileHelper::m_3dFormat

private

Format string for 3D format C-style sprintf() function.

Definition at line 315 of file file-helper.h.

Referenced by AddAggregator(), GetAggregatorSingle(), and Set3dFormat().

◆ m_4dFormat

std::string ns3::FileHelper::m_4dFormat

private

Format string for 4D format C-style sprintf() function.

Definition at line 316 of file file-helper.h.

Referenced by AddAggregator(), GetAggregatorSingle(), and Set4dFormat().

◆ m_5dFormat

std::string ns3::FileHelper::m_5dFormat

private

Format string for 5D format C-style sprintf() function.

Definition at line 317 of file file-helper.h.

Referenced by AddAggregator(), GetAggregatorSingle(), and Set5dFormat().

◆ m_6dFormat

std::string ns3::FileHelper::m_6dFormat

private

Format string for 6D format C-style sprintf() function.

Definition at line 318 of file file-helper.h.

Referenced by AddAggregator(), GetAggregatorSingle(), and Set6dFormat().

◆ m_7dFormat

std::string ns3::FileHelper::m_7dFormat

private

Format string for 7D format C-style sprintf() function.

Definition at line 319 of file file-helper.h.

Referenced by AddAggregator(), GetAggregatorSingle(), and Set7dFormat().

◆ m_8dFormat

std::string ns3::FileHelper::m_8dFormat

private

Format string for 8D format C-style sprintf() function.

Definition at line 320 of file file-helper.h.

Referenced by AddAggregator(), GetAggregatorSingle(), and Set8dFormat().

◆ m_9dFormat

std::string ns3::FileHelper::m_9dFormat

private

Format string for 9D format C-style sprintf() function.

Definition at line 321 of file file-helper.h.

Referenced by AddAggregator(), GetAggregatorSingle(), and Set9dFormat().

◆ m_aggregator

Ptr<FileAggregator> ns3::FileHelper::m_aggregator

private

The single aggregator that is always created in the constructor.

Definition at line 286 of file file-helper.h.

Referenced by ConfigureFile(), and GetAggregatorSingle().

◆ m_aggregatorMap

std::map<std::string, Ptr<FileAggregator> > ns3::FileHelper::m_aggregatorMap

private

Maps aggregator names to aggregators when multiple aggregators are needed.

Definition at line 290 of file file-helper.h.

Referenced by AddAggregator(), ConnectProbeToAggregator(), and GetAggregatorMultiple().

◆ m_factory

ObjectFactory ns3::FileHelper::m_factory

private

Used to create the probes and collectors as they are added.

Definition at line 283 of file file-helper.h.

Referenced by AddProbe().

◆ m_fileProbeCount

uint32_t ns3::FileHelper::m_fileProbeCount

private

Number of file probes that have been created.

Definition at line 299 of file file-helper.h.

Referenced by ConnectProbeToAggregator().

◆ m_fileType

enum FileAggregator::FileType ns3::FileHelper::m_fileType

private

Determines the kind of file written by the aggregator.

Definition at line 299 of file file-helper.h.

Referenced by AddAggregator(), ConfigureFile(), and GetAggregatorSingle().

◆ m_hasHeadingBeenSet

bool ns3::FileHelper::m_hasHeadingBeenSet

private

Indicates if the heading line for the file has been set.

Definition at line 308 of file file-helper.h.

Referenced by ConfigureFile(), and SetHeading().

◆ m_heading

std::string ns3::FileHelper::m_heading

private

Heading line for the outputfile.

Definition at line 311 of file file-helper.h.

Referenced by AddAggregator(), GetAggregatorSingle(), and SetHeading().

◆ m_outputFileNameWithoutExtension

std::string ns3::FileHelper::m_outputFileNameWithoutExtension

private

The name of the output file to created without its extension.

Definition at line 305 of file file-helper.h.

Referenced by ConfigureFile(), GetAggregatorSingle(), and WriteProbe().

◆ m_probeMap

std::map<std::string, std::pair <Ptr<Probe>, std::string> > ns3::FileHelper::m_probeMap

private

Maps probe names to probes.

Definition at line 293 of file file-helper.h.

Referenced by AddProbe(), ConnectProbeToAggregator(), and GetProbe().

◆ m_timeSeriesAdaptorMap

std::map<std::string, Ptr<TimeSeriesAdaptor> > ns3::FileHelper::m_timeSeriesAdaptorMap

private

Maps time series adaptor names to time series adaptors.

Definition at line 296 of file file-helper.h.

Referenced by AddTimeSeriesAdaptor(), and ConnectProbeToAggregator().

The documentation for this class was generated from the following files:

src/stats/helper/file-helper.h
src/stats/helper/file-helper.cc

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ FileHelper() [1/2]

◆ FileHelper() [2/2]

◆ ~FileHelper()

Member Function Documentation

◆ AddAggregator()

◆ AddProbe()

◆ AddTimeSeriesAdaptor()

◆ ConfigureFile()

◆ ConnectProbeToAggregator()

◆ GetAggregatorMultiple()

◆ GetAggregatorSingle()

◆ GetProbe()

◆ Set10dFormat()

◆ Set1dFormat()

◆ Set2dFormat()

◆ Set3dFormat()

◆ Set4dFormat()

◆ Set5dFormat()

◆ Set6dFormat()

◆ Set7dFormat()

◆ Set8dFormat()

◆ Set9dFormat()

◆ SetHeading()

◆ WriteProbe()

Member Data Documentation

◆ m_10dFormat

◆ m_1dFormat

◆ m_2dFormat

◆ m_3dFormat

◆ m_4dFormat

◆ m_5dFormat

◆ m_6dFormat

◆ m_7dFormat

◆ m_8dFormat

◆ m_9dFormat

◆ m_aggregator

◆ m_aggregatorMap

◆ m_factory

◆ m_fileProbeCount

◆ m_fileType

◆ m_hasHeadingBeenSet

◆ m_heading

◆ m_outputFileNameWithoutExtension

◆ m_probeMap

◆ m_timeSeriesAdaptorMap
