The FlowProbe class is responsible for listening for packet events in a specific point of the simulated space, report those events to the global FlowMonitor, and collect its own flow statistics regarding only the packets that pass through that probe. More...

#include "flow-probe.h"

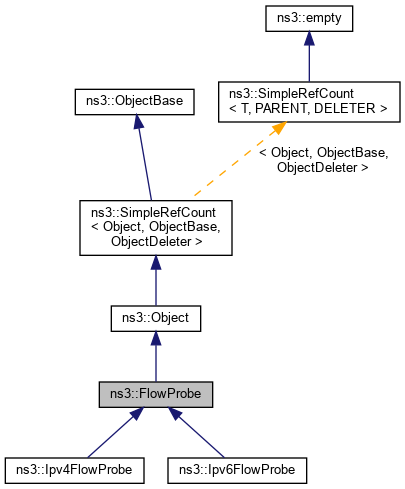

Inheritance diagram for ns3::FlowProbe:

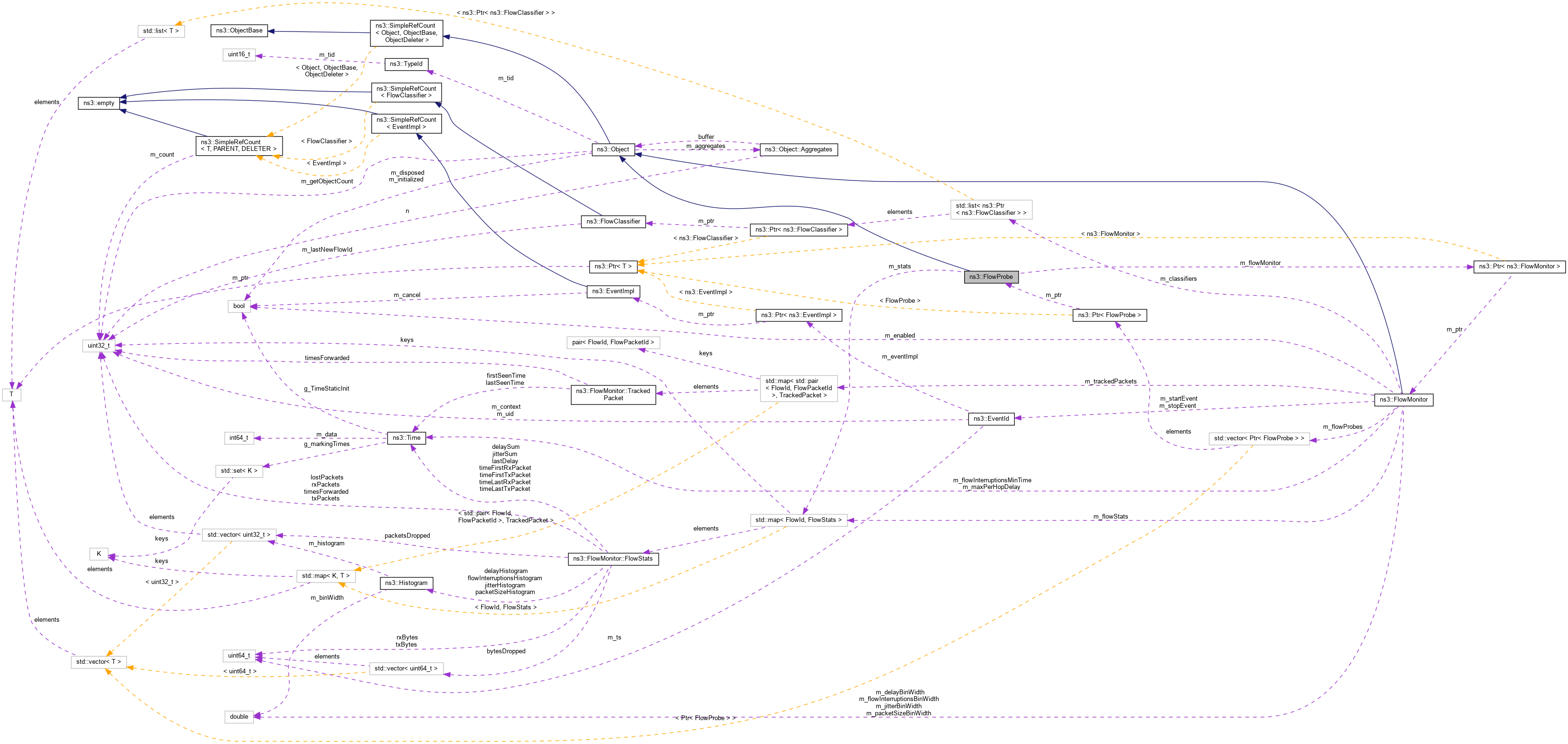

Collaboration diagram for ns3::FlowProbe:

Classes
struct	FlowStats
	Structure to hold the statistics of a flow. More...

Public Types
typedef std::map< FlowId, FlowStats >	Stats
	Container to map FlowId -> FlowStats. More...

Public Member Functions
	FlowProbe (FlowProbe const &)=delete

virtual	~FlowProbe ()

void	AddPacketDropStats (FlowId flowId, uint32_t packetSize, uint32_t reasonCode)
	Add a packet drop data to the flow stats. More...

void	AddPacketStats (FlowId flowId, uint32_t packetSize, Time delayFromFirstProbe)
	Add a packet data to the flow stats. More...

Stats	GetStats () const
	Get the partial flow statistics stored in this probe. More...

FlowProbe &	operator= (FlowProbe const &)=delete

void	SerializeToXmlStream (std::ostream &os, uint16_t indent, uint32_t index) const
	Serializes the results to an std::ostream in XML format. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
	FlowProbe (Ptr< FlowMonitor > flowMonitor)
	Constructor. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes
Ptr< FlowMonitor >	m_flowMonitor
	the FlowMonitor instance More...

Stats	m_stats
	The flow stats. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

The FlowProbe class is responsible for listening for packet events in a specific point of the simulated space, report those events to the global FlowMonitor, and collect its own flow statistics regarding only the packets that pass through that probe.

Definition at line 39 of file flow-probe.h.

Member Typedef Documentation

◆ Stats

typedef std::map<FlowId, FlowStats> ns3::FlowProbe::Stats

Container to map FlowId -> FlowStats.

Definition at line 77 of file flow-probe.h.

Constructor & Destructor Documentation

◆ FlowProbe() [1/2]

ns3::FlowProbe::FlowProbe ( Ptr< FlowMonitor > flowMonitor )

protected

Constructor.

Parameters

flowMonitor the FlowMonitor this probe is associated with

Definition at line 43 of file flow-probe.cc.

References m_flowMonitor.

◆ ~FlowProbe()

ns3::FlowProbe::~FlowProbe ( )

virtual

Definition at line 38 of file flow-probe.cc.

◆ FlowProbe() [2/2]

ns3::FlowProbe::FlowProbe ( FlowProbe const & )

delete

Member Function Documentation

◆ AddPacketDropStats()

void ns3::FlowProbe::AddPacketDropStats	(	FlowId	flowId,
		uint32_t	packetSize,
		uint32_t	reasonCode
	)

Add a packet drop data to the flow stats.

Parameters

flowId	the flow Identifier
packetSize	the packet size
reasonCode	reason code for the drop

Definition at line 66 of file flow-probe.cc.

References ns3::FlowProbe::FlowStats::bytesDropped, m_stats, ns3::FlowProbe::FlowStats::packetsDropped, and packetSize.

Referenced by ns3::FlowMonitor::ReportDrop().

Here is the caller graph for this function:

◆ AddPacketStats()

void ns3::FlowProbe::AddPacketStats	(	FlowId	flowId,
		uint32_t	packetSize,
		Time	delayFromFirstProbe
	)

Add a packet data to the flow stats.

Parameters

flowId	the flow Identifier
packetSize	the packet size
delayFromFirstProbe	packet delay

Definition at line 57 of file flow-probe.cc.

References ns3::FlowProbe::FlowStats::bytes, ns3::FlowProbe::FlowStats::delayFromFirstProbeSum, m_stats, ns3::FlowProbe::FlowStats::packets, and packetSize.

Referenced by ns3::FlowMonitor::ReportFirstTx(), ns3::FlowMonitor::ReportForwarding(), and ns3::FlowMonitor::ReportLastRx().

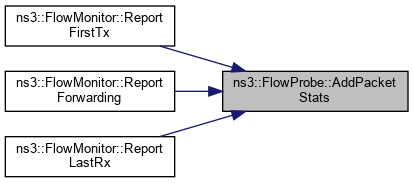

Here is the caller graph for this function:

◆ DoDispose()

void ns3::FlowProbe::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::Ipv6FlowProbe, and ns3::Ipv4FlowProbe.

Definition at line 50 of file flow-probe.cc.

References ns3::Object::DoDispose(), and m_flowMonitor.

Referenced by ns3::Ipv4FlowProbe::DoDispose(), and ns3::Ipv6FlowProbe::DoDispose().

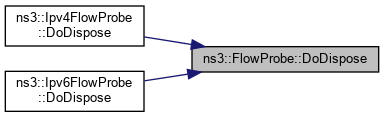

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetStats()

FlowProbe::Stats ns3::FlowProbe::GetStats ( ) const

Get the partial flow statistics stored in this probe.

With this information you can, for example, find out what is the delay from the first probe to this one.

Returns: the partial flow statistics

Definition at line 80 of file flow-probe.cc.

References m_stats.

◆ GetTypeId()

TypeId ns3::FlowProbe::GetTypeId ( void )

static

Register this type.

Returns: The TypeId.

Definition at line 27 of file flow-probe.cc.

References ns3::TypeId::SetParent().

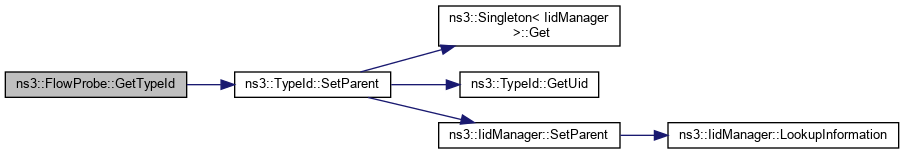

Here is the call graph for this function:

◆ operator=()

FlowProbe& ns3::FlowProbe::operator= ( FlowProbe const & )

delete

◆ SerializeToXmlStream()

void ns3::FlowProbe::SerializeToXmlStream	(	std::ostream &	os,
		uint16_t	indent,
		uint32_t	index
	)		const

Serializes the results to an std::ostream in XML format.

Parameters

os	the output stream
indent	number of spaces to use as base indentation level
index	FlowProbe index

Definition at line 86 of file flow-probe.cc.

References check-style::indent(), and m_stats.

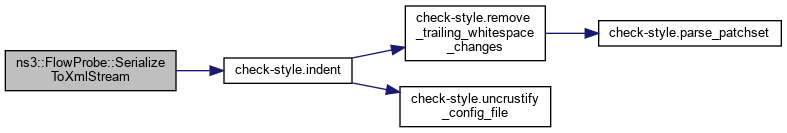

Here is the call graph for this function:

Member Data Documentation

◆ m_flowMonitor

Ptr<FlowMonitor> ns3::FlowProbe::m_flowMonitor

protected

the FlowMonitor instance

Definition at line 103 of file flow-probe.h.

Referenced by FlowProbe(), DoDispose(), ns3::Ipv4FlowProbe::DropLogger(), ns3::Ipv6FlowProbe::DropLogger(), ns3::Ipv4FlowProbe::ForwardLogger(), ns3::Ipv6FlowProbe::ForwardLogger(), ns3::Ipv4FlowProbe::ForwardUpLogger(), ns3::Ipv6FlowProbe::ForwardUpLogger(), ns3::Ipv4FlowProbe::QueueDiscDropLogger(), ns3::Ipv6FlowProbe::QueueDiscDropLogger(), ns3::Ipv4FlowProbe::QueueDropLogger(), ns3::Ipv6FlowProbe::QueueDropLogger(), ns3::Ipv4FlowProbe::SendOutgoingLogger(), and ns3::Ipv6FlowProbe::SendOutgoingLogger().

◆ m_stats

Stats ns3::FlowProbe::m_stats

protected

The flow stats.

Definition at line 104 of file flow-probe.h.

Referenced by AddPacketDropStats(), AddPacketStats(), GetStats(), and SerializeToXmlStream().

The documentation for this class was generated from the following files:

src/flow-monitor/model/flow-probe.h
src/flow-monitor/model/flow-probe.cc
