Helper class used to assign positions and mobility models to nodes for a group mobility configuration. More...

#include "group-mobility-helper.h"

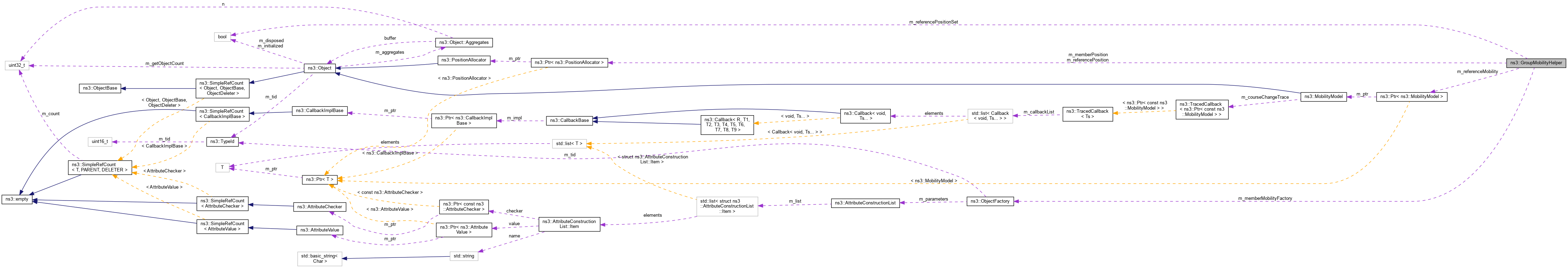

Collaboration diagram for ns3::GroupMobilityHelper:

Public Member Functions
	GroupMobilityHelper ()
	Construct a group mobility helper. More...

	~GroupMobilityHelper ()
	Destroy a group mobility helper. More...

int64_t	AssignStreams (NodeContainer c, int64_t stream)
	Assign a fixed random variable stream number to the random variables used by the mobility models on these nodes. More...

void	Install (NodeContainer container)
	Install and configure a hierarchical mobility model to all nodes in the container, based on the configured reference and member models. More...

void	Install (Ptr< Node > node)
	Install and configure a hierarchical mobility model to the given node, based on the configured reference and member models. More...

void	Install (std::string nodeName)
	Install and configure a hierarchical mobility model to the given node, based on the configured reference and member models. More...

void	SetMemberMobilityModel (std::string type, std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue(), std::string n8="", const AttributeValue &v8=EmptyAttributeValue(), std::string n9="", const AttributeValue &v9=EmptyAttributeValue())
	Configure the mobility model which will be installed as the member (child) mobility model during GroupMobilityModel::Install. More...

void	SetMemberPositionAllocator (Ptr< PositionAllocator > allocator)
	Set the position allocator which will be used to allocate the initial position of the member mobility models. More...

void	SetMemberPositionAllocator (std::string type, std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue(), std::string n8="", const AttributeValue &v8=EmptyAttributeValue(), std::string n9="", const AttributeValue &v9=EmptyAttributeValue())
	Configure the position allocator which will be used to allocate the initial position of the member mobility models. More...

void	SetReferenceMobilityModel (Ptr< MobilityModel > mobility)
	Set the reference mobility model which will be installed as the parent mobility model during GroupMobilityModel::Install. More...

void	SetReferenceMobilityModel (std::string type, std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue(), std::string n8="", const AttributeValue &v8=EmptyAttributeValue(), std::string n9="", const AttributeValue &v9=EmptyAttributeValue())
	Configure the reference mobility model which will be installed as the parent mobility model during GroupMobilityModel::Install. More...

void	SetReferencePositionAllocator (Ptr< PositionAllocator > allocator)
	Set the position allocator which will be used to allocate the initial position of the reference mobility model. More...

void	SetReferencePositionAllocator (std::string type, std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue(), std::string n8="", const AttributeValue &v8=EmptyAttributeValue(), std::string n9="", const AttributeValue &v9=EmptyAttributeValue())
	Configure the position allocator which will be used to allocate the initial position of the reference mobility model. More...

Private Attributes
ObjectFactory	m_memberMobilityFactory
	Object factory to create member mobility models. More...

Ptr< PositionAllocator >	m_memberPosition
	Position allocator for use as member position allocator. More...

Ptr< MobilityModel >	m_referenceMobility
	Reference mobility model. More...

Ptr< PositionAllocator >	m_referencePosition
	Position allocator for use as reference position allocator. More...

bool	m_referencePositionSet {false}
	flag for avoiding multiple SetPosition calls on the reference model More...

Detailed Description

Helper class used to assign positions and mobility models to nodes for a group mobility configuration.

This helper can be used for group mobility configuration and installation onto a group of nodes, in which there is a reference (parent) mobility model that is the same for all nodes, and similarly configured (but distinct) child mobility models.

Definition at line 46 of file group-mobility-helper.h.

Constructor & Destructor Documentation

◆ GroupMobilityHelper()

ns3::GroupMobilityHelper::GroupMobilityHelper ( )

Construct a group mobility helper.

Definition at line 39 of file group-mobility-helper.cc.

◆ ~GroupMobilityHelper()

ns3::GroupMobilityHelper::~GroupMobilityHelper ( )

Destroy a group mobility helper.

Definition at line 43 of file group-mobility-helper.cc.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::GroupMobilityHelper::AssignStreams	(	NodeContainer	c,
		int64_t	stream
	)

Assign a fixed random variable stream number to the random variables used by the mobility models on these nodes.

Return the number of streams (possibly zero) that have been assigned. The Install() method should have previously been called by the user.

Note: If the PositionAllocator used contains random variables, they will not be affected by this call to AssignStreams because they are used earlier during Install() time. If the user needs to assign a fixed stream number to a PositionAllocator used with this helper, the user should instantiate it outside of the helper, call AssignStreams() on it, and then pass the pointer of it to this helper.

Parameters

c	NodeContainer of the set of nodes containing the MobilityModels that should be modified to use a fixed stream
stream	first stream index to use

Returns: the number of stream indices assigned by this helper

Definition at line 214 of file group-mobility-helper.cc.

References ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), ns3::Object::GetObject(), third::mobility, and NS_FATAL_ERROR.

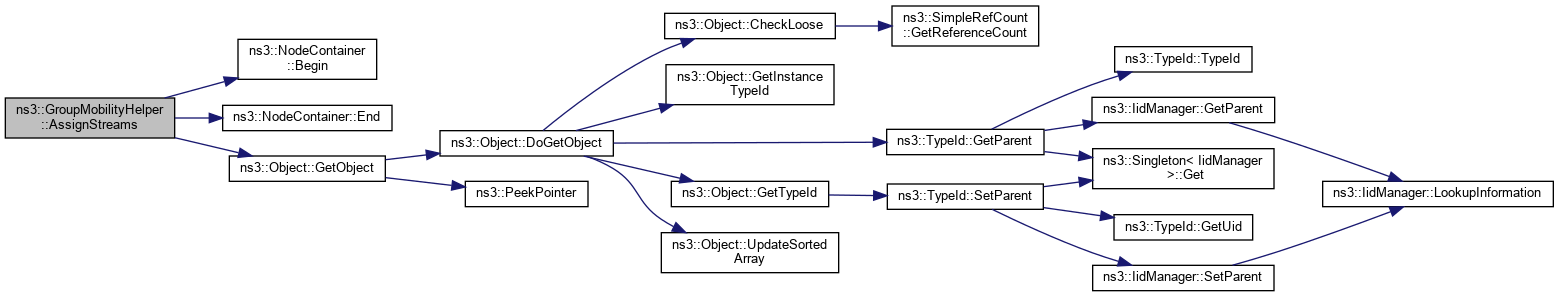

Here is the call graph for this function:

◆ Install() [1/3]

void ns3::GroupMobilityHelper::Install ( NodeContainer container )

Install and configure a hierarchical mobility model to all nodes in the container, based on the configured reference and member models.

If position allocators are configured, they will be invoked to set the initial positions.

Parameters

container The set of nodes to configure

Definition at line 206 of file group-mobility-helper.cc.

References ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), and Install().

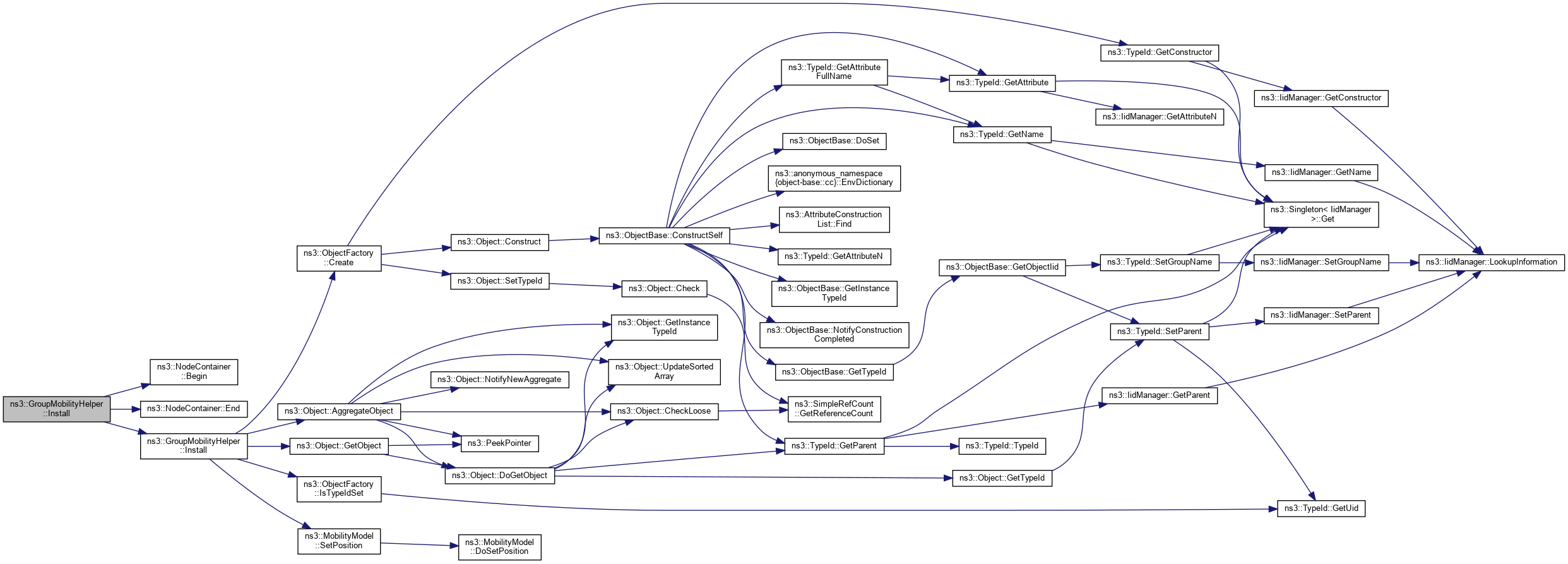

Here is the call graph for this function:

◆ Install() [2/3]

void ns3::GroupMobilityHelper::Install ( Ptr< Node > node )

Install and configure a hierarchical mobility model to the given node, based on the configured reference and member models.

If position allocators are configured, they will be invoked to set the initial position.

Parameters

node	The node to configure

Definition at line 173 of file group-mobility-helper.cc.

References ns3::Object::AggregateObject(), ns3::ObjectFactory::Create(), ns3::Object::GetObject(), ns3::ObjectFactory::IsTypeIdSet(), m_memberMobilityFactory, m_memberPosition, m_referenceMobility, m_referencePosition, m_referencePositionSet, NS_ABORT_MSG_IF, NS_ABORT_MSG_UNLESS, NS_LOG_DEBUG, and ns3::MobilityModel::SetPosition().

Referenced by Install().

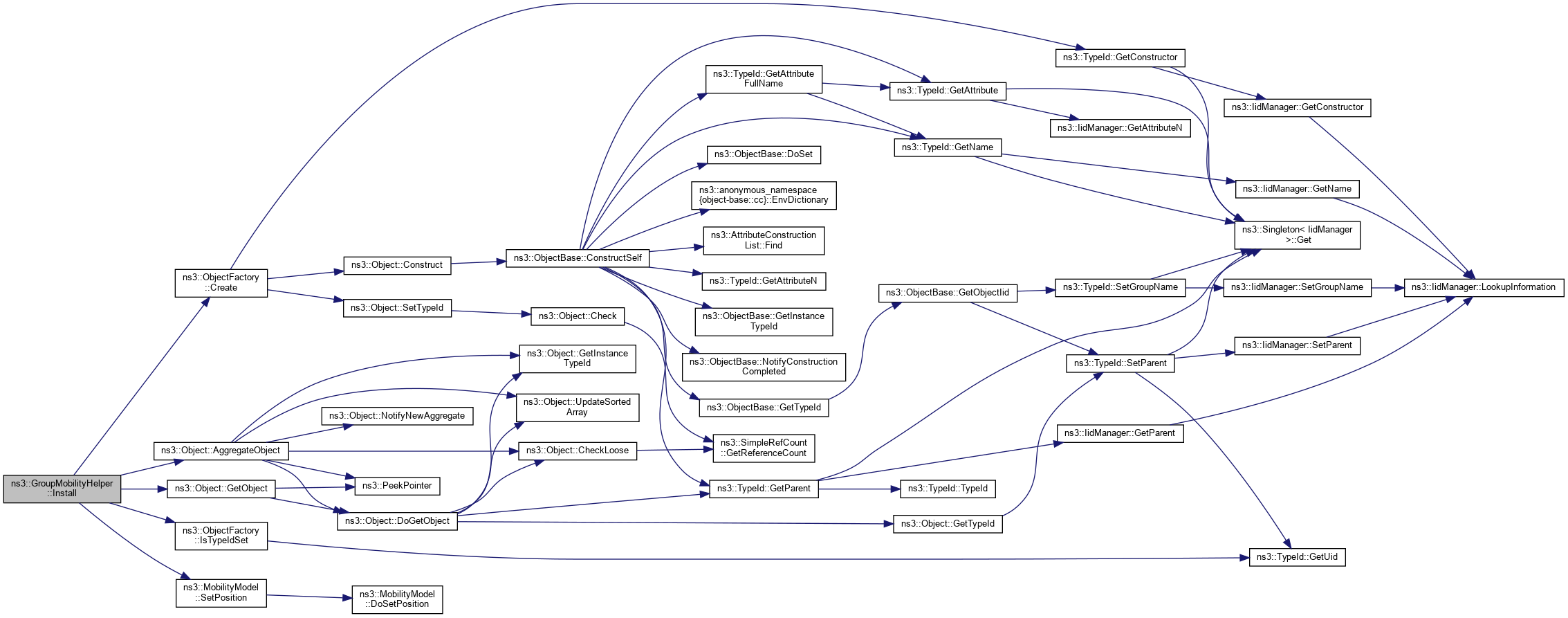

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Install() [3/3]

void ns3::GroupMobilityHelper::Install ( std::string nodeName )

Install and configure a hierarchical mobility model to the given node, based on the configured reference and member models.

If position allocators are configured, they will be invoked to set the initial position.

Parameters

nodeName The name of the node to configure

Definition at line 199 of file group-mobility-helper.cc.

References Install().

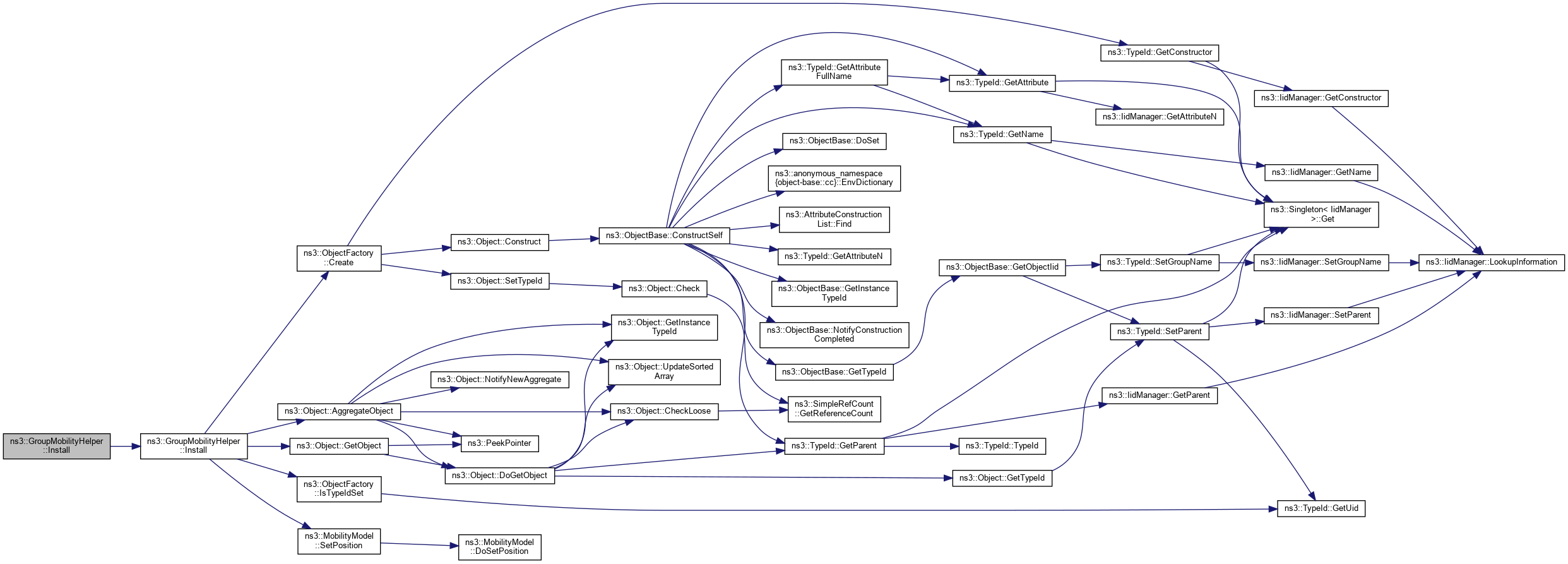

Here is the call graph for this function:

◆ SetMemberMobilityModel()

void ns3::GroupMobilityHelper::SetMemberMobilityModel	(	std::string	type,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue ()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue ()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue ()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue ()`,
		std::string	n5 = `""`,
		const AttributeValue &	v5 = `EmptyAttributeValue ()`,
		std::string	n6 = `""`,
		const AttributeValue &	v6 = `EmptyAttributeValue ()`,
		std::string	n7 = `""`,
		const AttributeValue &	v7 = `EmptyAttributeValue ()`,
		std::string	n8 = `""`,
		const AttributeValue &	v8 = `EmptyAttributeValue ()`,
		std::string	n9 = `""`,
		const AttributeValue &	v9 = `EmptyAttributeValue ()`
	)

Configure the mobility model which will be installed as the member (child) mobility model during GroupMobilityModel::Install.

Parameters

type	the type of mobility model to use.
n1	the name of the attribute to set in the mobility model.
v1	the value of the attribute to set in the mobility model.
n2	the name of the attribute to set in the mobility model.
v2	the value of the attribute to set in the mobility model.
n3	the name of the attribute to set in the mobility model.
v3	the value of the attribute to set in the mobility model.
n4	the name of the attribute to set in the mobility model.
v4	the value of the attribute to set in the mobility model.
n5	the name of the attribute to set in the mobility model.
v5	the value of the attribute to set in the mobility model.
n6	the name of the attribute to set in the mobility model.
v6	the value of the attribute to set in the mobility model.
n7	the name of the attribute to set in the mobility model.
v7	the value of the attribute to set in the mobility model.
n8	the name of the attribute to set in the mobility model.
v8	the value of the attribute to set in the mobility model.
n9	the name of the attribute to set in the mobility model.
v9	the value of the attribute to set in the mobility model.

Calls to MobilityHelper::Install will create an instance of a matching mobility model for each node.

Definition at line 148 of file group-mobility-helper.cc.

References m_memberMobilityFactory, NS_LOG_FUNCTION, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

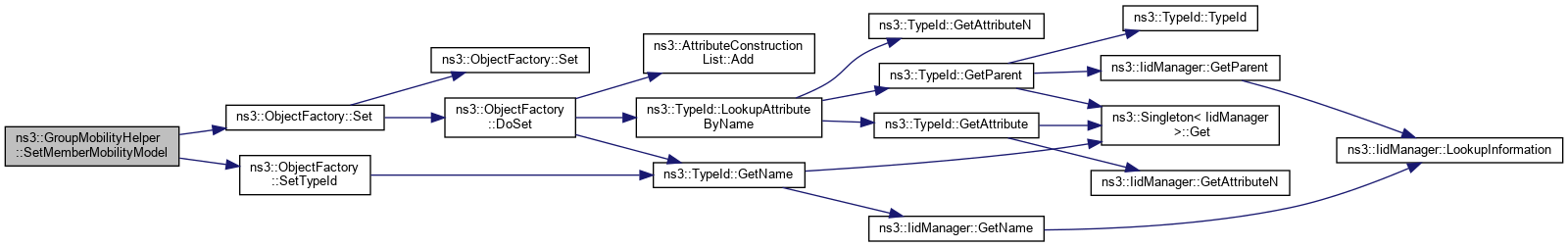

Here is the call graph for this function:

◆ SetMemberPositionAllocator() [1/2]

void ns3::GroupMobilityHelper::SetMemberPositionAllocator ( Ptr< PositionAllocator > allocator )

Set the position allocator which will be used to allocate the initial position of the member mobility models.

Parameters

allocator allocate initial member mobility model positions

Definition at line 81 of file group-mobility-helper.cc.

References m_memberPosition.

◆ SetMemberPositionAllocator() [2/2]

void ns3::GroupMobilityHelper::SetMemberPositionAllocator	(	std::string	type,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue ()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue ()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue ()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue ()`,
		std::string	n5 = `""`,
		const AttributeValue &	v5 = `EmptyAttributeValue ()`,
		std::string	n6 = `""`,
		const AttributeValue &	v6 = `EmptyAttributeValue ()`,
		std::string	n7 = `""`,
		const AttributeValue &	v7 = `EmptyAttributeValue ()`,
		std::string	n8 = `""`,
		const AttributeValue &	v8 = `EmptyAttributeValue ()`,
		std::string	n9 = `""`,
		const AttributeValue &	v9 = `EmptyAttributeValue ()`
	)

Configure the position allocator which will be used to allocate the initial position of the member mobility models.

Parameters

type	the type of mobility model to use.
n1	the name of the attribute to set in the mobility model.
v1	the value of the attribute to set in the mobility model.
n2	the name of the attribute to set in the mobility model.
v2	the value of the attribute to set in the mobility model.
n3	the name of the attribute to set in the mobility model.
v3	the value of the attribute to set in the mobility model.
n4	the name of the attribute to set in the mobility model.
v4	the value of the attribute to set in the mobility model.
n5	the name of the attribute to set in the mobility model.
v5	the value of the attribute to set in the mobility model.
n6	the name of the attribute to set in the mobility model.
v6	the value of the attribute to set in the mobility model.
n7	the name of the attribute to set in the mobility model.
v7	the value of the attribute to set in the mobility model.
n8	the name of the attribute to set in the mobility model.
v8	the value of the attribute to set in the mobility model.
n9	the name of the attribute to set in the mobility model.
v9	the value of the attribute to set in the mobility model.

Definition at line 87 of file group-mobility-helper.cc.

References ns3::ObjectFactory::Create(), ns3::Object::GetObject(), m_memberPosition, NS_ABORT_MSG_IF, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

◆ SetReferenceMobilityModel() [1/2]

void ns3::GroupMobilityHelper::SetReferenceMobilityModel ( Ptr< MobilityModel > mobility )

Set the reference mobility model which will be installed as the parent mobility model during GroupMobilityModel::Install.

Parameters

mobility reference mobility model

Definition at line 114 of file group-mobility-helper.cc.

References m_referenceMobility, and third::mobility.

◆ SetReferenceMobilityModel() [2/2]

void ns3::GroupMobilityHelper::SetReferenceMobilityModel	(	std::string	type,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue ()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue ()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue ()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue ()`,
		std::string	n5 = `""`,
		const AttributeValue &	v5 = `EmptyAttributeValue ()`,
		std::string	n6 = `""`,
		const AttributeValue &	v6 = `EmptyAttributeValue ()`,
		std::string	n7 = `""`,
		const AttributeValue &	v7 = `EmptyAttributeValue ()`,
		std::string	n8 = `""`,
		const AttributeValue &	v8 = `EmptyAttributeValue ()`,
		std::string	n9 = `""`,
		const AttributeValue &	v9 = `EmptyAttributeValue ()`
	)

Configure the reference mobility model which will be installed as the parent mobility model during GroupMobilityModel::Install.

Parameters

type	the type of mobility model to use.
n1	the name of the attribute to set in the mobility model.
v1	the value of the attribute to set in the mobility model.
n2	the name of the attribute to set in the mobility model.
v2	the value of the attribute to set in the mobility model.
n3	the name of the attribute to set in the mobility model.
v3	the value of the attribute to set in the mobility model.
n4	the name of the attribute to set in the mobility model.
v4	the value of the attribute to set in the mobility model.
n5	the name of the attribute to set in the mobility model.
v5	the value of the attribute to set in the mobility model.
n6	the name of the attribute to set in the mobility model.
v6	the value of the attribute to set in the mobility model.
n7	the name of the attribute to set in the mobility model.
v7	the value of the attribute to set in the mobility model.
n8	the name of the attribute to set in the mobility model.
v8	the value of the attribute to set in the mobility model.
n9	the name of the attribute to set in the mobility model.
v9	the value of the attribute to set in the mobility model.

Definition at line 120 of file group-mobility-helper.cc.

References ns3::ObjectFactory::Create(), ns3::Object::GetObject(), m_referenceMobility, NS_ABORT_MSG_IF, NS_LOG_FUNCTION, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

◆ SetReferencePositionAllocator() [1/2]

void ns3::GroupMobilityHelper::SetReferencePositionAllocator ( Ptr< PositionAllocator > allocator )

Set the position allocator which will be used to allocate the initial position of the reference mobility model.

Parameters

allocator allocate initial reference mobility model position

Definition at line 48 of file group-mobility-helper.cc.

References m_referencePosition.

◆ SetReferencePositionAllocator() [2/2]

void ns3::GroupMobilityHelper::SetReferencePositionAllocator	(	std::string	type,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue ()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue ()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue ()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue ()`,
		std::string	n5 = `""`,
		const AttributeValue &	v5 = `EmptyAttributeValue ()`,
		std::string	n6 = `""`,
		const AttributeValue &	v6 = `EmptyAttributeValue ()`,
		std::string	n7 = `""`,
		const AttributeValue &	v7 = `EmptyAttributeValue ()`,
		std::string	n8 = `""`,
		const AttributeValue &	v8 = `EmptyAttributeValue ()`,
		std::string	n9 = `""`,
		const AttributeValue &	v9 = `EmptyAttributeValue ()`
	)

Configure the position allocator which will be used to allocate the initial position of the reference mobility model.

Parameters

type	the type of mobility model to use.
n1	the name of the attribute to set in the mobility model.
v1	the value of the attribute to set in the mobility model.
n2	the name of the attribute to set in the mobility model.
v2	the value of the attribute to set in the mobility model.
n3	the name of the attribute to set in the mobility model.
v3	the value of the attribute to set in the mobility model.
n4	the name of the attribute to set in the mobility model.
v4	the value of the attribute to set in the mobility model.
n5	the name of the attribute to set in the mobility model.
v5	the value of the attribute to set in the mobility model.
n6	the name of the attribute to set in the mobility model.
v6	the value of the attribute to set in the mobility model.
n7	the name of the attribute to set in the mobility model.
v7	the value of the attribute to set in the mobility model.
n8	the name of the attribute to set in the mobility model.
v8	the value of the attribute to set in the mobility model.
n9	the name of the attribute to set in the mobility model.
v9	the value of the attribute to set in the mobility model.

Definition at line 54 of file group-mobility-helper.cc.

References ns3::ObjectFactory::Create(), ns3::Object::GetObject(), m_referencePosition, NS_ABORT_MSG_IF, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

Member Data Documentation

◆ m_memberMobilityFactory

ObjectFactory ns3::GroupMobilityHelper::m_memberMobilityFactory

private

Object factory to create member mobility models.

Definition at line 283 of file group-mobility-helper.h.

Referenced by Install(), and SetMemberMobilityModel().

◆ m_memberPosition

Ptr<PositionAllocator> ns3::GroupMobilityHelper::m_memberPosition

private

Position allocator for use as member position allocator.

Definition at line 284 of file group-mobility-helper.h.

Referenced by Install(), and SetMemberPositionAllocator().

◆ m_referenceMobility

Ptr<MobilityModel> ns3::GroupMobilityHelper::m_referenceMobility

private

Reference mobility model.

Definition at line 281 of file group-mobility-helper.h.

Referenced by Install(), and SetReferenceMobilityModel().

◆ m_referencePosition

Ptr<PositionAllocator> ns3::GroupMobilityHelper::m_referencePosition

private

Position allocator for use as reference position allocator.

Definition at line 282 of file group-mobility-helper.h.

Referenced by Install(), and SetReferencePositionAllocator().

◆ m_referencePositionSet

bool ns3::GroupMobilityHelper::m_referencePositionSet {false}

private

flag for avoiding multiple SetPosition calls on the reference model

Definition at line 280 of file group-mobility-helper.h.

Referenced by Install().

The documentation for this class was generated from the following files:

src/mobility/helper/group-mobility-helper.h
src/mobility/helper/group-mobility-helper.cc

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ GroupMobilityHelper()

◆ ~GroupMobilityHelper()

Member Function Documentation

◆ AssignStreams()

◆ Install() [1/3]

◆ Install() [2/3]

◆ Install() [3/3]

◆ SetMemberMobilityModel()

◆ SetMemberPositionAllocator() [1/2]

◆ SetMemberPositionAllocator() [2/2]

◆ SetReferenceMobilityModel() [1/2]

◆ SetReferenceMobilityModel() [2/2]

◆ SetReferencePositionAllocator() [1/2]

◆ SetReferencePositionAllocator() [2/2]

Member Data Documentation

◆ m_memberMobilityFactory

◆ m_memberPosition

◆ m_referenceMobility

◆ m_referencePosition

◆ m_referencePositionSet
