GTP-C Delete Bearer Response Message. More...

#include "epc-gtpc-header.h"

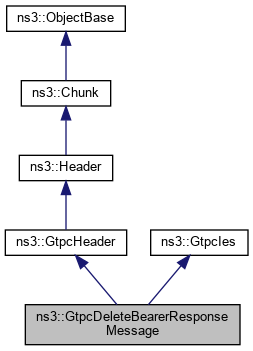

Inheritance diagram for ns3::GtpcDeleteBearerResponseMessage:

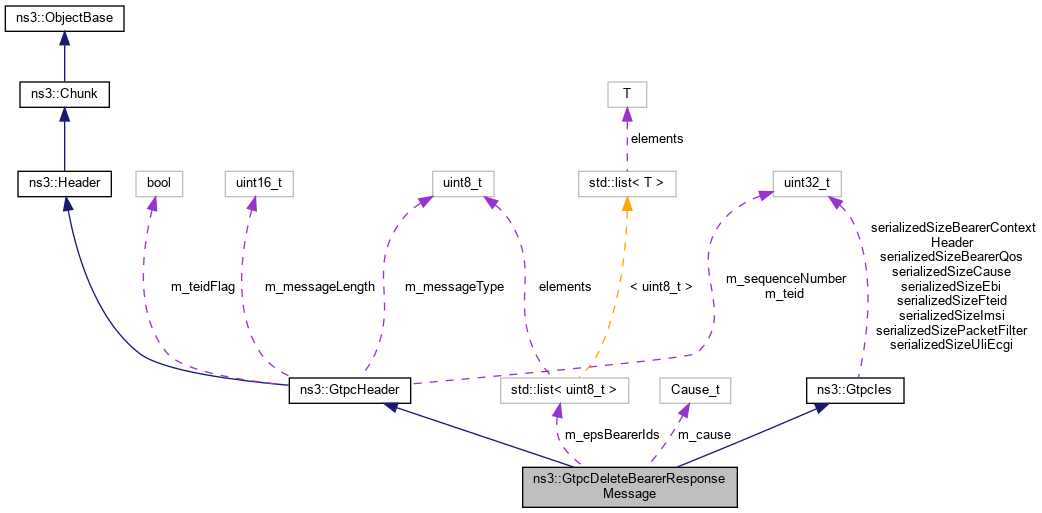

Collaboration diagram for ns3::GtpcDeleteBearerResponseMessage:

Public Member Functions
	GtpcDeleteBearerResponseMessage ()

virtual	~GtpcDeleteBearerResponseMessage ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

Cause_t	GetCause () const
	Get the Cause. More...

std::list< uint8_t >	GetEpsBearerIds () const
	Get the Bearers IDs. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

virtual uint32_t	GetMessageSize (void) const
	Get the message size. More...

virtual uint32_t	GetSerializedSize (void) const

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetCause (Cause_t cause)
	Set the Cause. More...

void	SetEpsBearerIds (std::list< uint8_t > epsBearerIds)
	Set the Bearers IDs. More...

Public Member Functions inherited from ns3::GtpcHeader
	GtpcHeader ()

virtual	~GtpcHeader ()

void	ComputeMessageLength (void)
	Compute the message length according to the message type. More...

uint16_t	GetMessageLength () const
	Get message length. More...

uint8_t	GetMessageType () const
	Get message type. More...

uint32_t	GetSequenceNumber () const
	Get sequence number. More...

uint32_t	GetTeid () const
	Get TEID. More...

void	SetIesLength (uint16_t iesLength)
	Set IEs length. More...

void	SetMessageLength (uint16_t messageLength)
	Set message length. More...

void	SetMessageType (uint8_t messageType)
	Set message type. More...

void	SetSequenceNumber (uint32_t sequenceNumber)
	Set sequence number. More...

void	SetTeid (uint32_t teid)
	Set TEID. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Public Member Functions inherited from ns3::GtpcIes
uint32_t	DeserializeBearerContextHeader (Buffer::Iterator &i, uint16_t &length)
	Deserialize the Bearer Context Header. More...

uint32_t	DeserializeBearerQos (Buffer::Iterator &i, EpsBearer &bearerQos)
	Deserialize the eps Bearer QoS. More...

uint32_t	DeserializeBearerTft (Buffer::Iterator &i, Ptr< EpcTft > epcTft)
	Deserialize the Bearer TFT. More...

uint32_t	DeserializeCause (Buffer::Iterator &i, Cause_t &cause)
	Deserialize the Cause. More...

uint32_t	DeserializeEbi (Buffer::Iterator &i, uint8_t &epsBearerId)
	Deserialize the eps Bearer Id. More...

uint32_t	DeserializeFteid (Buffer::Iterator &i, GtpcHeader::Fteid_t &fteid)
	Deserialize the Fteid. More...

uint32_t	DeserializeImsi (Buffer::Iterator &i, uint64_t &imsi)
	Deserialize the IMSI. More...

uint32_t	DeserializeUliEcgi (Buffer::Iterator &i, uint32_t &uliEcgi)
	Deserialize the UliEcgi. More...

uint32_t	GetSerializedSizeBearerTft (std::list< EpcTft::PacketFilter > packetFilters) const

uint64_t	ReadNtohU40 (Buffer::Iterator &i)

void	SerializeBearerContextHeader (Buffer::Iterator &i, uint16_t length) const
	Serialize the Bearer Context Header. More...

void	SerializeBearerQos (Buffer::Iterator &i, EpsBearer bearerQos) const
	Serialize the eps Bearer QoS. More...

void	SerializeBearerTft (Buffer::Iterator &i, std::list< EpcTft::PacketFilter > packetFilters) const
	Serialize the Bearer TFT. More...

void	SerializeCause (Buffer::Iterator &i, Cause_t cause) const
	Serialize the Cause. More...

void	SerializeEbi (Buffer::Iterator &i, uint8_t epsBearerId) const
	Serialize the eps Bearer Id. More...

void	SerializeFteid (Buffer::Iterator &i, GtpcHeader::Fteid_t fteid) const
	Serialize the Fteid_t. More...

void	SerializeImsi (Buffer::Iterator &i, uint64_t imsi) const
	Serialize the IMSI. More...

void	SerializeUliEcgi (Buffer::Iterator &i, uint32_t uliEcgi) const
	Serialize the UliEcgi. More...

void	WriteHtonU40 (Buffer::Iterator &i, uint64_t data) const

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::GtpcHeader
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Cause_t	m_cause
	Cause. More...

std::list< uint8_t >	m_epsBearerIds
	Container of Bearers IDs. More...

Additional Inherited Members
Public Types inherited from ns3::GtpcHeader
enum	InterfaceType_t { S1U_ENB_GTPU = 0 , S5_SGW_GTPU = 4 , S5_PGW_GTPU = 5 , S5_SGW_GTPC = 6 , S5_PGW_GTPC = 7 , S11_MME_GTPC = 10 }
	Interface Type enumeration. More...

enum	MessageType_t { Reserved = 0 , CreateSessionRequest = 32 , CreateSessionResponse = 33 , ModifyBearerRequest = 34 , ModifyBearerResponse = 35 , DeleteSessionRequest = 36 , DeleteSessionResponse = 37 , DeleteBearerCommand = 66 , DeleteBearerRequest = 99 , DeleteBearerResponse = 100 }
	Message Type enumeration. More...

Public Types inherited from ns3::GtpcIes
enum	Cause_t { RESERVED = 0 , REQUEST_ACCEPTED = 16 }
	Cause. More...

Public Attributes inherited from ns3::GtpcIes
const uint32_t	serializedSizeBearerContextHeader = 4
	Fteid serialized size. More...

const uint32_t	serializedSizeBearerQos = 26
	Bearer QoS serialized size. More...

const uint32_t	serializedSizeCause = 6
	Cause serialized size. More...

const uint32_t	serializedSizeEbi = 5
	EBI serialized size. More...

const uint32_t	serializedSizeFteid = 13
	Fteid serialized size. More...

const uint32_t	serializedSizeImsi = 12
	IMSI serialized size. More...

const uint32_t	serializedSizePacketFilter = 3 + 9 + 9 + 5 + 5 + 3
	Packet filter serialized size. More...

const uint32_t	serializedSizeUliEcgi = 12
	UliEcgi serialized size. More...

Protected Member Functions inherited from ns3::GtpcHeader
uint32_t	PreDeserialize (Buffer::Iterator &i)
	Deserialize the GTP-C header in the GTP-C messages. More...

void	PreSerialize (Buffer::Iterator &i) const
	Serialize the GTP-C header in the GTP-C messages. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

GTP-C Delete Bearer Response Message.

Definition at line 702 of file epc-gtpc-header.h.

Constructor & Destructor Documentation

◆ GtpcDeleteBearerResponseMessage()

ns3::GtpcDeleteBearerResponseMessage::GtpcDeleteBearerResponseMessage ( )

Definition at line 1194 of file epc-gtpc-header.cc.

References ns3::GtpcHeader::DeleteBearerResponse, ns3::GtpcHeader::SetMessageType(), and ns3::GtpcHeader::SetSequenceNumber().

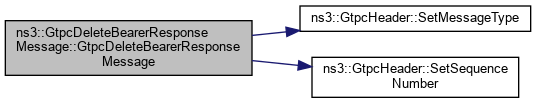

Here is the call graph for this function:

◆ ~GtpcDeleteBearerResponseMessage()

ns3::GtpcDeleteBearerResponseMessage::~GtpcDeleteBearerResponseMessage ( )

virtual

Definition at line 1200 of file epc-gtpc-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::GtpcDeleteBearerResponseMessage::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Reimplemented from ns3::GtpcHeader.

Definition at line 1238 of file epc-gtpc-header.cc.

References ns3::GtpcIes::DeserializeCause(), ns3::GtpcIes::DeserializeEbi(), ns3::Buffer::Iterator::GetRemainingSize(), GetSerializedSize(), m_cause, m_epsBearerIds, ns3::GtpcHeader::PreDeserialize(), and visualizer.core::start().

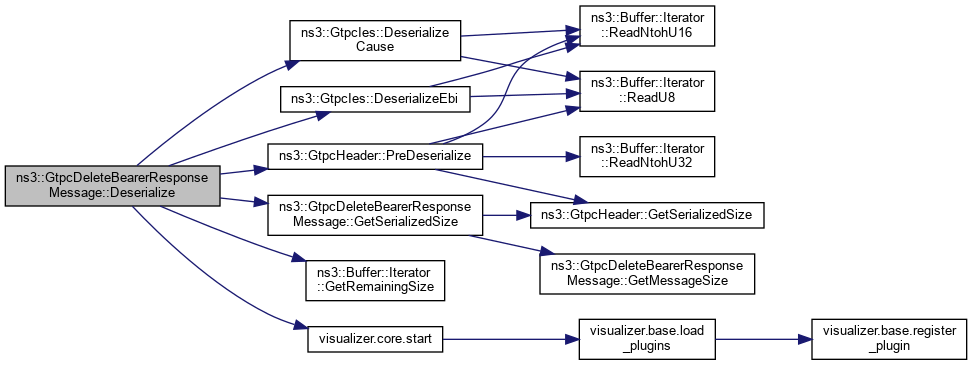

Here is the call graph for this function:

◆ GetCause()

GtpcDeleteBearerResponseMessage::Cause_t ns3::GtpcDeleteBearerResponseMessage::GetCause ( ) const

Get the Cause.

Returns: the Cause

Definition at line 1267 of file epc-gtpc-header.cc.

References m_cause.

◆ GetEpsBearerIds()

std::list< uint8_t > ns3::GtpcDeleteBearerResponseMessage::GetEpsBearerIds ( ) const

Get the Bearers IDs.

Returns: a container of Bearers IDs

Definition at line 1279 of file epc-gtpc-header.cc.

References m_epsBearerIds.

Referenced by ns3::EpcPgwApplication::DoRecvDeleteBearerResponse(), and ns3::EpcSgwApplication::DoRecvDeleteBearerResponse().

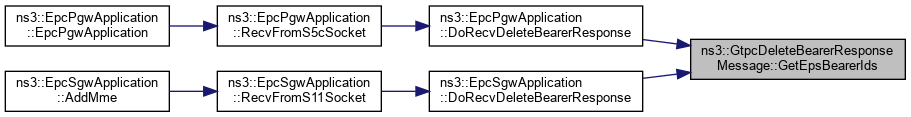

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::GtpcDeleteBearerResponseMessage::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Reimplemented from ns3::GtpcHeader.

Definition at line 1205 of file epc-gtpc-header.cc.

References GetTypeId().

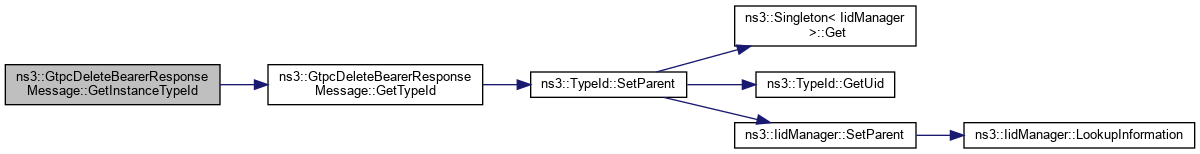

Here is the call graph for this function:

◆ GetMessageSize()

uint32_t ns3::GtpcDeleteBearerResponseMessage::GetMessageSize ( void ) const

virtual

Get the message size.

Subclasses are supposed to have a message size greater than zero.

Returns: the message size

Reimplemented from ns3::GtpcHeader.

Definition at line 1211 of file epc-gtpc-header.cc.

References m_epsBearerIds, ns3::GtpcIes::serializedSizeCause, and ns3::GtpcIes::serializedSizeEbi.

Referenced by GetSerializedSize().

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::GtpcDeleteBearerResponseMessage::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Reimplemented from ns3::GtpcHeader.

Definition at line 1218 of file epc-gtpc-header.cc.

References GetMessageSize(), and ns3::GtpcHeader::GetSerializedSize().

Referenced by Deserialize().

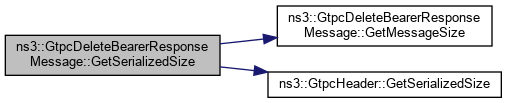

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::GtpcDeleteBearerResponseMessage::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 1185 of file epc-gtpc-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

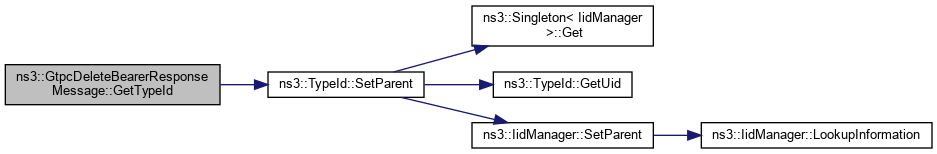

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::GtpcDeleteBearerResponseMessage::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Reimplemented from ns3::GtpcHeader.

Definition at line 1256 of file epc-gtpc-header.cc.

References m_cause, and m_epsBearerIds.

◆ Serialize()

void ns3::GtpcDeleteBearerResponseMessage::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Reimplemented from ns3::GtpcHeader.

Definition at line 1224 of file epc-gtpc-header.cc.

References m_cause, m_epsBearerIds, ns3::GtpcHeader::PreSerialize(), ns3::GtpcIes::SerializeCause(), ns3::GtpcIes::SerializeEbi(), and visualizer.core::start().

Here is the call graph for this function:

◆ SetCause()

void ns3::GtpcDeleteBearerResponseMessage::SetCause ( GtpcDeleteBearerResponseMessage::Cause_t cause )

Set the Cause.

Parameters

cause The cause

Definition at line 1273 of file epc-gtpc-header.cc.

References m_cause.

◆ SetEpsBearerIds()

void ns3::GtpcDeleteBearerResponseMessage::SetEpsBearerIds ( std::list< uint8_t > epsBearerIds )

Set the Bearers IDs.

Parameters

epsBearerIds The container of Bearers IDs

Definition at line 1285 of file epc-gtpc-header.cc.

References m_epsBearerIds.

Referenced by ns3::EpcMmeApplication::DoRecvDeleteBearerRequest(), and ns3::EpcSgwApplication::DoRecvDeleteBearerResponse().

Here is the caller graph for this function:

Member Data Documentation

◆ m_cause

Cause_t ns3::GtpcDeleteBearerResponseMessage::m_cause

private

Cause.

Definition at line 742 of file epc-gtpc-header.h.

Referenced by Deserialize(), GetCause(), Print(), Serialize(), and SetCause().

◆ m_epsBearerIds

std::list<uint8_t> ns3::GtpcDeleteBearerResponseMessage::m_epsBearerIds

private

Container of Bearers IDs.

Definition at line 743 of file epc-gtpc-header.h.

Referenced by Deserialize(), GetEpsBearerIds(), GetMessageSize(), Print(), Serialize(), and SetEpsBearerIds().

The documentation for this class was generated from the following files:

src/lte/model/epc-gtpc-header.h
src/lte/model/epc-gtpc-header.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ GtpcDeleteBearerResponseMessage()

◆ ~GtpcDeleteBearerResponseMessage()

Member Function Documentation

◆ Deserialize()

◆ GetCause()

◆ GetEpsBearerIds()

◆ GetInstanceTypeId()

◆ GetMessageSize()

◆ GetSerializedSize()

◆ GetTypeId()

◆ Print()

◆ Serialize()

◆ SetCause()

◆ SetEpsBearerIds()

Member Data Documentation

◆ m_cause

◆ m_epsBearerIds
